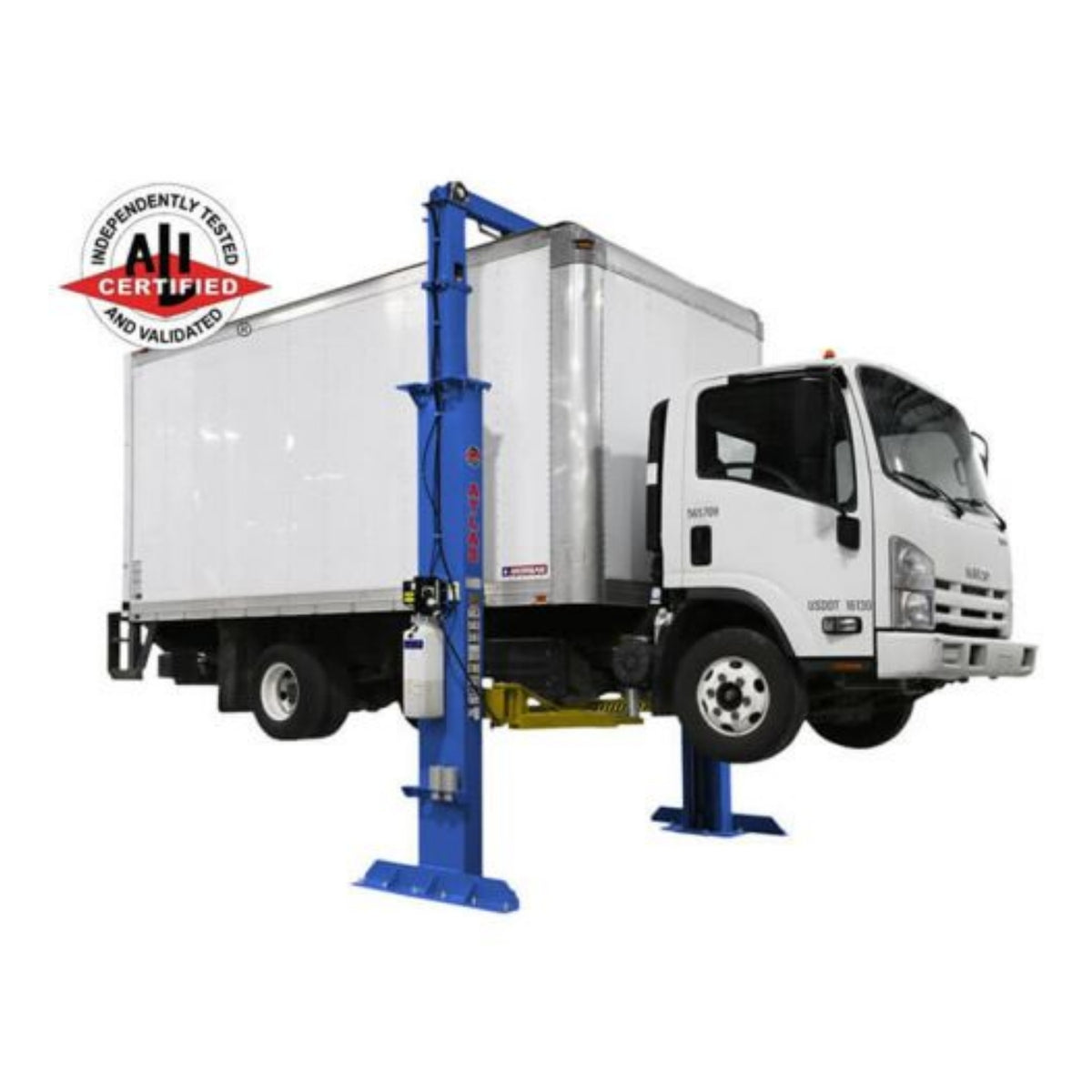

Atlas® Platinum PVL15 15,000 lb 2-Post Lift #ATEAP-PVL15-FPD

Atlas Platinum PVL15 — 15,000 lb ALI-Certified 2-Post Lift

A 10,000 lb two-post is the standard answer right up until the fleet shows up in service trucks — and then every lift is doing math it was never rated for. The Atlas Platinum PVL15 is built for that fleet: a 15,000 lb overhead two-post, ALI certified to ANSI/ALI ALCTV (stated on the manufacturer's own page and verifiable at autolift.org), aimed squarely at long-wheelbase trucks and service trucks.

It runs on dual direct-drive hydraulic cylinders — no chains — fed by an ALLY AL2300 power unit that's MET Laboratories certified for US and Canadian electrical compliance, with padded carriages, symmetric arms, a professional-grade arm lock restraint system, and heavy 3/8" equalization cables. With adapters, it reaches 87 1/2 inches — and an optional Height Extension Kit stretches the columns two more feet for tall vehicles.

Who the Atlas Platinum PVL15 Is Built For

• Fleet and HD shops lifting long-wheelbase trucks and service trucks — the manufacturer's stated application for the PVL15, at 15,000 lbs of Platinum-line capacity.
• Shops where the ALI certification question comes up — PVL15 is certified to ANSI/ALI ALCTV, stated on the manufacturer's page and verifiable at autolift.org.
• Techs who prefer direct drive — dual direct-drive hydraulic cylinders mean no chains to stretch, grease, or re-tension; the equalization comes from 3/8" cables instead.
• Bays with tall-vehicle work — 87 1/2" of lift height with adapters, and an optional 2-foot Height Extension Kit when the fleet includes lifted trucks or vans.
• Bays already verified for 6" of 3,000 psi concrete and 220V single-phase 30A — the infrastructure a 15K two-post demands.

What the Atlas Platinum PVL15 Is NOT Built For

This is not a lift for low ceilings — 174 1/2 inches of column (before the extension kit) is a serious height commitment, and a bay that can't carry it should look at the Platinum 4-post line instead. It's not for anything over 15,000 lbs, not for hobbyist budgets, and not for alignment work.

Important sizing note: measure ceiling against the 174 1/2" columns (plus 2 ft if you plan the extension kit) plus vehicle height at full rise, floor width (148"), and confirm wheelbase and loaded weight before purchase.

What Makes the Atlas Platinum PVL15 Different

Direct drive — no chains

Dual direct-drive hydraulic cylinders do the lifting without a chain-drive system — one less wear item to service on a lift that sees fleet duty every day.

ALLY AL2300 power unit

MET Laboratories certified for US and Canadian electrical compliance, and covered by the Platinum line's two-year limited power unit warranty on top of the lift's coverage.

Built for the truck end of the fleet

Symmetric arms, padded carriages, a professional-grade arm lock restraint system, heavy 3/8" equalization cables, and a free 8-piece truck adapter set plus 4 screw-up frame adapters — the kit that makes service trucks a routine spot.

Best For

• Long-wheelbase trucks & service trucks
• Shops specifying ALI certification
• Direct-drive preference (no chains)
• Tall-vehicle bays (ext. kit available)

Not Ideal For

• Low-ceiling bays
• Hobbyist budgets
• Vehicles over 15,000 lbs
• Alignment work

Atlas Platinum PVL15 vs the Platinum 4-post

Both Platinum, both ALI-certified — the PVL15 puts wheels in the air at the arms; the PVL14 drives on and adds a bridge jack.

Full Specifications - Atlas Platinum PVL15

Atlas® Platinum Warranty - Atlas Platinum PVL15

The Platinum two-post carries the full Platinum warranty — structure, hydraulics, and the ALLY power unit each covered separately, handled through Alamo.

Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.

Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
