Atlas® 9,000 lb Baseplate 2-Post Lift #ATEXH-TPF-9-FPD

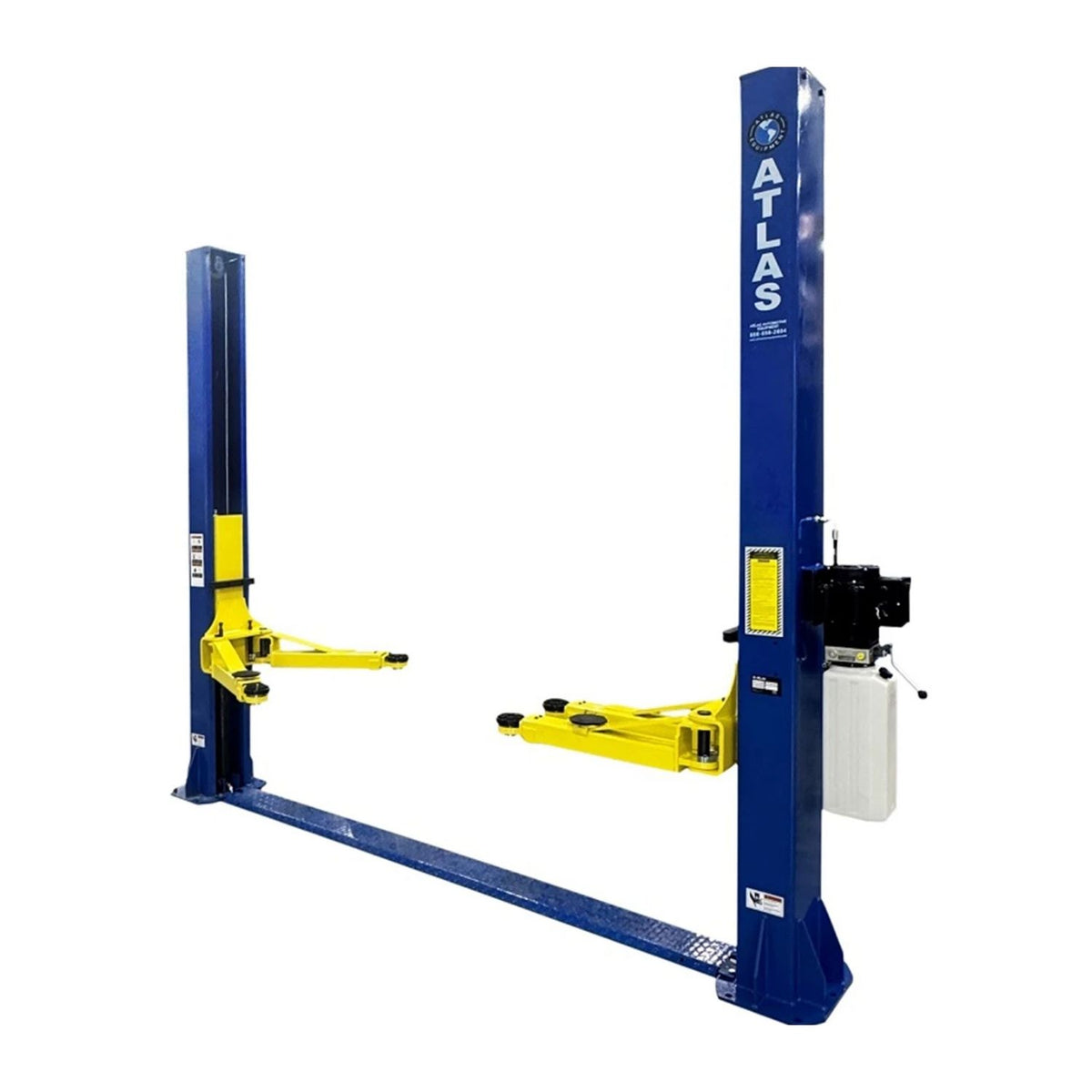

Atlas TPF-9 — 9,000 lb Baseplate (Open-Top) 2-Post Lift

An overhead two-post doesn't care that your shop has a 10-foot ceiling — the beam is the problem, and the ceiling isn't moving. The Atlas TPF-9 is the baseplate, open-top answer: a 9,000 lb symmetric two-post with no crossbeam overhead, standing 111 1/2 inches so a low bay still gets a full 76 1/2-inch working rise (79 1/2 with adapters).

The floor plate carries the equalization instead of a top beam, so everything the ceiling would have blocked is at floor level — and the lift keeps the safety kit that matters: a spring-loaded Secondary Lock System, automatic arm restraints, and dual-point lock release.

Who the Atlas TPF-9 Is Built For

• Shops with low ceilings — 111 1/2" of column height fits the 9–10 ft bays that overhead-beam two-posts can't enter, no building modifications required.
• General-service bays on sedans, SUVs, and 3/4-ton pickups — 9,000 lbs with symmetric arms and a 98 1/2" drive-thru for the daily vehicle mix.

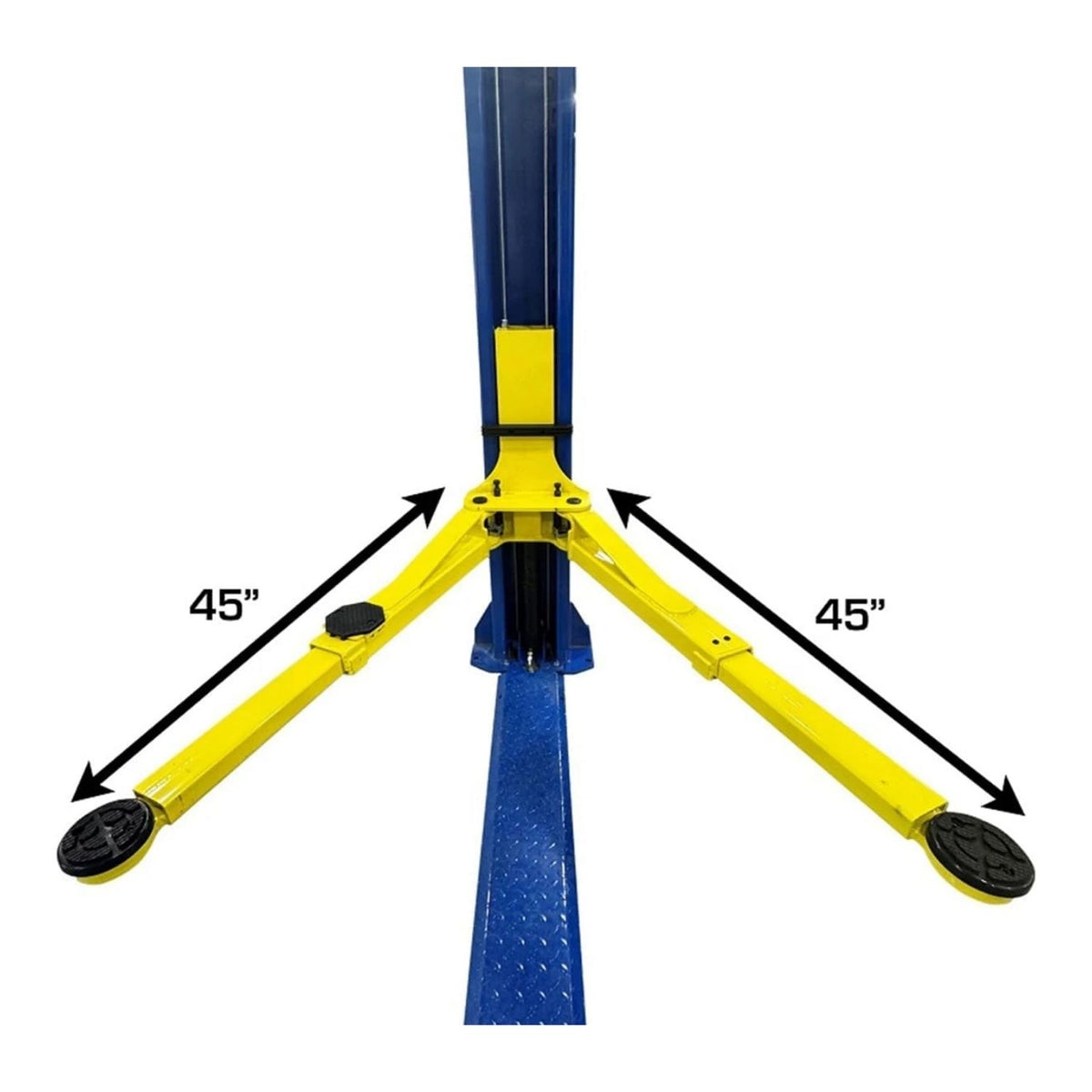

• Techs who spot symmetric and want it to stay that way — symmetric columns and arms on every lift point, with automatic arm restraints that engage on rise.
• Shops that value the safety kit — the spring-loaded Secondary Lock System (SLS) plus dual-point lock release is real redundancy, not a marketing line.
• Bays already verified for the install — 4" of 3,000 psi concrete and 220V single-phase on a 30 amp breaker — so the TPF-9 drops into a bay that's ready.

What the Atlas TPF-9 Is NOT Built For

This is not the lift for shops needing maximum under-lift clearance — the baseplate means floor-level hardware where an overhead design keeps the floor clear (see the TPO-9 for that trade). It's also not for anything over 9,000 lbs, not for ceilings so low that 111 1/2" plus a raised vehicle won't clear, and not for alignment work.

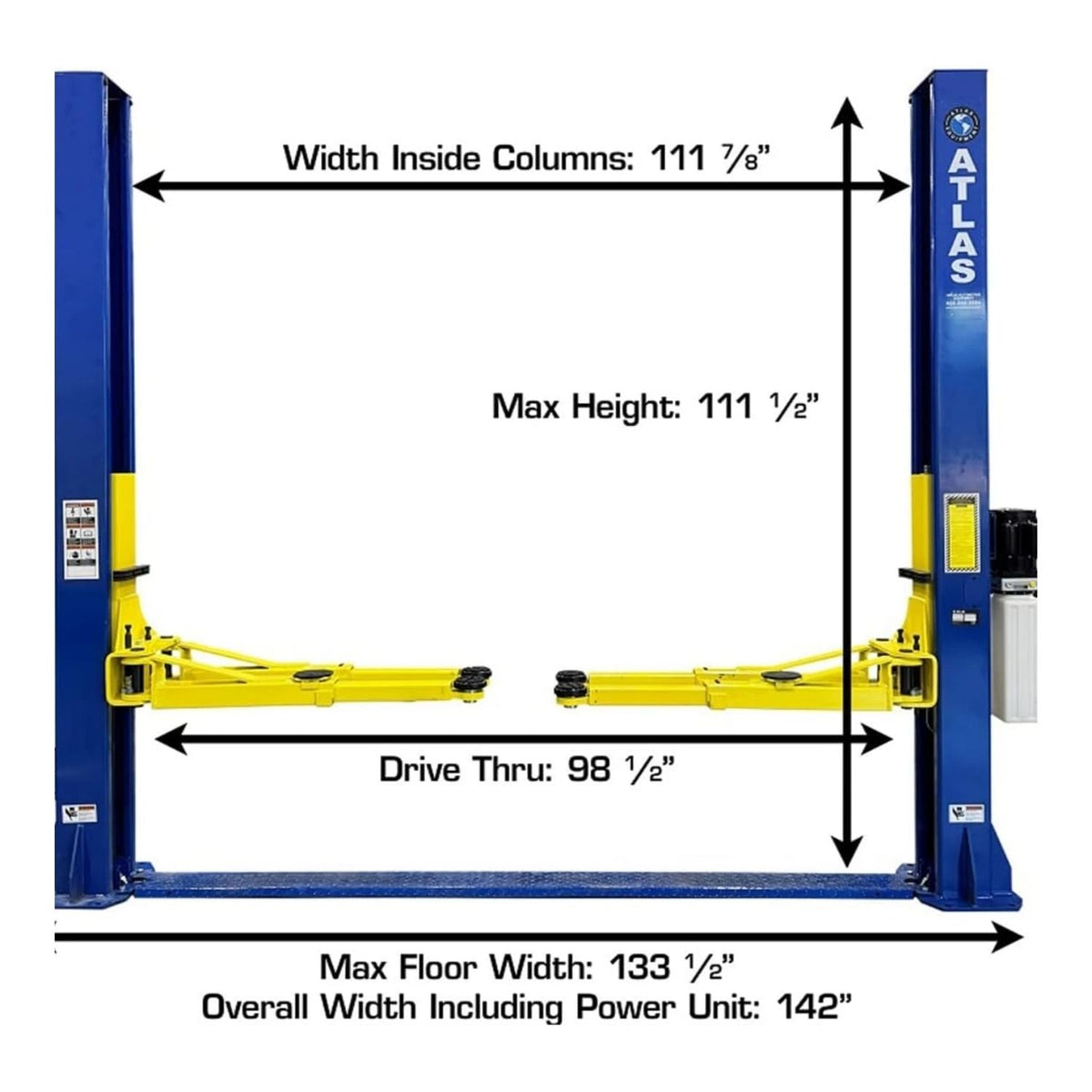

Important sizing note: measure ceiling against the 111 1/2" columns plus vehicle height at full rise, floor width (133 1/2"), and confirm loaded weight before purchase.

What Makes the Atlas TPF-9 Different

Open top — the low-ceiling two-post

No overhead beam: the columns stand 111 1/2" tall and the floor plate handles equalization, which is the whole reason this lift exists.

• 111 1/2" overall height
• Baseplate / open-top design
• 76 1/2" rise (79 1/2" with adapters)

Safety kit that earns its keep

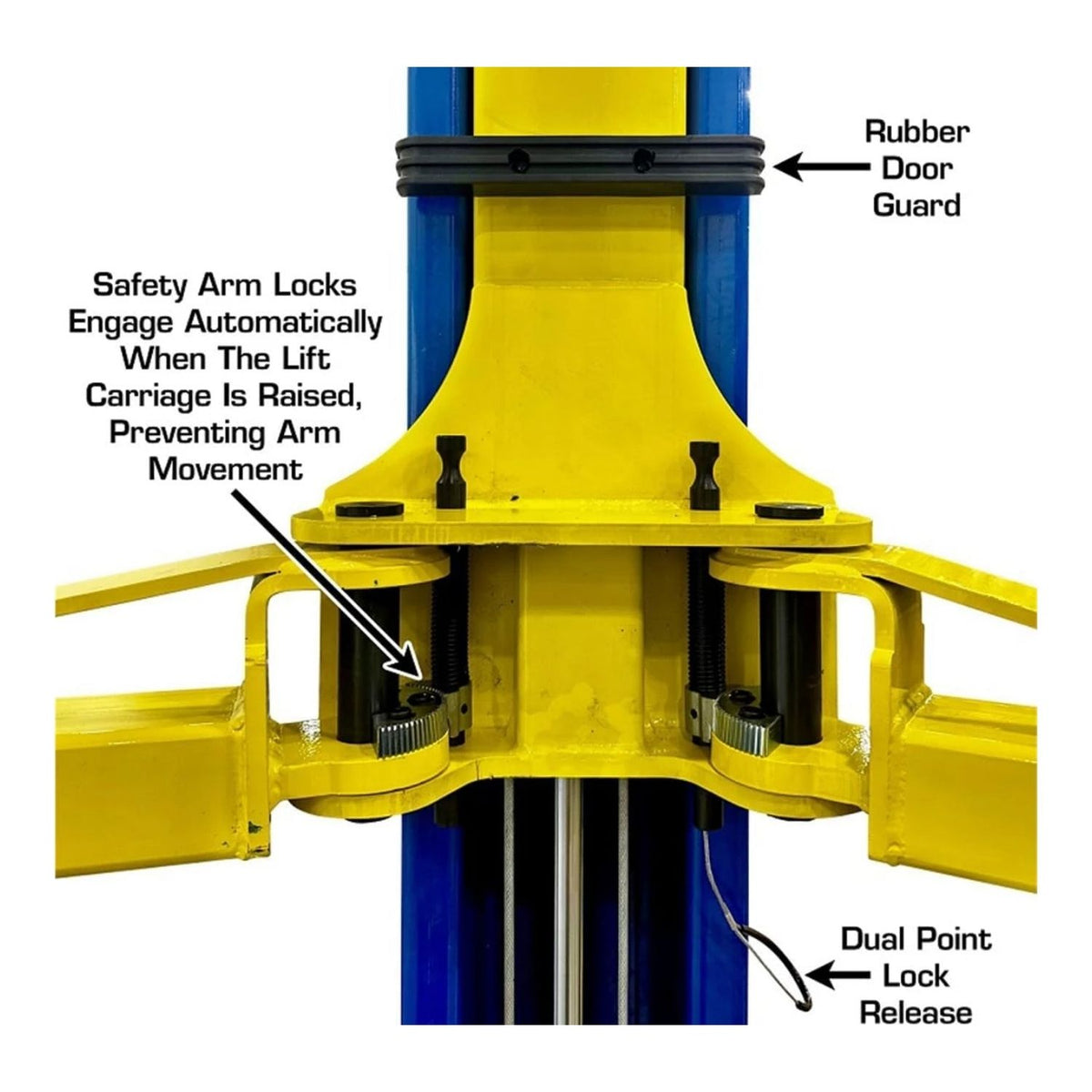

Spring-loaded Secondary Lock System, automatic arm restraints, and dual-point lock release — the features that keep a 9,000 lb load predictable.

Comes ready to work

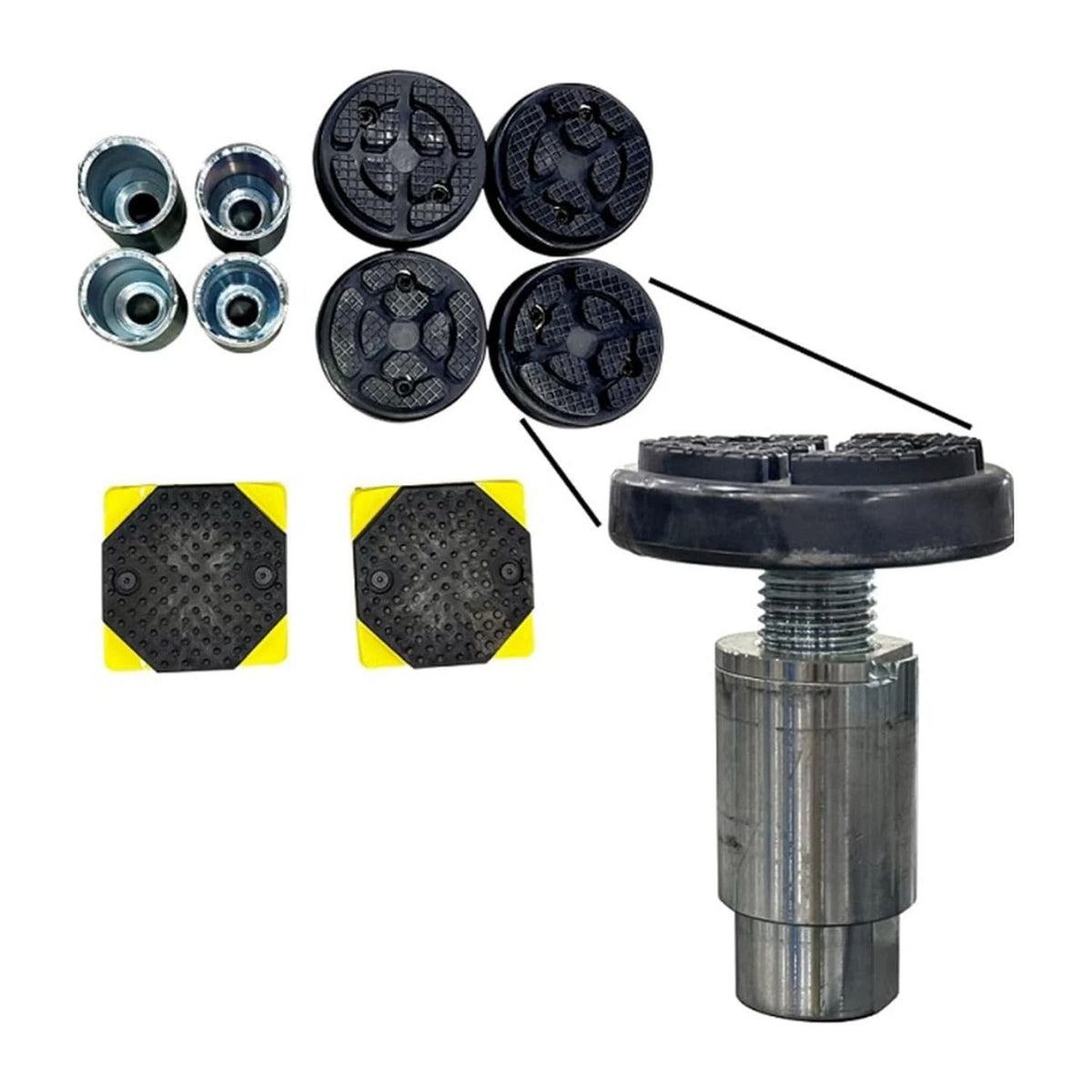

Adjustable screw-up adapters, a free 4-piece truck adapter set, free sliding arm adapters, and mounting hardware included — freight prepaid.

Best For

• Low-ceiling bays (9–10 ft)
• General service to 9,000 lbs
• Symmetric spotting
• Baseplate installations

Not Ideal For

• Shops needing clear-floor space (see TPO-9)
• Vehicles over 9,000 lbs
• Very low ceilings
• Alignment work

Atlas TPF-9 vs Atlas TPO-9 — same 9,000 lb platform, two ceiling answers

Same capacity, same safety kit — the choice is your ceiling: low bays take the TPF-9, tall bays get the clear floor of the TPO-9.

Full Specifications - Atlas TPF-9

Atlas® Automotive Equipment Warranty - Atlas TPF-9

Atlas covers the TPF-9 with the standard two-post warranty — structure and hydraulics, parts only, handled through Alamo.

Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.

Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
