Atlas® 9,000 lb Overhead 2-Post Lift #ATEXH-TPO-9-FPD

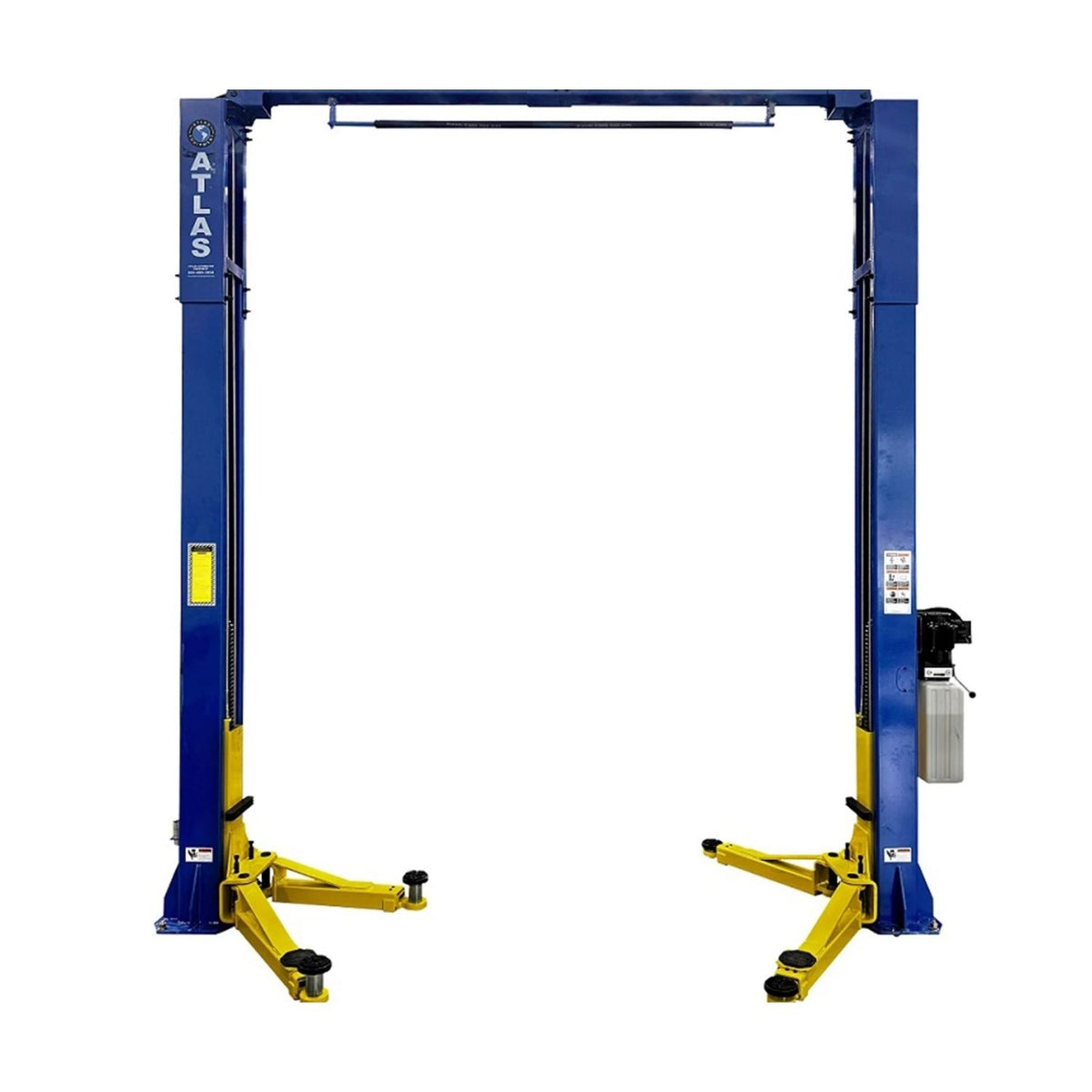

Atlas TPO-9 — 9,000 lb Overhead (Clear-Floor) 2-Post Lift

Cables and hydraulic lines across the floor turn a two-post bay into an obstacle course — carts catch, creepers stop, and containment pans live somewhere else. The Atlas TPO-9 is the clear-floor answer: a 9,000 lb overhead two-post whose 12-foot column set carries everything up top, leaving the floor beneath the vehicle completely clear.

The bay underneath becomes real workspace: 76 1/2 inches of rise (79 1/2 with adapters) puts the vehicle at working height with the spring-loaded Secondary Lock System and automatic arm restraints holding the load, and dual-point lock release keeping cycles quick.

Who the Atlas TPO-9 Is Built For

• Shops that want the floor back — the clear-floor overhead design leaves the space beneath the lifted vehicle free for carts, creepers, drain pans, and foot traffic.
• General-service bays on sedans, SUVs, and 3/4-ton pickups — 9,000 lbs of capacity on symmetric arms, with a 99 1/2" drive-thru width.
• Bays with 12-foot-plus ceilings — the 144" column set is the trade for the clear floor; if the ceiling can't take it, the TPF-9 baseplate is the low-bay answer.
• Techs who want the safety kit — spring-loaded Secondary Lock System (SLS), automatic arm restraints, dual-point lock release.

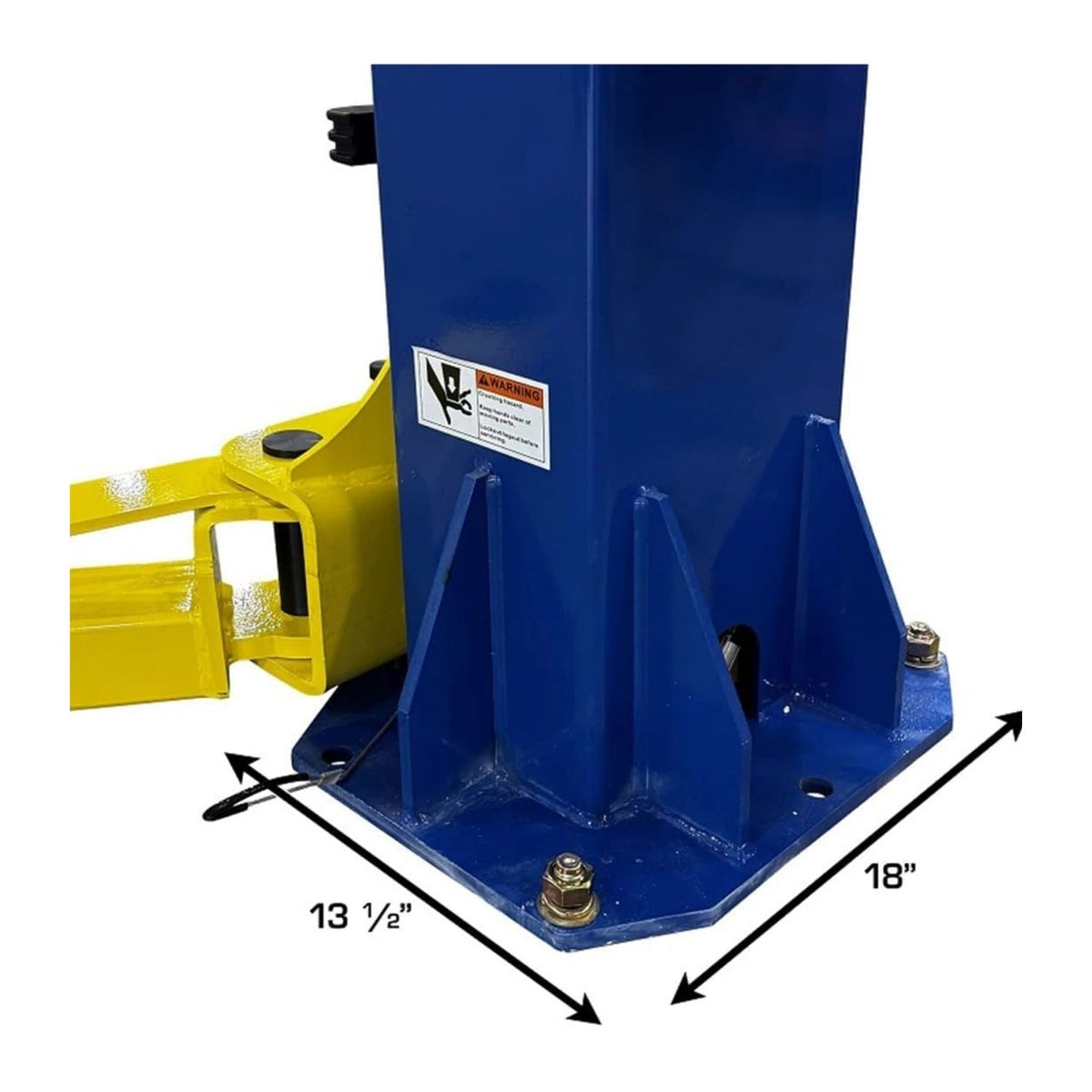

• Shops already verified for the install — 4" of 3,000 psi concrete and 220V single-phase on a 30 amp breaker.

What the Atlas TPO-9 Is NOT Built For

This is not the lift for low ceilings — 144 inches of column plus a raised vehicle needs real headroom, and a bay that can't give it belongs in the TPF-9 baseplate instead. It's also not for anything over 9,000 lbs or for alignment work.

Important sizing note: measure ceiling against the 144" columns plus vehicle height at full rise, floor width (133 1/2"), and confirm loaded weight before purchase.

What Makes the Atlas TPO-9 Different

Clear floor — the overhead advantage

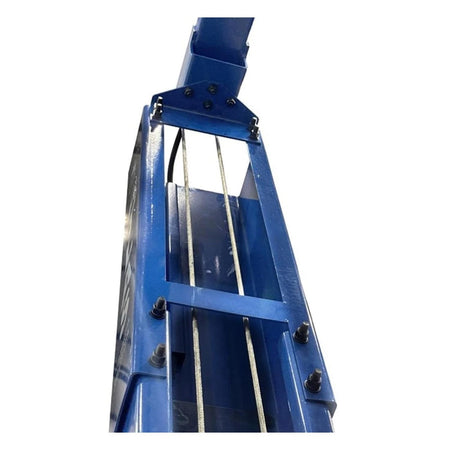

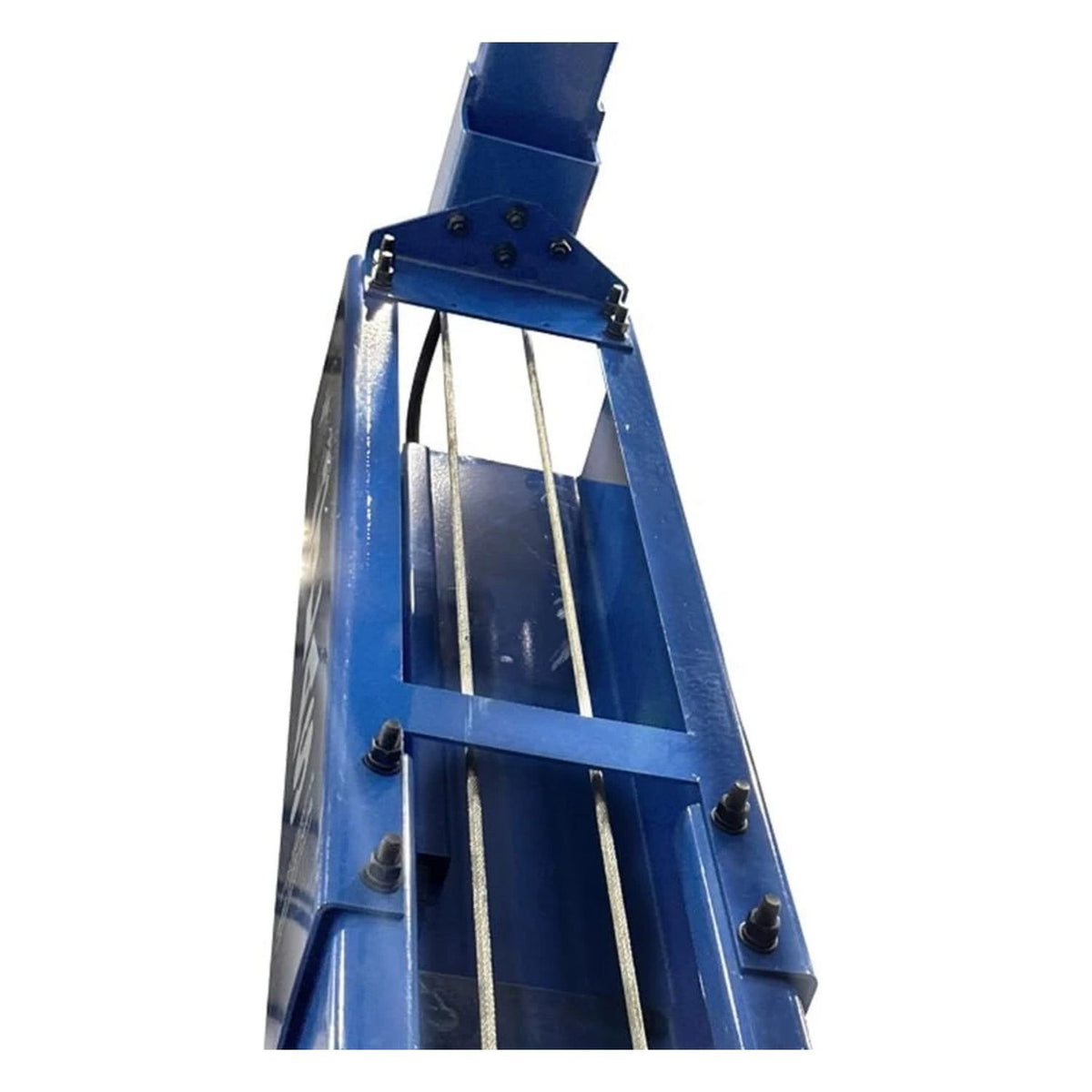

Everything rides the 12-foot column set: cables, hydraulics, and the beam — so the floor beneath the vehicle stays open for carts, pans, and people.

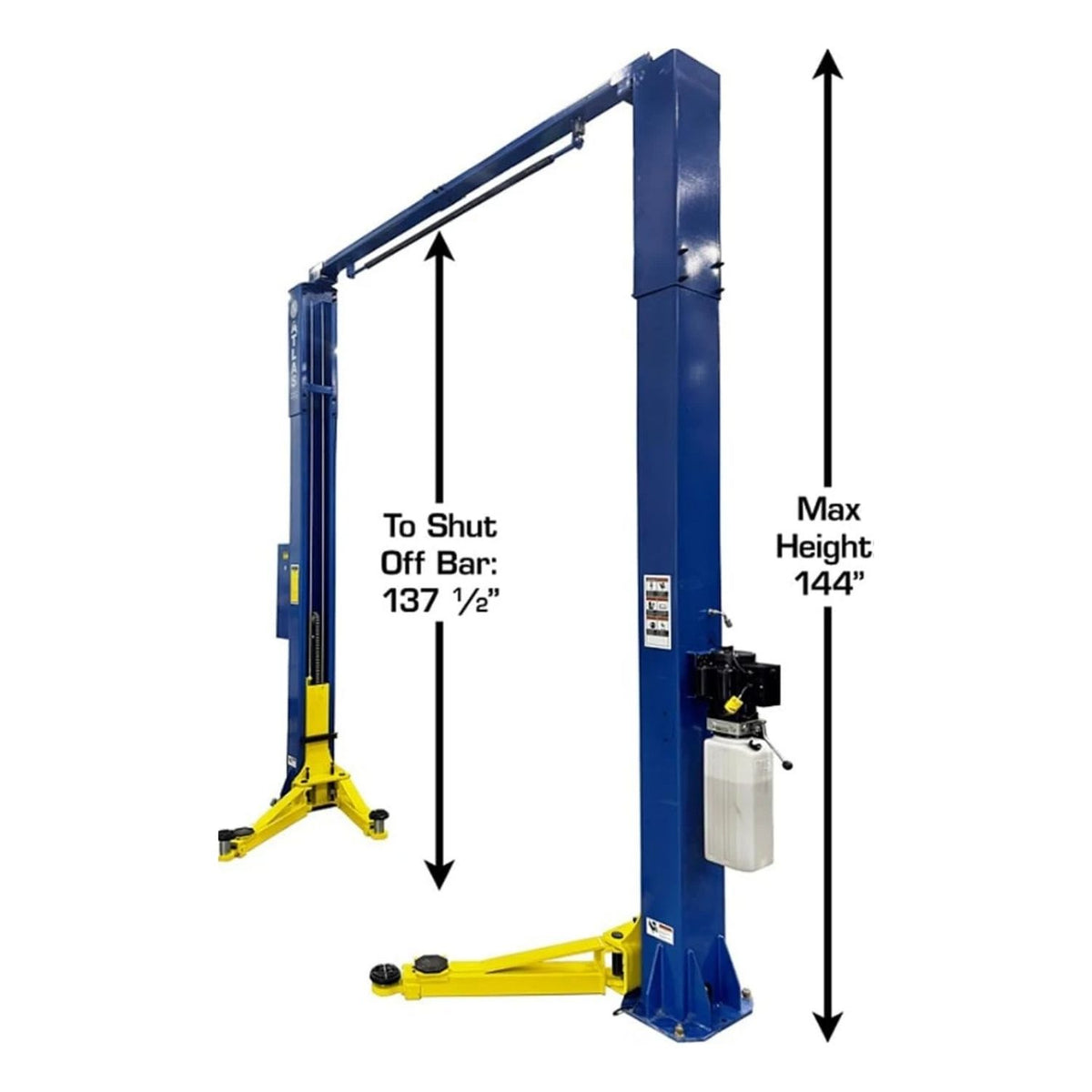

• 144" overall height (12')
• Clear-floor design
• 99 1/2" drive-thru

Safety kit that earns its keep

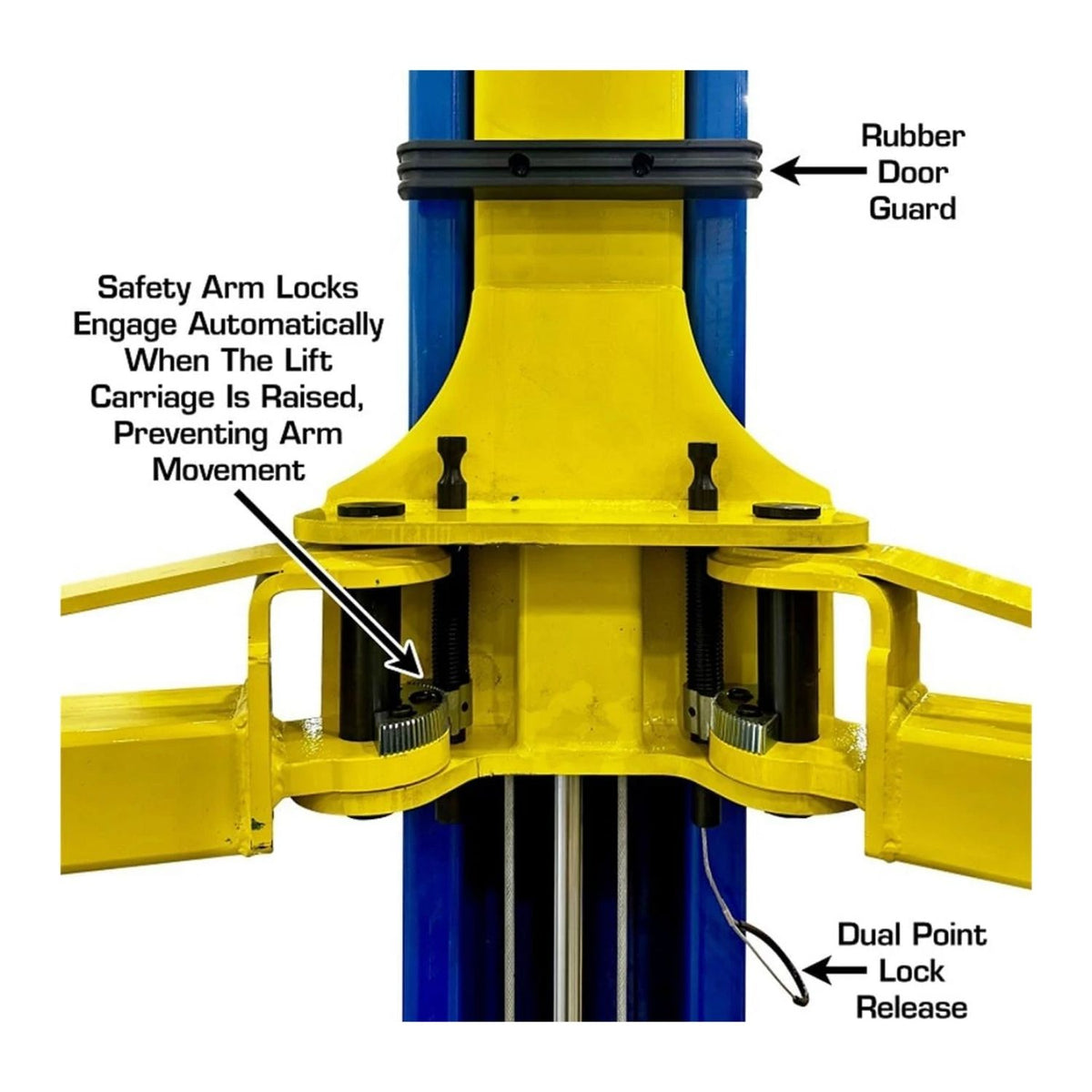

Spring-loaded Secondary Lock System, automatic arm restraints, and dual-point lock release — load-holding redundancy on every cycle.

Comes ready to work

Adjustable screw-up adapters, a free 4-piece truck adapter set, free sliding arm adapters, and mounting hardware included — freight prepaid.

Best For

• Clear-floor work space
• Bays with 12'+ ceilings
• General service to 9,000 lbs
• Symmetric spotting

Not Ideal For

• Low-ceiling bays (see TPF-9)
• Vehicles over 9,000 lbs
• Alignment work

Atlas TPO-9 vs Atlas TPF-9 — same 9,000 lb platform, two ceiling answers

Same capacity, same safety kit — tall bays get the clear floor; low bays get the TPF-9.

Full Specifications - Atlas TPO-9

Atlas® Automotive Equipment Warranty - Atlas TPO-9

Atlas covers the TPO-9 with the standard two-post warranty — structure and hydraulics, parts only, handled through Alamo.

Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.

Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
