Atlas® TTC229 Rim-Clamp Tire Changer w/ Bead Blaster #ATEATTC229-FPD
Couldn't load pickup availability
| Brand | Atlas® Automotive Equipment |
| Part Number | ATEATTC229-FPD |
| Dimensions | 42" L × 38" W × 30" H |
| UPC | 810524027069 |
| Country of Origin | China |
| Rim Compatibility | Steel, Aluminum, Alloy |
| External Locking Rim Range (3 positions) | 9 3/4"–21 5/8" / 10 3/4"–22 1/2" / 11 5/8"–23 1/4" |
| Internal Locking Rim Range (3 positions) | 11 5/8"–23 1/4" / 12 5/8"–24 1/4" / 13 1/2"–25 1/4" |

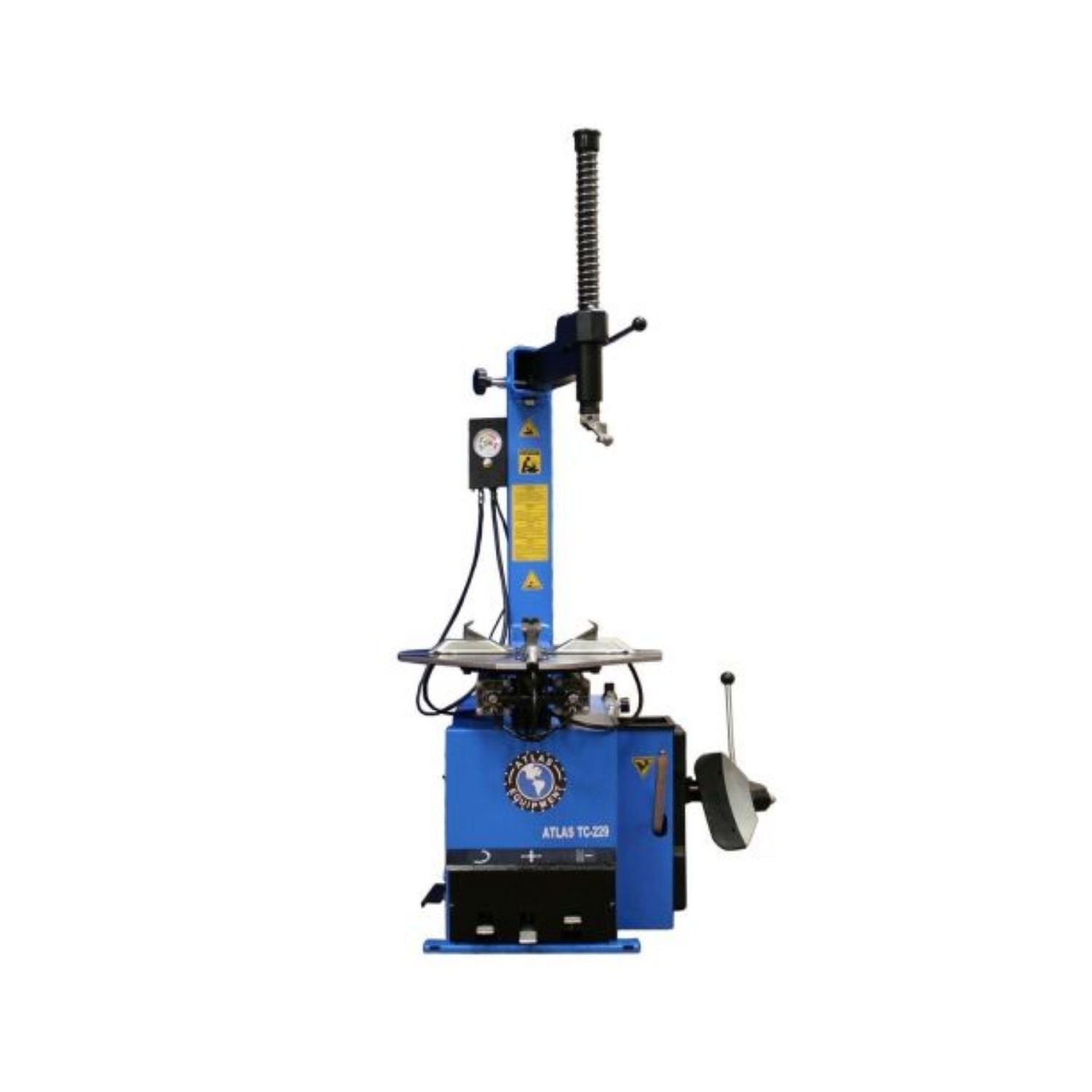

Atlas® TTC229 Rim-Clamp Tire Changer w/ Bead Blaster
Every shop eventually runs into the tire that won't seat cleanly no matter how much air pressure you throw at it — a low-profile sidewall, an aged bead, or a wheel that's been sitting. Without a beadblaster, that's extra time and a separate inflation cart just to finish the job.
The TTC229 solves that with a built-in beadblaster on the same proven rim-clamp/swing-arm platform as the entry-level TTC221 — same 5,500 lb. bead breaker force, same clamping range, but with the column-mounted inflator box built in so stubborn beads seat on the first try, not the third.
Who the TTC229 Is Built For
- Shops that regularly work low-profile, performance, or aged tires where standard bead breaker force alone isn't enough to seat the bead cleanly
- General repair and tire shops that want one machine to handle both routine work and the occasional stubborn tire, instead of stopping a job to fetch a separate inflation cart
- Shops where technician time matters — a built-in beadblaster saves the walk to a separate air station on every difficult tire
- Owners replacing an older changer that lacked bead-seating assistance and are tired of the extra labor stubborn tires require
- Facilities that also do motorcycle or ATV work on the side — the optional adapters extend this same machine to smaller wheels
- Shops on standard 110V power looking for a step up in capability without a 220V electrical upgrade
What the TTC229 Is NOT Built For
Shops on the tightest budget that don't need a built-in beadblaster — the TTC221 covers the same 23 1/4" rim range for $400 less
What Makes the TTC229 Different
Rim-Clamp / Swing-Arm Design

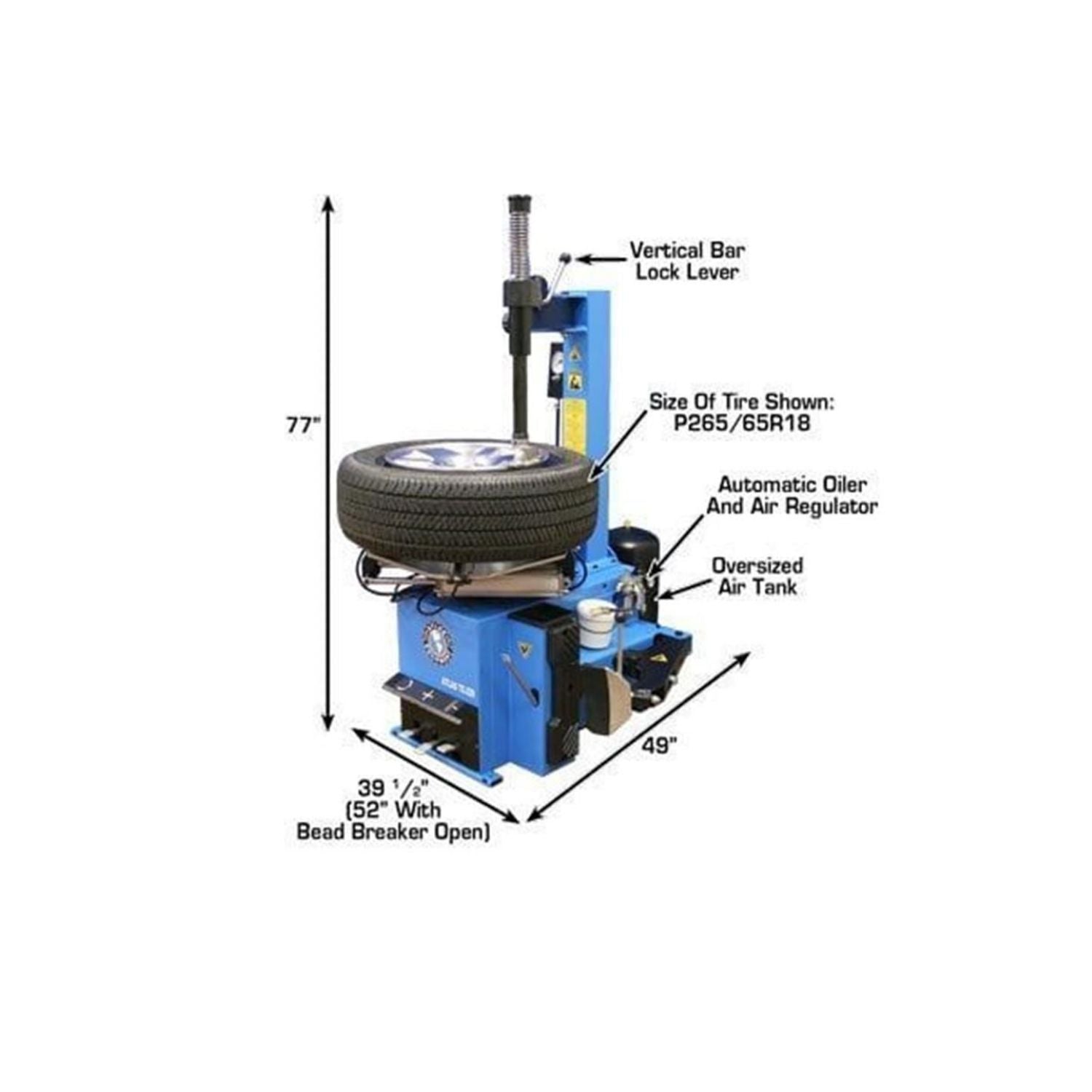

Compact 42"x38" footprint fits tight bays while still handling everyday passenger and light-truck wheels.

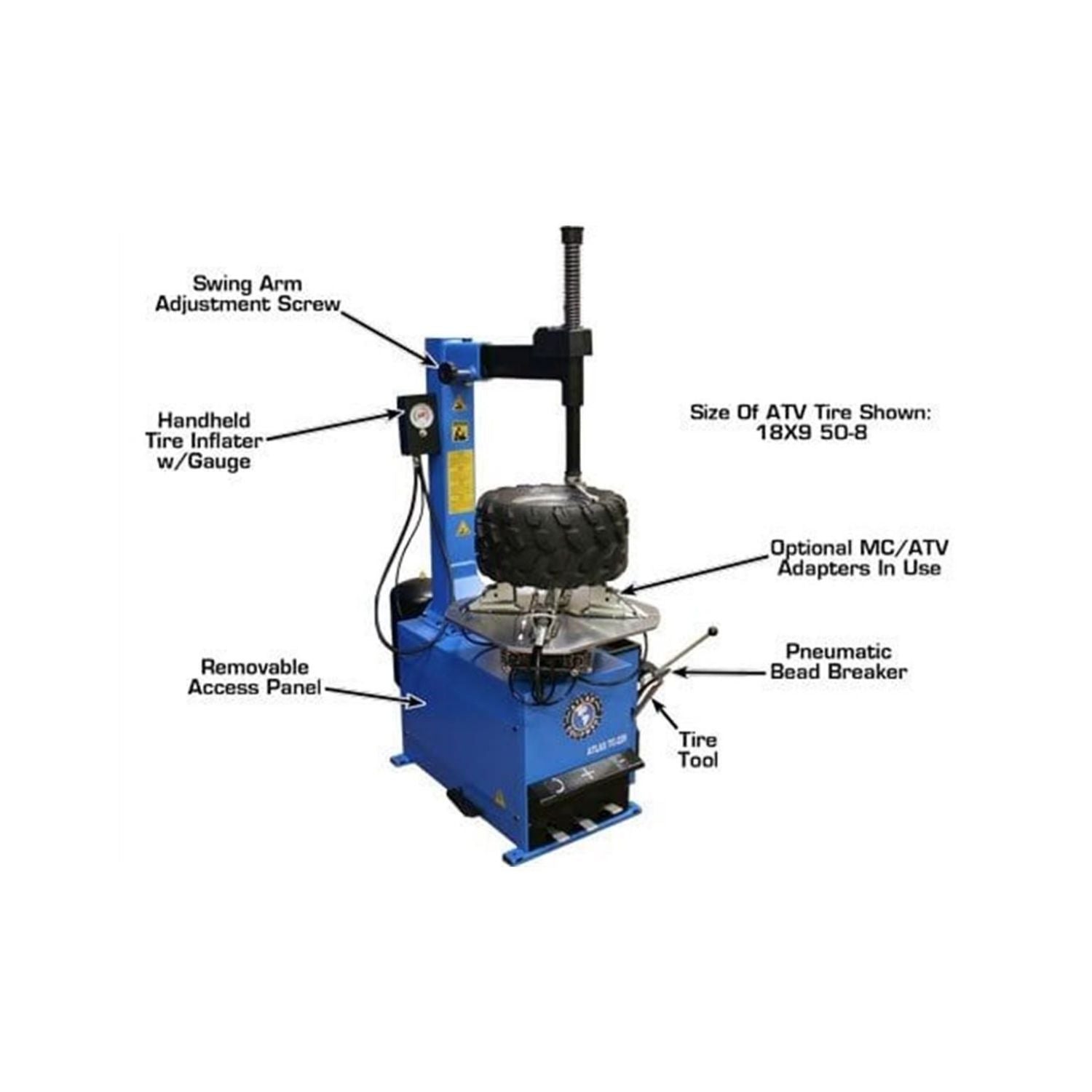

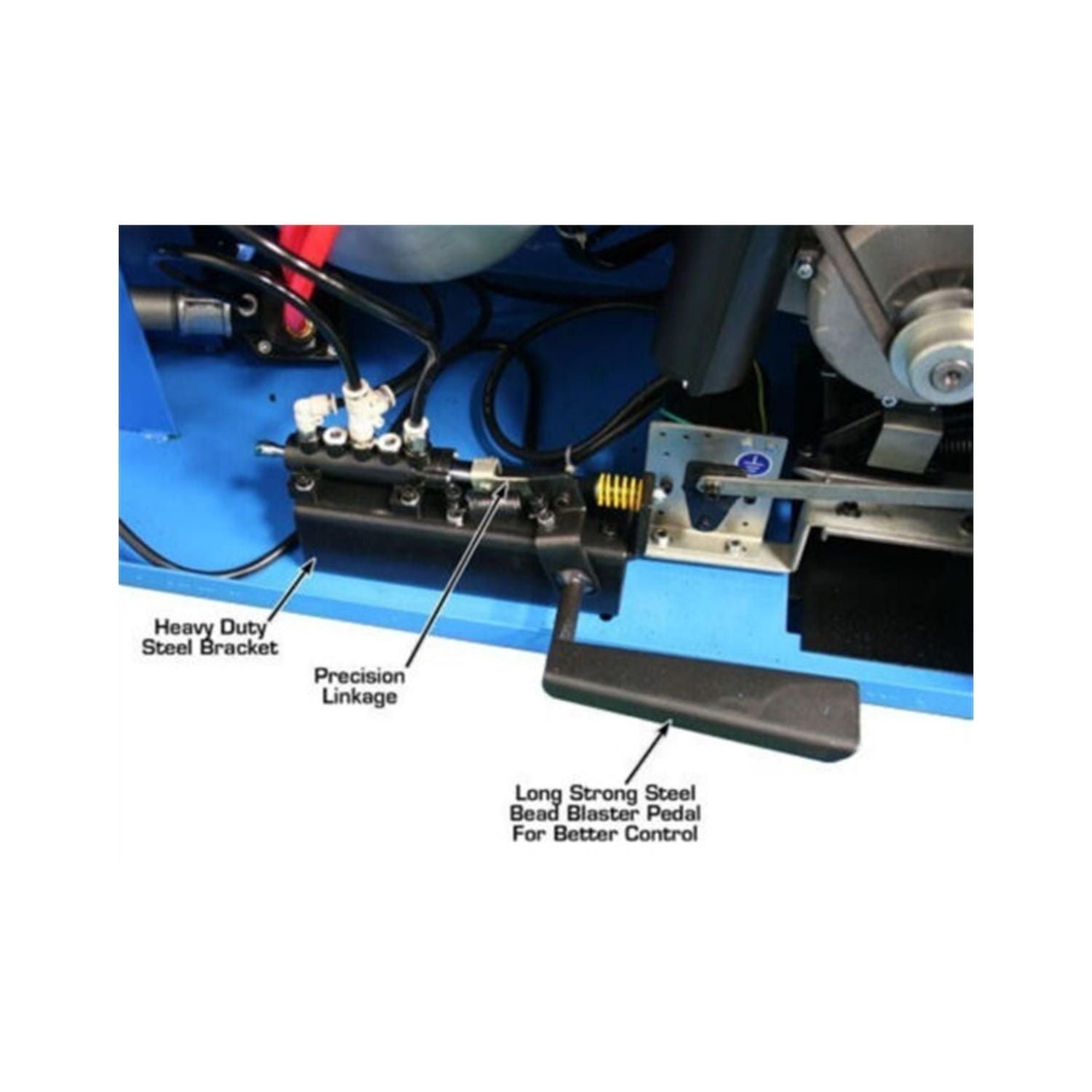

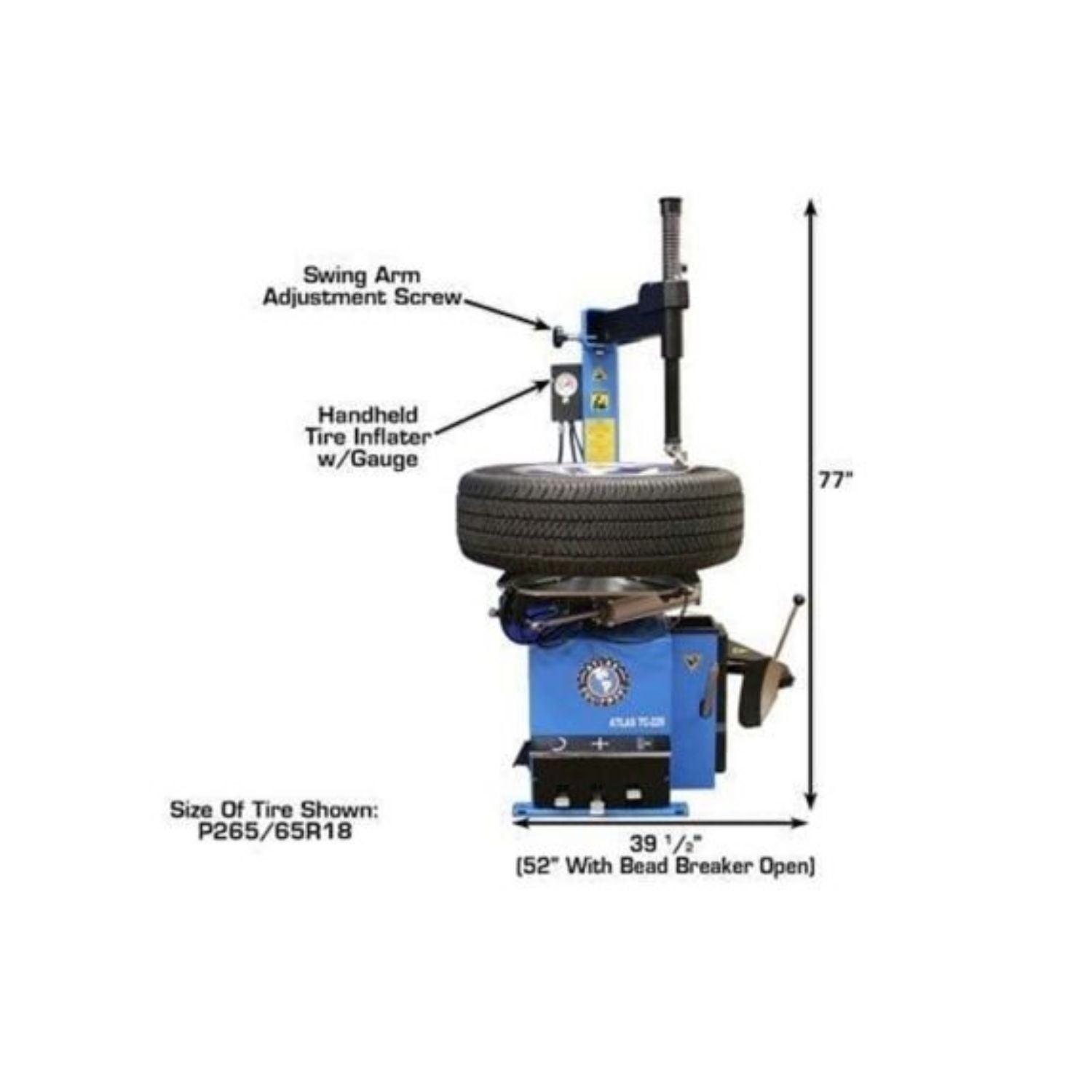

Built-In Beadblaster
Integrated column-mounted inflator with gauge seats stubborn or low-profile tire beads without a separate inflation cart.

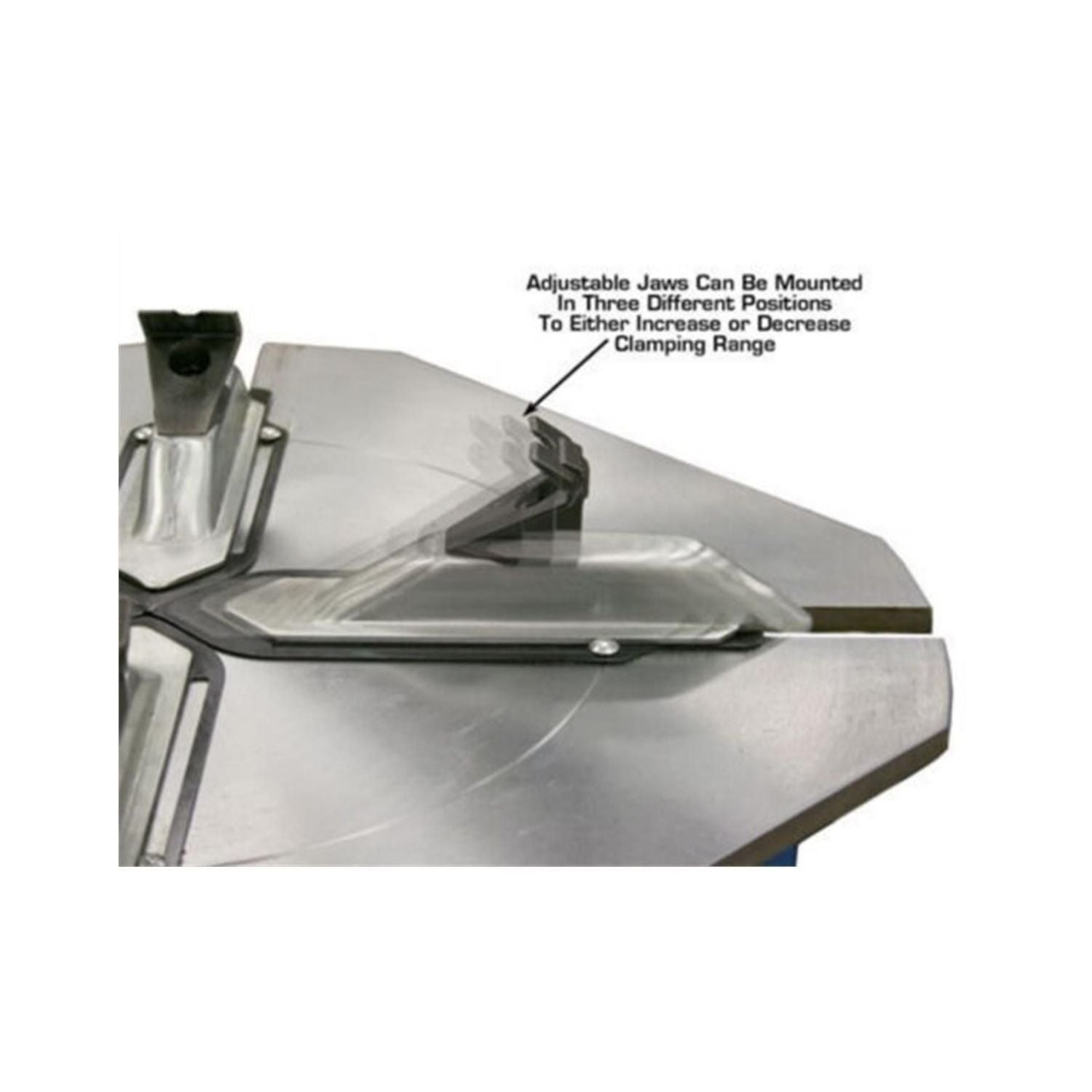

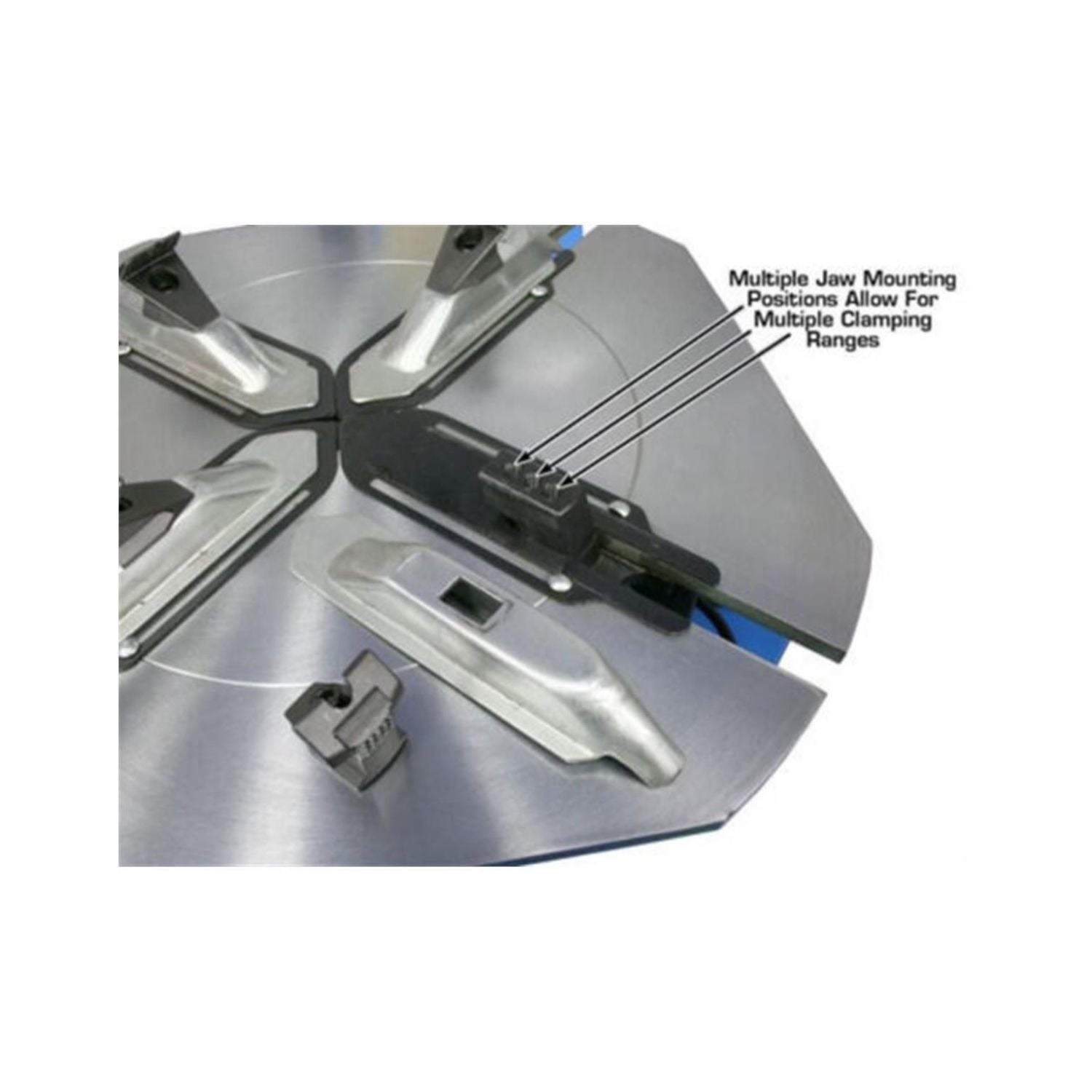

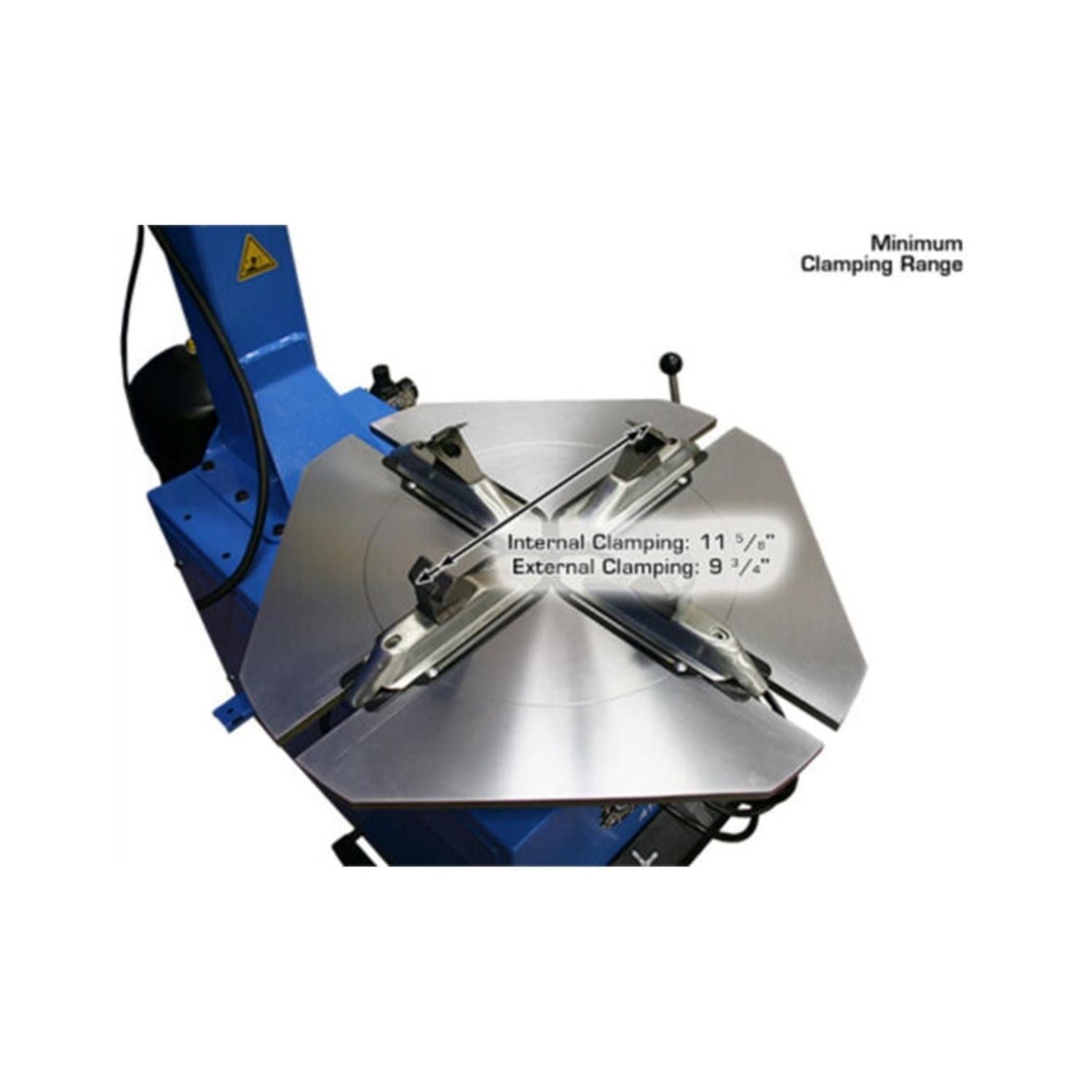

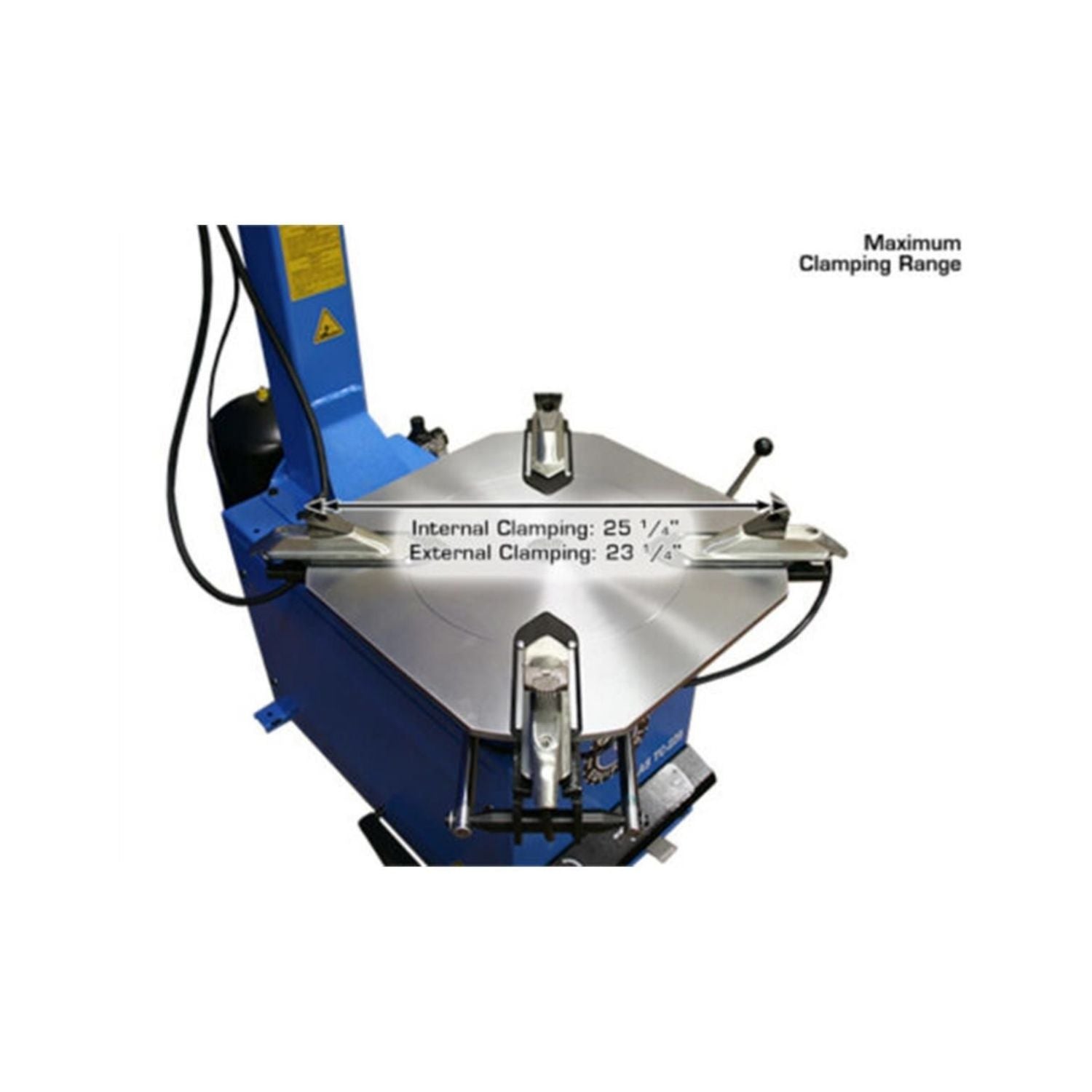

Adjustable 3-Position Jaws
Stretches the clamping range from 9 3/4" up to 23 1/4" on one machine, covering most passenger wheel sizes.

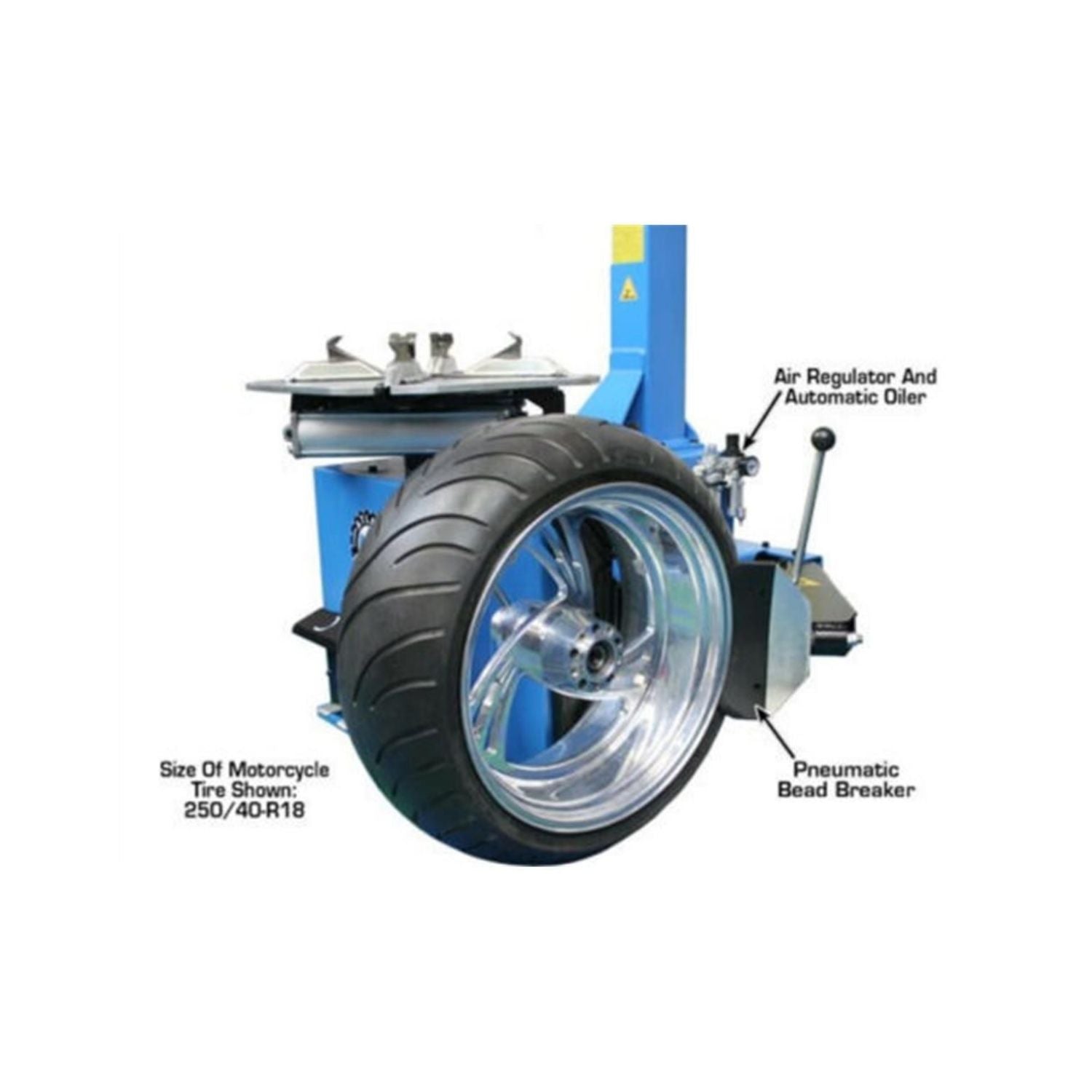

Air-Operated Jaws & Bead Breaker
5,500 lb. of bead-breaking force handles stuck or aged tires without a second attempt.

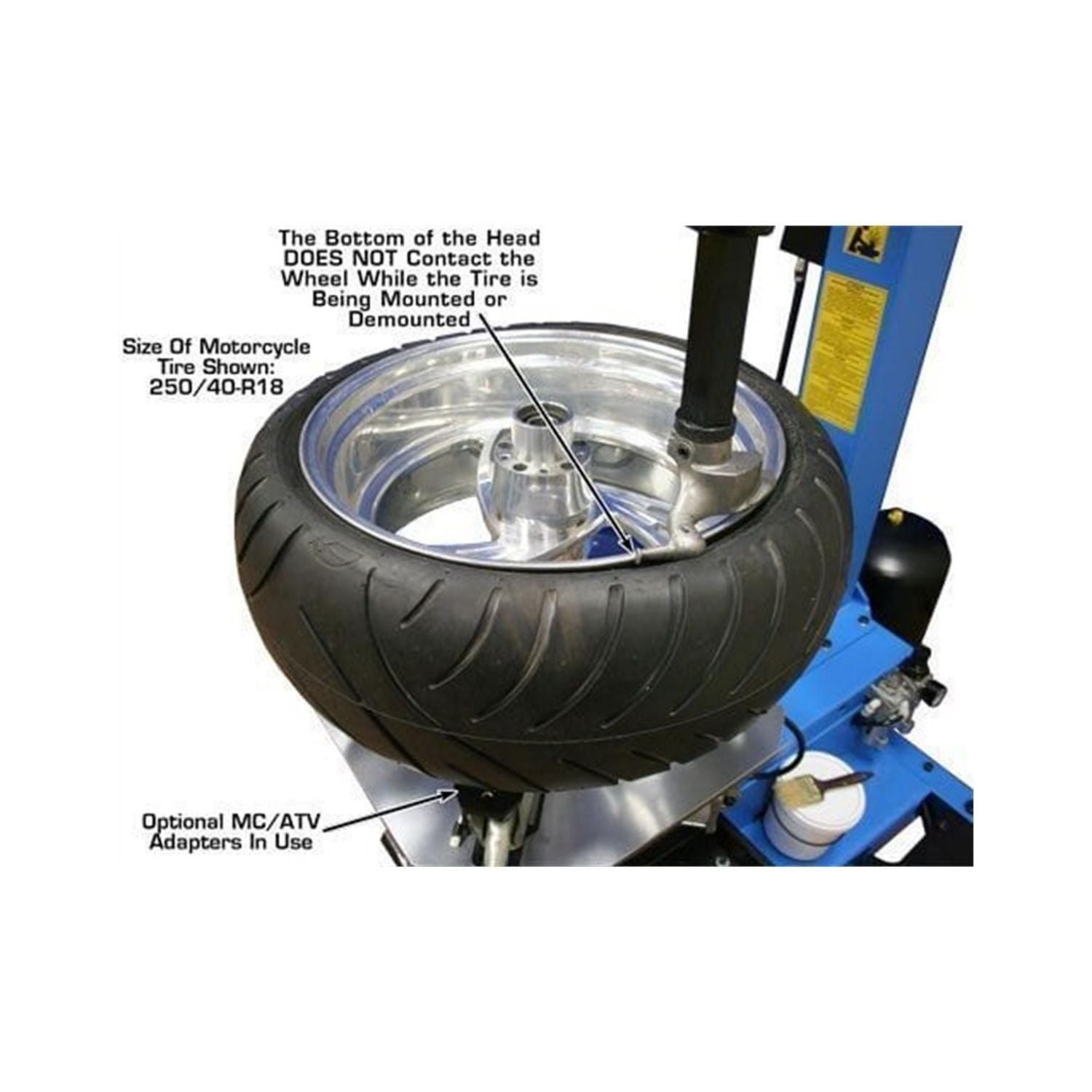

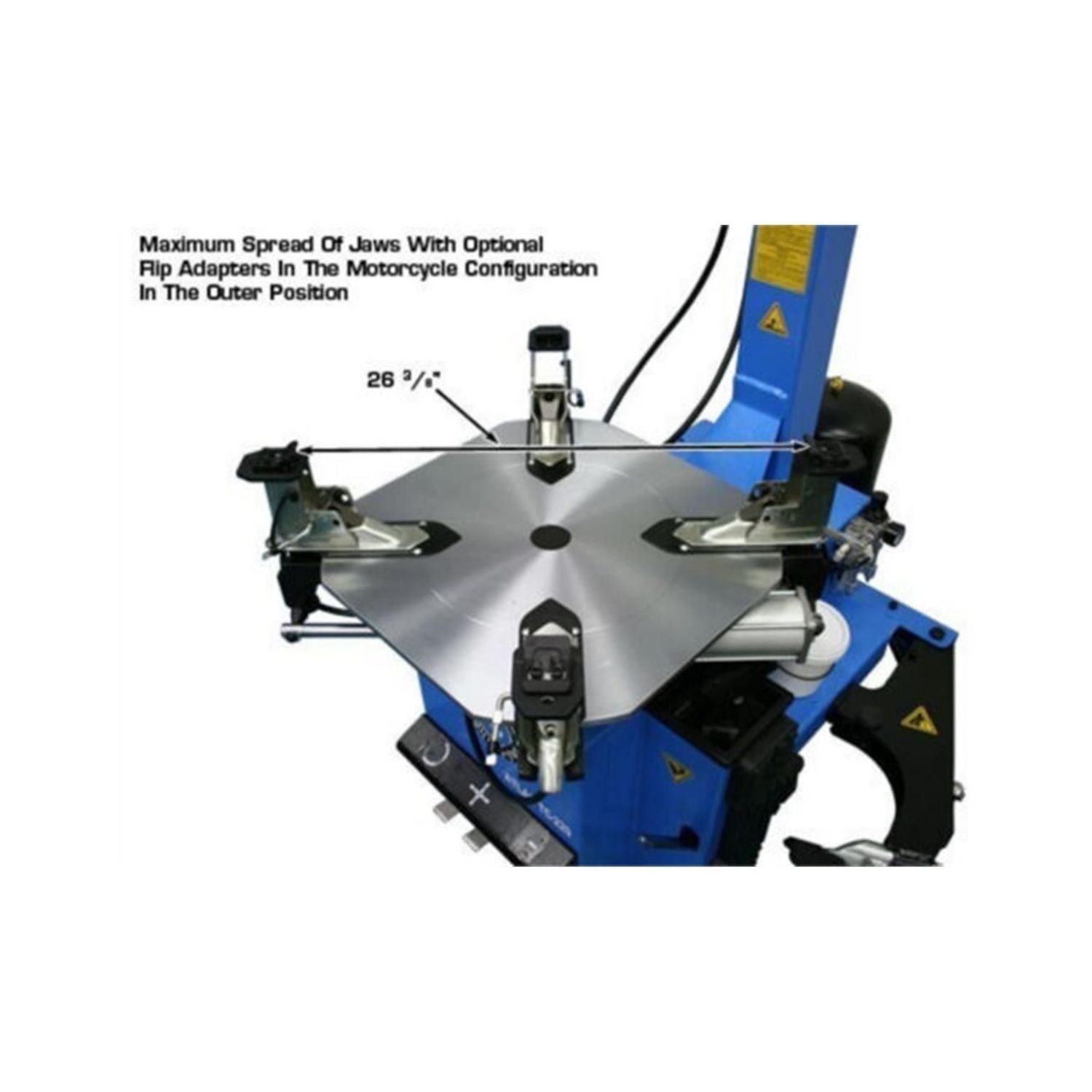

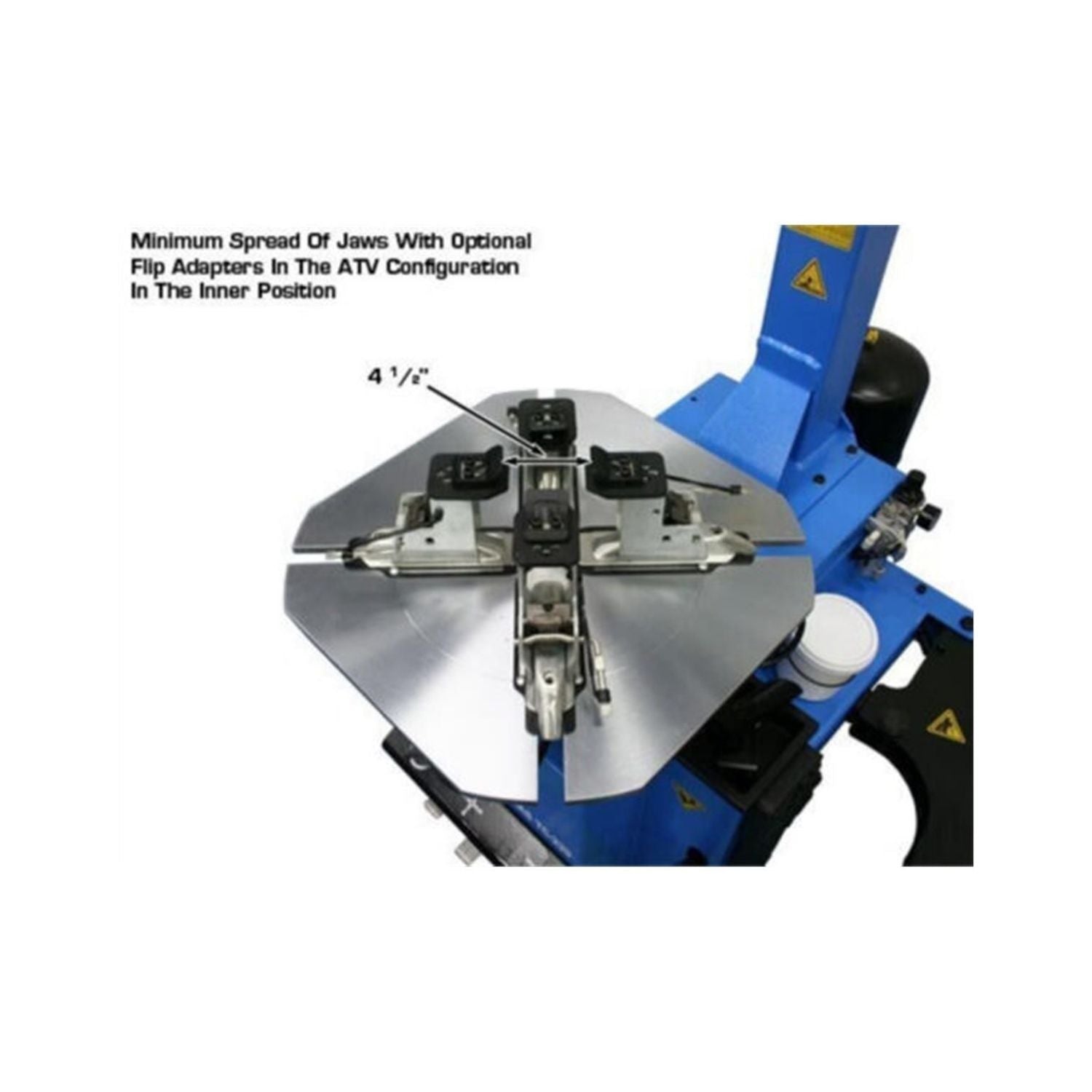

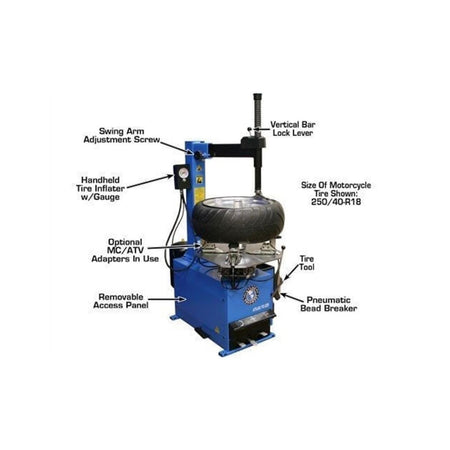

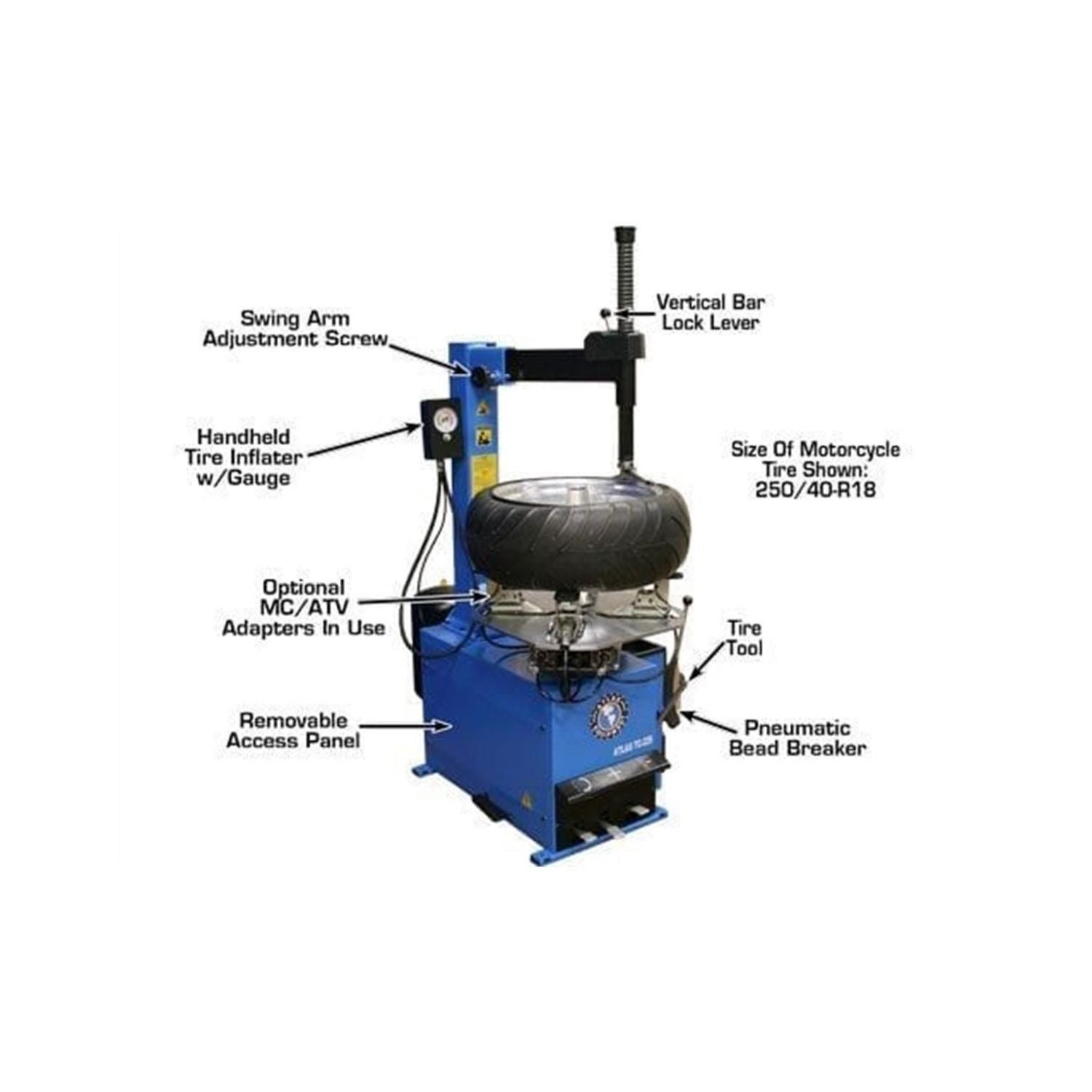

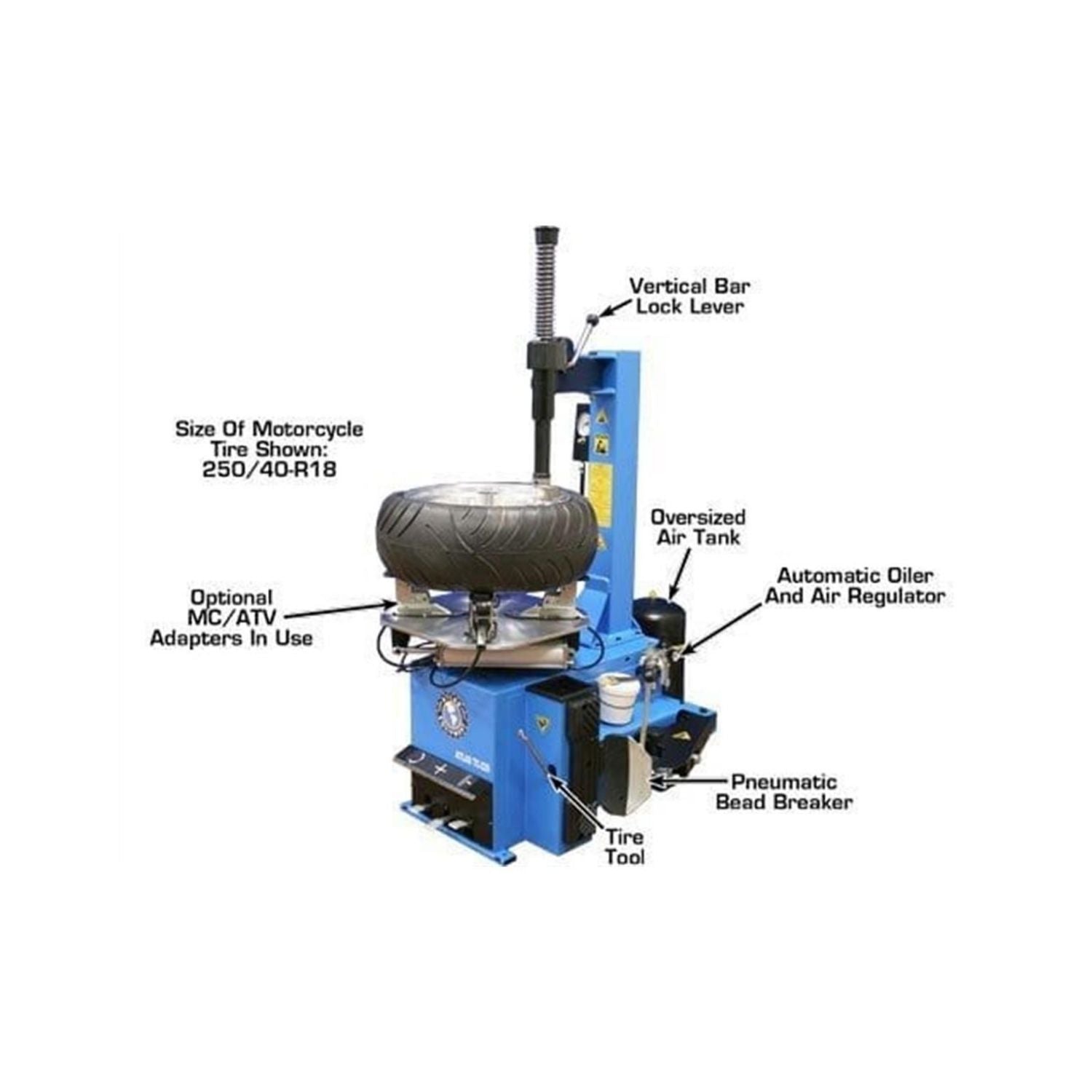

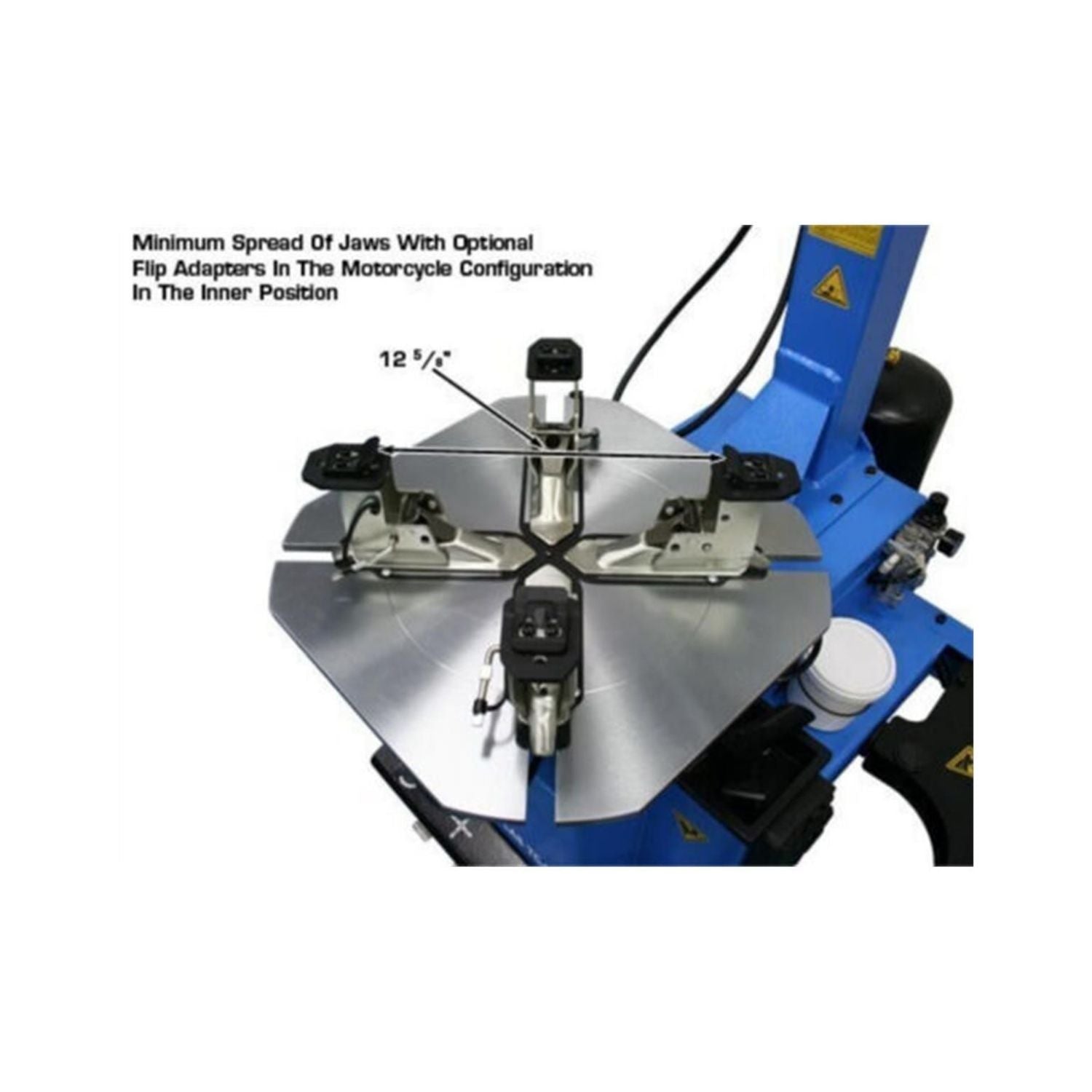

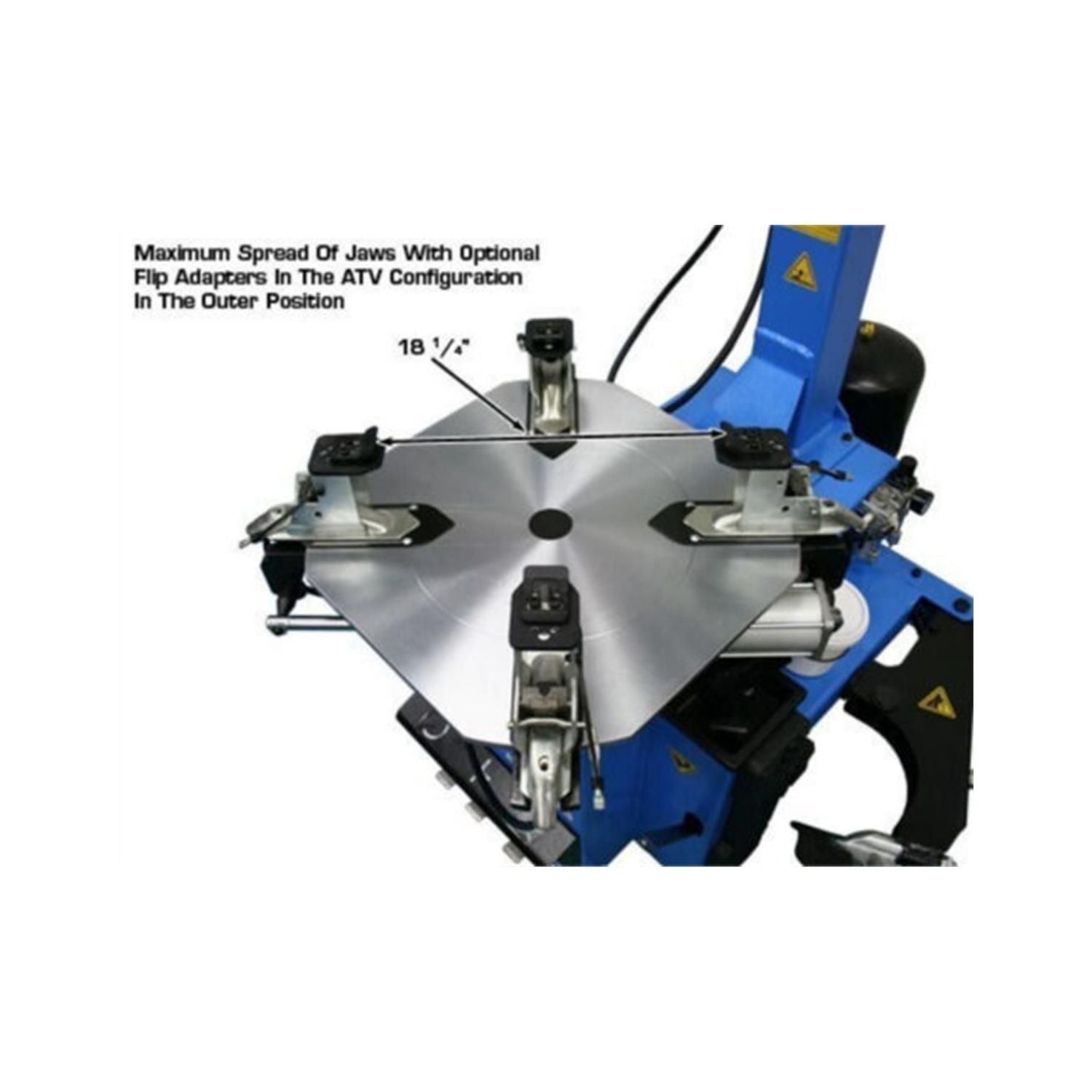

Motorcycle & ATV Adapters Available
Sold separately — extends this changer to smaller wheel jobs without buying a second machine.
- Shops with regular low-profile, performance, or difficult-bead tire work
- Operations that want beadblaster capability built into the primary changer, not a separate accessory
- Shops on the tightest startup budget that rarely see difficult tires — the TTC221 covers the same rim range for less
- Fleet or truck shops needing commercial truck tire capacity — see the TTC301/TTC303 instead
TTC229 vs. TTC221 — Which Fits Your Shop?
| Spec | TTC229 | TTC221 |
|---|---|---|
| Rim/Clamping Range | Steel, Aluminum, Alloy | Steel, Aluminum, Alloy |
| Max Wheel Diameter | — | — |
| Power Supply | 110V | 110V |
| Price | $2,499.00 | $2,099.00 |
| Best fit | Rim-Clamp / Swing-Arm Tire Changer with Built-In Beadblaster | Entry-Level Rim-Clamp / Swing-Arm Tire Changer |
Not sure which model is right for your shop? Call (817) 865-3707 and we'll help you decide.
Full Specifications — TTC229
| Brand | Atlas® Automotive Equipment |
| Part Number | ATEATTC229-FPD |
| Dimensions | 42" L × 38" W × 30" H |
| UPC | 810524027069 |
| Country of Origin | China |
| Rim Compatibility | Steel, Aluminum, Alloy |
| External Locking Rim Range (3 positions) | 9 3/4"–21 5/8" / 10 3/4"–22 1/2" / 11 5/8"–23 1/4" |
| Internal Locking Rim Range (3 positions) | 11 5/8"–23 1/4" / 12 5/8"–24 1/4" / 13 1/2"–25 1/4" |
| Max Tire Diameter | 39" |
| Max Wheel Width (Bead Breaker) | 13" |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs. |
| Bead Breaker Force | 5,500 lb. |

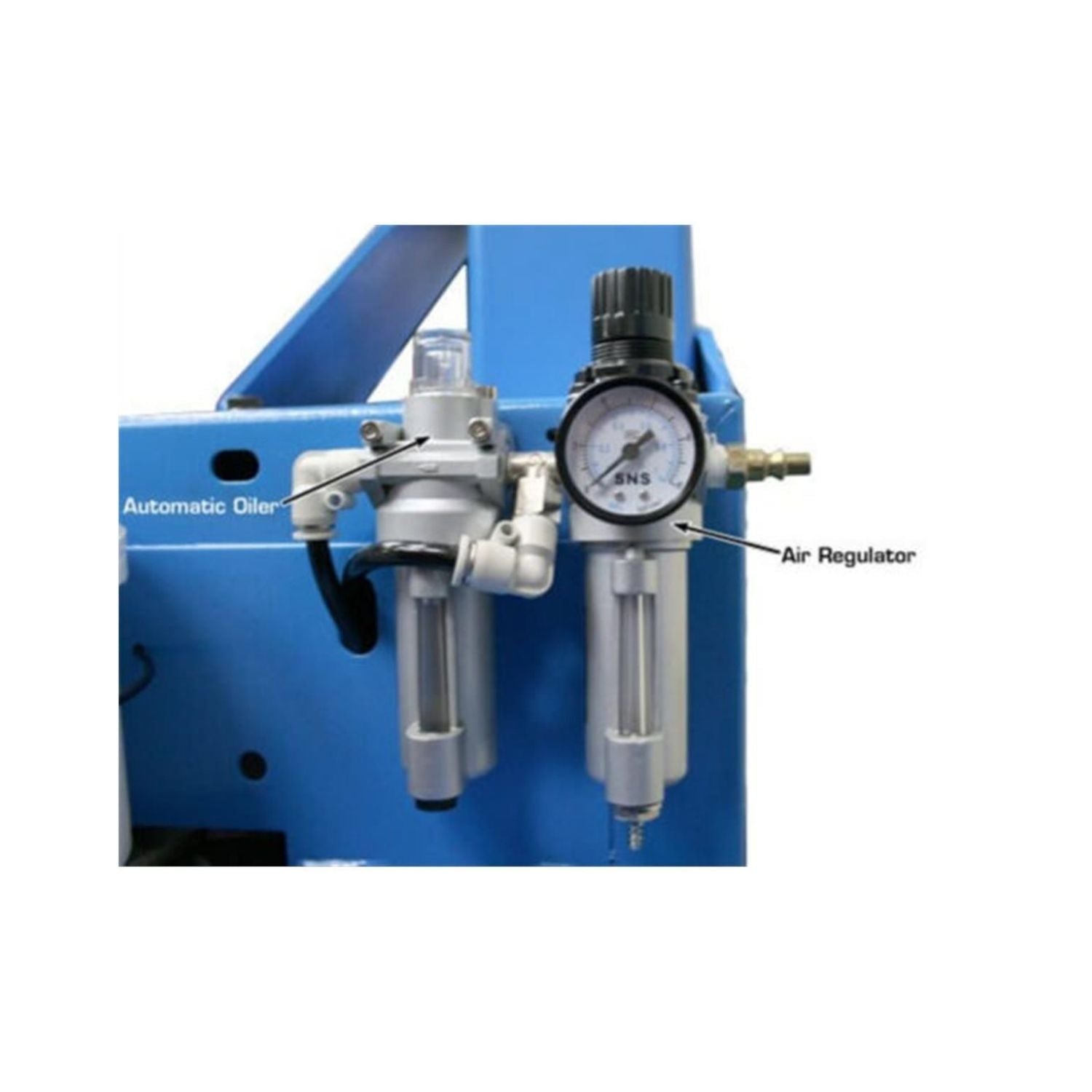

| Air Requirement | 90–110 PSI (do not exceed 140 PSI) |
| Operating Voltage | 110V |

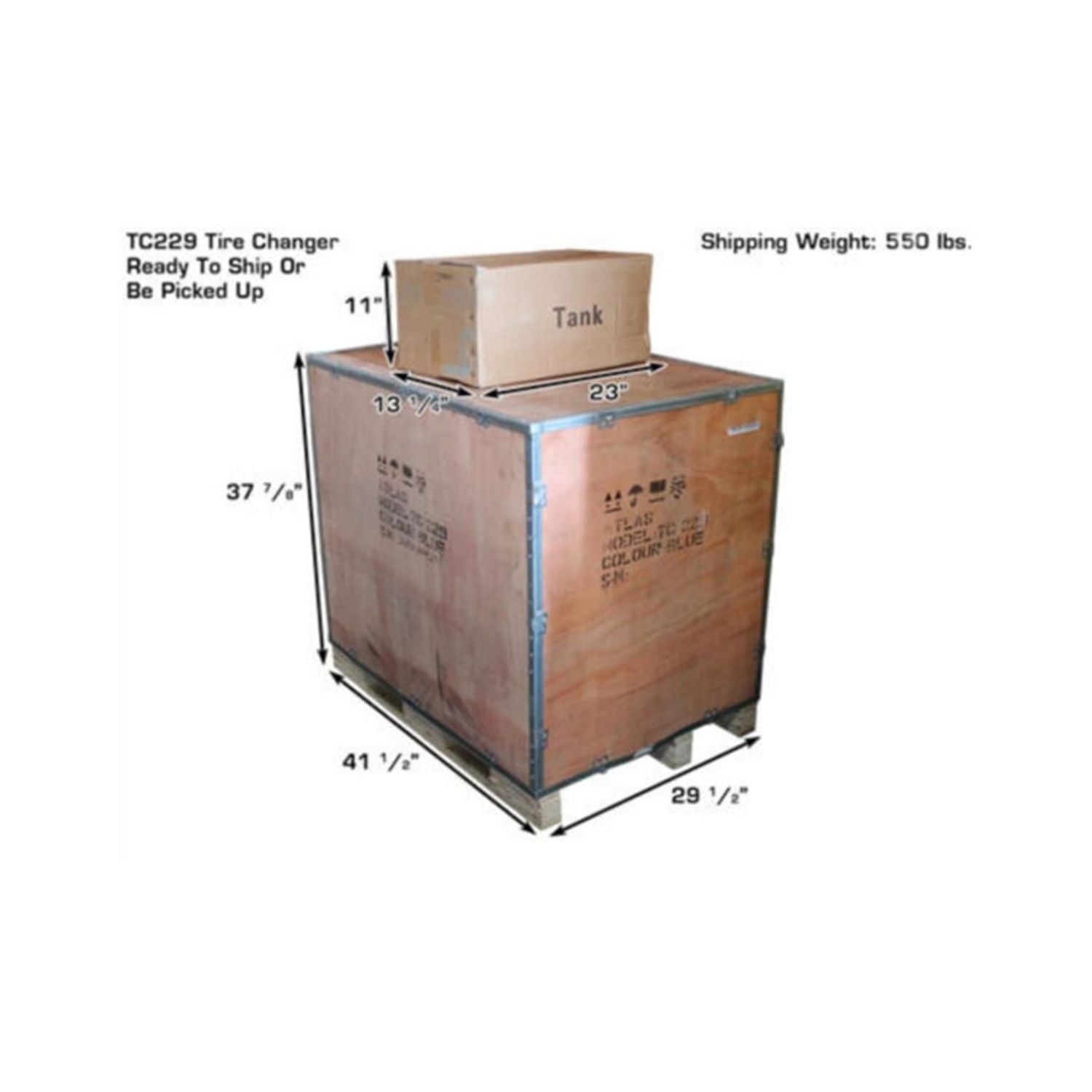

| Shipping Weight | 550 lbs. |
⚠️ Setup Requirements
- Power: Confirm your shop's electrical service matches this unit's power supply requirement before ordering.
- Air supply: Confirm shop compressed-air capacity meets the listed air pressure requirement (where applicable).
- Floor space: Confirm clear floor space for the unit's footprint plus operator clearance on all working sides.
- Setup help: Call (817) 865-3707 with any setup or first-use questions.
Atlas Warranty — TTC229
Atlas backs the TTC229 with the following coverage terms.
| Item | Detail |
|---|---|
| Parts | 1 Year |
| Labor | Not included — parts-only coverage |
Warranty service is coordinated through Alamo Equipment & Service. Call (817) 865-3707 with any warranty question — we help coordinate service, not just point you to a manufacturer hotline.
⚠️ Confirm exact terms at the time of purchase.
Frequently Asked Questions — TTC229
Why Buy the TTC229 from Alamo Equipment & Service?
- We service it. When something needs attention after the sale, we're the same people you call — not a national warranty line.
- We help you pick the right unit. This machine handles up to a 39" tire diameter and 23 1/4" rim range across 3 clamping positions, with a built-in beadblaster for the tough ones — tell us your typical wheel mix and we'll confirm it's the right fit before you order.
- Free shipping. Delivered to your shop, no hidden freight fees.
- Expert comparison help. Not sure if this is the right model vs. Atlas TTC221? Call (817) 865-3707 — we'll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Equipment ships free — delivered to your business, no freight charges. Parts & accessories ship at standard parcel rates unless the item description says otherwise.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
