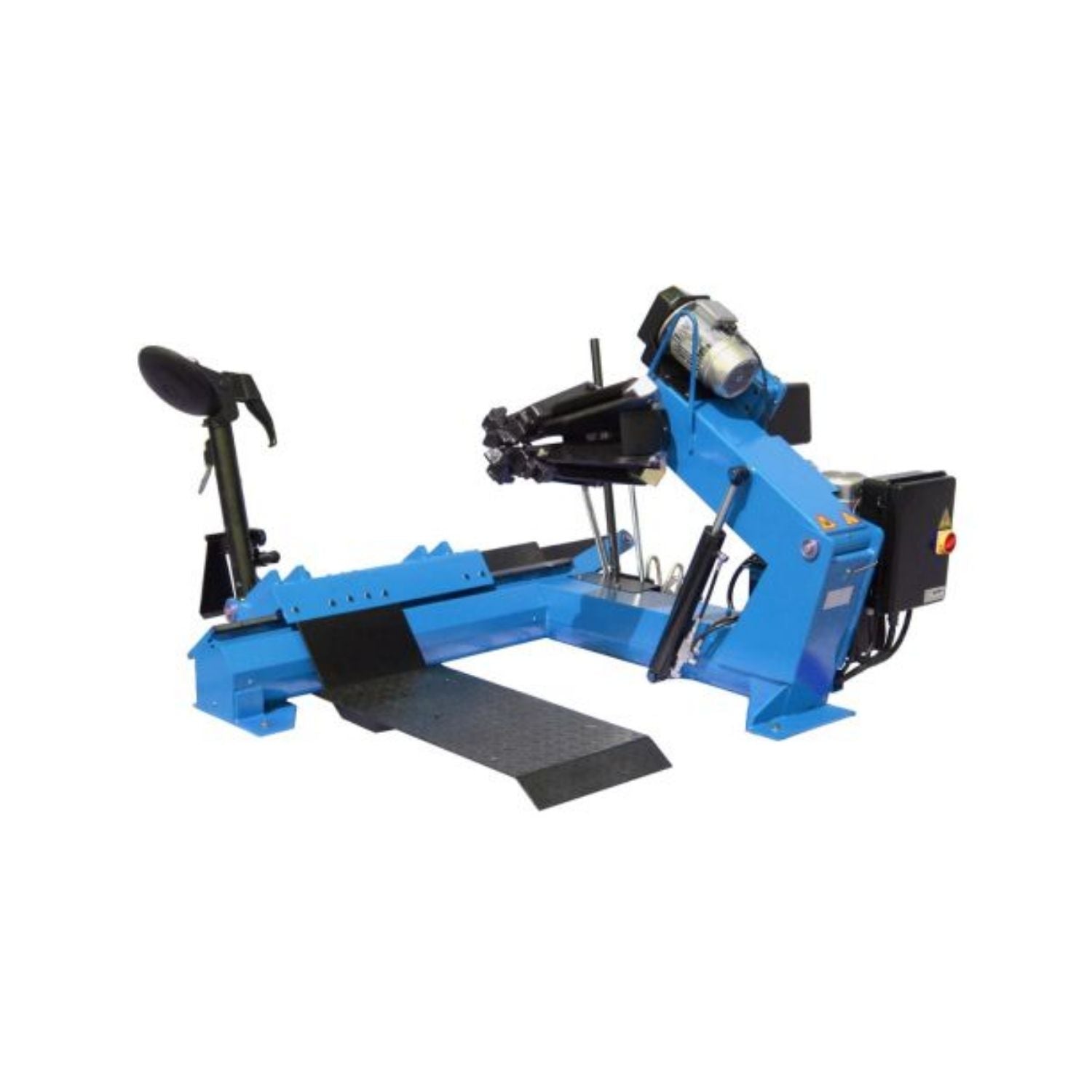

Atlas® TTC303 Large Truck Tire Changer 1-Phase #ATEATTC303-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS
• DOCUMENTS

• DESCRIPTION

  The Atlas TTC303 Large Truck Tire Changer (1-Phase) is built for servicing oversized truck, bus, and heavy-duty vehicle tires in demanding shop environments.

  Designed for high-capacity applications, this machine handles large wheel assemblies with ease while providing controlled and efficient mounting and demounting. The single-phase power configuration makes it suitable for shops without three-phase electrical setups, offering flexibility without sacrificing performance.

• FEATURES AND BENEFITS

  • Super Duty Truck Tire Changer
  • 220VOLT 1 PHASE ELECTRIC
  • Handles rims from 14" to 56" and tire diameters in excess of 90"
  • Accommodates tires with a max width of up to 42"
  • Bead Breaker
  • Mount/Demount Head
  • Electric/Hydraulic Self-Centering Four Jaw Chuck
  • 5 different rim locking positions
  • Wired Mobile Control Unit
  • Heavy Duty Tire Tool Included
  • Rim Clamps for Steel and Alloy Wheels Included
  • Alloy Rim Adapter Set w/ Plastic Inserts Included
  • 1 Year Parts Only Warranty


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTC303-FPD
  Dimensions:	94" L × 93" W × 72" H
  UPC:	810524027021
  Country of Origin:	CHN
  Rim Clamping Range:	14" - 46"
  Max Clamping Size W/ Extensions:	56"
  Max Wheel Weight:	3,300 lbs.
  Max Tire Diameter:	90 1/2" (7' 6 1/2")
  Max Tire Width:	42" (3' 6")
  Clamping Power:	13,173 lbs.
  Operating Pressure:	0-1885 PSI
  Acoustic Pressure:	<70dBA
  Bead Breaker Force:	5930 lbs.
  Tool Arm Positioning:	Manual
  Tool Head Positioning:	Manual
  Construction:	Single Piece Frame w/ Solid Floor Plate
  Hydraulic Motor Power:	2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
  Chuck Motor Power:	2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
  Shipping Weight:	1,800 lbs.

• DOCUMENTS

  • Atlas TTC303 Truck Tire Changer Manual
  • Atlas TTC303 Parts List

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
