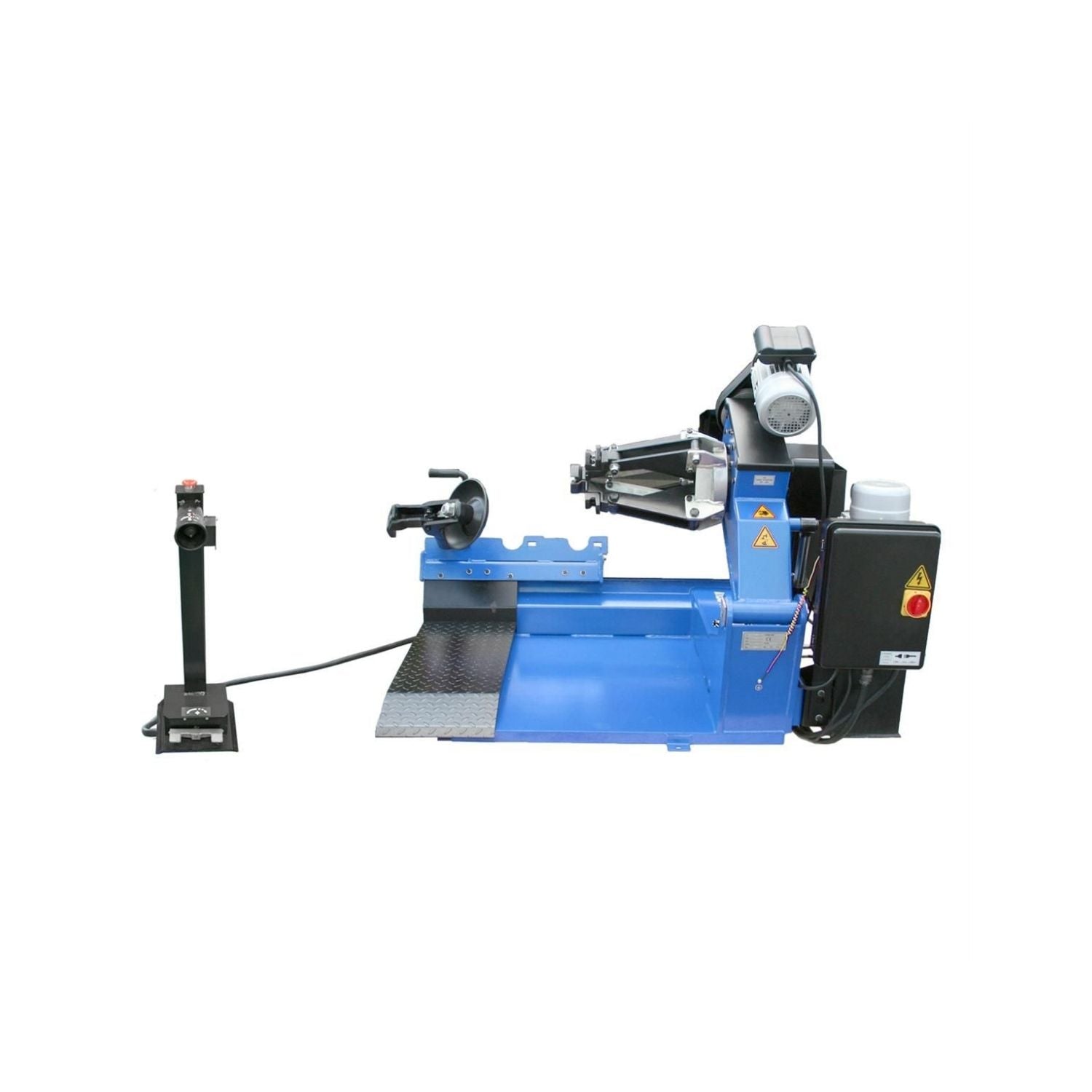

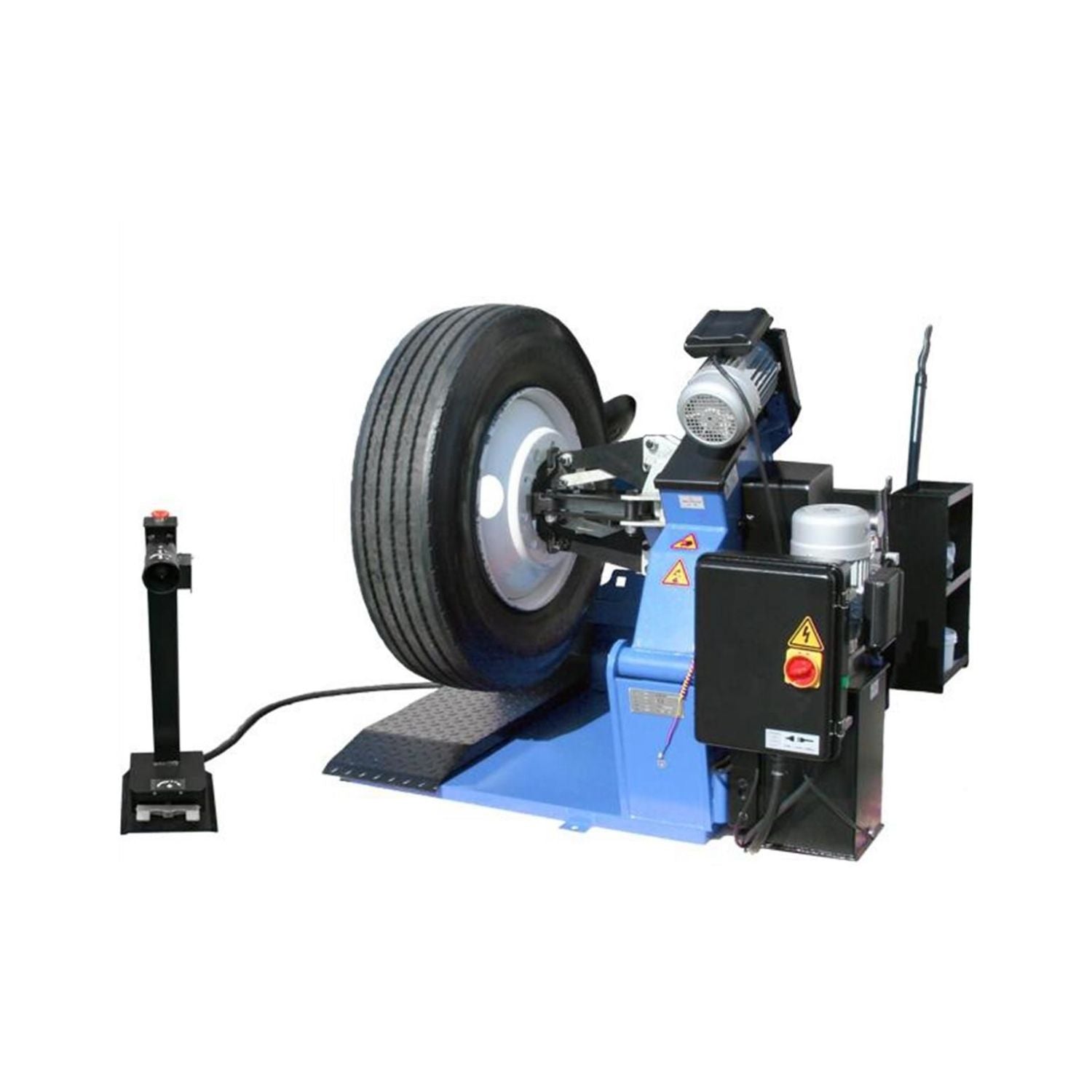

Atlas® TTC301 Standard Truck Tire Changer #ATEATTC301-FPD
Couldn't load pickup availability
-
DESCRIPTION
The Atlas TTC301 Standard Truck Tire Changer is designed for servicing heavy-duty truck, bus, and commercial vehicle tires.
Built for strength and reliability, this machine handles large wheel assemblies with ease, making it ideal for fleet service centers and commercial tire shops. Its design allows technicians to efficiently mount and demount heavy-duty tires while maintaining control and safety throughout the process.
Engineered for demanding environments, the TTC301 delivers consistent performance and durability for professional truck tire service operations.
-
FEATURES AND BENEFITS
- Standard Truck Tire Changer
- Handles rims from 13" to 27" and tire diameters in excess of 63"
- Accommodates tires with a max width of up to 30 1/2"
- Bead Breaker
- Mount/Demount Head
- Electric/Hydraulic Self-Centering Four Jaw Chuck
- 5 different rim locking positions
- Wired Mobile Control Unit
- Heavy Duty Tire Tool Included
- Rim Clamps for Steel and Alloy Wheels Included
- Alloy Rim Adapter Set w/ Plastic Inserts Included
- 1 Year Parts Only Warranty
-
SPECIFICATIONS
Brand: Atlas® Automotive Equipment Part Number: ATEATTC301-FPD Dimensions: 69" L × 69" W × 50" H UPC: 810524027038 Country of Origin: CHN Rim Clamping Range: 13" - 27" Minimum Clamping Size W/ Alloy Adapters: 6 3/8" Max Wheel Weight: 3,300 lbs. Max Tire Diameter: 63" (5' 3") Max Tire Width: 30 1/2" (2' 6 1/2") Clamping Power: 6,614 lbs. Operating Pressure: 0-1885 PSI Acoustic Pressure: <70dBA Bead Breaker Force: 4112 lbs. Tool Arm Positioning: Manual Tool Head Positioning: Manual Construction: Single Piece Frame w/ Solid Floor Plate Hydraulic Motor Power: 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required Chuck Motor Power: 3 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required Shipping Weight: 1,390 lbs. -
DOCUMENTS
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
