Atlas 14,000 lb 414A Alignment Lift & RJ8 Combo #ATEATTD-414A-COMBO-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas 414A Alignment Lift and RJ8 Combo is a heavy-duty solution designed for precision wheel alignment and advanced vehicle service applications.

  This system combines a 14,000 lb capacity 4-post alignment lift with an RJ8 rolling jack, allowing technicians to perform wheel-free service such as brake, suspension, and alignment work. The higher capacity makes it ideal for larger trucks, vans, and fleet vehicles.

• FEATURES AND BENEFITS

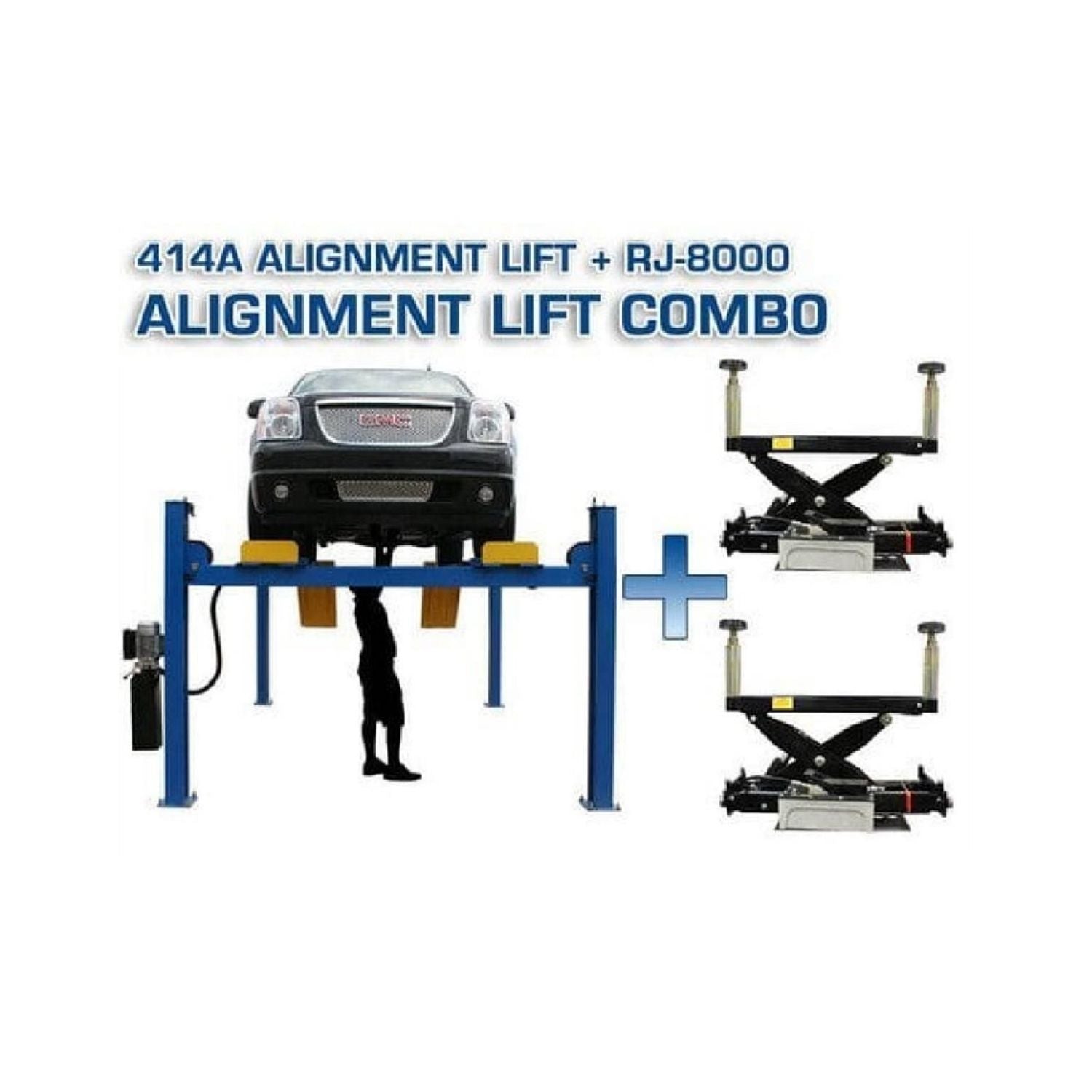

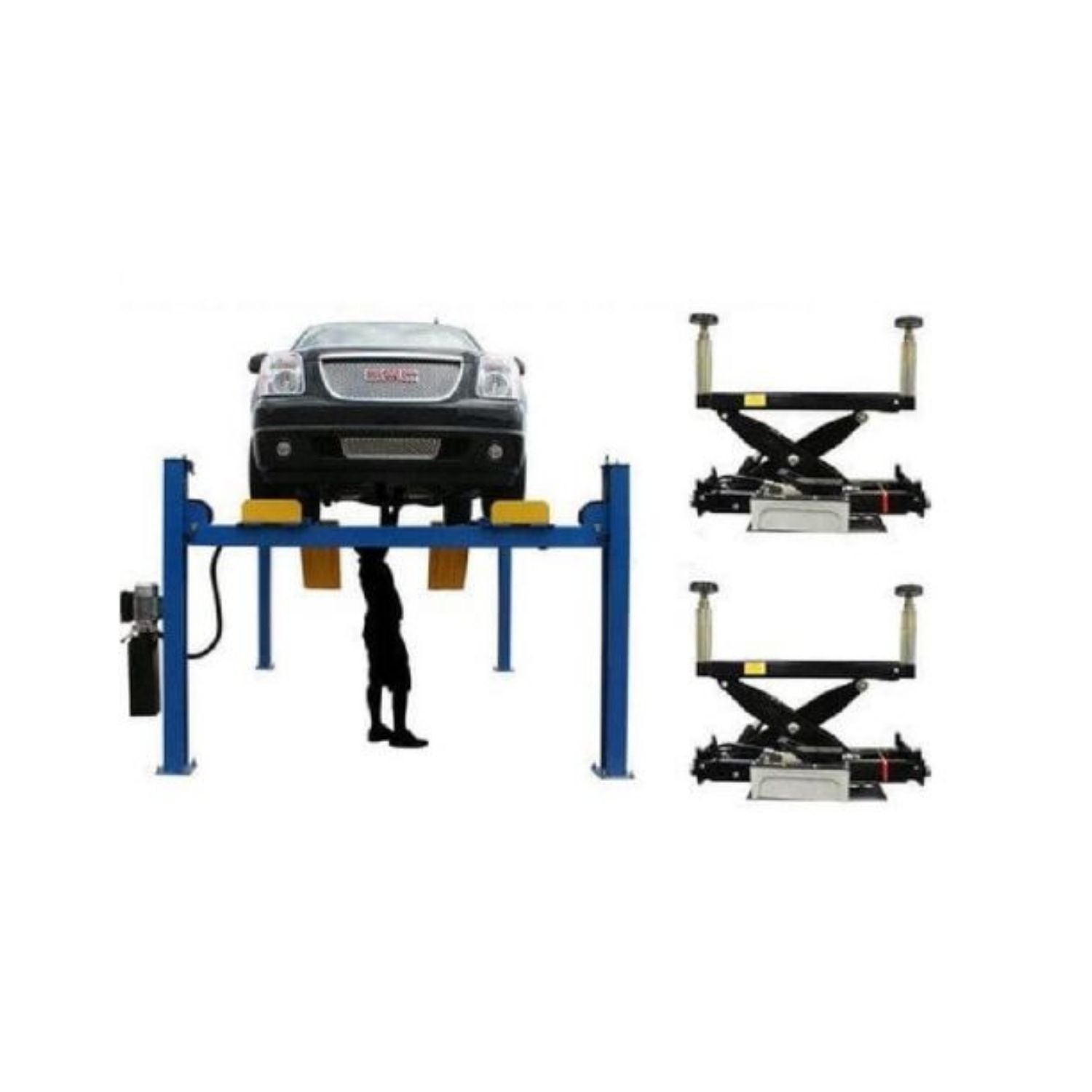

  • Combo Package includes 414A 14,000 lb. Alignment lift & two RJ8 rolling jacks
  • Heavy Duty, Commercial Grade
  • Lift is Extra Tall, Extra Wide & Extra Long
  • Lift has Diamond Plated Runways

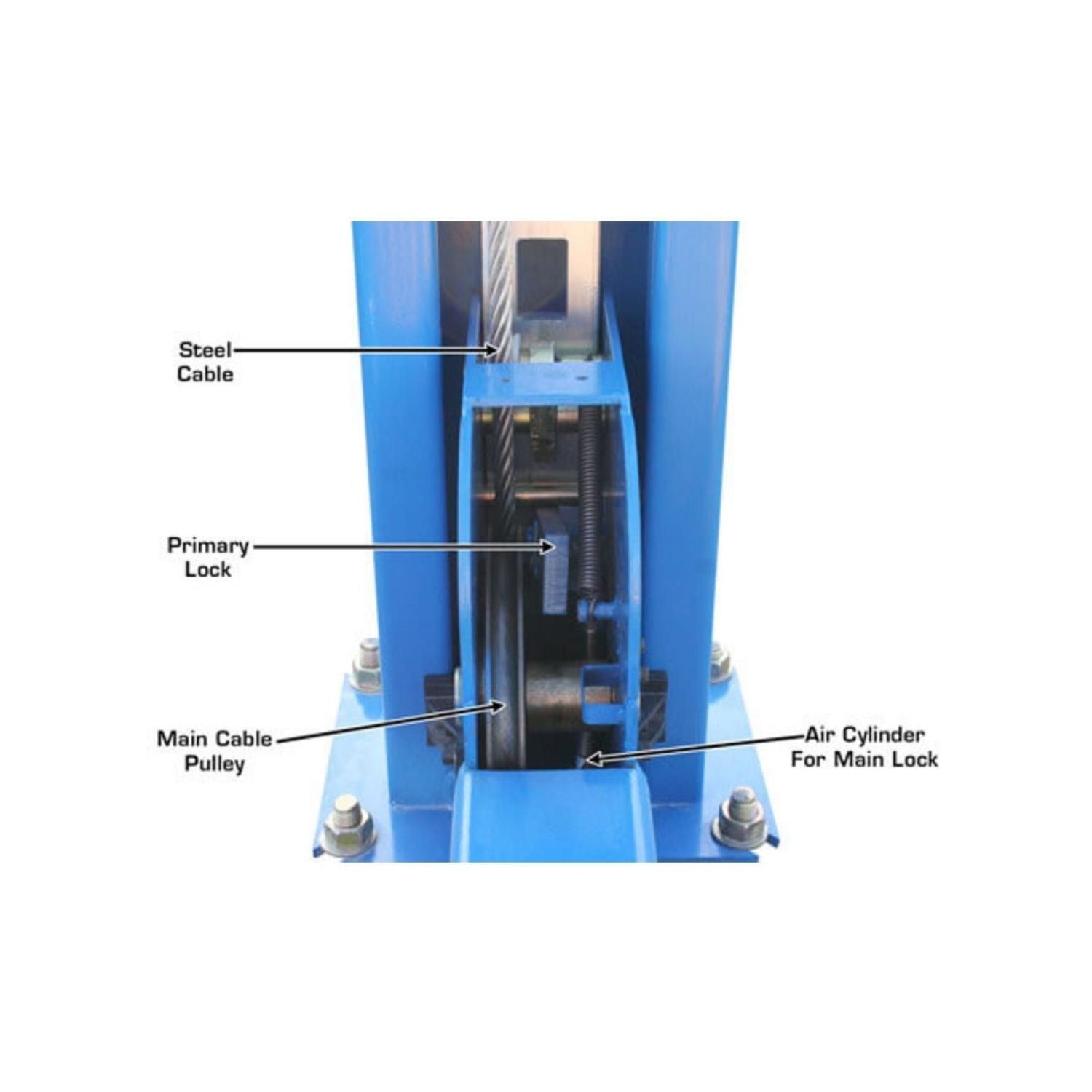

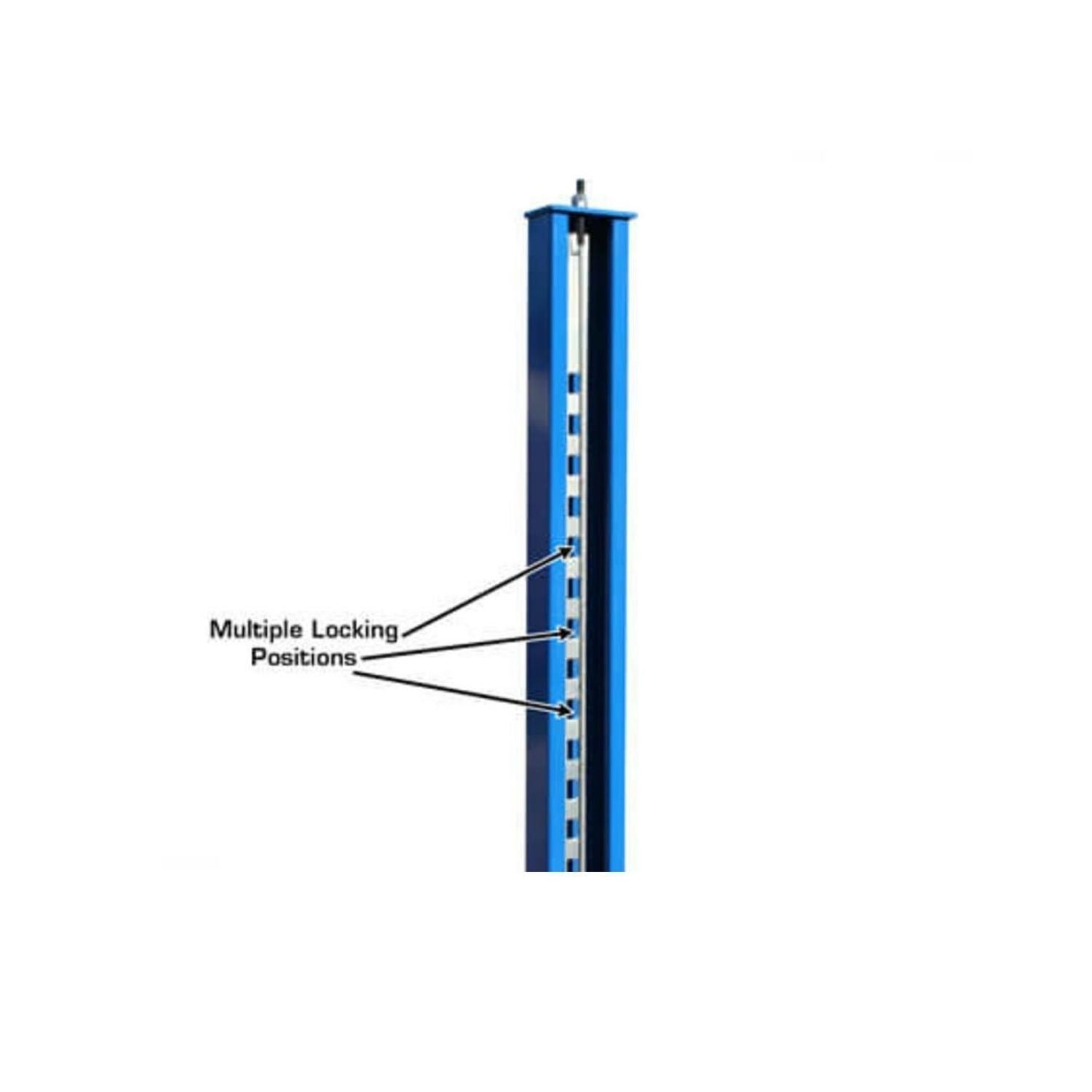

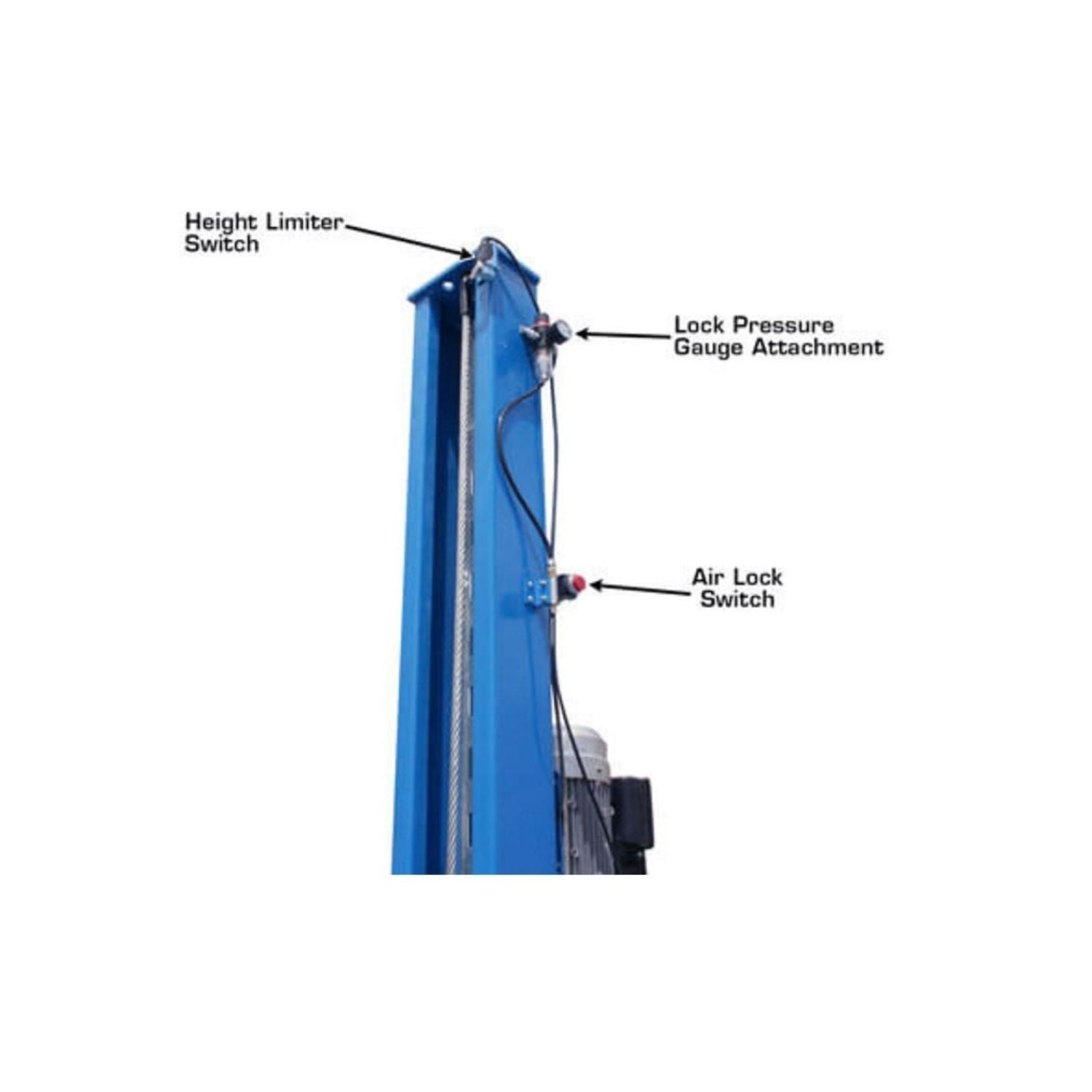

  • Lift has Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)

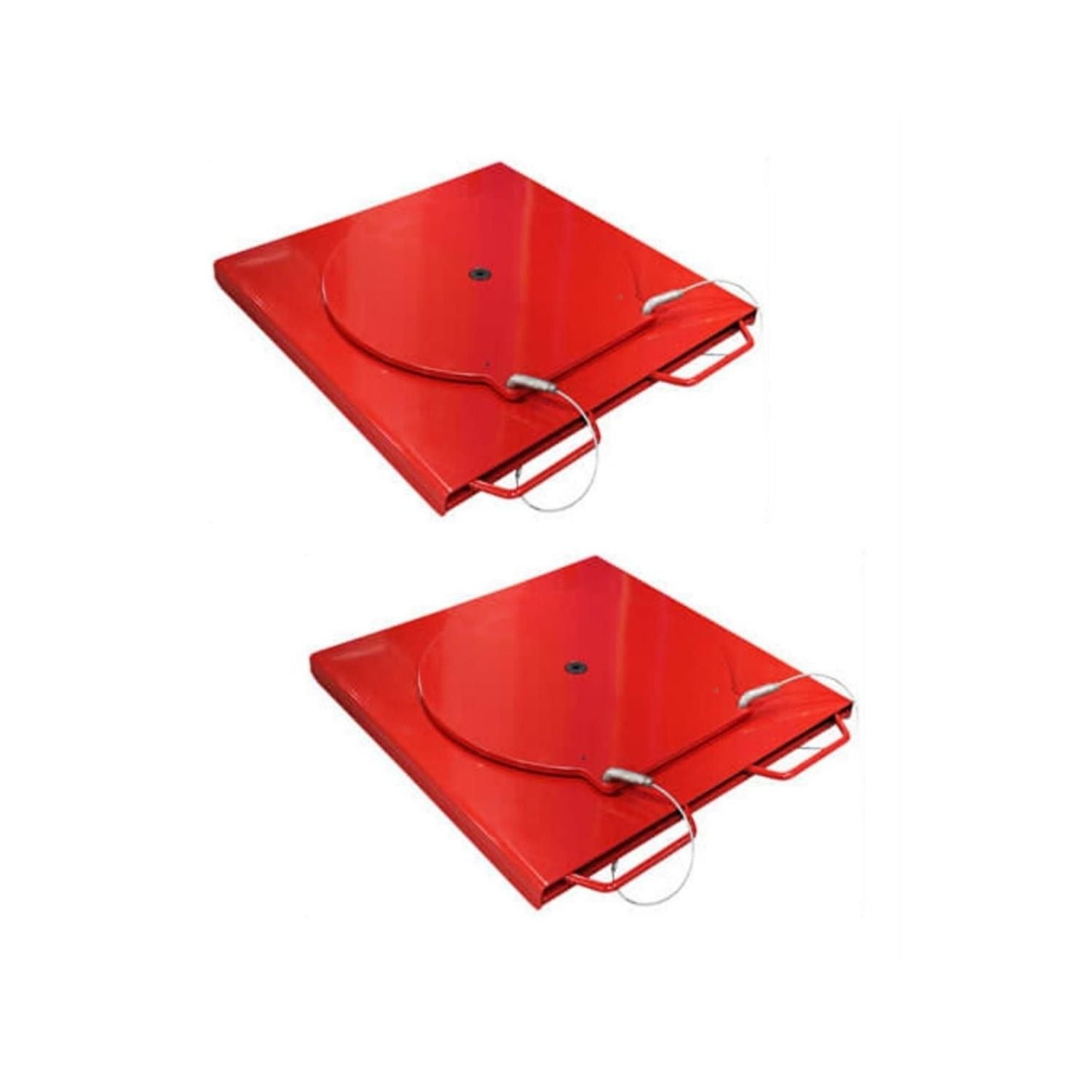

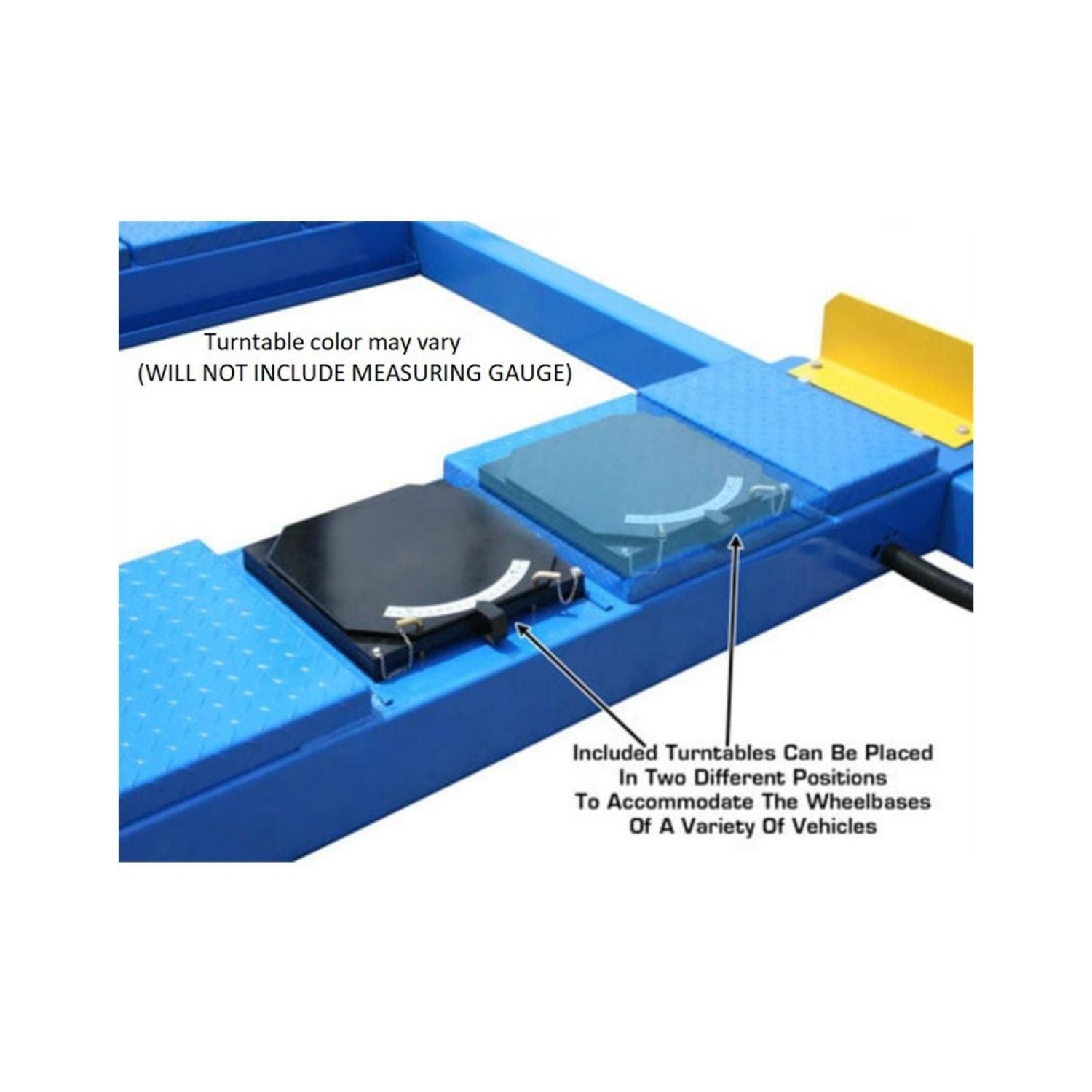

  • Alignment Turntables Included

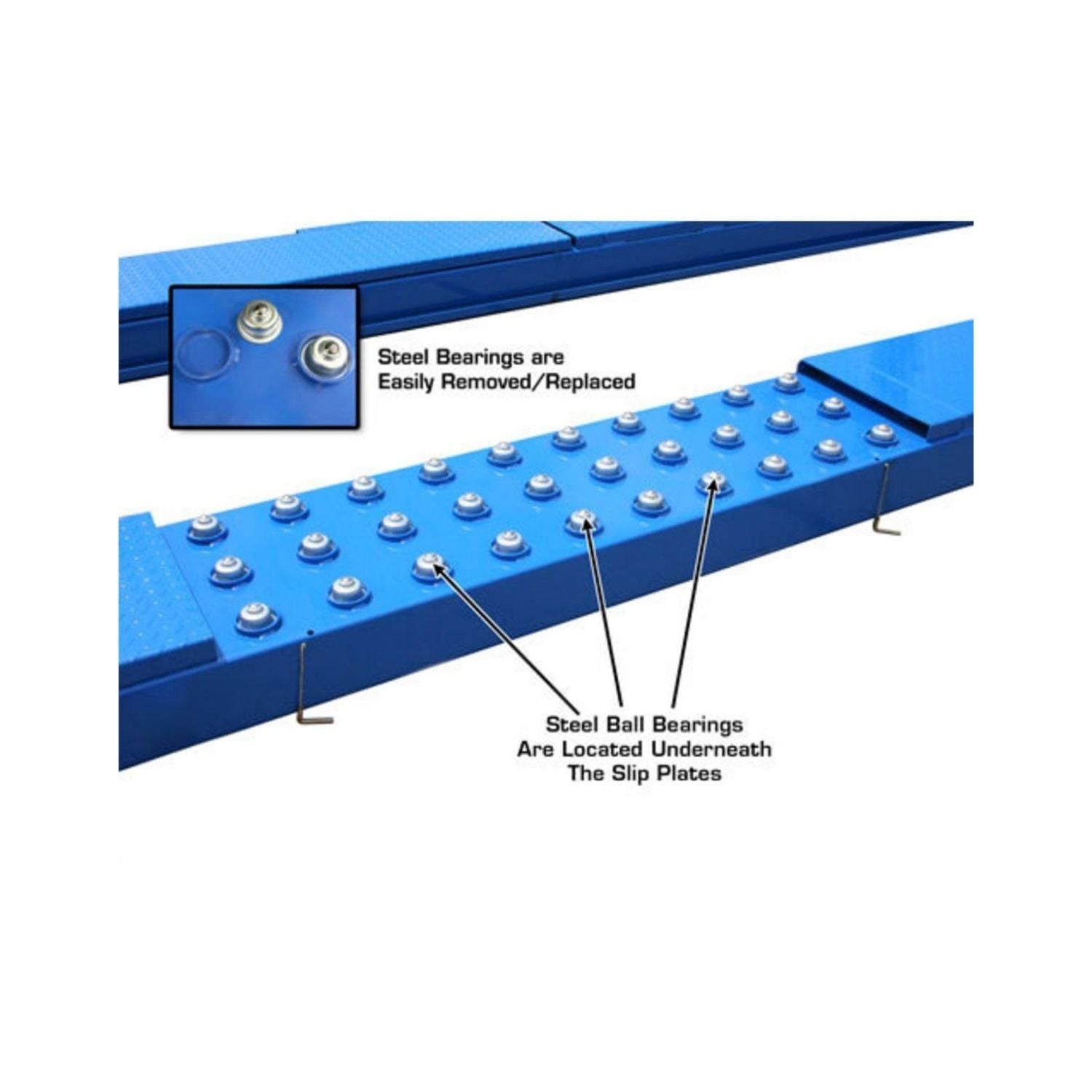

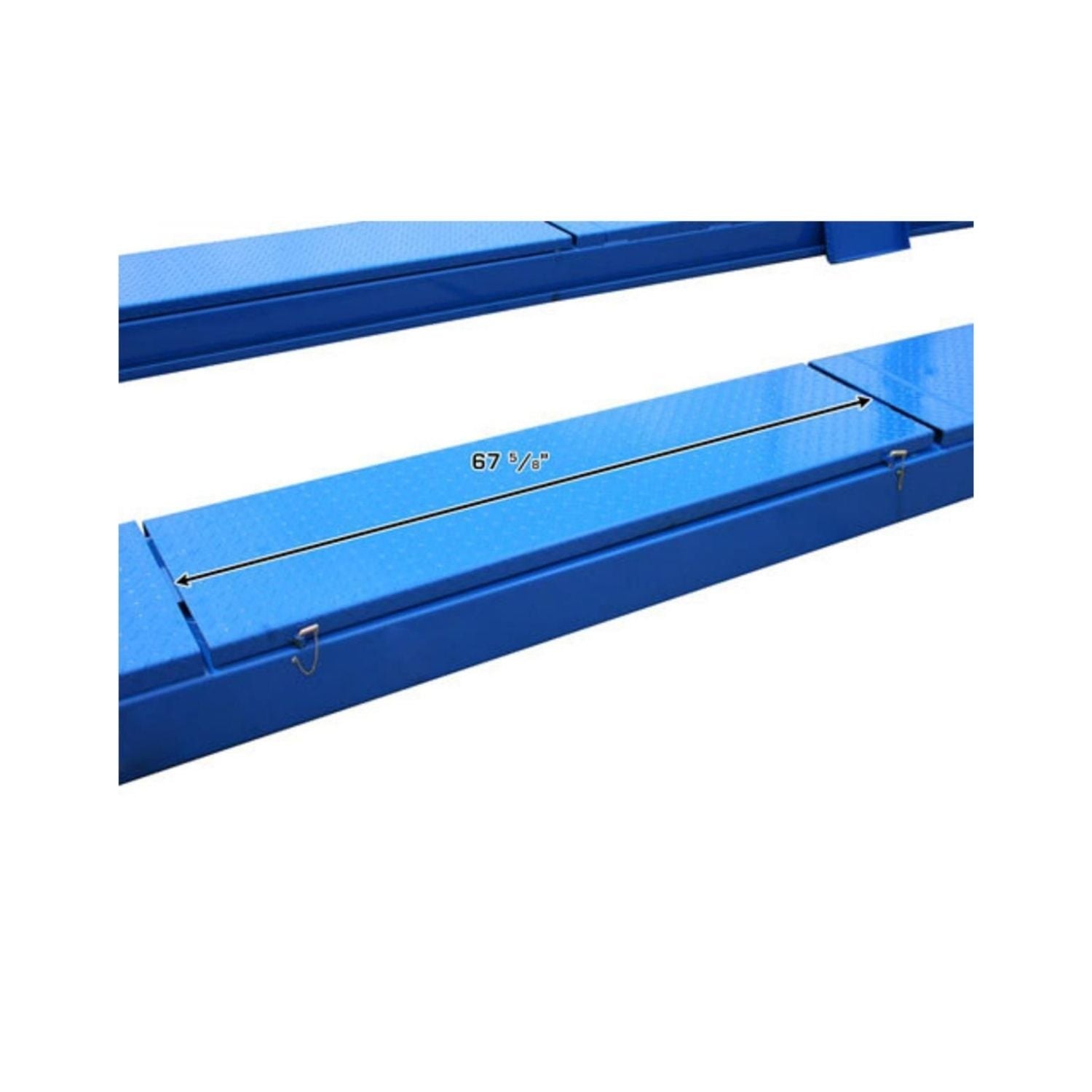

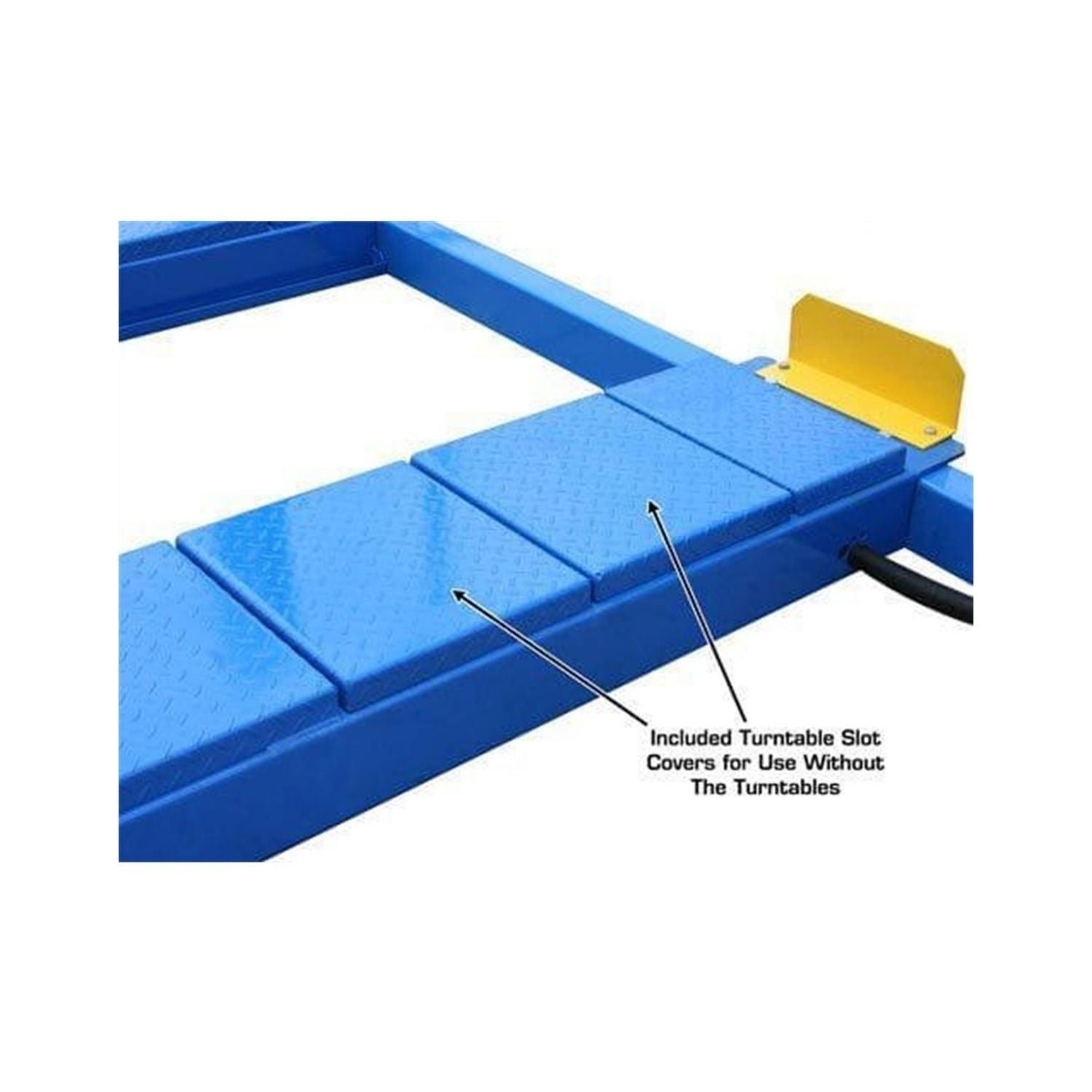

  • Lift has Built-In Slip Plates

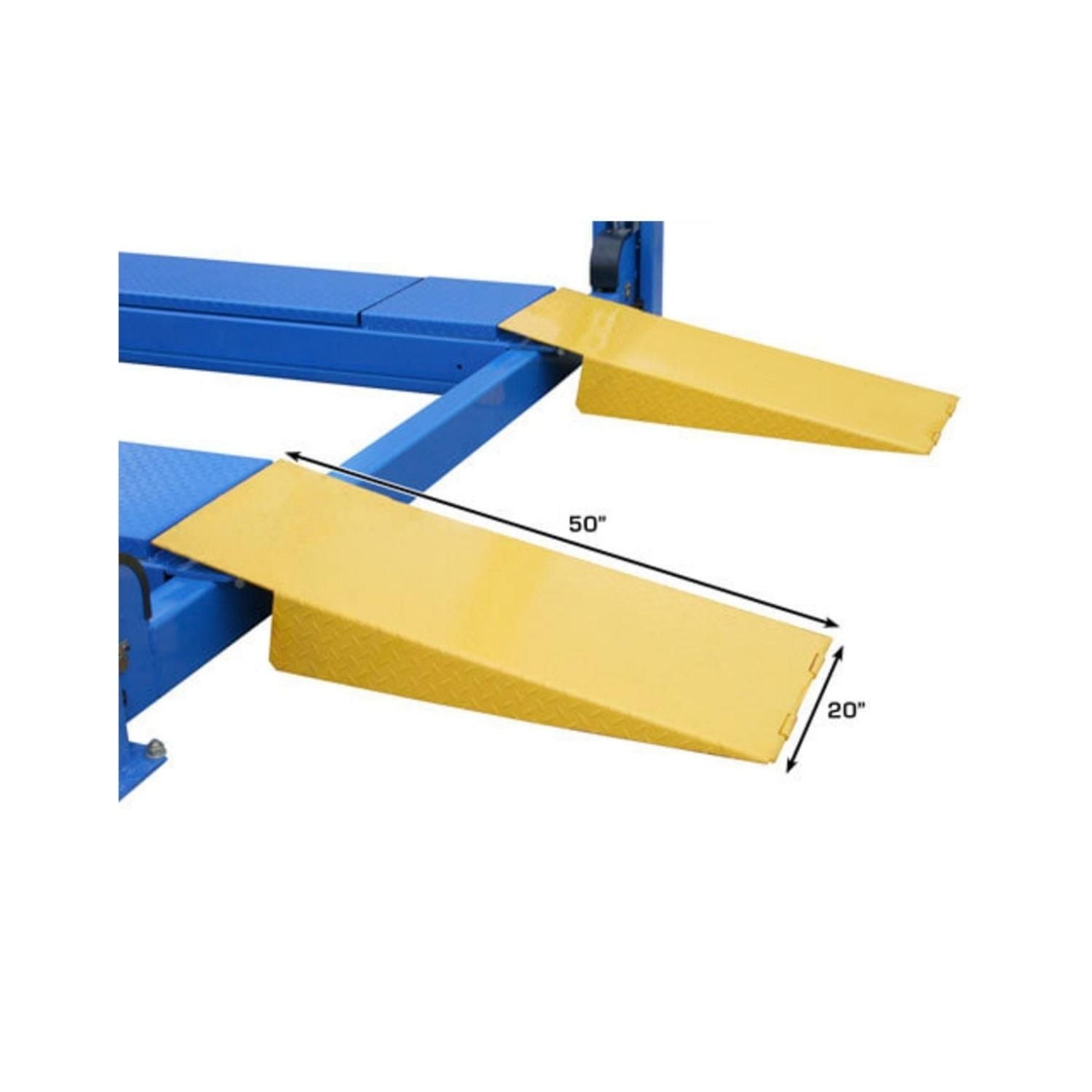

  • Steel Approach Ramps Included
  • Additional Drive off Ramps Available (Sold Separately)
  • Runway Extensions Available (Sold Separately)
  • Mounting Hardware Included
  • Jacks are Air Over Hydraulic Operated
  • Truck Adapter Set for each Jack Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Atlas® ATTD-414A Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTD-414A-COMBO-FPD
  Dimensions:	220" L × 62" W × 42" H
  UPC:	810524028943
  Country of Origin:	CHN
  Capacity:	14,000 lb.
  Lifting Height:	80" (6' 8")
  Overall Width Of Columns (Without Motor):	130 7/8" (10' 10 7/8")
  Overall Width Of Columns (With Motor):	138 7/8" (11' 6 7/8")
  Overall Length With Approach Ramp:	255" (21' 3")
  Length Between Columns:	197 1/4" (16' 5 1/4")
  Runway Length:	208 5/8" (17' 4 5/8")
  Runway Width:	20"
  Thickness Of Runway:	8 3/4"

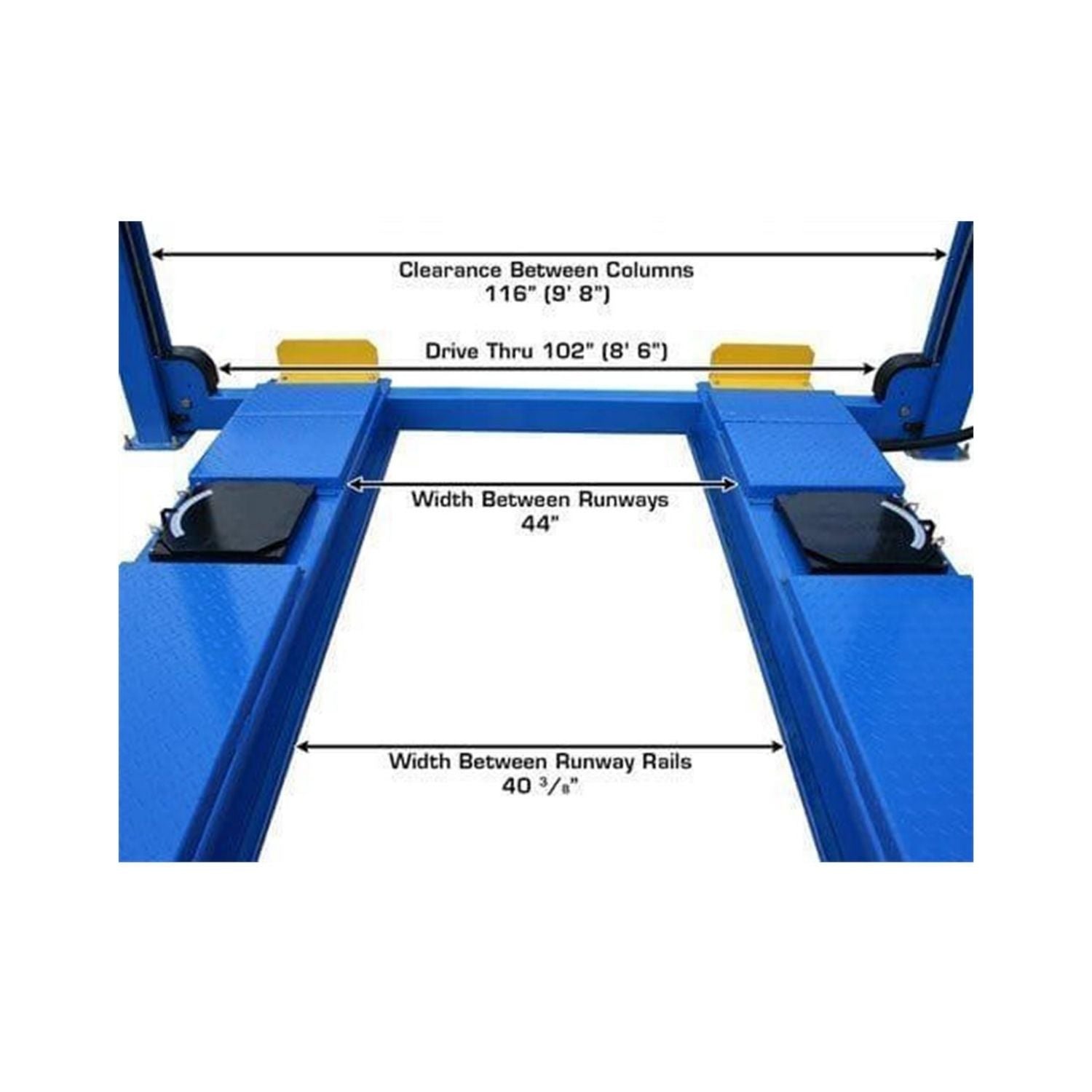

  Width Between Runways:	46 7/8" (w/ Rail 44 3/8")
  Outside Runway To Outside Runway:	86 7/8" (7' 2 7/8")
  Clearance Under Runways:	71 1/4" (5' 11 1/4")
  Clearance Between Columns:	116" (9' 8")

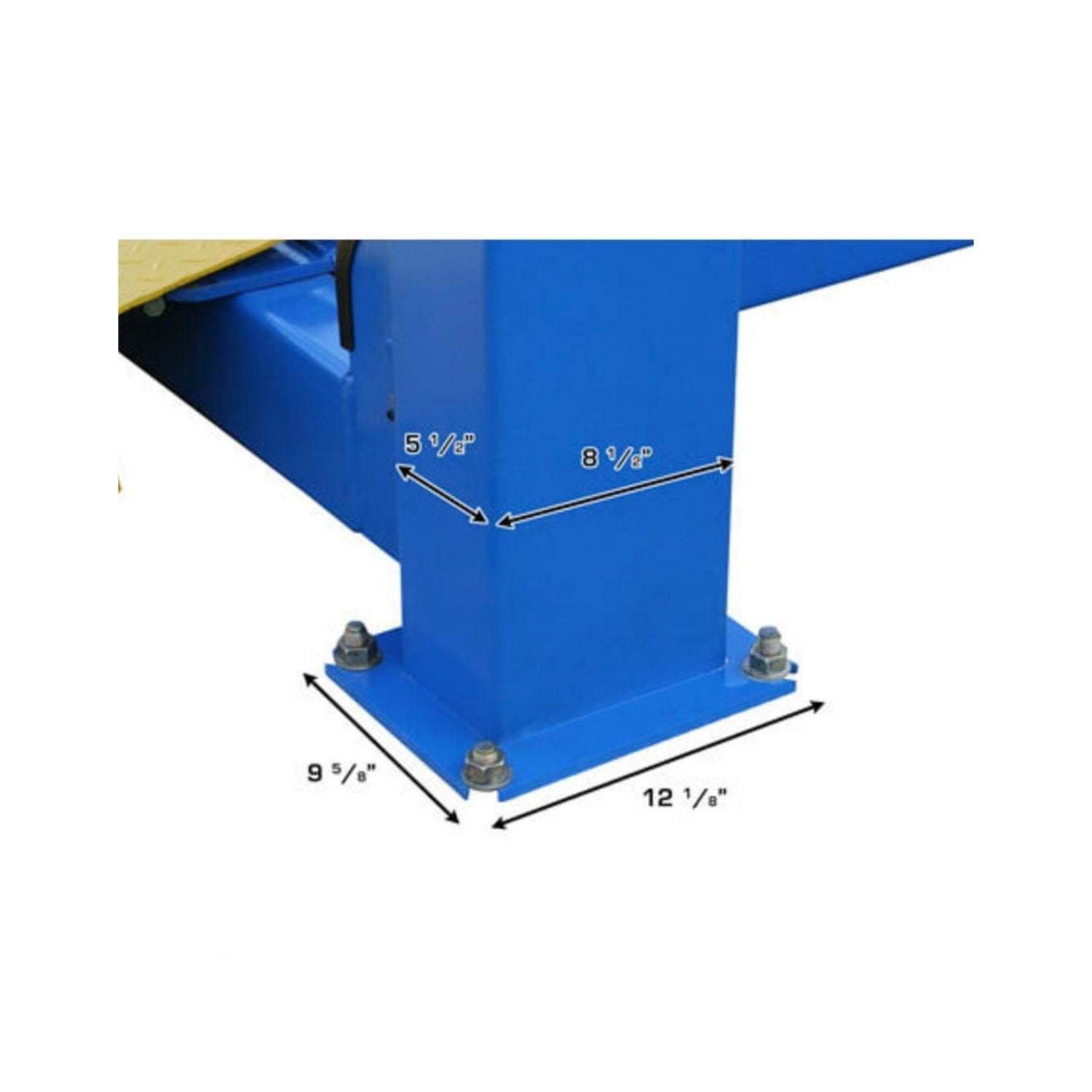

  Height Of Columns:	91 1/8" (7' 7 1/8")

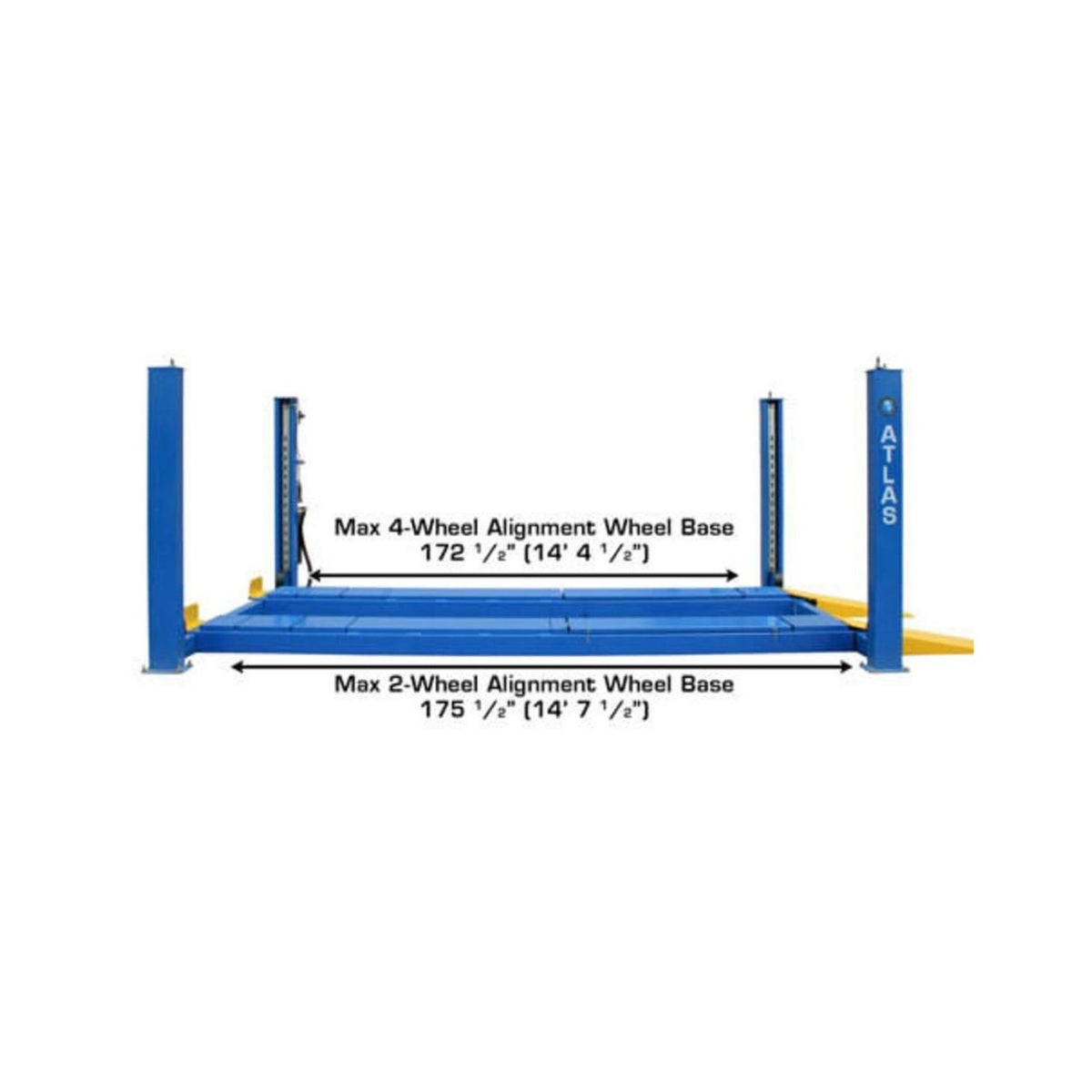

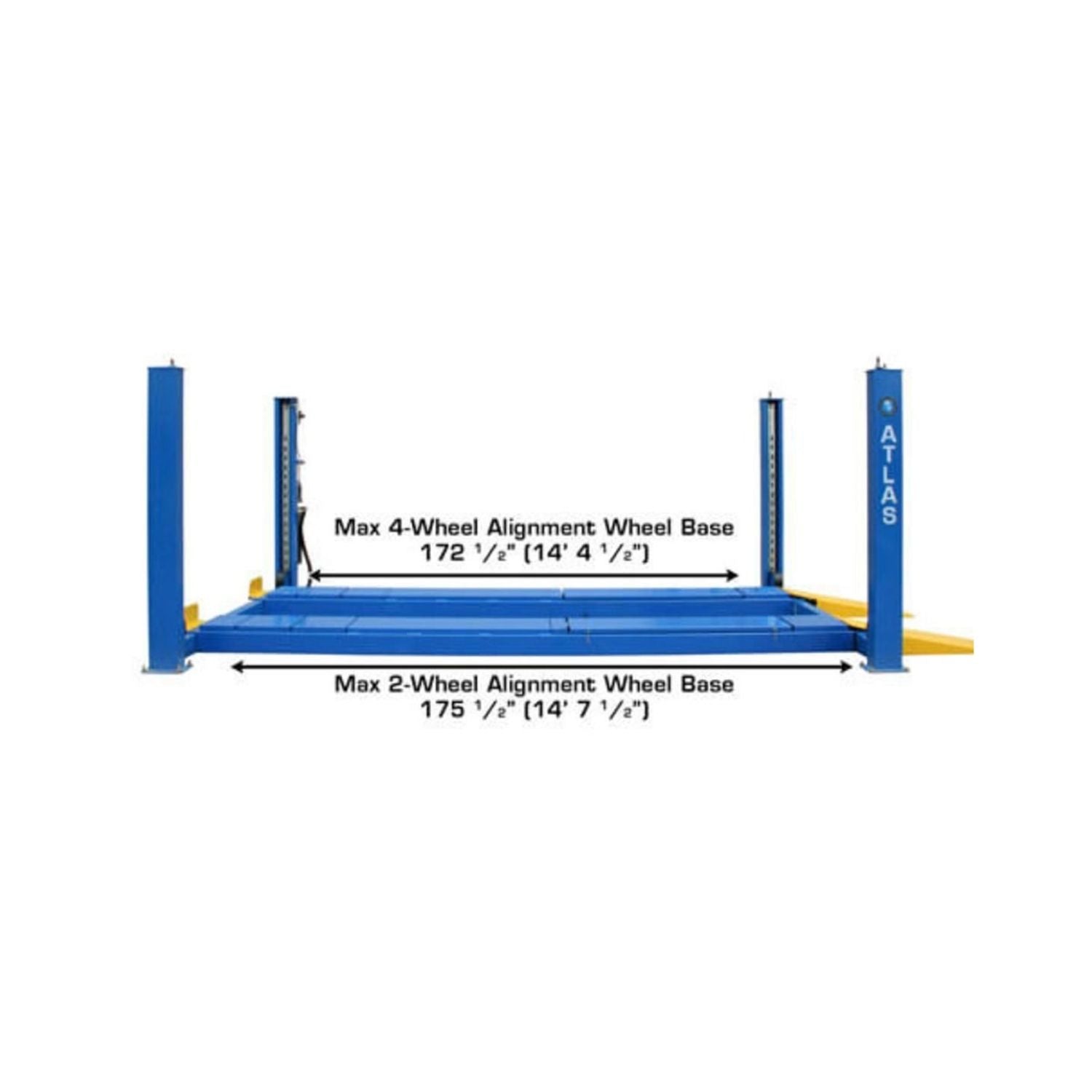

  Maximum Wheel Base:	197" (16' 5")
  Drive Thru:	102 1/8" (8' 6 1/8")
  Air Requirement:	85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)

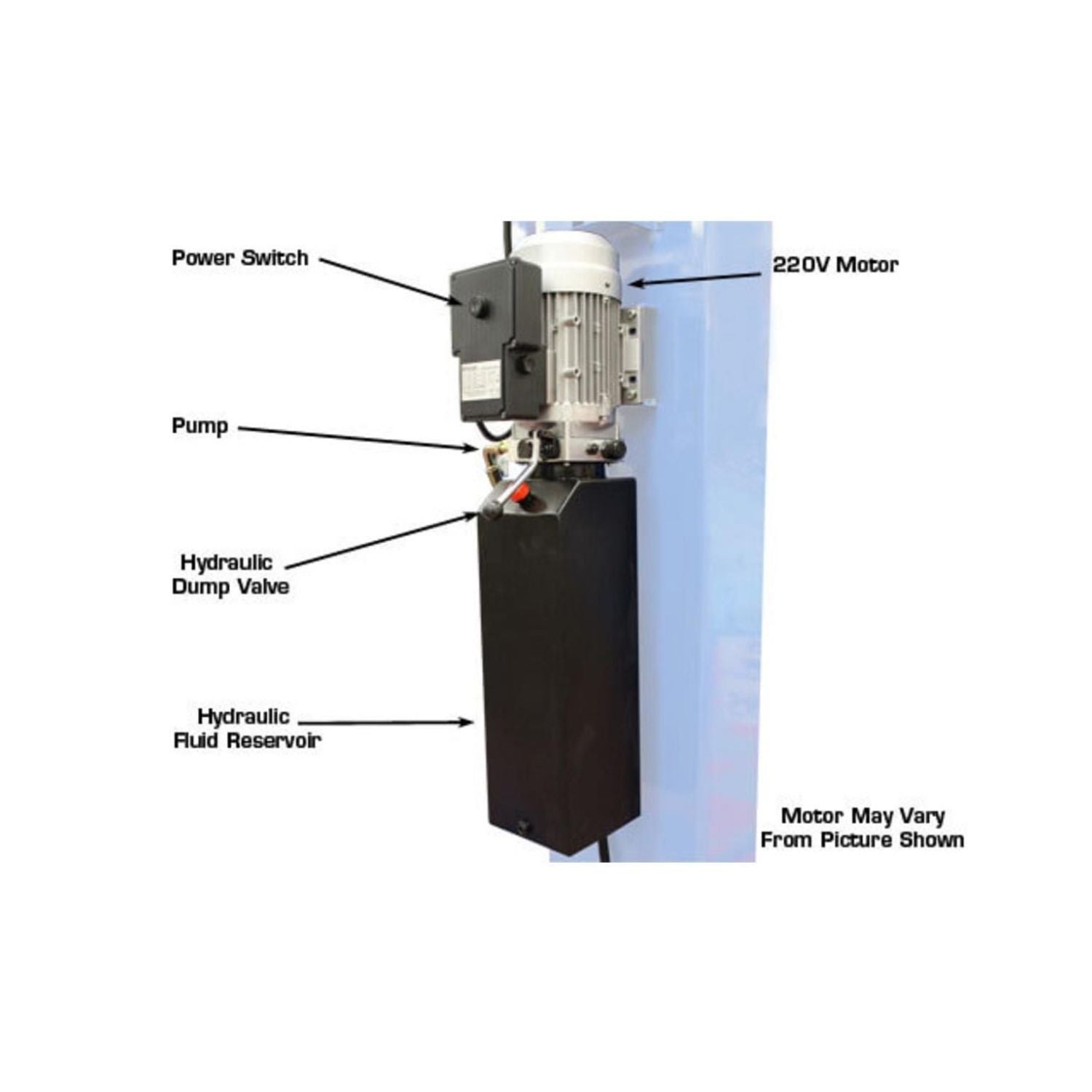

  Motor/Electrical Requirement:	220 volt single (1) phase (A 30 amp breaker is recommended)
  Oil Requirement:	3-5 Gallons AW32/AW46 (NOT INCLUDED)

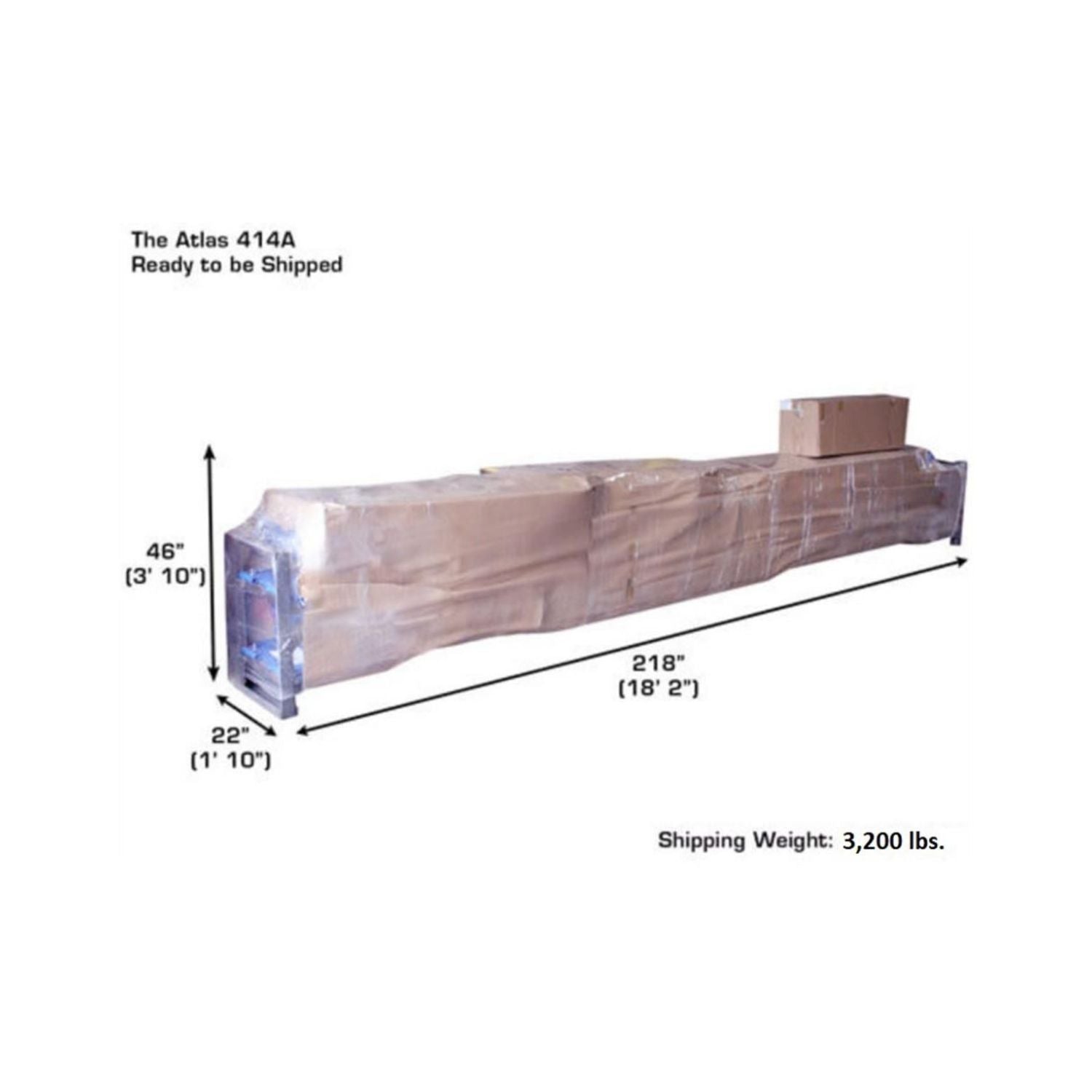

  Shipping Weight:	3,200 LBS.
  Concrete Requirement:	Requires a minimum of 6" of concrete with a 3000 psi rating




  Atlas® RJ8000 Specifications

  Maximum Capacity:	8,000 lb.
  Maximum Width:	66 1/2" (5' 6 1/2")
  Minimum Width:	40" (3' 4")
  Distance Between Runway Capability:	34 1/2"-55"
  Maximum Lifting Height (With Adapters):	30"
  Air Requirement:	70-115 PSI (External Air Supply Required - NOT INCLUDED)
  Shipping Weight:	390 lbs.
  Adapter Heights:	2 Each 2", 3"
  Arm Hole/Adapter Peg Size:	1.5"

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
