Atlas 14,000 lb 414 4-Post Lift & RJ8 Combo #ATEATTD-414-COMBO-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

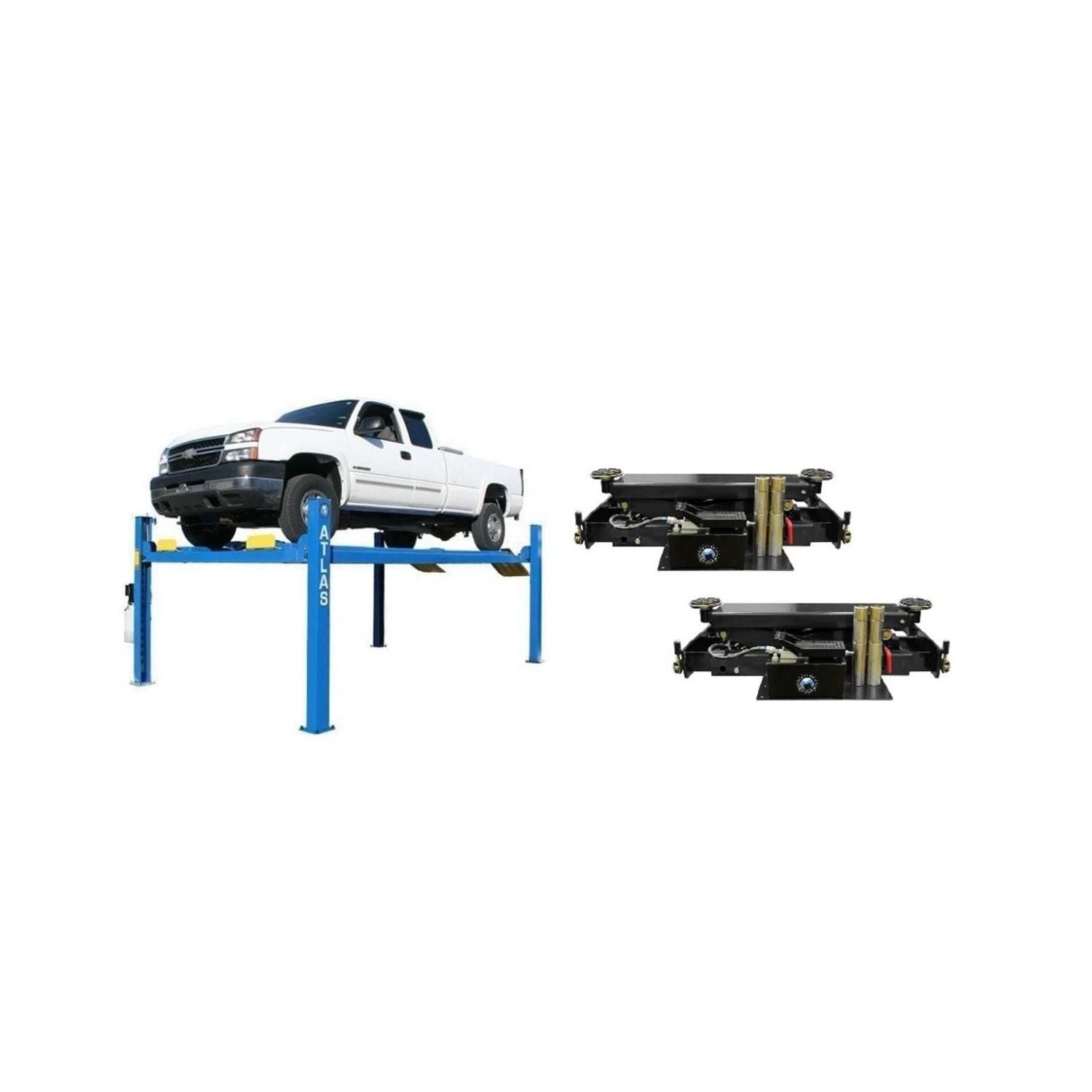

  The Atlas Commercial 414 Lift and RJ8 Combo is a high-capacity lifting solution designed for heavy-duty vehicle service in professional shop environments.

  This package includes the 14,000 lb 4-post lift paired with an RJ8 rolling jack, allowing technicians to lift vehicles and perform wheel-free service such as brake, suspension, and tire work. The combination enhances productivity while expanding service capabilities for larger vehicles.

  Built for durability and performance, this combo is ideal for commercial shops handling trucks, vans, and fleet vehicles.

• FEATURES AND BENEFITS

  • Combo Package includes 414 14,000 lb. Capacity lift & two RJ8 rolling jacks
  • Heavy Duty, Commercial Grade
  • Lift is Extra Tall, Extra Wide & Extra Long

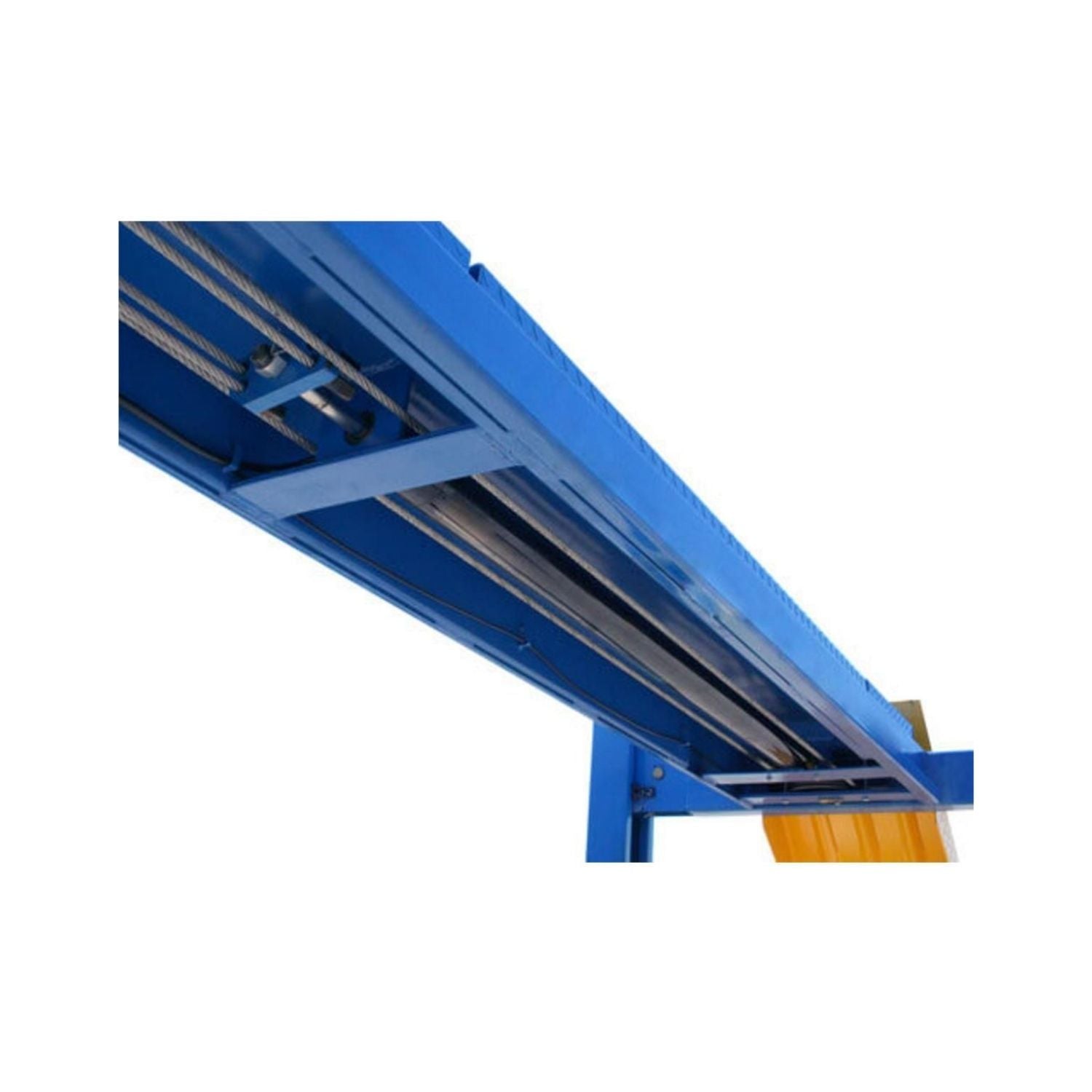

  • Lift has Diamond Plated Runways

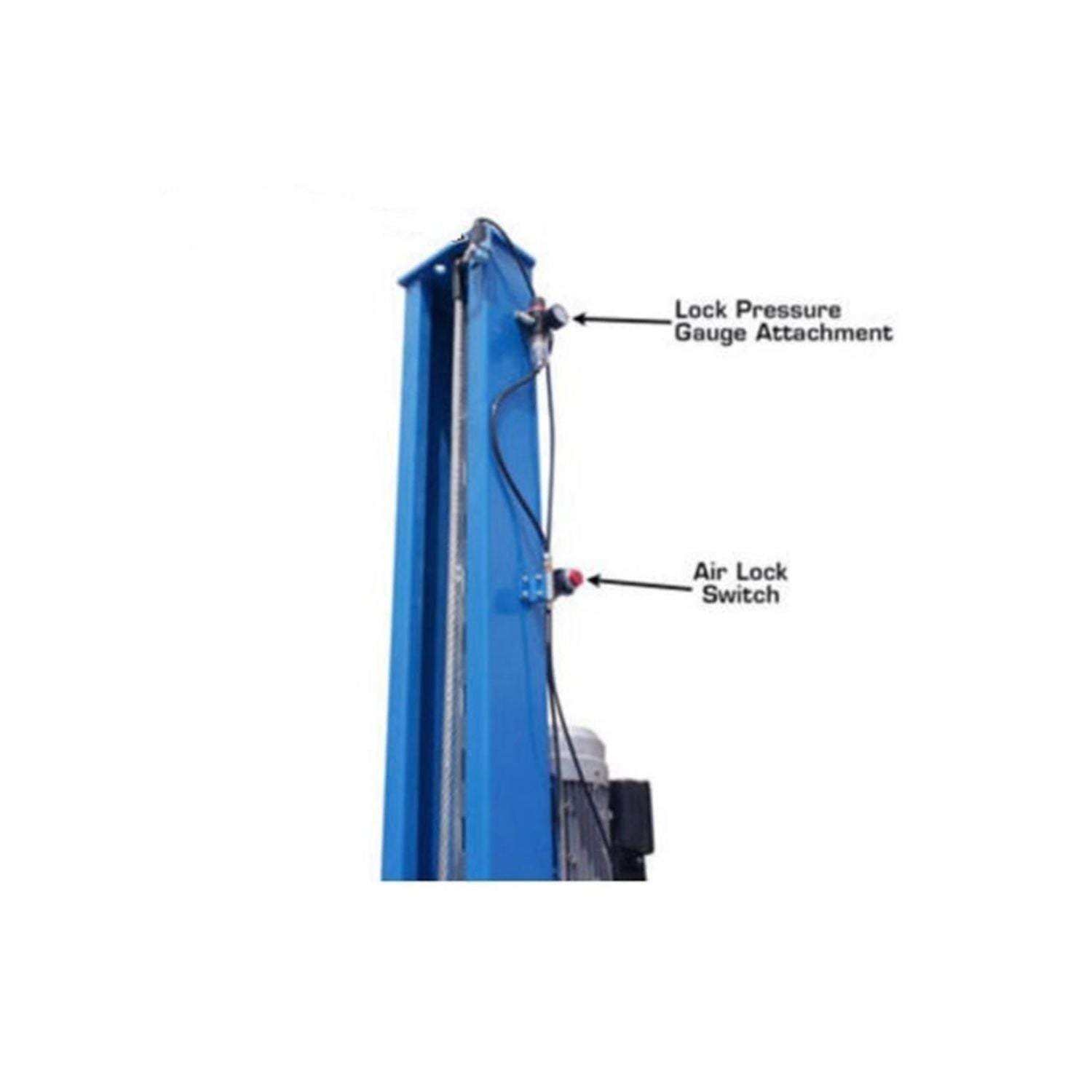

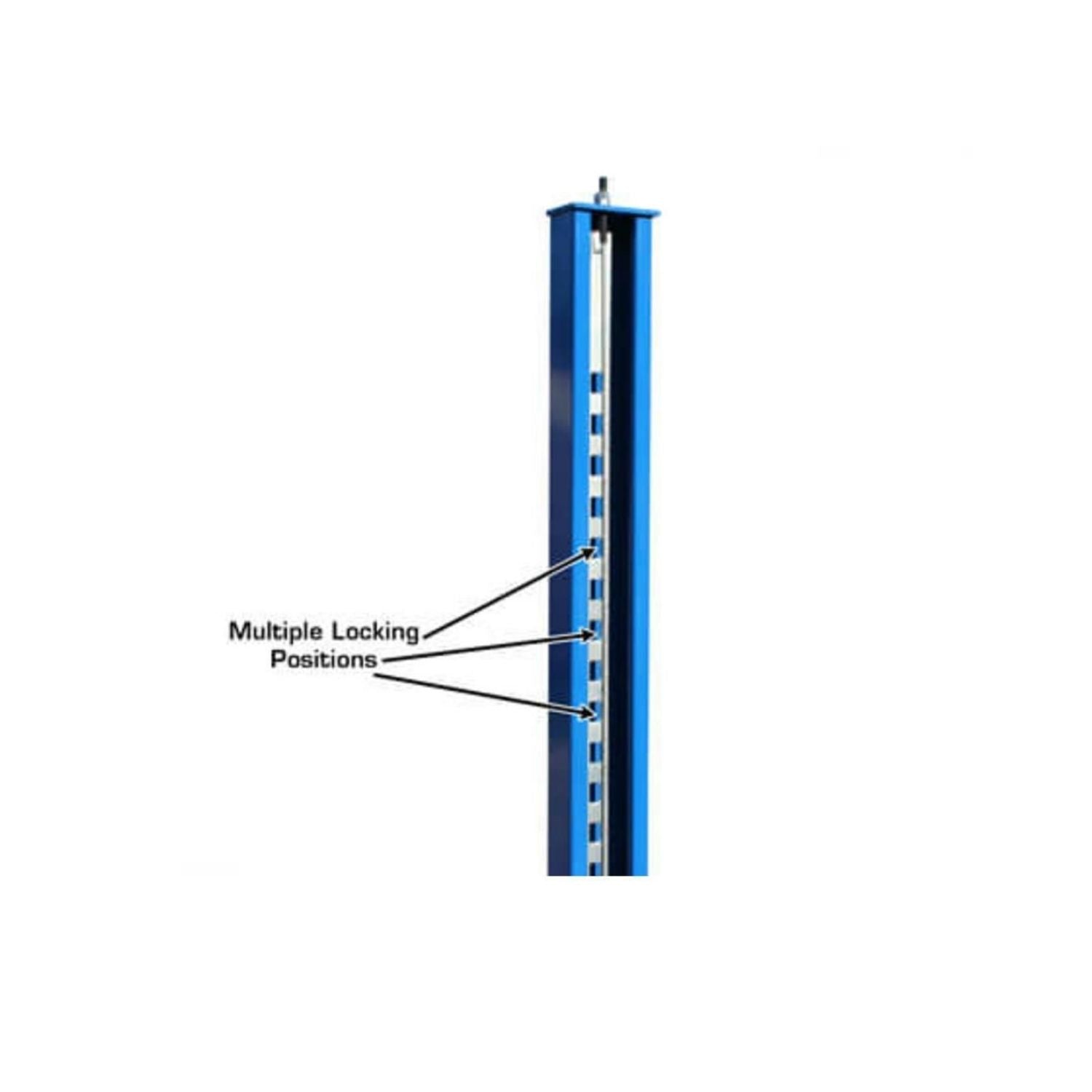

  • Lift has Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)
  • Steel Approach Ramps Included
  • Additional Drive off Ramps Available (Sold Separately)
  • Runway Extensions Available (Sold Separately)
  • Mounting Hardware Included
  • Jacks are Air Over Hydraulic operated
  • Truck Adapter Set for each Jack Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Atlas® ATTD-414 Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTD-414-COMBO-FPD
  Dimensions:	222" L × 64" W × 46" H
  Weight:	3,900 lbs
  UPC:	810524028929
  Country of Origin:	CHN
  Capacity:	14,000 lb.
  Lifting Height:	80" (6' 8")
  Overall Width Of Columns (Without Motor):	130 7/8" (10' 10 7/8")
  Overall Width Of Columns (With Motor):	138 7/8" (11' 6 7/8")
  Overall Length With Approach Ramp:	255" (21' 3")
  Length Between Columns:	197 1/4" (16' 5 1/4")
  Runway Length:	208 5/8" (17' 4 5/8")
  Runway Width:	20"
  Thickness Of Runway:	8 3/4"
  Width Between Runways:	46 7/8" (w/ Rail 44 3/8")
  Outside Runway To Outside Runway:	86 7/8" (7' 2 7/8")
  Clearance Under Runways:	71 1/4" (5' 11 1/4")
  Clearance Between Columns:	116" (9' 8")
  Height Of Columns:	91 1/8" (7' 7 1/8")
  Maximum Wheel Base:	197" (16' 5")
  Drive Thru:	102 1/8" (8' 6 1/8")
  Air Requirement:	85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
  Motor/Electrical Requirement:	220 volt single (1) phase (A 30 amp breaker is recommended)
  Oil Requirement:	3-5 Gallons AW32/AW46 (NOT INCLUDED)

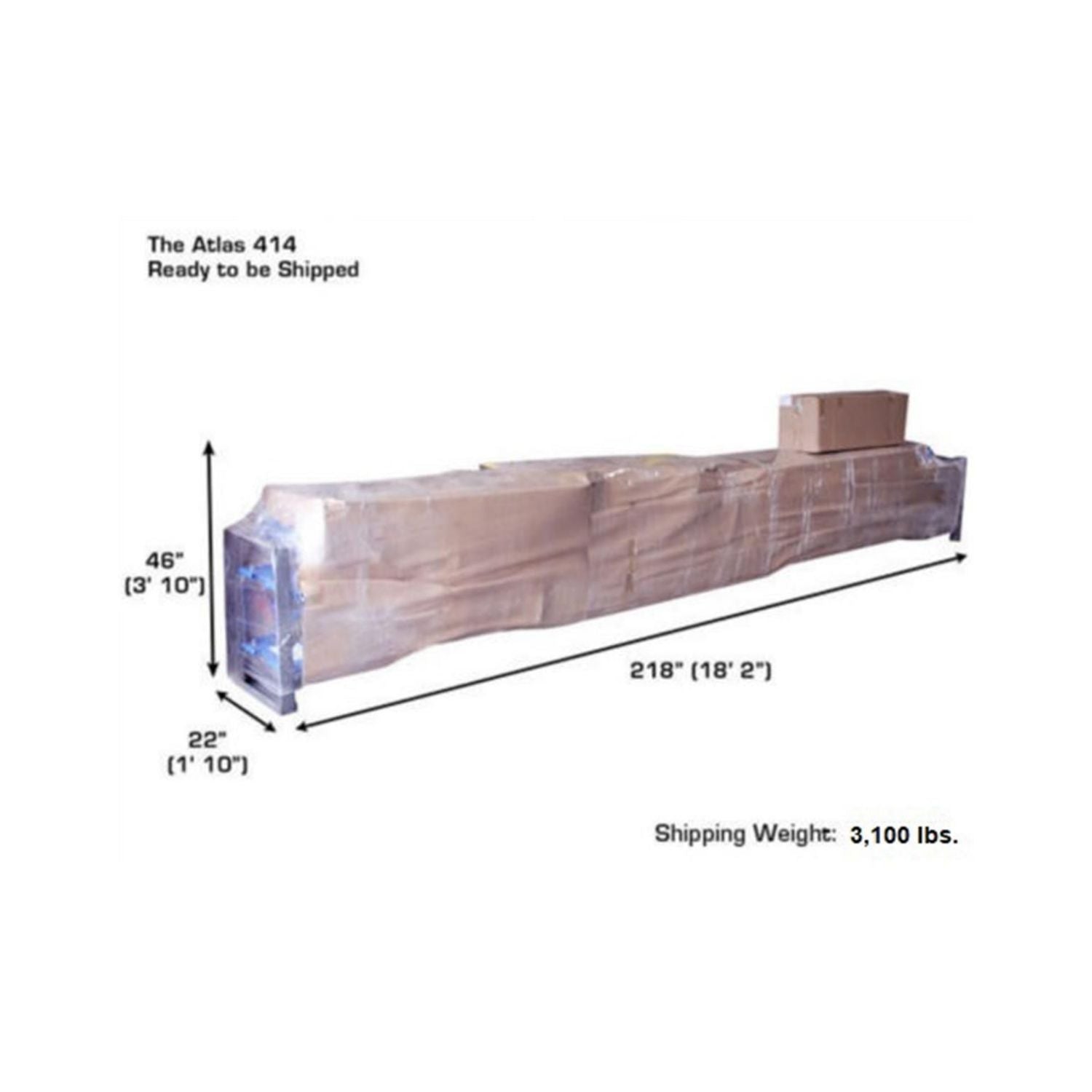

  Shipping Weight:	3,100 LBS.
  Concrete Requirement:	Requires a minimum of 6" of concrete with a 3000 psi rating

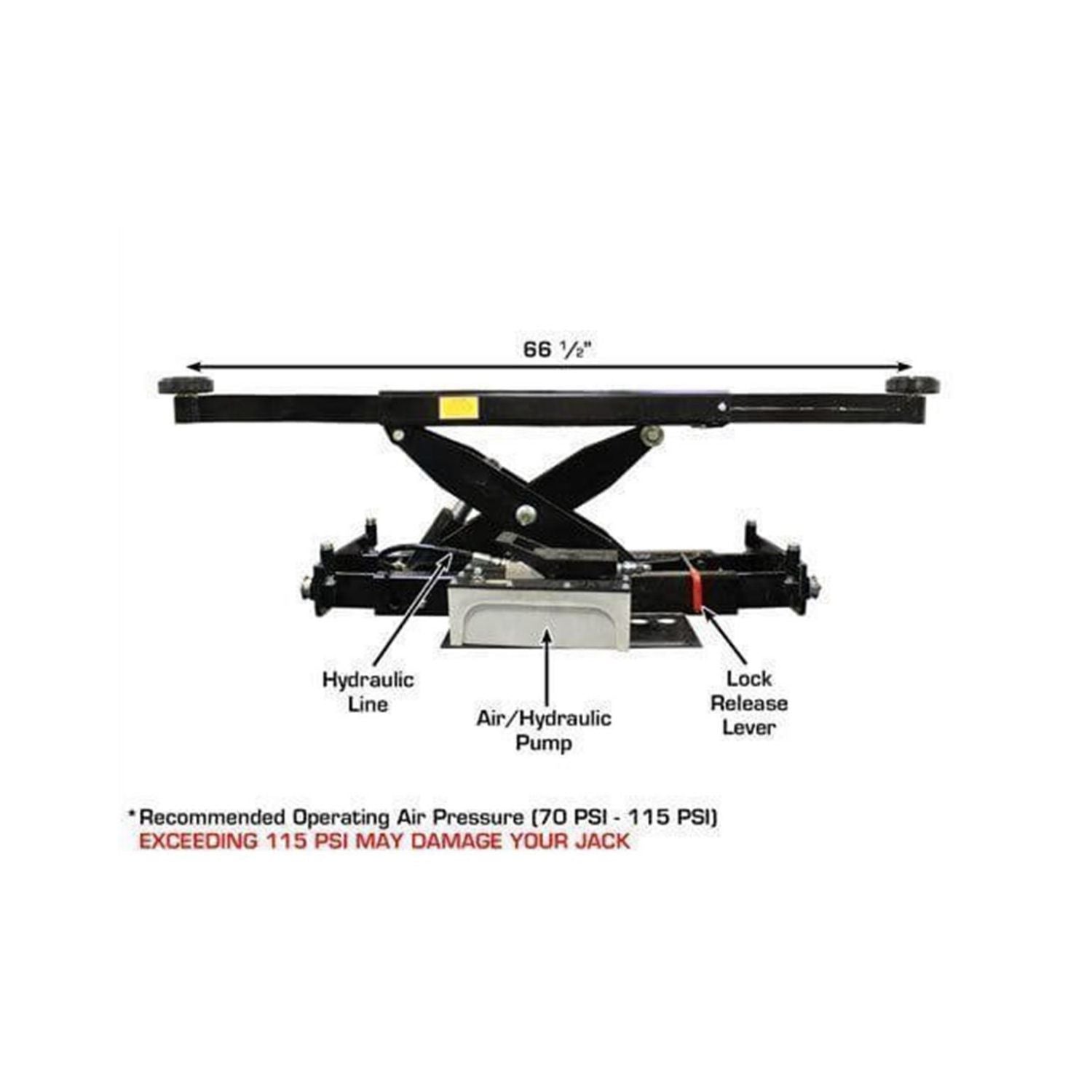

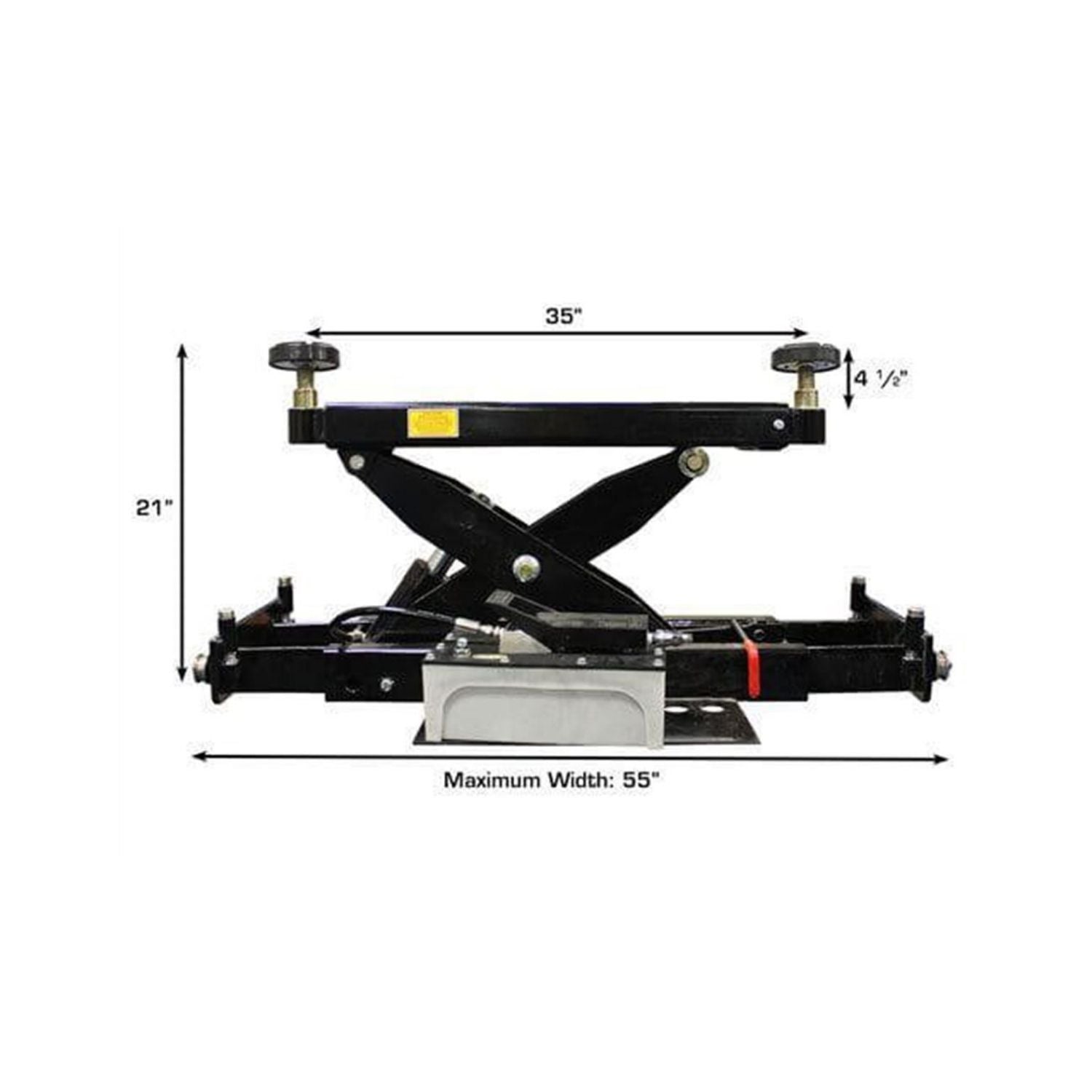

  Atlas® RJ8000 Specifications

  Maximum Capacity:	8,000 lb.

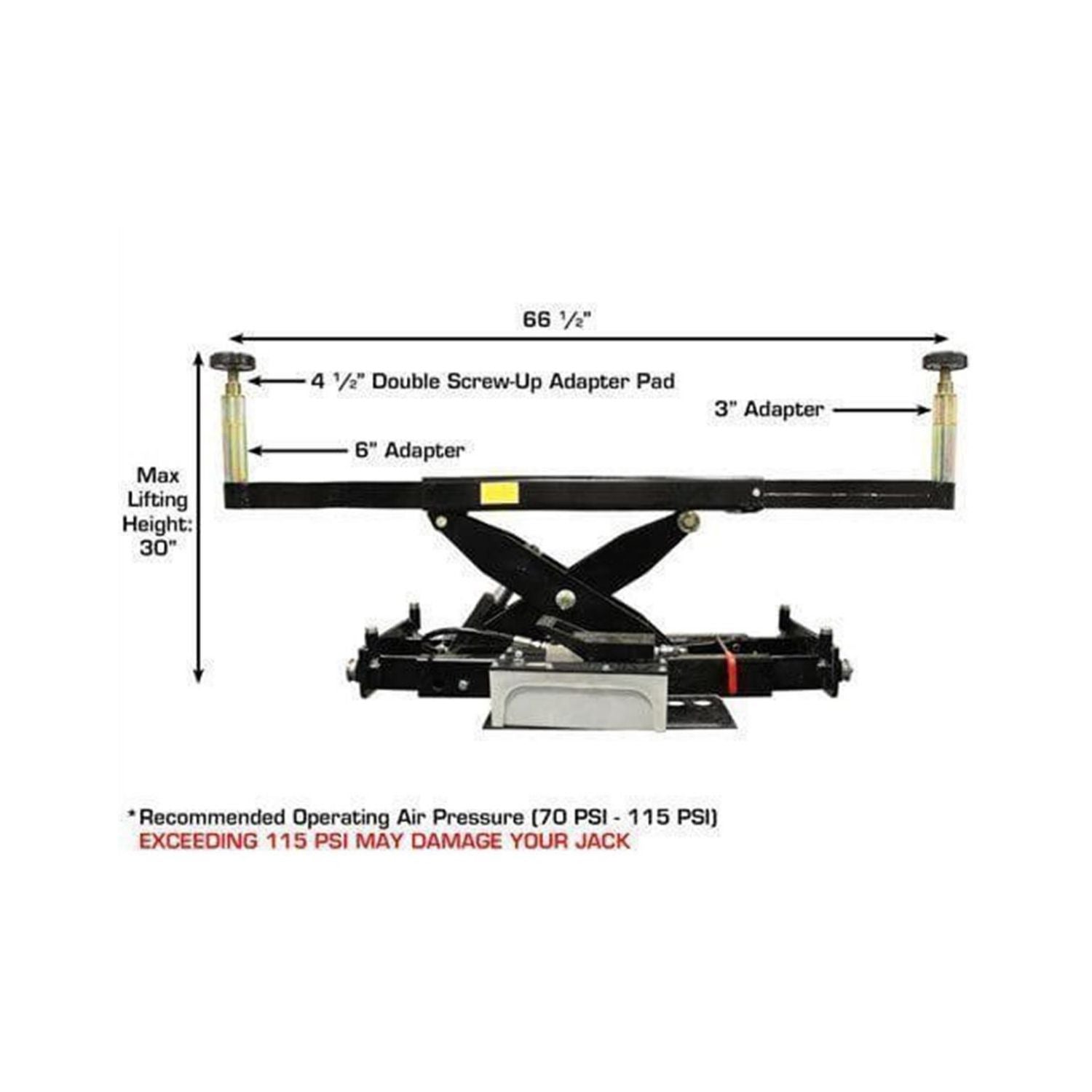

  Maximum Width:	66 1/2" (5' 6 1/2")
  Minimum Width:	40" (3' 4")
  Distance Between Runway Capability:	34 1/2"-55"

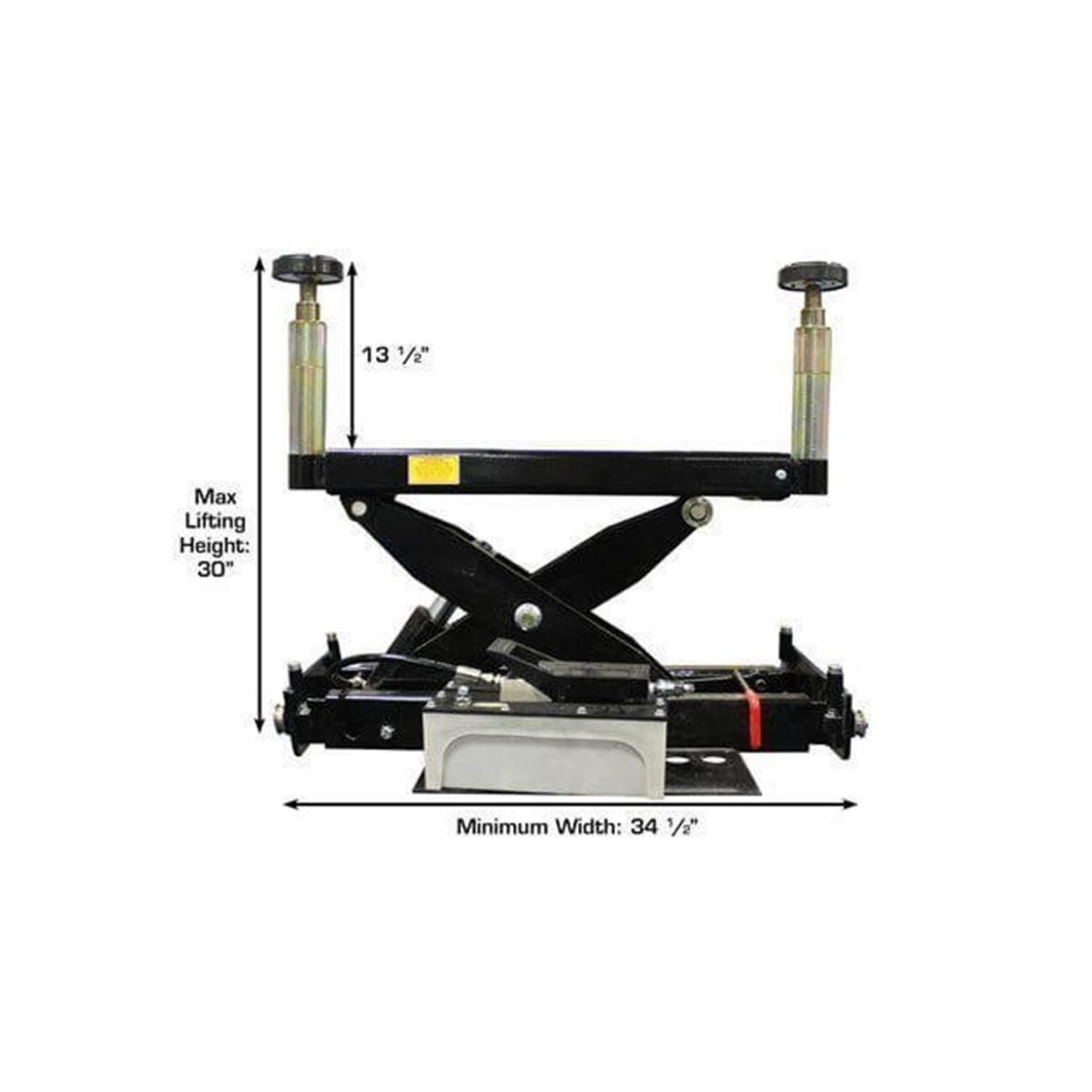

  Maximum Lifting Height (With Adapters):	30"

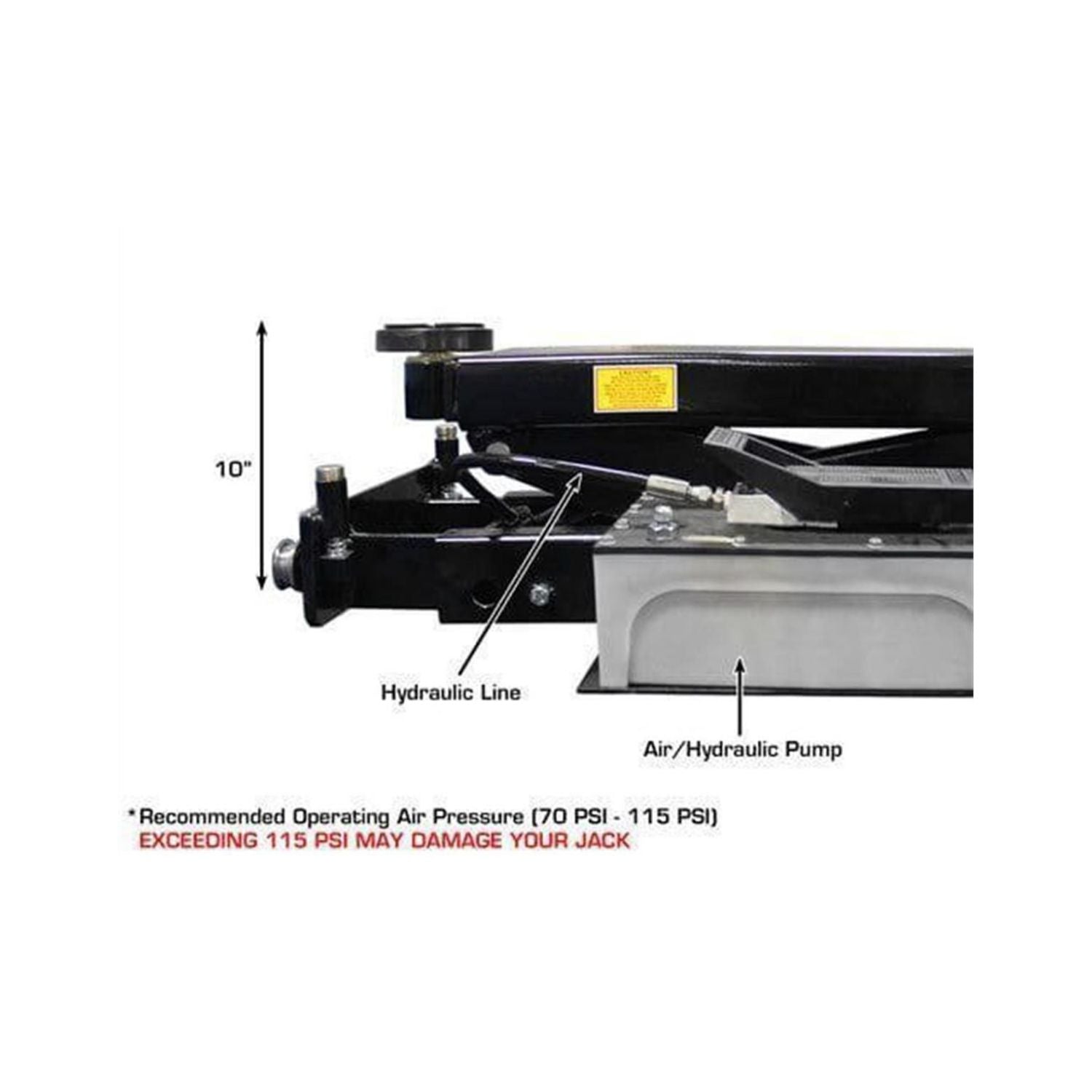

  Air Requirement:	70-115 PSI (External Air Supply Required - NOT INCLUDED)
  Shipping Weight:	390 lbs.
  Adapter Heights:	2 Each 2", 3"
  Arm Hole/Adapter Peg Size:	1.5"

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
