Challenger 10K Short-Rise #SRM10
Lead time:
-
DESCRIPTION

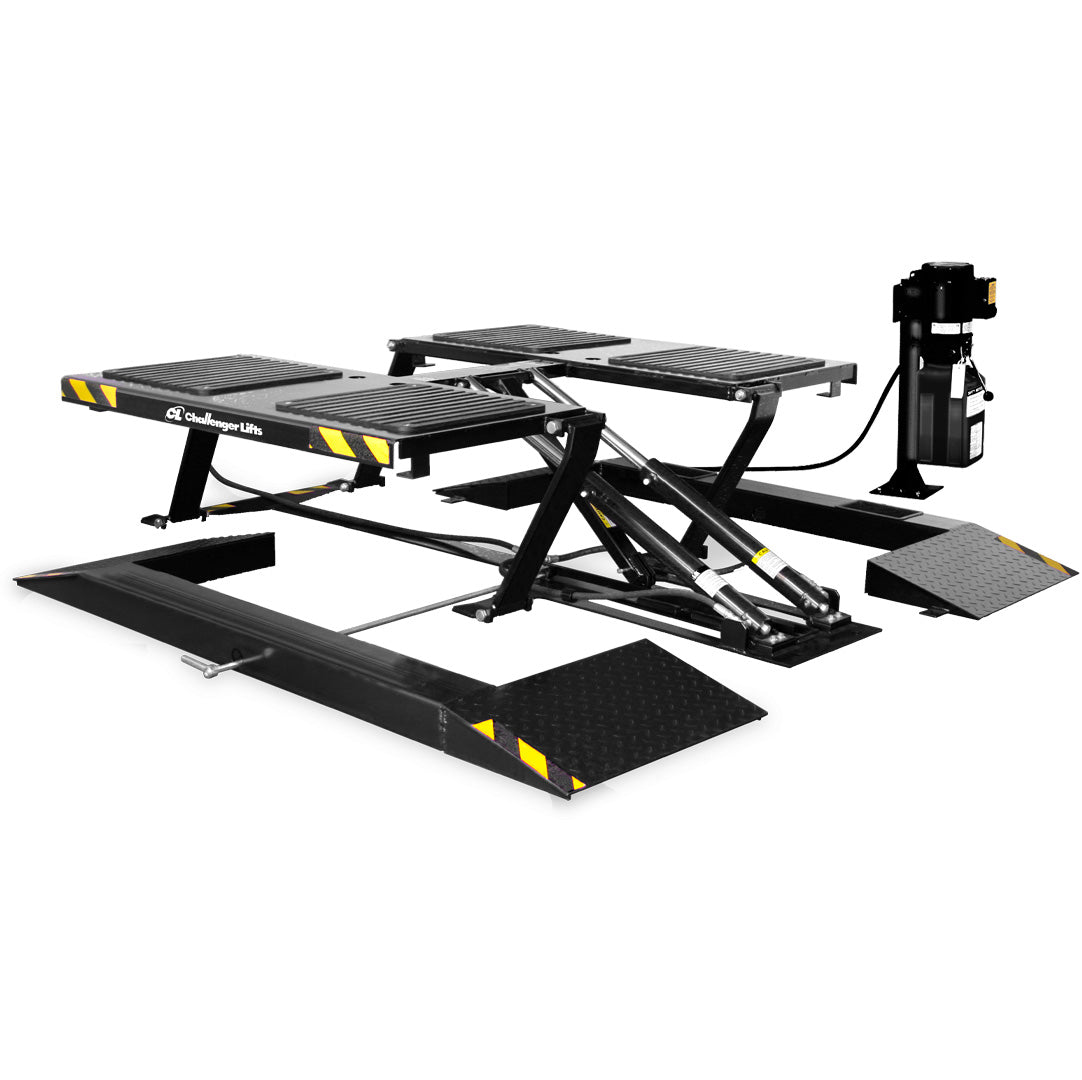

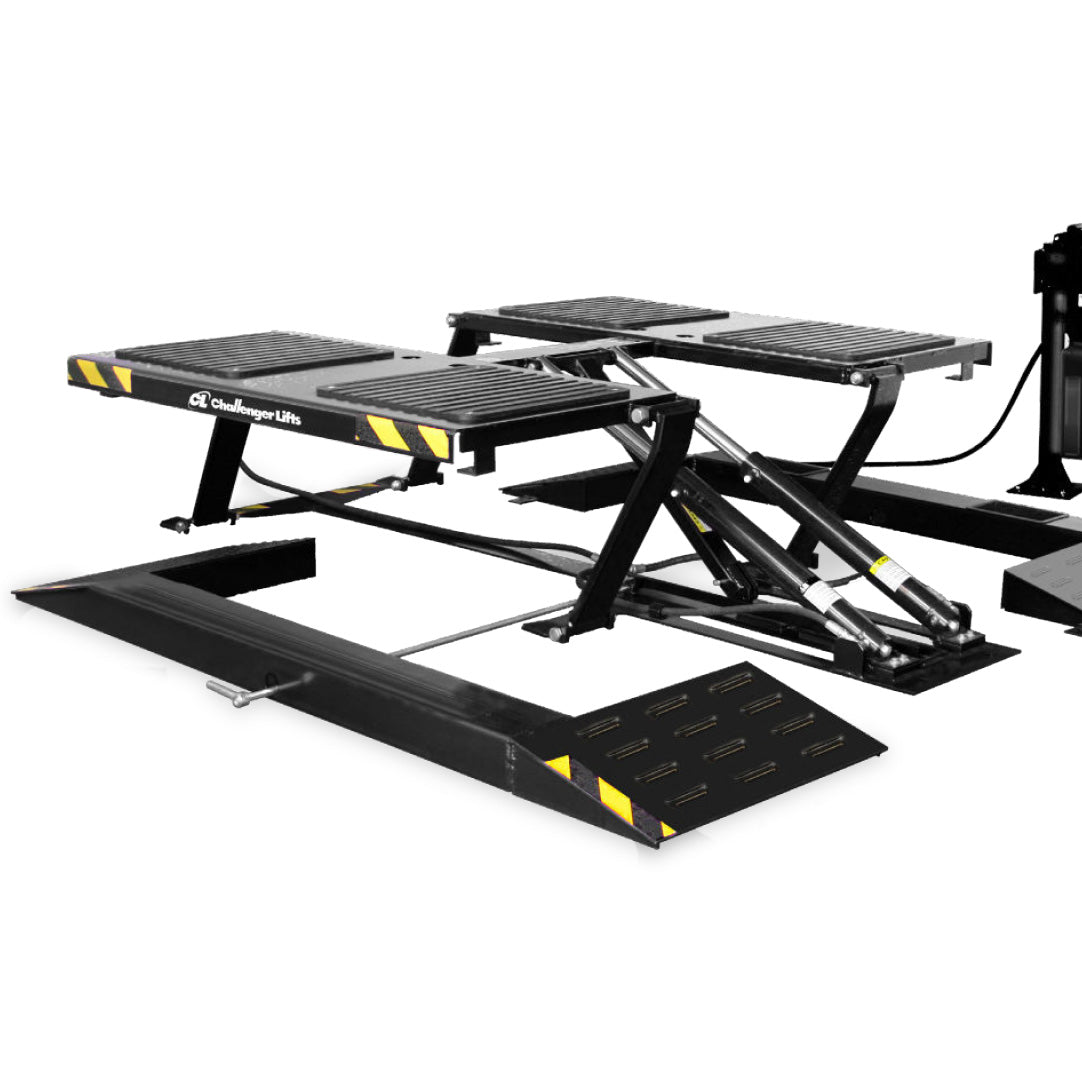

Challenger’s shortrise lift is a great choice for brake and tire servicing needs. Dual hydraulic cylinders provide a 10,000 lb. capacity to lift vehicles ranging from small passenger cars to light trucks. Standard spotting blocks and optional auxiliary adapters reach an even wider range of vehicle lift point.
Challengers SRM10 Short Rise car lift boasts a remarkable 10,000 lb. lift capacity, allowing you to easily lift a wide range of vehicles with ease. With a raised height of 22 inches, this lift is perfect for servicing trucks, SUVs, and other larger vehicles. Featuring standard two-position spotting blocks, this lift reaches pickup points on a wider range of vehicles, making it a versatile addition to any auto repair shop or home garage. The three locking positions add to the ease of use when lifting and lowering your vehicle, ensuring a smooth and stable operation every time. The powder-coated finish on this lift provides long-lasting durability, withstanding even the most rigorous of environments. It also gives a sleek, professional look to any workspace. Furthermore, the lift can be mounted flush for added convenience and space-saving. Upgrade your workshop or garage to the next level with Challenger’s exceptional short rise car lift – designed with both performance and style in mind. Experience the ease and efficiency of working on your vehicles.
ALI® / ETL Certified
-
FEATURES + BENEFITS
- 10,000 lb. lift capacity
- 22” raised height
- Standard two-position spotting blocks reach pickup points on a wider range of vehicles
- Three locking positions for ease of use
- Powder coat finish provides long-lasting durability
- Can be mounted flush
-
SPECIFICATIONS
Model Number SRM10
Description
Standard Open-Front Flat Deck
Lifting Capacity 10,000 lbs. Raised Height 22” Lowered Height 4.25” Locking Bar Heights 13.75”, 18.325”, 21.25” Low Adapter Position 4.75” High Adapter Position 6.75” Overall Width 85” (+ 2.5” for handle) Outside Width of Platforms 72” Width between Platforms 23” Platform Overall Length 50” Ramp & Platform Overall Length 82.5” Overall Length 92.875” Rearward Movement 13.25” Motor / Voltage 1HP, 115v, 60Hz, 1Ph ALI/ETL Certified Yes Colors Available Black -
MANUAL + SPECS
