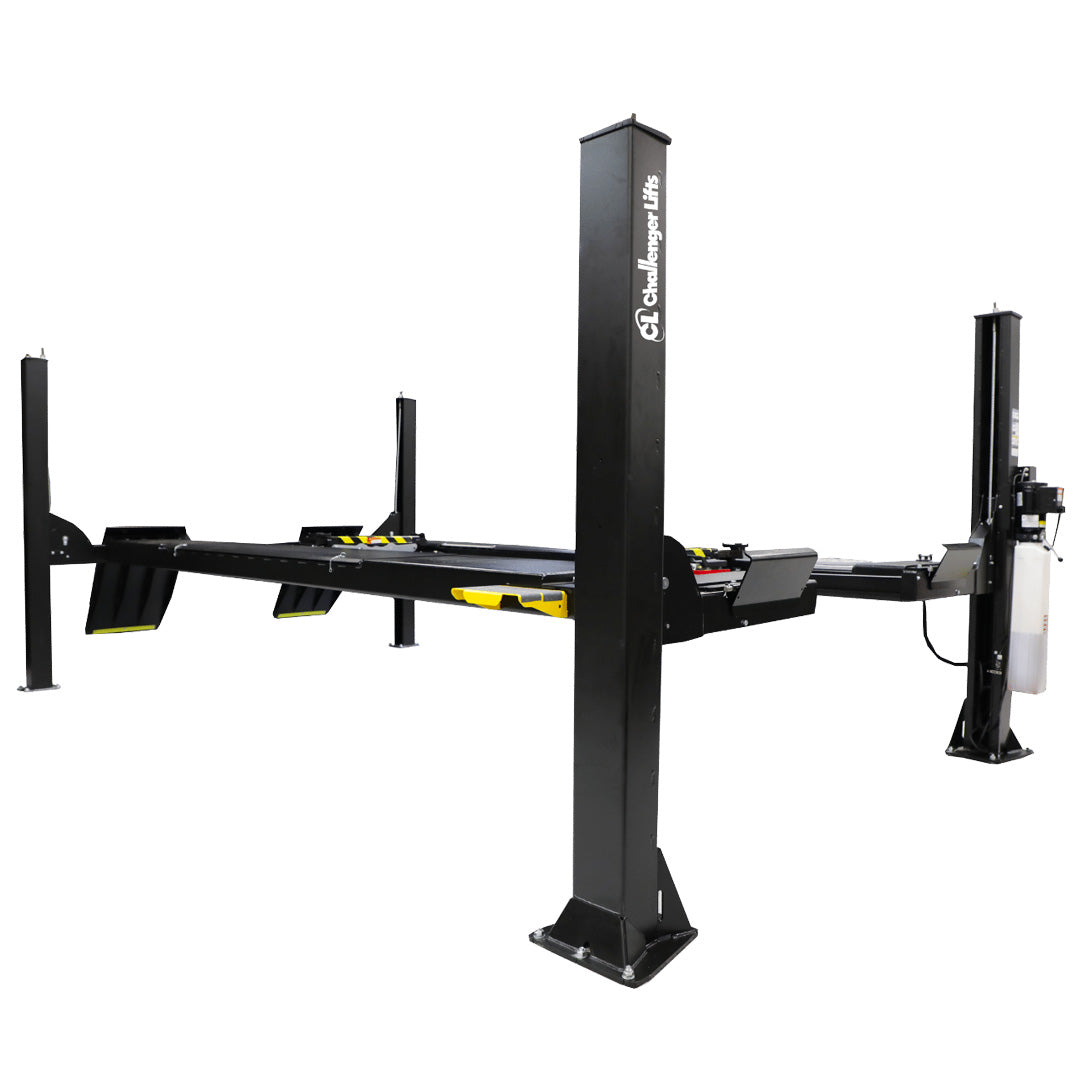

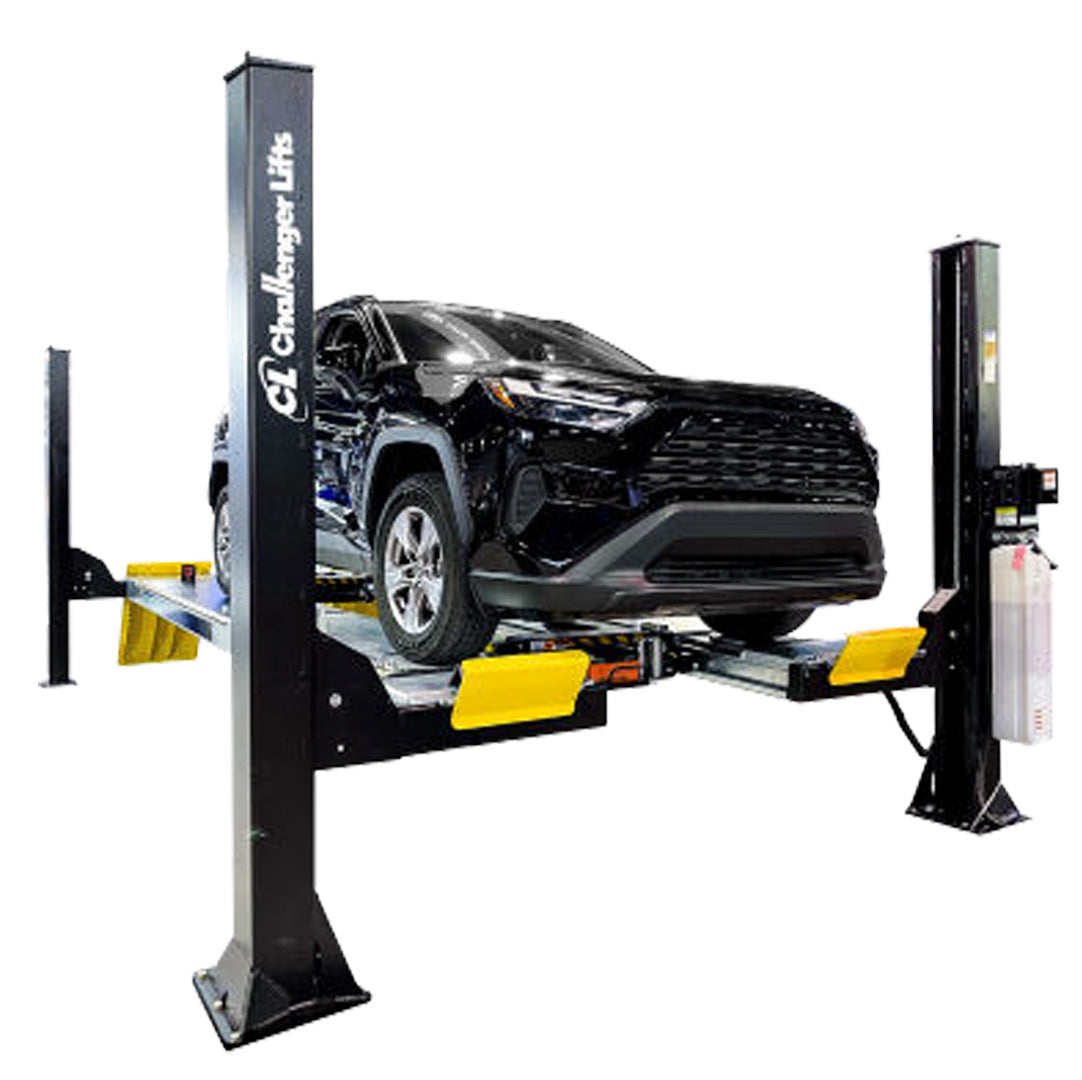

Challenger 15K 4-Post / Alignment #AR4115EAX
Couldn't load pickup availability
| Model / Part Number | AR4115EAX |
| Brand | Challenger |
| Lifting Capacity | 15,000 lbs |
| Open or Closed Front | Closed |
| Max. Wheelbase | 183" |
| Max. 2-Wheel Alignment | 167.75" |
| Max. 4-Wheel Alignment | 68" - 158" |
| Rise Height | 78" |
- 4" minimum reinforced slab
- 6" preferred for production bays
- Must be fully cured before anchor installation
- Confirm with Alamo before install
- Have an electrician run a dedicated circuit to the bay before install day
- 90-120 PSI
- Confirm shop air line reaches the bay before install day
Challenger 15,000 lb 4-Post Alignment Lift — Closed Front, Alignment-Ready
A shop quoting new alignment equipment often runs into vague spec sheets — "alignment-ready" without a published wheelbase number for 2-wheel or 4-wheel alignment work. That makes it hard to know if the lift will actually handle your customer mix until it's on the floor and you're finding out the hard way.
The Challenger AR4115EAX publishes real numbers: 167.75" max 2-wheel alignment wheelbase and 68"-158" for 4-wheel alignment, in the most compact footprint of the AR4115 family (14' x 24' bay, 247.625" overall length). It pairs the standard alignment kit — turnplates, slip plates, rolling jacks — with a closed front for structural rigidity, in the smallest bay footprint of any Alignment-Ready 4115 variant.
Who the AR4115EAX Is Built For
- A shop that wants a published, verifiable alignment wheelbase spec (167.75" 2-wheel, 68"-158" 4-wheel) rather than a vague "alignment-ready" claim with no numbers to check against their customer mix.
- An alignment center with a standard-depth bay (14' x 24') that needs the full turnplate/slip-plate/rolling-jack kit without the extra floor space the extended XAX/XAO variants require.
- A shop that wants the structural rigidity of a closed-front column while running dedicated 4-wheel alignment work at or near rated capacity.
- A commercial or fleet operation consolidating a separate alignment rack and standalone lift into one integrated 15,000 lb platform in the most compact bay footprint available in this family.
- A dealership service department that needs to confirm exact alignment coverage against specific vehicle models before committing floor space to new equipment.
- A shop in a high-humidity or road-salt region considering the optional galvanized coating to protect the integrated alignment hardware and runways over years of daily alignment volume.
What the AR4115EAX Is NOT Built For
If your longest vehicles push past the 167.75"/158" alignment wheelbase limits, the AR4115XAX extends 2-wheel alignment coverage to 195.25" in the same closed-front, alignment-ready configuration. And if your shop doesn't run dedicated alignments, the base 4115EFX covers the same footprint without the alignment-kit cost.
What Makes the AR4115EAX Different
Galvanized Coating Upgrade Available
A lift running dedicated alignment work every day puts constant wear on runways, jack rails, turn plate pockets, and slip plate pockets. The optional galvanized coating protects those contact points from corrosion in coastal, humid, or road-salt regions, adding years to the parts that see the most traffic on a high-volume alignment lift. Ask Alamo before ordering if your shop runs in a harsh-climate area.
All-New 22" Wide Runways
The AR4115EAX's 22.375" runways give techs stable footing while working around the integrated turnplates and slip plates, and give a wider range of vehicles more surface during loading — useful on a lift cycling through alignments all day.
Open and Closed Front Configurations
The EAX pairs the alignment kit with a closed front for added structural rigidity — a real factor on a lift running near-capacity alignment work daily. If open-front access matters more for your workflow, the AR4115EAO pairs the same alignment kit with an open front in the same footprint.
Improved 4-Wheel Alignment Wheelbase
The published 167.75" 2-wheel and 68"-158" 4-wheel alignment wheelbase specs mean you can confirm exact vehicle coverage before ordering, instead of guessing based on a generic "alignment-ready" label. That's a real range covering most passenger cars and light trucks without swapping equipment.
Louvered Approach Ramps
On a lift running dedicated alignment work all day, the approach ramps see constant traffic. Louvered ramps hold their grip better over time than diamond tread or abrasive strip designs, keeping wheel spin down and loading confident even after years of heavy alignment-bay use.
- Alignment Kit Included: Rolling jacks, internal airline system, and stainless steel turn plates included — ready for wheel alignment work out of the box
- Closed-front 4-post alignment lift with turnplates and slip plates, standard length applications
- Shops needing 15,000 lbs certified alignment capacity
- Facilities with at least 14' x 24' of bay space
- General repair bays without dedicated alignment volume
- Shops with bay space below 14' x 24'
AR4115EAX vs. Atlas 14,000 lb 4-Post Alignment Lift w/ Turntables #ATEATTD-414AT-FPD — Which Fits Your Shop?
| Feature | AR4115EAX | Atlas 14,000 lb 4-Post Alignment Lift w/ Turntables |
|---|---|---|
| Lift type | Closed-front 4-post alignment lift with turnplates and slip plates, standard length | 4-Post alignment lift w/ turntables |
| Capacity | 15,000 lbs | 14,000 lbs |
| Configuration | Closed Front, Standard Length, Alignment-Ready | 4-Post, 255" overall length w/ ramp |
| Warranty | Challenger (see Warranty tab) | 5-year structural / 2-year hydraulic (parts only) |
| Best use case | Closed-front 4-post alignment lift with turnplates and slip plates, standard length | Nearby capacity class, both 4-post configuration |
The right choice depends on your bay type and alignment volume — not just preference. Call (844) 480-6059 and we'll help you decide.
Full Specifications
| Model / Part Number | AR4115EAX |
| Brand | Challenger |
| Lifting Capacity | 15,000 lbs |
| Open or Closed Front | Closed |
| Max. Wheelbase | 183" |
| Max. 2-Wheel Alignment | 167.75" |
| Max. 4-Wheel Alignment | 68" - 158" |
| Rise Height | 78" |
| Overall Length | 247.625" |
| Overall Width | Front: 142" | Rear: 141.75" |
| Between Columns | 196" |
| Width of Runways | 22.375" |
| Width Between Runways | 40.625" |
| Air Supply Required | 90-120 PSI |
| Standard Motor / Voltage | 2HP, 208-230V, 60Hz, 1Ph |
| Speed of Rise | 85 seconds |
| Required Bay Size (W x L) | 14' x 24' |
⚠️ Installation Requirements
- Bay size: Minimum 14' x 24' recommended — confirm before ordering
- Electrical: Confirm exact breaker sizing with a licensed electrician before install day
- Concrete: Minimum 4" reinforced concrete slab; 6" preferred for production environments
- Surface anchoring: Lift must be anchored per manufacturer specification — do not skip anchoring on production bays
- Installation: Alamo installs every lift we sell. Call (844) 480-6059 to schedule.
Challenger Warranty — AR4115EAX
Challenger backs the AR4115EAX with the following coverage terms.
| Component | Coverage Term |
|---|---|
| Labor | 1 year |
| Functional Parts | 2 years |
| Structural Parts | 5 years |
| Wear Items / Accessories | 90 days |
Warranty service is through Alamo Equipment & Service. When you buy from us, you're not waiting on a manufacturer's 800 number — you're calling us at (844) 480-6059 and we dispatch a tech. That's the difference between buying from a box shipper and buying from Alamo.
⚠️ Warranty terms above are sourced from Challenger's canonical warranty policy documentation. Confirm exact terms at the time of purchase.
Frequently Asked Questions — AR4115EAX
Why Buy the AR4115EAX from Alamo Equipment & Service?
- We install it. The AR4115EAX's integrated turnplates, slip plates, and airline system are calibrated and tested against the published alignment wheelbase specs by our install crew before we hand you the keys.
- We service it. When something needs attention after the install, we're the same people you call. Not a national warranty line.
- We size it with you. 15,000 lbs capacity, 14' x 24' minimum bay — we'll confirm it fits before you buy.
- Free shipping. Delivered to your shop, no hidden freight fees.
- Expert comparison help. Not sure if this is the right fit vs. the Atlas 14,000 lb 4-Post Alignment Lift w/ Turntables #ATEATTD-414AT-FPD? Call (844) 480-6059 — we'll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Free shipping: Orders ship free to the 48 contiguous states.
Real lift support: Alamo can help with model selection, bay fit, installation planning, maintenance, inspections, and service after the sale.
Commercial shop focus: This is not a generic pallet drop. You are buying from a team that works with automotive shop equipment every day.
Questions before you order? Call (844) 480-6059
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Challenger Warranty
Challenger Lifts, Inc. lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lift, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson. Functional parts are any wear items, as defined from time to time by Challenger Lifts. Examples include power units, cylinders, sheaves, hoses, cables, controls, etc. and may differ depending on the model of lift.
Structural parts are items, as defined from time to time by Challenger Lifts, Inc. that are not Functional Parts and include items like carriage, columns, arms, runways, plungers, etc. and may differ depending on the type of lift.
Note: WARRANTY CARD MUST BE COMPLETED AND RETURNED UPON INSTALLATION FOR VALIDATION or WARRANTY PERIOD WILL BEGIN FROM INVOICE DATE OF LIFT PURCHASE. WARRANTY MAY ALSO BE VALIDATED BY REGISTERING ONLINE @ www.challengerlifts.com/register-your-lift
