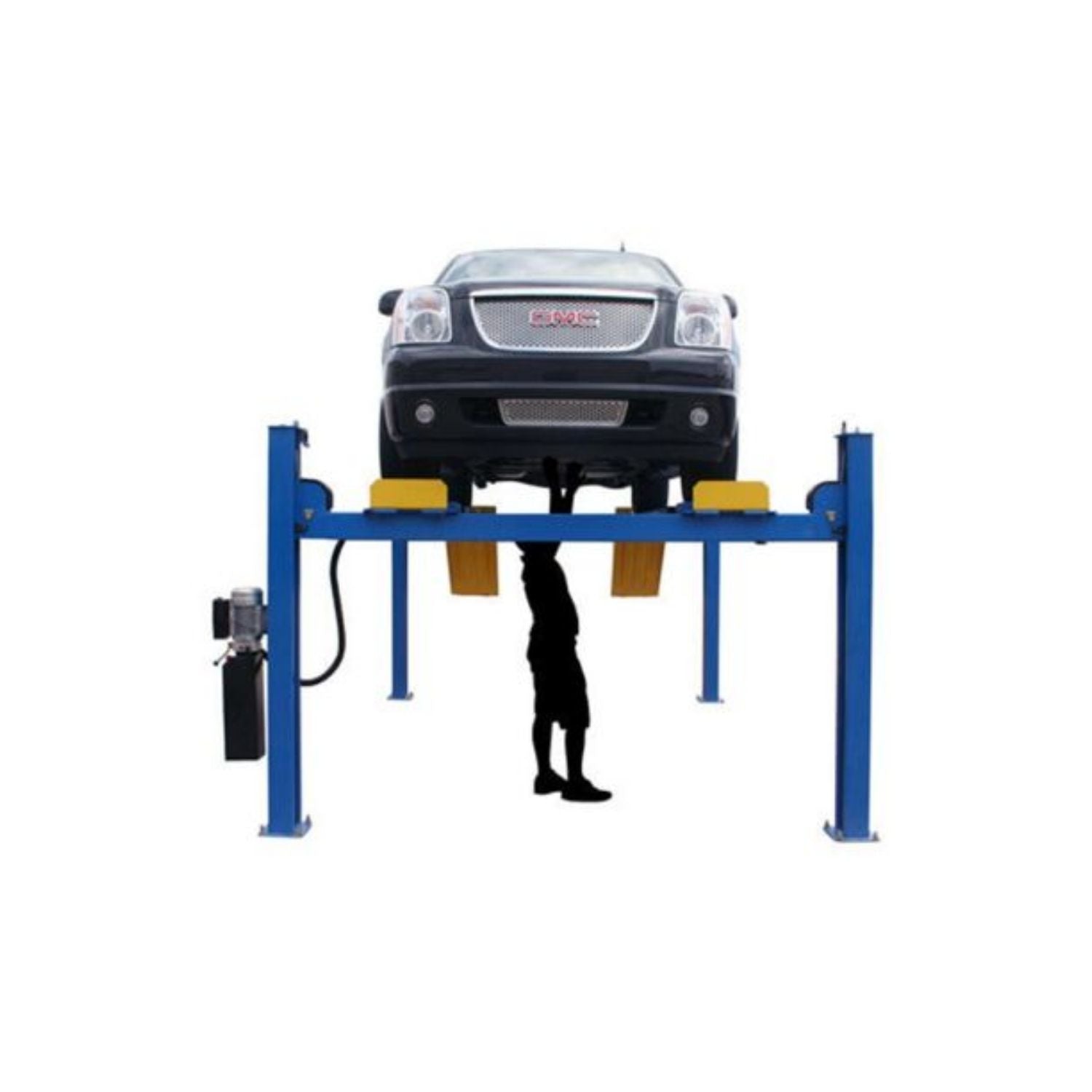

Atlas 14,000 lb 4-Post Alignment Lift w/ Turntables #ATEATTD-414AT-FPD
Couldn't load pickup availability
Atlas Automotive Equipment Shipping
Equipment: Free shipping
Parts: Standard tiered rate
| Model / Part Number | ATEATTD-414AT-FPD |
| Capacity | 14,000 lbs |
| Lift Height | 80" (6' 8") |
| Overall Dimensions | 218"L × 46"W × 22"H |
| Overall Width | 130 7/8" without motor / 138 7/8" with motor |
| Runway Length | 208 5/8" (17' 4 5/8") |
| Runway Width | 20" |
| Maximum Wheel Base | 197" (16' 5") |
| Drive-Thru Width | 102 1/8" (8' 6 1/8") |
| Air Requirement | 85–115 PSI (external air required) |
| Electrical | 220V, 1-Phase, 30-Amp Breaker Required |
| Shipping Weight | 3,200 lbs |
- 4" minimum reinforced slab
- 6" preferred for production bays
- Must be fully cured before anchor installation
- 130 7/8" (10' 10 7/8")
- Dedicated circuit recommended
- Have an electrician run a drop to the bay before install day
- Plan for 80" (6' 8") lifting height overall lift height
- Floor width 130 7/8" (10' 10 7/8") w/o motor, 138 7/8" (11' 6 7/8") w/motor
- Measure to lowest obstruction, not peak
Atlas 14,000 lb 4-Post Alignment Lift w/ Turntables #ATEATTD-414AT-FPD
A 12,000 lb alignment lift runs out of headroom once your truck and van customers push past that capacity or need a longer wheelbase than the runway supports. The Atlas 414AT is built for that step up: a 14,000 lb 4-post alignment lift with turntables included, a 197" maximum wheelbase rating, and wider drive-thru clearance than the 412AT.
The 414AT runs on 220V single-phase power and requires shop air at 85-115 PSI. Atlas specifies a minimum 6" concrete slab at 3,000 PSI for this model, and states a 5-year structural / 2-year hydraulic (parts-only) warranty. Call Alamo at (844) 480-6059 to confirm your bay's concrete, electrical, and air supply before you order.
Who the 414AT Is Built For
- The shop that's had a truck or van customer's vehicle right at the edge of what a 12,000 lb lift is comfortable handling — the 414AT's extra 2,000 lbs removes that guesswork
- The shop regularly aligning longer-wheelbase vehicles up to 197" — the 412AT's shorter runway and column spacing don't accommodate that range as comfortably
- The shop pouring a new concrete pad for this specific bay and needing the exact spec ahead of the contractor's visit — Atlas states 6" minimum at 3,000 PSI for this model, not a generic figure
- The fleet service shop that's turned away or subbed out alignment work on longer wheelbase vans and box trucks because the shop's existing lift couldn't handle them
- The shop that wants the wider 102 1/8" drive-thru clearance for easier positioning of larger trucks during alignment work
What the 414AT Is NOT Built For
- ❌ Shops whose vehicle mix fits comfortably within 12,000 lbs — the 412AT covers that at a lower price
- ❌ Bays without a slab meeting the stated 6" / 3,000 PSI concrete requirement
- ❌ Shops needing a scissor-style "wheels free" lift for independent-corner jack work — this is a fixed 4-post drive-thru design
What Makes the 414AT Different
14,000 lb 4-Post Alignment Configuration
A step up in capacity from the 412AT, still built specifically for alignment work with drive-thru access and turntables included.
102 1/8" Drive-Thru Clearance
More drive-thru room than the 412AT, for larger trucks and vehicles needing extra maneuvering space.
197" Maximum Wheel Base
Covers longer-wheelbase trucks and vans that a smaller alignment lift can't accommodate.
Turntables Included
Alignment turntables ship with the lift, so it's ready for 4-wheel alignment work without a separate accessory purchase.
6" Concrete Requirement Specified
Atlas specifies a minimum 6" slab at 3,000 PSI for this model — plan your pad accordingly before install.
- ✅ Alignment shops servicing longer-wheelbase trucks and vans up to a 197" wheelbase
- ✅ Shops needing 14,000 lb capacity with turntables included standard
- ✅ Bays with a slab meeting the 6" / 3,000 PSI concrete spec
- ❌ Shops whose vehicle mix fits comfortably within 12,000 lbs — the 412AT covers that at a lower price
- ❌ Bays without a slab meeting the stated 6" / 3,000 PSI concrete requirement
- ❌ Shops needing a scissor-style "wheels free" lift for independent-corner jack work — this is a fixed 4-post drive-thru design
414AT vs. Atlas 412AT (12,000 lb) — Which Is Right for Your Shop?
| Decision Point | 414AT | Atlas 412AT (12,000 lb) |
|---|---|---|
| Capacity | 14,000 lbs | 12,000 lbs |
| Lifting height | 80" | 77 3/4" |
| Overall width (w/motor) | 138 7/8" | 135 1/4" |
| Drive-thru | 102 1/8" | 98" |
| Max wheelbase | 197" | not separately specified |
Choose the 414AT when your vehicle mix needs 14,000 lb capacity or a longer wheelbase. Choose the 412AT for alignment service on cars, light trucks, and SUVs at a lower price. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — 414AT
| Model / Part Number | ATEATTD-414AT-FPD |
| Capacity | 14,000 lbs |
| Dimensions | 218"L x 46"W x 22"H |
| Lifting Height | 80" (6' 8") |
| Overall Width of Columns (w/o motor) | 130 7/8" (10' 10 7/8") |
| Overall Width of Columns (w/motor) | 138 7/8" (11' 6 7/8") |
| Overall Length with Approach Ramp | 255" (21' 3") |
| Length Between Columns | 197 1/4" (16' 5 1/4") |
| Runway Length | 208 5/8" (17' 4 5/8") |
| Runway Width | 20" |
| Runway Thickness | 8 3/4" |
| Width Between Runways | 46 7/8" (44 3/8" w/rail) |
| Outside Runway to Outside Runway | 86 7/8" (7' 2 7/8") |
| Clearance Under Runways | 71 1/4" (5' 11 1/4") |
| Clearance Between Columns | 116" (9' 8") |
| Height of Columns | 91 1/8" (7' 7 1/8") |
| Maximum Wheel Base | 197" (16' 5") |
| Drive-Thru | 102 1/8" (8' 6 1/8") |
| Air Requirement | 85-115 PSI (external air required) |
| Motor / Electrical | 220V, 1-phase, 30-amp breaker |
| Hydraulic Oil | 3-5 gal AW32/AW46 (not included) |
| Shipping Weight | 3,200 lbs |
| Concrete Requirement | Minimum 6" concrete, 3,000 PSI rating |
⚠️ Installation Requirements
- Ceiling/lift height: Plan for 80" (6' 8") lifting height overall lift height; measure to the lowest obstruction.
- Electrical: 130 7/8" (10' 10 7/8"); consult an electrician for exact breaker sizing.
- Concrete: Minimum 4" reinforced slab; 6" preferred for production bays; fully cured before anchoring.
- Bay width: Confirm 130 7/8" (10' 10 7/8") w/o motor, 138 7/8" (11' 6 7/8") w/motor floor width clearance; measure before ordering.
- Air supply: 85-115 PSI (external air required) — external compressed air required where noted, not included.
- Hydraulic oil: 3-5 gal AW32/AW46 (not included).
- Installation: Alamo installs every lift we sell. Call (844) 480-6059 to schedule.
Atlas Warranty — 414AT
Atlas backs the 414AT with the following coverage terms.
| Component | Coverage Term |
|---|---|
| Structural (frame, columns, runways) | 5 years |
| Hydraulic system | 2 years (parts only) |
Warranty service is through Alamo Equipment & Service. When you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it. Confirm exact terms at the time of purchase.
Frequently Asked Questions — Atlas 414AT
Why Buy the 414AT from Alamo Equipment & Service?
- We deliver and set it up. Our team sizes the 414AT to your bay and handles the physical install — you don't coordinate a separate rigging or electrical crew.
- We service it. When something needs attention after the sale, we're the same people you call — not a national warranty line.
- We help you pick the right unit. At 14,000 lbs rated capacity and $11,199.00, we'll confirm the 414AT genuinely matches your typical vehicle mix before you buy.
- Free shipping. Delivered to your shop, no hidden freight fees.
- Expert comparison help. Not sure if this is the right model for your shop? Call (844) 480-6059 — we'll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
