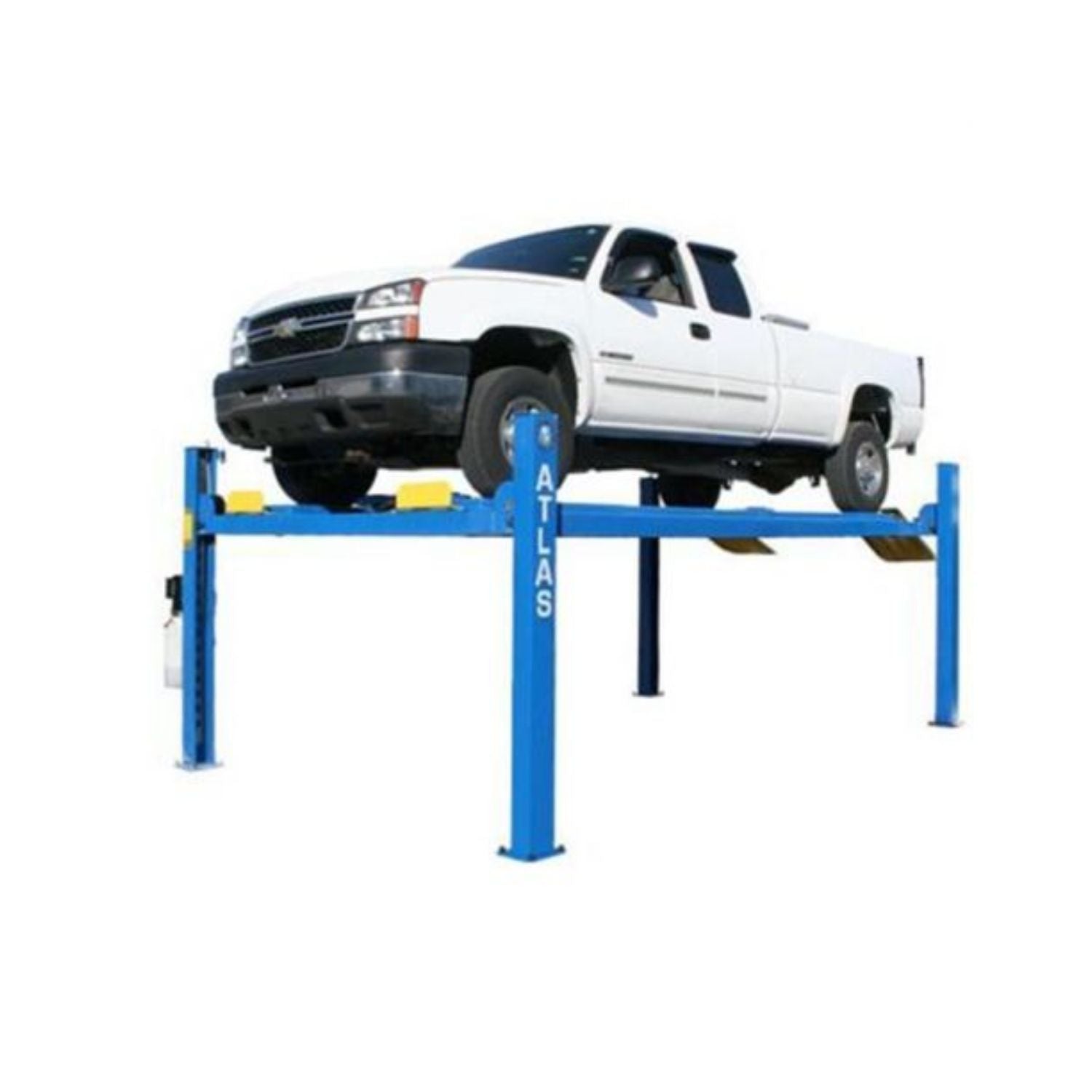

Atlas 12,000 lb 4-Post Alignment Lift w/ Turntables #ATEATTD-412AT-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas 12,000 lb 4-Post Alignment Lift with Turntables is designed for precision wheel alignment and heavy-duty vehicle service applications.

  With a 12,000 lb capacity, this lift supports trucks, SUVs, and fleet vehicles while providing a stable platform for accurate alignment work. The included turntables allow smooth wheel movement, ensuring precise adjustments during alignment procedures.

  Built for durability and professional performance, this lift enhances shop efficiency while delivering reliable lifting and alignment capability.

• FEATURES AND BENEFITS

  • 12,000 lb. Capacity
  • Heavy Duty, Commercial Grade
  • Extra Tall, Extra Wide & Extra Long
  • Built-In Slip Plates & Alignment Turntables Included
  • Multiple Positions for Turntable Placement
  • Runway Covers Included (when Turntables are Removed)
  • Air Operated Single Point Lock Release (External Air Supply Required)
  • Lock Ladder Design
  • Double Lock Safety System
  • Powder Coat Finish
  • Steel Approach Ramps Included
  • Additional Drive-off Ramps Available (Sold Separately)
  • Runway Extensions Available (Sold Separately)
  • Mounting Hardware Included
  • 220V/1-phase Electric Operation (Requires a 30-amp Breaker)
  • 5-Year Structural / 2-Year Hydraulic Warranty
  • Shipping Weight: 2,900 lbs.
  • This part number is FREIGHT PREPAID


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTD-412AT-FPD
  Dimensions:	204" L × 28" W × 21" H
  UPC:	810524027762
  Country of Origin:	CHN
  Capacity:	12,000 lbs
  Lifting Height (Top of Runway):	77 3/4" (6' 5 3/4")
  Clearance Under Runways:	70 1/4" (5' 10 1/4")
  Height of Columns:	89 3/4" (7' 5 3/4")
  Overall Width:	126 1/4" (10' 6 1/4") w/ motor 135 1/4" (11' 3 1/4")
  Overall Length w/ Ramps:	236 1/2" (19' 8 1/2")
  Runway Length:	194 1/2" (16' 2 1/2")
  Runway Width:	20"
  Runway Thickness:	7 1/2"
  Width Between Runways:	43 1/4" w/ Rail 39 3/4"
  Outside Runway to Outside Runway:	83 1/4" (6' 11 1/4")
  Clearance Between Columns:	112 5/8" (9' 4 5/8")
  Length Between Columns:	183 1/4" (15' 3 1/4")
  Drive Thru:	98" (8' 2")
  Air Requirement:	85-115 PSI
  Motor/Electrical Requirement:	220V/1-phase, 30-amp breaker required
  Oil Requirement:	3-5 Gallons AW32 or AW46 (NOT INCLUDED)
  Shipping Weight:	2,900 lbs

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
