Challenger 15K 4-Post / Alignment #AR4115XAO

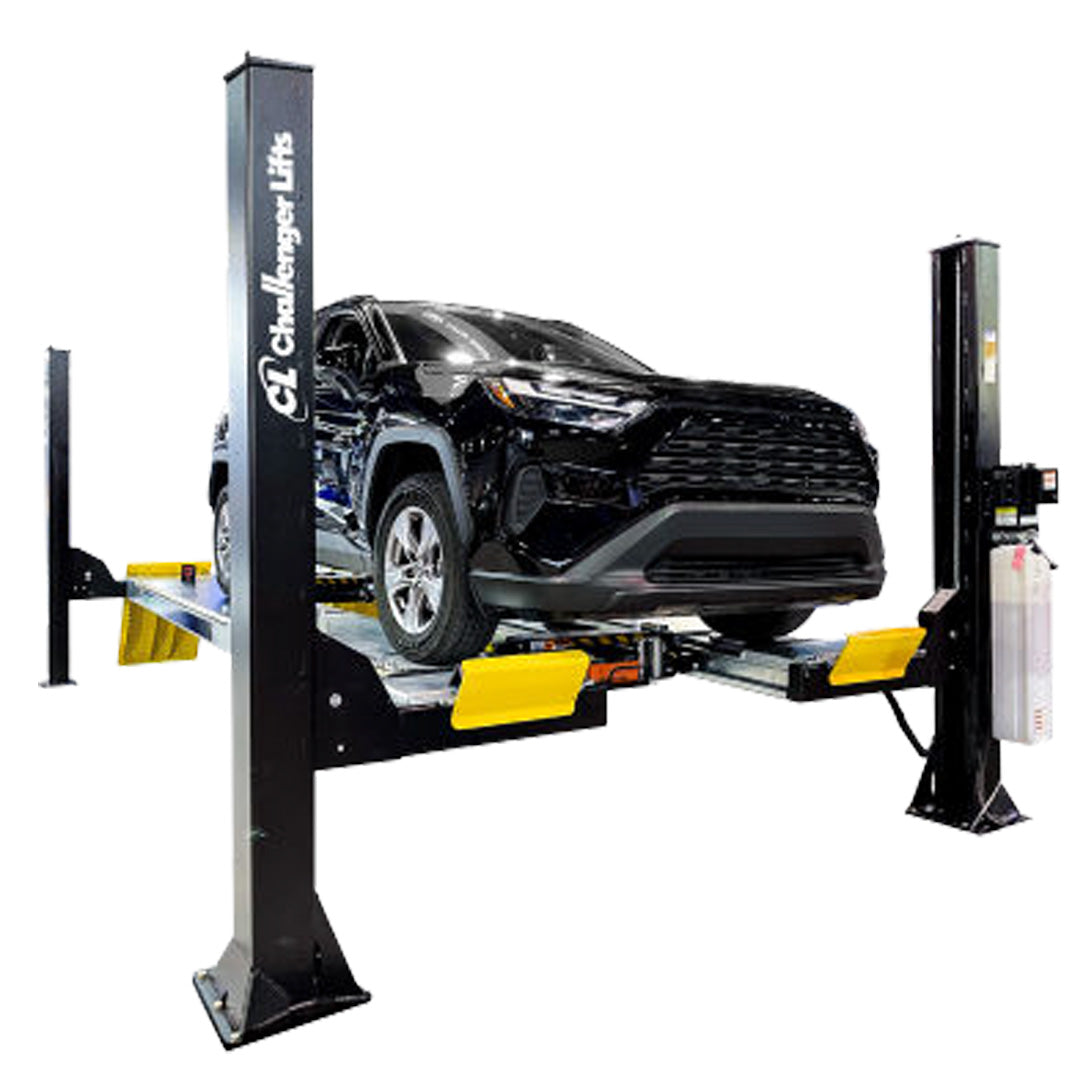

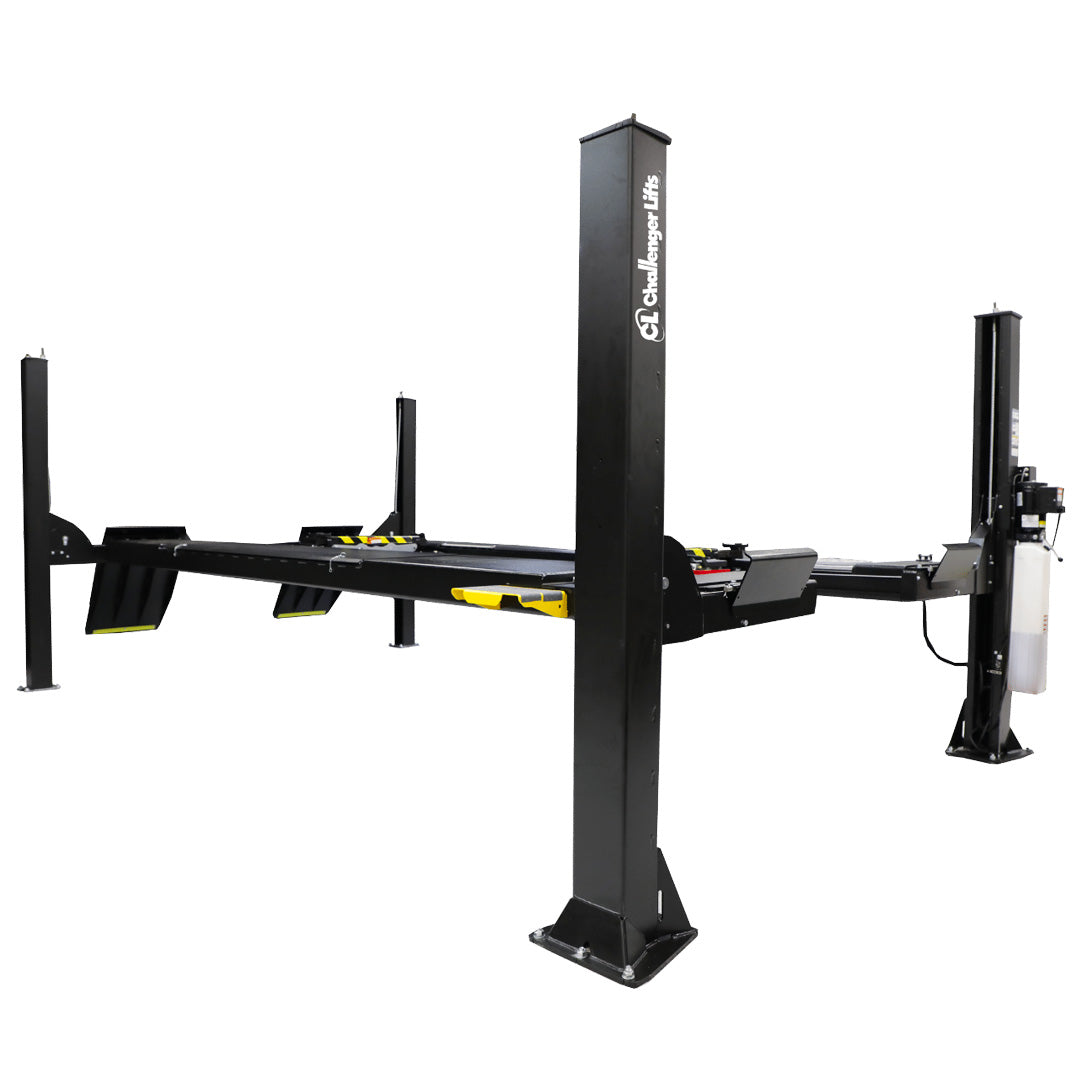

Challenger 15,000 lb 4-Post Alignment Lift — Open Front, Extended, Alignment-Ready

An extended-cab truck or long-wheelbase van pulls in for a 4-wheel alignment, and the standard alignment lift on the floor tops out well short of what the vehicle actually needs — leaving the shop to either turn the job away or improvise with equipment that isn't rated for it. Longer vehicles need longer alignment coverage, not just a longer runway.

The Challenger AR4115XAO combines the extended-length platform with the full alignment kit standard — and publishes the longest 2-wheel alignment wheelbase in the family at 195.25" (4-wheel: 68"-158"). The open front keeps adjustment points accessible while techs work the turnplates and slip plates on longer vehicles.

Who the AR4115XAO Is Built For

• An alignment center that regularly services extended-cab trucks and long-wheelbase vans and needs the longest published 2-wheel alignment wheelbase (195.25") in the 4115 family.
• A shop that wants open-front access to adjustment points while working turnplates and slip plates on longer vehicles, without a closed column brace in the way.
• A dealership or fleet service department that has turned away long-wheelbase alignment jobs because their current lift's coverage tops out short of what the vehicle needs.
• An operation with a deep bay (14' x 26' minimum) that wants the full alignment kit integrated into the longest-coverage configuration rather than sourcing add-on equipment.
• A shop consolidating a separate long-wheelbase alignment rack and a standard 4-post into one 15,000 lb platform that handles both short and long vehicles without swapping equipment.
• A commercial shop in a high-humidity or road-salt region considering the optional galvanized coating to protect the extended runway and alignment hardware from corrosion over years of daily use.

What the AR4115XAO Is NOT Built For

If your bay only has room for a standard-length footprint, the AR4115EAO gives you the same alignment kit in a shorter 14' x 24' footprint. And if structural rigidity from a closed front matters more than open access, the AR4115XAX shares this extended-length alignment coverage with a closed front.

What Makes the AR4115XAO Different

Galvanized Coating Upgrade Available

The XAO's extended runway and integrated alignment hardware see heavy traffic on a shop running long-wheelbase alignment work regularly. The optional galvanized coating protects runways, jack rails, turn plate pockets, and slip plate pockets from corrosion in coastal, humid, or road-salt regions — worth adding at order time if your shop sees harsh winters or heavy moisture.

All-New 22" Wide Runways

At 22.375" wide, the XAO's runways give longer trucks and vans more surface to land on during loading, and give techs stable footing while working the integrated turnplates and slip plates on a longer vehicle. That extra margin matters more on an extended-length platform.

Open and Closed Front Configurations

The XAO's open front keeps adjustment points accessible while techs work turnplates and slip plates on longer vehicles — no closed column brace to work around. If structural rigidity matters more for your heavier long-wheelbase mix, the AR4115XAX pairs the same alignment coverage with a closed front.

Improved 4-Wheel Alignment Wheelbase

The published 195.25" 2-wheel and 68"-158" 4-wheel alignment specs are the longest coverage in the 4115 family — real numbers you can check against your longest customer vehicles before committing floor space, instead of guessing from a generic "alignment-ready" label.

Louvered Approach Ramps

Longer vehicles loading onto the XAO's extended ramps put real demand on ramp traction. Louvered ramps hold their grip better over time than diamond tread or abrasive strip designs, keeping wheel spin down and loading confident even on the longest vehicles this lift is built to service.

• Alignment Kit Included: Rolling jacks, internal airline system, and stainless steel turn plates included — ready for wheel alignment work out of the box

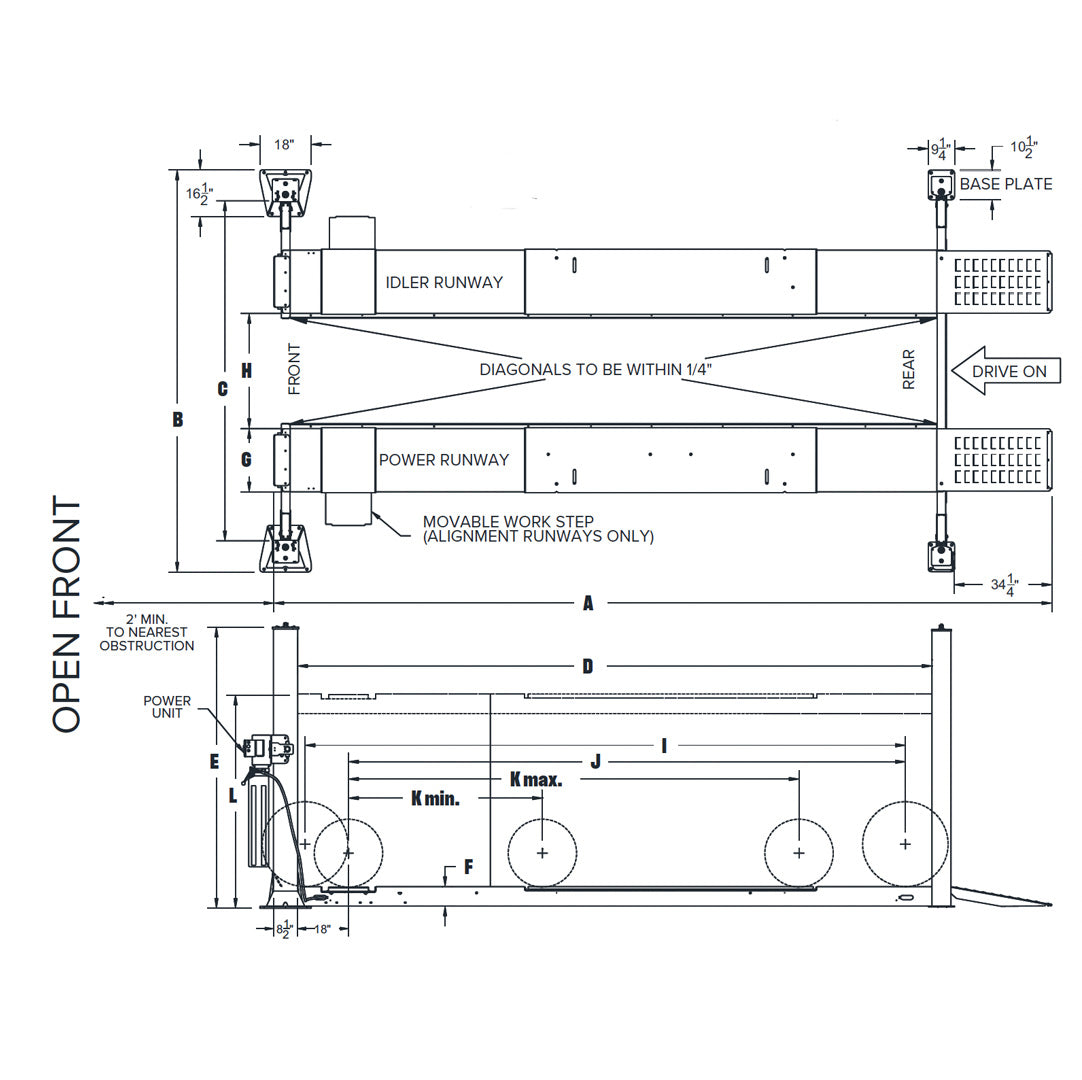

Full Specifications

Challenger Warranty — AR4115XAO

Challenger backs the AR4115XAO with the following coverage terms.

Warranty service is through Alamo Equipment & Service. When you buy from us, you're not waiting on a manufacturer's 800 number — you're calling us at (844) 480-6059 and we dispatch a tech. That's the difference between buying from a box shipper and buying from Alamo.

⚠️ Warranty terms above are sourced from Challenger's canonical warranty policy documentation. Confirm exact terms at the time of purchase.
