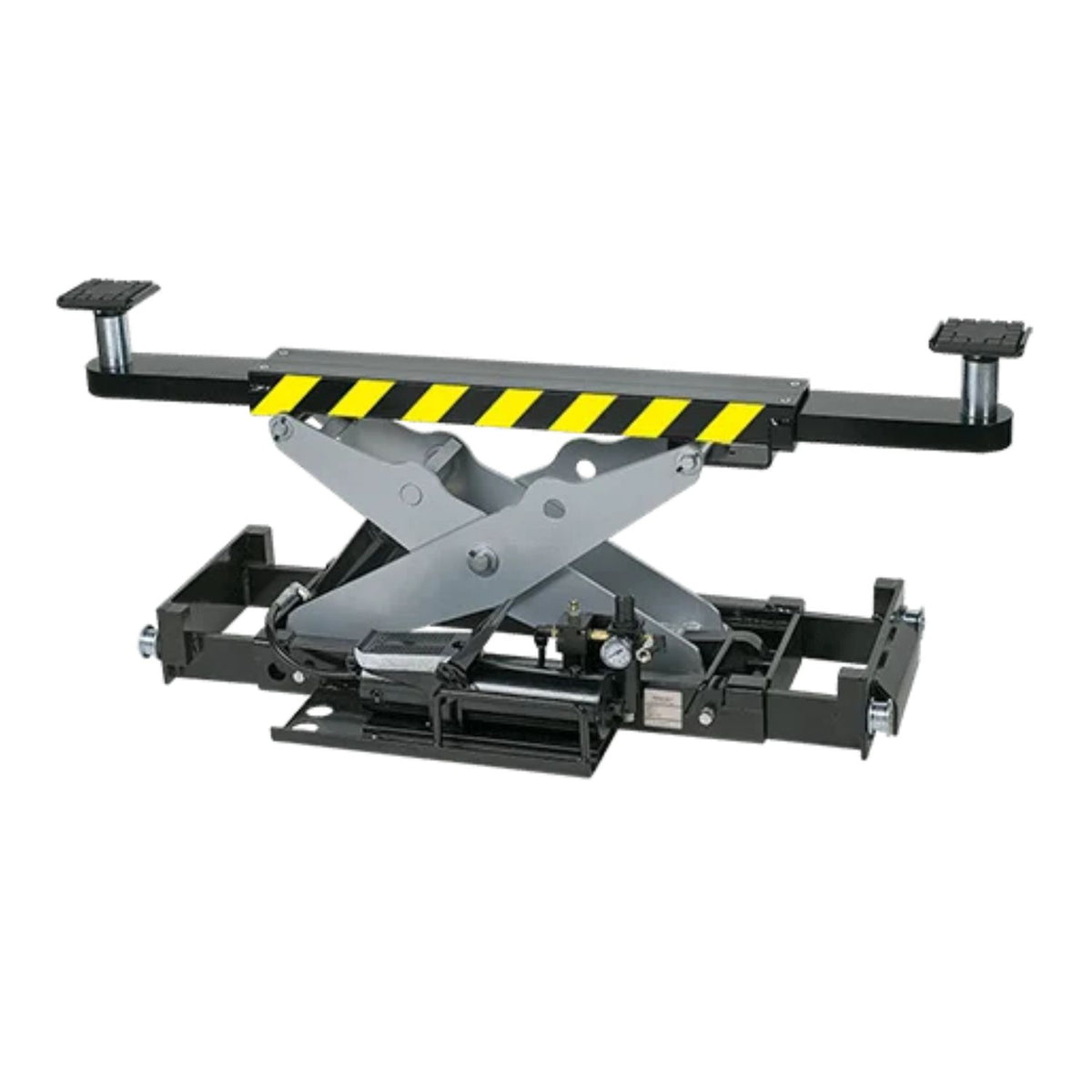

Challenger 9,000 lb Rolling Jack #RJ9-GS

Challenger 9,000 lb Rolling Jack #RJ9-GS

The Challenger RJ9-GS adds wheel-free lifting capability to the 4018XFX four-post lift. Once positioned beneath the appropriate vehicle pick-up points, the rolling jack raises the vehicle independently of the lift runways so wheels remain free for brake, tire, suspension, and axle service.

Challenger lists the RJ9-GS specifically as its 9K Rolling Jack for the 4018. The jack uses an air/hydraulic lifting system, travels along the accessory rail, and incorporates adjustable width with extendable arms and adapters to reach compatible vehicle pick-up points.

Who the RJ9-GS Is Built For

• Challenger 4018XFX owners who want wheel-free service capability integrated with their four-post lift.
• Brake and tire service bays that need to raise one end of a vehicle while it remains positioned on the lift.
• Suspension and axle-service work requiring access with the wheels unloaded.
• Shops using rolling-jack pairs for greater flexibility when servicing the front and rear of a vehicle.

Compatibility

Confirm the host lift model before ordering. Challenger uses different rolling jack configurations across its four-post lift families.

Product Features

Challenger designed the RJ9-GS to add wheel-free service capability to the 4018 four-post platform without relying on a separate floor jack.

• 9,000 lb lifting capacity for compatible wheel-free service applications.
• Air/hydraulic operation for powered lifting using shop air.
• Adjustable-width design for proper positioning within the compatible lift rail system.
• Extendable width arms help position the jack beneath vehicle pick-up points.
• Included adapters provide additional flexibility when reaching vehicle lifting points.
• Accessory-rail travel allows the jack to move along the four-post lift and be positioned where needed.
• Low-profile, adjustable height helps keep the workspace unobstructed when the jack is not in use.
• Two-hand use is listed by Challenger as a technician-safety feature.

Product Specifications

Service & Maintenance

Inspect the rolling jack and air/hydraulic components regularly and remove the jack from service if components are worn, damaged, leaking, or operating abnormally.

• Inspect the jack, lift pads, arms, rollers, and controls before use.
• Inspect the air/hydraulic system for leaks.
• Keep the rolling surfaces and accessory rail clean for smooth travel.
• Use vehicle manufacturer-recommended pick-up points when lifting.
• Never exceed the jack's 9,000 lb rated capacity.
• Use Challenger-approved replacement parts or parts meeting Challenger specifications.

For service support or replacement-part assistance, call Alamo Equipment at (817) 865-3707.
