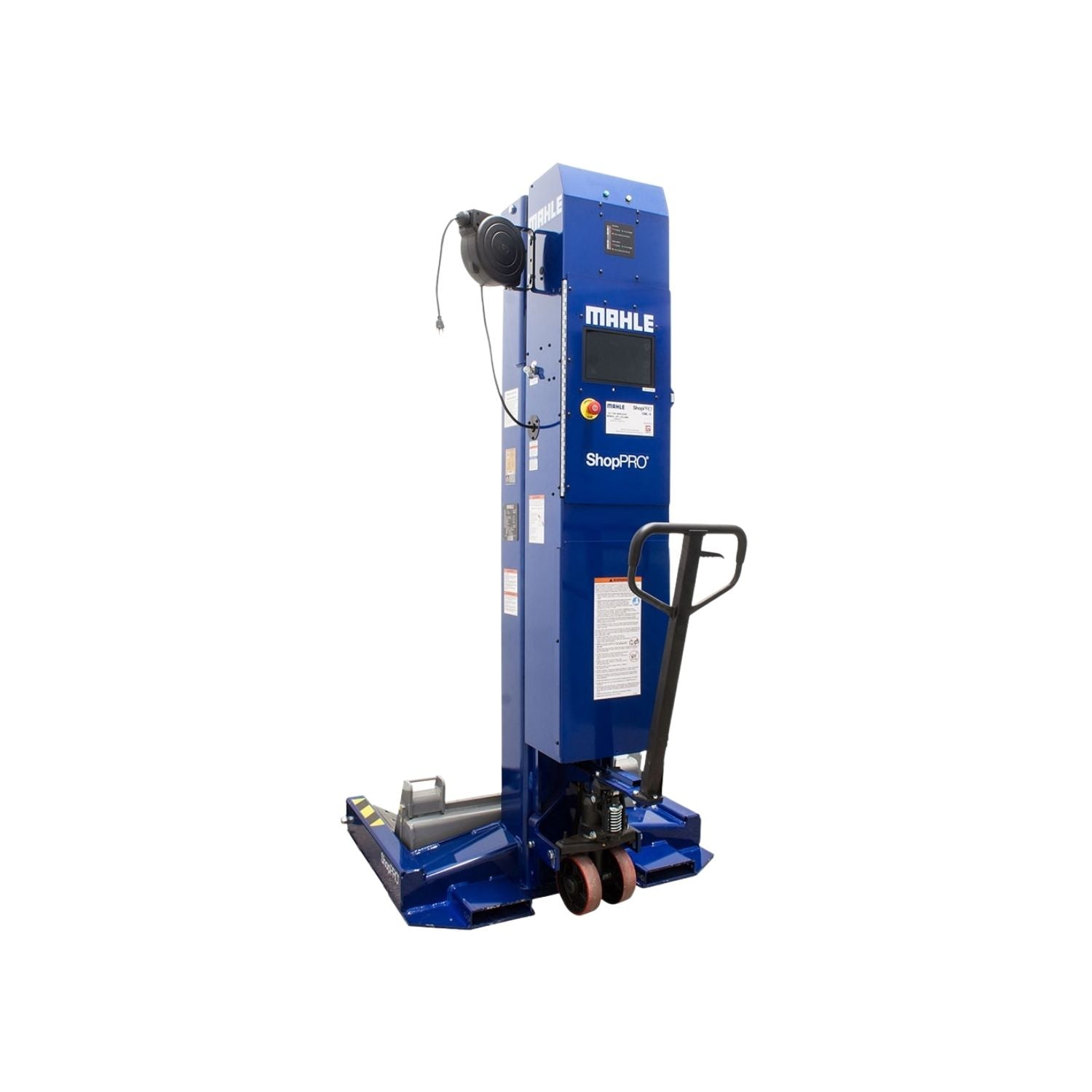

Mahle ShopPRO CML-7 Mobile Column Lift Wireless 7 Ton, Single/Sets
| Model | CML-7 Series |
| Product Line | MAHLE ShopPRO Automotive |
| Product Type | Wireless Mobile Column Lift |
| Capacity (Per Column) | 14,000 lbs (7 tons) |
| Capacity (Set of 4) | 56,000 lbs |
| Lift Height Range | 32" – 69" |
| Operation | Wireless, Battery Powered |
| Operating Voltage | 24 VDC Nominal |
| Column Height | 88.5" |
| Weight | 1,485 lbs |
Mahle ShopPRO CML-7 Mobile Column Lift Wireless 7 Ton, Single/Sets
Not every shop needs 9.5-ton-per-column lifting capacity, and paying for tonnage you'll never use doesn't make sense at the entry tier. The Mahle CML-7 is built for that: a 14,000 lb per-column (7-ton) wireless mobile column lift, scalable from a single column up to a full 8-column, 112,000 lb set, at the lowest price point in Mahle's mobile column lineup.
The CML-7 runs wirelessly on 24VDC battery power — no cables between columns — and charges from standard 70-130 VAC service. Call Alamo at (844) 480-6059 to confirm your typical vehicle weight before choosing between the CML-7, CML-9, and CML-9W tiers.
Who the CML-7 Is Built For
- The shop entering mobile column lifting for the first time and wanting a lower per-column price point before committing to the 9.5-ton CML-9 or CML-9W tier
- The shop whose typical vehicle mix tops out under 14,000 lbs per corner and doesn't need to pay for the higher-tonnage columns above
- The mobile/field-service operation that needs genuinely portable lifting capability across multiple job sites, not a fixed-bay installation
- The shop starting with a single CML-7 column to test the workflow before scaling to a set of 4, 6, or 8 as volume justifies it
- The buyer who compared this against the CML-9 and CML-9W and confirmed 7-ton-per-column capacity genuinely covers their vehicle mix before choosing the lower-tier price
What the CML-7 Is NOT Built For
- ❌ Shops regularly lifting vehicles over 14,000 lbs per corner — step up to the CML-9 or CML-9W for that capacity
- ❌ Shops needing the widest wheel-diameter coverage — the CML-7 shares the CML-9's 5"-24.5" range, not the CML-9W's no-max spec
- ❌ Shops needing a fixed, always-in-place lift — mobile columns require floor space to reposition and store when not lifting
What Makes the CML-7 Different
7-Ton Capacity Per Column
A scalable lifting system for commercial vehicles at the entry tier of Mahle's mobile column lineup — real capacity without paying for tonnage you don't need.
Wireless Operation
Eliminates cables between columns for faster setup and a safer, clutter-free workspace.
Modular System Design
Expandable from a single column up to a full 8-column system as your shop's lifting needs grow.
Synchronized Lifting
Columns communicate wirelessly to ensure even, controlled lifting across the full set.
Portable & Mobile
Ideal for flexible shop layouts and field service work, not just a fixed bay.
Battery-Powered, User-Friendly Controls
Operates without external power cords, with a simple interface for efficient day-to-day operation.
- ✅ Shops entering mobile column lifting at a lower price point per column
- ✅ Shops with lighter-duty commercial and fleet vehicles under 14,000 lbs per corner
- ✅ Shops needing scalable field-service or flexible-layout lifting capability
- ❌ Shops regularly lifting vehicles over 14,000 lbs per corner — step up to the CML-9 or CML-9W for that capacity
- ❌ Shops needing the widest wheel-diameter coverage — the CML-7 shares the CML-9's 5"-24.5" range, not the CML-9W's no-max spec
- ❌ Shops needing a fixed, always-in-place lift — mobile columns require floor space to reposition and store when not lifting
CML-7 vs. Mahle CML-9 (standard base, 9.5 ton) — Which Is Right for Your Shop?
| Decision Point | CML-7 | Mahle CML-9 (standard base, 9.5 ton) |
|---|---|---|
| Capacity per column | 14,000 lbs (7 tons) | 19,000 lbs (9.5 tons) |
| Total capacity (set of 4) | 56,000 lbs | 76,000 lbs |
| Max hydraulic pressure | 2,180 psi | 2,600 psi |
| Weight | 1,485 lbs | 1,510 lbs |
| Price (single) | $12,496.00 | $14,537.00 |
Choose the CML-7 for lighter-duty commercial vehicles at a lower entry price. Choose the CML-9 when your vehicle mix needs to step up to 9.5 tons per column. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — CML-7
| Model | CML-7 Series |
| Product Line | MAHLE ShopPRO Automotive |
| Product Type | Mobile Column Lift (wireless) |
| Capacity Per Column | 14,000 lbs (7 tons) |
| Total Capacity — Set of 4 | 56,000 lbs |
| Total Capacity — Set of 6 | 84,000 lbs |
| Total Capacity — Set of 8 | 112,000 lbs |
| Operation | Wireless, battery-powered |
| Max Hydraulic Operating Pressure | 2,180 psi |
| Min/Max Wheel Diameter | 5" / 24.5" (127mm / 622mm) |
| Min (2) / Max (4) Lift Height | 32" / 69" |
| Lift Speed (Max Load) | 60" per min |
| Weight | 1,485 lbs |
| Height | 88.5" |
| Height at Full Lift | 157.13" |
| Operating Peak Power | 4 HP |
| Operating Voltage | 24 VDC nominal |
| Charger Voltage Required | 70-130 VAC @ 50-60 Hz |
| Available Configurations | Single (485 80094 00), Set of 4 (485 80095 00), Set of 6 (485 80096 00), Set of 8 (485 80097 00) |
⚠️ Installation Requirements
- Floor space: Mobile columns reposition around the vehicle rather than bolting to a fixed footprint — confirm clear floor space for the full column set plus the vehicle's length.
- Charging: Confirm a 70-130 VAC @ 50-60 Hz circuit is available near the storage/charging location.
- Wheel diameter compatibility: Confirm your fleet's wheel diameters fall within 5" / 24.5" (127mm / 622mm).
- Setup help: Call (844) 480-6059 with any setup or first-use questions.
Mahle Warranty — CML-7
Mahle backs the CML-7 with the following coverage terms.
| Component | Coverage Term |
|---|---|
| Parts & non-overtime labor | Year 1 — full coverage for defects in material/workmanship |
| Parts only | Year 2 — parts coverage continues, labor no longer included |
| MSS-supplied spare/replacement parts | 90-day limited warranty on the part itself |
| Registration requirement | Must register with MAHLE Service Solutions (MSS) within 90 days of delivery — unregistered units are excluded from coverage |
Warranty service is through Alamo Equipment & Service. When you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it. Confirm exact terms at the time of purchase.
