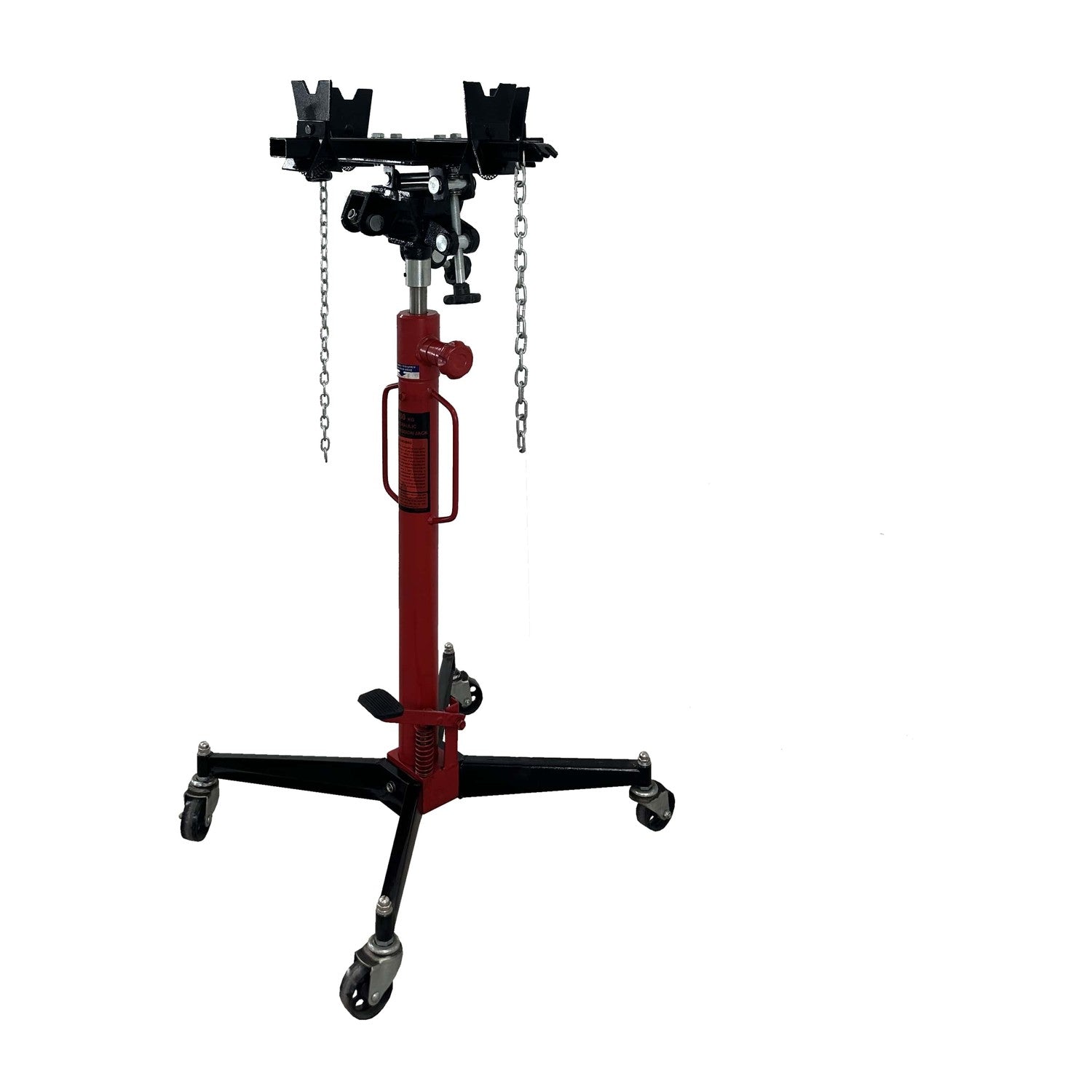

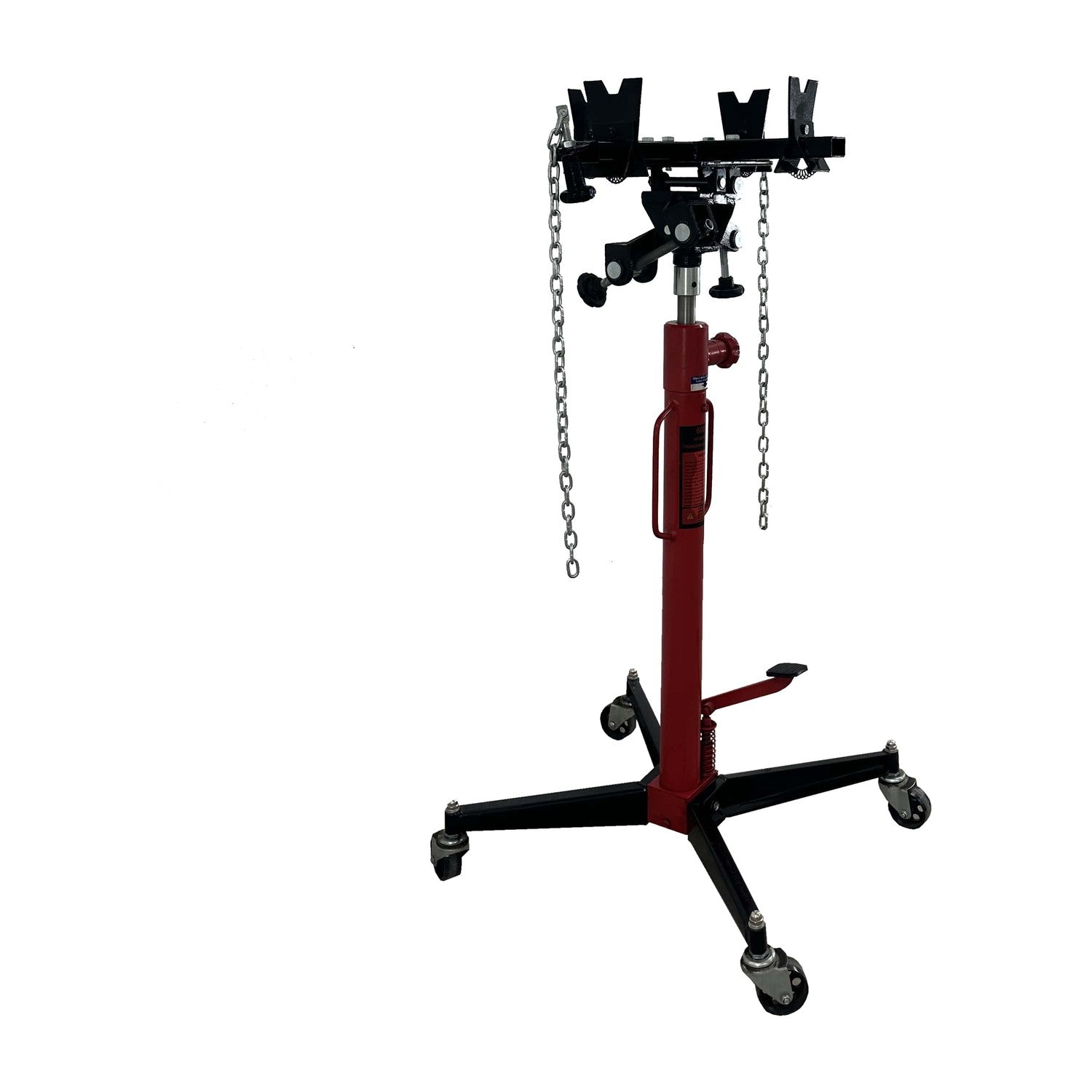

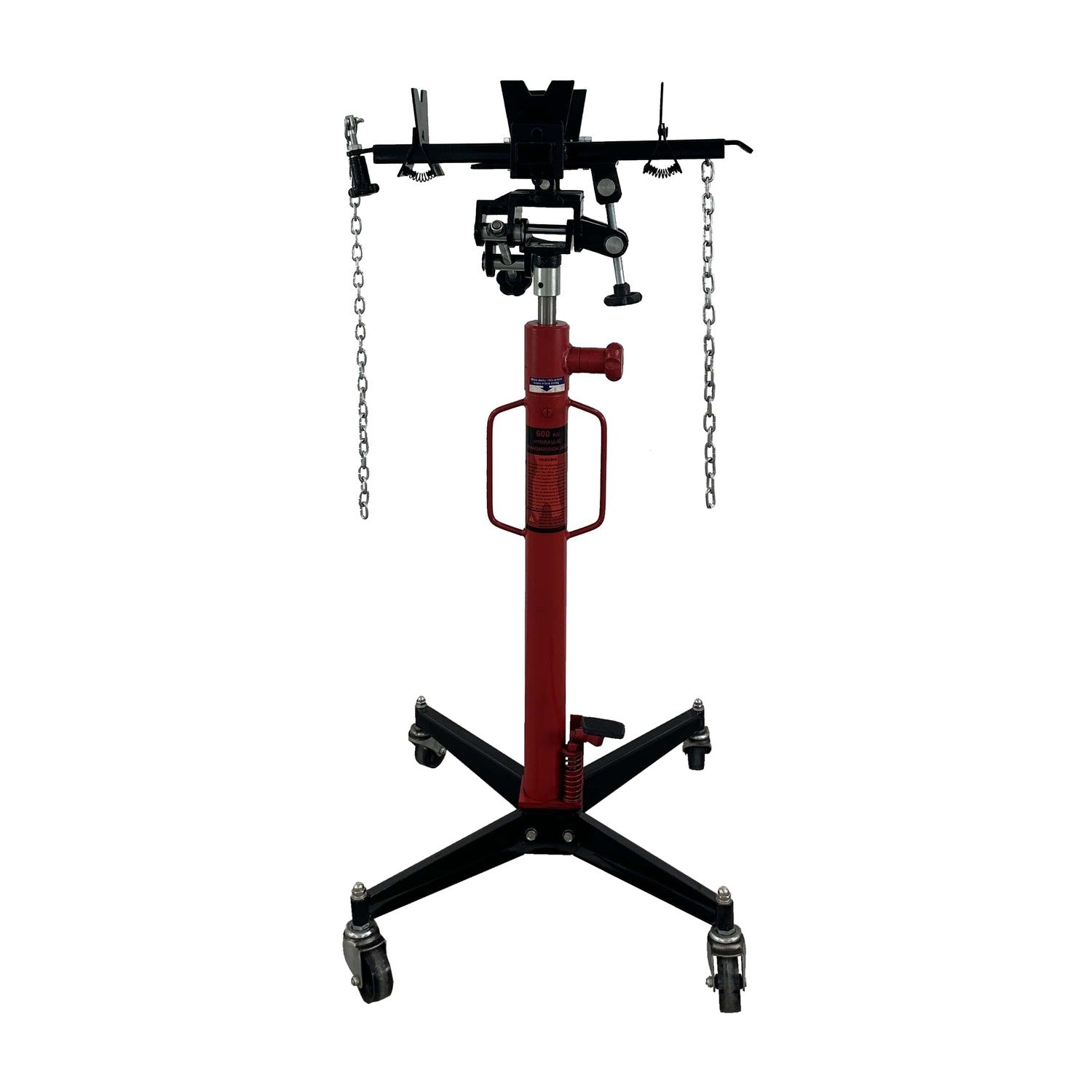

Tuxedo Transmission Jack - Single Stage #2158-TJ
| Model / Part Number | 2158-TJ |
| Type | Single-stage hydraulic transmission jack |
| Lifting Capacity | 1,100 lb |
| Pump | Foot-operated (hands-free positioning) |
| Height Range | 45 in – 71 in |
| Ship Weight | 112 lb |
- Level shop floor for stable caster rolling and lift positioning
- No anchoring required — this is a mobile, wheeled jack
- Indoor use
- None — foot-operated hydraulic pump, no electrical or air hookup needed
- Confirm bay/lift clearance for rolling the jack under a raised vehicle
- Confirm aisle space for delivery
- Ships by LTL freight
Tuxedo 2158-TJ — Transmission Jack, Single Stage
The Tuxedo 2158-TJ is a single-stage hydraulic transmission jack rated for 1,100 lb, built to lift and position a transmission for removal or installation — a genuinely different function from Alamo's under-hoist stands, which support a component after something else has already lifted it. A foot-operated pump frees up both hands to position and align the saddle with the transmission.
The universal, adjustable saddle includes a safety chain, and a wide base on durable swivel caster wheels keeps the jack stable and mobile around the shop.
Who It's Built For
- ✅ Shops removing/installing transmissions up to 1,100 lb
- ✅ Techs who want hands-free foot-pump positioning while aligning the saddle
- ✅ Facilities needing a mobile jack on casters rather than a fixed stand
What It's NOT Built For
- ❌ Static component support after lifting — see Alamo's 3320-Stand or 3315-Stand for that
- ❌ Transmissions over 1,100 lb
Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the 2158-TJ Different
Foot-Operated Pump
Frees up both hands to position and align the saddle with the transmission instead of operating a hand pump.
Mobile on Swivel Casters
Rolls to the vehicle and under a raised lift, unlike Alamo's stationary under-hoist stands.
Universal, Adjustable Saddle with Safety Chain
Secures the transmission during transport and positioning.
2158-TJ vs. Under-Hoist Stands — Lifting vs. Supporting
These are genuinely different equipment functions, not variants of one product.
| Decision Point | 2158-TJ (this product) | 3320-Stand / 3315-Stand |
|---|---|---|
| Function | Lifts and moves a transmission | Supports a component that's already lifted |
| Mobility | Mobile on swivel casters | Static support stand |
| Capacity | 1,100 lb | 1,500 – 4,000 lb |
Choose the 2158-TJ to remove or install a transmission. Choose an under-hoist stand to support a vehicle or component that's already raised. Call (817) 865-3707 if you're not sure which fits your job.
✅ Best For
- ✅ Transmission removal and installation up to 1,100 lb
- ✅ Shops that want hands-free foot-pump alignment
❌ Not Ideal For
- ❌ Static component support — use an under-hoist stand instead
Full Specifications — 2158-TJ
| Model / Part Number | 2158-TJ |
| Type | Single-stage hydraulic transmission jack |
| Lifting Capacity | 1,100 lb |
| Cylinder | Single-stage hydraulic ram |
| Pump | Foot-operated (hands-free positioning) |
| Saddle | Universal, adjustable saddle with safety chain |
| Height Range | 45 in – 71 in |
| Base | Wide base for stability, durable swivel caster wheels |
| Ship Weight | 112 lb |
⚠️ Installation Requirements
- Floor: Level shop floor for stable caster rolling and lift positioning.
- Power: None — foot-operated hydraulic pump.
- Clearance: Confirm bay/lift clearance for rolling the jack under a raised vehicle.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — 2158-TJ
Tuxedo Distributors, LLC publishes a Limited Warranty (5-year structural / 1-year parts) for its Lifts and Wheel Service equipment. The only manufacturer document naming the 2158-TJ is a features-only flier with zero warranty language. Transmission jacks and under-hoist stands are a distinct equipment category from Tuxedo's Lifts and Wheel Service lines named in the standard Tuxedo Limited Warranty, and no document was found extending that warranty (or any other) to this product, so no warranty term is advertised here.
Have a warranty question before you order? Call Alamo at (817) 865-3707 and we'll help you confirm current coverage directly with Tuxedo.
❓ Frequently Asked Questions — 2158-TJ
Does the 2158-TJ price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the lifting capacity of the 2158-TJ?
1,100 lb via a single-stage hydraulic ram.
What's the difference between the 2158-TJ and an under-hoist stand?
The 2158-TJ lifts and moves a transmission on mobile casters. Under-hoist stands (like the 3320-Stand or 3315-Stand) are static supports that hold a raised component in place — they don't lift.
What is the 2158-TJ's warranty?
Alamo could not locate a manufacturer warranty document for the 2158-TJ. Call (817) 865-3707 and we'll help confirm current coverage directly with Tuxedo before you order.
