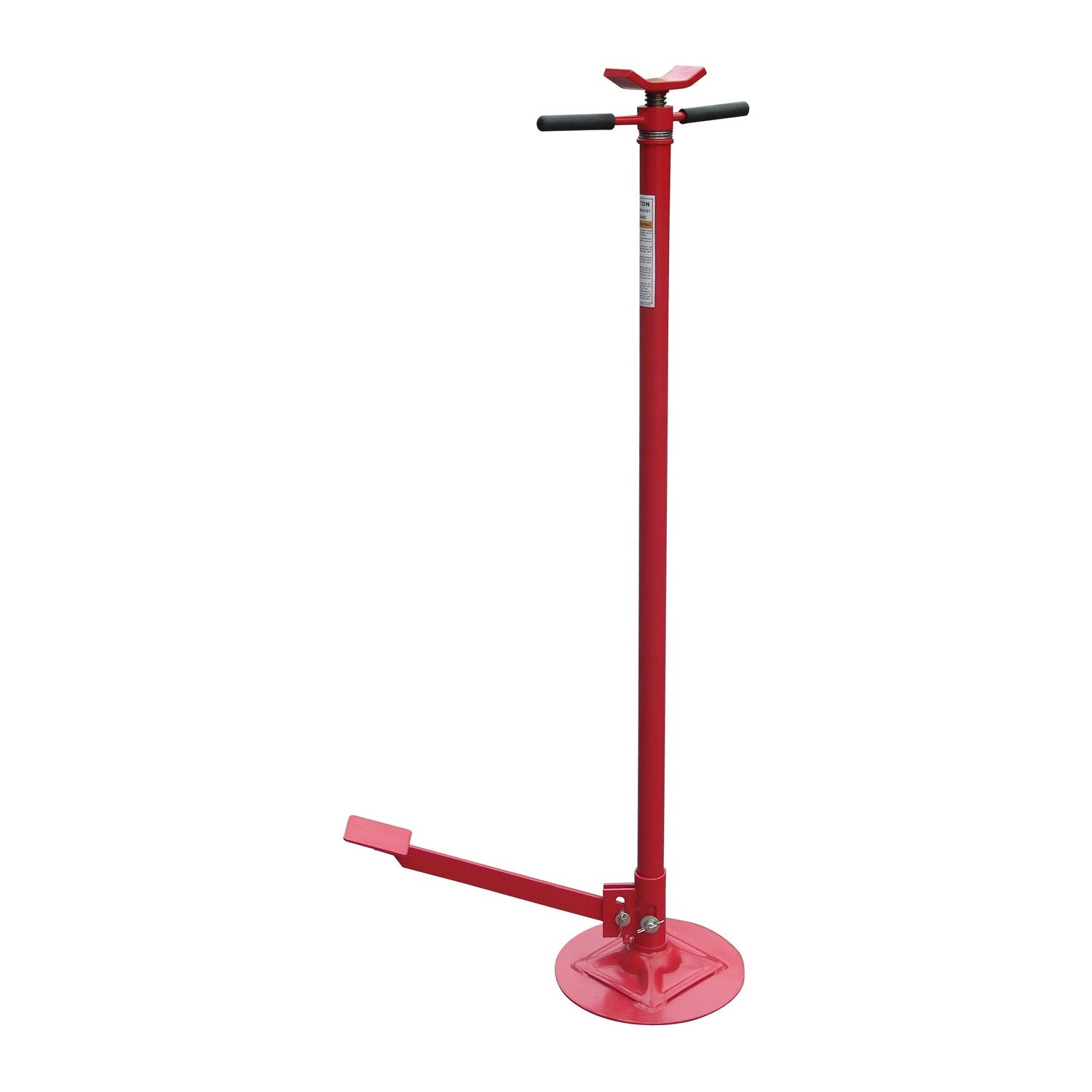

Tuxedo Under Hoist Stand #3320-Stand
| Model / Part Number | 3320-Stand |
| Type | Under-hoist support stand, single round base |
| Capacity | 3/4 ton (1,500 lb) |
| Base | 12 in diameter round base |
| Height Range | 54.5 in – 80.5 in |
| Ship Weight | 35 lb |
- Level shop floor rated for a 1,500 lb support load plus the vehicle/component above it
- No anchoring required — freestanding support stand
- Indoor use
- None — foot-pump actuated height adjustment, no electrical or air hookup needed
- Confirm bay space to position the stand under the raised vehicle/component
- Confirm aisle space for delivery
- Ships by LTL freight or small parcel
Tuxedo 3320-Stand — Under Hoist Stand
The Tuxedo 3320-Stand is a 3/4-ton (1,500 lb) under-hoist support stand with a 12 in diameter round base, built for shocks, suspension, and exhaust system work. A foot pump gives pedal-actuated height adjustment through a 54.5 in – 80.5 in range, with an extra 4 in of height available via the integrated foot pedal.
This is a support stand, not a lift — it holds a component or vehicle in place after a lift or jack has raised it, unlike Alamo's 2158-TJ transmission jack, which actively lifts and moves.
Who It's Built For
- ✅ Shocks, suspension, and exhaust system work needing a stable under-vehicle support
- ✅ Shops that want foot-pump height adjustment without a manual screw
- ✅ Support loads up to 3/4 ton (1,500 lb)
What It's NOT Built For
- ❌ Loads over 1,500 lb — see Alamo's higher-capacity 3315-Stand (2-ton tripod)
- ❌ Lifting a component — this is a support stand, not a jack; see the 2158-TJ for lifting
Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the 3320-Stand Different
Foot-Pump Height Adjustment
Pedal-actuated, giving up to 4 in of extra height beyond the base 54.5–80.5 in range without a manual screw.
12 In Round Base
A steady, single-post footprint sized for the stand's 3/4-ton capacity.
3320-Stand vs. 3315-Stand (Tripod) — Which Capacity Do You Need?
A genuine capacity and base-design difference, not a naming variant.
| Decision Point | 3320-Stand (this product) | 3315-Stand (Tripod) |
|---|---|---|
| Capacity | 3/4 ton (1,500 lb) | 2 ton (4,000 lb) |
| Base design | 12 in round base | Tripod, triangular 3-leg base |
| Adjustment | Foot pump (pedal-actuated) | Manual screw (no foot pump) |
| Height range | 54.5 in – 80.5 in | 55 in – 85.5 in |
Choose the 3320-Stand for lighter loads and foot-pump convenience. Choose the 3315-Stand if you need roughly 2.7x the capacity and a more stable tripod footprint on uneven or narrow floor space. Call (817) 865-3707 if you're not sure which fits your job.
✅ Best For
- ✅ Shocks, suspension, and exhaust work up to 1,500 lb
- ✅ Shops that want foot-pump height adjustment
❌ Not Ideal For
- ❌ Loads over 1,500 lb — step up to the 3315-Stand
Full Specifications — 3320-Stand
| Model / Part Number | 3320-Stand |
| Type | Under-hoist support stand, single round base |
| Capacity | 3/4 ton (1,500 lb) |
| Base | 12 in diameter round base |
| Saddle | 3 in x 3 in |
| Height Range | 54.5 in – 80.5 in |
| Adjustment Method | Foot pump (pedal-actuated, adds up to 4 in of extra height) |
| Application | Shocks, suspensions, and exhaust system work |
| Ship Weight | 35 lb |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a 1,500 lb support load plus the vehicle/component above.
- Power: None — foot-pump actuated height adjustment.
- Placement: Confirm bay space to position under the raised vehicle/component.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — 3320-Stand
Tuxedo Distributors, LLC publishes a Limited Warranty (5-year structural / 1-year parts) for its Lifts and Wheel Service equipment. The only manufacturer document naming the 3320-Stand is a features-only flier with zero warranty language. Transmission jacks and under-hoist stands are a distinct equipment category from Tuxedo's Lifts and Wheel Service lines named in the standard Tuxedo Limited Warranty, and no document was found extending that warranty (or any other) to this product, so no warranty term is advertised here.
Have a warranty question before you order? Call Alamo at (817) 865-3707 and we'll help you confirm current coverage directly with Tuxedo.
❓ Frequently Asked Questions — 3320-Stand
Does the 3320-Stand price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the capacity of the 3320-Stand?
3/4 ton (1,500 lb).
How does the 3320-Stand adjust height?
A foot pump gives pedal-actuated adjustment through a 54.5 in – 80.5 in range, with up to 4 in of extra height available via the foot pedal.
What is the 3320-Stand's warranty?
Alamo could not locate a manufacturer warranty document for the 3320-Stand. Call (817) 865-3707 and we'll help confirm current coverage directly with Tuxedo before you order.
