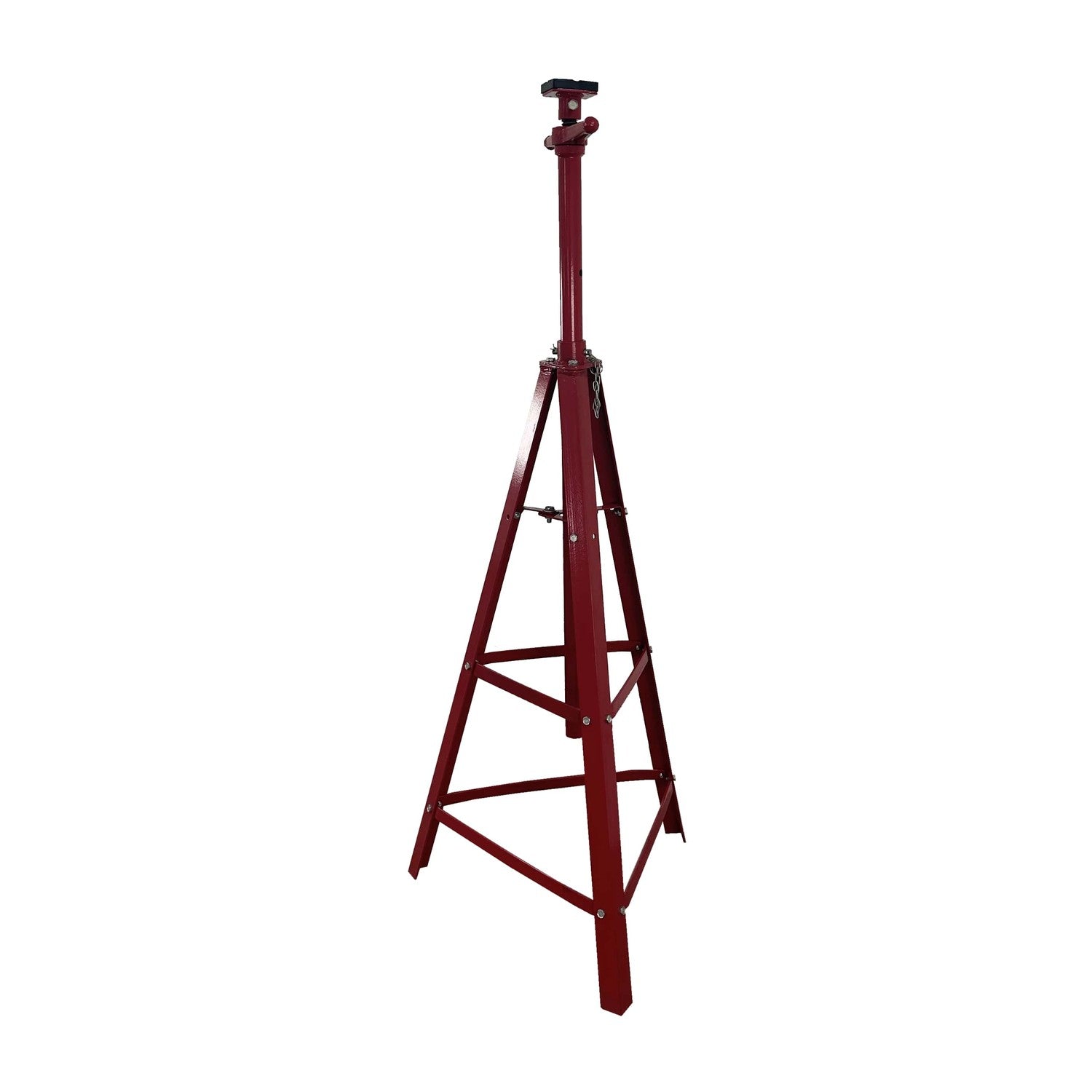

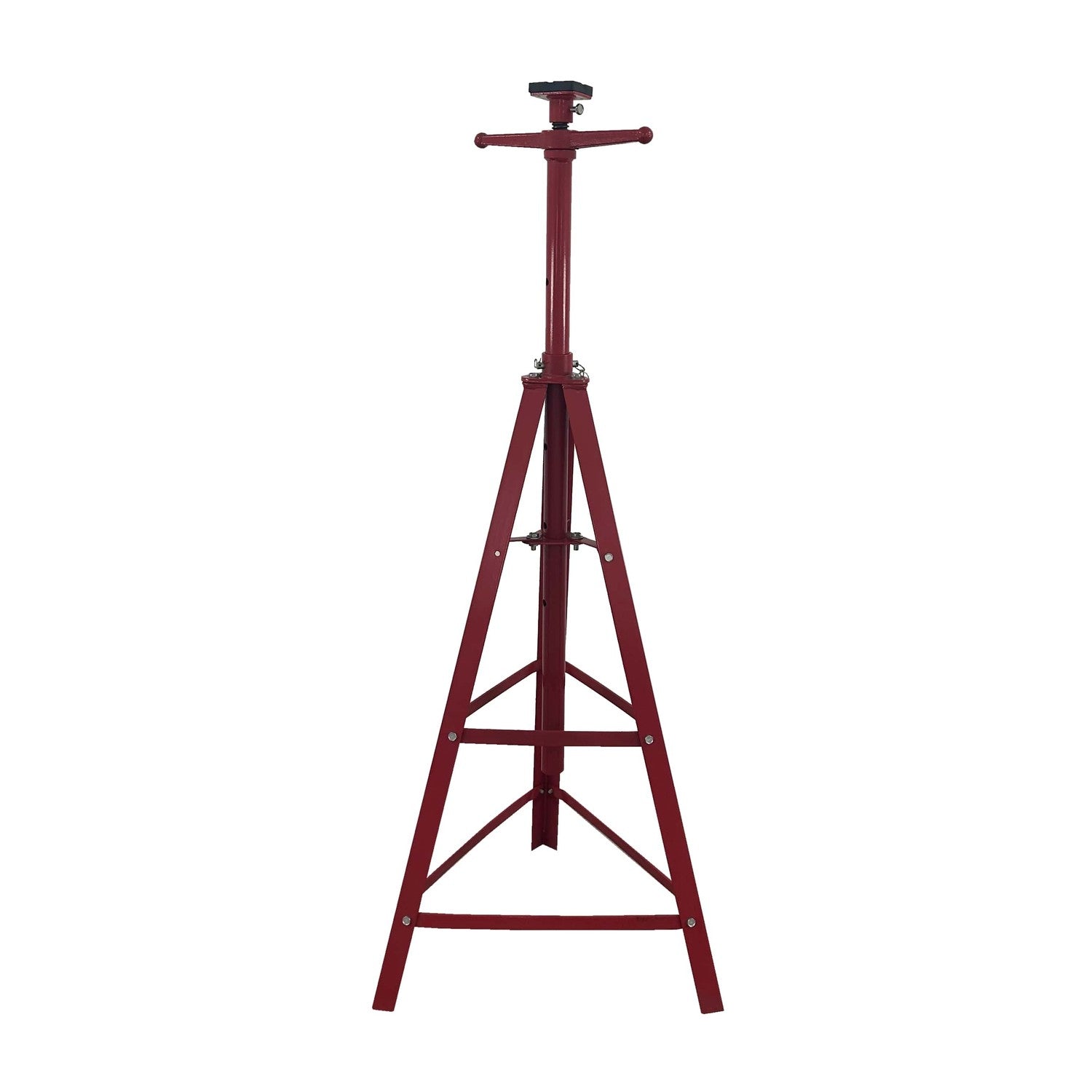

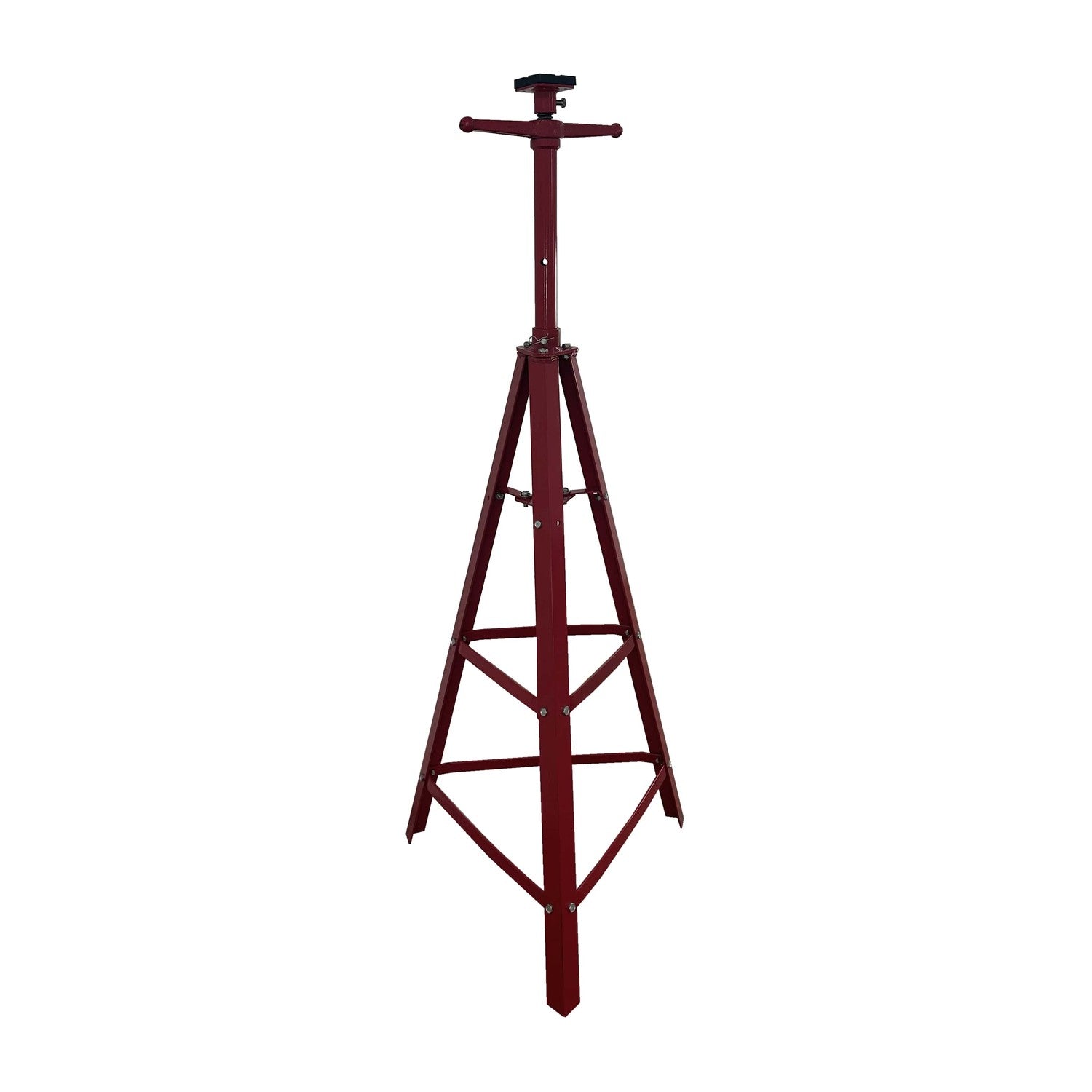

Tuxedo Under Hoist Stand--Tripod #3315-Stand
| Model / Part Number | 3315-Stand |
| Type | Under-hoist support stand, tripod base |
| Capacity | 2 ton (4,000 lb) |
| Base Design | Tripod (triangular 3-leg base) |
| Height Range | 55 in – 85.5 in |
| Ship Weight | 42 lb |
- Level shop floor rated for a 4,000 lb support load plus the vehicle/component above it
- No anchoring required — freestanding tripod support stand
- Indoor use
- None — manual screw-adjusted saddle, no electrical or air hookup needed
- Confirm bay floor space for the tripod's wider 3-leg footprint vs. a single-post stand
- Confirm aisle space for delivery
- Ships by LTL freight or small parcel
Tuxedo 3315-Stand — Under Hoist Stand, Tripod
The Tuxedo 3315-Stand is a 2-ton (4,000 lb) all-steel under-hoist support stand built with a triangular 3-leg tripod base instead of a single round post. That tripod footprint distributes load differently and sits more stably on uneven or narrow floor space than Alamo's single-post 3320-Stand — a genuine structural reason this stand carries roughly 2.7x the rated capacity of that comparable-size stand.
Height is set with an adjustable saddle screw (manual, no foot pump) across a 55 in – 85.5 in range, for all under-hoist work including exhaust and suspension.
Who It's Built For
- ✅ Support loads up to 2 tons (4,000 lb)
- ✅ Shops that want a wider, more stable tripod footprint than a single-post stand
- ✅ General under-hoist work including exhaust and suspension
What It's NOT Built For
- ❌ Shops that specifically want foot-pump height adjustment — see the 3320-Stand for that
- ❌ Lifting a component — this is a support stand, not a jack; see the 2158-TJ for lifting
Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the 3315-Stand Different
Tripod Base Design
A triangular 3-leg footprint distributes load differently and is inherently more stable on uneven or narrow floor space than a single round-post base — a genuine structural difference, not a rename.
2-Ton (4,000 lb) Capacity
Roughly 2.7x the rated capacity of the single-post 3320-Stand, a direct result of the tripod base design.
Manual Screw-Adjusted Saddle
No foot pump — height is set with an adjustable saddle screw across a 55 in – 85.5 in range.
✅ Best For
- ✅ Support loads up to 2 tons (4,000 lb)
- ✅ Uneven or narrow floor space where a tripod footprint is more stable
❌ Not Ideal For
- ❌ Shops that specifically want foot-pump height adjustment
3315-Stand vs. 3320-Stand — Which Capacity Do You Need?
A genuine capacity and base-design difference, not a naming variant.
| Decision Point | 3315-Stand (this product) | 3320-Stand |
|---|---|---|
| Capacity | 2 ton (4,000 lb) | 3/4 ton (1,500 lb) |
| Base design | Tripod, triangular 3-leg base | 12 in round base |
| Adjustment | Manual screw (no foot pump) | Foot pump (pedal-actuated) |
| Height range | 55 in – 85.5 in | 54.5 in – 80.5 in |
Choose the 3315-Stand for higher-capacity loads and a more stable tripod footprint. Choose the 3320-Stand for lighter loads and foot-pump convenience. Call (817) 865-3707 if you're not sure which fits your job.
Full Specifications — 3315-Stand
| Model / Part Number | 3315-Stand |
| Type | Under-hoist support stand, tripod base |
| Capacity | 2 ton (4,000 lb) |
| Construction | All-steel construction |
| Base Design | Tripod (triangular 3-leg base) |
| Height Range | 55 in – 85.5 in |
| Adjustment Method | Adjustable saddle screw (manual, no foot pump) |
| Application | All under-hoist work including exhaust and suspension |
| Ship Weight | 42 lb |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a 4,000 lb support load plus the vehicle/component above.
- Power: None — manual screw-adjusted saddle.
- Placement: Confirm bay floor space for the tripod's wider 3-leg footprint.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — 3315-Stand
Tuxedo Distributors, LLC publishes a Limited Warranty (5-year structural / 1-year parts) for its Lifts and Wheel Service equipment. The only manufacturer document naming the 3315-Stand is a features-only flier with zero warranty language. Transmission jacks and under-hoist stands are a distinct equipment category from Tuxedo's Lifts and Wheel Service lines named in the standard Tuxedo Limited Warranty, and no document was found extending that warranty (or any other) to this product, so no warranty term is advertised here.
Have a warranty question before you order? Call Alamo at (817) 865-3707 and we'll help you confirm current coverage directly with Tuxedo.
❓ Frequently Asked Questions — 3315-Stand
Does the 3315-Stand price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the capacity of the 3315-Stand?
2 ton (4,000 lb) — roughly 2.7x the 3320-Stand's 1,500 lb capacity, due to its tripod base design.
What's the difference between the 3315-Stand and 3320-Stand?
The 3315-Stand has a triangular tripod base and roughly 2.7x the capacity; the 3320-Stand has a single round base with foot-pump height adjustment instead of a manual screw.
What is the 3315-Stand's warranty?
Alamo could not locate a manufacturer warranty document for the 3315-Stand. Call (817) 865-3707 and we'll help confirm current coverage directly with Tuxedo before you order.
Why Buy the 3315-Stand from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
