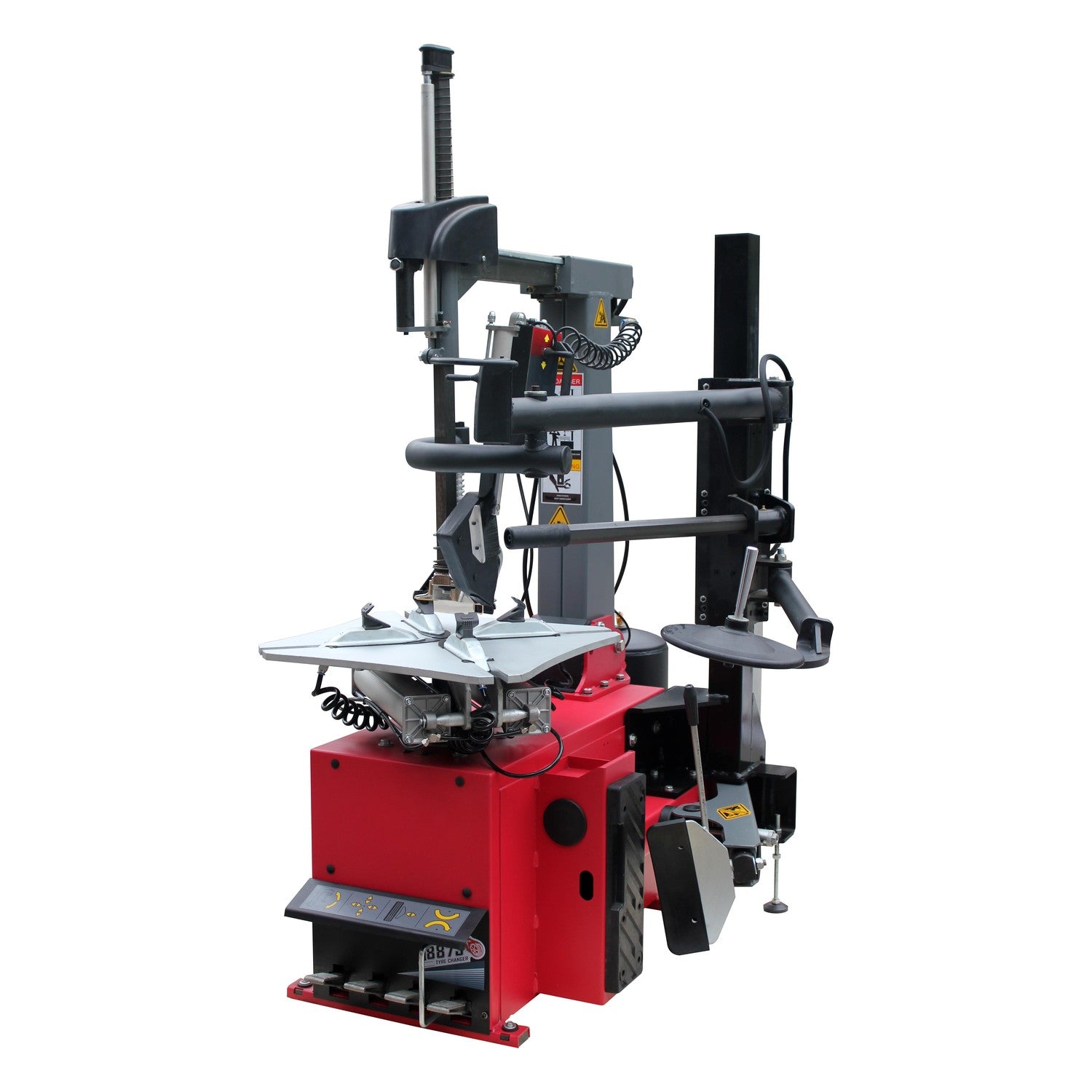

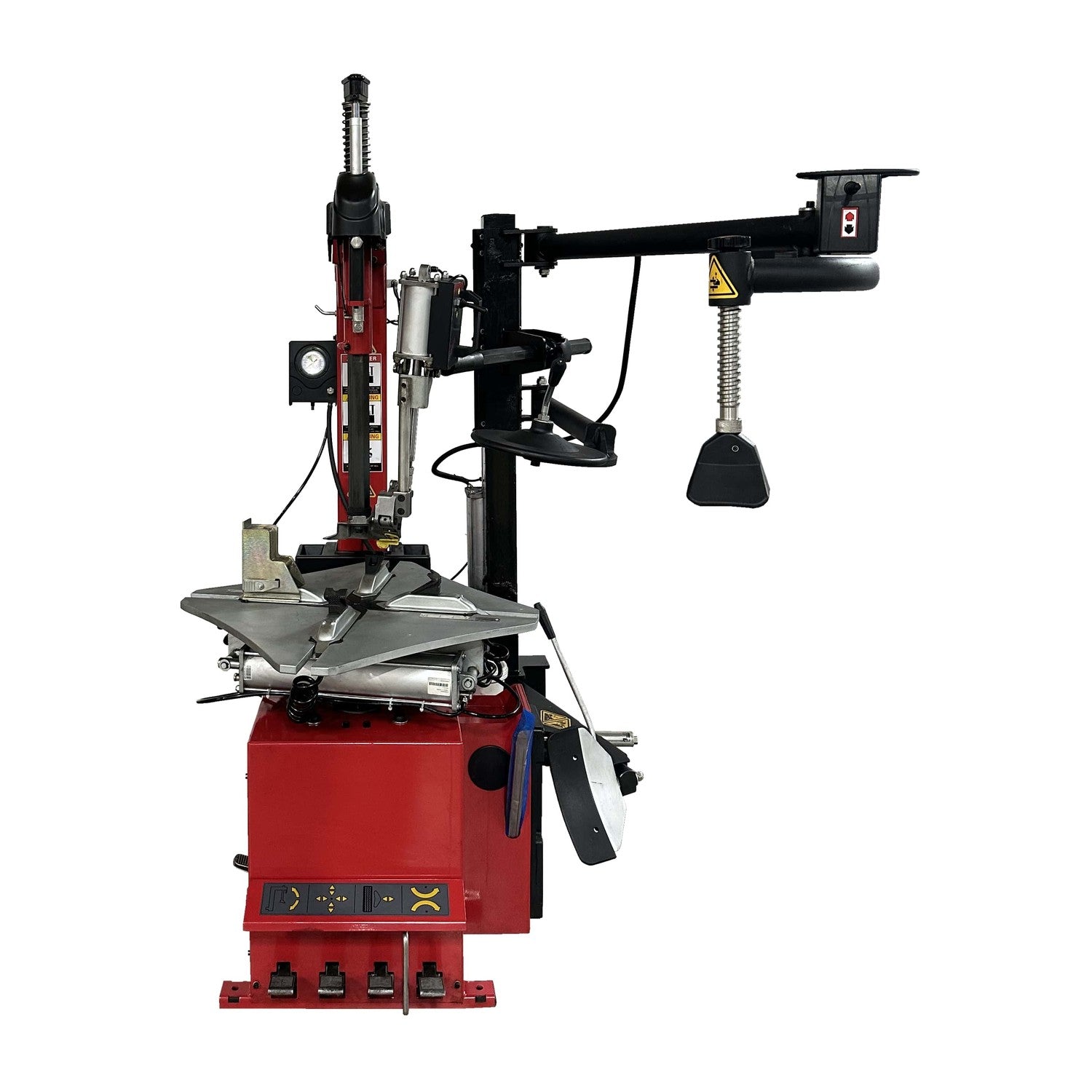

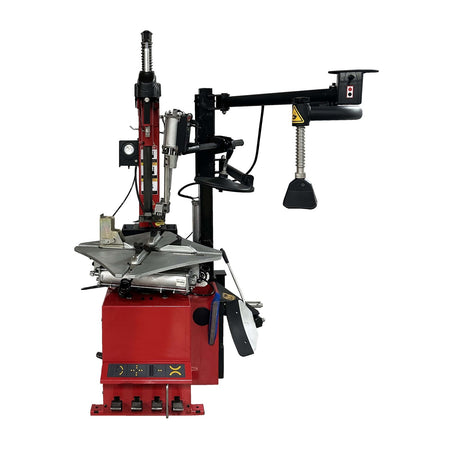

Tuxedo TC-1300 Tire Changer - Tiltback Press Arm w/ Leverles Demount Tool #TC-1300
| Model / Part Number | TC-1300 |
| Type | Tire changer, tiltback column, leverless design |
| Max Wheel Diameter | 41 in |
| Wheel Width | 3 in – 15 in |
| Outside Rim Clamp Range | 11 in – 24 in |
| Power | 110V – 15 Amp – 1PH |
| Ship Weight | 975 lb |
- Level shop floor rated for a 975 lb machine
- No anchoring required for standard placement
- Indoor use
- Dedicated 110V, 15 Amp, single-phase circuit
- Shop compressed air for the pneumatic locking hex shaft and bead blaster jets, working pressure 125 psi
- Confirm bay space — the tiltback column and 3-function assist arm need clearance to operate
- Confirm aisle/bay space for delivery
- Ships by LTL freight
Tuxedo TC-1300 — Tire Changer, Tiltback Leverless
The Tuxedo TC-1300 is Alamo's largest and most automated Tuxedo tire changer, built for shops running high tire-service volume on wheels up to 41 in in diameter. Its leverless design protects wheel finishes during mount/demount, and the tiltback column leaves ample room for the operator to work compared to a fixed-column design.
A 3-function assist arm adds versatility for dismounting today's low-profile tires — a job that's genuinely harder on a swing-arm-only machine — and a pneumatic locking hex shaft locks the wheel reliably during operation. Powerful dual bead blaster jets on all four clamps seat stubborn beads quickly, and an inflation hose with air gauge is built in.
Who It's Built For
- ✅ High-volume tire shops that need leverless operation to protect alloy wheel finishes
- ✅ Shops regularly handling low-profile tires that need assist-arm dismounting
- ✅ Wheels up to 41 in overall diameter and 24 in outside clamp range
What It's NOT Built For
- ❌ Motorcycle/powersport wheels — see the TC-400M-B for that
- ❌ Shops on a tighter budget that don't need leverless automation — the manual TC-430 costs less
Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the TC-1300 Different
Leverless Design
Protects wheel finishes during mount/demount by avoiding metal-on-rim contact from a traditional tire lever — a real advantage on alloy and finished wheels.
Tiltback Column
The column tilts back to give the operator more working room than a fixed upright column design.
3-Function Assist Arm
Adds versatility specifically for dismounting low-profile tires, which are genuinely more difficult on machines without this assist mechanism.
Pneumatic Locking Hex Shaft
Locks the wheel reliably during operation via air pressure rather than a purely mechanical lock.
Dual Bead Blaster Jets on All Four Clamps
Seats stubborn beads faster than a single-jet or two-jet system.
✅ Best For
- ✅ High-volume shops needing leverless, low-profile-tire automation
- ✅ The largest wheels in Alamo's Tuxedo tire changer lineup, up to 41 in
❌ Not Ideal For
- ❌ Motorcycle/powersport wheels
- ❌ Budget-limited shops that don't need leverless automation
TC-1300 vs. TC-430 — Automated or Manual?
These are genuinely different machines, not the same design at different price points — the TC-1300 automates dismounting that the TC-430 does by hand.
| Decision Point | TC-1300 (this product) | TC-430 |
|---|---|---|
| Mount/demount operation | Leverless, assist-arm automated | Manual tool operation |
| Max wheel diameter | 41 in | 38 in |
| Outside clamp range | 11 in – 24 in | 10 in – 18 in |
| Ship weight | 975 lb | 460 lb |
Choose the TC-1300 for high-volume shops that want leverless, assist-arm automation on larger wheels. Choose the TC-430 if your volume and wheel sizes fit a manual swing-arm design and you want a lower-cost machine. Call (817) 865-3707 if you're not sure which fits your shop.
Full Specifications — TC-1300
| Model / Part Number | TC-1300 |
| Type | Tire changer, tiltback column, leverless |
| Max Wheel Diameter | 41 in |
| Wheel Width | 3 in – 15 in |
| Inside Rim Clamp Range | 13 in – 26 in |
| Outside Rim Clamp Range | 11 in – 24 in |
| Power | 110V – 15 Amp – 1PH |
| Working Pressure | 125 psi |
| Ship Weight | 975 lb |
| Included Features | 3-function assist arm, pneumatic locking hex shaft, dual bead blaster jets (all 4 clamps), inflation hose with air gauge |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a 975 lb machine — no anchoring required for standard placement.
- Power: Dedicated 110V, 15 Amp, single-phase circuit.
- Air: Shop compressed air, 125 psi working pressure, for the pneumatic locking hex shaft and bead blaster jets.
- Bay footprint: Confirm clearance for the tiltback column and 3-function assist arm to operate.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — TC-1300
The TC-1300 is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are corroborated on the standard Tuxedo Lifts/Wheel Service warranty documentation referenced above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — TC-1300
Does the TC-1300 price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the maximum wheel diameter for the TC-1300?
41 in, the largest in Alamo's Tuxedo tire changer lineup.
What makes the TC-1300 different from the TC-430?
The TC-1300 is leverless with an automated 3-function assist arm for low-profile tires and a tiltback column; the TC-430 is a manual swing-arm design. The TC-1300 also handles larger wheels (41 in vs. 38 in) and a wider clamp range.
What is the TC-1300's warranty?
Tuxedo's published Limited Warranty for Lifts and Wheel Service equipment (5-year structural / 1-year parts to the original purchaser) applies to this Wheel Service product.
Why Buy the TC-1300 from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
