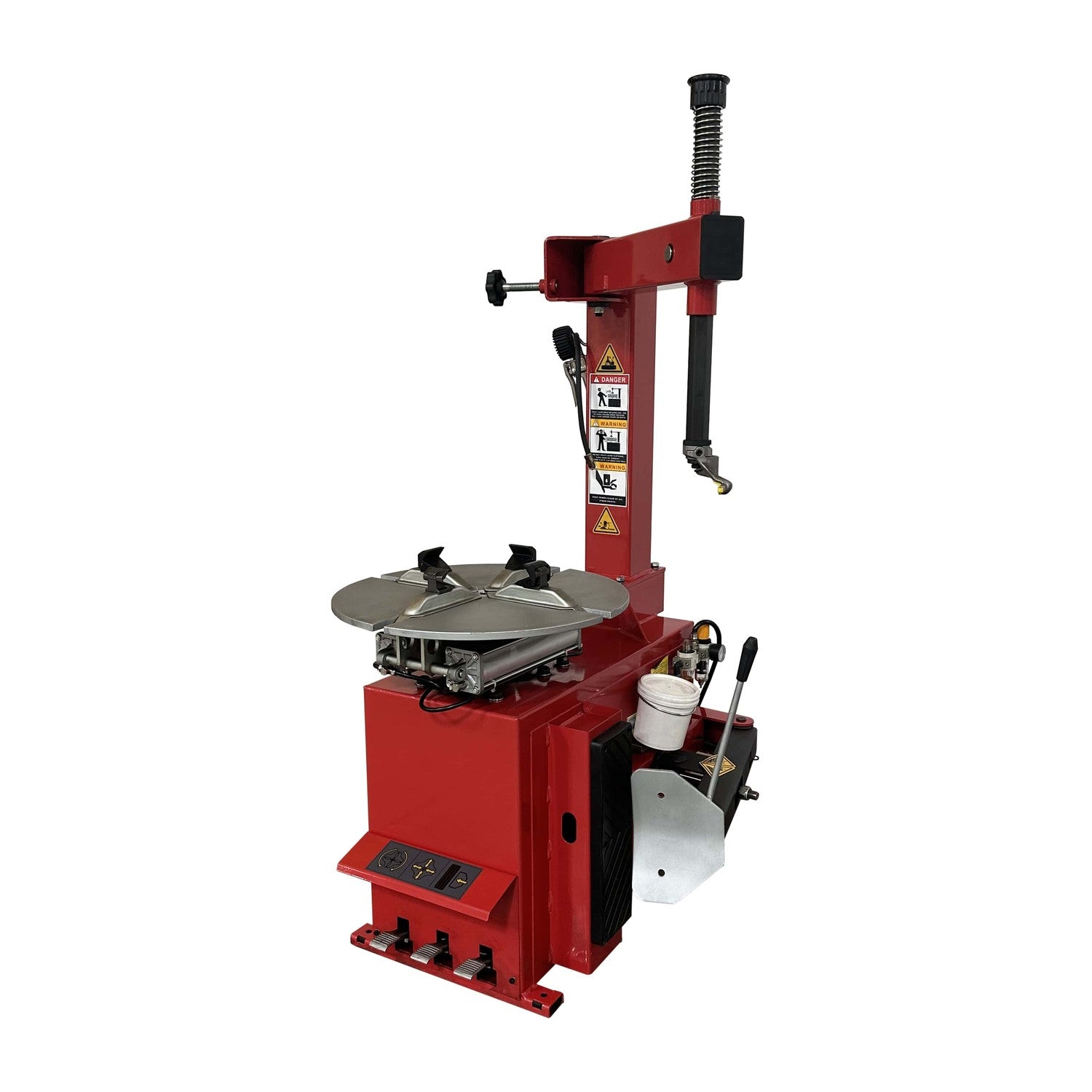

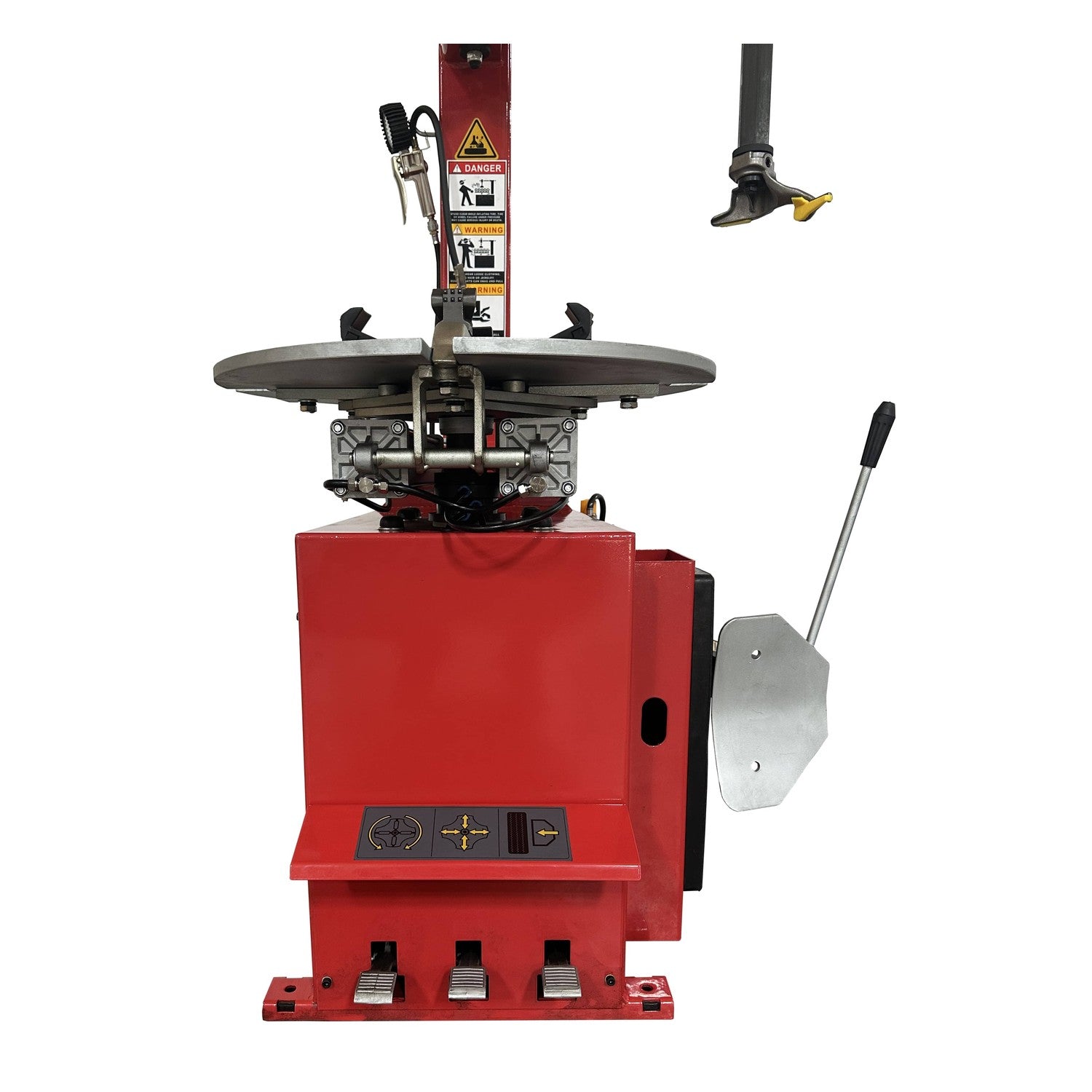

Tuxedo TC-400 Motorcycle Tire Changer #TC-400M-B
| Model / Part Number | TC-400M-B |
| Type | Motorcycle/powersport tire changer |
| Max Wheel Diameter | 37 in |
| Wheel Width | 10 in |
| Outside Rim Clamp Range | 6 in – 24 in |
| Power | 110V – 15 Amp – 1PH |
| Ship Weight | 470 lb |
- Level shop floor rated for a 470 lb machine
- No anchoring required for standard placement
- Indoor use
- Dedicated 110V, 15 Amp, single-phase circuit
- Shop compressed air for the pneumatic clamps and double-acting cylinders, working pressure 125 psi
- Confirm bay space for the adjustable clamp set and side-mounted bead breaker
- Confirm aisle/bay space for delivery
- Ships by LTL freight
Tuxedo TC-400M-B — Motorcycle Tire Changer
The Tuxedo TC-400M-B is a tire changer purpose-built for motorcycle and powersport wheels, not a car tire changer adapted for smaller sizes. Its adjustable clamp set is designed specifically for motorcycle wheel geometry, and its 10 in maximum wheel width — versus 15 in on Alamo's car/truck Tuxedo changers — reflects that narrower powersport wheel focus.
Pneumatic clamps and double-acting cylinders handle the mount/demount cycle, and a side-mounted bead breaker positions clear of the wheel for motorcycle-specific bead geometry. It includes a water separator, lubricator, and air pressure regulator built in, so shop air just needs to be connected.
Who It's Built For
- ✅ Powersports shops and dealers servicing motorcycle and ATV/UTV wheels
- ✅ Shops that want a dedicated motorcycle changer instead of adapting a car tire changer
- ✅ Facilities needing the widest outside clamp range (6–24 in) of Alamo's Tuxedo tire changer lineup for small-diameter wheels
What It's NOT Built For
- ❌ Passenger car or light truck wheels — the 10 in max wheel width is narrower than what those tires need; see the TC-1300 or TC-430 instead
- ❌ Shops without shop air — pneumatic clamps require compressed air
Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the TC-400M-B Different
Purpose-Built for Motorcycle Wheels
The clamp set and wheel-width capacity (10 in max, vs. 15 in on Alamo's car/truck Tuxedo changers) are specifically sized for motorcycle and powersport wheel geometry, not a scaled-down car changer.
Side-Mounted Bead Breaker
Positioned to clear motorcycle wheel geometry, distinct from the bead-breaker placement on Alamo's car/truck tire changers.
Widest Outside Clamp Range for Small Wheels
The 6–24 in outside clamp range reaches smaller-diameter wheels than the TC-1300's 11–24 in or the TC-430's 10–18 in range — the range best suited to motorcycle wheel sizes.
Built-In Air Prep

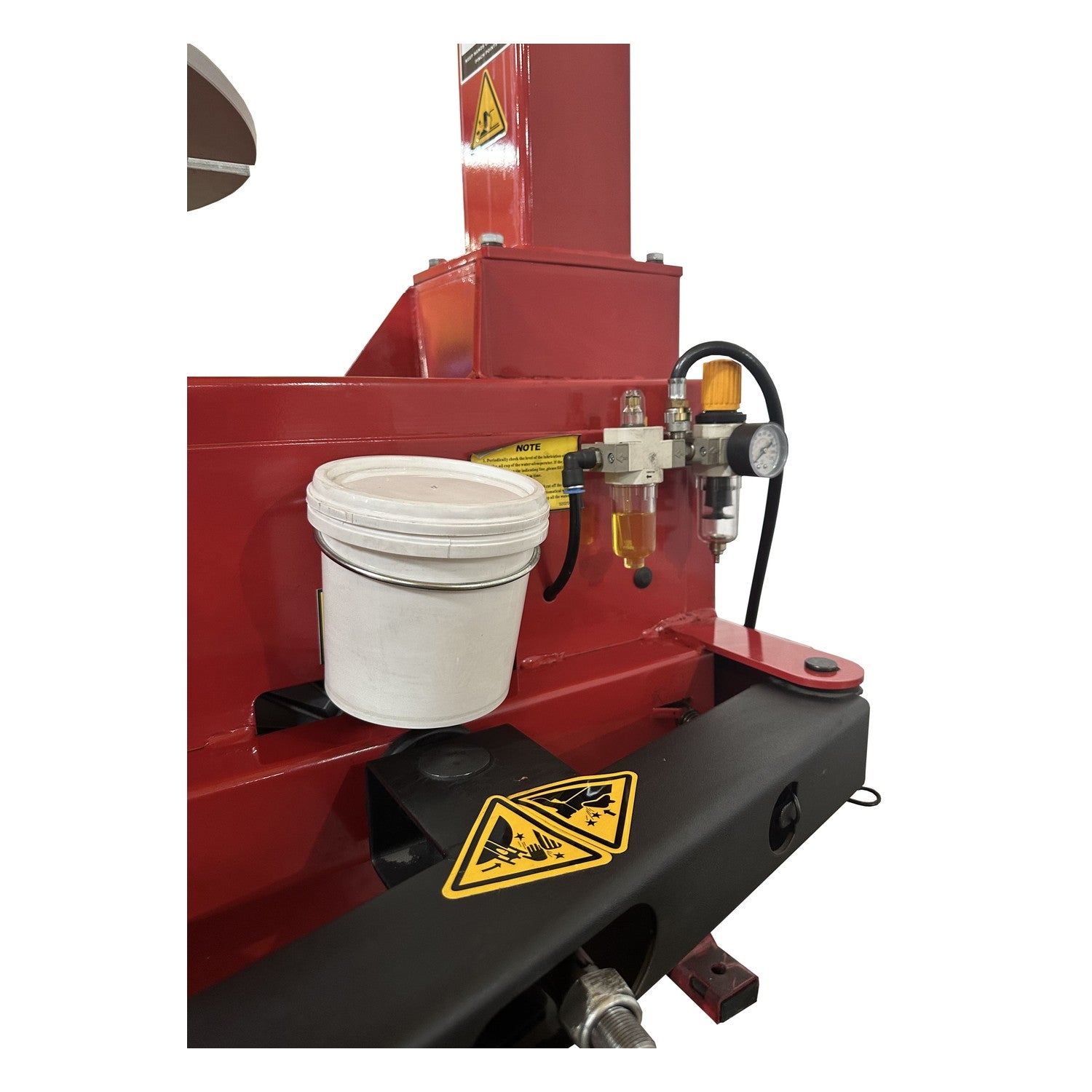

A water separator, lubricator, and air pressure regulator are included, so no separate air prep components are needed before connecting shop air.
✅ Best For
- ✅ Powersports shops needing a dedicated motorcycle/ATV wheel changer
- ✅ Shops that don't want to compromise using a car tire changer on small wheels
❌ Not Ideal For
- ❌ Passenger car or light truck tires — the 10 in wheel width capacity is too narrow
Full Specifications — TC-400M-B
| Model / Part Number | TC-400M-B |
| Type | Motorcycle/powersport tire changer |
| Max Wheel Diameter | 37 in |
| Wheel Width | 10 in |
| Inside Rim Clamp Range | N/A |
| Outside Rim Clamp Range | 6 in – 24 in |
| Power | 110V – 15 Amp – 1PH |
| Working Pressure | 125 psi |
| Ship Weight | 470 lb |
| Included Features | Adjustable clamp set, pneumatic clamps and double-acting cylinders, side-mounted bead breaker, water separator, lubricator, air pressure regulator |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a 470 lb machine — no anchoring required for standard placement.
- Power: Dedicated 110V, 15 Amp, single-phase circuit.
- Air: Shop compressed air, 125 psi working pressure, for the pneumatic clamps and cylinders.
- Bay footprint: Confirm clearance for the adjustable clamp set and side-mounted bead breaker.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — TC-400M-B
The TC-400M-B is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are corroborated on the standard Tuxedo Lifts/Wheel Service warranty documentation referenced above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — TC-400M-B
Does the TC-400M-B price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Can the TC-400M-B handle car tires?
No. Its 10 in maximum wheel width is built for motorcycle and powersport wheels. For car/truck tires, see Alamo's TC-1300 or TC-430.
What air supply does the TC-400M-B need?
Shop compressed air at 125 psi working pressure. A water separator, lubricator, and air pressure regulator are included.
What is the TC-400M-B's warranty?
Tuxedo's published Limited Warranty for Lifts and Wheel Service equipment (5-year structural / 1-year parts to the original purchaser) applies to this Wheel Service product.
Why Buy the TC-400M-B from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
