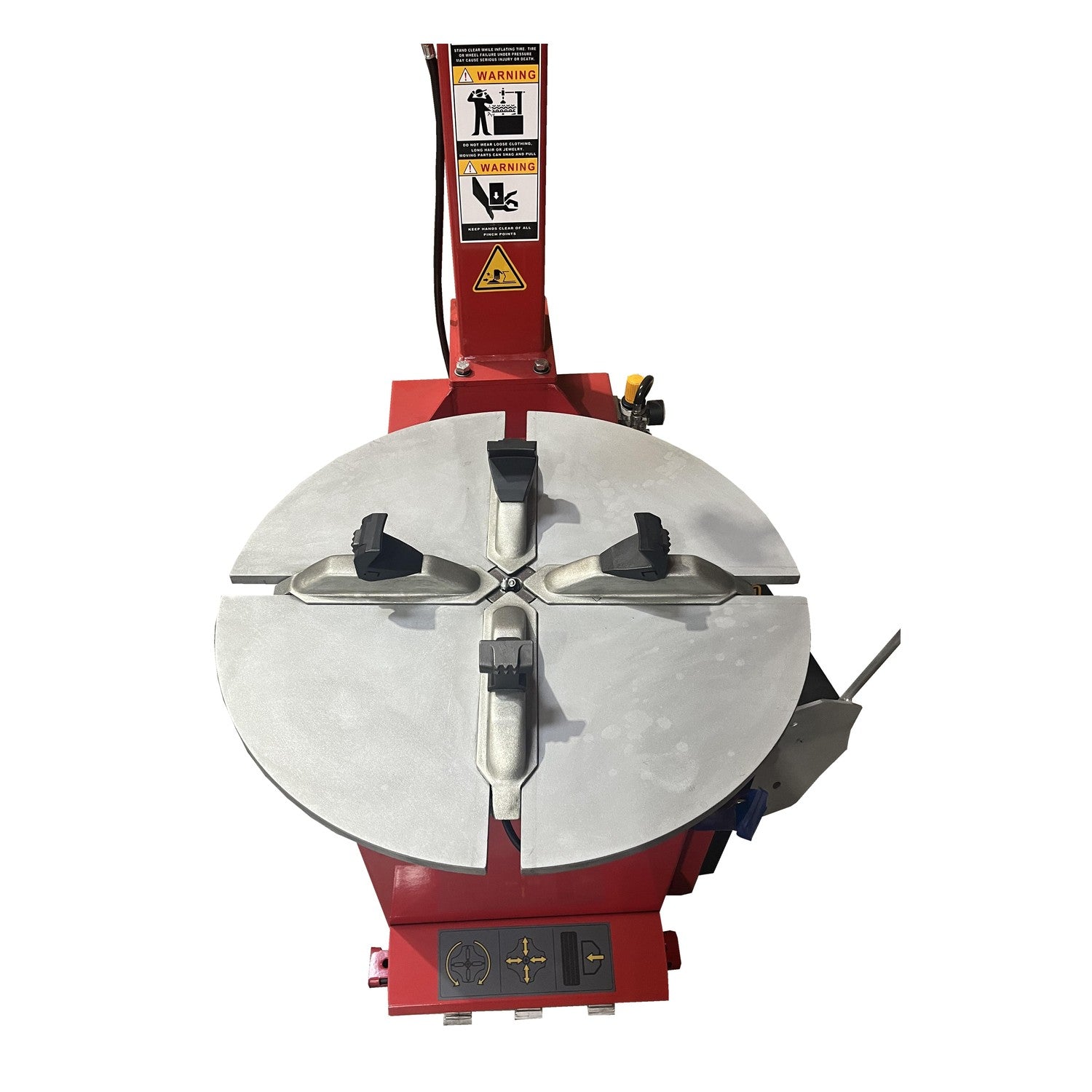

Tuxedo TC-430 Economical Tire Changer #TC-430
| Model / Part Number | TC-430 |
| Type | Tire changer, swing arm, manual mount/demount |
| Max Wheel Diameter | 38 in |
| Wheel Width | 3 in – 11 in |
| Outside Rim Clamp Range | 10 in – 18 in |
| Power | 110V – 15 Amp – 1PH |
| Ship Weight | 460 lb |
- Level shop floor rated for a 460 lb machine
- No anchoring required for standard placement
- Indoor use
- Dedicated 110V, 15 Amp, single-phase circuit
- Shop compressed air for the pneumatic clamps and double-acting cylinders, working pressure 125 psi
- Confirm bay space for the swing-arm design and side-mounted bead breaker
- Confirm aisle/bay space for delivery
- Ships by LTL freight
Tuxedo TC-430 — Economical Tire Changer
The Tuxedo TC-430 is a swing-arm tire changer with manual mount/demount tool operation — no leverless automation or assist arm — built to give shops a lower-cost entry into Tuxedo's tire changer lineup. It handles wheels up to 38 in overall diameter with a 10–18 in outside clamp range, a narrower capacity band than the fully automated TC-1300.

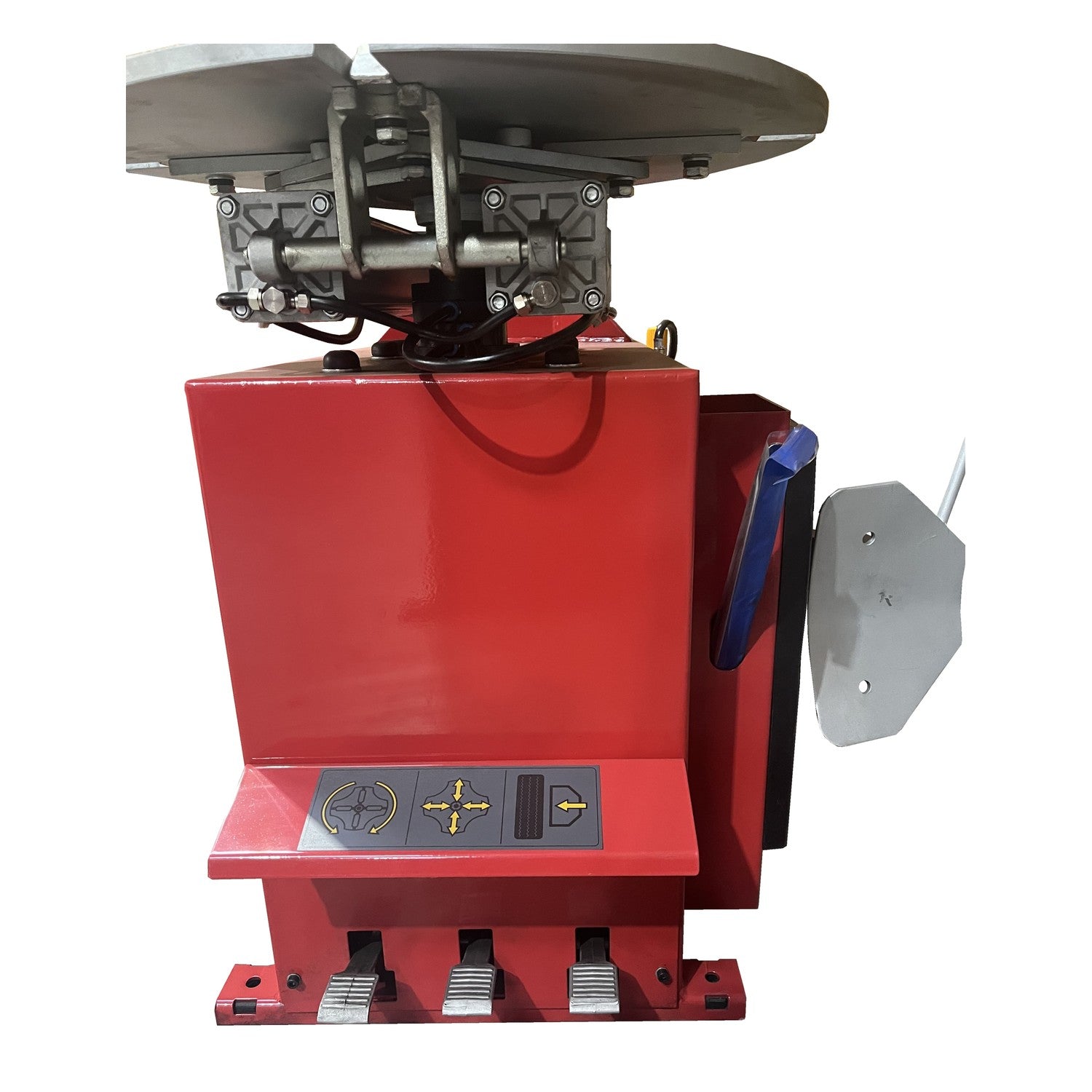

Pneumatic clamps and double-acting cylinders still handle the clamping and rotation cycle, and a side-mounted bead breaker is conveniently positioned for the operator. A built-in water separator, lubricator, and air pressure regulator mean shop air just needs to be connected.
Who It's Built For
- ✅ Shops that don't need leverless/assist-arm automation and want a lower-cost machine
- ✅ General service shops with moderate tire-service volume on standard car/truck wheels up to 38 in
- ✅ Buyers comfortable with manual mount/demount tool operation
What It's NOT Built For
- ❌ High-volume shops that want leverless, assist-arm automation for low-profile tires — see the TC-1300
- ❌ Motorcycle/powersport wheels — see the TC-400M-B
Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the TC-430 Different
Manual Mount/Demount Operation
Unlike the leverless, assist-arm-equipped TC-1300, the TC-430 uses a manual mount/demount tool — a straightforward, lower-cost design for shops that don't need full automation.
Swing-Arm Design
The swing-arm mechanism is a proven, simpler design than a tiltback column, keeping the machine's cost and footprint down.
Lightest of Alamo's Tuxedo Tire Changers
At 460 lb, the TC-430 is the lightest of the three — a direct result of its simpler, non-automated mechanism compared to the 975 lb TC-1300.
Built-In Air Prep

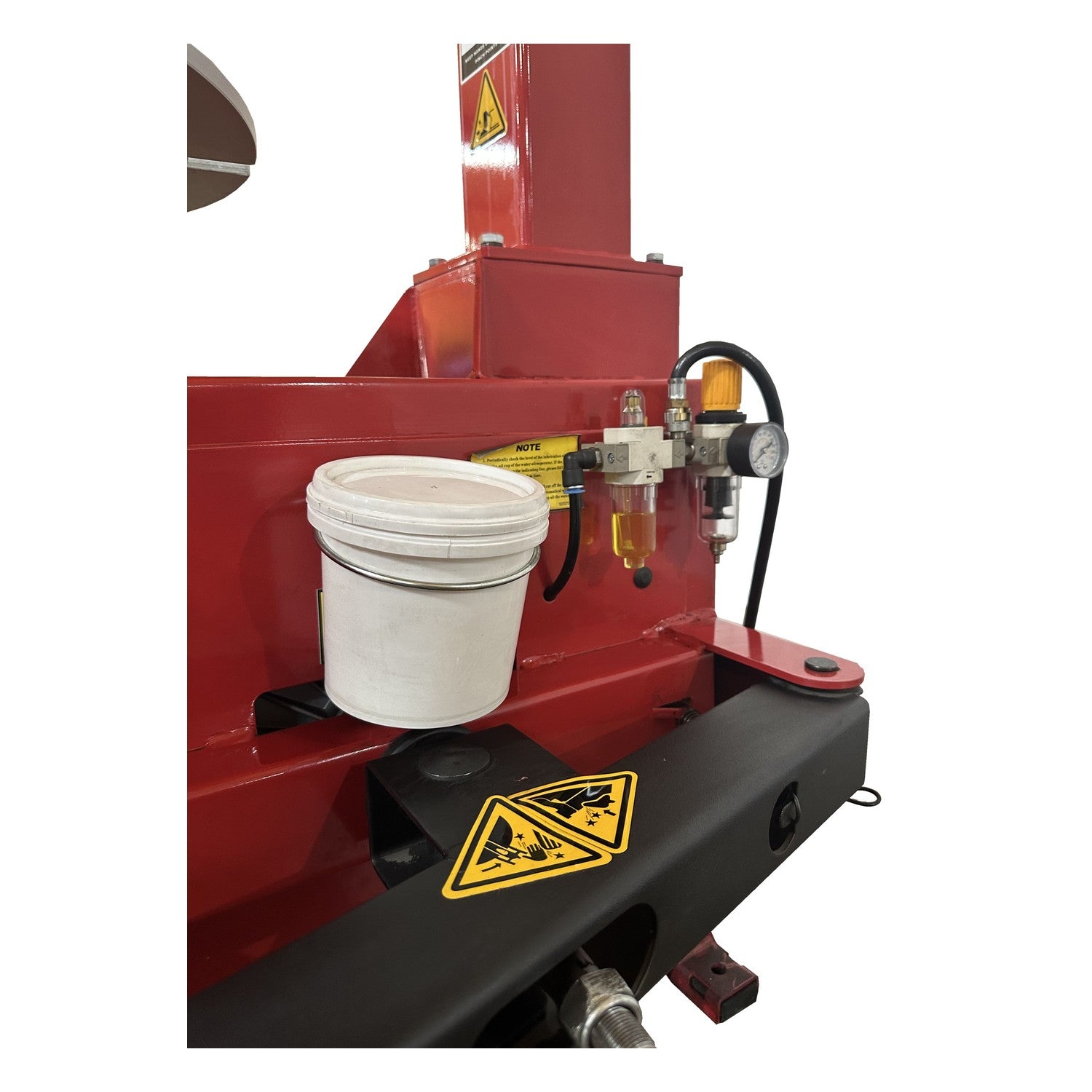

A water separator, lubricator, and air pressure regulator are included, so no separate air prep components are needed.
TC-430 vs. TC-1300 — Manual or Automated?
These are genuinely different machines — the TC-430 uses a manual tool where the TC-1300 automates dismounting.
| Decision Point | TC-430 (this product) | TC-1300 |
|---|---|---|
| Mount/demount operation | Manual tool operation | Leverless, assist-arm automated |
| Max wheel diameter | 38 in | 41 in |
| Outside clamp range | 10 in – 18 in | 11 in – 24 in |
| Ship weight | 460 lb | 975 lb |
Choose the TC-430 if you want a lower-cost machine and don't need leverless automation. Choose the TC-1300 for high-volume shops that want assist-arm automation on larger wheels. Call (817) 865-3707 if you're not sure which fits your shop.
✅ Best For
- ✅ Shops wanting a lower-cost, proven swing-arm design
- ✅ Moderate-volume general service tire work
❌ Not Ideal For
- ❌ High-volume shops needing leverless automation
- ❌ Motorcycle/powersport wheels
Full Specifications — TC-430
| Model / Part Number | TC-430 |
| Type | Tire changer, swing arm, manual mount/demount |
| Max Wheel Diameter | 38 in |
| Wheel Width | 3 in – 11 in |
| Inside Rim Clamp Range | 12 in – 21 in |
| Outside Rim Clamp Range | 10 in – 18 in |
| Power | 110V – 15 Amp – 1PH |
| Working Pressure | 125 psi |
| Ship Weight | 460 lb |
| Included Features | Pneumatic clamps and double-acting cylinders, side-mounted bead breaker, water separator, lubricator, air pressure regulator |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a 460 lb machine — no anchoring required for standard placement.
- Power: Dedicated 110V, 15 Amp, single-phase circuit.
- Air: Shop compressed air, 125 psi working pressure, for the pneumatic clamps and cylinders.
- Bay footprint: Confirm clearance for the swing-arm design.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — TC-430
The TC-430 is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are corroborated on the standard Tuxedo Lifts/Wheel Service warranty documentation referenced above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — TC-430
Does the TC-430 price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Is the TC-430 automated like the TC-1300?
No. The TC-430 uses a manual mount/demount tool, while the TC-1300 is leverless with an automated assist arm. The TC-430 is also lighter and less expensive.
What's the maximum wheel diameter for the TC-430?
38 in.
What is the TC-430's warranty?
Tuxedo's published Limited Warranty for Lifts and Wheel Service equipment (5-year structural / 1-year parts to the original purchaser) applies to this Wheel Service product.
