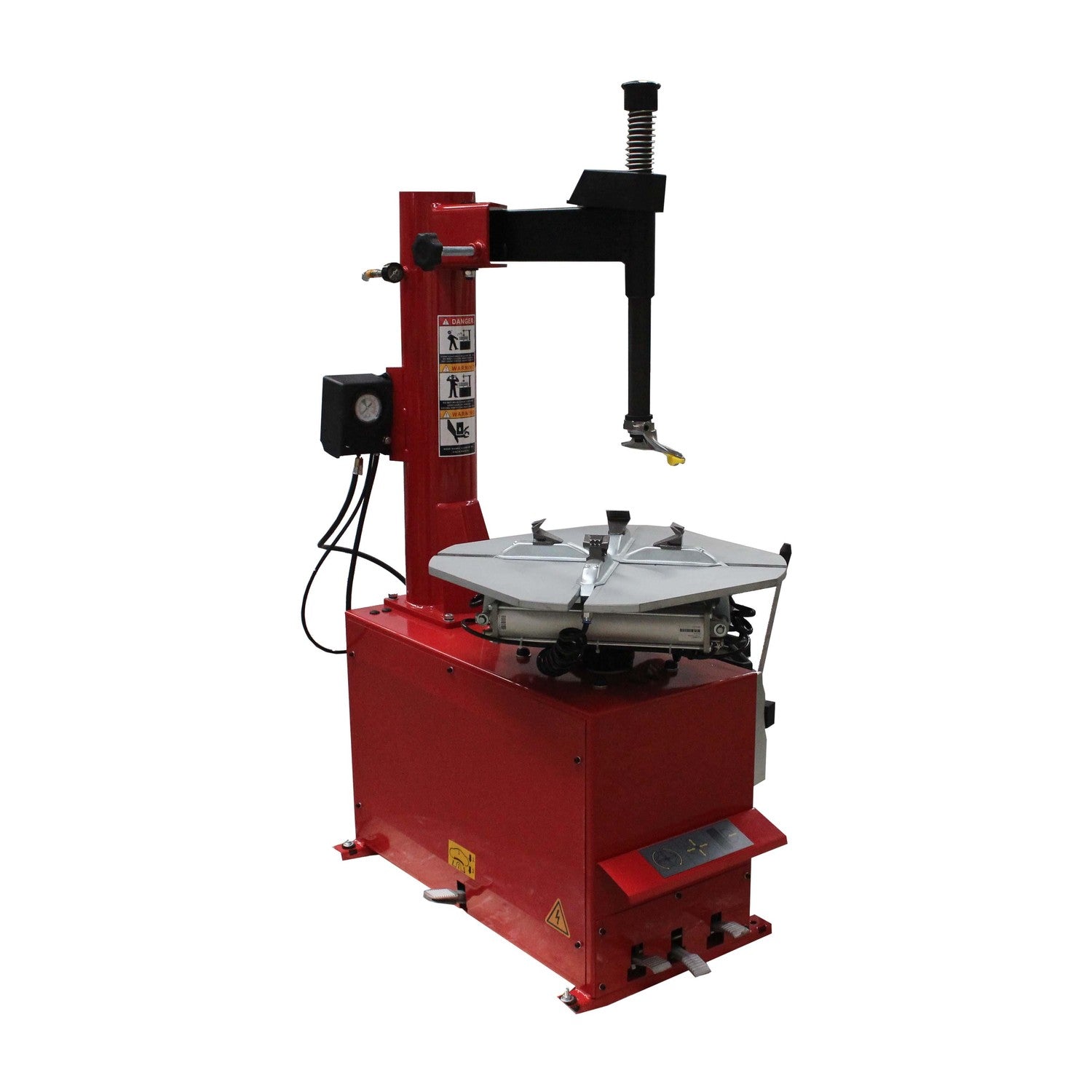

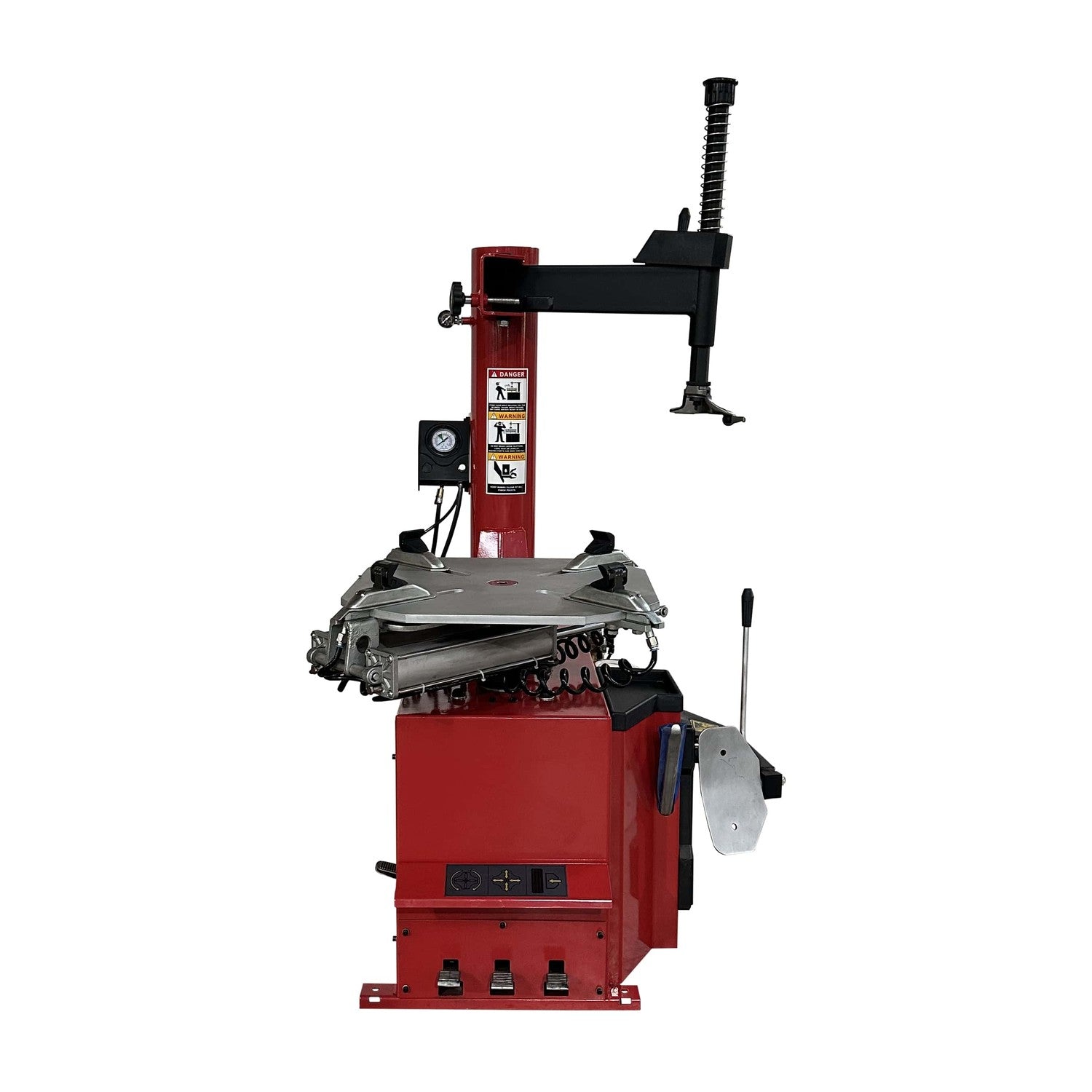

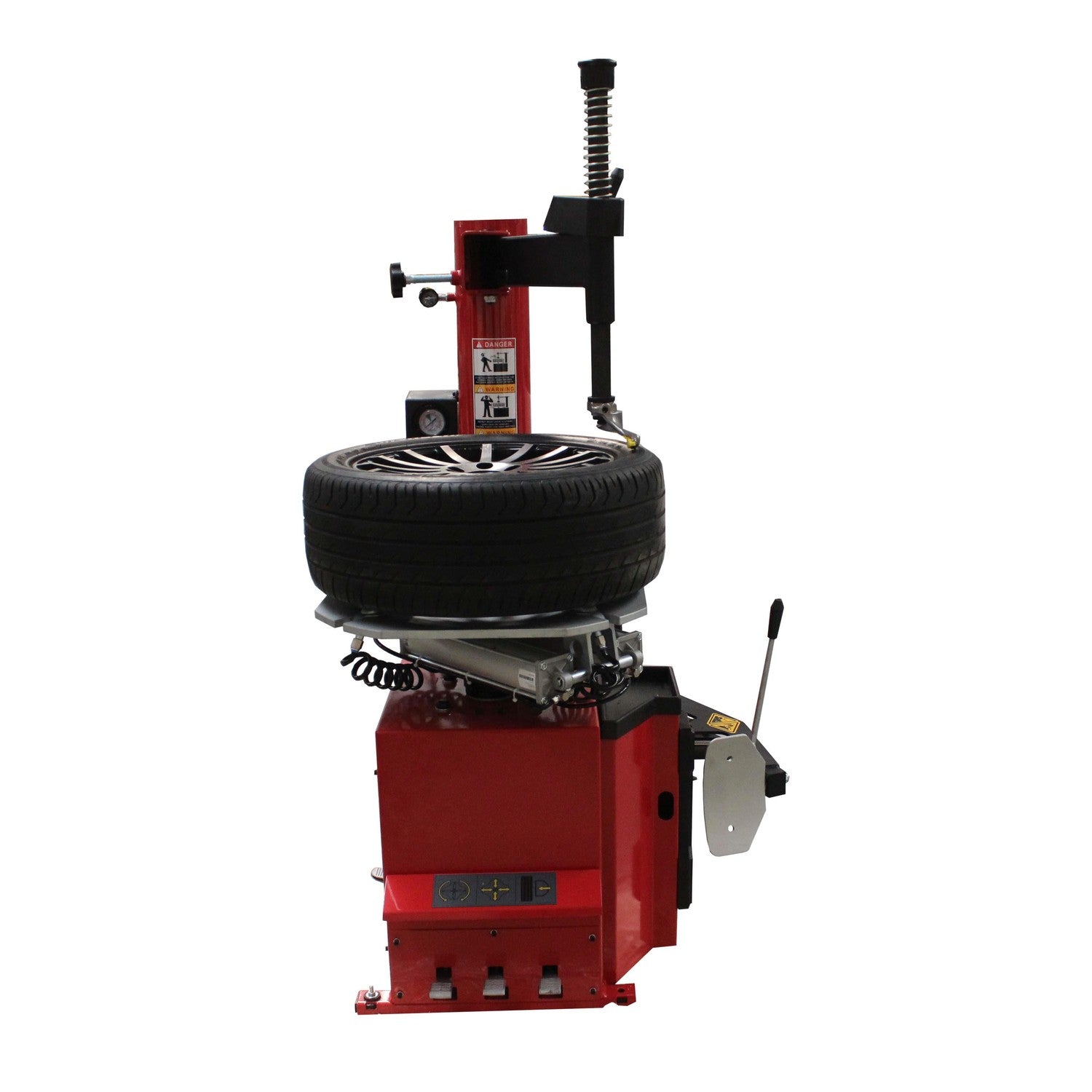

Tuxedo TC-530 Tire Changer #TC-530
| Model / Part Number | TC-530 |
| Type | Swing-arm tire changer |
| Max Wheel Diameter | 38 in |
| Wheel Width | 3 in – 12 in |
| Outside Rim Clamp Range | 10 in – 20 in |
| Power | 110V – 15 Amp – 1PH |
| Ship Weight | 560 lb |
- Level shop floor rated for a 560 lb machine
- No anchoring required for standard placement
- Indoor use
- Dedicated 110V, 15 Amp, single-phase circuit
- Shop compressed air, 125 psi working pressure
- Confirm bay space for the swing-arm's full range of motion
- Confirm aisle/bay space for delivery
- Ships by LTL freight
Tuxedo TC-530 — Tire Changer
The Tuxedo TC-530 is a compact swing-arm tire changer built for cars and light trucks, sized for shops that don't need the larger 47 in capacity of Alamo's TC-950 line. Twin clamping cylinders hold the wheel through the mount/demount cycle on wheels up to 38 in in diameter and 12 in wide.
As a manual swing-arm design, the TC-530 doesn't include leverless or assist-arm automation — it's built to be a straightforward, dependable changer for shops running standard passenger and light-truck tire volume rather than high-volume low-profile work.
Who It's Built For
- ✅ Shops servicing cars and light trucks up to 38 in wheel diameter
- ✅ Facilities that want a compact, dependable swing-arm changer without automation overhead
- ✅ Budget-conscious shops that don't need the TC-950's larger capacity
What It's NOT Built For
- ❌ Wheels over 38 in diameter or 12 in wide — see the TC-950 for larger capacity
- ❌ High-volume low-profile tire work needing leverless automation
Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the TC-530 Different
Twin Clamping Cylinders
Holds the wheel securely through the mount/demount cycle on wheels up to 38 in diameter.
Compact Swing-Arm Frame
Sized for shops running standard car/light-truck volume rather than the larger 47 in capacity of Alamo's TC-950 line.
✅ Best For
- ✅ Standard car/light-truck tire service up to 38 in wheels
- ✅ Shops that want a compact frame over a larger-capacity changer
❌ Not Ideal For
- ❌ Wheels larger than 38 in diameter or 12 in wide
TC-530 vs. TC-950 — Which Capacity Do You Need?
Same design family, genuinely different capacity — not a rebadge.
| Decision Point | TC-530 (this product) | TC-950 |
|---|---|---|
| Max wheel diameter | 38 in | 47 in |
| Max wheel width | 12 in | 15 in |
| Outside clamp range | 10 in – 20 in | 13 in – 24 in |
| Ship weight | 560 lb | 640 lb |
Choose the TC-530 for cars and light trucks up to 38 in wheels. Choose the TC-950 if you need to service larger wheels up to 47 in. Call (817) 865-3707 if you're not sure which fits your shop.
Full Specifications — TC-530
| Model / Part Number | TC-530 |
| Type | Tire changer, swing-arm |
| Max Wheel Diameter | 38 in |
| Wheel Width | 3 in – 12 in |
| Inside Rim Clamp Range | 12 in – 23 in |
| Outside Rim Clamp Range | 10 in – 20 in |
| Working Pressure | 125 psi |
| Power | 110V – 15 Amp – 1PH |
| Ship Weight | 560 lb |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a 560 lb machine — no anchoring required for standard placement.
- Power: Dedicated 110V, 15 Amp, single-phase circuit.
- Air: Shop compressed air, 125 psi working pressure.
- Bay footprint: Confirm clearance for the swing-arm's full range of motion.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — TC-530
The TC-530 is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are corroborated on the standard Tuxedo Lifts/Wheel Service warranty documentation cross-referenced in the ledger.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — TC-530
Does the TC-530 price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the maximum wheel size for the TC-530?
38 in diameter, 12 in wide.
What air supply does the TC-530 need?
Shop compressed air at 125 psi working pressure.
What is the TC-530's warranty?
Tuxedo's published Limited Warranty for Lifts and Wheel Service equipment (5-year structural / 1-year parts to the original purchaser) applies to this Wheel Service product.
