Tuxedo TC-950 Tire Changer #TC-950
| Model / Part Number | TC-950 |
| Type | Swing-arm tire changer |
| Max Wheel Diameter | 47 in |
| Wheel Width | 3 in – 15 in |
| Outside Rim Clamp Range | 13 in – 24 in |
| Power | 110V – 15 Amp – 1PH |
| Ship Weight | 640 lb |
- Level shop floor rated for a 640 lb machine
- No anchoring required for standard placement
- Indoor use
- Dedicated 110V, 15 Amp, single-phase circuit
- Shop compressed air, 125 psi working pressure
- Confirm bay space for the swing-arm's full range of motion
- Confirm aisle/bay space for delivery
- Ships by LTL freight

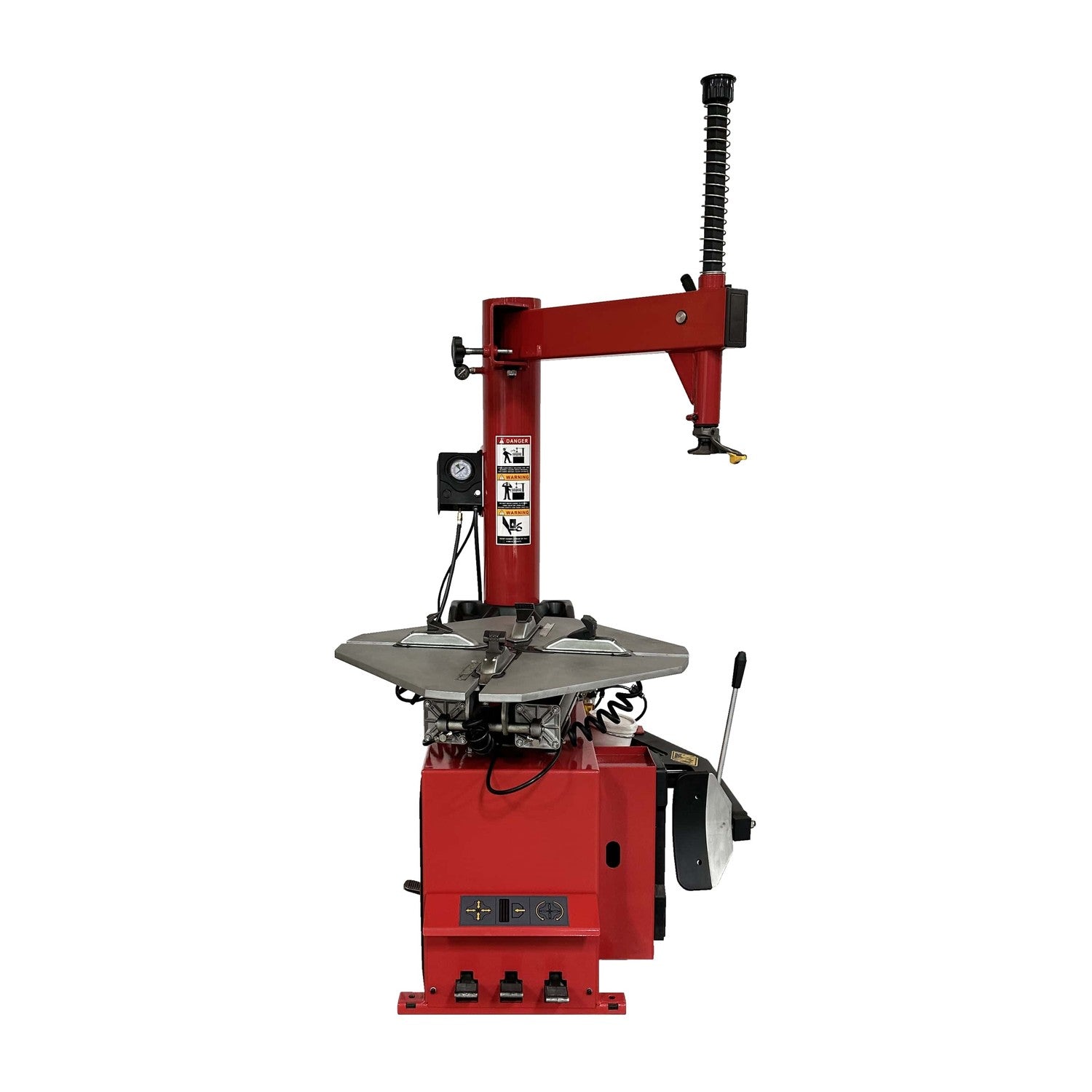

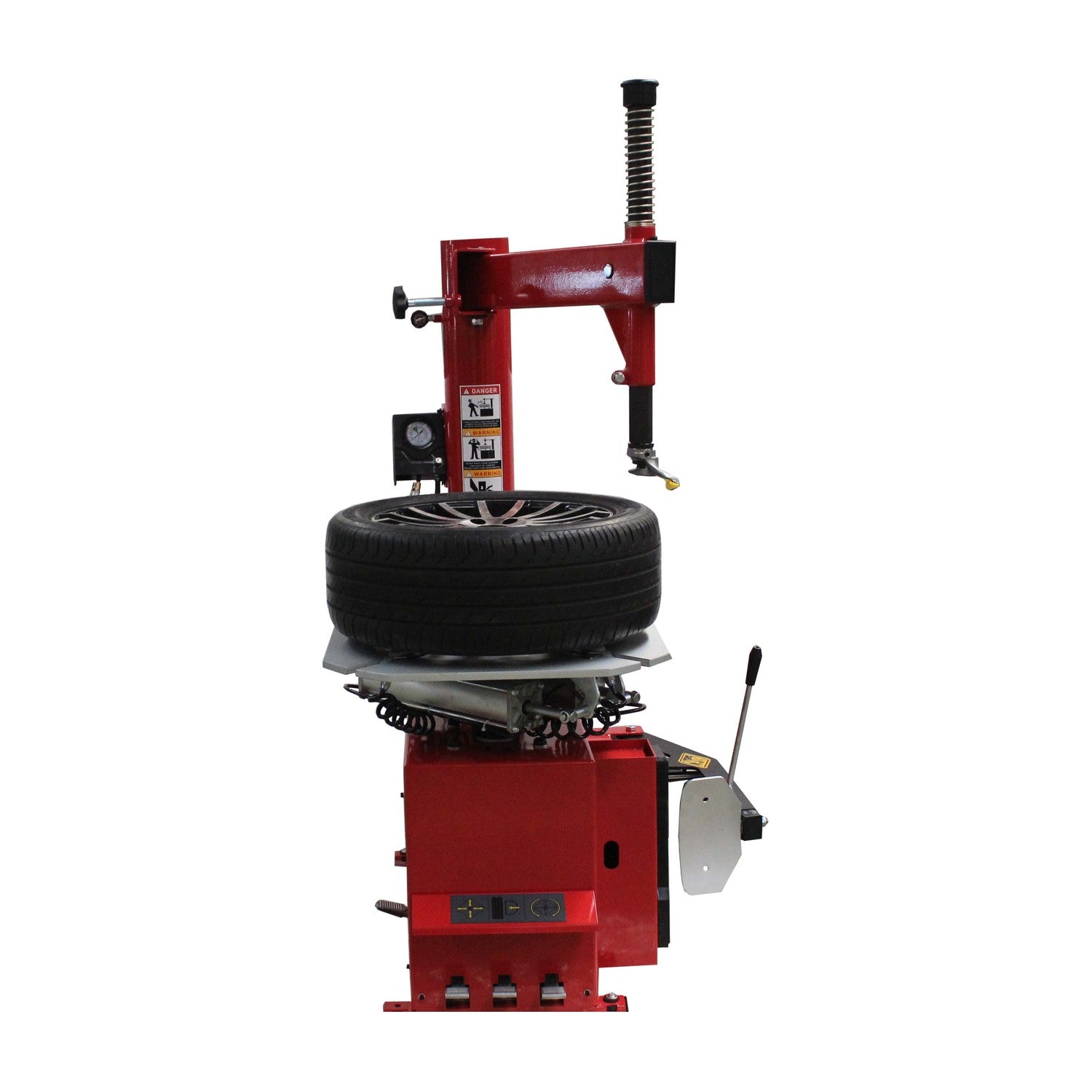

Tuxedo TC-950 — Tire Changer
The Tuxedo TC-950 is a swing-arm tire changer built for shops that need more capacity than a compact changer offers, handling wheels up to 47 in in diameter and 15 in wide. Twin clamping cylinders and a side bead breaker handle the mount/demount cycle on cars, light trucks, and larger wheel packages.
This base TC-950 does not include the left-side press arm that Alamo's TC-950-WPA adds for low-profile and run-flat tires — it's the standard swing-arm configuration for shops that don't specifically need that assist mechanism.
Who It's Built For
- ✅ Shops servicing wheels up to 47 in diameter and 15 in wide
- ✅ Facilities that need more capacity than the compact TC-530
- ✅ Shops that don't specifically need low-profile/run-flat press-arm assist
What It's NOT Built For
- ❌ High-volume low-profile/run-flat tire work — see the TC-950-WPA for the press-arm version
- ❌ Heavy truck/OTR wheels — see the TC-770-T
Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the TC-950 Different
47 In Max Wheel Diameter
Handles larger wheel packages than the compact TC-530's 38 in capacity.
Twin Clamping Cylinders and Side Bead Breaker
Standard swing-arm mount/demount mechanism for cars, light trucks, and larger wheels.
✅ Best For
- ✅ General car/light-truck tire service up to 47 in wheels
- ✅ Shops that don't need dedicated low-profile/run-flat assist
❌ Not Ideal For
- ❌ High-volume low-profile or run-flat tire work — the TC-950-WPA's press arm handles that better
TC-950 vs. TC-950-WPA — Do You Need the Press Arm?
Identical wheel-capacity specs; the only real difference is the press arm.
| Decision Point | TC-950 (this product) | TC-950-WPA |
|---|---|---|
| Max wheel diameter | 47 in | 47 in |
| Left-side press arm | Not included | Included — for low-profile/run-flat tires |
| Ship weight | 640 lb | 880 lb |
Choose the TC-950 if you don't run high volumes of stiff-sidewall low-profile or run-flat tires. Choose the TC-950-WPA if you do — the press arm holds the sidewall down during mount/demount. Call (817) 865-3707 if you're not sure which fits your shop.
Full Specifications — TC-950
| Model / Part Number | TC-950 |
| Type | Tire changer, swing-arm |
| Max Wheel Diameter | 47 in |
| Wheel Width | 3 in – 15 in |
| Inside Rim Clamp Range | 15 in – 28 in |
| Outside Rim Clamp Range | 13 in – 24 in |
| Working Pressure | 125 psi |
| Power | 110V – 15 Amp – 1PH |
| Ship Weight | 640 lb |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a 640 lb machine — no anchoring required for standard placement.
- Power: Dedicated 110V, 15 Amp, single-phase circuit.
- Air: Shop compressed air, 125 psi working pressure.
- Bay footprint: Confirm clearance for the swing-arm's full range of motion.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — TC-950
The TC-950 is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above (LIMITED WARRANTY chapter, this SKU's own manual).
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — TC-950
Does the TC-950 price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the maximum wheel size for the TC-950?
47 in diameter, 15 in wide.
Does the TC-950 include the low-profile press arm?
No. This base TC-950 does not include the left-side press arm. See the TC-950-WPA if you need that feature.
What is the TC-950's warranty?
Tuxedo backs the TC-950 with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada, per the manufacturer's own operating manual.
