Tuxedo TC-950 with Left Side Press Arm #TC-950-WPA
| Model / Part Number | TC-950-WPA |
| Type | Swing-arm tire changer with left-side press arm |
| Max Wheel Diameter | 47 in |
| Wheel Width | 3 in – 15 in |
| Outside Rim Clamp Range | 13 in – 24 in |
| Power | 110V – 15 Amp – 1PH |
| Ship Weight | 880 lb |
- Level shop floor rated for an 880 lb machine
- No anchoring required for standard placement
- Indoor use
- Dedicated 110V, 15 Amp, single-phase circuit
- Shop compressed air, 125 psi working pressure
- Confirm bay space for the swing-arm and left-side press arm's full range of motion
- Confirm aisle/bay space for delivery
- Ships by LTL freight

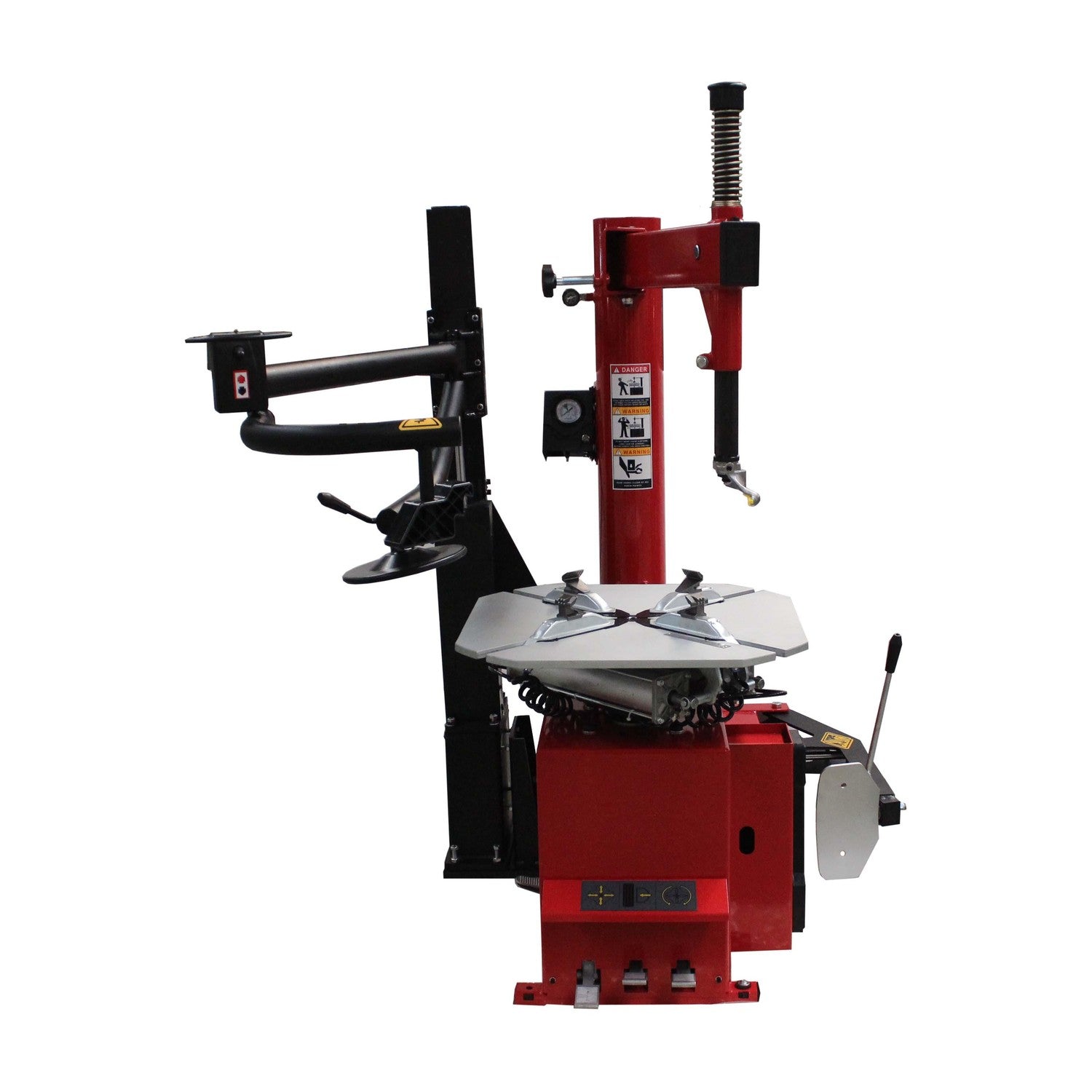

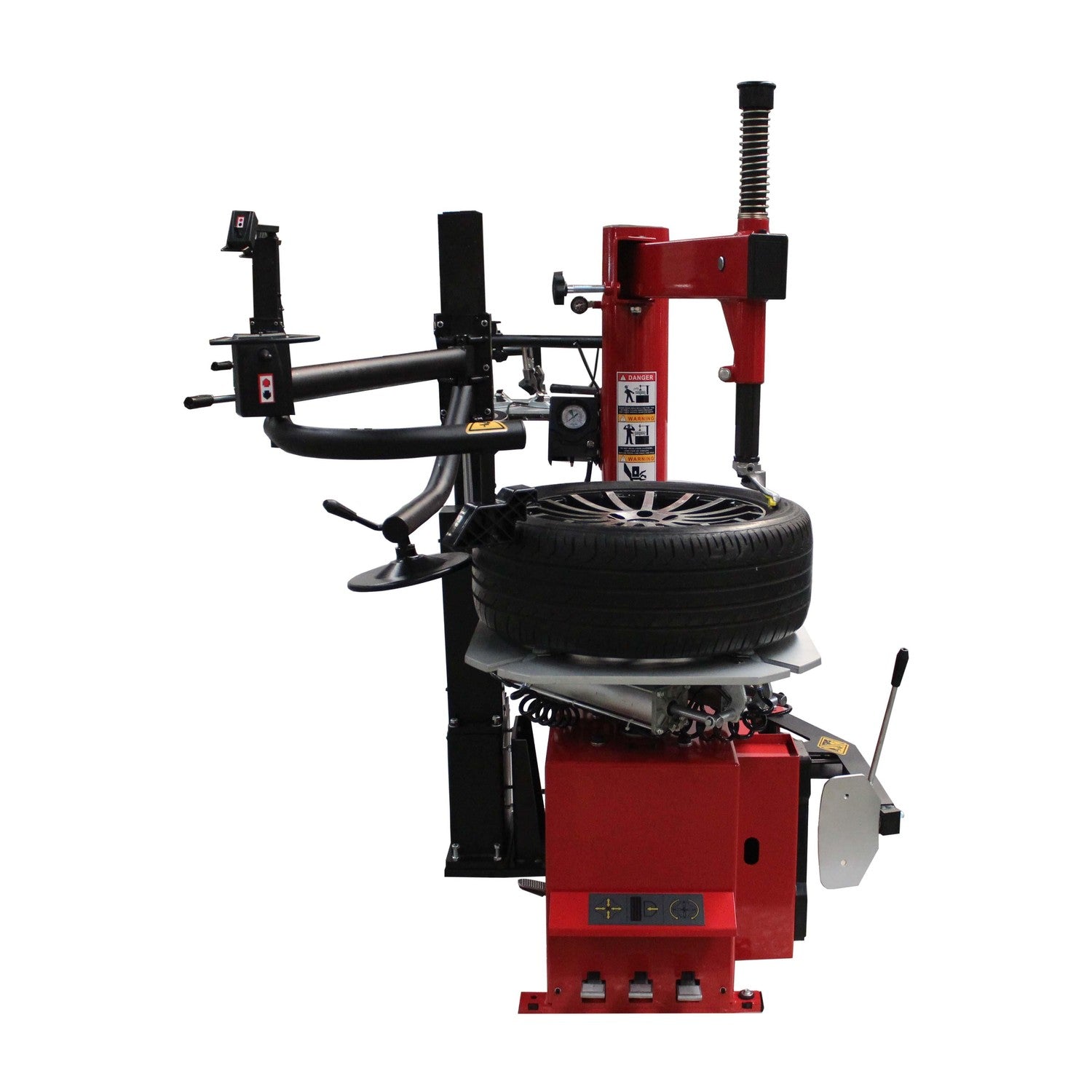

Tuxedo TC-950-WPA — Tire Changer with Left Side Press Arm
The Tuxedo TC-950-WPA is the same 47 in-capacity swing-arm platform as Alamo's TC-950, with one genuine functional addition: a left-side power-assist press arm built specifically for low-profile and run-flat tires with stiff sidewalls. During mount/demount, the press arm holds the sidewall down so the machine's standard tooling can work the bead — something the base TC-950 can't do without it.
Everything else — wheel capacity, clamp range, power requirements — matches the base TC-950 exactly. The WPA is heavier (880 lb vs. 640 lb) because of the added press-arm assembly, not a different frame or mechanism.
Who It's Built For
- ✅ Shops running meaningful volumes of low-profile or run-flat tires with stiff sidewalls
- ✅ Facilities that want the TC-950's 47 in capacity plus dedicated stiff-sidewall assist
What It's NOT Built For
- ❌ Shops that rarely see low-profile/run-flat tires — the base TC-950 costs less and skips the press arm you won't use
- ❌ Heavy truck/OTR wheels — see the TC-770-T
Questions about fit or capacity? Call Alamo at (817) 865-3707.
What Makes the TC-950-WPA Different
Left-Side Power-Assist Press Arm
Holds down the stiff sidewall of a low-profile or run-flat tire during mount/demount so the machine's standard tooling can work the bead — a genuine functional addition the base TC-950 does not have.
Same 47 In Capacity as the TC-950
Wheel diameter, wheel width, and clamp-range specs match the base TC-950 exactly — this is an added mechanism, not a different-capacity machine.
✅ Best For
- ✅ Shops with regular low-profile or run-flat tire volume
- ✅ Facilities wanting the TC-950's 47 in capacity plus stiff-sidewall assist
❌ Not Ideal For
- ❌ Shops that rarely see low-profile/run-flat tires — the base TC-950 is the more cost-effective fit
TC-950-WPA vs. TC-950 — Is the Press Arm Worth It?
Same capacity, real functional difference.
| Decision Point | TC-950-WPA (this product) | TC-950 |
|---|---|---|
| Left-side press arm | Included | Not included |
| Best for | Low-profile / run-flat tire volume | General car/light-truck service |
| Ship weight | 880 lb | 640 lb |
Choose the TC-950-WPA if stiff-sidewall low-profile or run-flat tires are a regular part of your work. Choose the base TC-950 if they aren't. Call (817) 865-3707 if you're not sure which fits your shop.
Full Specifications — TC-950-WPA
| Model / Part Number | TC-950-WPA |
| Type | Tire changer, swing-arm, with left-side press arm |
| Max Wheel Diameter | 47 in |
| Wheel Width | 3 in – 15 in |
| Inside Rim Clamp Range | 15 in – 28 in |
| Outside Rim Clamp Range | 13 in – 24 in |
| Working Pressure | 125 psi |
| Power | 110V – 15 Amp – 1PH |
| Ship Weight | 880 lb |
| Included Feature | Left-side power-assist press arm for low-profile and run-flat tires |
⚠️ Installation Requirements
- Floor: Level shop floor rated for an 880 lb machine — no anchoring required for standard placement.
- Power: Dedicated 110V, 15 Amp, single-phase circuit.
- Air: Shop compressed air, 125 psi working pressure.
- Bay footprint: Confirm clearance for the swing-arm and press arm's full range of motion.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — TC-950-WPA
The TC-950-WPA is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — TC-950-WPA
Does the TC-950-WPA price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What does the press arm on the TC-950-WPA do?
It's a power-assist mounting helper arm that holds down the stiff sidewall of a low-profile or run-flat tire during mount/demount, which the base TC-950 can't do without it.
Is the TC-950-WPA's wheel capacity different from the TC-950?
No. Wheel diameter (47 in), wheel width, and clamp range match the base TC-950 exactly — the WPA adds the press arm, not different capacity.
What is the TC-950-WPA's warranty?
Tuxedo backs the TC-950-WPA with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada, per the manufacturer's own operating manual.
Why Buy the TC-950-WPA from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
