Desiccant Air Dryers

Refrigerated dryers cool compressed air to condense moisture, typically achieving a 35 to 50°F dew point — adequate for general shop tools. Desiccant dryers use adsorption media to remove moisture down to a minus 40-degree F dew point or lower. For paint, instrument air, and freeze-prone outdoor lines, desiccant is required; refrigerated will not perform.

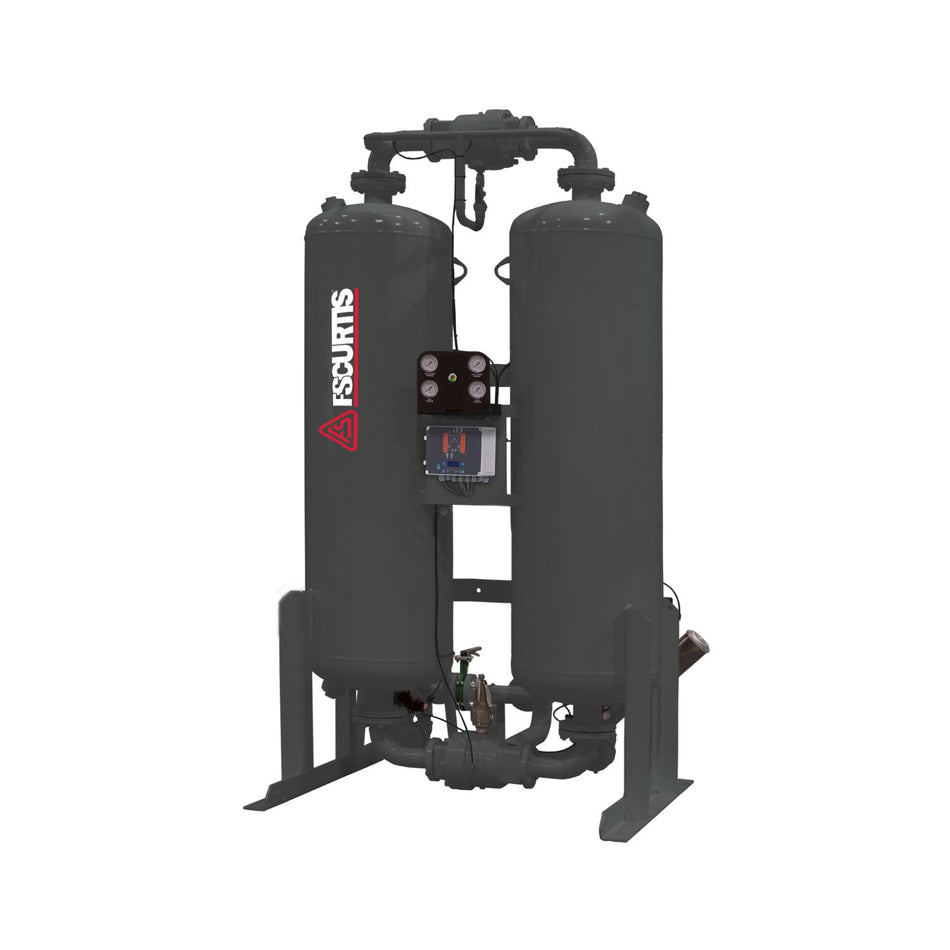

Heatless dryers use a portion of dried compressed air (typically 15 to 18 percent purge loss) to regenerate the off-line desiccant bed. Heated regenerative dryers use external heat to drive moisture out of the off-line bed, reducing purge air loss to 2 to 8 percent but adding electrical heating cost. Heated regenerative pays back at higher flow rates and continuous duty cycles.

Most heatless and heated regenerative desiccant dryers in this collection deliver a minus 40 degrees F dew point as standard, with minus 70 degrees F available on specific models. Specify the required dew point at the inlet conditions you actually run — overspecifying drives up purge loss or heater energy unnecessarily.

Even small residual moisture in spray air causes fisheyes, blush, and finish defects in modern waterborne and solvent-based coatings. Refrigerated dryers cannot achieve a low enough dew point to prevent residual moisture problems in critical finish work. Production paint booths and finish-quality shops use desiccant dryers as the standard for spray air.

Match the dryer's rated SCFM to the actual compressor output at the inlet conditions (temperature, pressure). Undersizing causes incomplete drying and dew point excursions. Account for the purge loss (15 to 18 percent on heatless) when sizing the upstream compressor — the compressor must supply both the downstream demand and the dryer's regeneration purge.

Desiccant beds typically last 3 to 5 years under clean, dry operating conditions. Oil contamination from upstream coalescing filter failure dramatically shortens desiccant life — sometimes to months. Monitor outlet dew point continuously; replace the desiccant when the dew point begins to drift above specification despite normal regeneration cycles.

A coalescing pre-filter (typically 0.01 micron) upstream of the desiccant dryer is essential — it removes oil aerosols that would otherwise saturate and ruin the desiccant bed. A particulate pre-filter upstream of that removes solids. Skipping pre-treatment is the single most common cause of premature desiccant failure.

Inspect and replace pre-filter and after-filter elements at manufacturer-specified intervals (typically 6 to 12 months). Verify cycling valves operate correctly on each switch — failed switching valves cause one tower to be regenerating continuously while the other does all the drying, leading to early bed failure. Annual inspection by qualified technicians is recommended.
