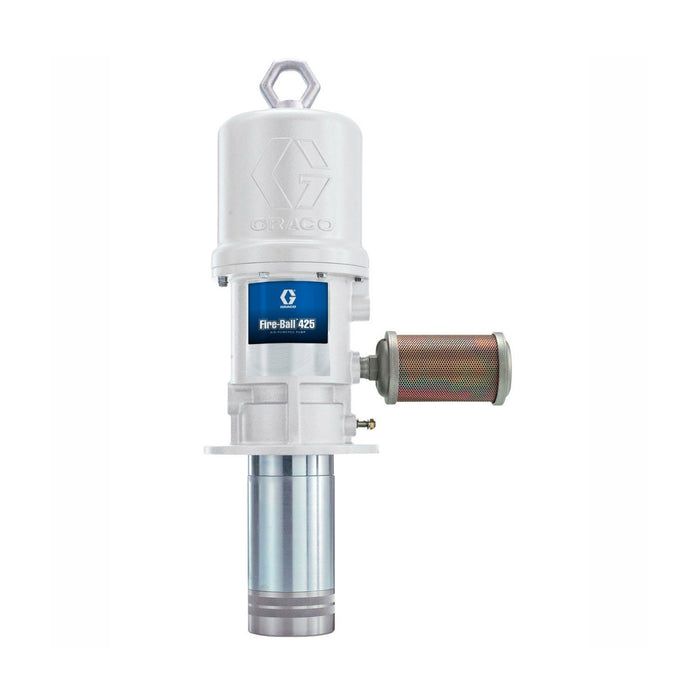

Graco Fire-Ball® 425 6:1 Air Operated 6 GPM Piston Oil Pump #238108
SKU 238108
by Graco
Save 9%
Original price
$5,861.93
Original price
$5,861.93
-
Original price
$5,861.93
Original price
$5,861.93
Current price
$5,360.00
$5,360.00
-
$5,360.00
Current price
$5,360.00
-
DESCRIPTION
With a large 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!
The Fire-Ball 425 is the pump of choice for your most demanding high volume applications - an ideal choice for applications such as truck fleet service facilities and in-plant applications where multiple dispenses happen at the same time.
-
FEATURES
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
-
SPECS
Air Inlet Size 1/2 inch
Air Inlet Thread Gender Female
Air Inlet Thread Type
NPT
Air Motor Effective Diameter
4.25 inch Application
Industrial
Compatible Material Oil
Cycles Per Gallon 12
Fluid Inlet Size (in) 1 1/2 Fluid Inlet Thread Gender Female Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 3/4 Fluid Outlet Thread Gender Female Fluid Outlet Thread Type NPT For Use With Petroleum- and synthetic-based oils (motor, gear and ATF Maximum Air Inlet Pressure (psi) 180 Maximum Continuous Cycle Rate (CPM) 66 Maximum Intermittent Cycle Rate (CPM) 66 Maximum Working Pressure (MPa) 7.6 Maximum Working Pressure (psi) 1100 Model Fire-Ball
Power Type Pneumatic Pump Ratio 6:1 Series 425 Sound Pressure Level (dB(A)) 79.5 Type Pneumatic Piston Pump Weight 35 pounds Wetted Material Steel, Polyurethane, Aluminum, Nitrile -
