Atlas® Garage PRO9 & RJ6 Combo Package #ATEXH-PRO9-COMBO2-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

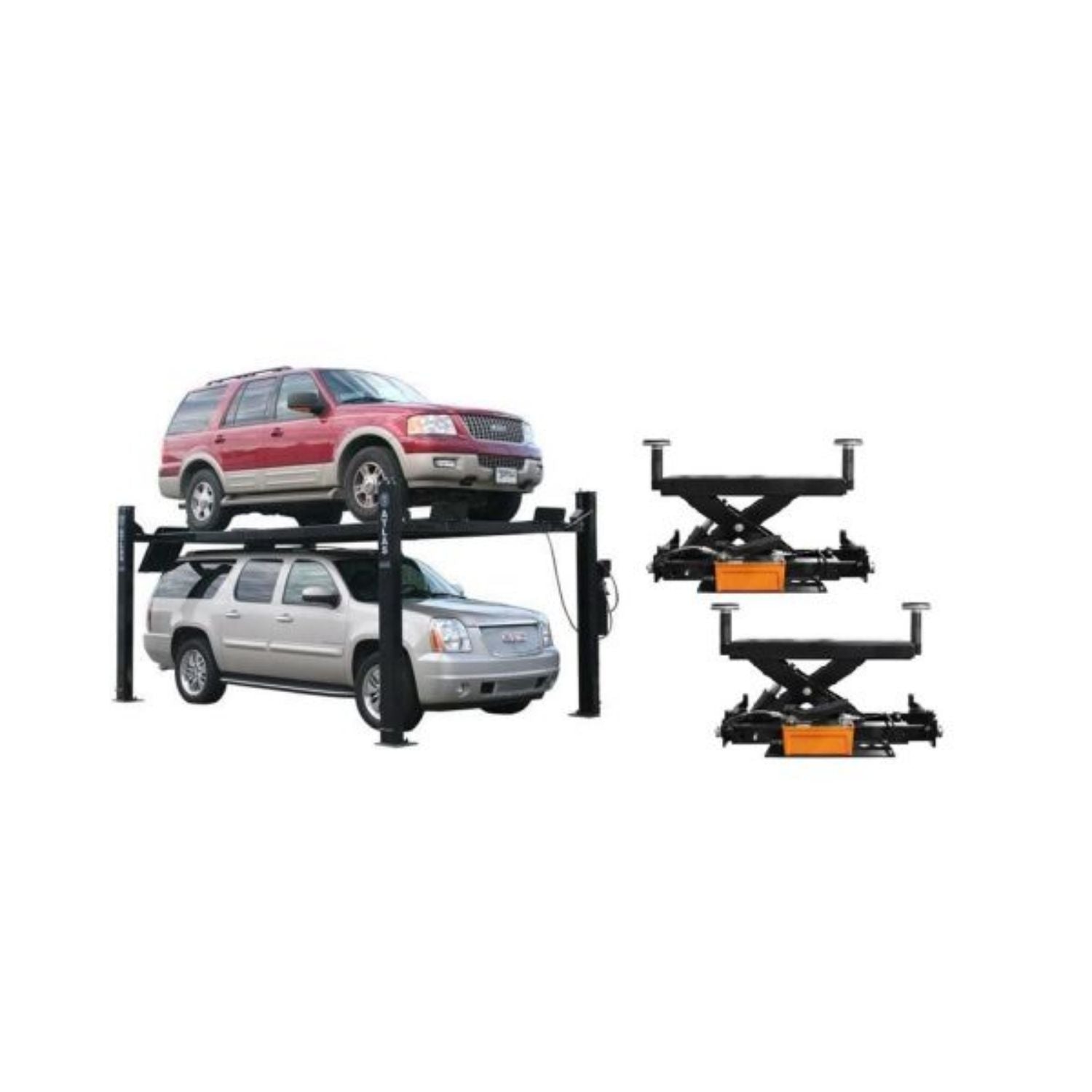

  The Atlas® Garage PRO9 & RJ6 Combo Package is a complete vehicle storage and service solution designed for home garages, collectors, and professional automotive repair shops. This combo package includes the Atlas® Garage PRO9 4-post lift and the Atlas® RJ6 rolling jack, delivering dependable vehicle lifting performance along with wheel-free service capability.

  The Garage PRO9 lift features a heavy-duty 4-post design, diamond-plated runways, and a single-point lock release system for safe and efficient operation. The included Atlas® RJ6 rolling jack provides additional lifting support for wheel, brake, suspension, and tire service applications by allowing operators to raise the vehicle wheels off the runways.

  Built for durability and long-term use, this combo package is ideal for vehicle storage, maintenance, and professional automotive service operations.

• FEATURES AND BENEFITS

  • Combo package includes Garage Pro9000 & two RJ6 Rolling Jacks
  • Caster Kit With Polyurethane Wheels Included
  • Steel Approach Ramps Included
  • Steel Jack Tray Included
  • 4 Plastic Drip Trays Included
  • Wheel Stops Included
  • 2 Rubber Wheel Chocks Included
  • Truck Adapter set for Each Jack Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEXH-PRO9-COMBO2-FPD
  Dimensions:	203" L × 40" W × 22" H
  UPC:	810524028899
  Country of Origin:	CHN

  Atlas® Garage PRO9000 Specifications

  Capacity:	9,000 lb.
  Lifting Height To Top Of Runway:	85" (7' 1")
  Clearance Under Runways:	80 1/4" (6' 8 1/4")
  Height Of Columns:	95 3/4" (7' 11 3/4")
  Overall Width (Without Motor):	123 1/2" (10' 3 1/2")
  Overall Width (With Motor):	131 1/2" (10' 11 1/2")
  Overall Length With Approach Ramp:	227 1/2" (18' 11 1/2")
  Approach Ramp:	31" (2' 7")
  Runway Width:	21 1/4" (w/ Rails) or 20" (Driving Surface)
  Runway Length:	199 1/2" (16' 7 1/2")
  Runway Thickness:	4 3/4"
  Width Between Runways:	39 3/4" (3' 3 3/4")
  Width Between Runway Rails:	35 1/2" (2' 11 1/2")
  Outside Runway To Outside Runway:	79" (6' 7")
  Clearance Between Columns:	110 1/2" (9' 2 1/2")
  Length Between Columns:	184 1/2" (15' 4 1/2")
  Maximum Wheel Base:	187" (15' 7")
  Drive Thru (Outside Of Tire To Outside Of Tire):	97 1/4" (8' 1 1/4")
  Motor/Electrical Requirement:	110 Volt, 30 AMP BREAKER REQUIRED
  Shipping Weight:	2,300 lb.

  Atlas® RJ6BK Specifications

  Capacity:	6,000 lbs
  Minimum Width:	35"
  Maximum Width:	55"
  Distance Between Runway Capability:	32" - 52"
  Minimum Lifting Height:	8 1/4"
  Maximum Lifting Height (w/ Adapters):	21"
  Air Requirement:	70-115 PSI
  Shipping Weight:	350 lbs
  Adapter Heights:	2 Each 2", 3"
  Arm Hole/Adapter Peg Size:	1 1/2"

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
