Atlas 408SL 4-Post Lift & RJ35 Combo #ATEATTD-408SL-COMBO-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

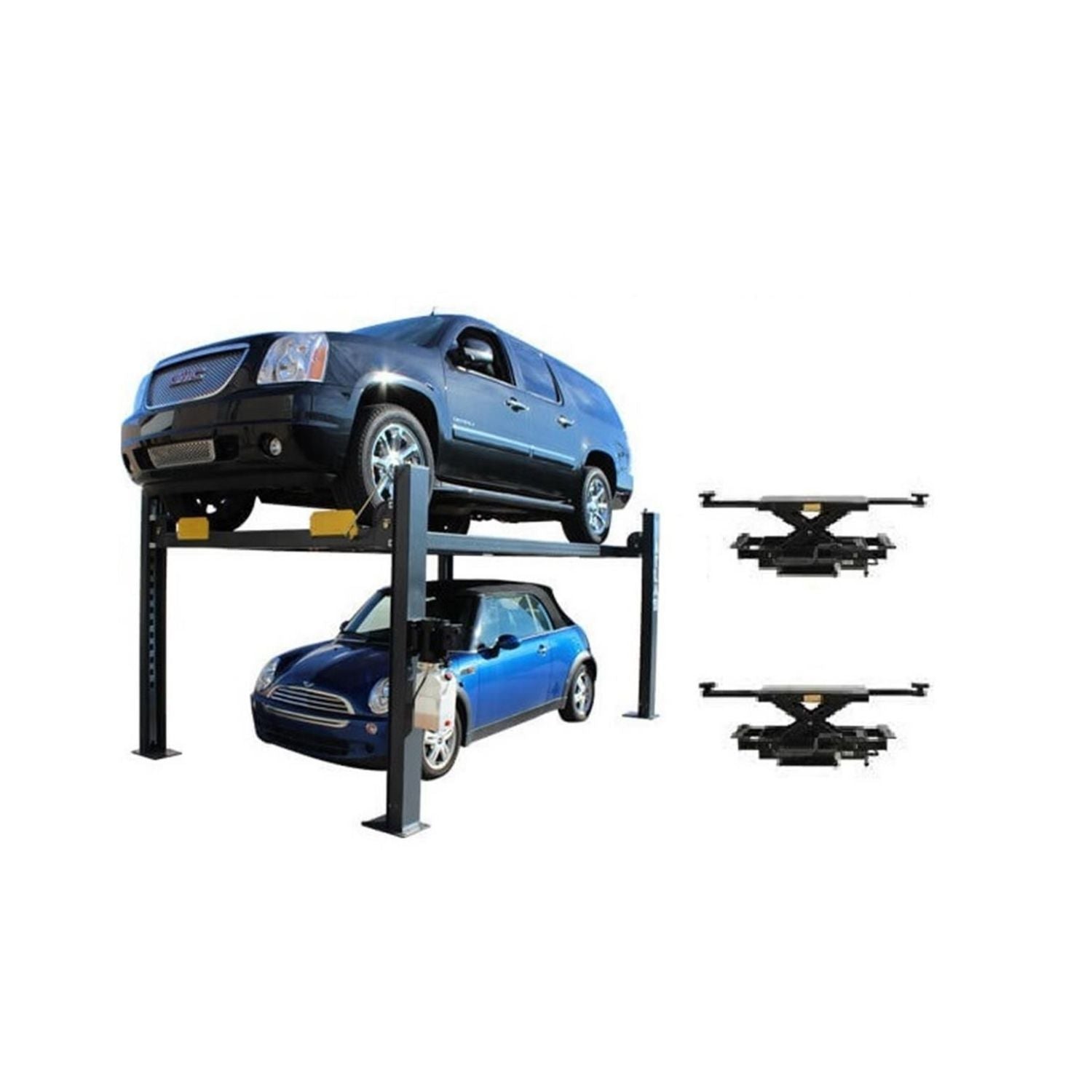

  The Atlas 408SL and RJ35 Combo is a complete lifting solution designed for home garages and light-duty service applications.

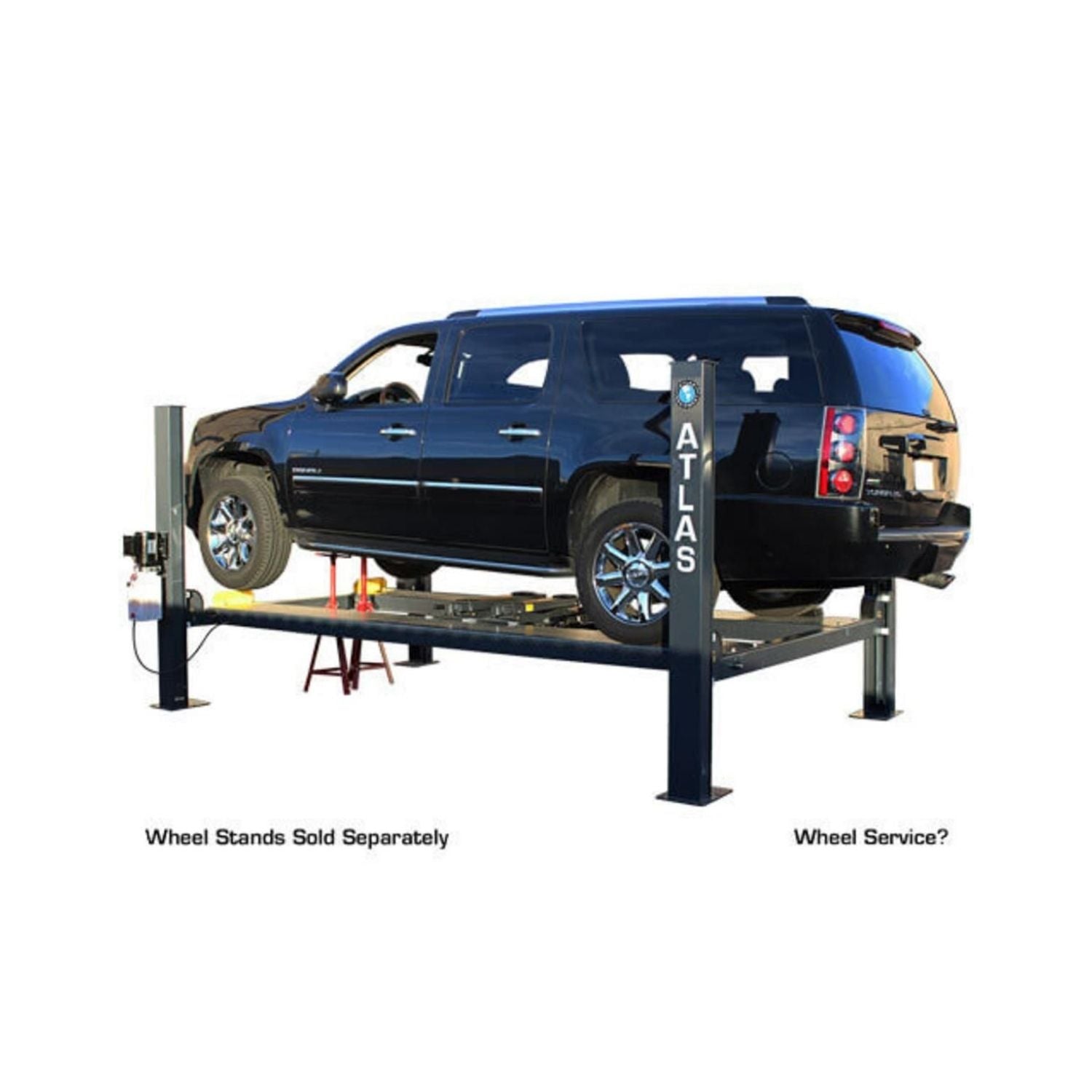

  This package includes the 8,000 lb capacity 4-post lift paired with an RJ35 rolling jack, allowing users to not only lift vehicles for storage but also raise the wheels off the runways for brake, tire, and suspension work. It provides added versatility compared to a standard lift setup.

  Ideal for hobbyists and light commercial use, this combo enhances functionality while maintaining ease of operation and reliable performance.

• FEATURES AND BENEFITS

  • Combo package includes the Premium 408SL lift & two RJ35 Bridge Jacks

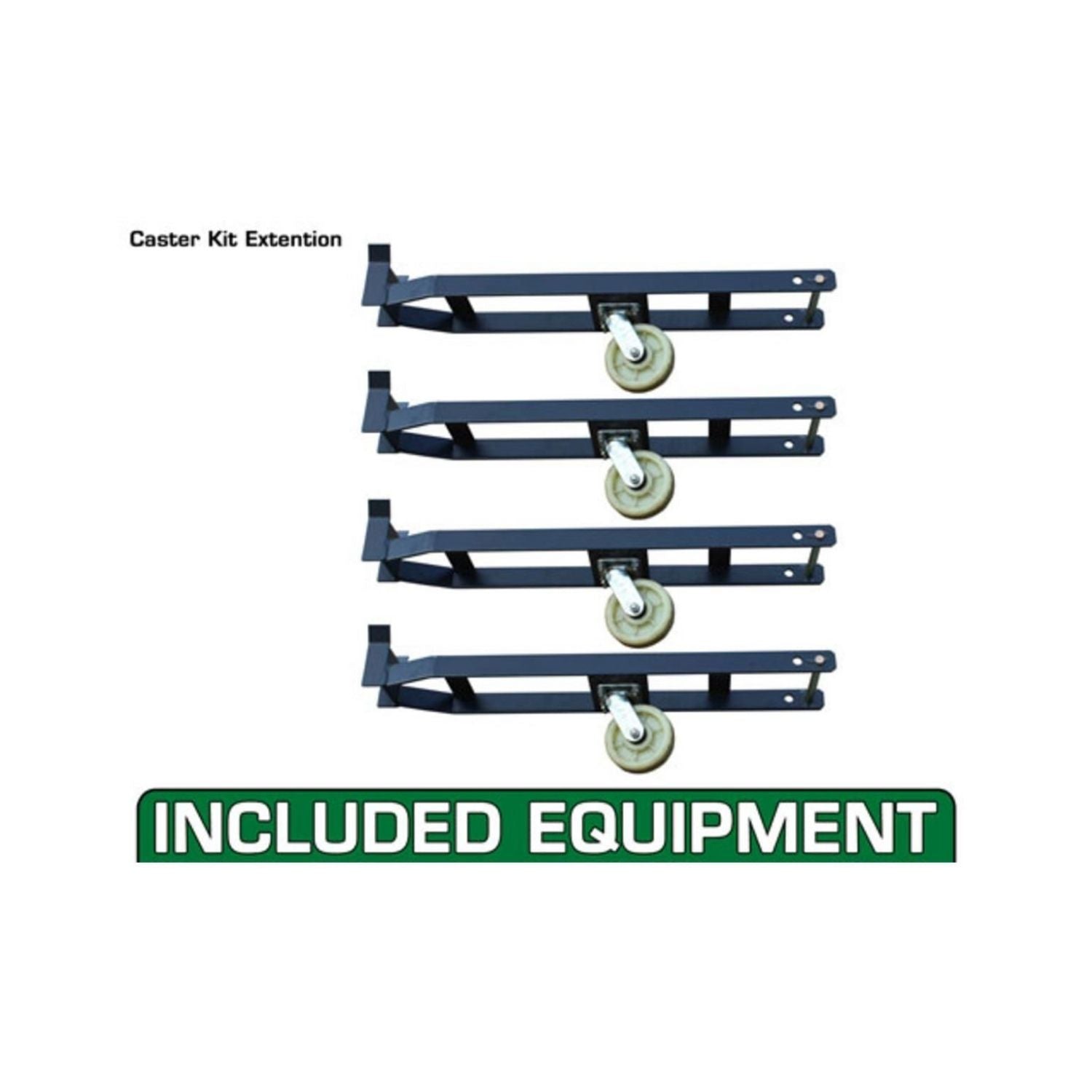

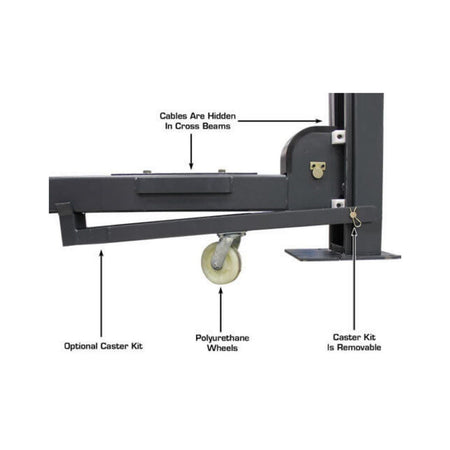

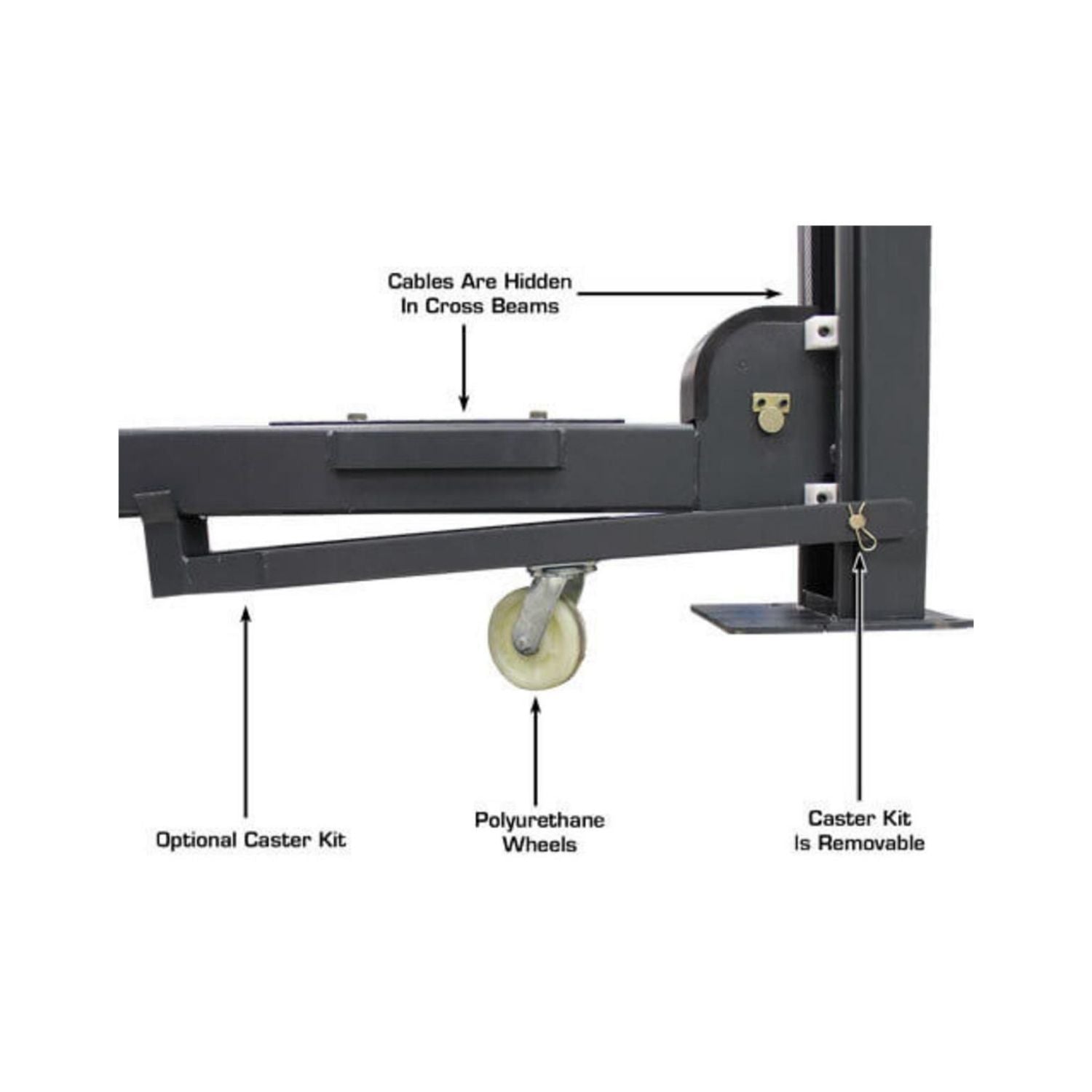

  • Caster Kit With Polyurethane Wheels Included

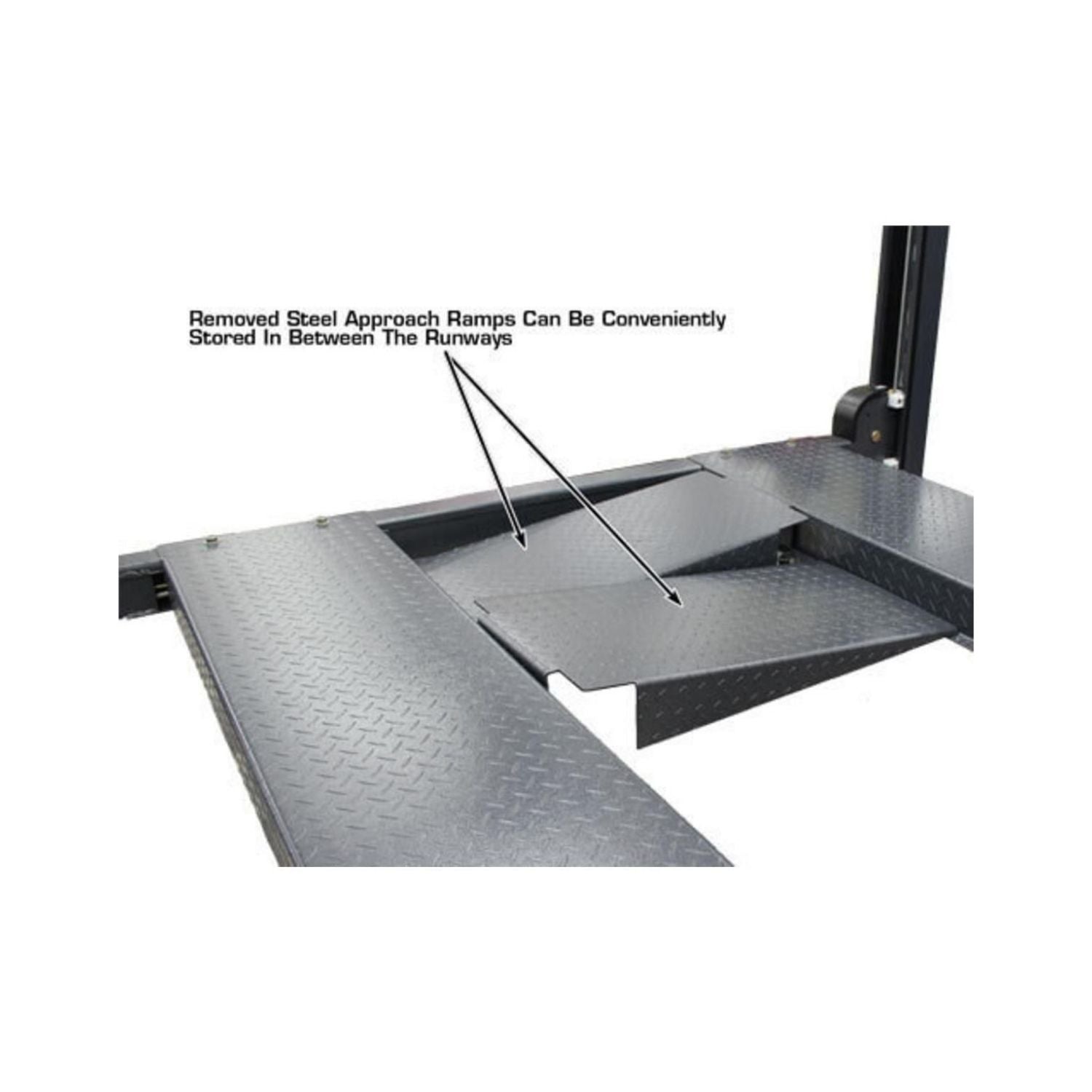

  • Steel Approach Ramps Included

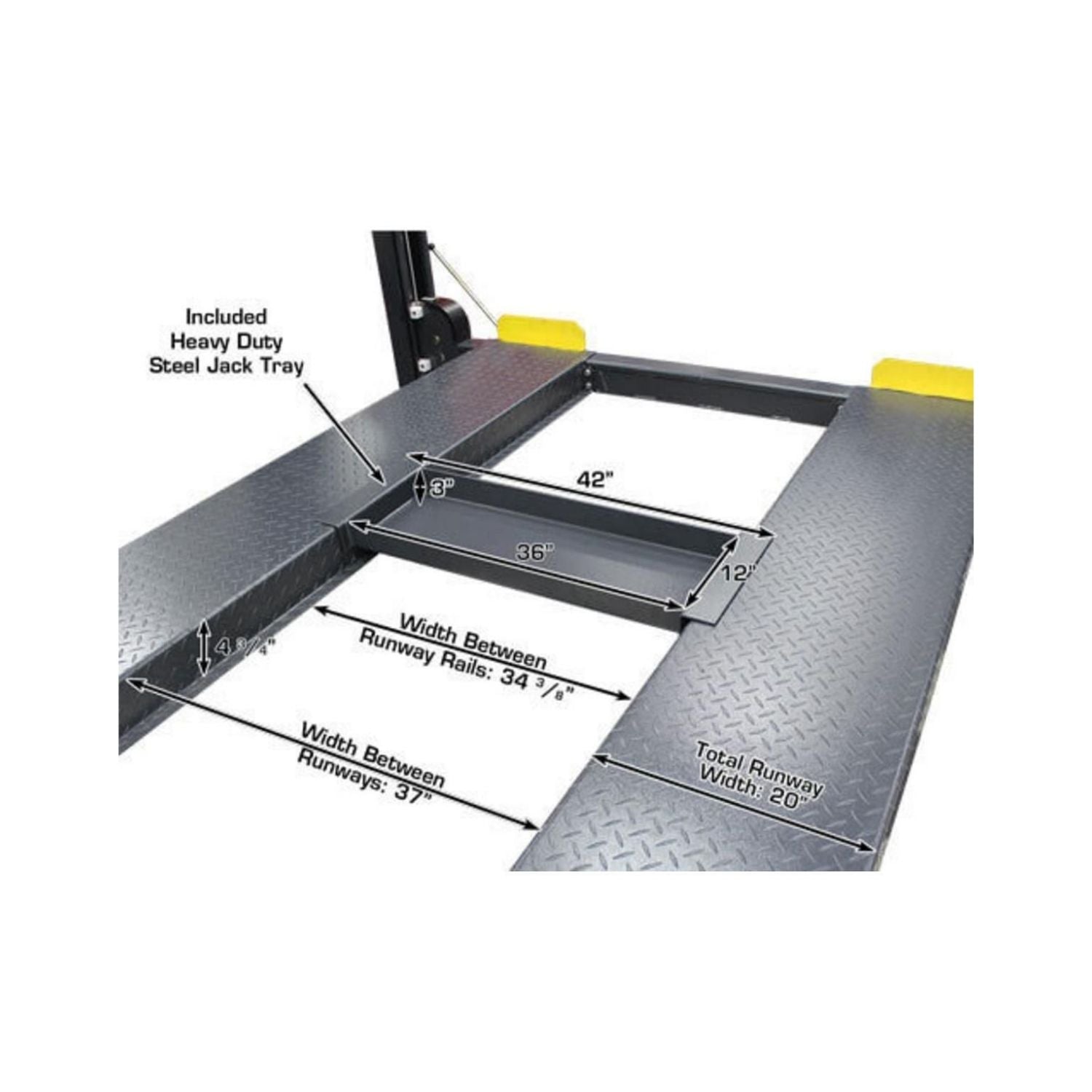

  • Steel Jack Tray Included

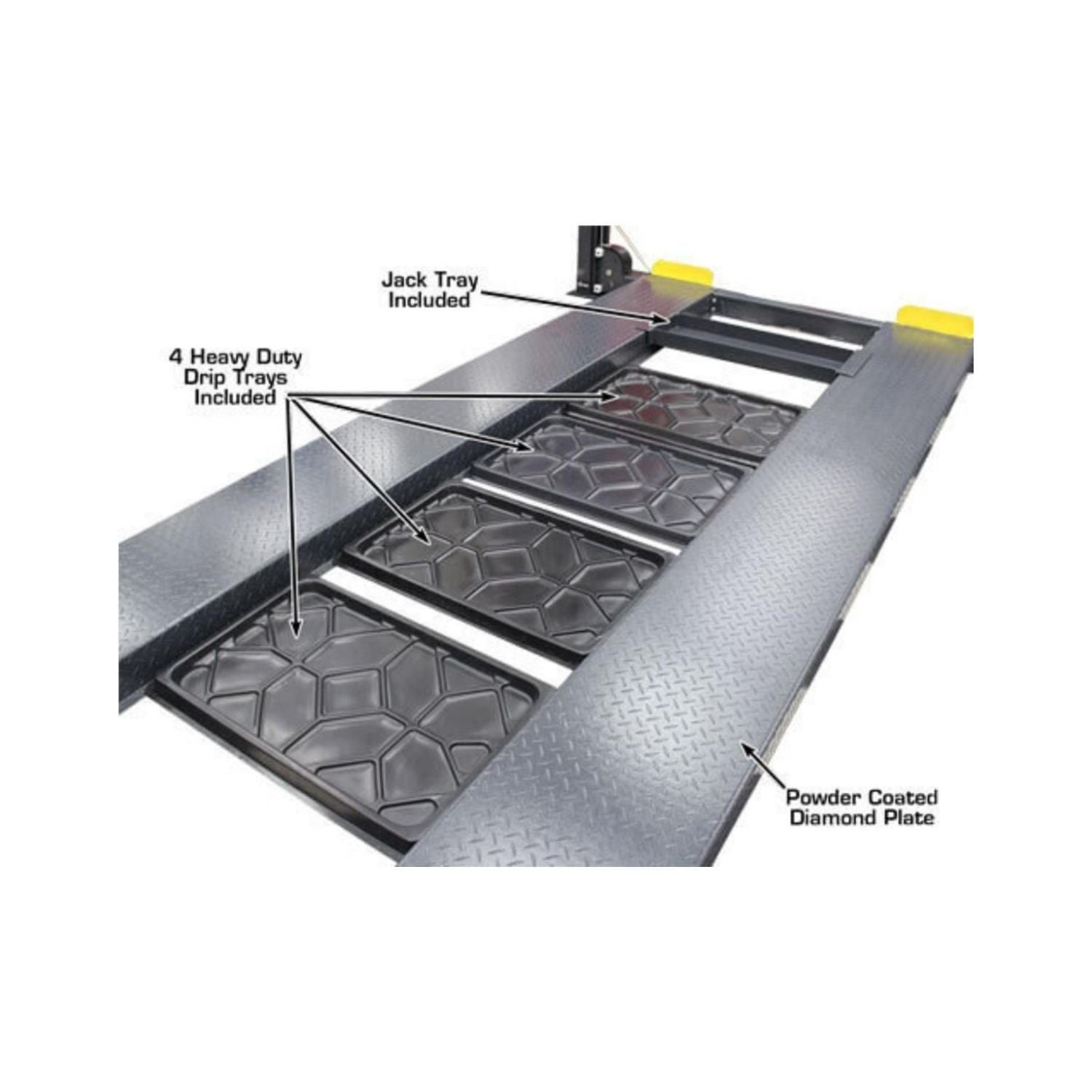

  • Drip Trays Included
  • Wheel Stops Included
  • Truck Adapter set for Each Jack Included


• SPECIFICATIONS

  Atlas® 408SL Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTD-408SL-COMBO-FPD
  Dimensions:	167" L × 42" W × 29" H
  Capacity:	8000 lbs
  Lifting Height, Top of Runway:	70" (5' 10")
  Clearance Under Runways:	65 1/4" (5' 5 1/4")

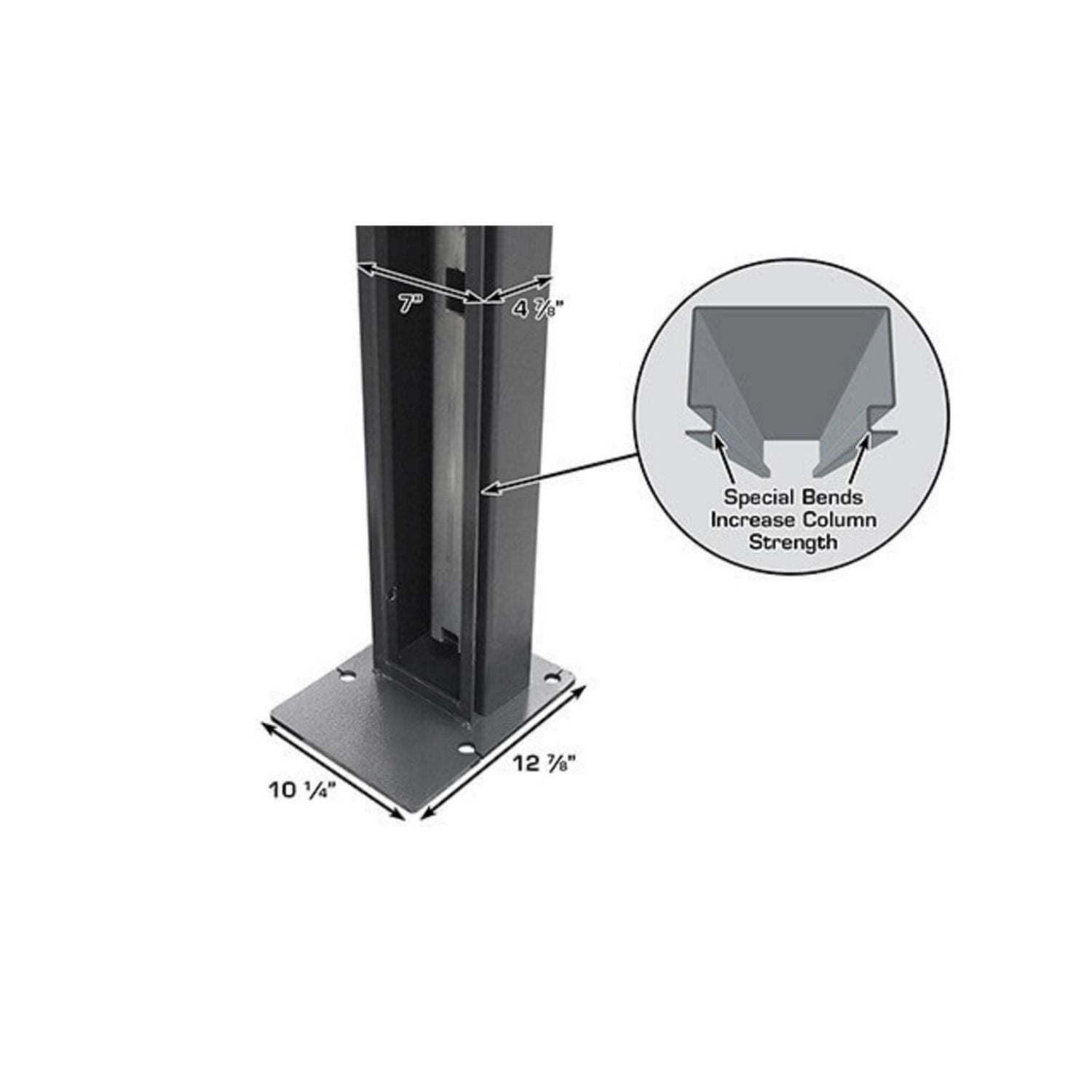

  Height of Columns:	83" (6' 11")
  Overall Width:	109 5/8" (9' 1 5/8") w/ motor 117 1/2" (9' 9 1/2")
  Overall Length w/ Ramps:	205 3/8" (17' 1 3/8")
  Runway Length:	166 3/4" (13' 10 3/4")
  Runway Width:	18 3/4"
  Runway Thickness:	4 3/4"
  Width Between Runways:	37 1/4" w/ Rail 34 3/8"
  Outside Runway to Outside Runway:	74 3/4" (6' 2 3/4")
  Clearance Between Columns:	95 1/2" (7' 10 1/2")
  Length Between Columns:	156" (13')
  Drive Thru:	82" (6' 10")

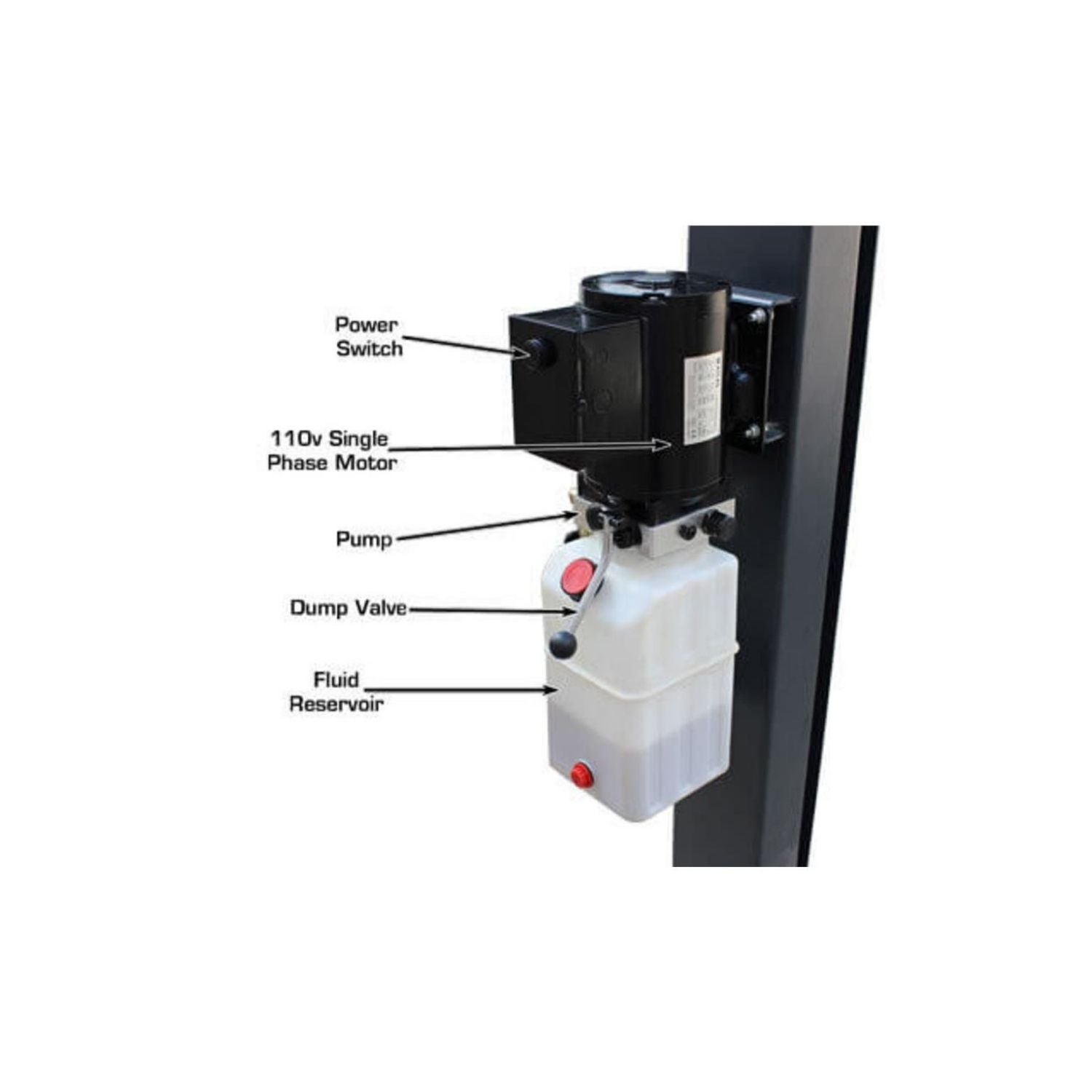

  Motor/Electrical Requirement:	110volt, 30 amp breaker required
  Oil Requirement:	3-5 Gallons AW32 or AW46 (NOT INCLUDED)

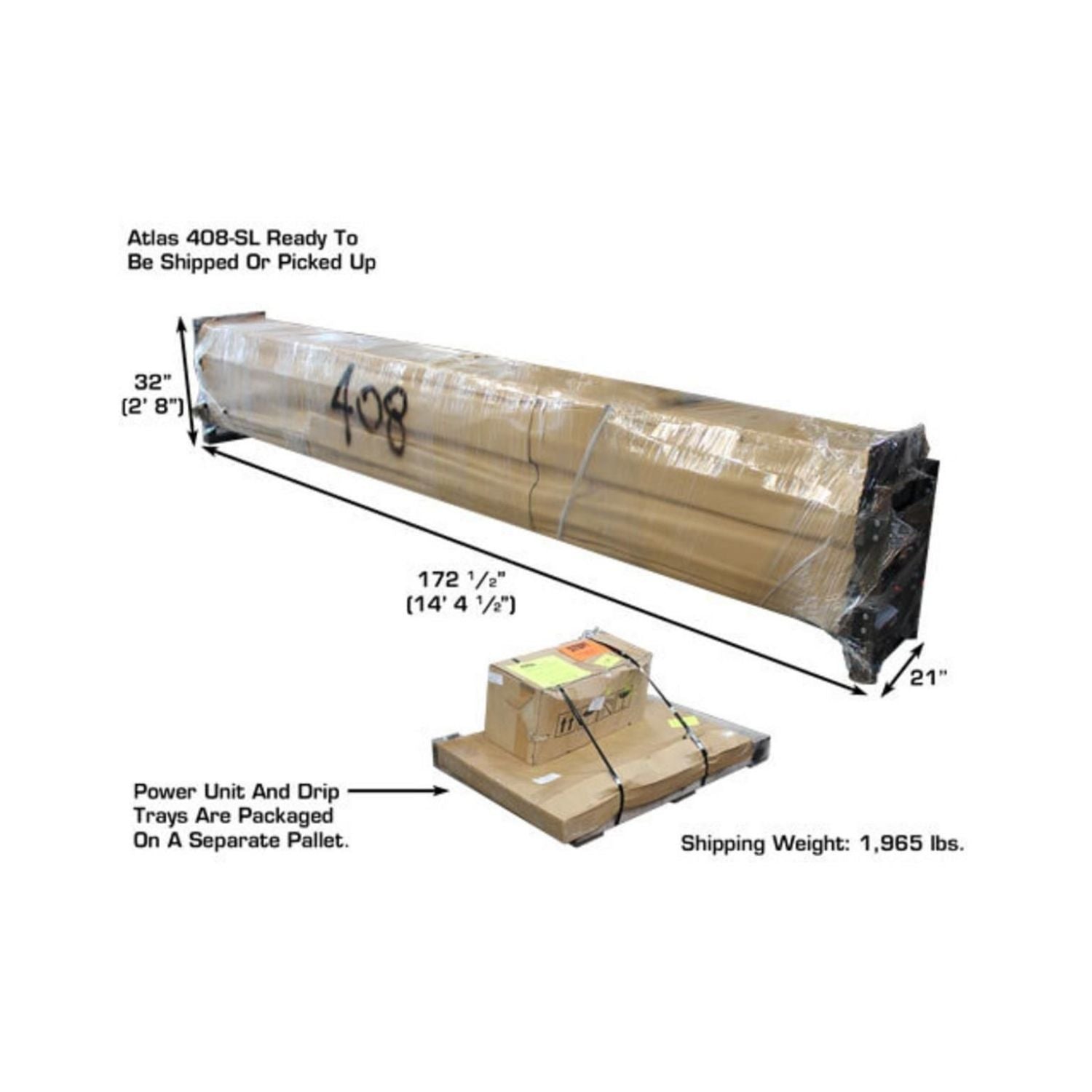

  Shipping Weight:	1965 lbs

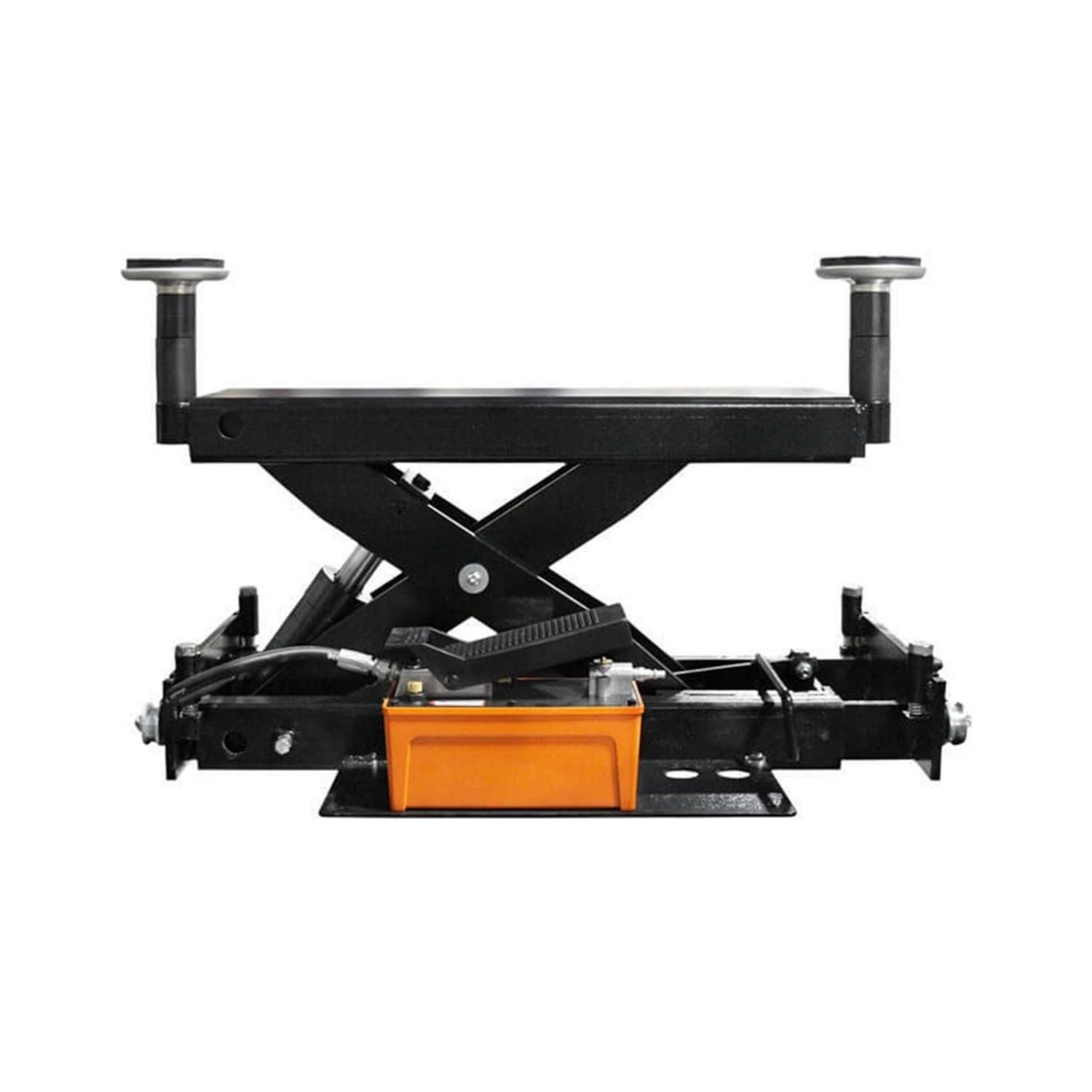

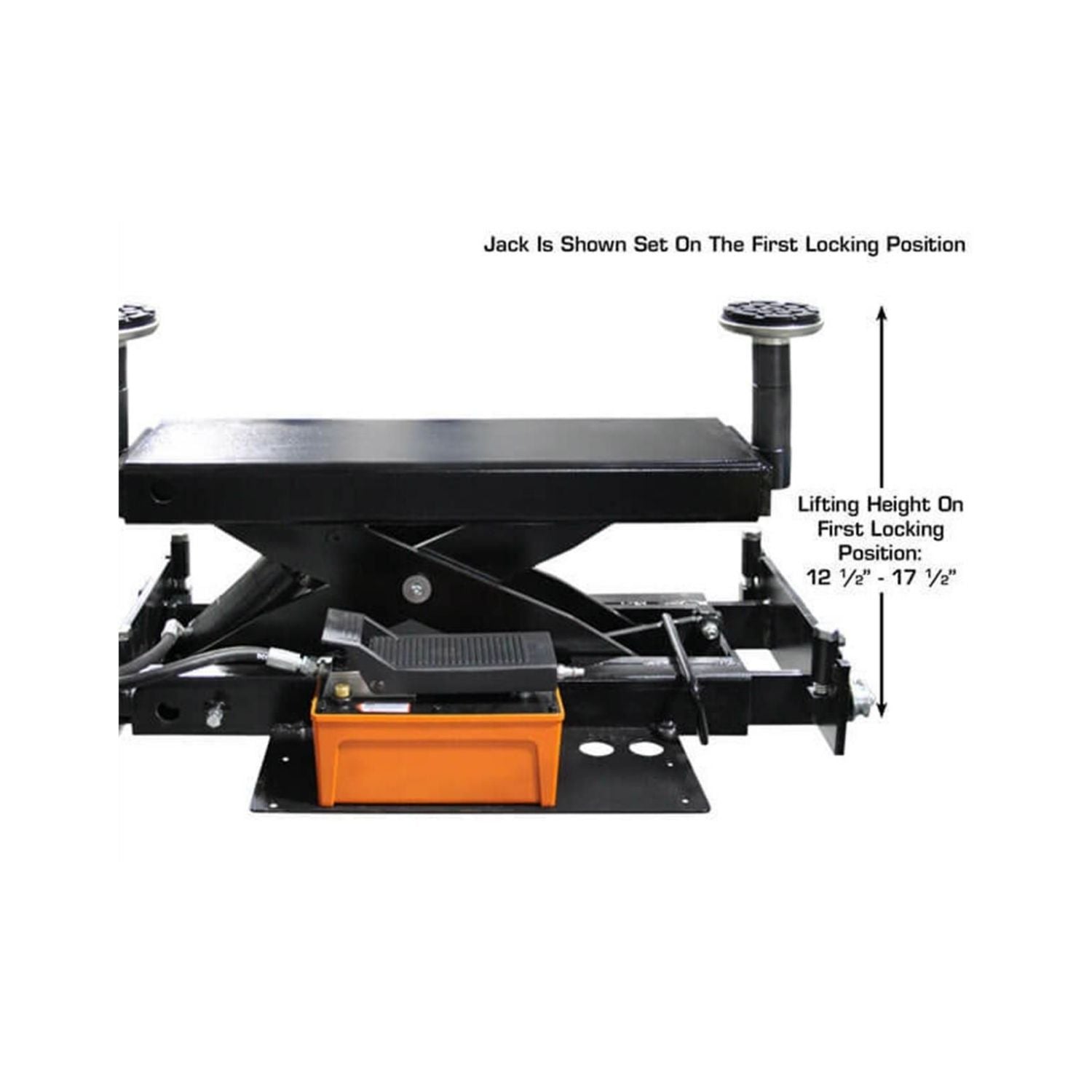

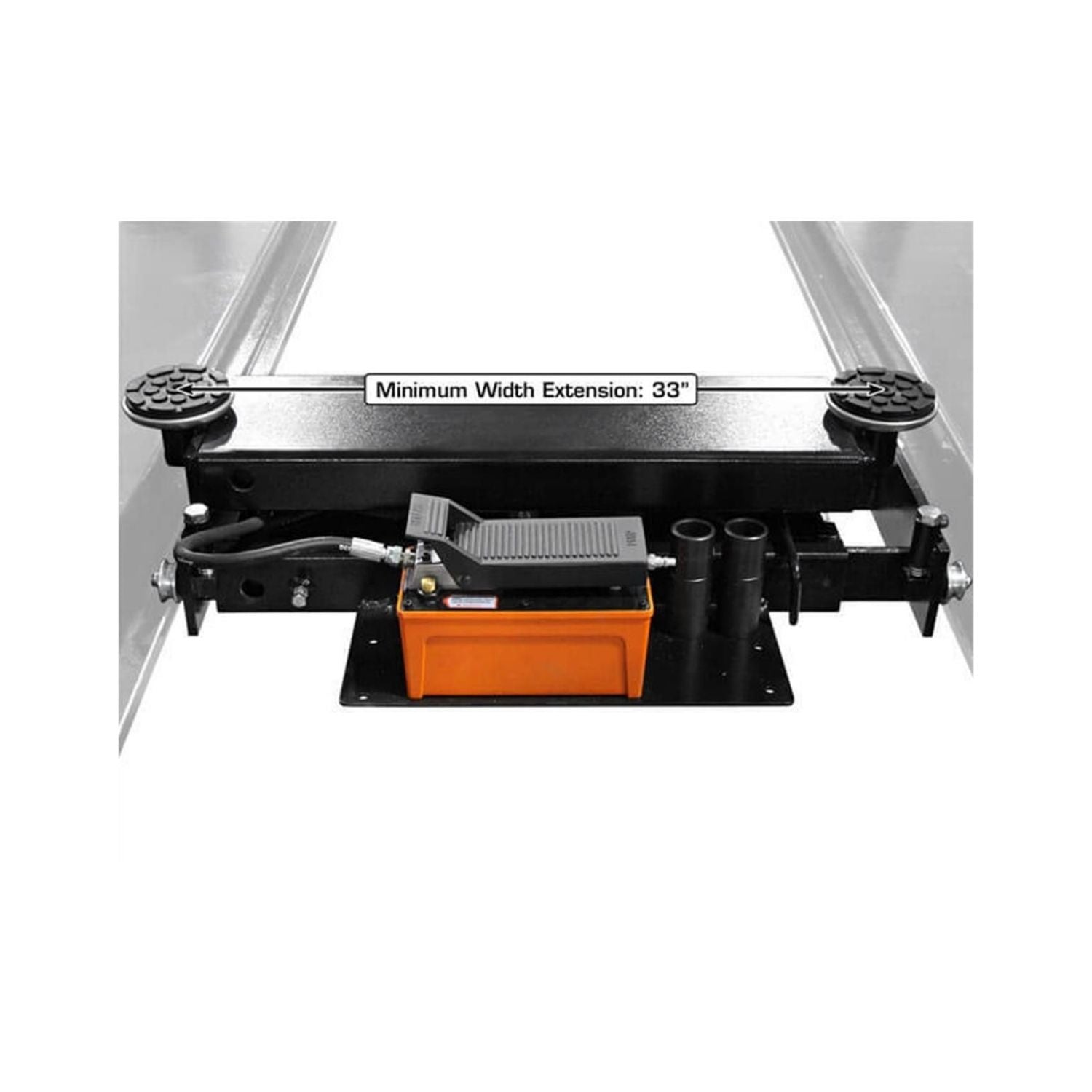

  Atlas® RJ35 Sliding Jack Specifications

  Capacity:	3500 lbs

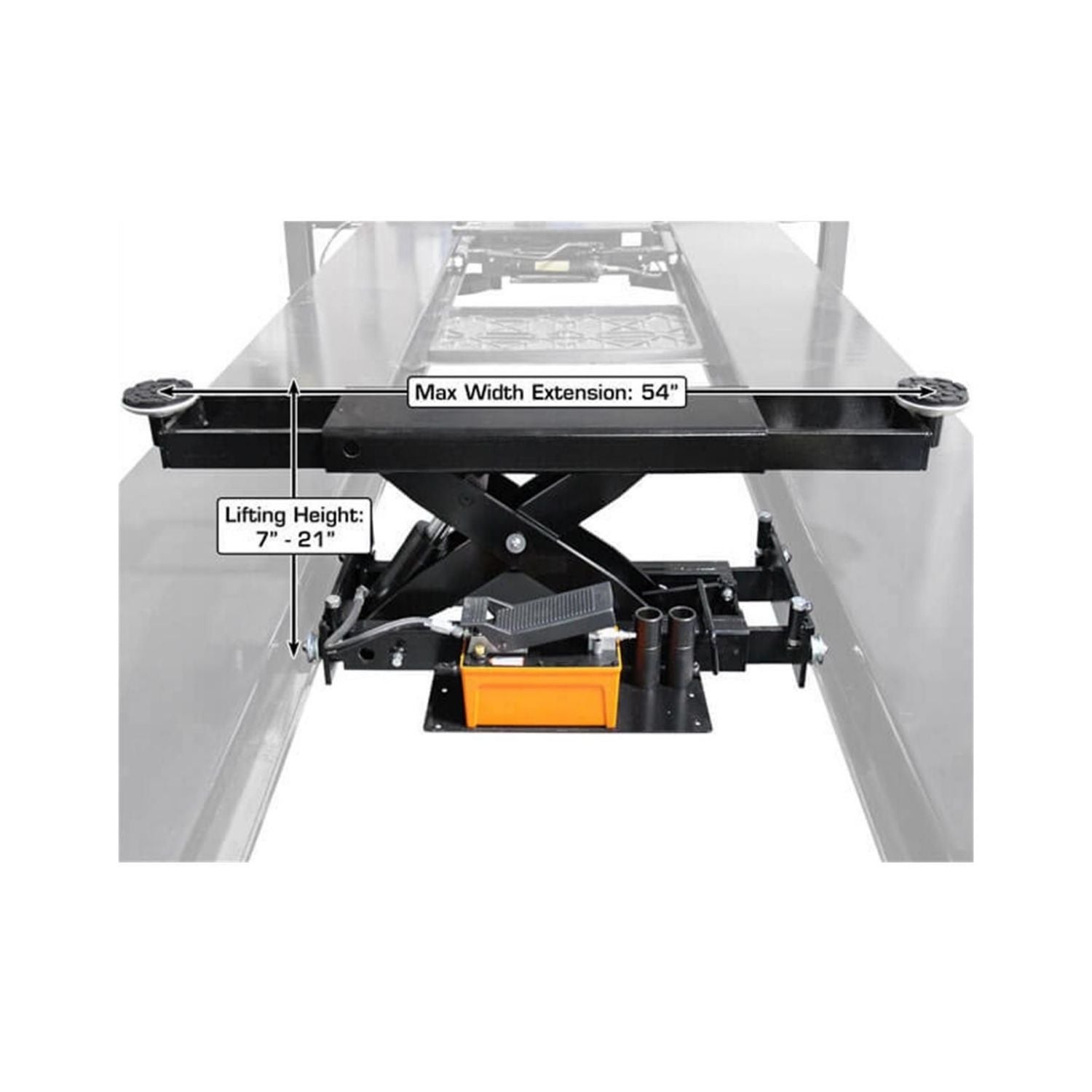

  Lower Extension Width (Between Runway):	20 1/2" to 47"
  Top Width (Arms Retracted & Extended):	39 12" to 64 3/4"
  Min. Pad Height Above Runway (MAY VARY BY LIFT):	3 1/2"
  Lift Pad Height Above Arm:	1 3/8"

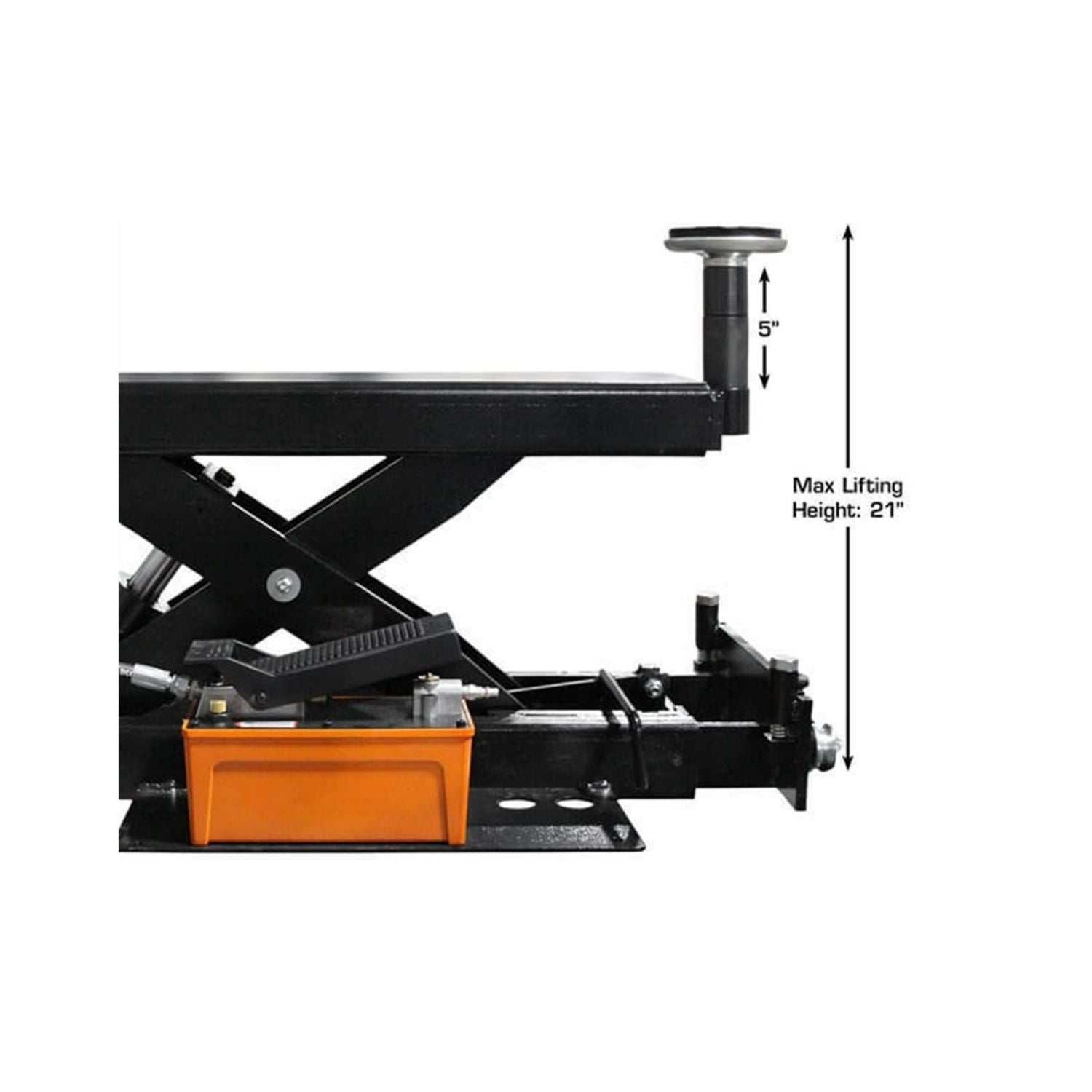

  Max Height Raised w/o Adapter:	11"
  Max Height Raised w/ Adapters:	17 1/4"
  Shipping Weight:	350 lbs
  Adapter Heights:	2 Each 1 1/2", 5"
  Arm Hole/Adapter Peg Size:	1 1/2"

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
