Atlas APEX 8,000 lb 4-Post Lift & RJ35 Combo #ATEATTD-APEX8-COMBO-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

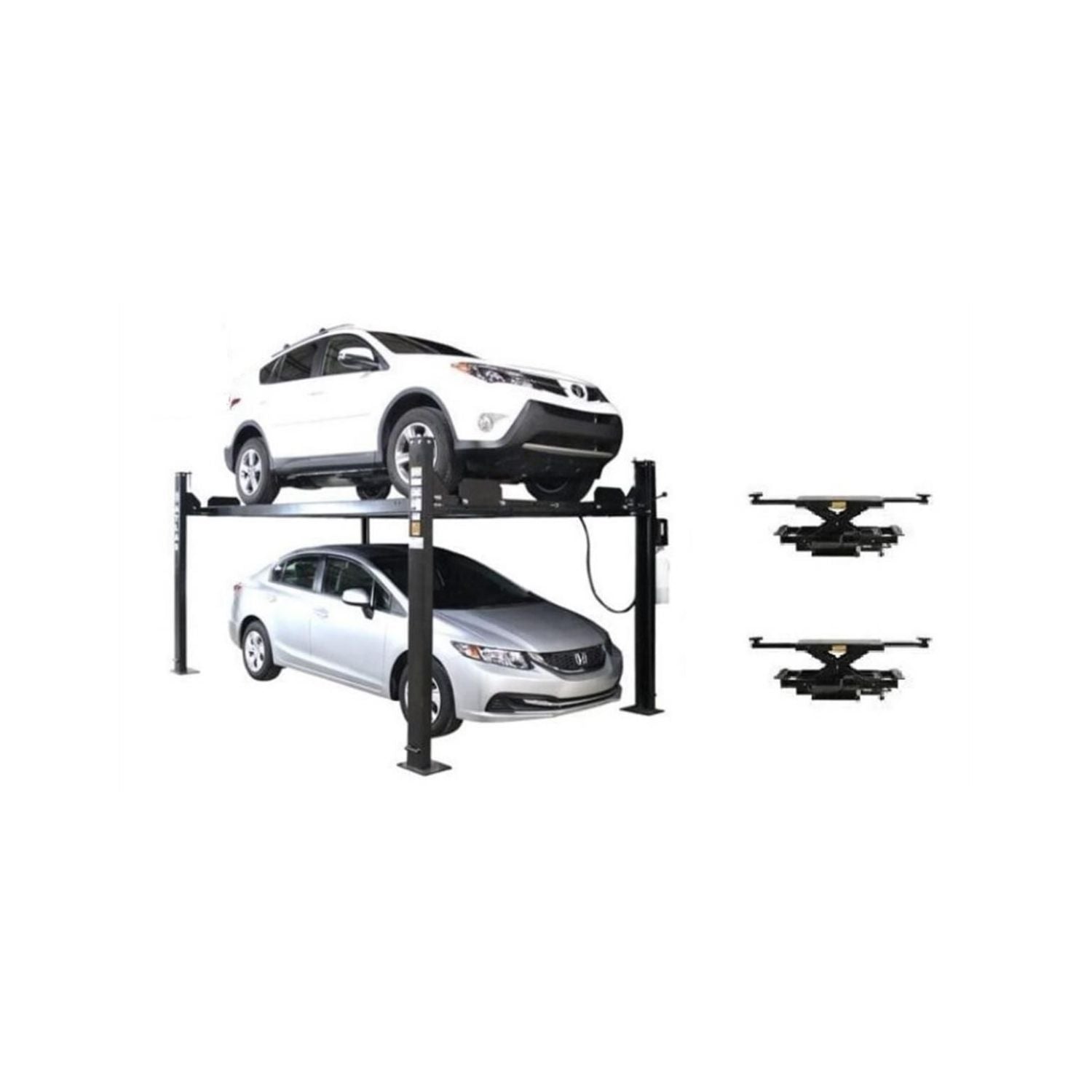

  The Atlas APEX 8 and RJ35 Combo is a premium lifting solution designed for home garages and light-duty service applications requiring certified safety and added functionality.

  This package includes the APEX certified 8,000 lb 4-post lift paired with an RJ35 rolling jack, allowing users to lift vehicles for storage and perform wheel-free service such as brake and suspension work. The APEX certification ensures higher safety standards and build quality.

  Ideal for enthusiasts and light commercial use, this combo enhances versatility while delivering reliable and professional-grade performance.

• FEATURES AND BENEFITS

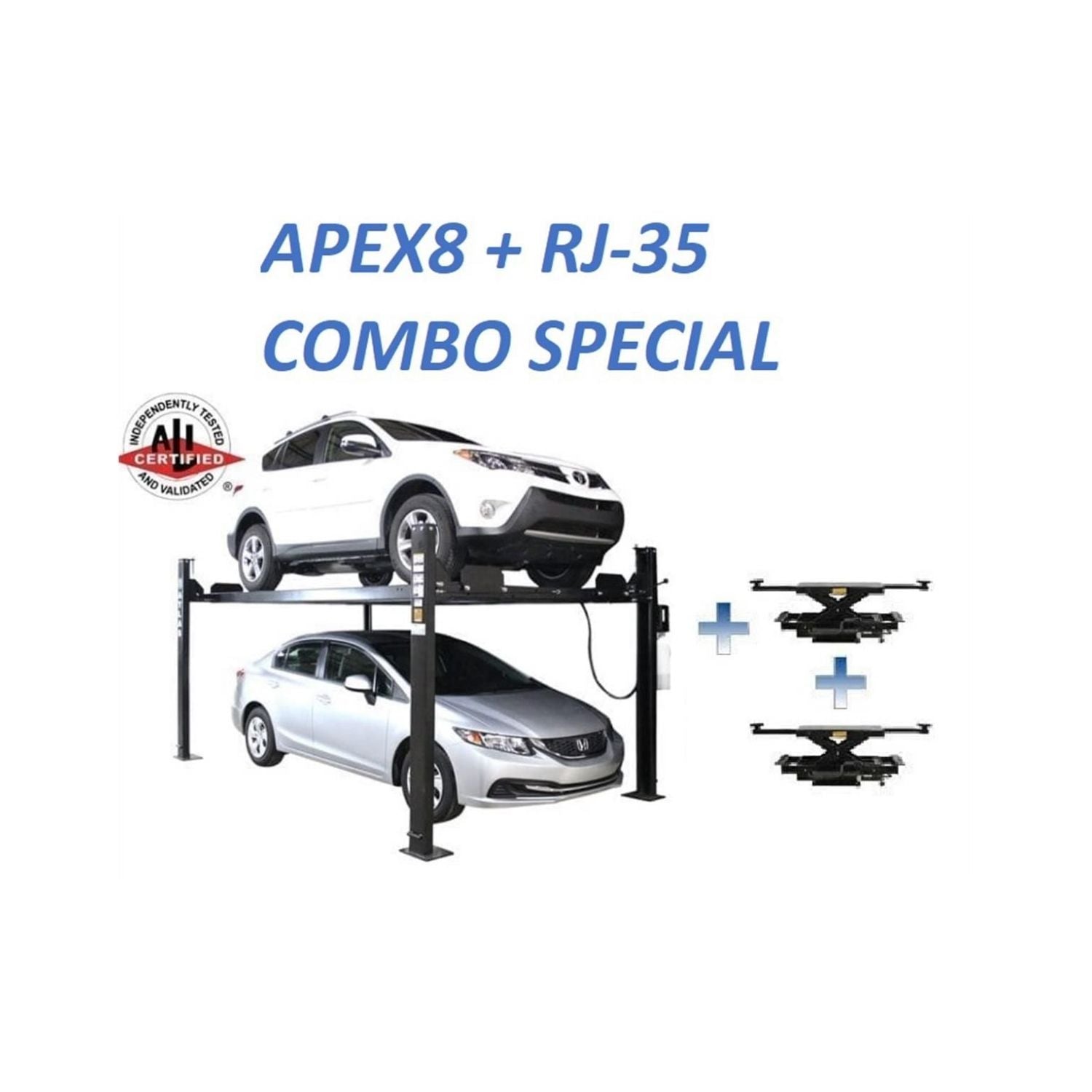

  • Combo package includes ALI Certified APEX 8 lift & two Non-Certified RJ35 Bridge Jacks

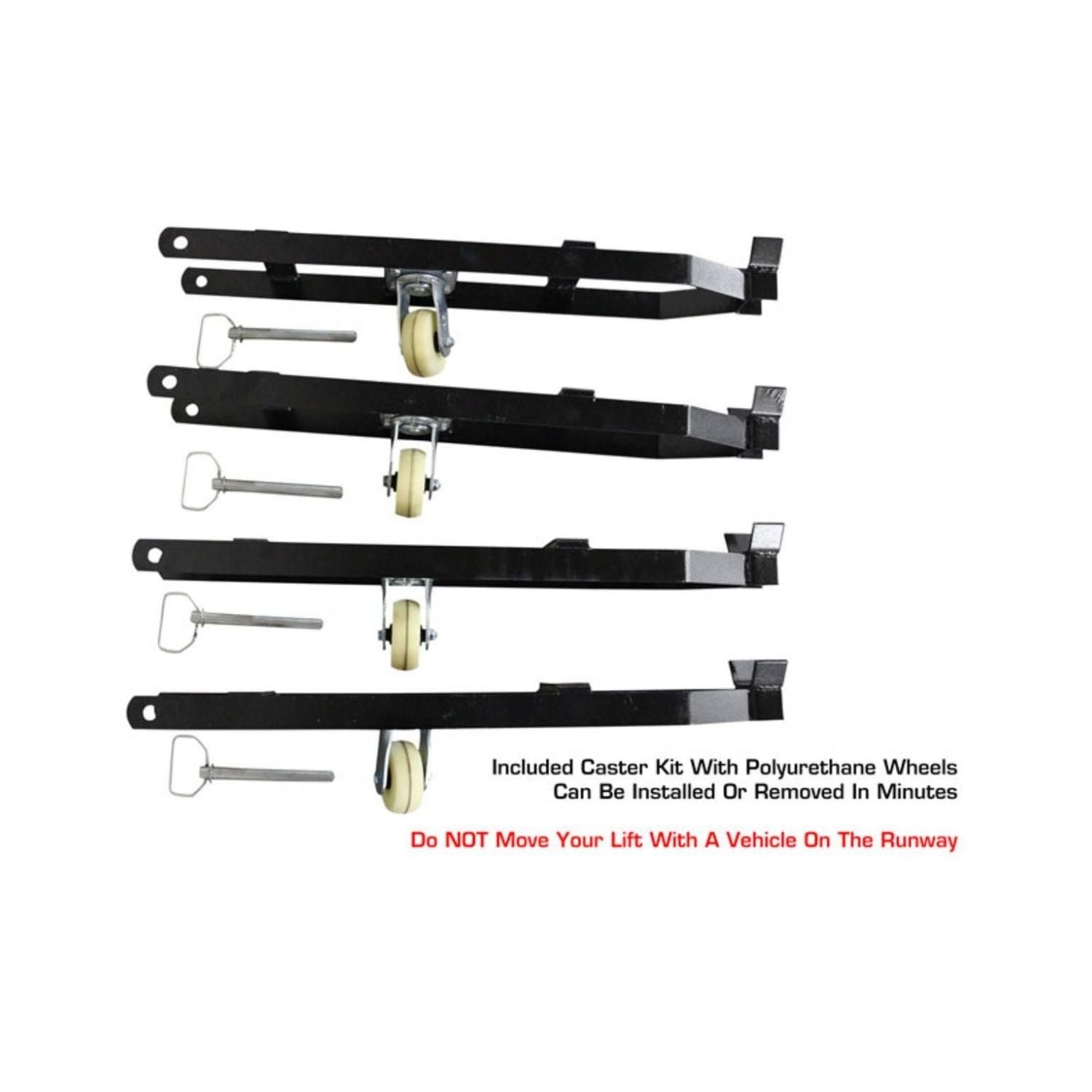

  • Caster Kit With Polyurethane Wheels Included

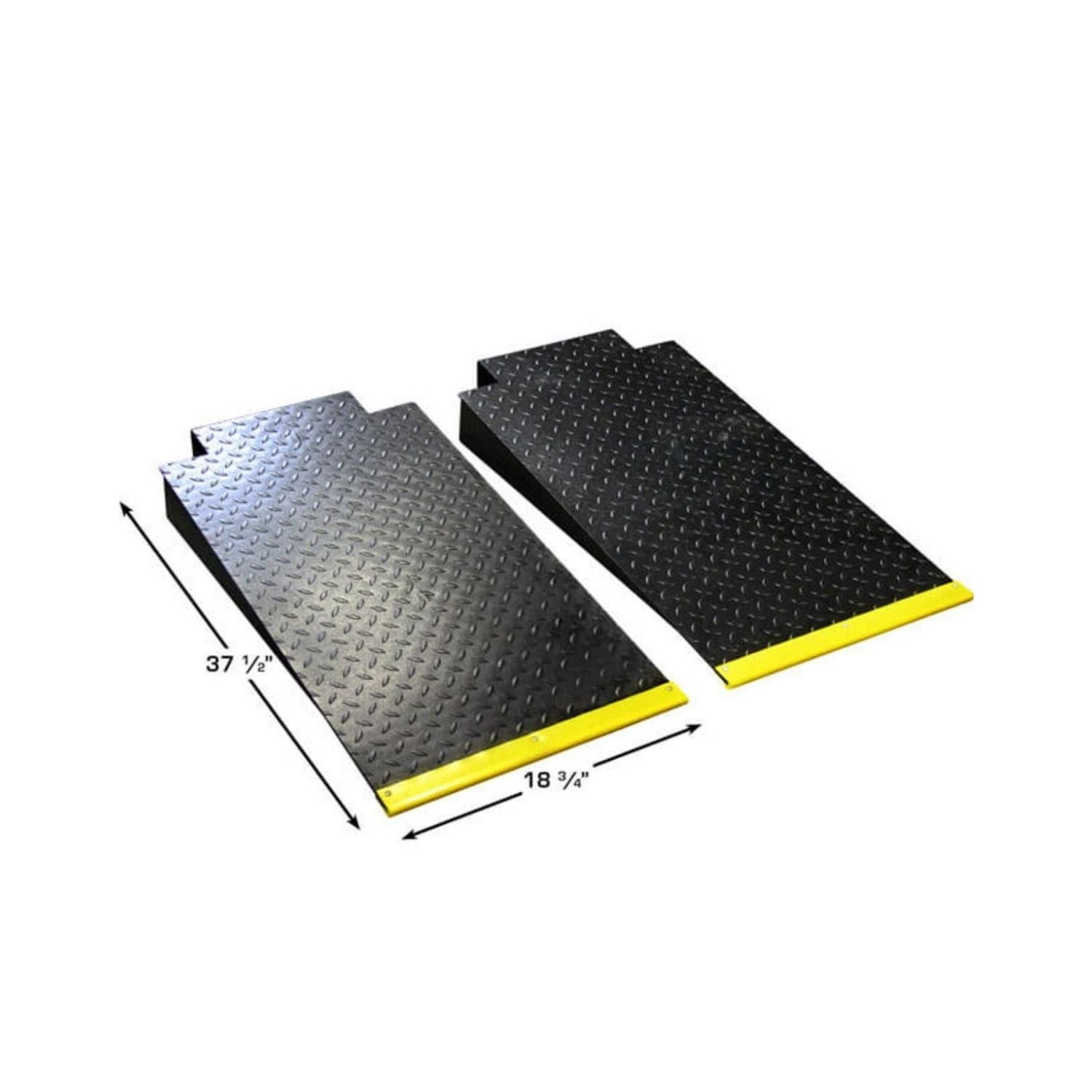

  • Steel Approach Ramps Included
  • Steel Jack Tray Included
  • Drip Trays Included

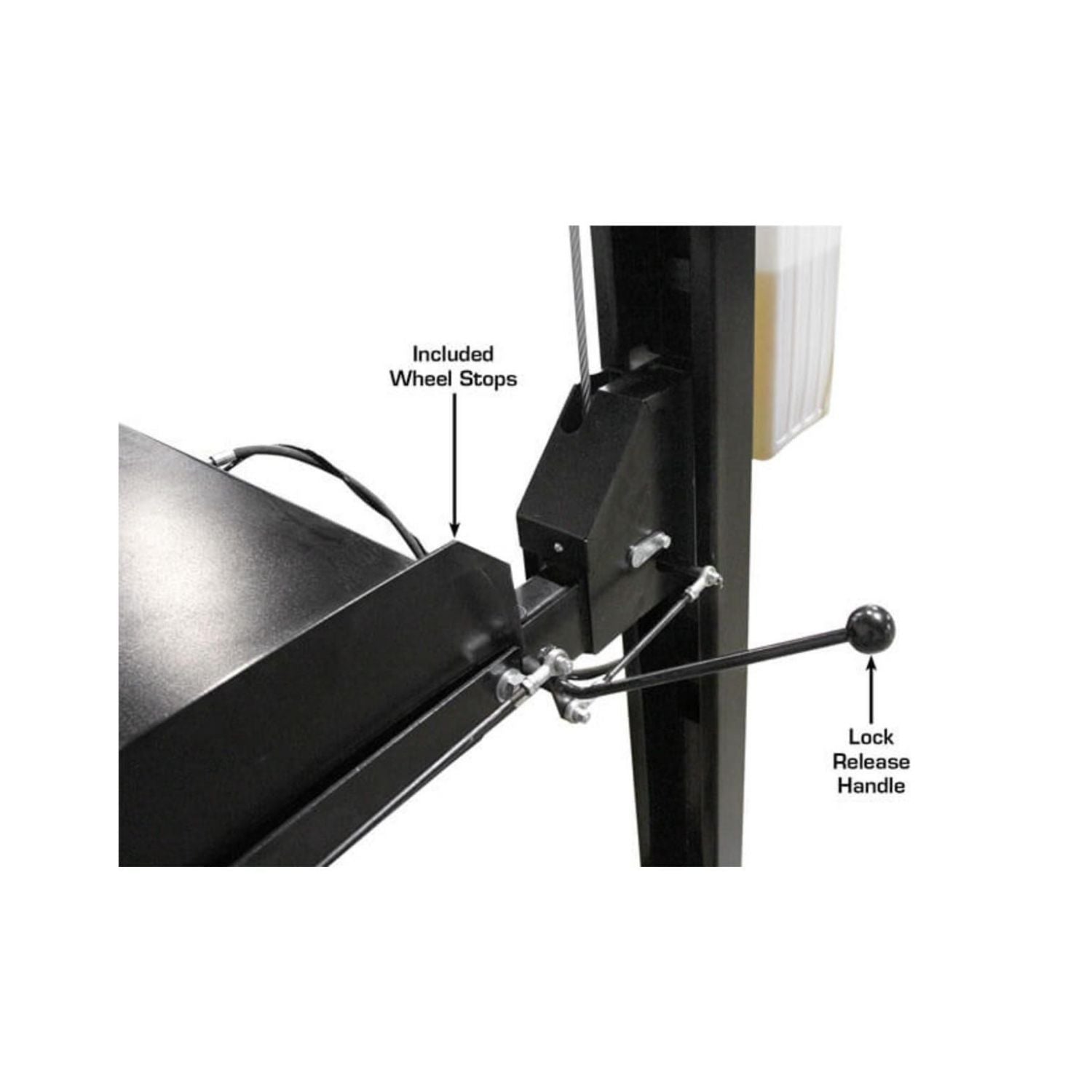

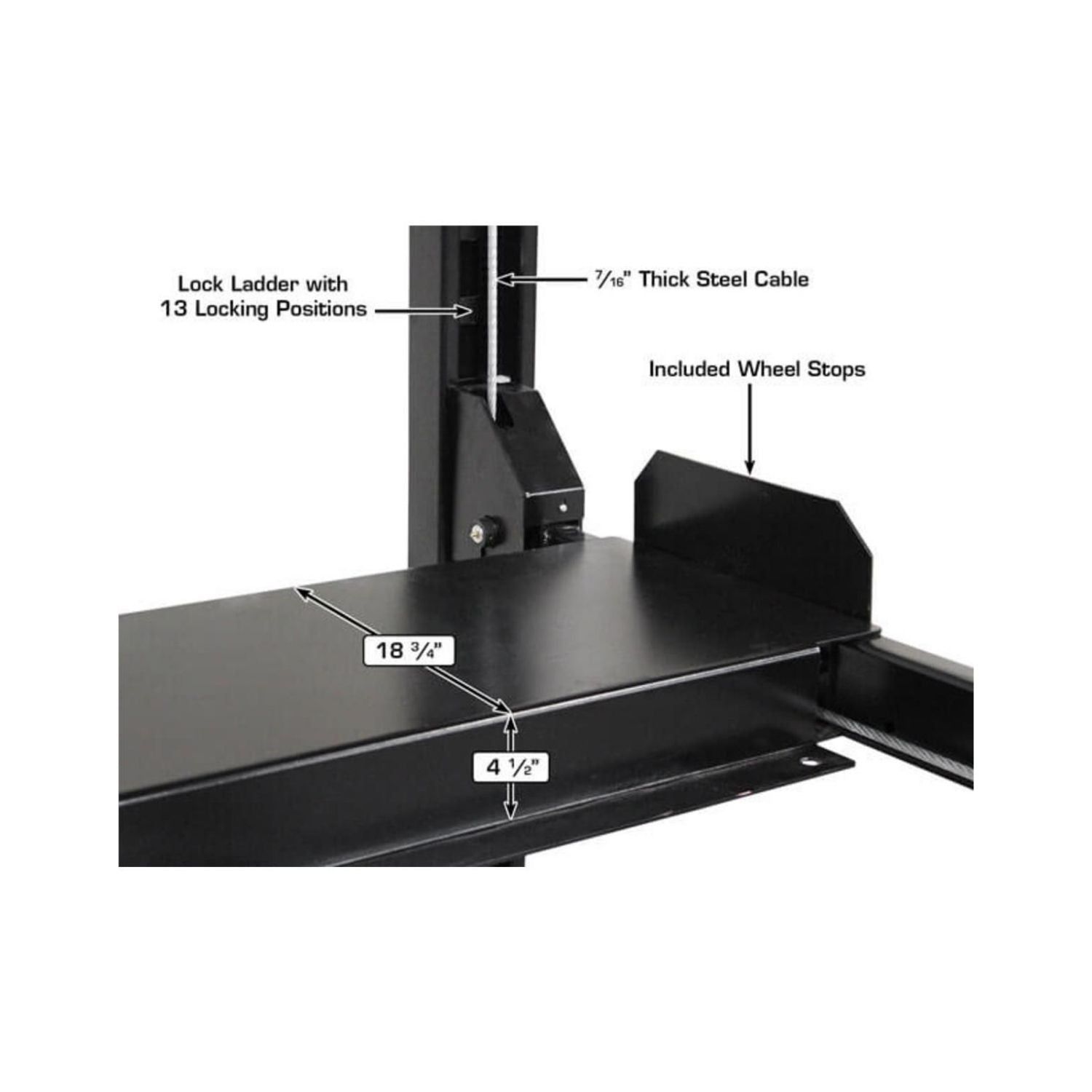

  • Wheel Stops Included

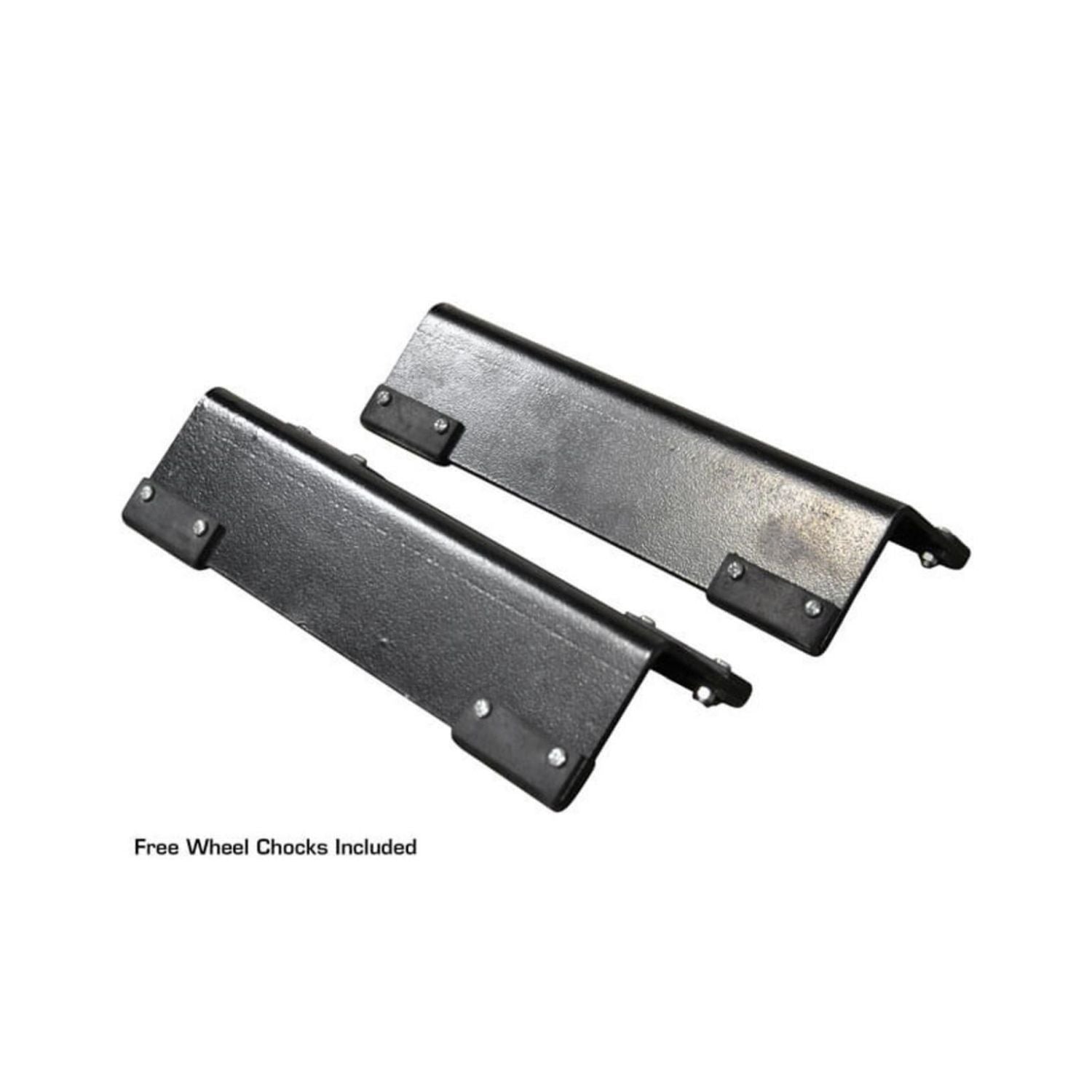

  • Wheel Chocks Included

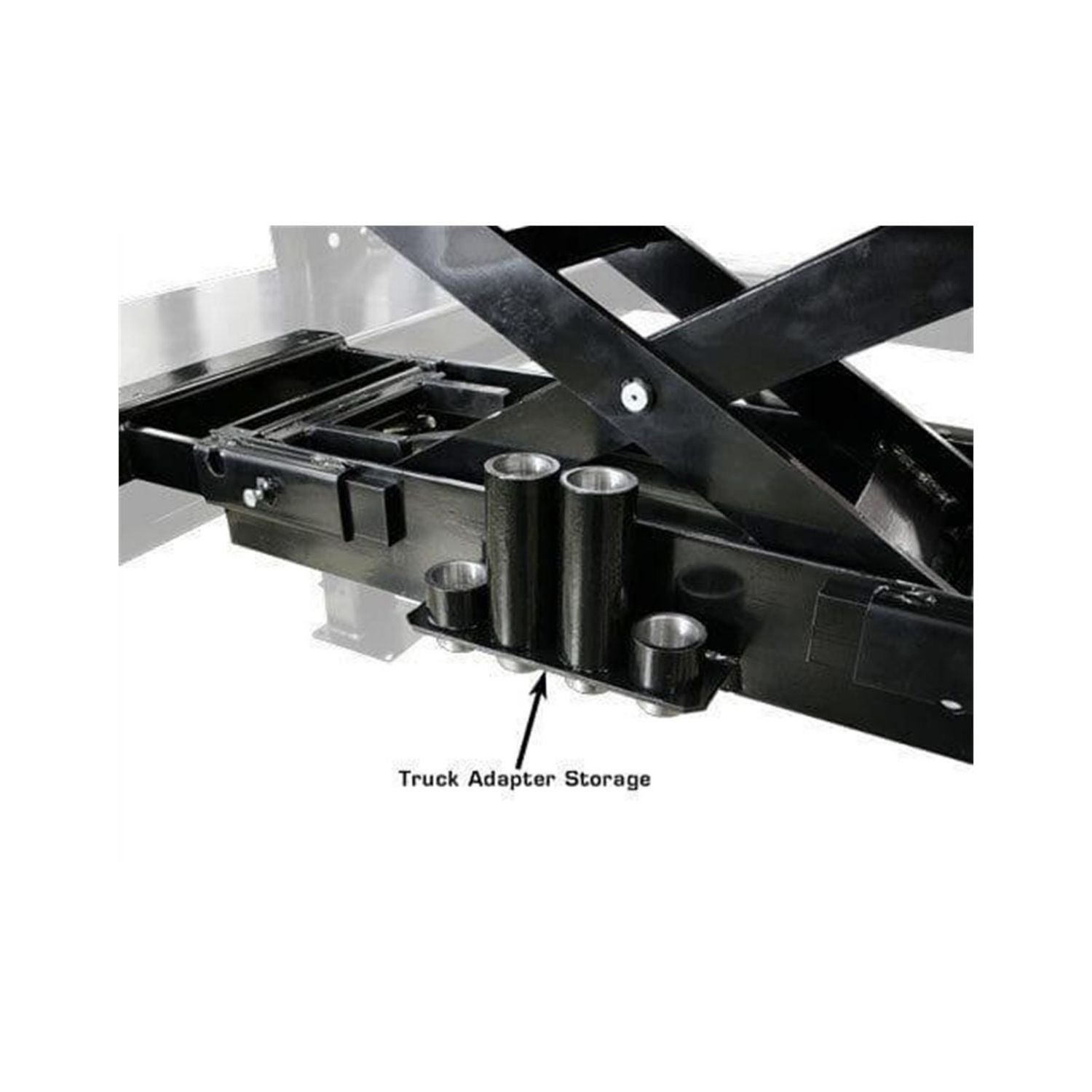

  • Truck Adapter set for Each Jack Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Atlas® APEX8 Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTD-APEX8-COMBO-FPD
  UPC:	810524028875
  Country of Origin:	CHN
  Capacity:	8,000 lbs
  Lifting Height, Top of Runway:	72" (6')
  Clearance Under Runways:	67" (5' 7")
  Height of Columns:	85" (7' 1")
  Overall Width:	104" (8' 8") w/ motor 114" (9' 6")
  Overall Length w/ Ramps:	207 5/8" (17' 3 5/8")
  Runway Length:	169 1/2" (14' 1 1/2")
  Runway Width:	18 2/4"
  Runway Thickness:	4 1/3"
  Width Between Runways:	38" w/ Rail 33"
  Outside Runway to Outside Runway:	75 1/4" (6' 3 1/4")
  Clearance Between Columns:	94" (7' 10")
  Length Between Columns:	157 1/3" (13' 1 1/3")
  Drive Thru:	80 1/4" (6' 8 1/4")

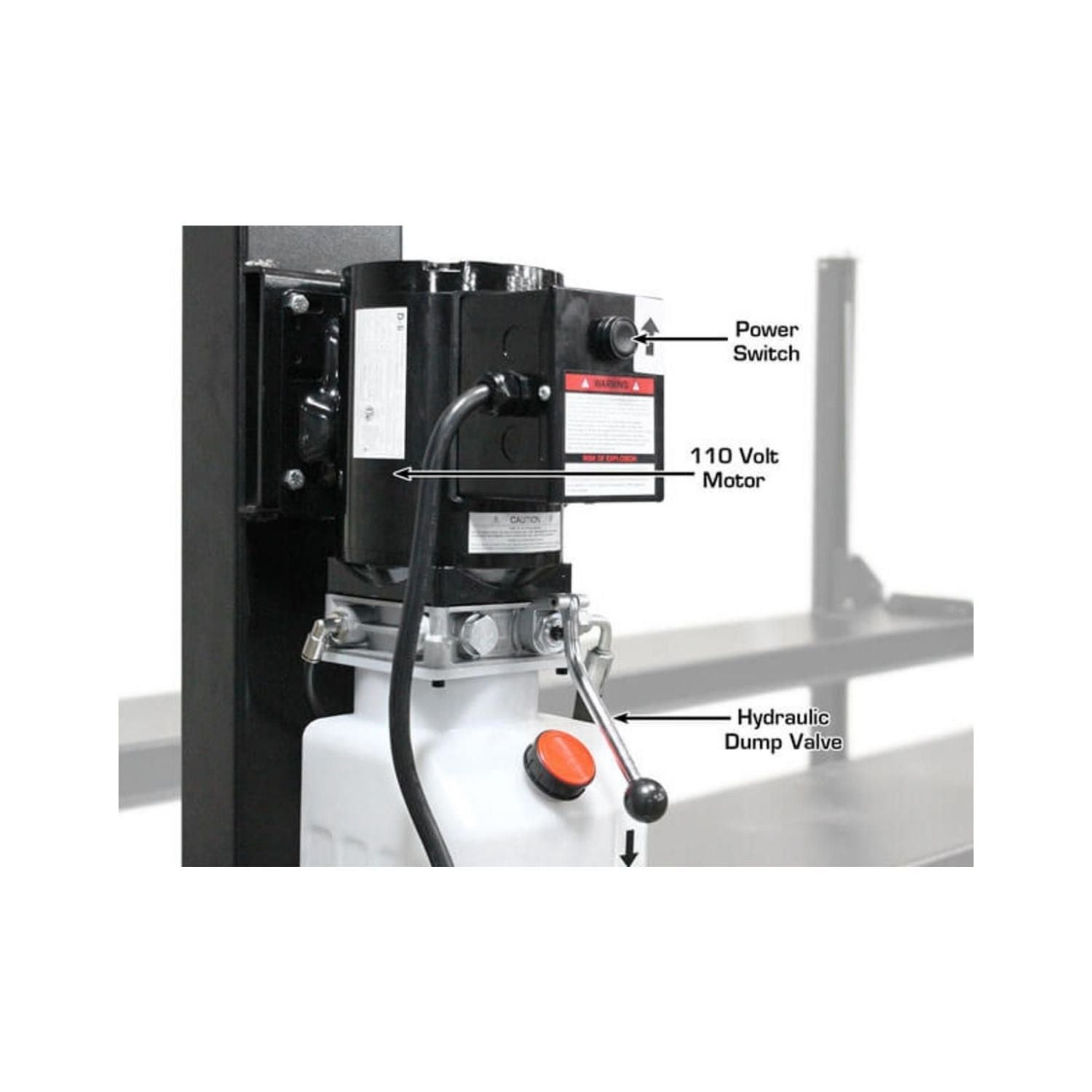

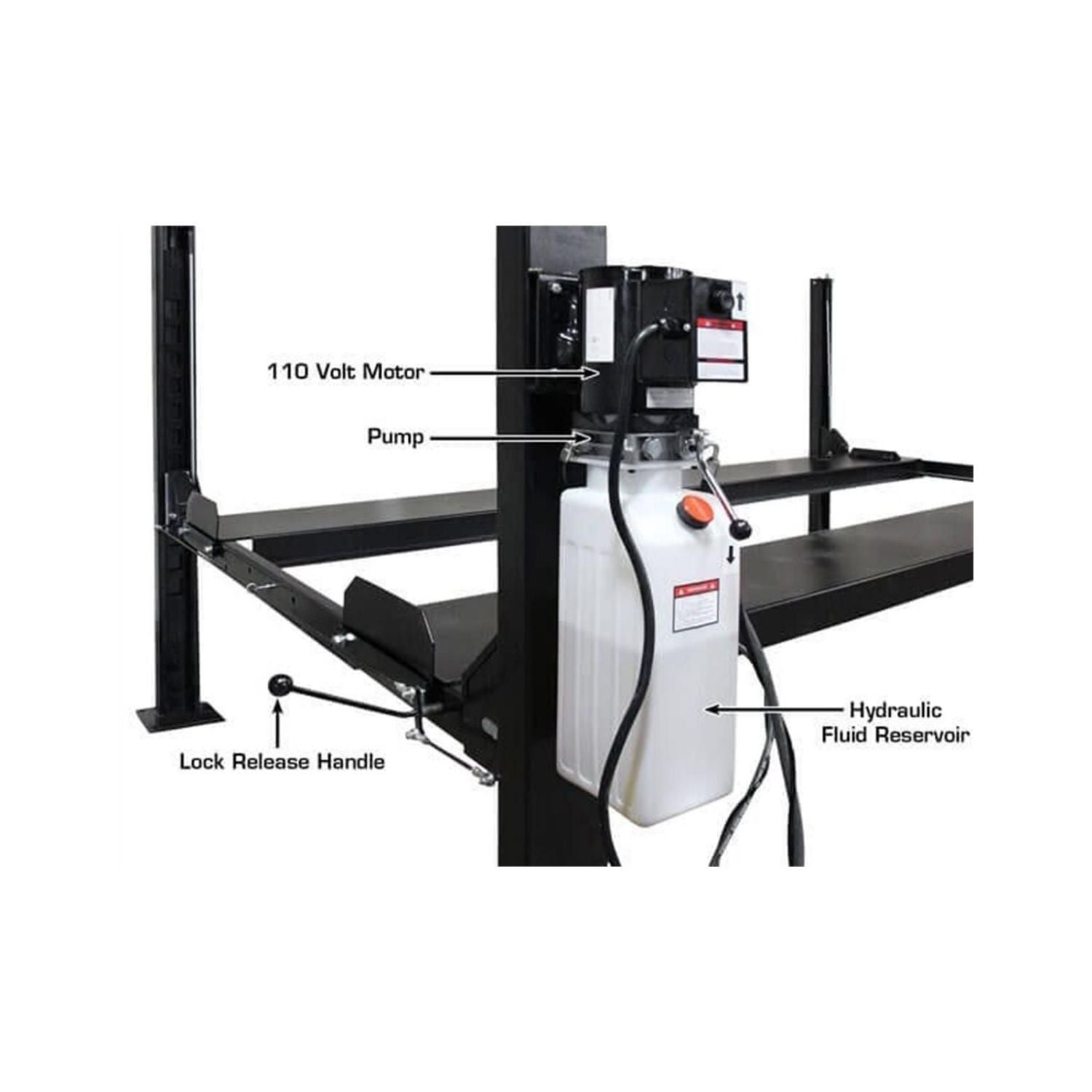

  Motor/Electrical Requirement:	110 volt, 30 amp breaker required
  Oil Requirement:	3-5 Gallons AW32 or AW46 (NOT INCLUDED)

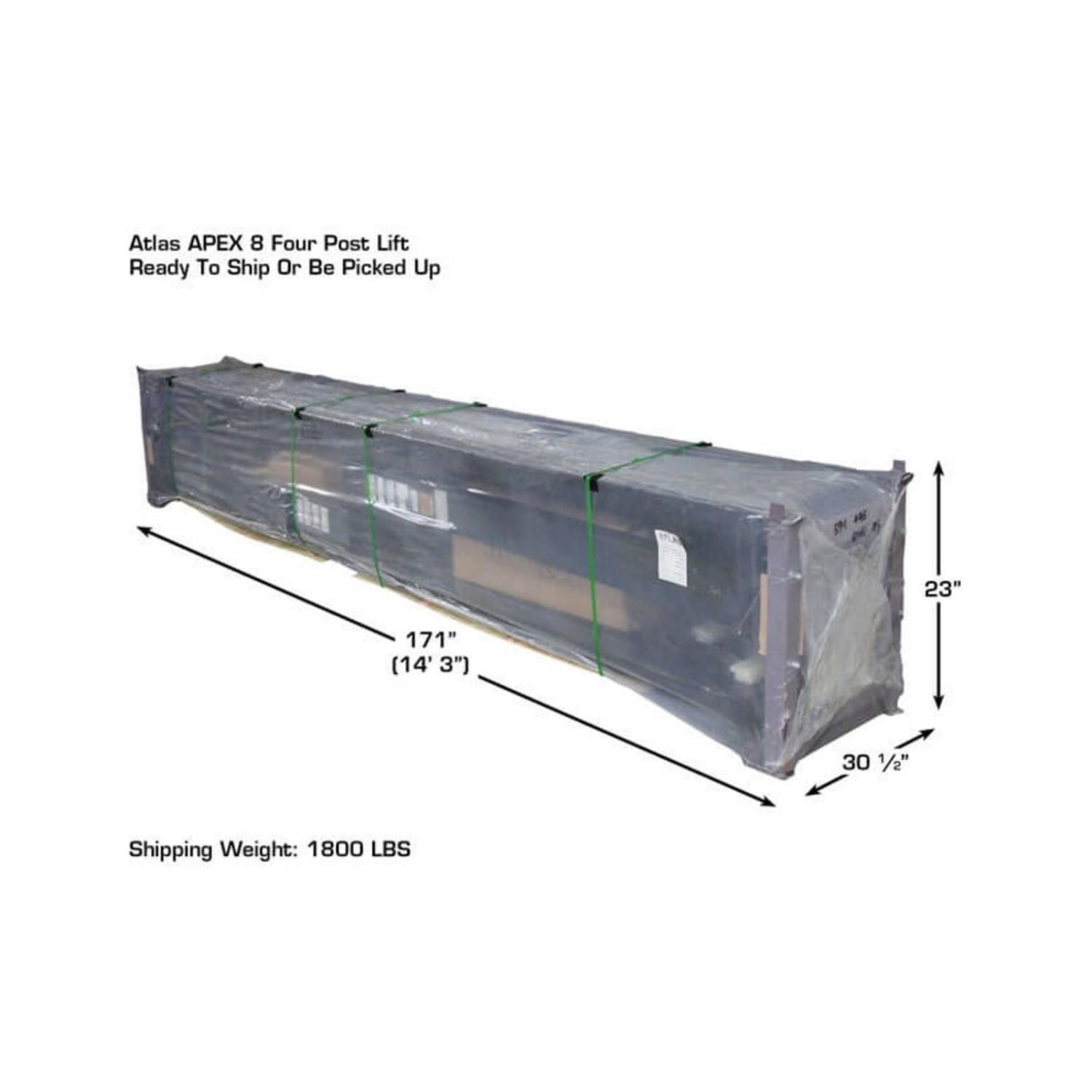

  Shipping Weight:	2,000 lbs

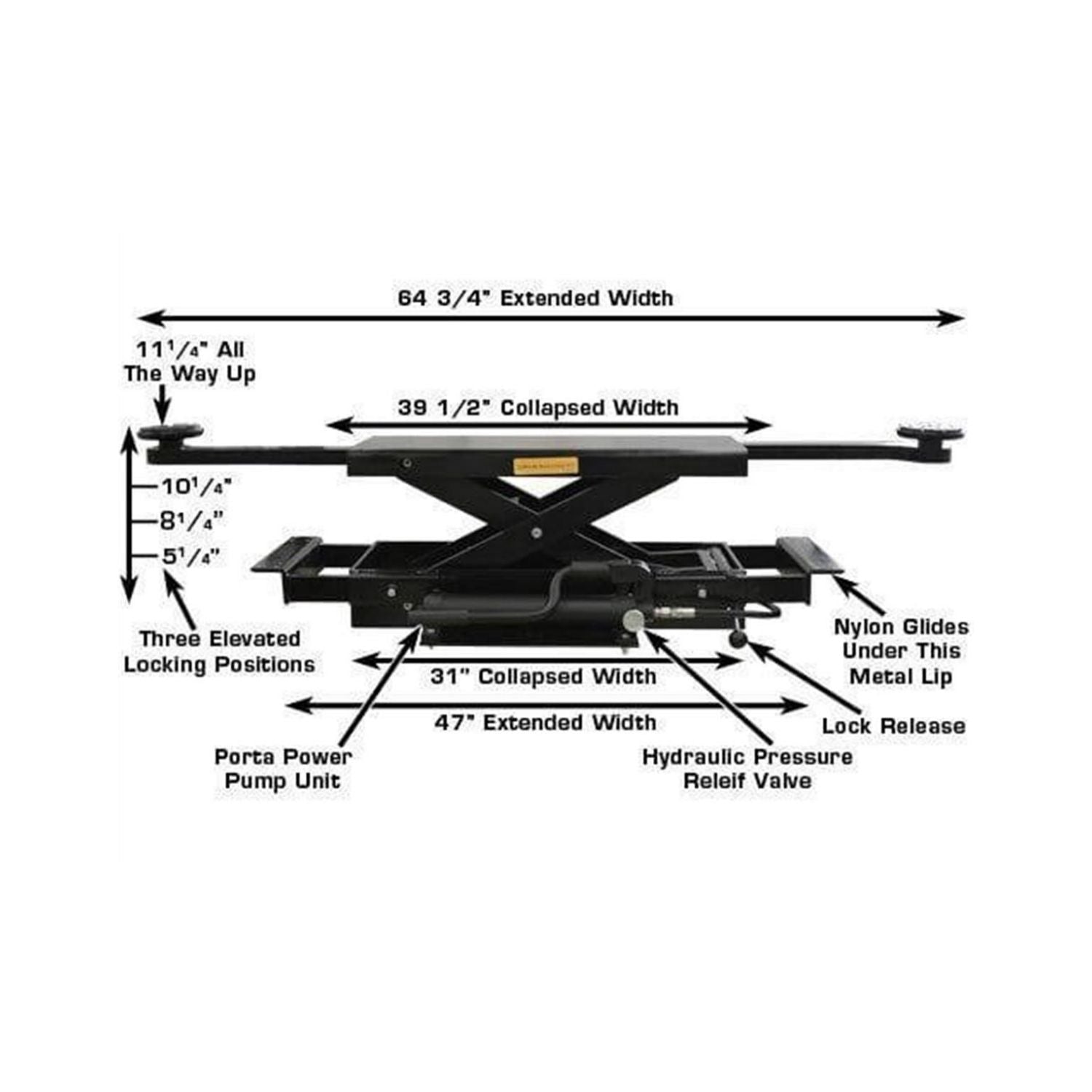

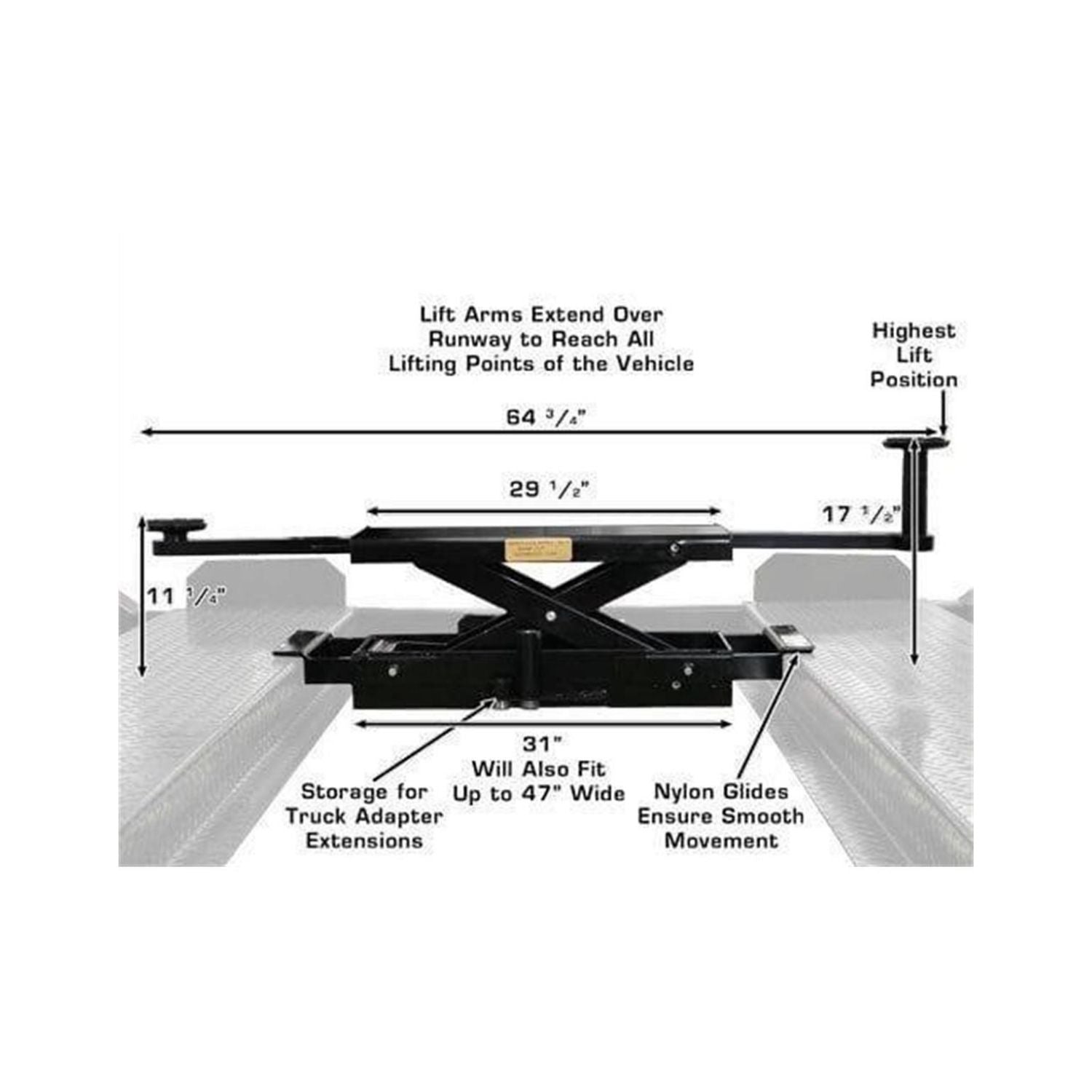

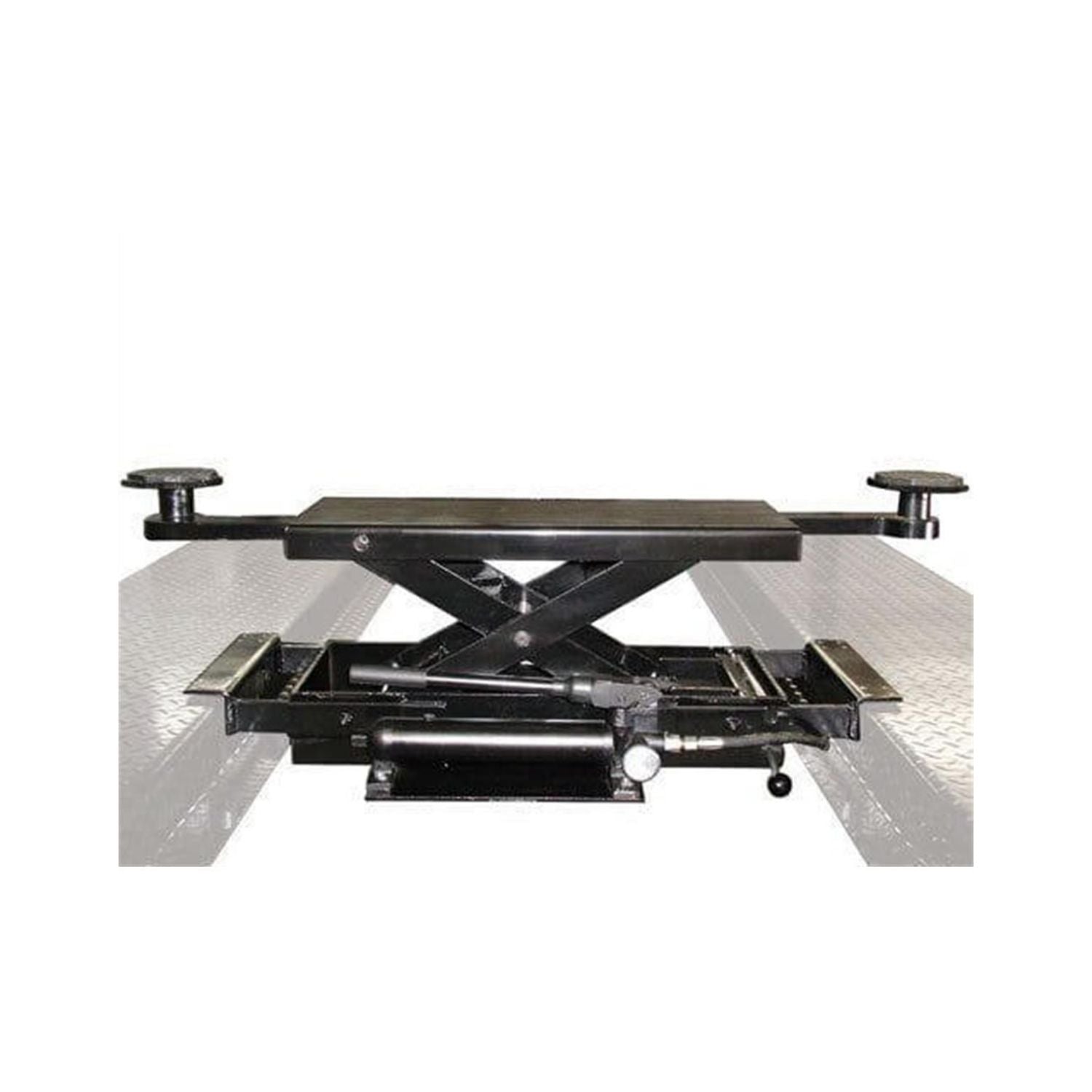

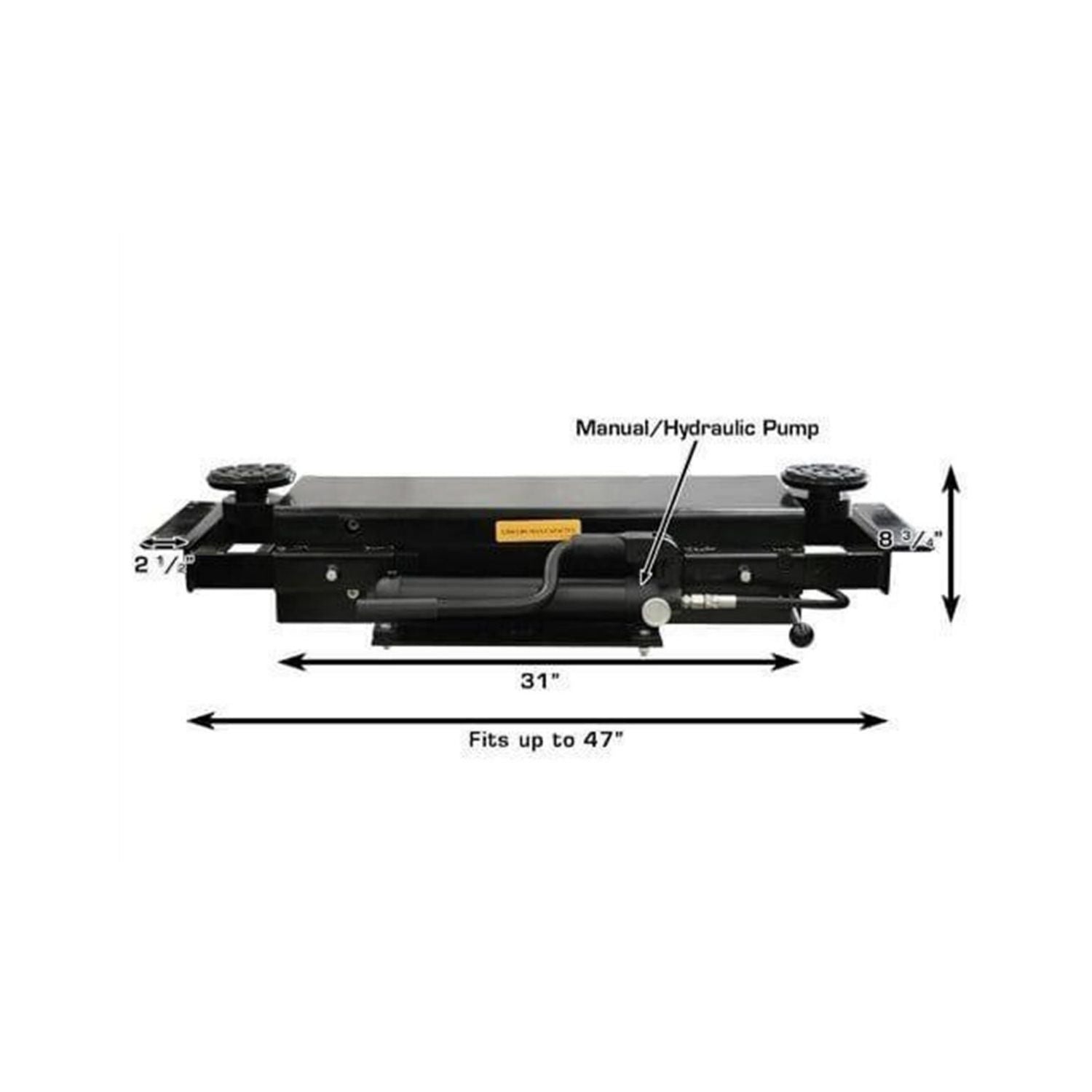

  Atlas® RJ35 Sliding Jack Specifications

  Capacity:	3,500 lbs
  Lower Extension Width (Between Runway):	20 1/2" to 47"
  Top Width (Arms Retracted & Extended):	39 1/2" to 64 3/4"
  Min. Pad Height Above Runway:	3 1/2" (MAY VARY BY LIFT)
  Lift Pad Height Above Arm:	1 3/8"
  Max Height Raised w/o Adapter:	11"
  Max Height Raised w/ Adapters:	17 1/4"

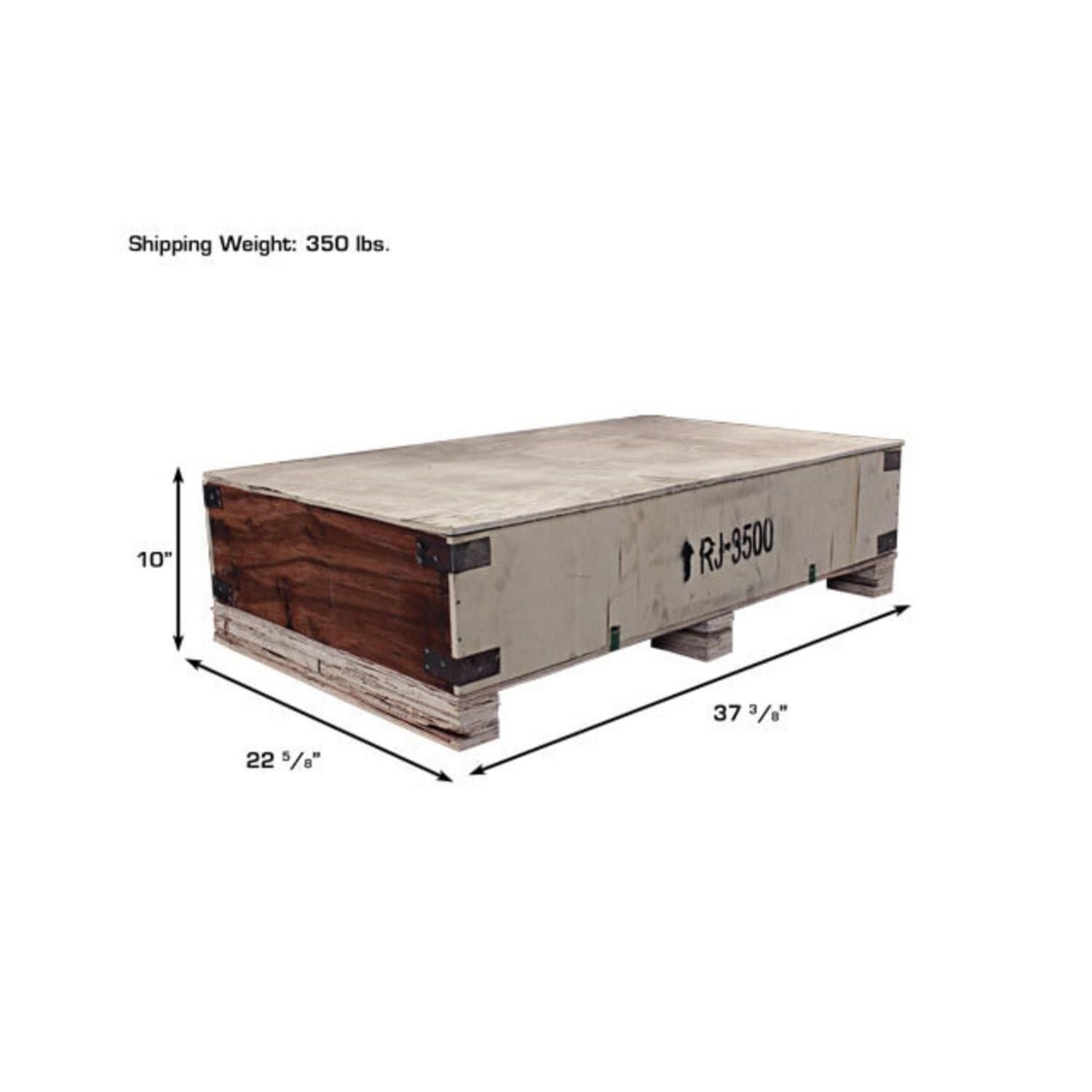

  Shipping Weight:	350 lbs

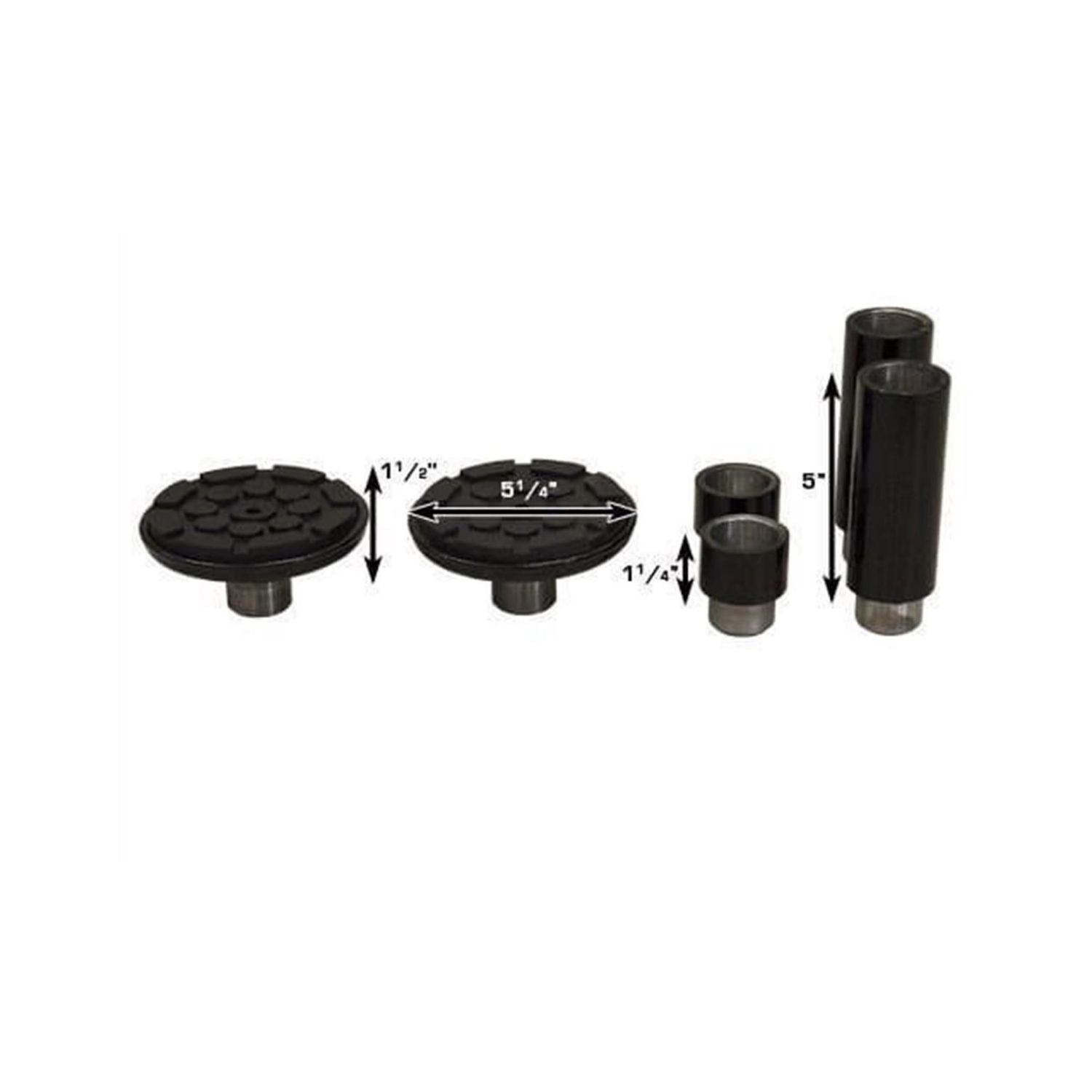

  Adapter Heights:	2 Each 1 1/2", 5"
  Arm Hole/Adapter Peg Size:	1 1/2"

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
