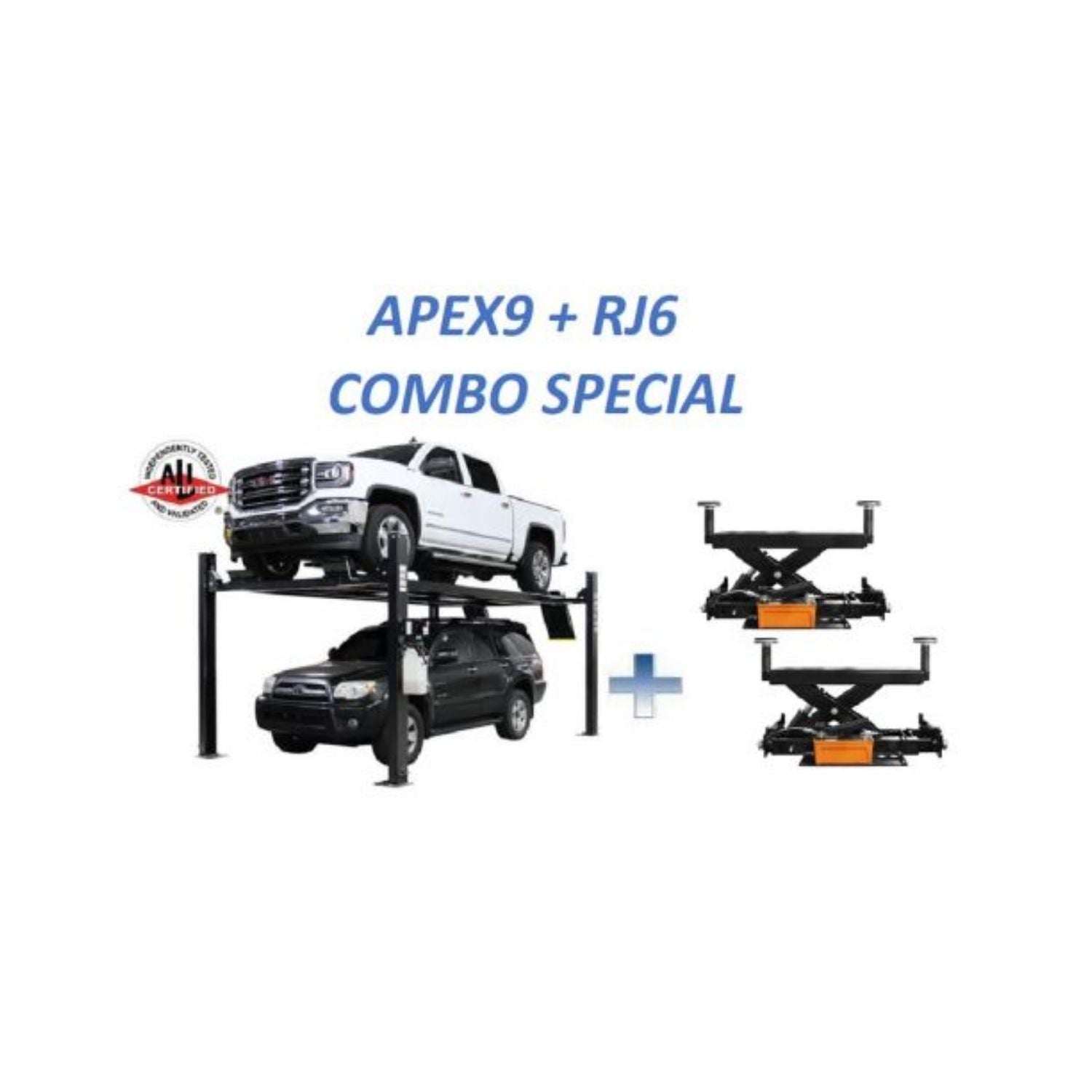

Atlas® APEX 9,000 lb 4-Post Lift & RJ6 Combo #ATEAPEX9-COMBO1-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® APEX 9 and RJ6 Combo is a premium lifting solution designed for home garages and light-duty service applications that require certified safety and added functionality.

  This package includes the APEX certified 9,000 lb 4-post lift paired with an RJ6 rolling jack, allowing users to perform both vehicle storage and wheel-free service such as brake, suspension, and tire work. The APEX certification ensures higher safety standards and build quality for added peace of mind.

  Ideal for enthusiasts and light commercial use, this combo provides increased lifting capacity over the APEX8 while delivering versatility, reliability, and professional-grade performance.

• FEATURES AND BENEFITS

  • Combo package includes ALI Certified APEX9 & two RJ6 Rolling Jacks

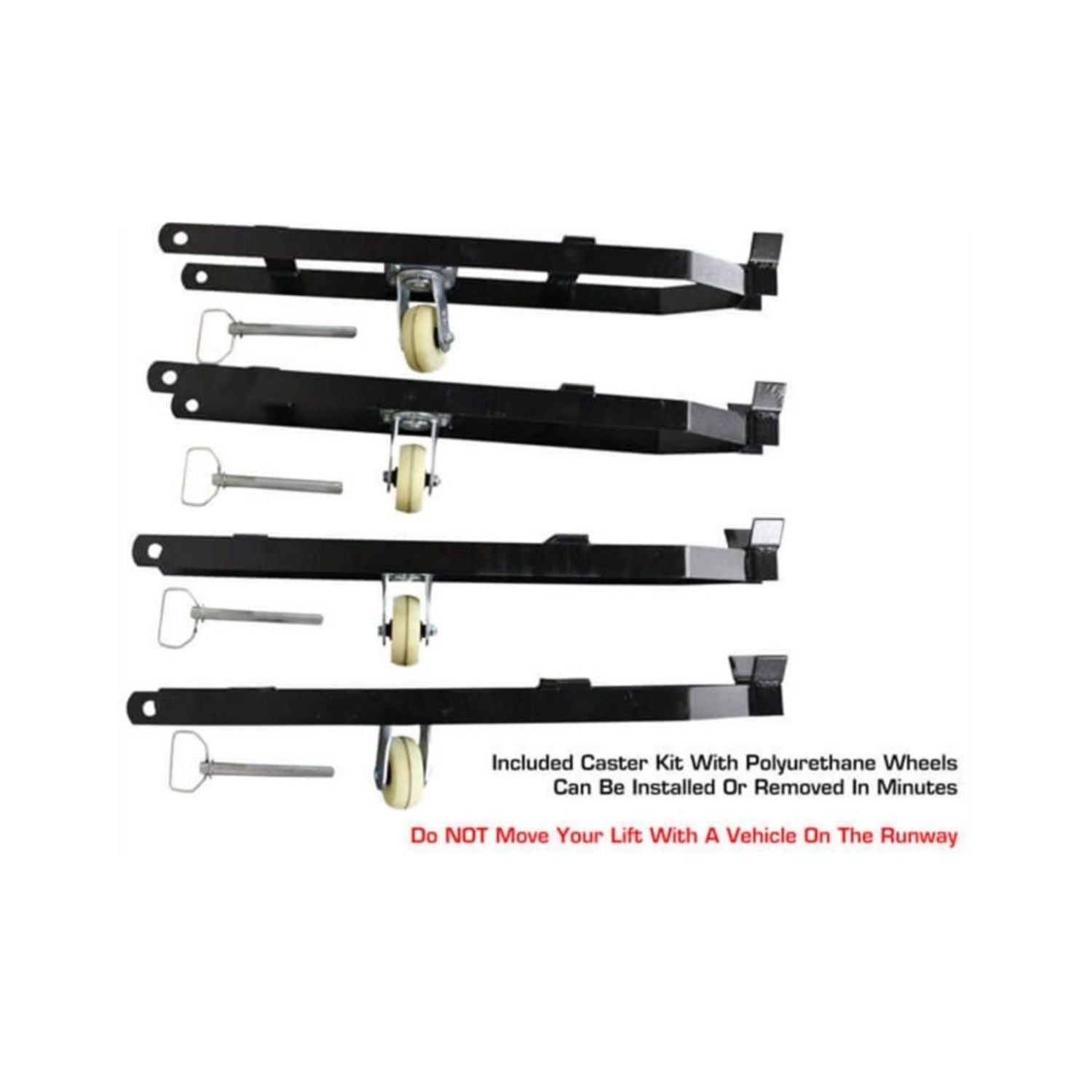

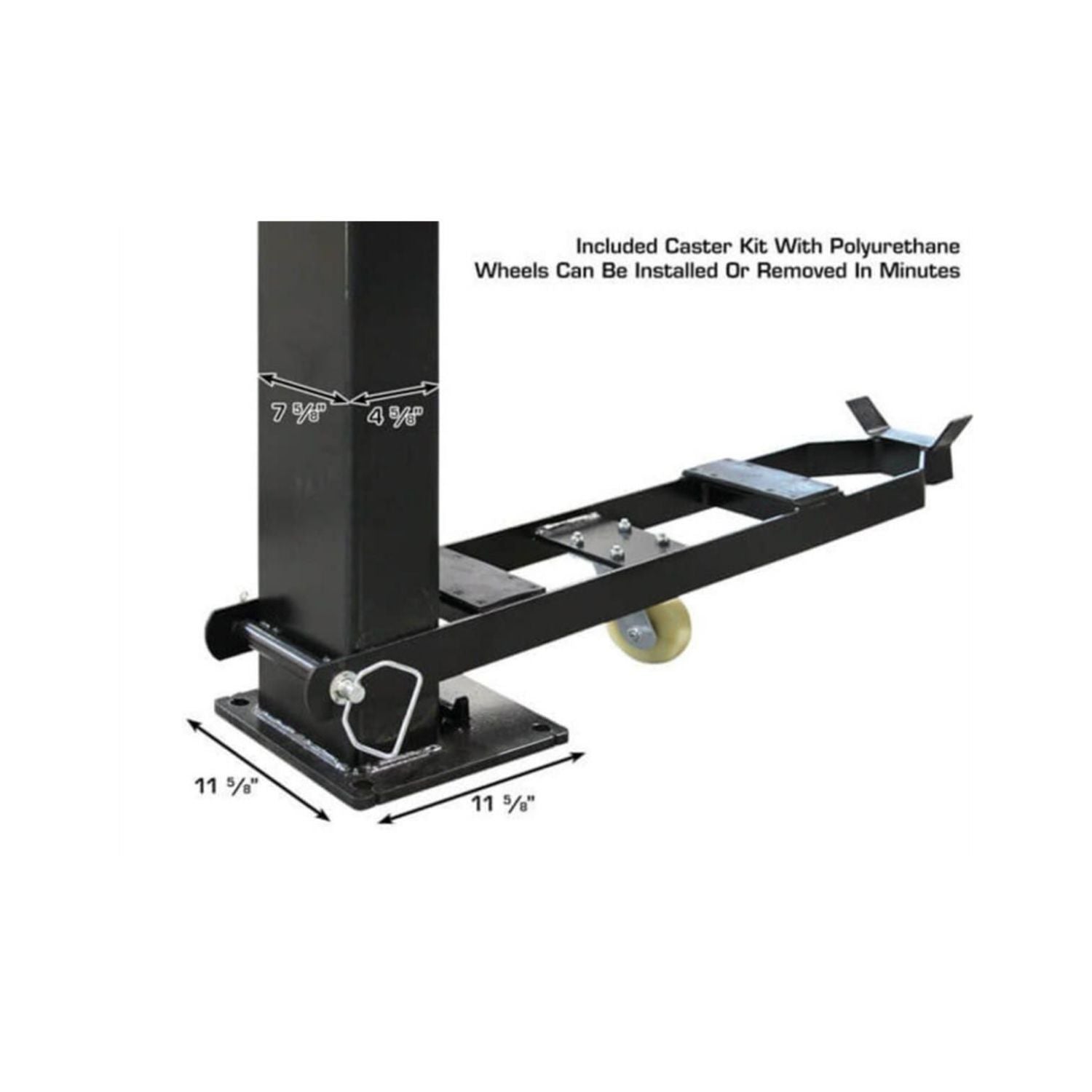

  • Caster Kit With Polyurethane Wheels Available

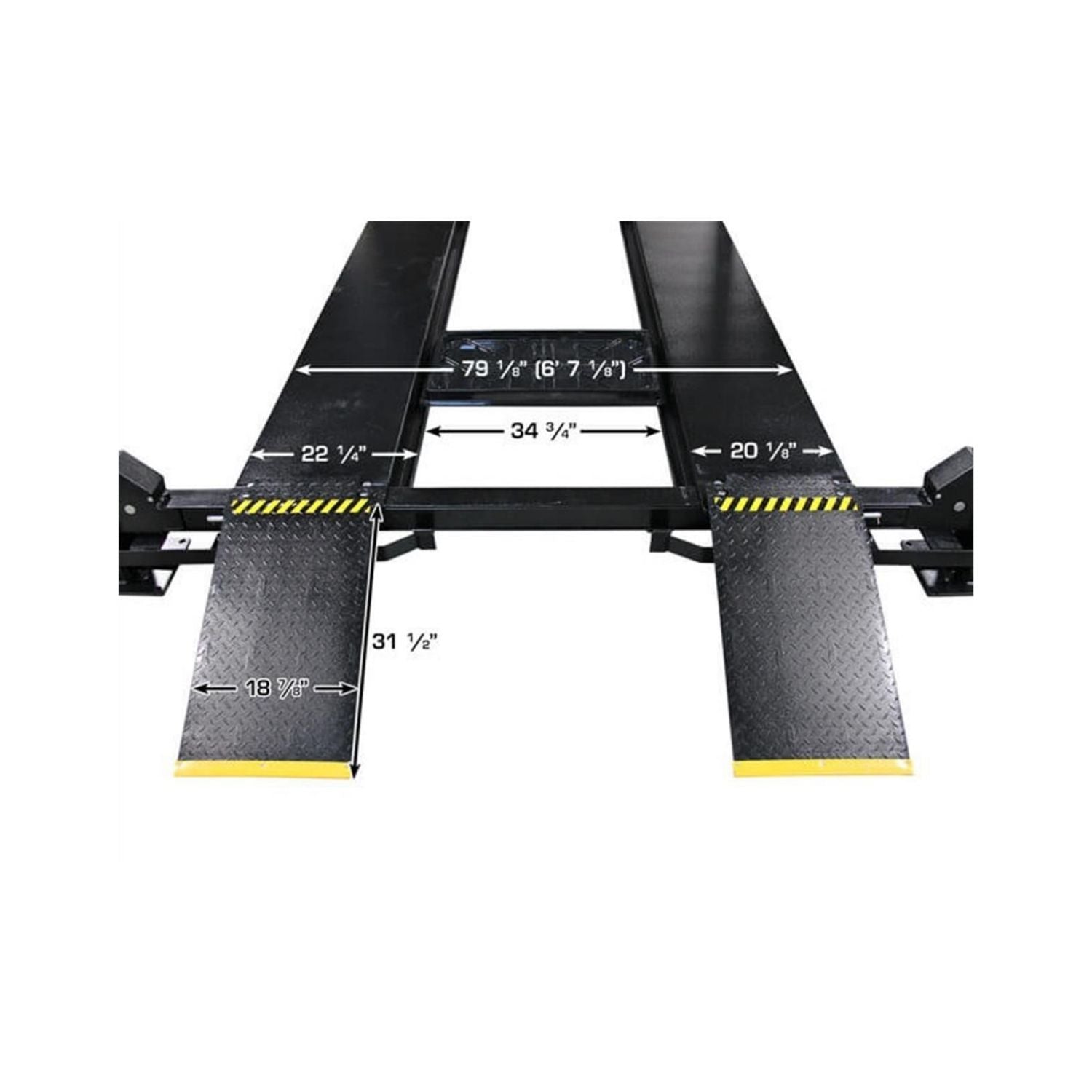

  • Steel Approach Ramps Included
  • Steel Jack Tray Included
  • 4 Plastic Drip Trays Included

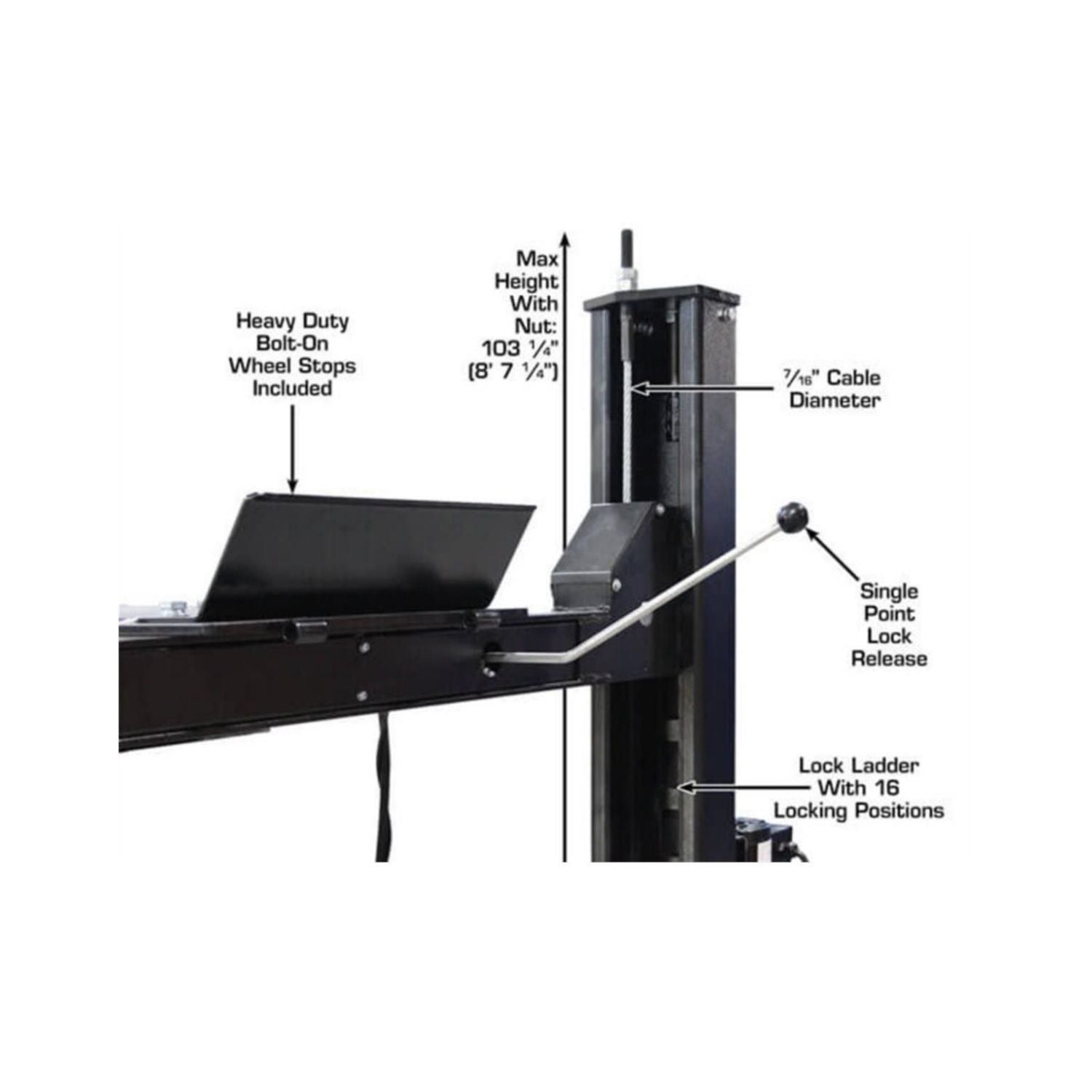

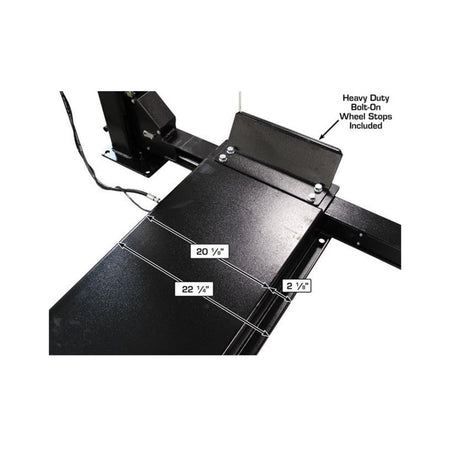

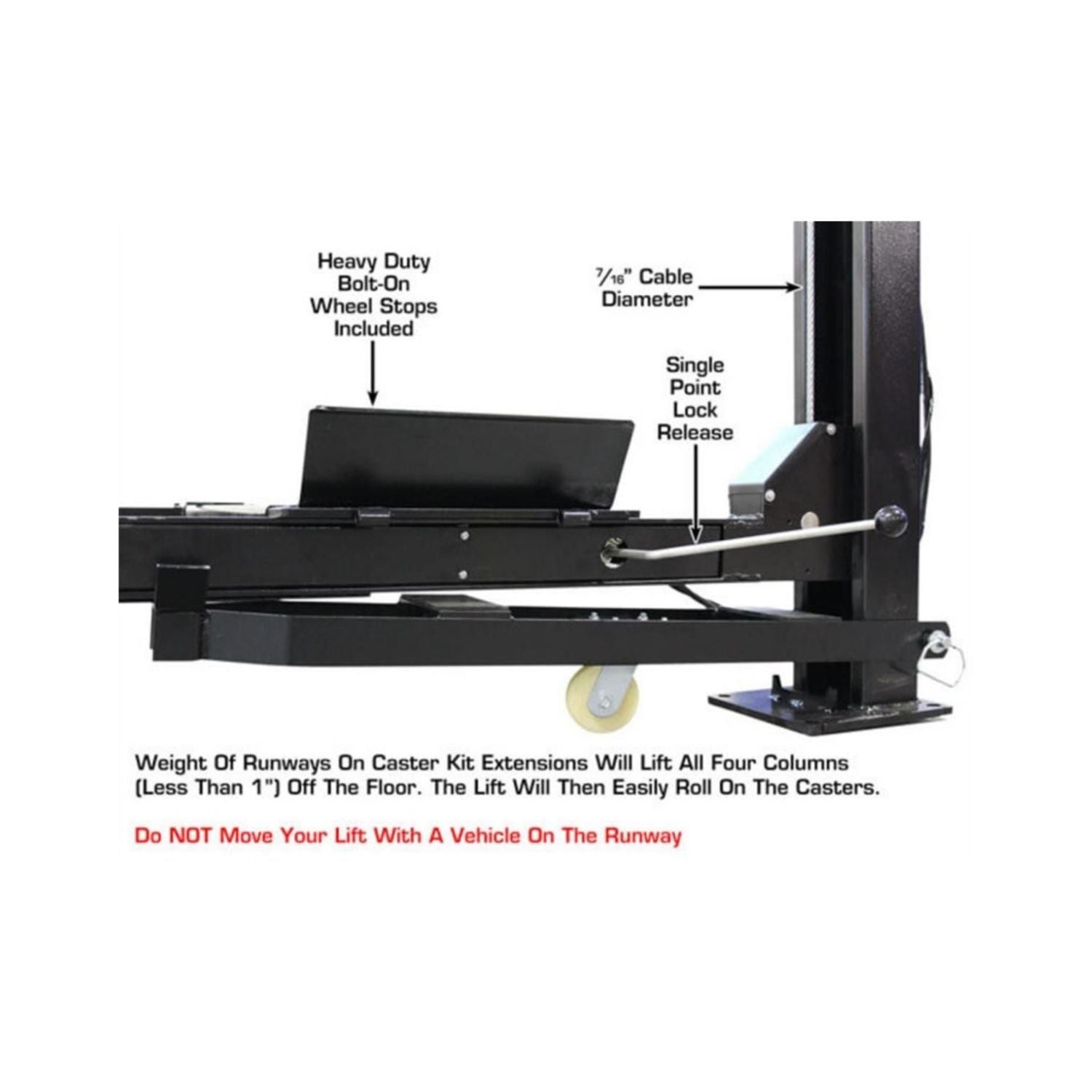

  • Wheel Stops Included
  • Wheel Chocks Included
  • Truck Adapter set for Each Jack Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

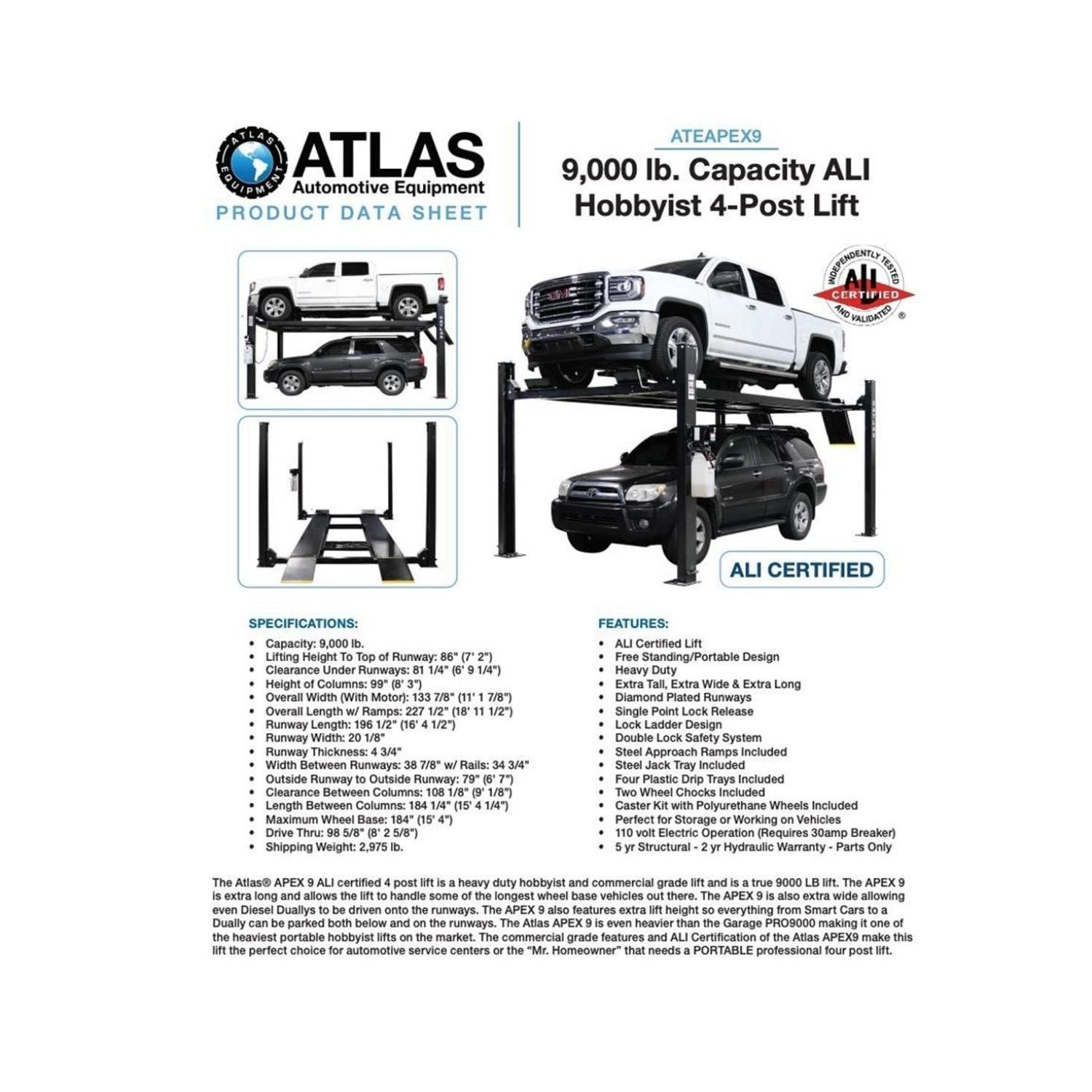

  Atlas® APEX9 Lift Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEAPEX9-COMBO1
  Dimensions:	203" L × 62" W × 30" H
  Capacity:	9,000 lbs
  Lifting Height (Top of Runway):	86" (7' 2")

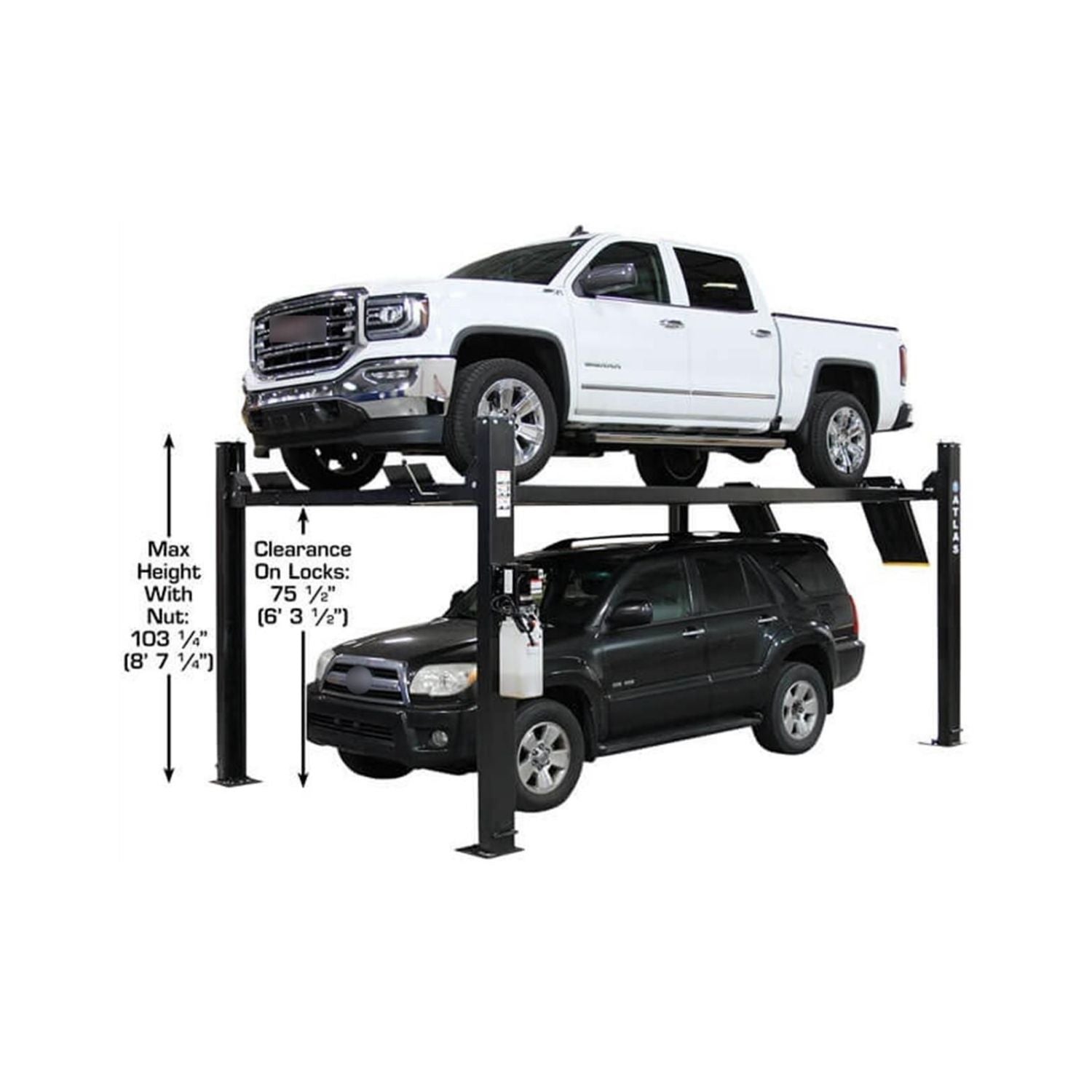

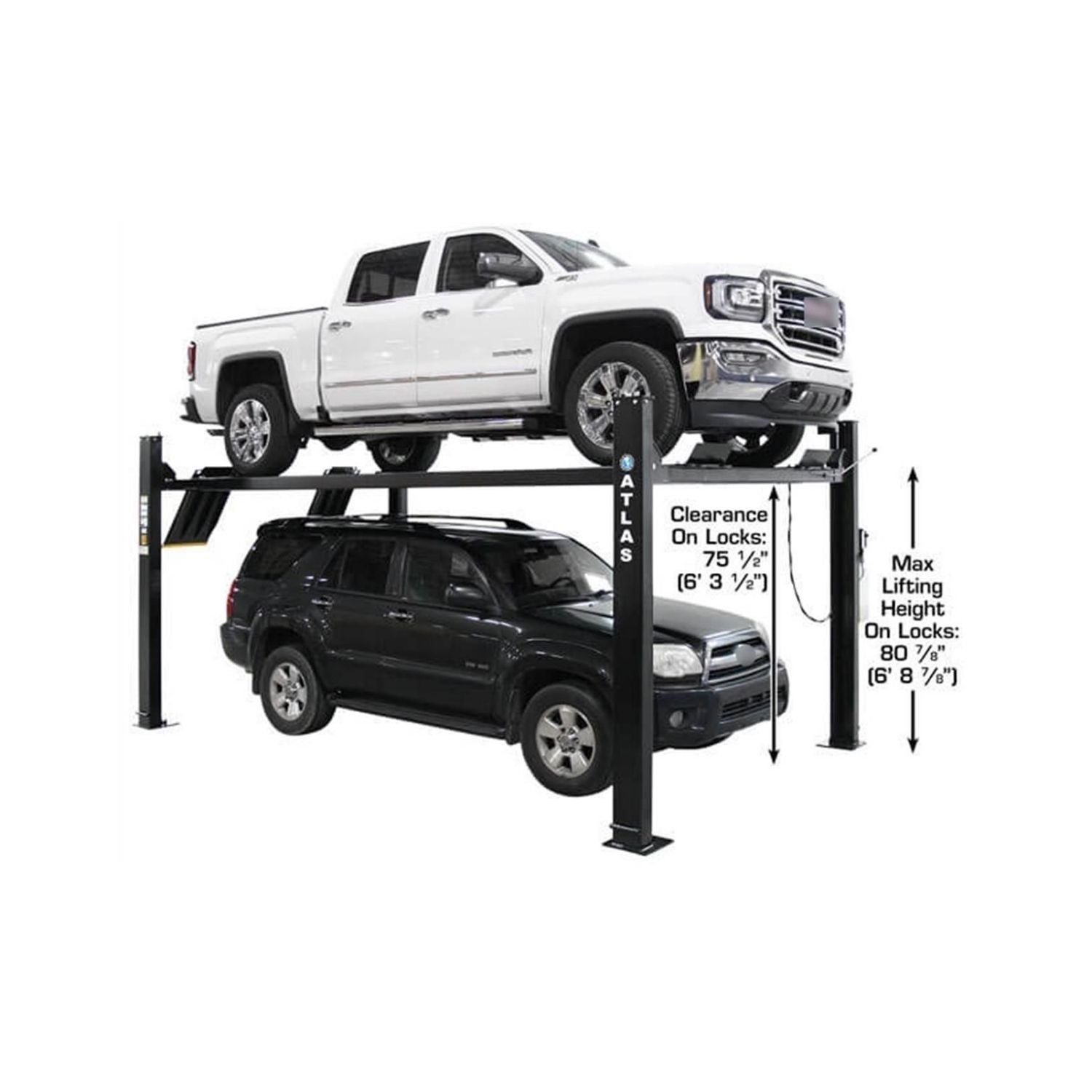

  Clearance Under Runways:	81 1/4" (6' 9 1/4")
  Height of Columns:	99" (8' 3")

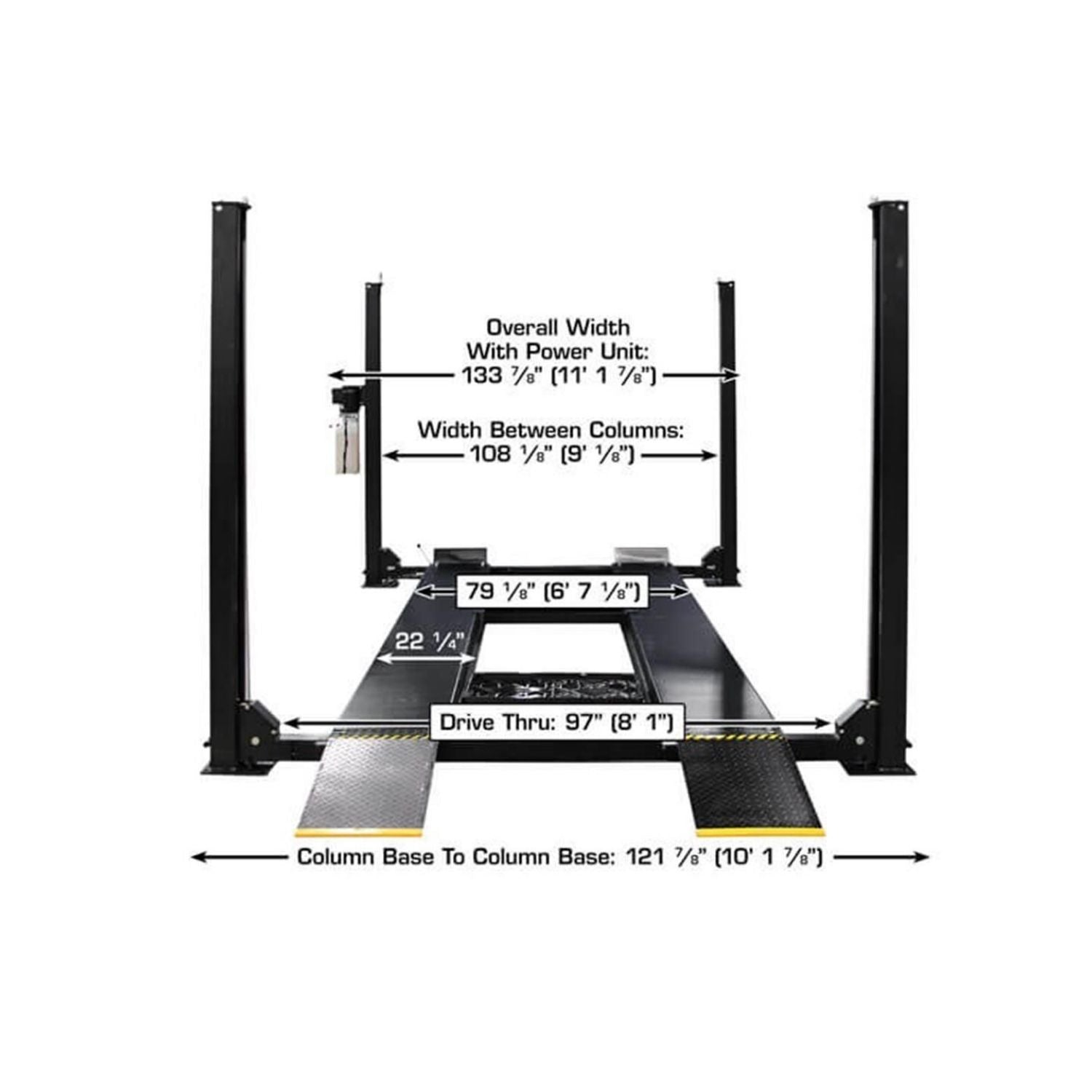

  Overall Width:	121 7/8" (10' 1 7/8") / 133 7/8" (11' 1 7/8") with motor
  Overall Length (With Ramps):	227 1/2" (18' 11 1/2")
  Runway Length:	196 1/2" (16' 4 1/2")

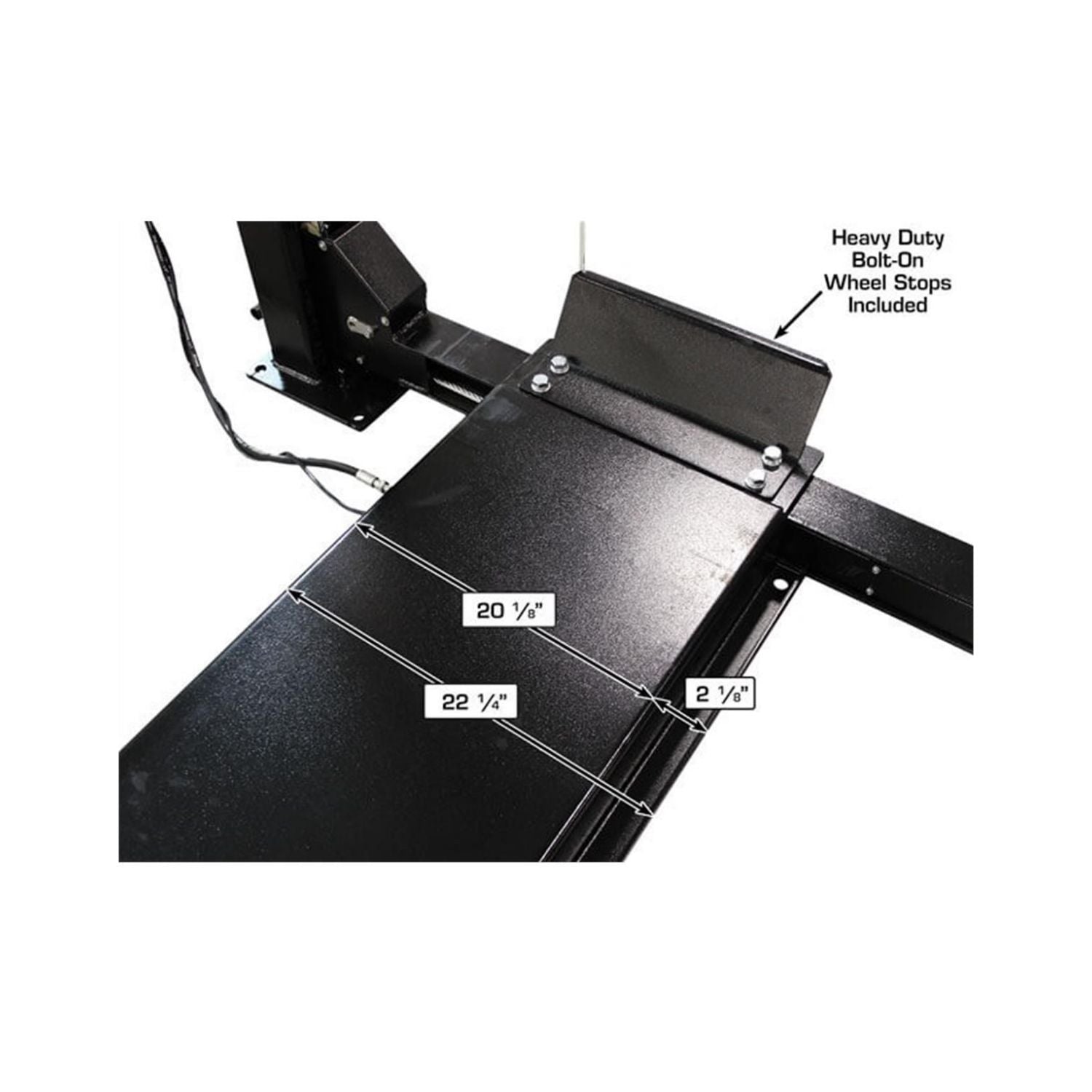

  Runway Width:	20 1/8"
  Runway Thickness:	4 3/4"
  Width Between Runways:	38 7/8" (34 3/4" with rail)
  Outside Runway to Outside Runway:	79" (6' 7")

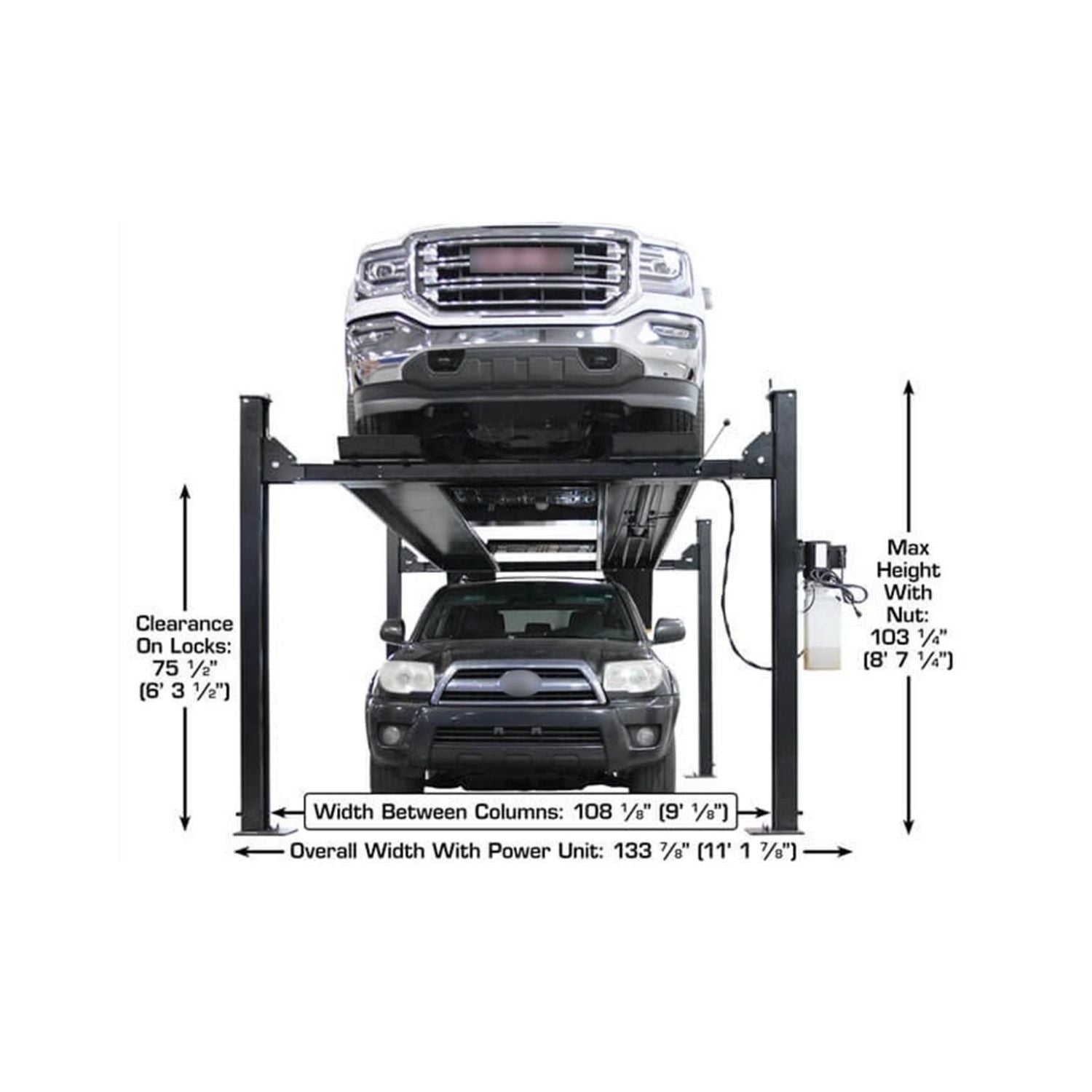

  Clearance Between Columns:	108 1/8" (9' 1/8")

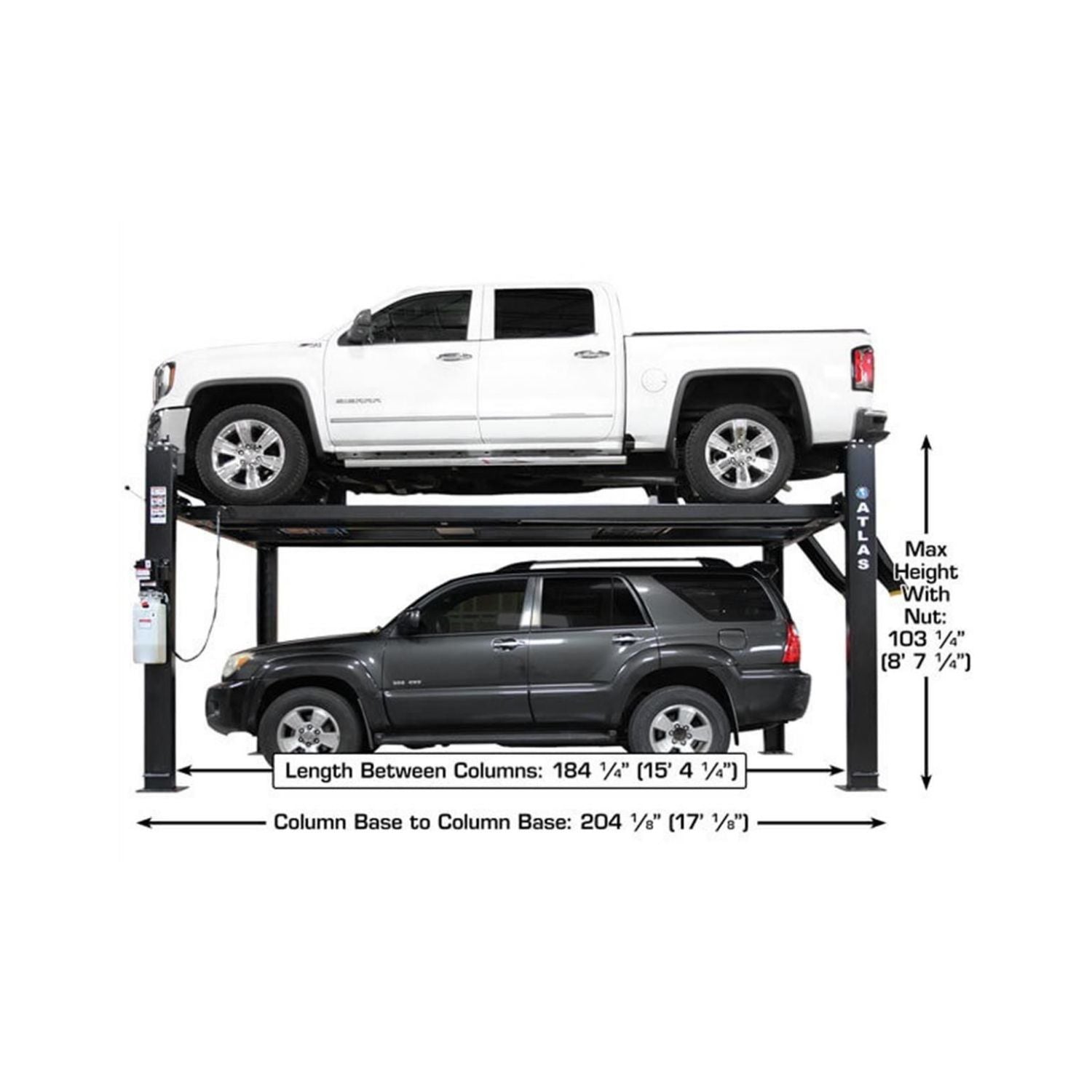

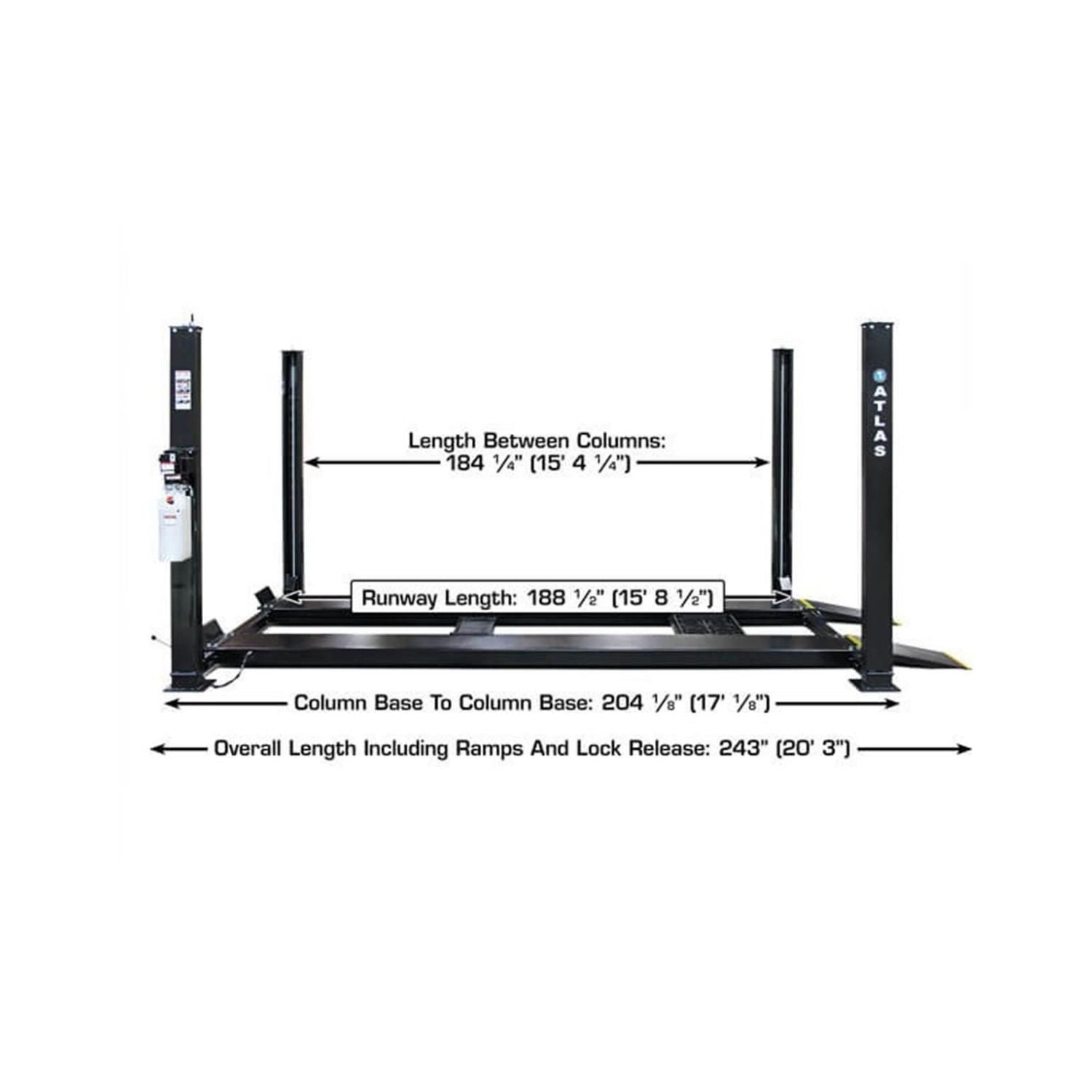

  Length Between Columns:	184 1/4" (15' 4 1/4")
  Drive Thru:	98 5/8" (8' 2 5/8")
  Motor/Electrical Requirement:	110V, 30 amp breaker required
  Oil Requirement:	3–5 gallons AW32 or AW46 (NOT INCLUDED)

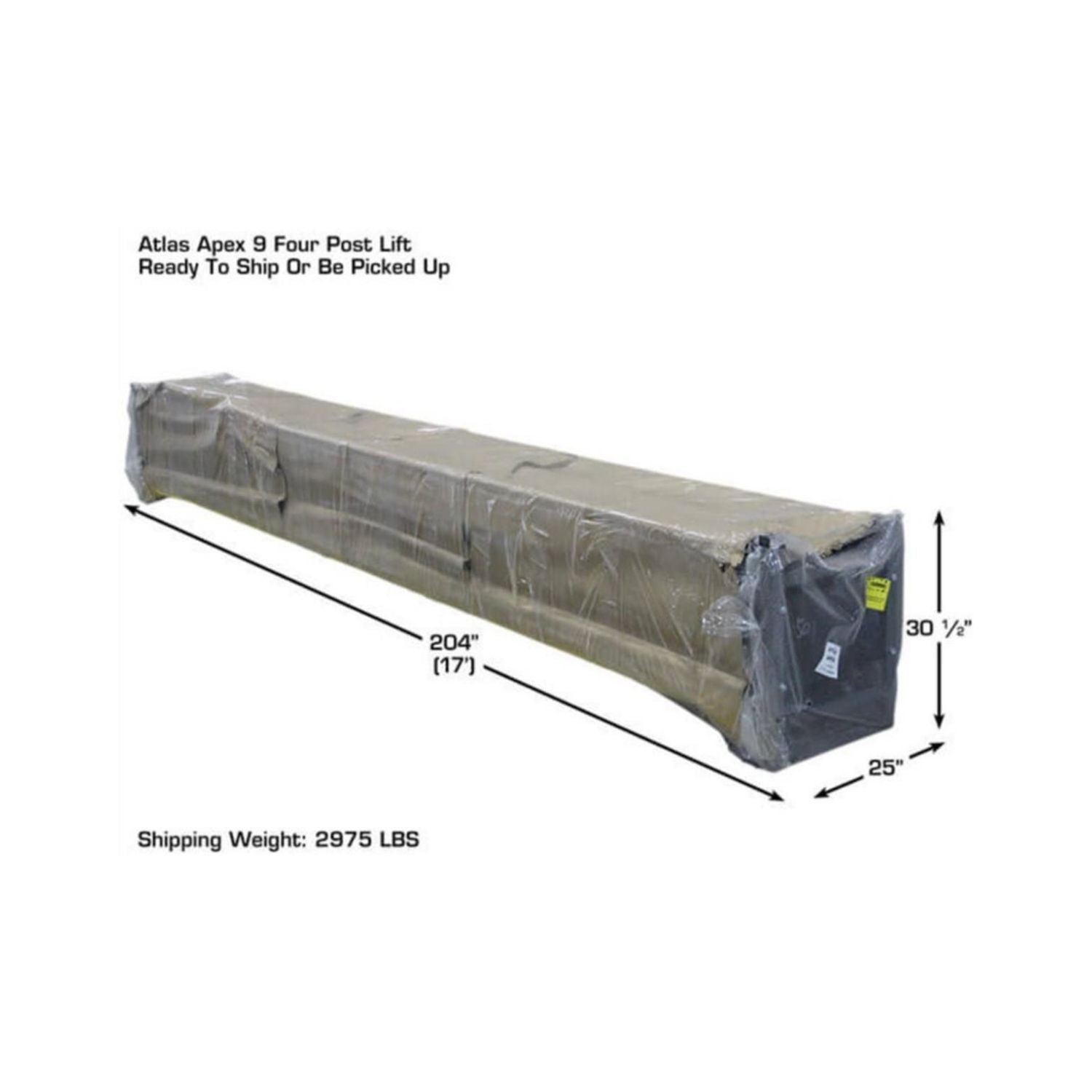

  Shipping Weight:	2,975 lbs

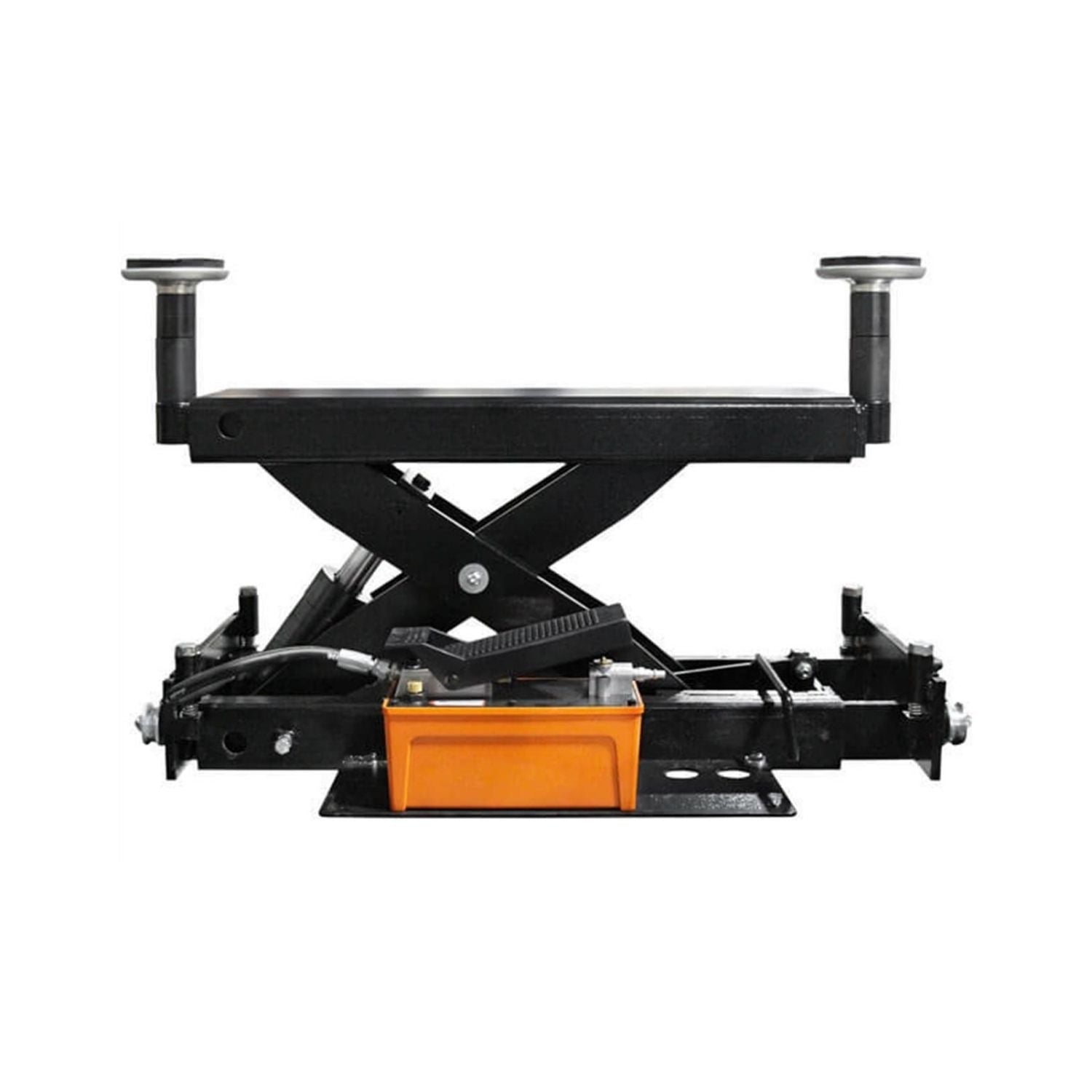

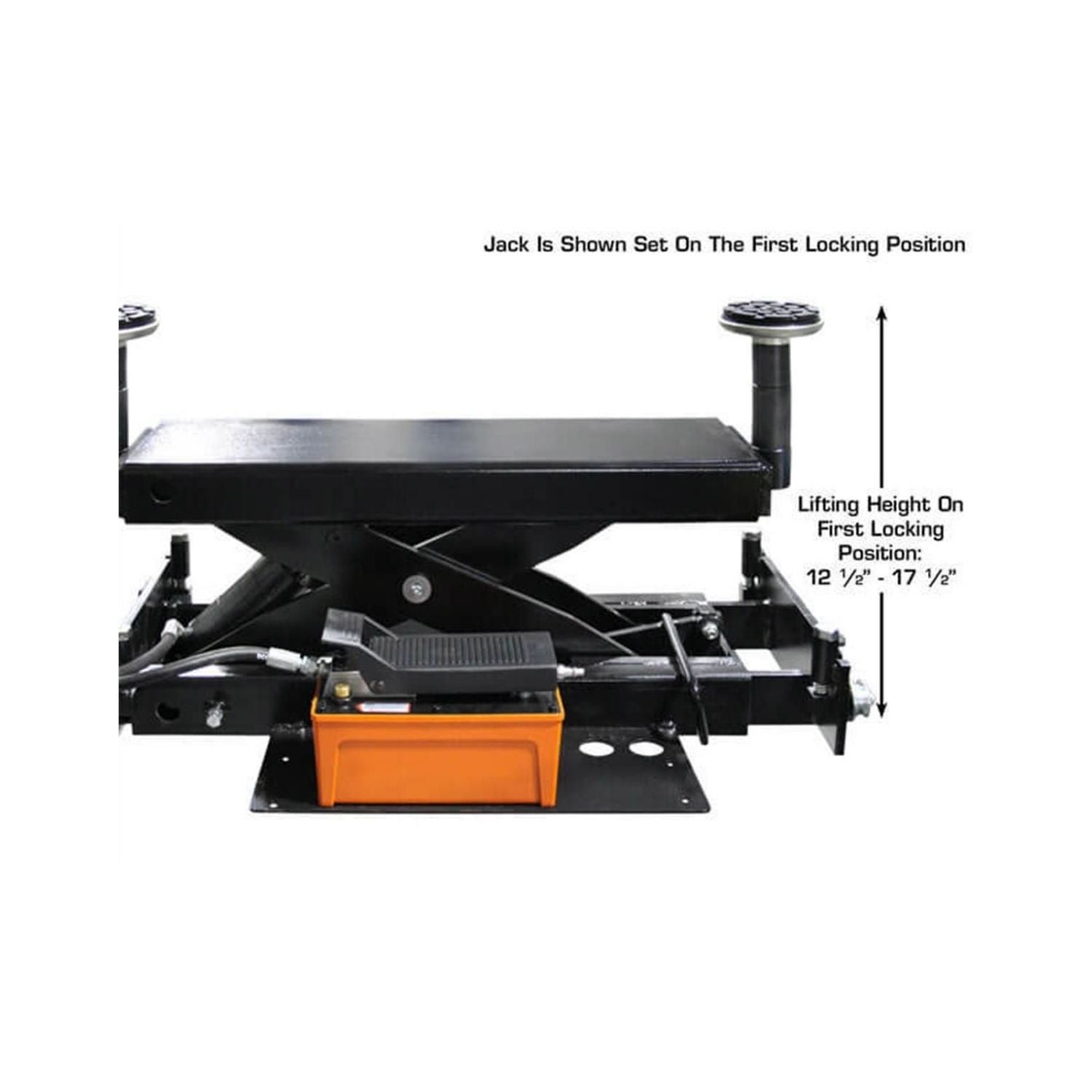

  Atlas® RJ6BK Jack Specifications

  Capacity:	6,000 lbs

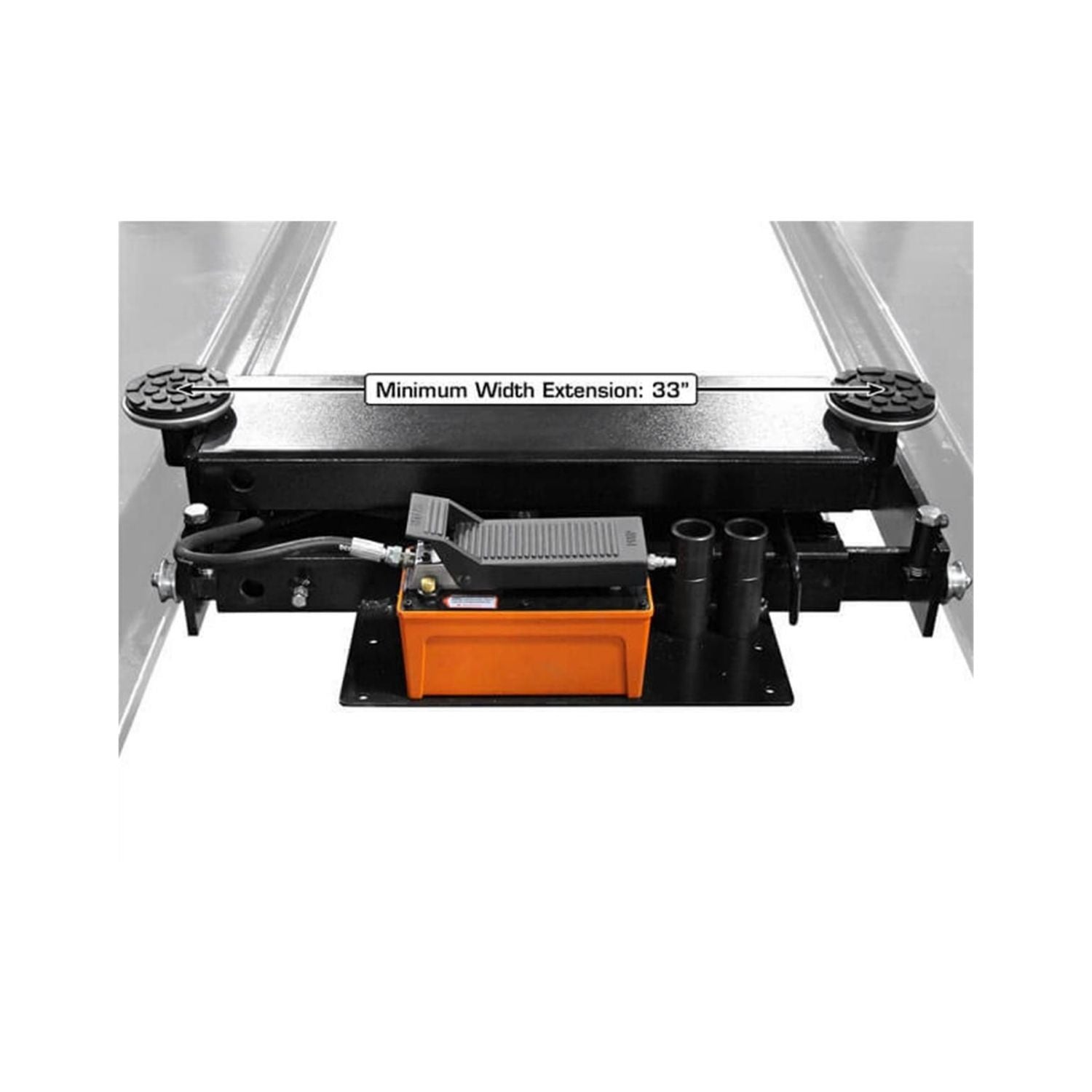

  Minimum Width:	35"

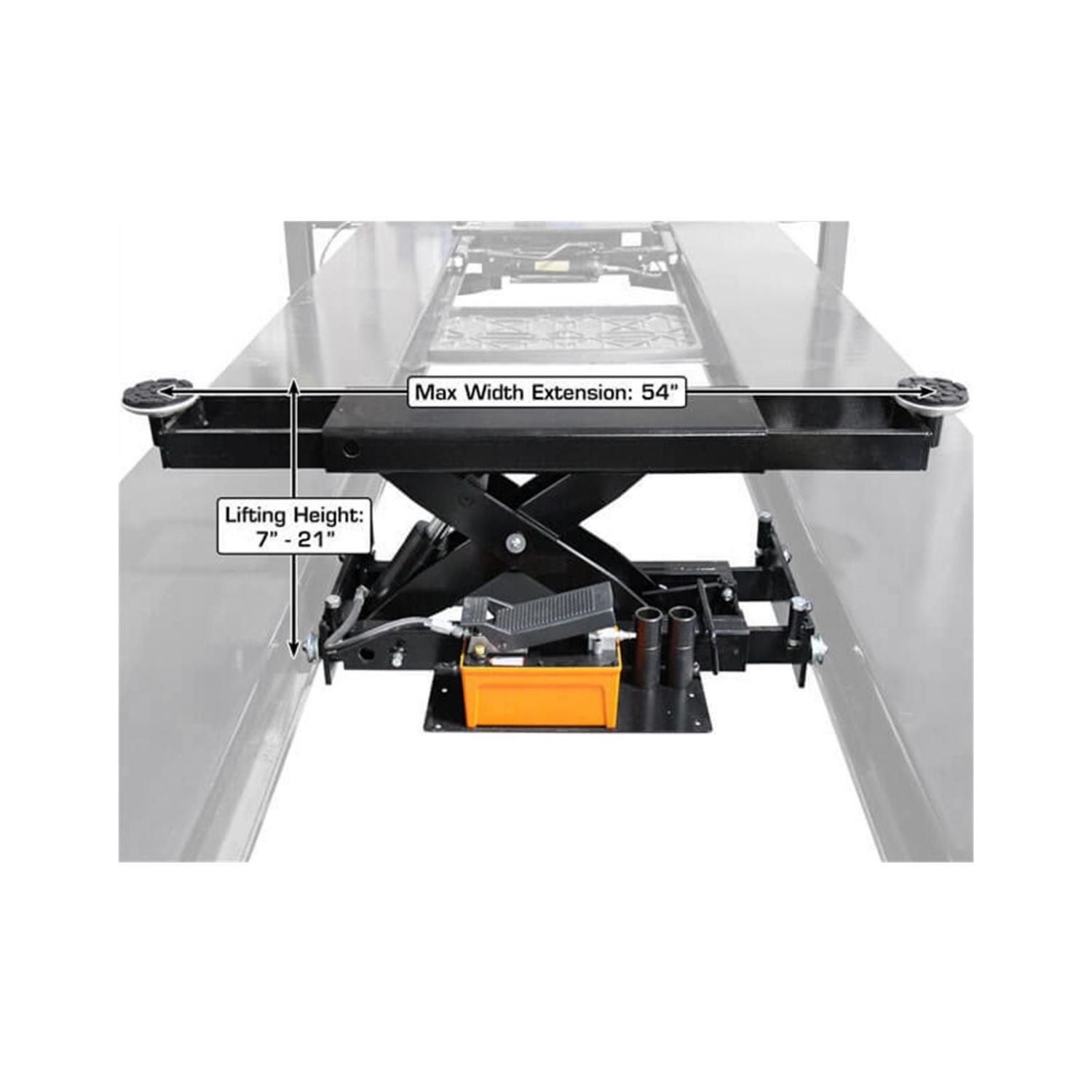

  Maximum Width:	55"
  Distance Between Runway Capability:	32" – 52"
  Minimum Lifting Height:	8 1/4"

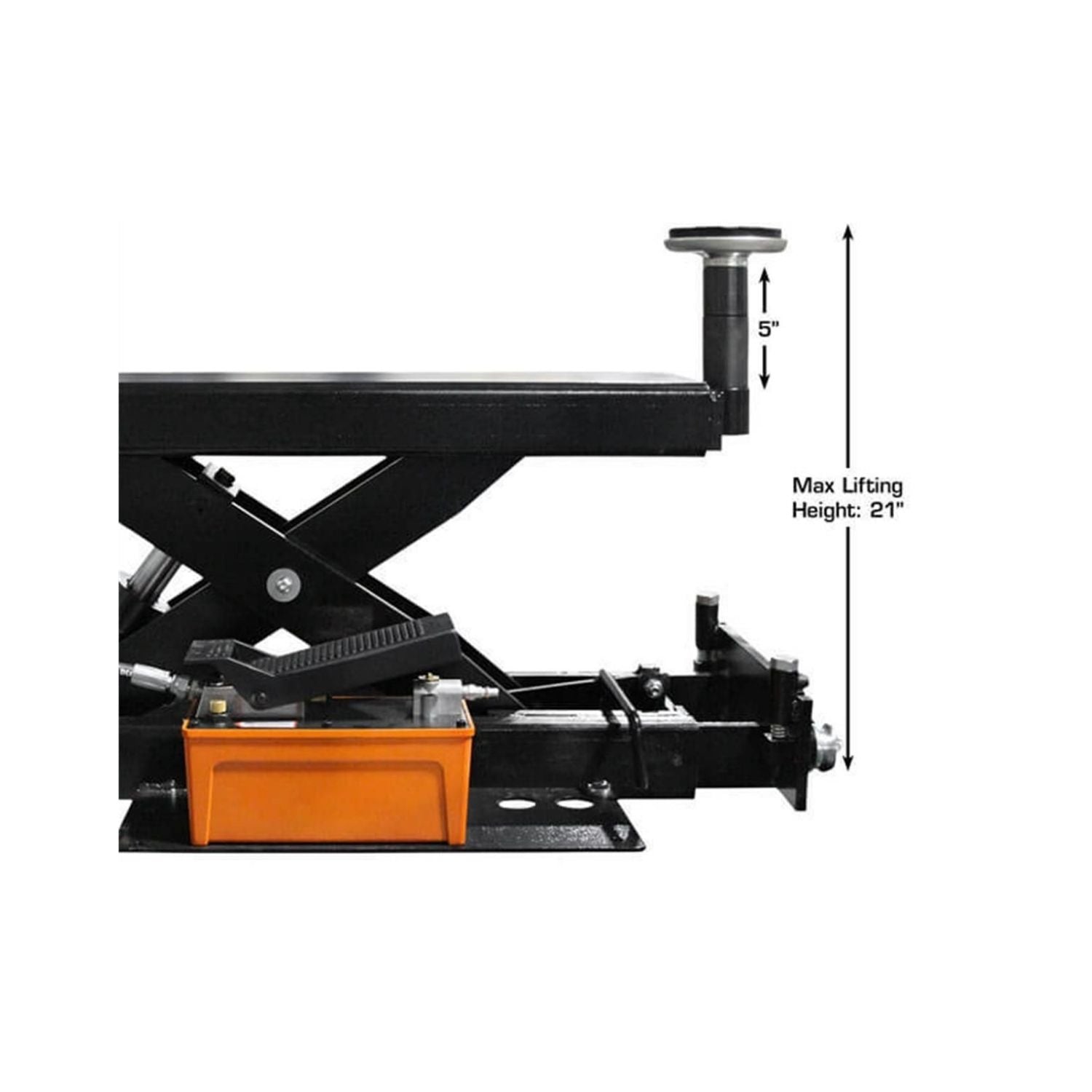

  Maximum Lifting Height (w/ Adapters):	21"
  Air Requirement:	70–115 PSI
  Adapter Heights:	2" and 3" (2 each)
  Arm Hole / Adapter Peg Size:	1 1/2"

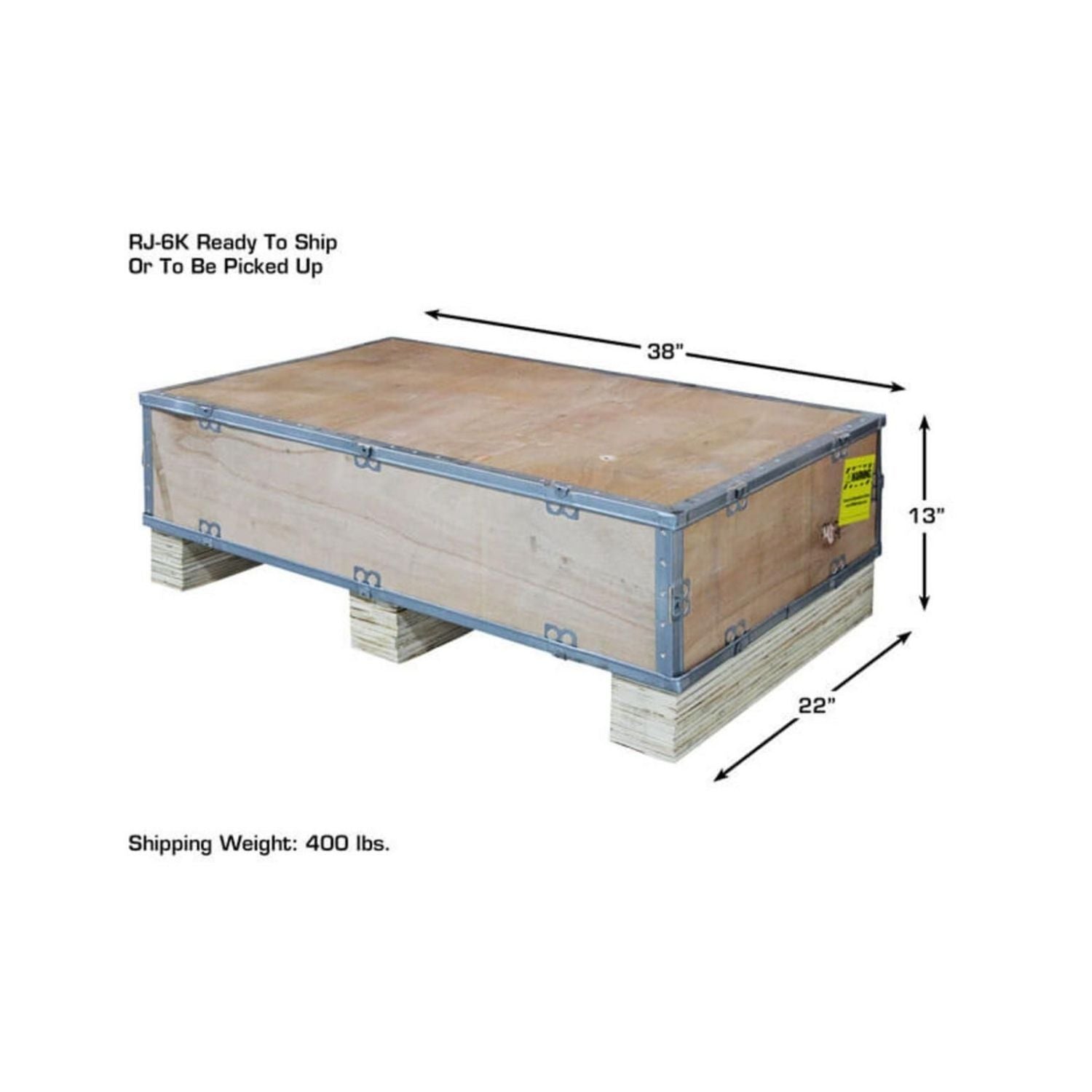

  Shipping Weight:	350 lbs
  UPC:	810524028905
  Country of Origin:	CHN

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
