BendPak 10APX High-Rise Two-Post Car Lift 10,000 lb #5175306
| Lifting Capacity | 10,000 lb |
| Max Capacity Per Arm | 2,500 lb |
| Lifting Height (Rise + Pad) | 79.5 in (89 in max with adapters) |
| Overall Height | 157 in |
| Overall Width | 135 – 145 in (narrow or wide config) |
| Drive-Thru Clearance | 92 – 102 in |
| Power | 5 HP, 208-230V / 60 Hz / 1-Phase |
| Lifting Time | 45 seconds |
| ALI Certified | Yes — stated on BendPak's product page |
| Warranty | 5 yr structure / 2 yr hydraulics & power unit / 1 yr components |
- Steel-reinforced concrete: minimum 4.25 in thick, 3,000 psi, cured 28 days
- Anchors must sit more than 6 in from cracks, expansion joints, and walls
- Verify the slab is not post-tension before drilling
- 208-230V, 60 Hz, single-phase service for the 5 HP power unit
- Dedicated circuit recommended — have an electrician confirm service
- Confirm before the truck arrives
- 157 in columns — real headroom required for high-rise work
- Floor-to-overhead-switch is 151.5 in; check door tracks, lights, and ducts
- Narrow or wide configuration sets the 92–102 in drive-thru

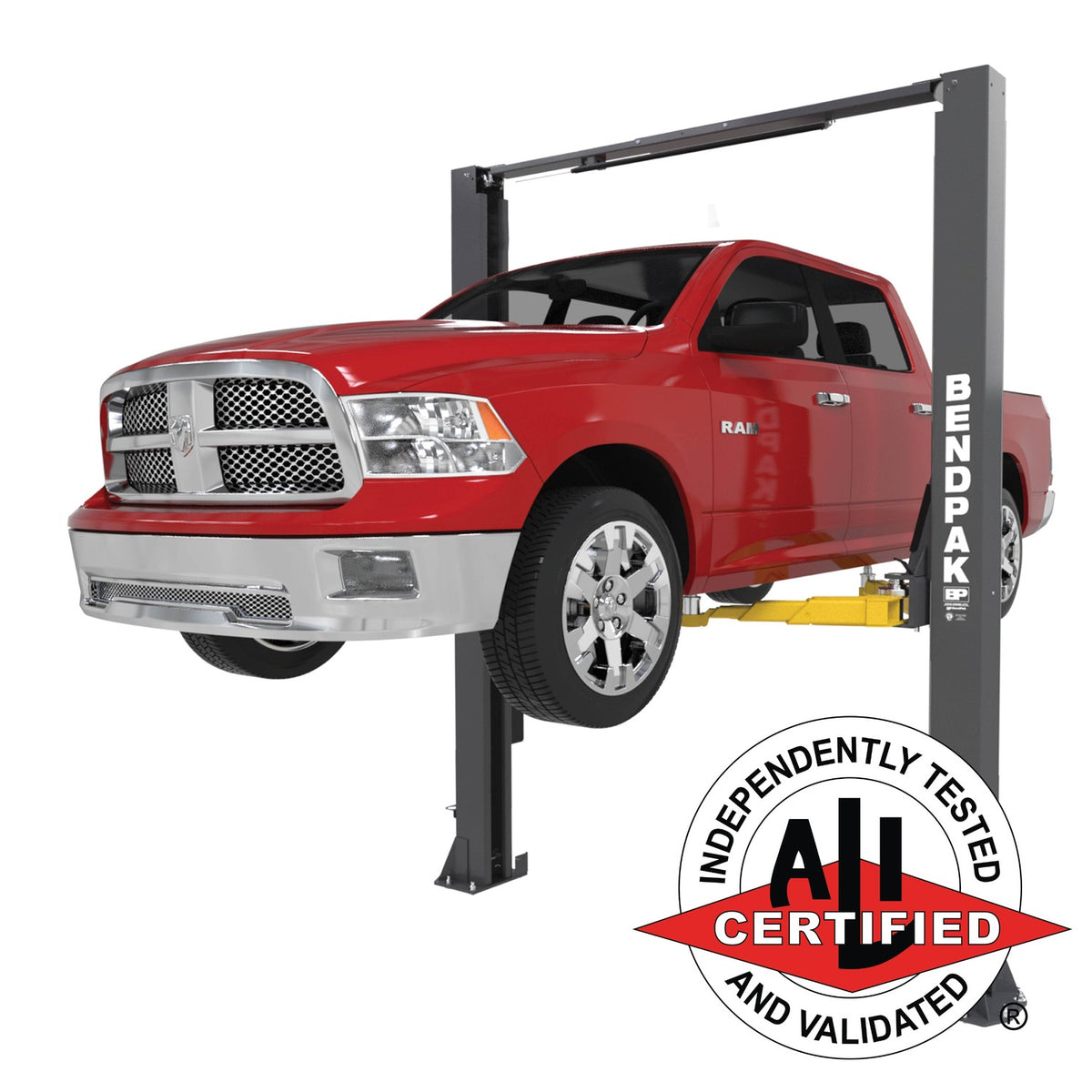

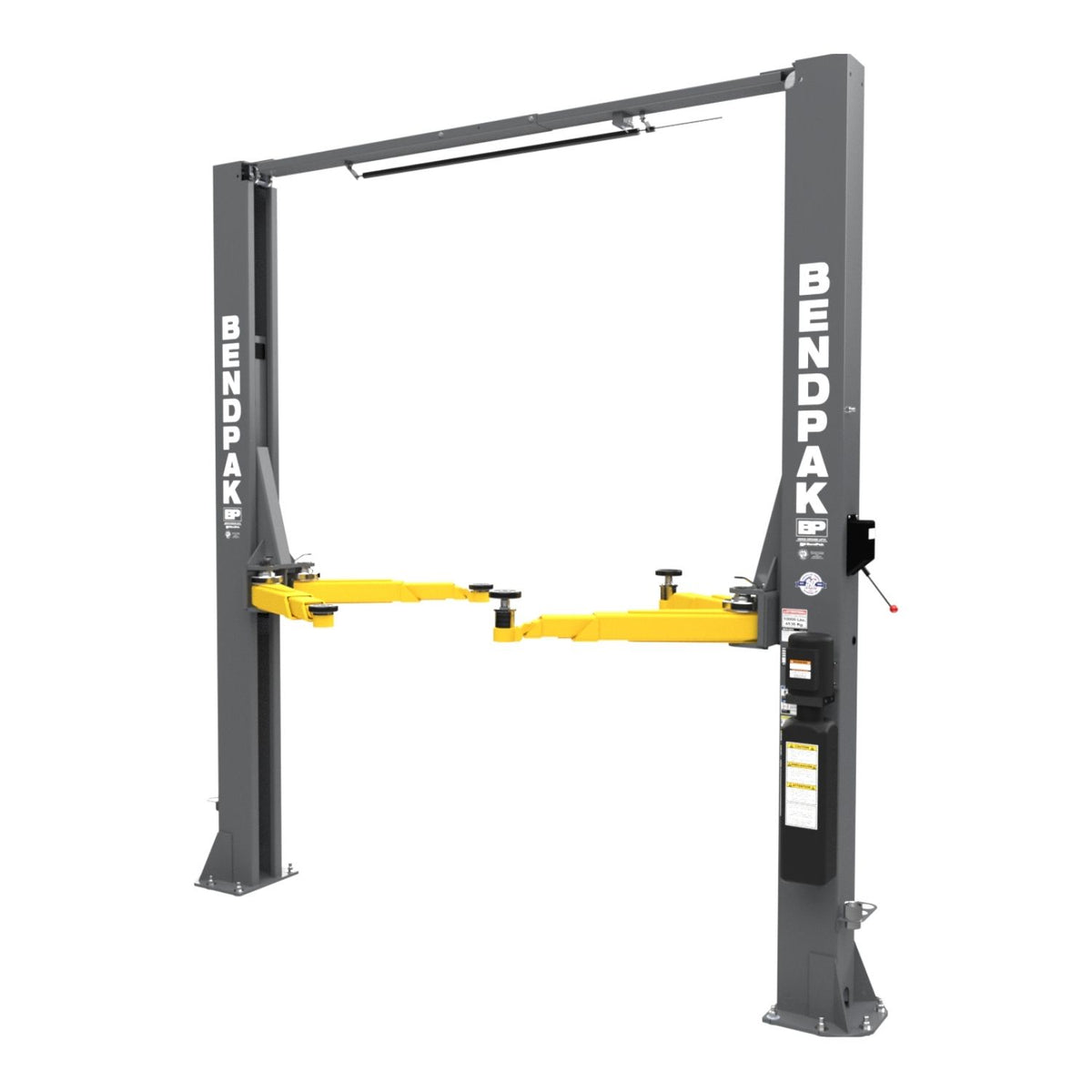

BendPak 10APX — 10,000 lb High-Rise Two-Post Car Lift
Working height is the difference between standing at the vehicle and folding yourself under it. The BendPak 10APX is the high-rise version of BendPak's 10AP platform: a 10,000 lb clearfloor two-post lift with a 157-inch overhead structure that carries the pads to 79.5 inches of lifting height — extra under-vehicle room for the service work shops actually do all day, on cars, trucks, SUVs, and many modern EVs.
The height is only half of it. Low-Pro triple-telescoping arms reach under lower chassis, Bi-Metric positioning handles symmetric and asymmetric spotting, and the Automatic Swing Arm Restraint System keeps the arms where you set them with 360-degree engagement and more than 2,000 lb of side-force resistance. Dual direct-drive hydraulic cylinders and BendPak's AP-Series safety engineering carry the load — and the 10APX is ALI certified, as stated on BendPak's own product page.
Who the BendPak 10APX Is Built For
- Professional service bays that want standing-height under-car work — 79.5 inches of lifting height (89 inches maximum with adapters) under a 157-inch overhead structure built for real ceilings.
- Shops that specify ALI certification — BendPak states the 10APX is ALI certified on their own product page, and certification is verifiable through the Automotive Lift Institute at autolift.org.
- Techs who service EVs and low-slung modern vehicles — Low-Pro arm geometry, wide column spacing, and increased arm travel reach lift points that older two-posts struggle with.
- Shops that want spotting flexibility — Bi-Metric arms support symmetric and asymmetric lifting, and the lift installs in a narrow (135 in) or wide (145 in) configuration to match the bay.
- Bays already verified for the install — 4.25 inches of steel-reinforced 3,000 psi concrete and 208-230V single-phase power — so the 10APX drops into a bay that's ready.
What the BendPak 10APX Is NOT Built For
This is not the lift for low-ceiling bays — the overhead structure stands 157 inches before a vehicle is ever on the arms, and a bay that can't carry it needs a shorter two-post, not a modified ceiling. It's also not for vehicles over 10,000 lb, not for drive-on wheel service, and not for alignment work.
Important sizing note: measure ceiling against the 157 in columns plus vehicle height at full rise, floor width (135–145 in depending on configuration), and confirm loaded weight before purchase.
What Makes the BendPak 10APX Different
High-rise working height, standard AP-Series footprint
The 75.5-inch rise carries pads to 79.5 inches — and 89 inches maximum with adapters — while the clearfloor layout keeps the space beneath the vehicle open for carts, drain pans, and people.
- 157 in overall height
- 79.5 in lifting height (89 in max with adapters)
- Clearfloor design

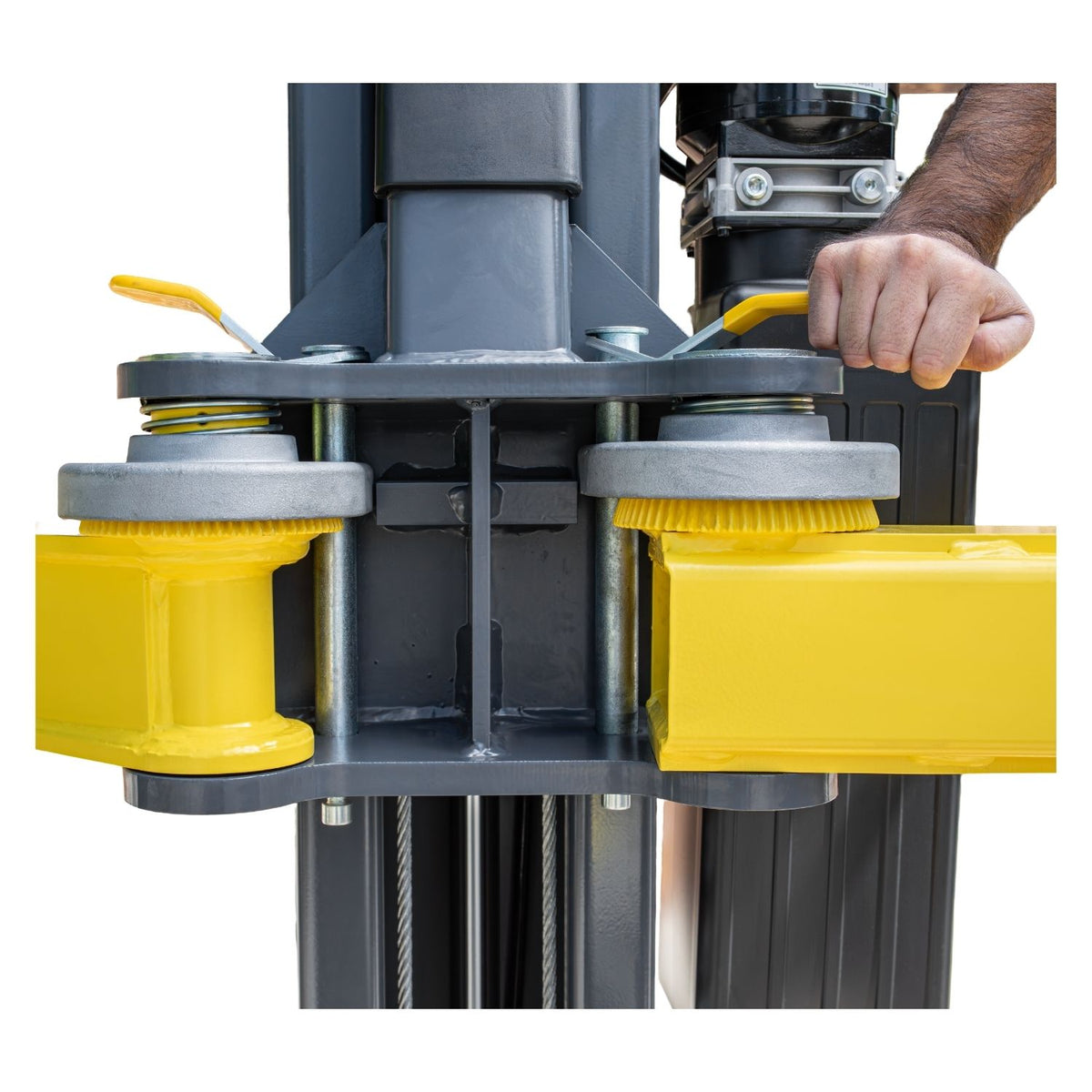

ASARS arm restraint plus triple-telescoping reach

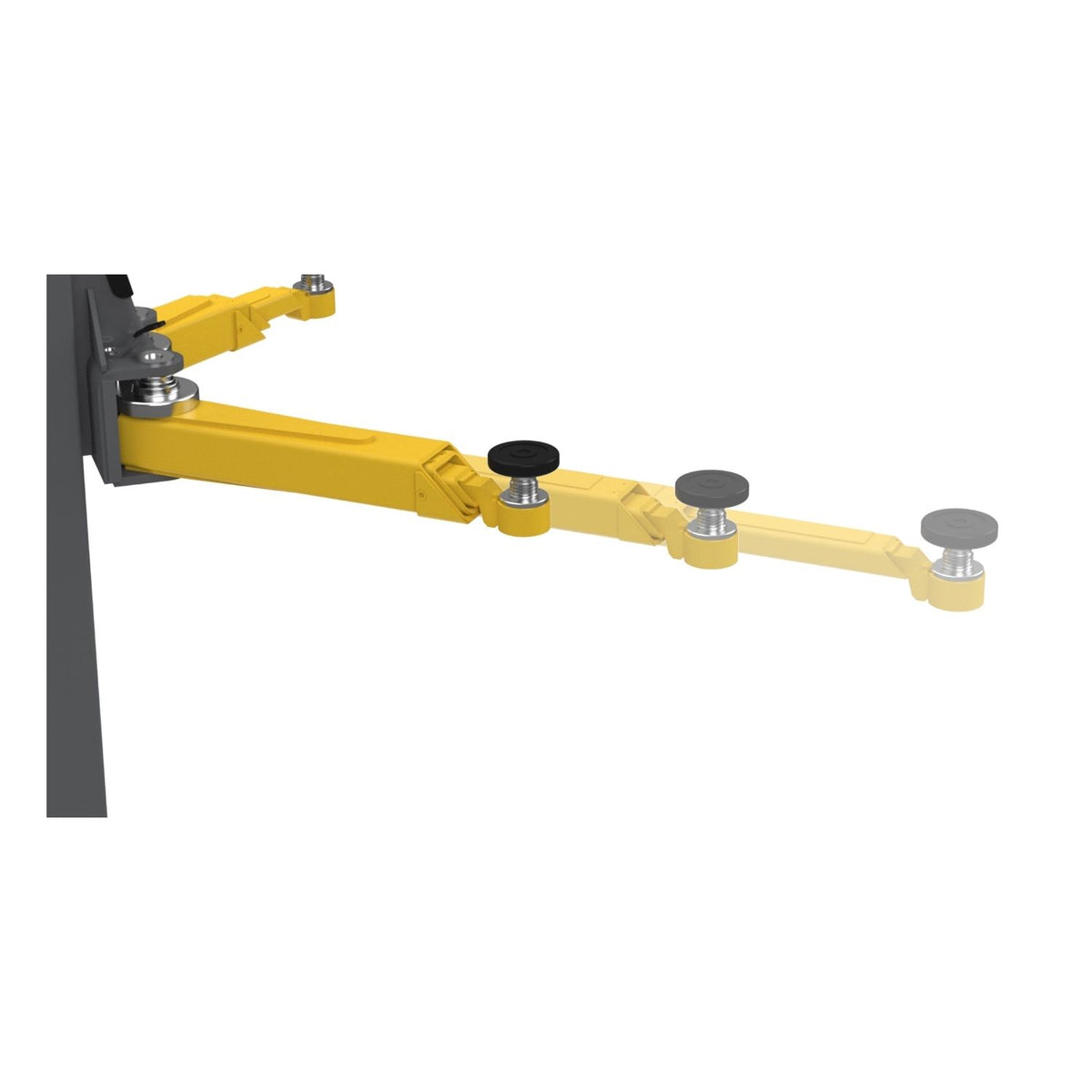

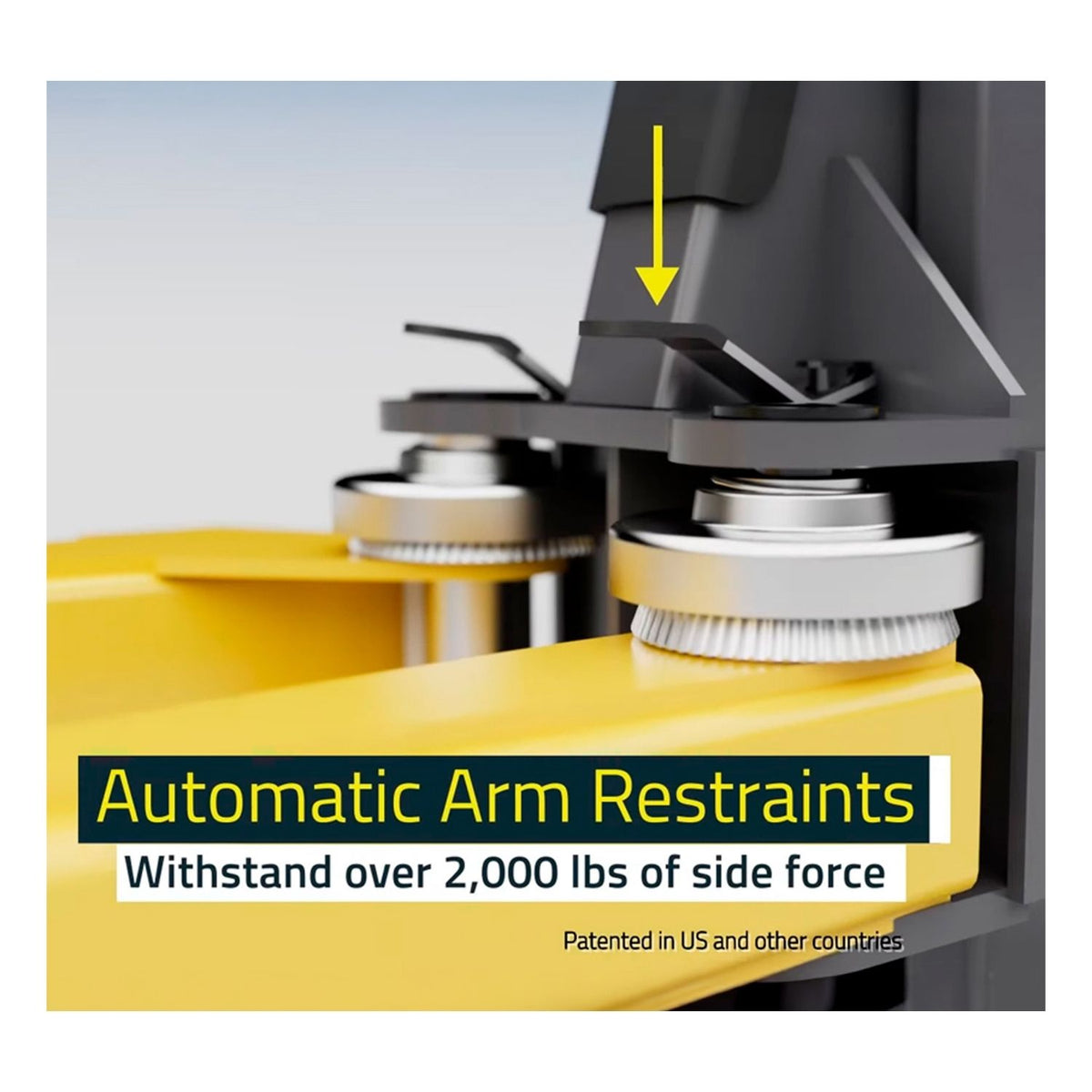

The Automatic Swing Arm Restraint System holds arms in position with 360-degree load-holding grip and more than 2,000 lb of side-force resistance, while patented triple-telescoping nested arms retract shorter and extend farther than traditional arms.
- Low-Pro arm geometry for lower chassis

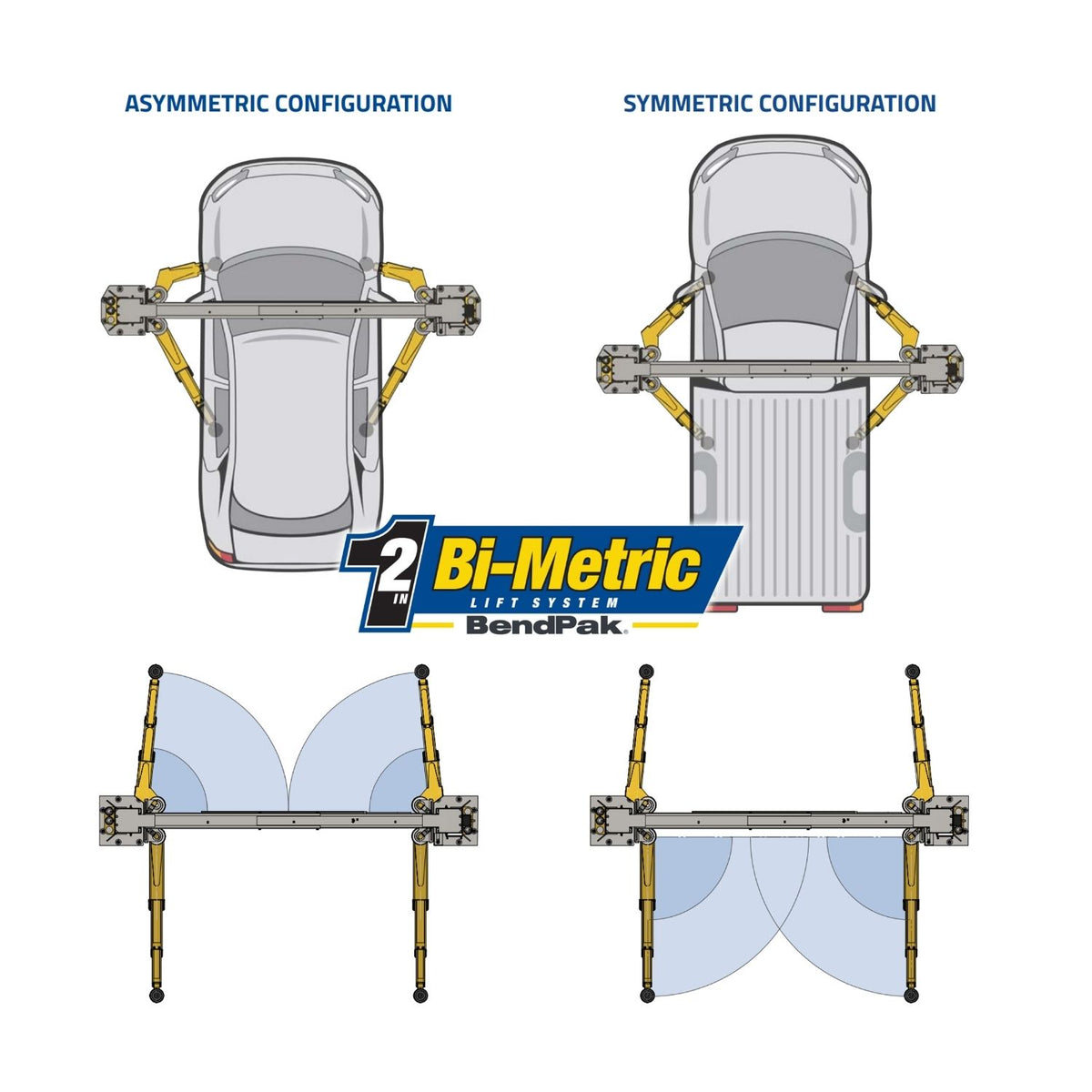

- Bi-Metric symmetric / asymmetric positioning
- Front arm reach 24.5–50 in; rear 32–59.25 in
Direct-drive hydraulics with locks every 3 inches
Dual direct-drive hydraulic cylinders on an electric-hydraulic HVLP power system, oversized tall carriages, high-strength galvanized equalizing cables, and self-lubricating Dura-Glide UHMW bearings. Safety locks engage every 3 inches, and single-point safety release means no walking the lift to lower it.
Built and documented for professional duty

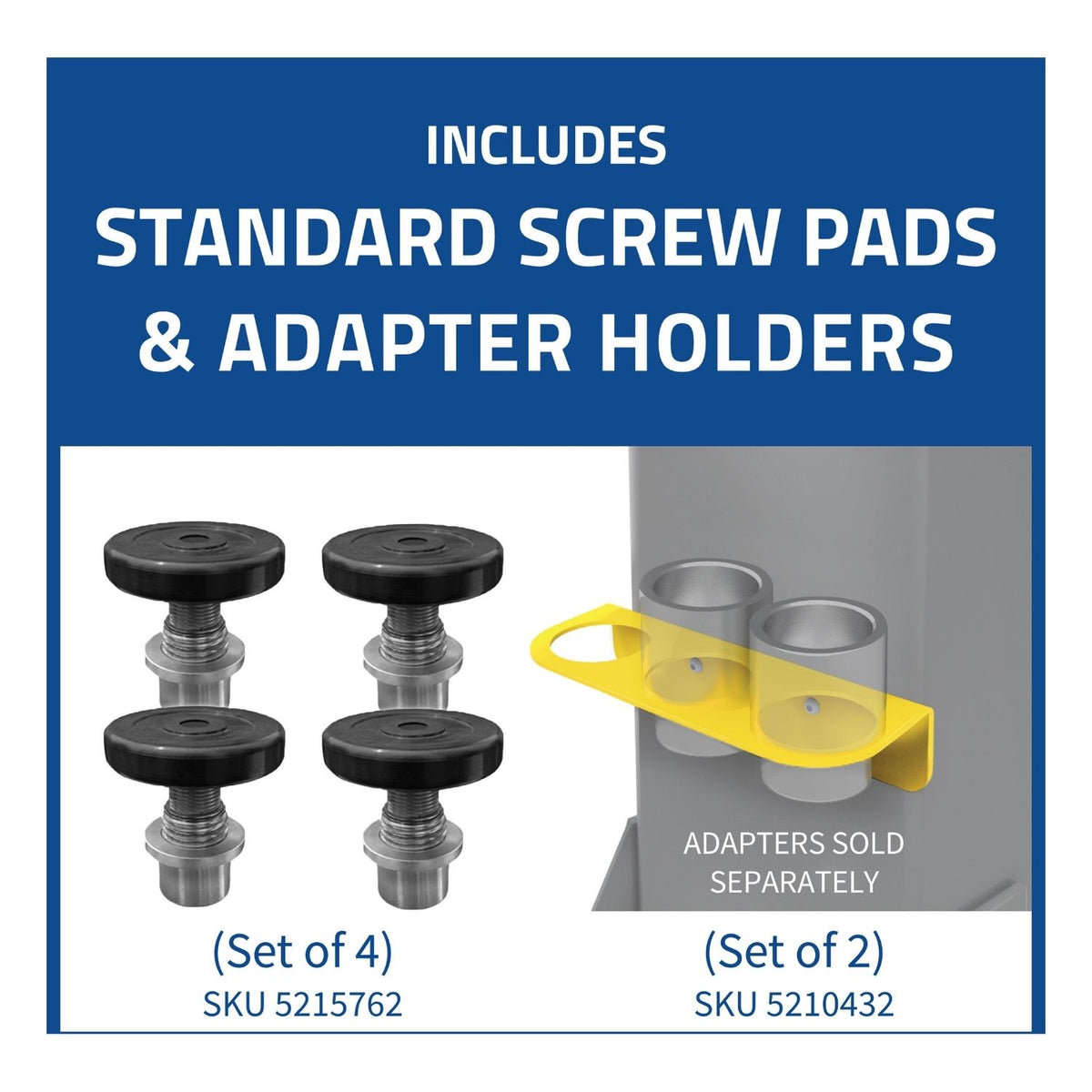

Powder coat finish, padded overhead safety shutoff bar, expandable top beam, double-telescoping screw pads with polyurethane contact surfaces, and optional stackable adapters for extra vertical reach — with BendPak's installation/operation manual and ALI certification behind it.
Best For
- Standing-height under-car service to 10,000 lb
- EV and low-chassis modern vehicles
- Symmetric or asymmetric spotting
- Shops specifying ALI certification
Not Ideal For
- Low-ceiling bays
- Vehicles over 10,000 lb
- Drive-on wheel service
- Alignment work
BendPak 10APX vs BendPak OctaFlex 12DPS — two BendPak two-posts, two missions
| Spec | BendPak 10APX | BendPak OctaFlex 12DPS |
|---|---|---|
| Lifting capacity | 10,000 lb | 12,000 lb primary system |
| Arm system | 4 arms (2,500 lb max each) | 8 arms: 4 primary + 4 auxiliary lift-assist |
| Lifting height | 79.5 in (89 in max w/ adapters) | 86.75 in max (primary, with pad) |
| Overall height | 157 in | 173.5 in |
| Overall width | 135 – 145 in | 161 in |
| ALI certified | Yes — stated on BendPak's page | Not stated by BendPak |
| Built for | High-rise general service | Cab-off & EV battery component support |
The 10APX is the high-rise generalist for daily service. The OctaFlex trades some ceiling for an eight-arm platform that supports cabs and battery packs while the vehicle is in the air.
Full Specifications - BendPak 10APX
Lifting & Rise
| Lifting capacity | 10,000 lb |
| Max capacity per arm | 2,500 lb |
| Rise | 75.5 in |
| Rise + pad (lifting height) | 79.5 in |
| Max lifting height with pad | 89 in |
| Min lifting height with pad | 4 in |
| Lifting time | 45 seconds |
Dimensions
| Overall height | 157 in |
| Overall width | 135 – 145 in (narrow or wide configuration) |
| Outside columns | 127.5 – 137.5 in |
| Inside columns | 108.5 – 118.5 in |
| Drive-thru clearance | 92 – 102 in |
| Floor to overhead switch | 151.5 in |
Arms & Pads
| Front arm reach | 24.5 – 50 in |
| Rear arm reach | 32 – 59.25 in |
| Screw pad adjustment | 2 in |
| Arm restraint | ASARS automatic swing arm restraint — 360-degree engagement, 2,000+ lb side-force resistance |
Power & Delivery
| Power unit | 5 HP |
| Voltage | 208-230V / 60 Hz / 1-Phase |
| Sound level | Under 70 dB |
| Shipping weight | 1,840 lb |

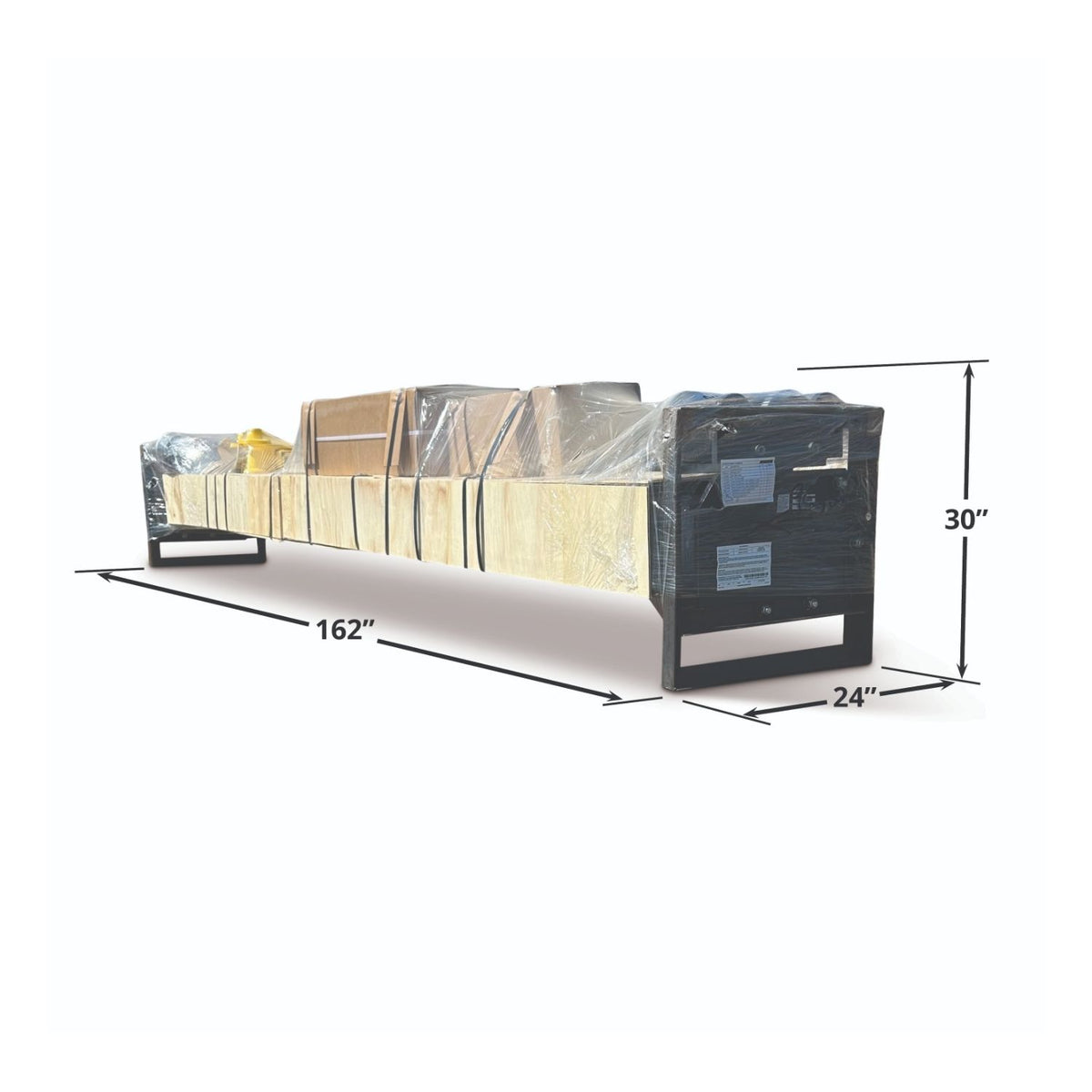

| Shipping dimensions | 24 x 163 x 29 in |
| Delivery / offload | Flatbed; forklift offload required |
⚠️ Installation Requirements
- Anchor per the BendPak AP-Series installation manual — steel-reinforced concrete, minimum 4.25 in thick, 3,000 psi, cured 28 days minimum
- Anchors must be more than 6 in from cracks, expansion joints, and walls; verify the slab is not post-tension
- Electrical: 208-230V, 60 Hz, single-phase for the 5 HP power unit — have an electrician confirm service
- Overhead structure stands 157 in — confirm ceiling, door tracks, lights, and ducts before install day
- Ships flatbed at 1,840 lb — forklift offload required; Alamo coordinates delivery and performs the installation
BendPak Warranty - BendPak 10APX
BendPak covers the 10APX under its published two-post lift limited warranty — structure, hydraulics, and components each covered separately, coordinated through Alamo.
| Component | Coverage Term |
|---|---|
| Lift structure | 5 years |
| Hydraulic cylinders and power unit | 2 years |
| Operating components | 1 year |
| Electrical components (excluding power unit) | 1 year |
| Labor (on site or at factory) | 1 year |
| Ground freight for warranty performance | 1 year |
Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
❓ Frequently Asked Questions - BendPak 10APX
What ceiling height does the 10APX need?
The overhead structure stands 157 inches, and the floor-to-overhead-switch height is 151.5 inches. Add the vehicle height at the 79.5-inch working rise when measuring your bay — and remember adapters add reach above the pads.
Is the 10APX ALI certified?
Yes. BendPak states ALI certification for the 10APX on their own product page, and current certification can be verified through the Automotive Lift Institute directory at autolift.org (link on this page).
What concrete and electrical does it need?
Steel-reinforced concrete at least 4.25 inches thick with a 3,000 psi rating, cured 28 days minimum, with anchors set more than 6 inches from cracks and expansion joints. Power is 208-230V, 60 Hz, single-phase for the 5 HP unit.
Can it be installed narrow or wide?
Yes — overall width can be set at 135 inches (narrow) or 145 inches (wide), which sets the drive-thru clearance at 92–102 inches. Measure the bay and choose the configuration before install day.

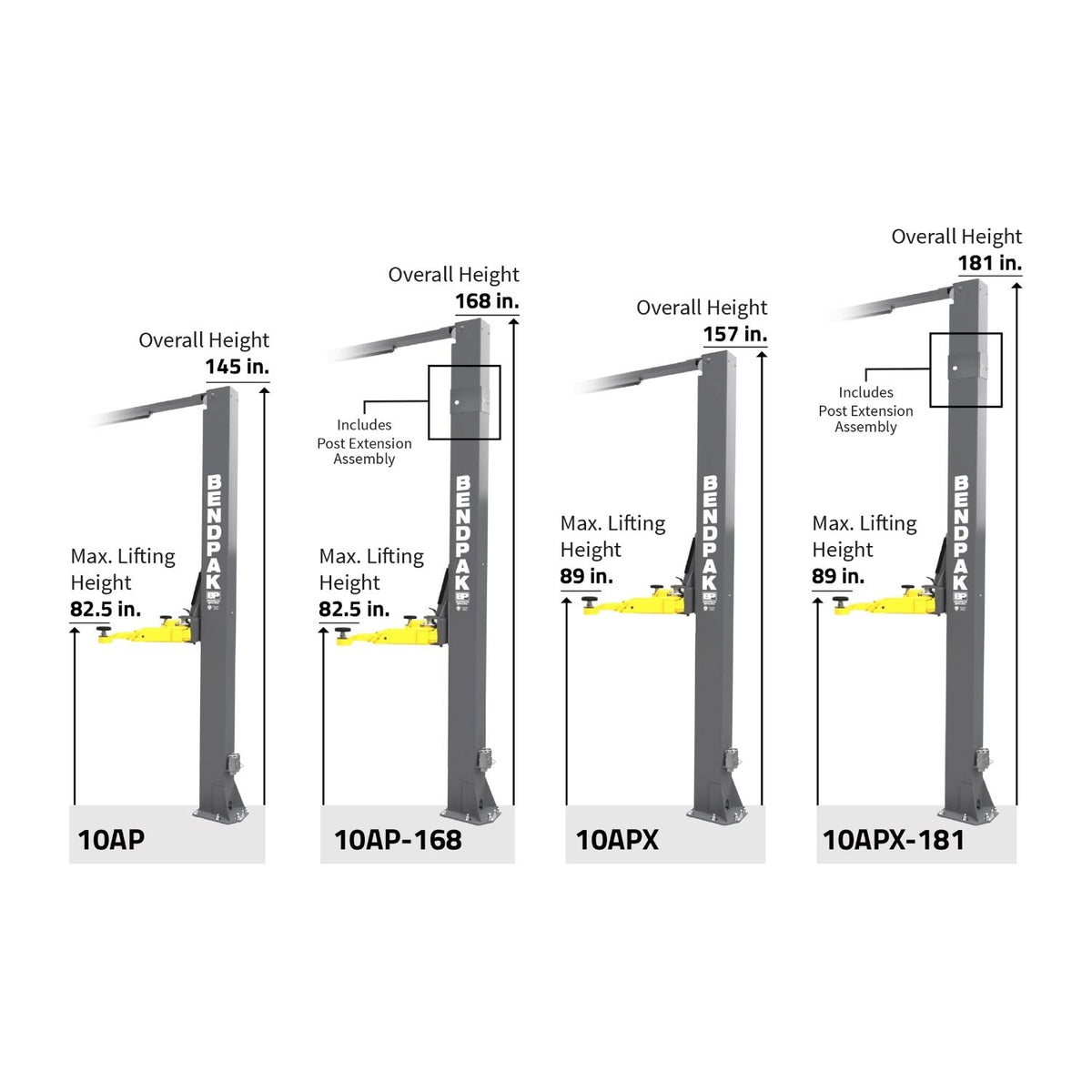

How does the 10APX differ from the standard-rise 10AP?
Same AP-Series platform and safety engineering — the 10APX is the high-rise version, with a taller overhead structure and more lifting height for shops that want standing-height working room under the vehicle.
Why Buy the BendPak 10APX from Alamo Equipment & Service?
- We install it. Slab verification, anchoring, and wiring by one Alamo crew — the 4.25 in / 3,000 psi concrete requirement is checked before a single anchor is drilled.
- We service it. Direct-drive hydraulics, ASARS restraints, and lock maintenance from the team that installed it.
- We size the bay with you. The 157 in structure is a ceiling commitment — send us the ceiling number and the vehicle mix before you order.
- Freight handled. 1,840 lb arrives by flatbed; we coordinate delivery and offload with your shop.
- Expert comparison help. High-rise versus standard-rise, narrow versus wide, BendPak versus the other lines we install — call and get the straight answer for your bay.
