Atlas® 12AWFSL Alignment Lift & RJ-6 Combo #ATEATTD-12AWFSL-COMBO-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® 12AWFSL Alignment Lift and RJ-6 Combo is a complete heavy-duty solution for wheel alignment and vehicle service in professional shops.

  This system combines a 12,000 lb alignment lift with integrated runway lifting capability and an RJ-6 rolling jack, allowing technicians to perform wheel-free service for brake, suspension, and alignment work. The combination enhances workflow efficiency and reduces the need for additional equipment.

• FEATURES AND BENEFITS

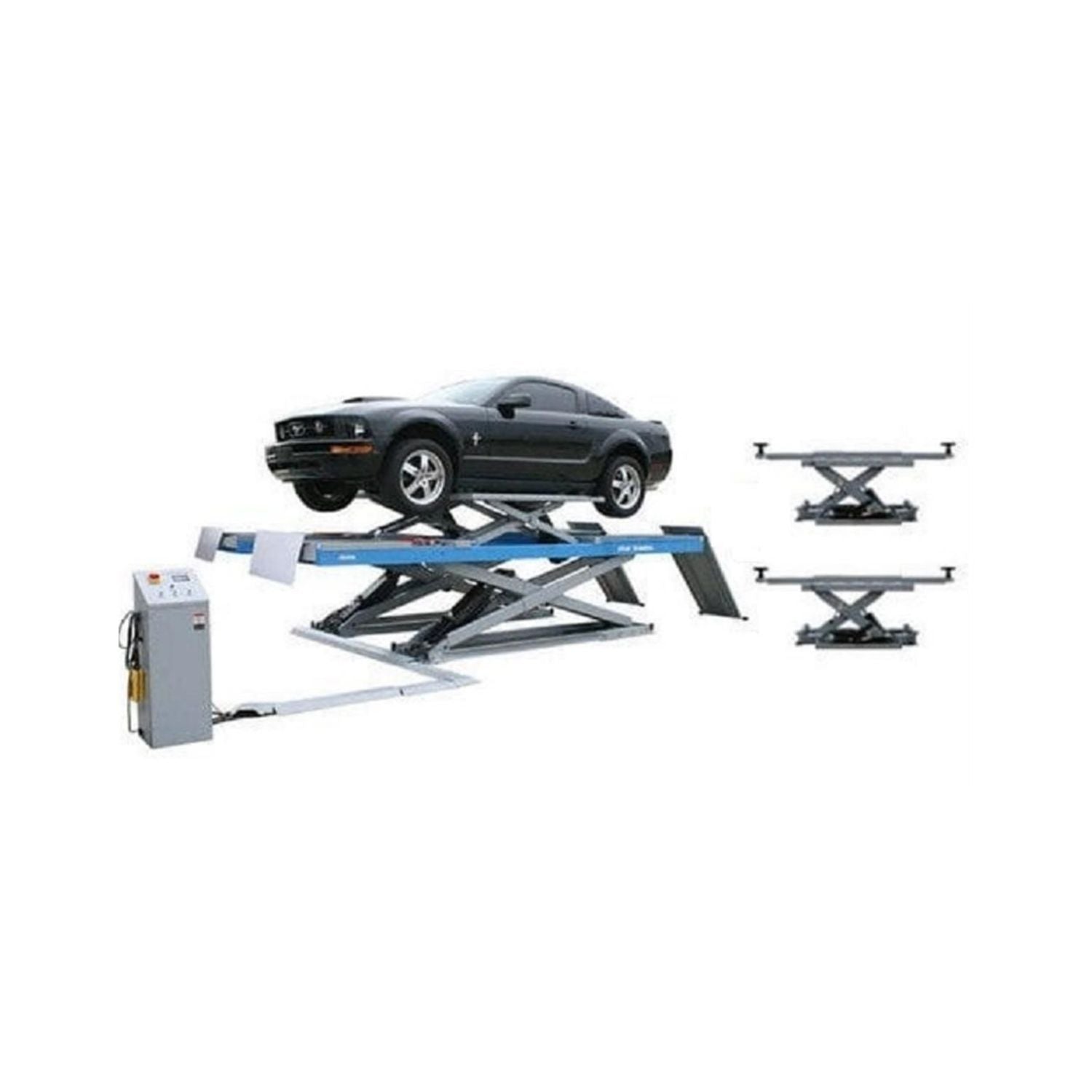

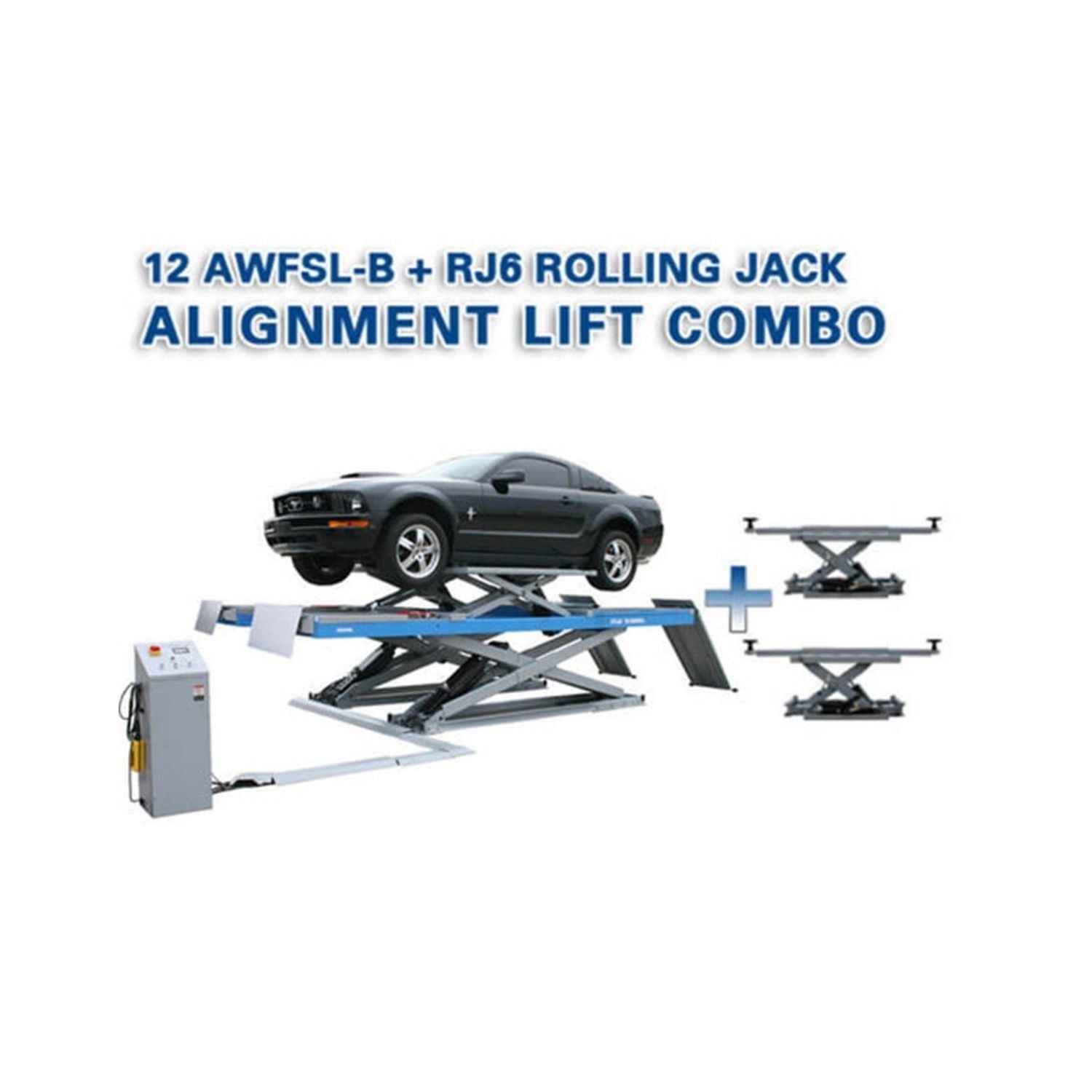

  • Combo includes 12AWFSL scissor alignment lift & two RJ-6 rolling jacks
  • Commercial Grade
  • "Wheels Free" Lifting System

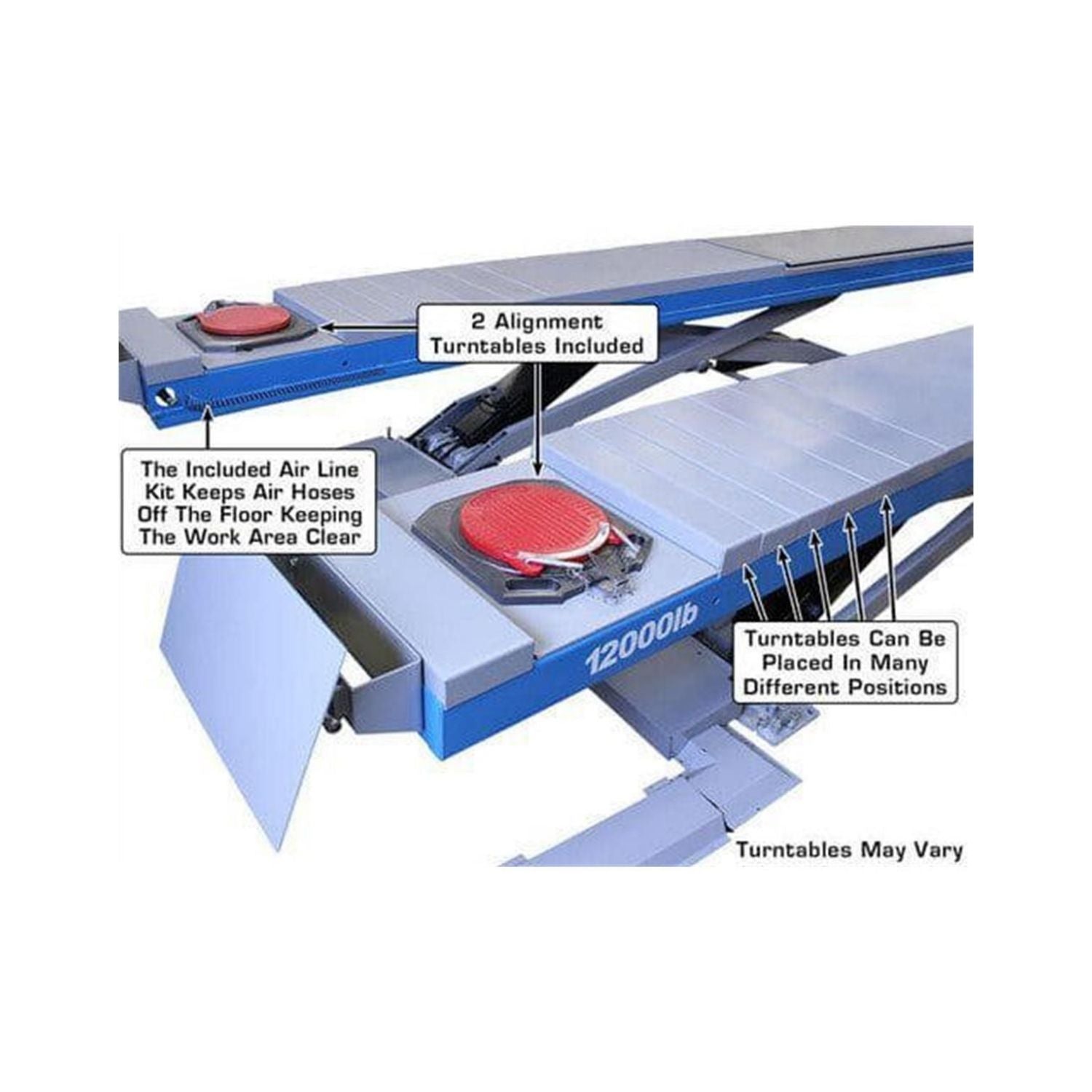

  • Built-in Slip Plates and Alignment Turntables Included
  • Turntable Covers Included
  • Open Center Design for Easy Access

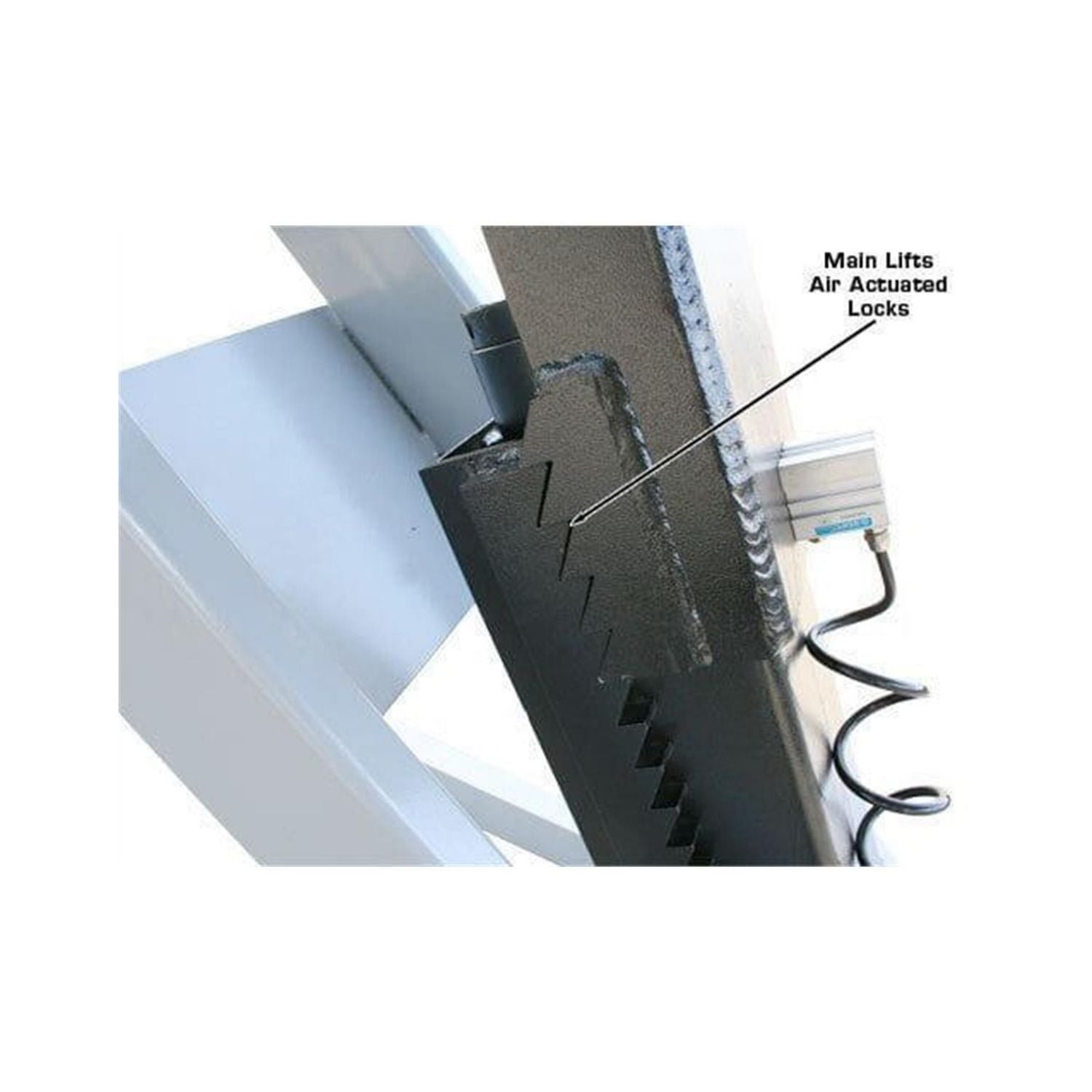

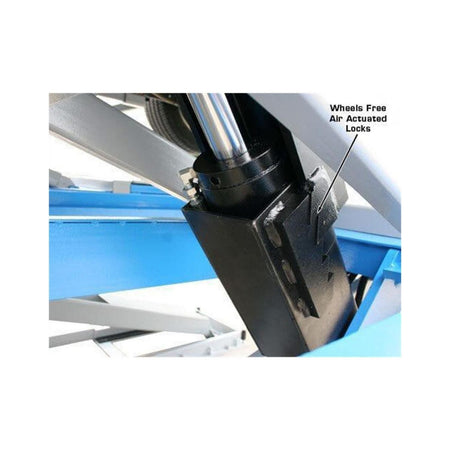

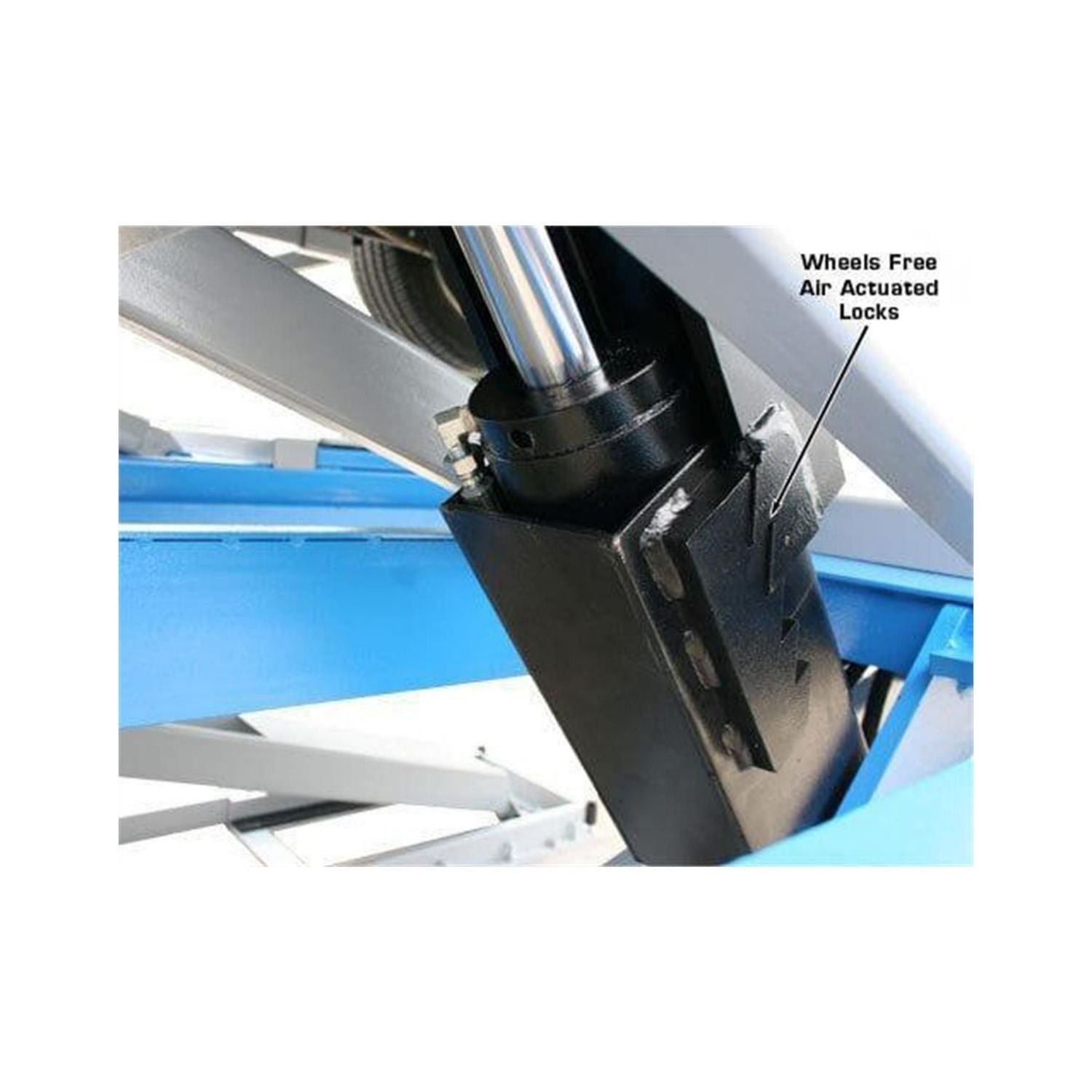

  • Air-Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)

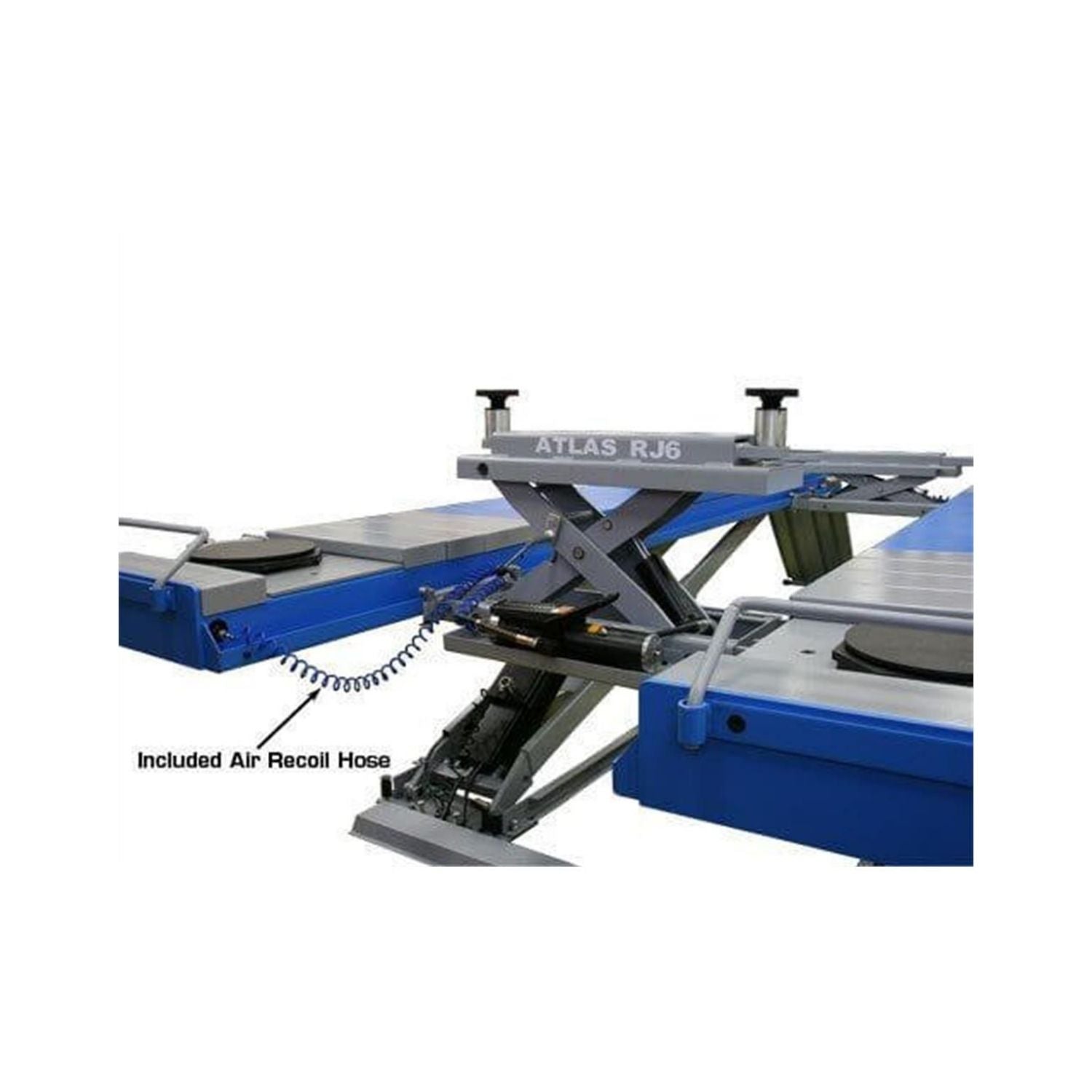

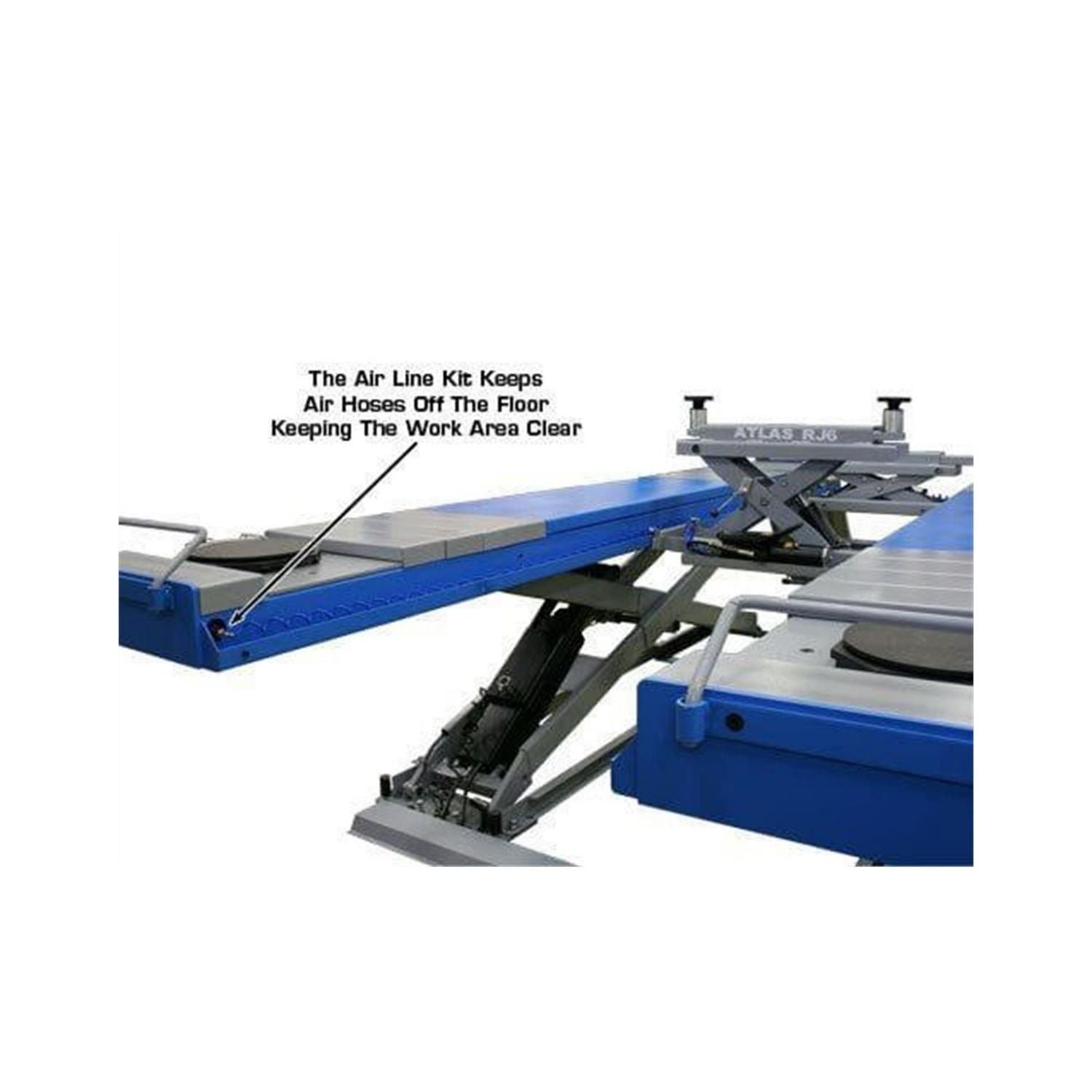

  • Airline Kit Included
  • Jacks are air-over-hydraulic operated
  • Truck Adapter Set for each Jack Included


• SPECIFICATIONS

  Atlas® 12AWFSL Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTD-12AWFSL-COMBO-FPD
  Dimensions:	200" L × 54" W × 36" H
  UPC:	810524028981
  Country of Origin:	CHN
  Capacity:	12,000 lbs
  Minimum Lift Height:	11 1/2"
  Maximum Lift Height Above Floor:	84 1/4" (7' 1/4")
  "Wheels Free" Lift Height Above Runway:	17"
  Overall Length w/ Ramps:	250" (20' 10")
  Overall Length w/o Ramps:	197" (16' 5")
  Overall Width:	86 3/8" (7' 2 3/8")
  Runway Width:	23 3/4"
  Between Runways:	39"
  Air Requirement:	85-120 PSI
  Motor/Electrical Requirement:	220 volt +/- 5% (209-231 volts)/1phase 30amp breaker required
  Oil Requirement:	3-5 Gallons AW32 or AW46 (NOT INCLUDED)
  Shipping Weight:	5,500 lbs




  Atlas® RJ-6 Specifications

  Capacity:	6,000 lbs
  Minimum Width:	30 1/2"
  Maximum Width:	64 1/2"
  Distance Between Runway Capability:	31 1/2" - 49 1/2"
  Minimum Pad Height (Above Runway):	3 1/2"
  Maximum Lifting Height (w/ Adapters):	17 5/8"
  Air Requirement:	70-115 PSI
  Shipping Weight:	350 lbs
  Adapter Heights:	2 Each 3", 7"
  Arm Hole/Adapter Peg Size:	2"

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
