AMGO® 9,000 lb Pro Four-Post Parking Lift #409-HP
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | 409-HP |
| Lifting Capacity | 9,000 lbs |
| Lift Type | Four-Post Parking (Pro, Extra-High) |
| Overall Height | 96 5/8" |
| Drive-Thru Clearance | 88 7/16" |
| Motor | 1.0 HP, 110V/60Hz |
- 1.0 HP, 110V/60Hz, single-phase
- ETL-certified power unit included as standard
- Circuit amperage not specified by AMGO — have your electrician size the circuit
- Portable four-post parking lift — no concrete anchoring required
- Mobile with the optional caster kit (40801)
- Set on a level, sound concrete floor — confirm your slab with Alamo
- Overall height 96 5/8" — confirm ceiling clearance
- Drive-thru clearance 88 7/16"
- Overall footprint width 109 5/16"

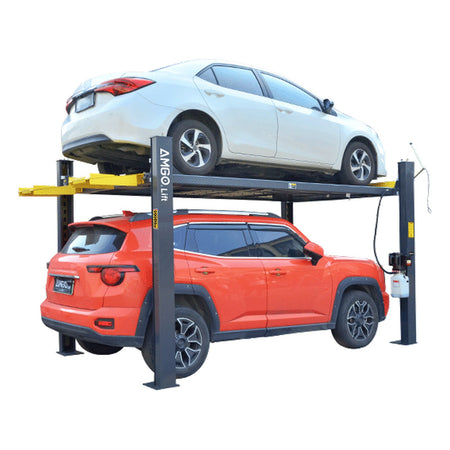

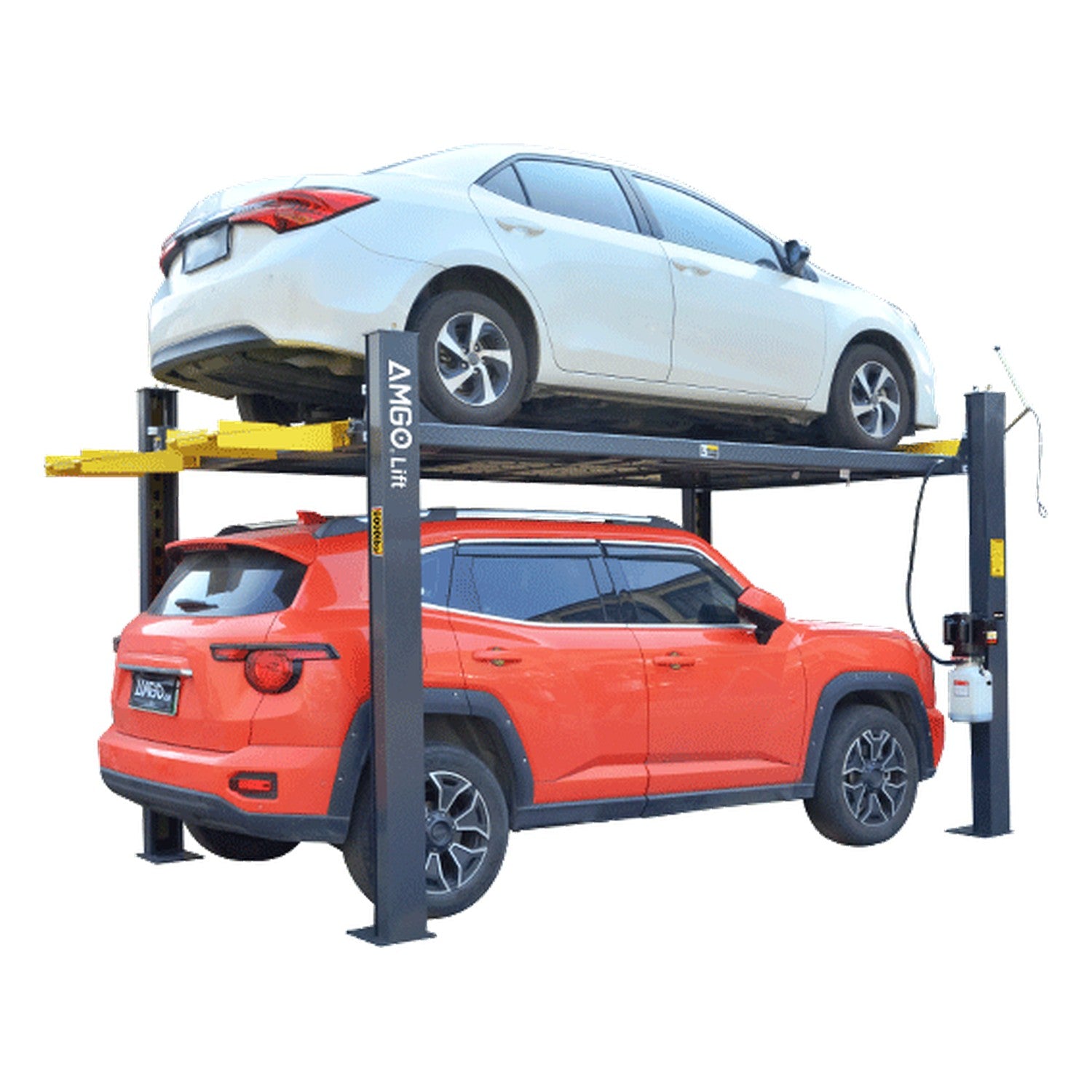

AMGO® 409-HP 9,000 lb Pro Four-Post Parking Lift
The AMGO® 409-HP is a Pro-series 9,000 lb extra-high four-post parking lift built for a full range of vehicles — cars, SUVs, and light trucks. Longer runways and 88 1/16″ of max lifting height let it park longer, taller vehicles with ease.
Dual hydraulic direct-drive cylinders, AMGO's patented concealed safety lock with manual single-point release, and standard Aero cables deliver reliable, low-maintenance service. It's easy to install and mobile on the optional caster kit.
Who It's Built For
- Parking cars, SUVs and light trucks up to 9,000 lbs
- Longer wheelbase vehicles that overhang smaller lifts
- Garages needing maximum underneath height
- Movable installs — no concrete anchoring required
- Owners wanting AMGO's top single-vehicle parking lift
What It's NOT Built For
- Loads over 9,000 lbs — step to a PRO four-post
- Side-by-side double parking — see 409-DP/DPX
- Very low-ceiling garages — overall height 96 5/8″
- Open-floor two-post service — pick a two-post lift
- Alignment jobs — use a PRO alignment four-post
Key Differentiator: Pro-grade 9,000 lb single-vehicle parking
With the widest runways (42 3/8″ between) and longest deck in the single-vehicle line, the 409-HP handles the biggest cars, SUVs and light trucks AMGO's parking lifts can take.
- Full-size SUVs and light trucks up to 9,000 lbs
- Loads over 9,000 lbs or side-by-side double parking
How the 409-HP Compares - Which AMGO Four-Post Fits Your Space?
| Model | Capacity | Design | Overall Height | Overall Width |
|---|---|---|---|---|
| 407-P | 7,000 lb | Single, Standard | 82 7/8" | 94 13/16" |
| 408-P | 8,000 lb | Single, Deluxe | 82 7/8" | 102 1/2" |
| 408-HP | 8,000 lb | Single, High-Profile | 96 5/8" | 102 1/2" |
| 409-HP | 9,000 lb | Single, Pro Extra-High | 96 5/8" | 109 5/16" |
| 409-DP | 9,000 lb total | Double (side-by-side) | 82 7/8" | 190 9/16" |
| 409-DPX | 9,000 lb total | Double, Extended-High | 96 5/8" | 190 9/16" |
| 4097X | 9,000 / 7,000 lb | Triple (stacked) | 168 1/2" | 106 1/16" |
Comparing single, double, and triple-parking configurations at 9,000 lbs? Call Alamo at (817) 865-3707 for a straight answer.
Full Specifications – 409-HP
| Brand | AMGO® Hydraulics |
| Model | 409-HP |
| Part / SKU | ALMAMG409HP |
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 174s |
| Overall Length (inc. ramps) | 238 1/8" |
| Overall Width | 109 5/16" |
| Width Between Posts | 99 5/8" |
| Max. Lifting Height | 88 1/16" |
| Max. Locking Height | 85 5/16" |
| Overall Height | 96 5/8" |
| Minimum Height | 6 1/8" |
| Max. Underneath Height | 82 9/16" |
| Drive-Thru Clearance | 88 7/16" |
| Width Between Runways | 42 3/8" |
| Motor | 1.0 HP, 110V/60Hz |
| Power Unit | ETL-certified |
| Shipping Carton | 203" x 22" x 29" |
| Shipping Weight | 1,956 lbs |
Installation Notes
- Power: 1.0 HP, 110V/60Hz, single-phase; ETL-certified power unit included
- Floor: Level, sound concrete — AMGO publishes no anchor spec for this parking lift; confirm your slab with Alamo
- Clearance: Overall height 96 5/8" — verify ceiling before install
- Amperage: Not specified by AMGO — have your electrician size the circuit
AMGO 5-3-2 Limited Warranty – 409-HP
AMGO Hydraulics backs every four-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, top beams, platforms/runways, cross beams, drive-in ramps, base structure |
| 3 Years | Hydraulic Parts | Cylinders, oil seals, oil hoses, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumable wear items excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by loading past the rated capacity or repairs using non-OEM parts. Full policy: AMGO warranty & return policy.
Frequently Asked Questions - 409-HP
Why Buy the 409-HP from Alamo Equipment & Service?
- We install it. Our crew levels the columns and sets the lift for you.
- We service it. Parts and warranty go through our shop, not a hotline.
- We size it with you. Tell us your space and vehicles; we confirm the fit.
- Straight answers. We'll tell you when a smaller model is the smarter buy.
