AMGO® 9,000 lb Double-Parking Four-Post Lift #409-DP
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | 409-DP |
| Lifting Capacity | 9,000 lbs total |
| Lift Type | Double-Parking Four-Post |
| Overall Height | 82 7/8" |
| Drive-Thru Clearance | 169 13/16" |
| Motor | 1.0 HP, 110V/60Hz |
- 1.0 HP, 110V/60Hz, single-phase
- ETL-certified power unit included as standard
- Circuit amperage not specified by AMGO — have your electrician size the circuit
- Portable four-post parking lift — no concrete anchoring required
- Mobile with the optional caster kit (40801)
- Set on a level, sound concrete floor — confirm your slab with Alamo
- Overall height 82 7/8" — confirm ceiling clearance
- Drive-thru clearance 169 13/16"
- Overall footprint width 190 9/16"

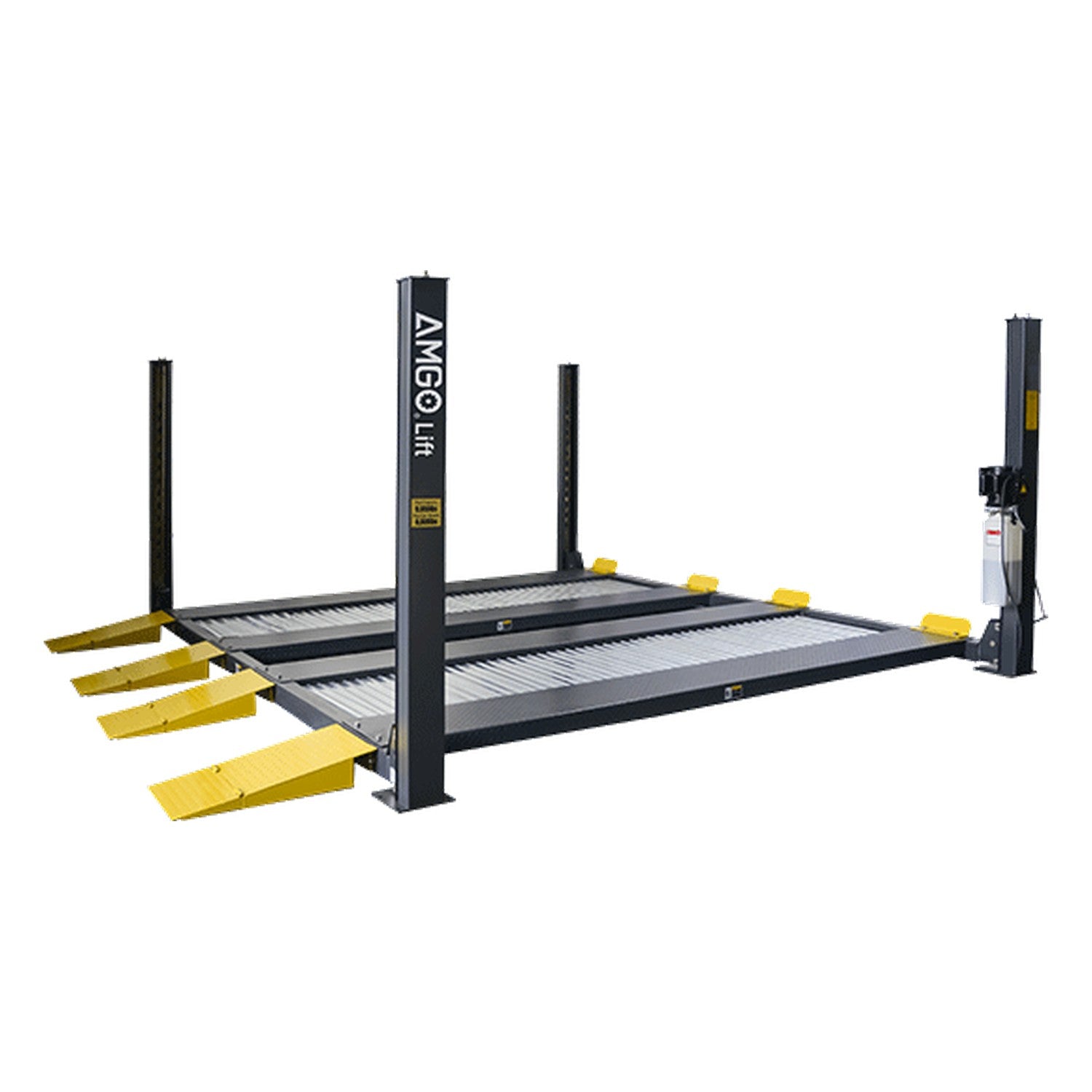

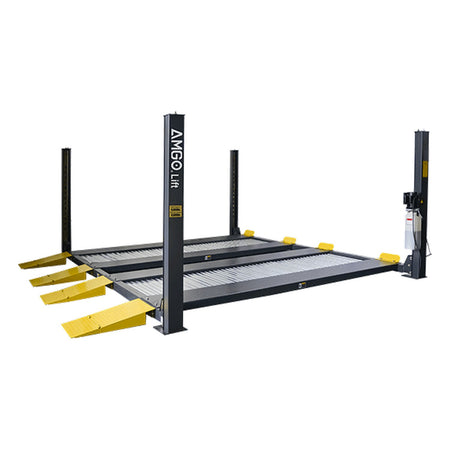

AMGO® 409-DP 9,000 lb Double-Parking Four-Post Lift
The AMGO® 409-DP is a double-parking four-post lift that stores two vehicles side by side in one wide footprint — 9,000 lbs total capacity, up to 6,000 lbs per vehicle. Dual safety locks and a cable-slack protection system come standard for secure lifting and storage.
Foldable drive-on ramps and non-slip diamond platforms make loading easy, while multiple lock points hold both bays securely. It's the space-doubling choice for garages that need two parking spots on one lift.
Who It's Built For
- Doubling parking capacity in a single wide bay
- Two cars or light vehicles, each up to 6,000 lbs
- Home garages and dealers maximizing storage
- Owners who want secure multi-point locking
- Standard-height vehicles (73 5/8″ max lift)
What It's NOT Built For
- Single tall-vehicle clearance — see 409-DPX
- Any one vehicle over 6,000 lbs
- Open-floor service or alignment work
- Two-post overhead service — pick a two-post lift
- Narrow bays — overall width is 190 9/16″
Key Differentiator: Two vehicles, side by side, one lift
The 409-DP splits into two parking units under one 9,000 lb frame, so a single wide bay stores two cars — the standard-height double-parker in AMGO's line.
- Doubling storage with two standard-height vehicles
- Tall vehicles (see 409-DPX) or any single vehicle over 6,000 lbs
How the 409-DP Compares - Which AMGO Four-Post Fits Your Space?
| Model | Capacity | Design | Overall Height | Overall Width |
|---|---|---|---|---|
| 407-P | 7,000 lb | Single, Standard | 82 7/8" | 94 13/16" |
| 408-P | 8,000 lb | Single, Deluxe | 82 7/8" | 102 1/2" |
| 408-HP | 8,000 lb | Single, High-Profile | 96 5/8" | 102 1/2" |
| 409-HP | 9,000 lb | Single, Pro Extra-High | 96 5/8" | 109 5/16" |
| 409-DP | 9,000 lb total | Double (side-by-side) | 82 7/8" | 190 9/16" |
| 409-DPX | 9,000 lb total | Double, Extended-High | 96 5/8" | 190 9/16" |
| 4097X | 9,000 / 7,000 lb | Triple (stacked) | 168 1/2" | 106 1/16" |
All models stay inside Alamo's catalog. Call (844) 480-6059 and we will help you choose before ordering.
Full Specifications – 409-DP
| Brand | AMGO® Hydraulics |
| Model | 409-DP |
| Part / SKU | ALMAMG409DP |
| Total Lifting Capacity | 9,000 lbs |
| Max. Single-Vehicle Weight | 6,000 lbs |
| Lifting Time | 100s |
| Max. Lift Rise | 68" |
| Overall Length (inc. ramps) | 208 1/16" |
| Overall Width | 190 9/16" |
| Width Between Columns | 181" |
| Drive-Through Width | 169 13/16" |
| Overall Height | 82 7/8" |
| Minimum Height | 5 15/16" |
| Max. Lifting Height | 73 5/8" |
| Max. Height Underneath Runway | 68 7/8" |
| Width Between Runways | 37" |
| Single Parking Unit Width | 74 7/16" |
| Motor | 1.0 HP, 110V/60Hz |
| Power Unit | ETL-certified |
| Shipping Carton | 193" x 22" x 38" |
| Shipping Weight | 2,771 lbs |
Installation Notes
- Power: 1.0 HP, 110V/60Hz, single-phase; ETL-certified power unit included
- Floor: Level, sound concrete — AMGO publishes no anchor spec for this parking lift; confirm your slab with Alamo
- Clearance: Overall height 82 7/8" — verify ceiling before install
- Amperage: Not specified by AMGO — have your electrician size the circuit
AMGO 5-3-2 Limited Warranty – 409-DP
AMGO Hydraulics backs every four-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, top beams, platforms/runways, cross beams, drive-in ramps, base structure |
| 3 Years | Hydraulic Parts | Cylinders, oil seals, oil hoses, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumable wear items excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by loading past the rated capacity or repairs using non-OEM parts. Full policy: AMGO warranty & return policy.
Frequently Asked Questions - 409-DP
Why Buy the 409-DP from Alamo Equipment & Service?
- We install it. Our crew levels the columns and sets the lift for you.
- We service it. Parts and warranty go through our shop, not a hotline.
- We size it with you. Tell us your space and vehicles; we confirm the fit.
- Straight answers. We'll tell you when a smaller model is the smarter buy.
- Call for Shipping. Freight is quoted per order — call (844) 480-6059 for your rate to your bay.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
AMGO shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the shipping total before sending a payment link.
