AMGO® 8,000 lb High-Profile Four-Post Lift #408-HP
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | 408-HP |
| Lifting Capacity | 8,000 lbs |
| Lift Type | Four-Post Parking (Deluxe, High-Profile) |
| Overall Height | 96 5/8" |
| Drive-Thru Clearance | 81 5/8" |
| Motor | 1.0 HP, 110V/60Hz |
- 1.0 HP, 110V/60Hz, single-phase
- ETL-certified power unit included as standard
- Circuit amperage not specified by AMGO — have your electrician size the circuit
- Portable four-post parking lift — no concrete anchoring required
- Mobile with the optional caster kit (40801)
- Set on a level, sound concrete floor — confirm your slab with Alamo
- Overall height 96 5/8" — confirm ceiling clearance
- Drive-thru clearance 81 5/8"
- Overall footprint width 102 1/2"

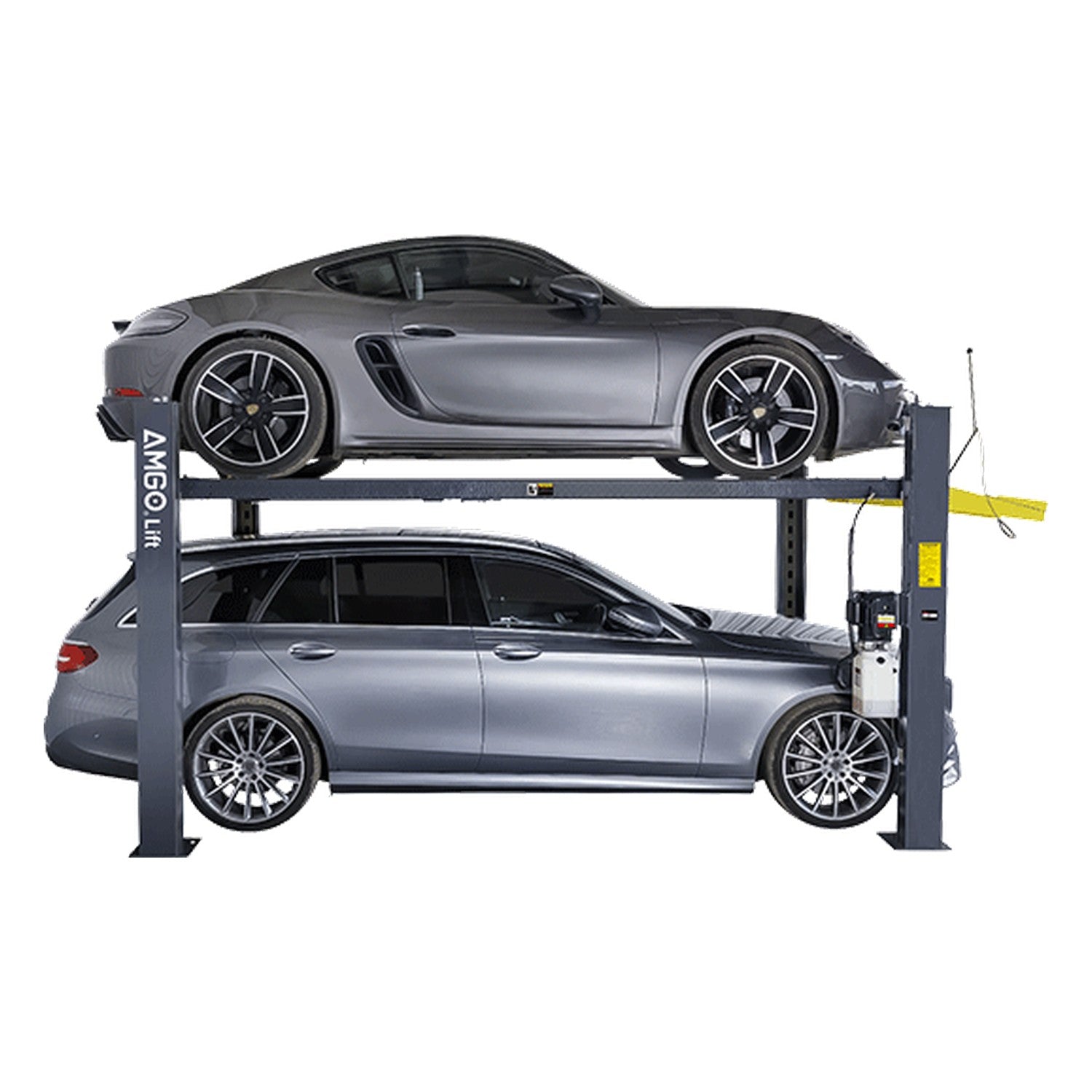

AMGO® 408-HP 8,000 lb High-Profile Four-Post Lift
The AMGO® 408-HP is the high-profile version of the 408-P: same 8,000 lb capacity, plus an extra 14″ of lifting height. That added clearance is built for parking SUVs, trucks, and other tall vehicles without tight fits.
Dual hydraulic direct-drive cylinders, AMGO's patented concealed safety lock with manual single-point release, and a standard pull rope round out the package. It's mobile on the optional caster kit and needs no concrete anchoring.
Who It's Built For
- Parking taller SUVs, trucks and vans up to 8,000 lbs
- Garages that need maximum underneath clearance
- Owners upgrading from the standard-height 408-P
- Movable installs — no concrete anchoring required
- Residential and commercial storage of tall vehicles
What It's NOT Built For
- Vehicles over 8,000 lbs — see the 409 series
- Low-ceiling garages — overall height is 96 5/8″
- Side-by-side double parking — see 409-DP/DPX
- Open-floor two-post service — pick a two-post lift
- Alignment jobs — use a PRO alignment four-post
Key Differentiator: +14″ lifting height for tall vehicles
The 408-HP adds 14 inches of lift over the 408-P, giving 82 15/16″ of underneath clearance so SUVs and trucks park with room to spare — the same deluxe frame, taller reach.
- Tall SUVs and trucks needing extra parking clearance
- Low-ceiling garages, or loads over 8,000 lbs
How the 408-HP Compares - Which AMGO Four-Post Fits Your Space?
| Model | Capacity | Design | Overall Height | Overall Width |
|---|---|---|---|---|
| 407-P | 7,000 lb | Single, Standard | 82 7/8" | 94 13/16" |
| 408-P | 8,000 lb | Single, Deluxe | 82 7/8" | 102 1/2" |
| 408-HP | 8,000 lb | Single, High-Profile | 96 5/8" | 102 1/2" |
| 409-HP | 9,000 lb | Single, Pro Extra-High | 96 5/8" | 109 5/16" |
| 409-DP | 9,000 lb total | Double (side-by-side) | 82 7/8" | 190 9/16" |
| 409-DPX | 9,000 lb total | Double, Extended-High | 96 5/8" | 190 9/16" |
| 4097X | 9,000 / 7,000 lb | Triple (stacked) | 168 1/2" | 106 1/16" |
All models stay inside Alamo's catalog. Call (844) 480-6059 and we will help you choose before ordering.
Full Specifications – 408-HP
| Brand | AMGO® Hydraulics |
| Model | 408-HP |
| Part / SKU | ALMAMG408HP |
| Lifting Capacity | 8,000 lbs |
| Lifting Time | 114s |
| Overall Length (inc. ramps) | 208 1/16" |
| Overall Width | 102 1/2" |
| Width Between Posts | 92 13/16" |
| Max. Lifting Height | 87 11/16" |
| Max. Locking Height | 84 15/16" |
| Overall Height | 96 5/8" |
| Minimum Height | 5 11/16" |
| Max. Underneath Height | 82 15/16" |
| Drive-Thru Clearance | 81 5/8" |
| Width Between Runways | 37" |
| Motor | 1.0 HP, 110V/60Hz |
| Power Unit | ETL-certified |
| Shipping Carton | 168" x 21" x 30" |
| Shipping Weight | 1,669 lbs |
Installation Notes
- Power: 1.0 HP, 110V/60Hz, single-phase; ETL-certified power unit included
- Floor: Level, sound concrete — AMGO publishes no anchor spec for this parking lift; confirm your slab with Alamo
- Clearance: Overall height 96 5/8" — verify ceiling before install
- Amperage: Not specified by AMGO — have your electrician size the circuit
AMGO 5-3-2 Limited Warranty – 408-HP
AMGO Hydraulics backs every four-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, top beams, platforms/runways, cross beams, drive-in ramps, base structure |
| 3 Years | Hydraulic Parts | Cylinders, oil seals, oil hoses, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumable wear items excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by loading past the rated capacity or repairs using non-OEM parts. Full policy: AMGO warranty & return policy.
Frequently Asked Questions - 408-HP
Why Buy the 408-HP from Alamo Equipment & Service?
- We install it. Our crew levels the columns and sets the lift for you.
- We service it. Parts and warranty go through our shop, not a hotline.
- We size it with you. Tell us your space and vehicles; we confirm the fit.
- Straight answers. We'll tell you when a smaller model is the smarter buy.
- Call for Shipping. Freight is quoted per order — call (844) 480-6059 for your rate to your bay.
