AMGO® 7,000 lb Four-Post Parking Lift #407-P
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | 407-P |
| Lifting Capacity | 7,000 lbs |
| Lift Type | Four-Post Parking (Standard) |
| Overall Height | 82 7/8" |
| Drive-Thru Clearance | 77" |
| Motor | 1.0 HP, 110V/60Hz |
- 1.0 HP, 110V/60Hz, single-phase
- ETL-certified power unit included as standard
- Circuit amperage not specified by AMGO — have your electrician size the circuit
- Portable four-post parking lift — no concrete anchoring required
- Mobile with the optional caster kit (40801)
- Set on a level, sound concrete floor — confirm your slab with Alamo
- Overall height 82 7/8" — confirm ceiling clearance
- Drive-thru clearance 77"
- Overall footprint width 94 13/16"

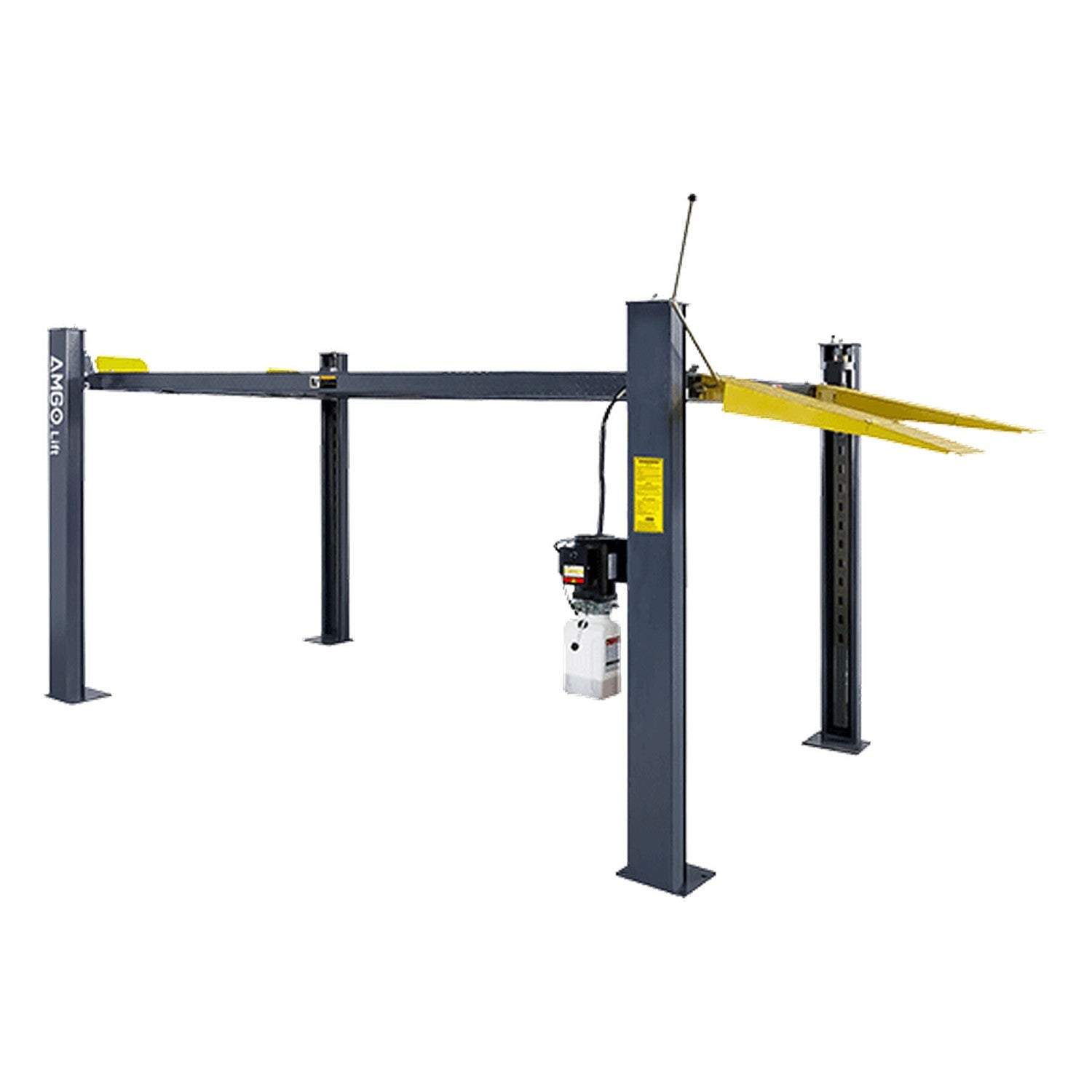

AMGO® 407-P 7,000 lb Four-Post Parking Lift
The AMGO® 407-P is a standard-profile 7,000 lb four-post parking lift, built to store or service a single vehicle in a small footprint. Dual hydraulic direct-drive cylinders lift the non-slip runways, and AMGO's patented concealed safety-lock device gives you a manual single-point release. It's the narrowest, lowest four-post in AMGO's parking line.
Foldable drive-in ramps and Aero cables come standard, and back-to-back installation lets you pack two units into tight bays. With an optional caster kit the 407-P rolls where you need it — no concrete anchoring required.
Who It's Built For
- Home garages and hobbyists storing one extra vehicle
- Cars and light vehicles within the 7,000 lb rating
- Bays where floor space is tight and every inch counts
- Owners who want a movable lift, not a permanent install
- Shops adding low-cost overflow parking or light service
What It's NOT Built For
- Vehicles over 7,000 lbs — step up to the 408 or 409 series
- Tall SUVs/trucks needing extra clearance — see 408-HP/409-HP
- Double-stacked side-by-side parking — see 409-DP
- Two-post open-floor service work — pick a two-post lift
- Alignment work — use a PRO alignment four-post
Key Differentiator: Smallest-footprint four-post value
A narrow, short, low-profile frame makes the 407-P the easiest AMGO parking lift to fit into a compact garage, and back-to-back installation doubles your storage in the same run of floor.
- Home garages and tight bays storing one light vehicle
- Tall vehicles or anything over 7,000 lbs
How the 407-P Compares - Which AMGO Four-Post Fits Your Space?
| Model | Capacity | Design | Overall Height | Overall Width |
|---|---|---|---|---|
| 407-P | 7,000 lb | Single, Standard | 82 7/8" | 94 13/16" |
| 408-P | 8,000 lb | Single, Deluxe | 82 7/8" | 102 1/2" |
| 408-HP | 8,000 lb | Single, High-Profile | 96 5/8" | 102 1/2" |
| 409-HP | 9,000 lb | Single, Pro Extra-High | 96 5/8" | 109 5/16" |
| 409-DP | 9,000 lb total | Double (side-by-side) | 82 7/8" | 190 9/16" |
| 409-DPX | 9,000 lb total | Double, Extended-High | 96 5/8" | 190 9/16" |
| 4097X | 9,000 / 7,000 lb | Triple (stacked) | 168 1/2" | 106 1/16" |
Starting with a 7,000 lb parking lift? Call Alamo at (817) 865-3707 and we'll help you size up correctly.
Full Specifications – 407-P
| Brand | AMGO® Hydraulics |
| Model | 407-P |
| Part / SKU | ALMAMG407P |
| Lifting Capacity | 7,000 lbs |
| Lifting Time | 95s |
| Overall Length (inc. ramps) | 185 13/16" |
| Overall Width | 94 13/16" |
| Width Between Posts | 85 5/16" |
| Max. Lifting Height | 73 7/16" |
| Max. Locking Height | 72 11/16" |
| Overall Height | 82 7/8" |
| Minimum Height | 4 15/16" |
| Max. Underneath Height | 69 1/2" |
| Drive-Thru Clearance | 77" |
| Width Between Runways | 37" |
| Motor | 1.0 HP, 110V/60Hz |
| Power Unit | ETL-certified |
| Shipping Carton | 146" x 21" x 30" |
| Shipping Weight | 1,430 lbs |
Installation Notes
- Power: 1.0 HP, 110V/60Hz, single-phase; ETL-certified power unit included
- Floor: Level, sound concrete — AMGO publishes no anchor spec for this parking lift; confirm your slab with Alamo
- Clearance: Overall height 82 7/8" — verify ceiling before install
- Amperage: Not specified by AMGO — have your electrician size the circuit
AMGO 5-3-2 Limited Warranty – 407-P
AMGO Hydraulics backs every four-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, top beams, platforms/runways, cross beams, drive-in ramps, base structure |
| 3 Years | Hydraulic Parts | Cylinders, oil seals, oil hoses, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumable wear items excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by loading past the rated capacity or repairs using non-OEM parts. Full policy: AMGO warranty & return policy.
Frequently Asked Questions - 407-P
Why Buy the 407-P from Alamo Equipment & Service?
- We install it. Our crew levels the columns and sets the lift for you.
- We service it. Parts and warranty go through our shop, not a hotline.
- We size it with you. Tell us your space and vehicles; we confirm the fit.
- Straight answers. We'll tell you when a smaller model is the smarter buy.
- Freight is calculated and paid at checkout. Only one freight item may be purchased per order. Please place parts or additional freight items in a separate order.
