AMGO® Triple Four-Post Stacked Parking Lift #4097X
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | 4097X |
| Lifting Capacity | 9,000 / 7,000 lbs |
| Lift Type | Triple-Stack Four-Post Parking |
| Overall Height | 168 1/2" |
| Drive-Thru Clearance | 82 1/16" |
| Motor | 2.0 HP, 220V/60Hz Single-Phase |
- 2.0 HP, 220V/60Hz Single-Phase
- ETL-certified power unit included as standard
- Circuit amperage not specified by AMGO — have your electrician size the circuit
- Fixed installation — tall triple-stack structure
- Requires a high-ceiling building (overall height 168 1/2″)
- AMGO publishes no concrete/anchor spec — confirm your slab & clearance with Alamo
- Overall height 168 1/2″ — needs roughly 14 ft or more
- Drive-thru clearance 82 1/16"
- Overall footprint width 106 1/16"

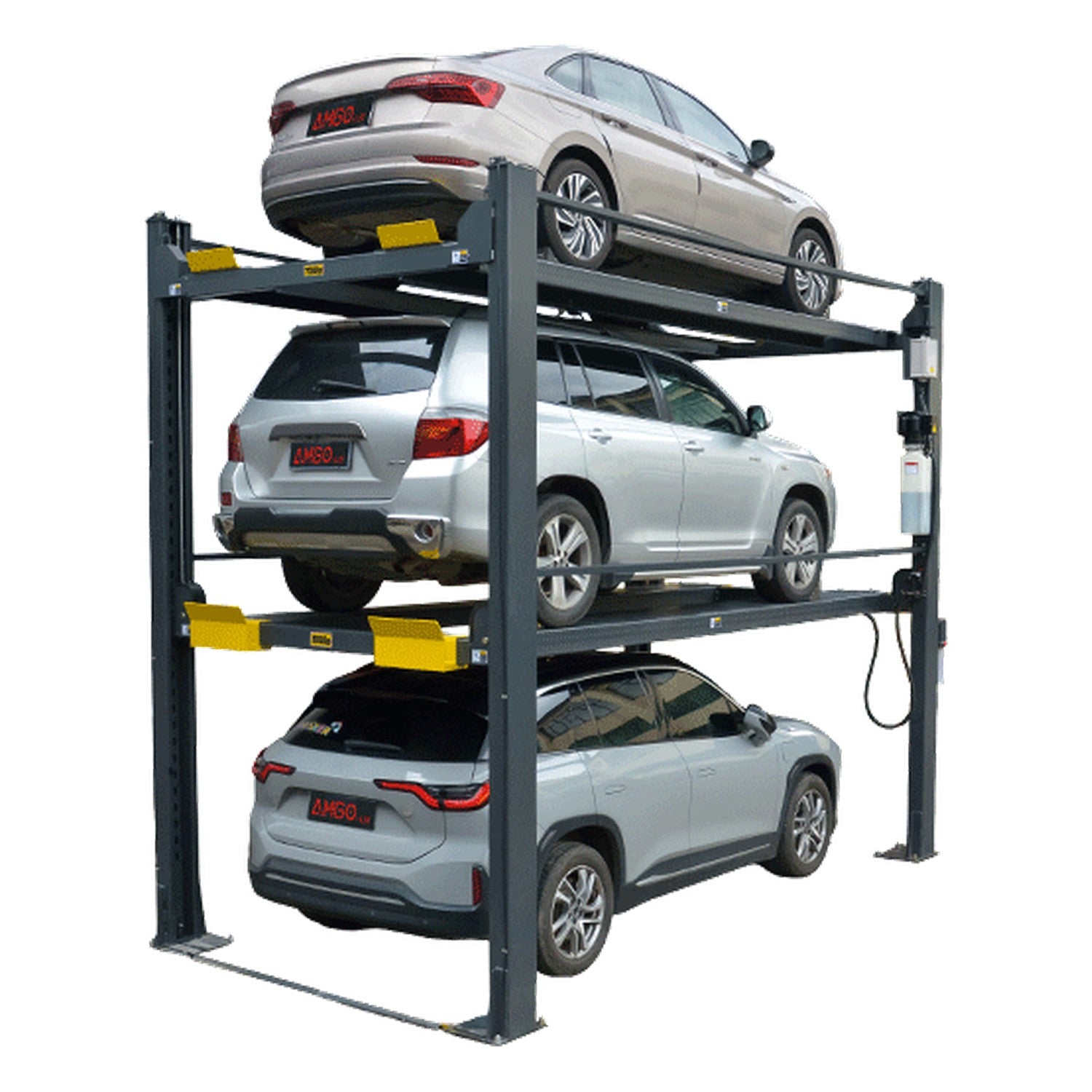

AMGO® 4097X Triple Four-Post Stacked Parking Lift
The AMGO® 4097X is a triple-stack four-post parking lift that stores three vehicles in one vertical footprint — a 9,000 lb lower level and a 7,000 lb upper level. Air locks and a cable-breaking protection system secure the lower platforms, while double locking devices hold the upper platforms.
An embedded-platform design lets one set of drive-in ramps serve both lower and upper levels, with a minimum height of just 7 1/16″. A fully operational control box at the entry side keeps operation safe and convenient. It ships with power unit 071202.
Who It's Built For
- Tripling parking density where floor space is scarce
- Dealers, collectors and fleets stacking vehicles vertically
- Lower level up to 9,000 lbs, upper level up to 7,000 lbs
- High-ceiling buildings (overall height 168 1/2″)
- Owners who want air-lock + cable-break protection
What It's NOT Built For
- Standard-ceiling garages — this needs 14+ ft of height
- Vehicles over the per-level ratings
- Open-floor service or alignment work
- Movable installs — this is a fixed, tall structure
- Two-post overhead service — pick a two-post lift
Key Differentiator: Three vehicles stacked in one footprint
The 4097X stacks a 9,000 lb lower and 7,000 lb upper level under one 168 1/2″ frame, tripling parking in the same floor area — the only triple-stack lift in AMGO's parking line.
- Maximum vertical parking density in a tall building
- Standard-ceiling garages or single-level storage needs
How the 4097X Compares - Which AMGO Four-Post Fits Your Space?
| Model | Capacity | Design | Overall Height | Overall Width |
|---|---|---|---|---|
| 407-P | 7,000 lb | Single, Standard | 82 7/8" | 94 13/16" |
| 408-P | 8,000 lb | Single, Deluxe | 82 7/8" | 102 1/2" |
| 408-HP | 8,000 lb | Single, High-Profile | 96 5/8" | 102 1/2" |
| 409-HP | 9,000 lb | Single, Pro Extra-High | 96 5/8" | 109 5/16" |
| 409-DP | 9,000 lb total | Double (side-by-side) | 82 7/8" | 190 9/16" |
| 409-DPX | 9,000 lb total | Double, Extended-High | 96 5/8" | 190 9/16" |
| 4097X | 9,000 / 7,000 lb | Triple (stacked) | 168 1/2" | 106 1/16" |
All models stay inside Alamo's catalog. Call (844) 480-6059 and we will help you choose before ordering.
Full Specifications – 4097X
| Brand | AMGO® Hydraulics |
| Model | 4097X |
| Part / SKU | ALMAMG4097X |
| Lower-Platform Capacity | 9,000 lbs |
| Upper-Platform Capacity | 7,000 lbs |
| Lifting Time | 104s |
| Overall Length (inc. ramps) | 247 9/16" |
| Overall Width | 106 1/16" |
| Width Between Posts | 96" |
| Drive-Thru Clearance | 82 1/16" |
| Overall Height | 168 1/2" |
| Minimum Height | 7 1/16" |
| Max. Lifting Height | 158 3/8" |
| Max. Height Underneath Runway | 152 15/16" |
| Max. Locking Height of Top Platforms | 157" |
| Motor | 2.0 HP, 220V/60Hz Single-Phase |
| Power Unit | ETL-certified (071202) |
| Shipping Carton | 211" x 23" x 40" |
| Shipping Weight | 4,246 lbs |
Installation Notes
- Power: 2.0 HP, 220V/60Hz Single-Phase, single-phase; ETL-certified power unit included
- Floor: Level, sound concrete — AMGO publishes no anchor spec for this parking lift; confirm your slab with Alamo
- Clearance: Overall height 168 1/2" — verify ceiling before install
- Amperage: Not specified by AMGO — have your electrician size the circuit
AMGO 5-3-2 Limited Warranty – 4097X
AMGO Hydraulics backs every four-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, top beams, platforms/runways, cross beams, drive-in ramps, base structure |
| 3 Years | Hydraulic Parts | Cylinders, oil seals, oil hoses, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumable wear items excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by loading past the rated capacity or repairs using non-OEM parts. Full policy: AMGO warranty & return policy.
Frequently Asked Questions - 4097X
Why Buy the 4097X from Alamo Equipment & Service?
- We install it. Our crew levels the columns and sets the lift for you.
- We service it. Parts and warranty go through our shop, not a hotline.
- We size it with you. Tell us your space and vehicles; we confirm the fit.
- Straight answers. We'll tell you when a smaller model is the smarter buy.
- Call for Shipping. Freight is quoted per order — call (844) 480-6059 for your rate to your bay.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
AMGO shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the shipping total before sending a payment link.
