AMGO® 8,000 lb Four-Post Parking Lift #408-P
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | 408-P |
| Lifting Capacity | 8,000 lbs |
| Lift Type | Four-Post Parking (Deluxe) |
| Overall Height | 82 7/8" |
| Drive-Thru Clearance | 81 5/8" |
| Motor | 1.0 HP, 110V/60Hz |
- 1.0 HP, 110V/60Hz, single-phase
- ETL-certified power unit included as standard
- Circuit amperage not specified by AMGO — have your electrician size the circuit
- Portable four-post parking lift — no concrete anchoring required
- Mobile with the optional caster kit (40801)
- Set on a level, sound concrete floor — confirm your slab with Alamo
- Overall height 82 7/8" — confirm ceiling clearance
- Drive-thru clearance 81 5/8"
- Overall footprint width 102 1/2"

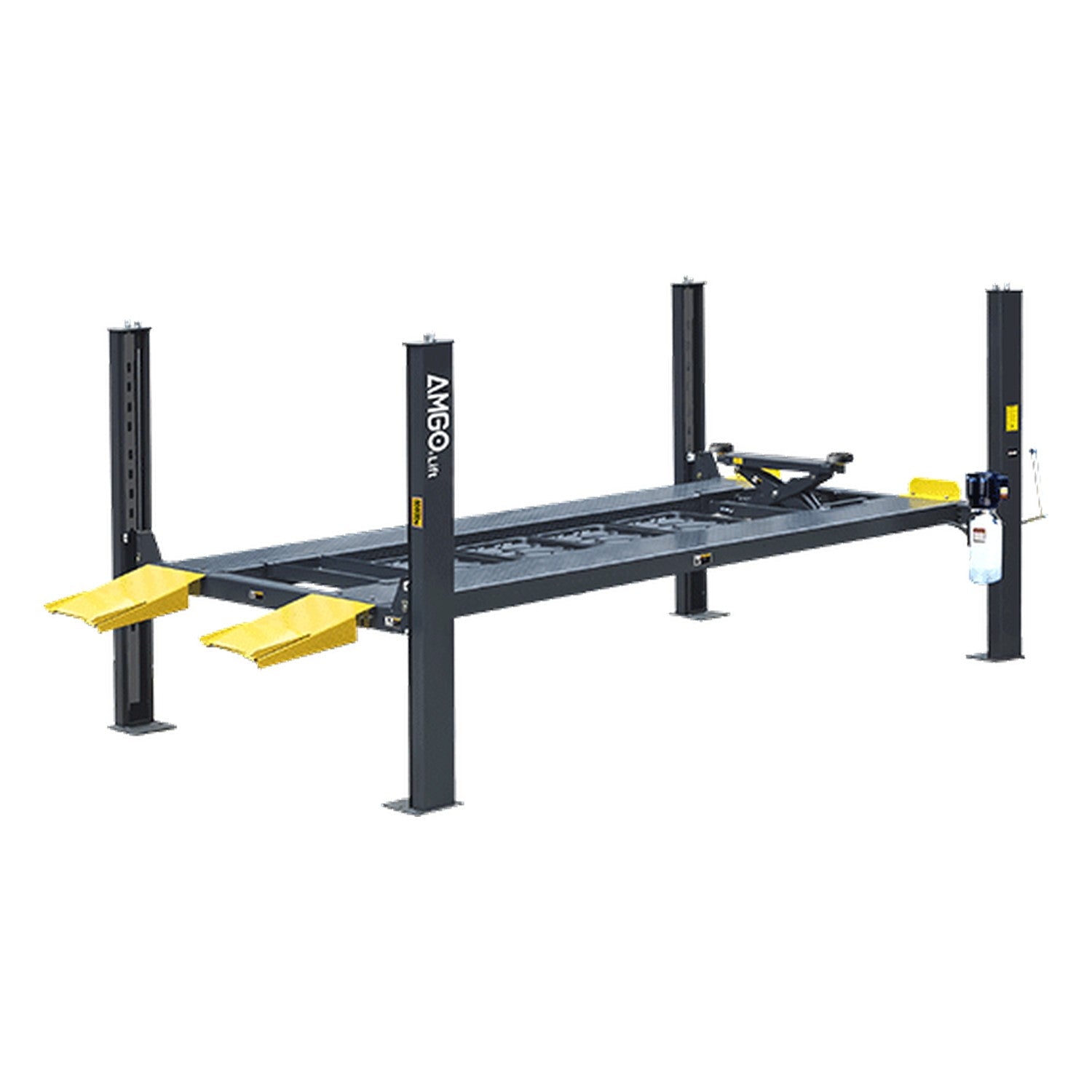

AMGO® 408-P 8,000 lb Four-Post Parking Lift
The AMGO® 408-P is a deluxe 8,000 lb four-post parking lift with a wider entrance and longer platforms than the 407-P. Dual hydraulic direct-drive cylinders and AMGO's patented concealed safety lock with manual single-point release handle vehicles up to 8,000 lbs.
It doesn't require anchoring to concrete and moves easily on the optional caster kit, so it fits residential and commercial jobs alike. Foldable drive-in ramps and non-slip platforms come standard.
Who It's Built For
- Residential and commercial single-vehicle storage
- Larger cars and light trucks up to 8,000 lbs
- Owners who want a wider, longer platform than the 407-P
- Movable installs — no concrete anchoring required
- Shops adding a comfortable everyday parking/service lift
What It's NOT Built For
- Vehicles over 8,000 lbs — see the 409 series
- Tall SUVs/trucks needing extra height — see 408-HP
- Side-by-side double parking — see 409-DP
- Open-floor two-post service — pick a two-post lift
- Alignment jobs — use a PRO alignment four-post
Key Differentiator: Wider entrance, longer deck
A broader drive-on entrance and longer platforms make the 408-P easier to load than the 407-P, while staying fully mobile with the optional caster kit.
- Residential/commercial storage of larger cars and light trucks
- Tall vehicles needing extra clearance, or loads over 8,000 lbs
How the 408-P Compares - Which AMGO Four-Post Fits Your Space?
| Model | Capacity | Design | Overall Height | Overall Width |
|---|---|---|---|---|
| 407-P | 7,000 lb | Single, Standard | 82 7/8" | 94 13/16" |
| 408-P | 8,000 lb | Single, Deluxe | 82 7/8" | 102 1/2" |
| 408-HP | 8,000 lb | Single, High-Profile | 96 5/8" | 102 1/2" |
| 409-HP | 9,000 lb | Single, Pro Extra-High | 96 5/8" | 109 5/16" |
| 409-DP | 9,000 lb total | Double (side-by-side) | 82 7/8" | 190 9/16" |
| 409-DPX | 9,000 lb total | Double, Extended-High | 96 5/8" | 190 9/16" |
| 4097X | 9,000 / 7,000 lb | Triple (stacked) | 168 1/2" | 106 1/16" |
Weighing standard vs. high-profile clearance at 8,000 lbs? Call (817) 865-3707 and Alamo will help you pick.
Full Specifications – 408-P
| Brand | AMGO® Hydraulics |
| Model | 408-P |
| Part / SKU | ALMAMG408P |
| Lifting Capacity | 8,000 lbs |
| Lifting Time | 114s |
| Overall Length (inc. ramps) | 208 1/16" |
| Overall Width | 102 1/2" |
| Width Between Posts | 92 13/16" |
| Max. Lifting Height | 73 11/16" |
| Max. Locking Height | 70 15/16" |
| Overall Height | 82 7/8" |
| Minimum Height | 5 11/16" |
| Max. Underneath Height | 69" |
| Drive-Thru Clearance | 81 5/8" |
| Width Between Runways | 37" |
| Motor | 1.0 HP, 110V/60Hz |
| Power Unit | ETL-certified |
| Shipping Carton | 168" x 21" x 30" |
| Shipping Weight | 1,560 lbs |
Installation Notes
- Power: 1.0 HP, 110V/60Hz, single-phase; ETL-certified power unit included
- Floor: Level, sound concrete — AMGO publishes no anchor spec for this parking lift; confirm your slab with Alamo
- Clearance: Overall height 82 7/8" — verify ceiling before install
- Amperage: Not specified by AMGO — have your electrician size the circuit
AMGO 5-3-2 Limited Warranty – 408-P
AMGO Hydraulics backs every four-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, top beams, platforms/runways, cross beams, drive-in ramps, base structure |
| 3 Years | Hydraulic Parts | Cylinders, oil seals, oil hoses, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumable wear items excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by loading past the rated capacity or repairs using non-OEM parts. Full policy: AMGO warranty & return policy.
Frequently Asked Questions - 408-P
Why Buy the 408-P from Alamo Equipment & Service?
- We install it. Our crew levels the columns and sets the lift for you.
- We service it. Parts and warranty go through our shop, not a hotline.
- We size it with you. Tell us your space and vehicles; we confirm the fit.
- Straight answers. We'll tell you when a smaller model is the smarter buy.
- Freight is calculated and paid at checkout. Only one freight item may be purchased per order. Please place parts or additional freight items in a separate order.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Your LTL freight rate is calculated at checkout. Each order may contain one lift or other freight-shipped item. Please order parts and additional freight items separately.
