APlusLift 8000LB 4-Post Portable Parking Storage Service Car Lift #HW-8SXLT
Lead time:
-
DESCRIPTION
APlusLift 8000LB 4-Post Portable Parking Storage Service Car Lift - HW-8SXLT

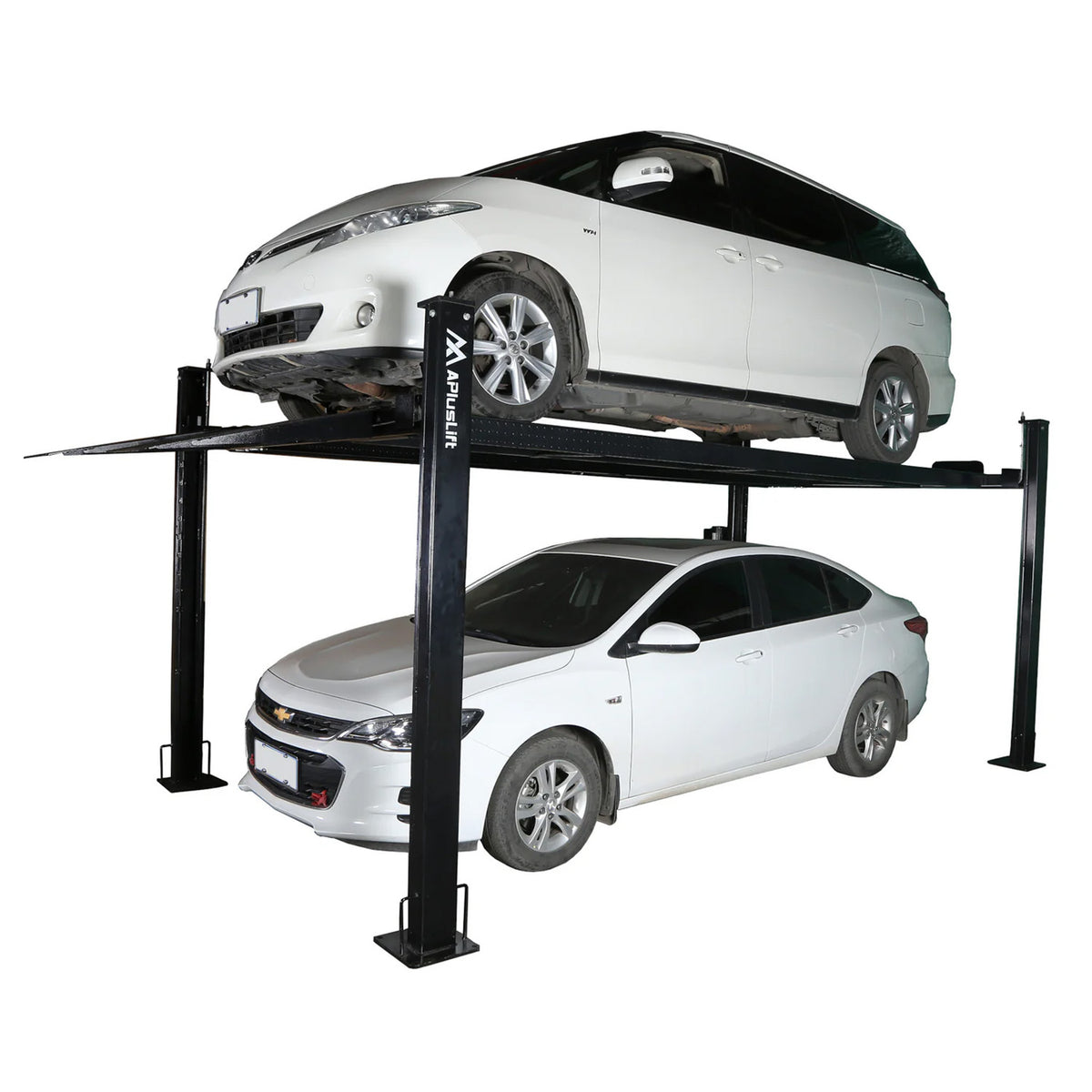

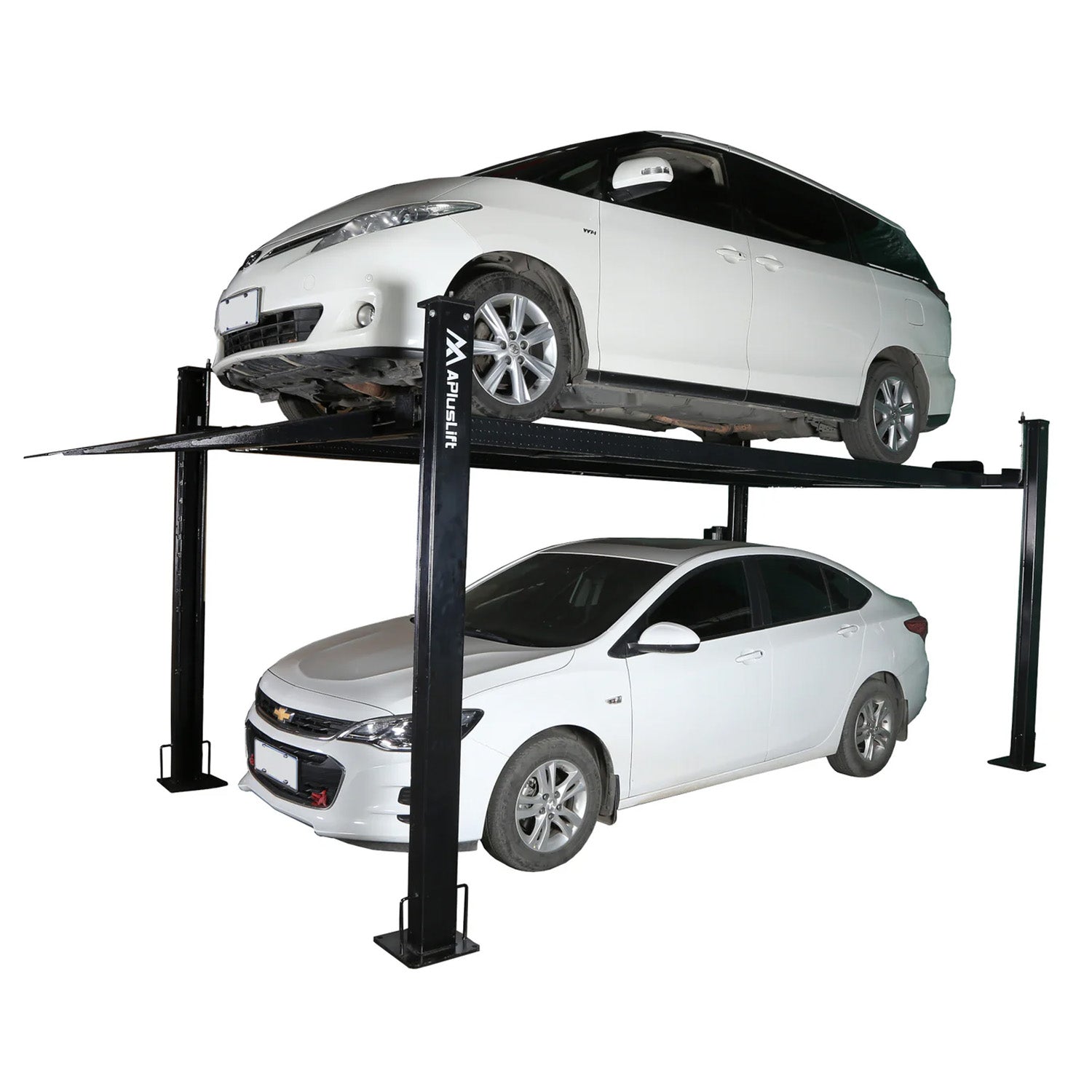

APlusLift HW-8SXLT 4-post car lift (auto hoist) is a portable parking and storage lift with an 8,000 LB Capacity. The design of this lift model has been proven for 30 years. It is built with high-quality materials and workmanship and features a powder coating for superior corrosion resistance. This lift uses a revolutionary, highly efficient 110V 1.5HP hydraulic power unit for safer operation. The lift delivers the perfect solution for parking, storage, and service use by homeowners or restoration shops.

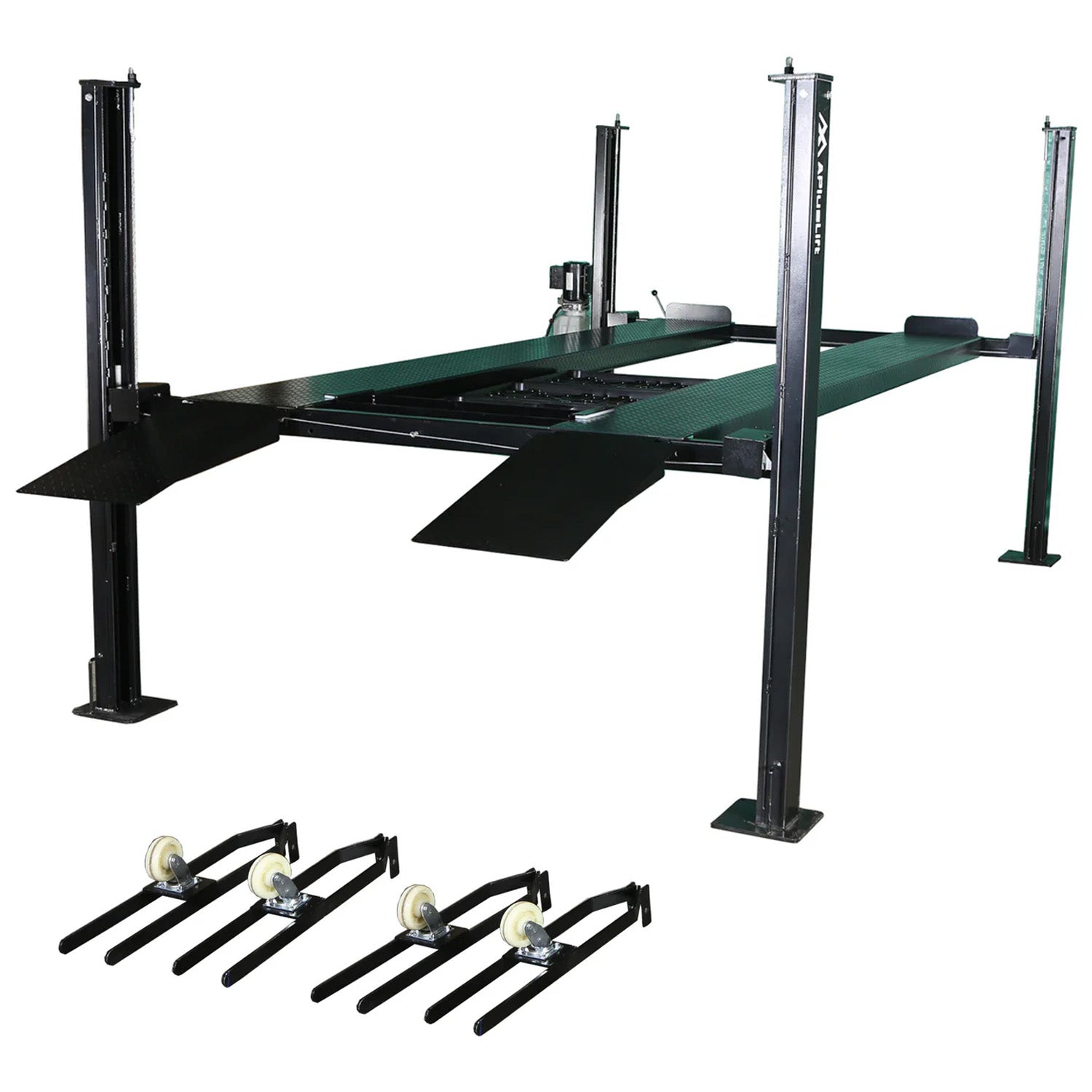

APlusLift HW-8SXLT 4-post car lift (auto hoist) package includes a caster kit with polyurethane wheels, a jack tray, three drip trays, two removable approach ramps and a power cord. The caster kit allows customers to move the lift around the garage easily and can be installed or removed in minutes. The jack tray allows customers to use a jack to lift one end of the vehicle. The drip trays prevent fluid from the top vehicle from dripping onto the bottom vehicle. Optional sliding jacks are available for purchase.
Free shipping to the lower 48 states with forklift (or similar) on-site, or free pickup at a nearby terminal. Car lifts require an on-site forklift (no liftgate). We strongly recommend against renting a forklift, as the expense is not reimbursable. Please see the shipping policy below for details regarding limited access, remote, and high-cost areas.
2 Post Lifts
- Industry leading 3 Year (36 Months) Warranty (a $499 value!)

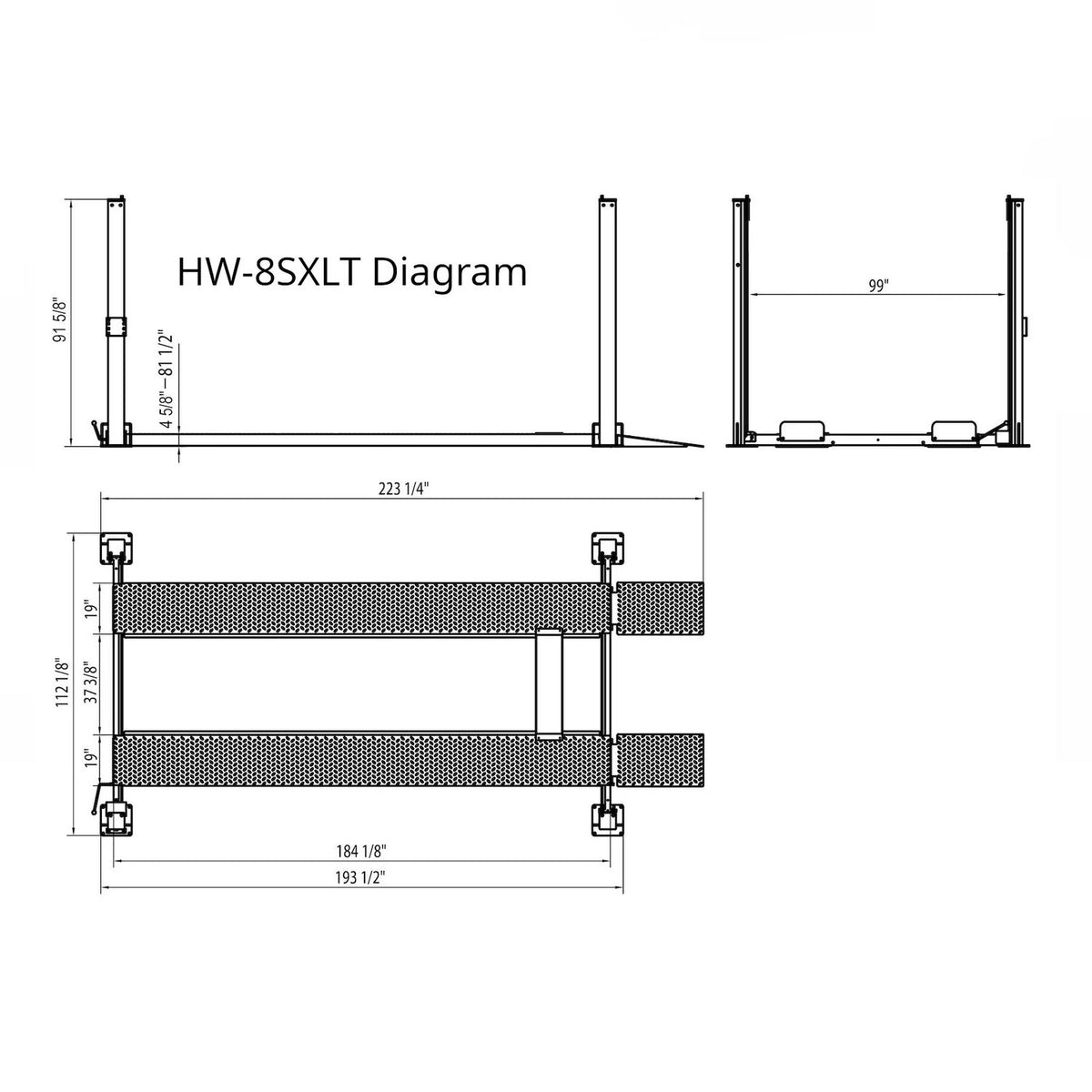

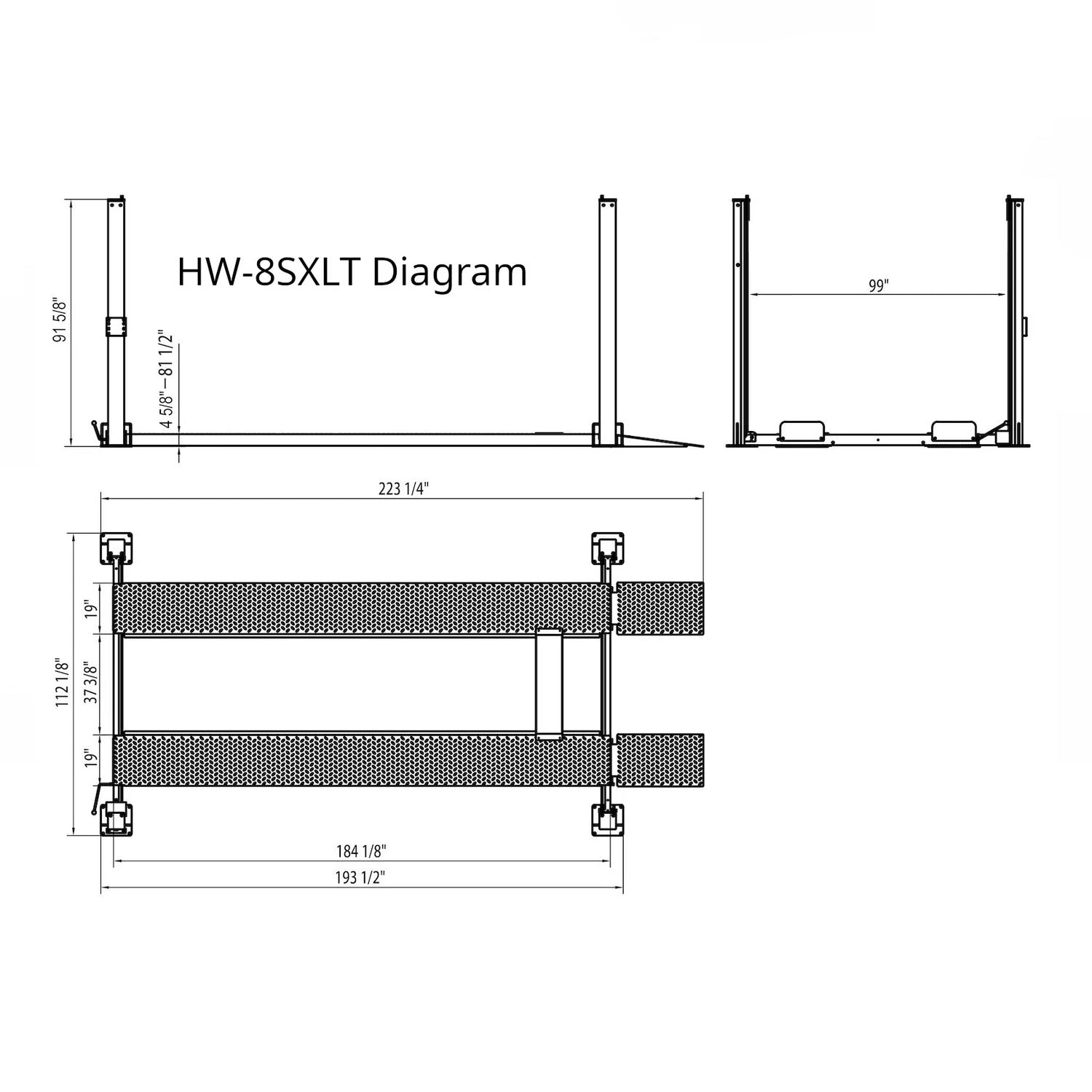

- Drive Through Width 93" (HW-8S) and 99" (HW-8SXLT)
- HW-8S Model Overall Dimensions: 178"L x 106"W x 84"H
- HW-8SXLT Model Overall Dimensions: 193"L x 112"W x 91"H
- Free Caster Kit, Jack Tray, Drip Trays, Removable Approach Ramps, and Power cord
- CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
- Safer Operation with A Revolutionary High Efficient 110V 1.5HP Hydraulic Power Unit
- Powder Coated Finish with Superior Corrosion Resistance
Parts Included:

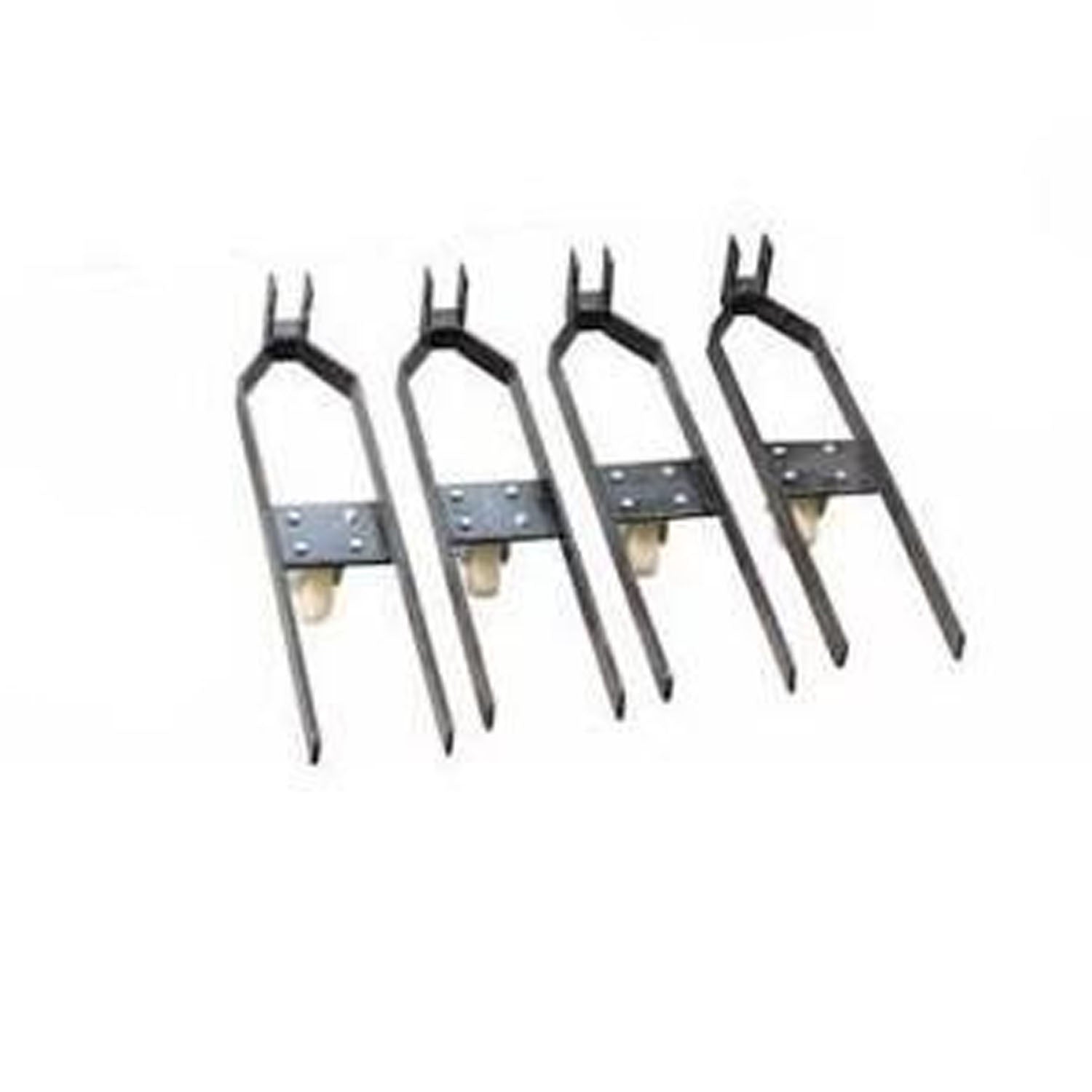

- Caster Kit
- Jack Tray

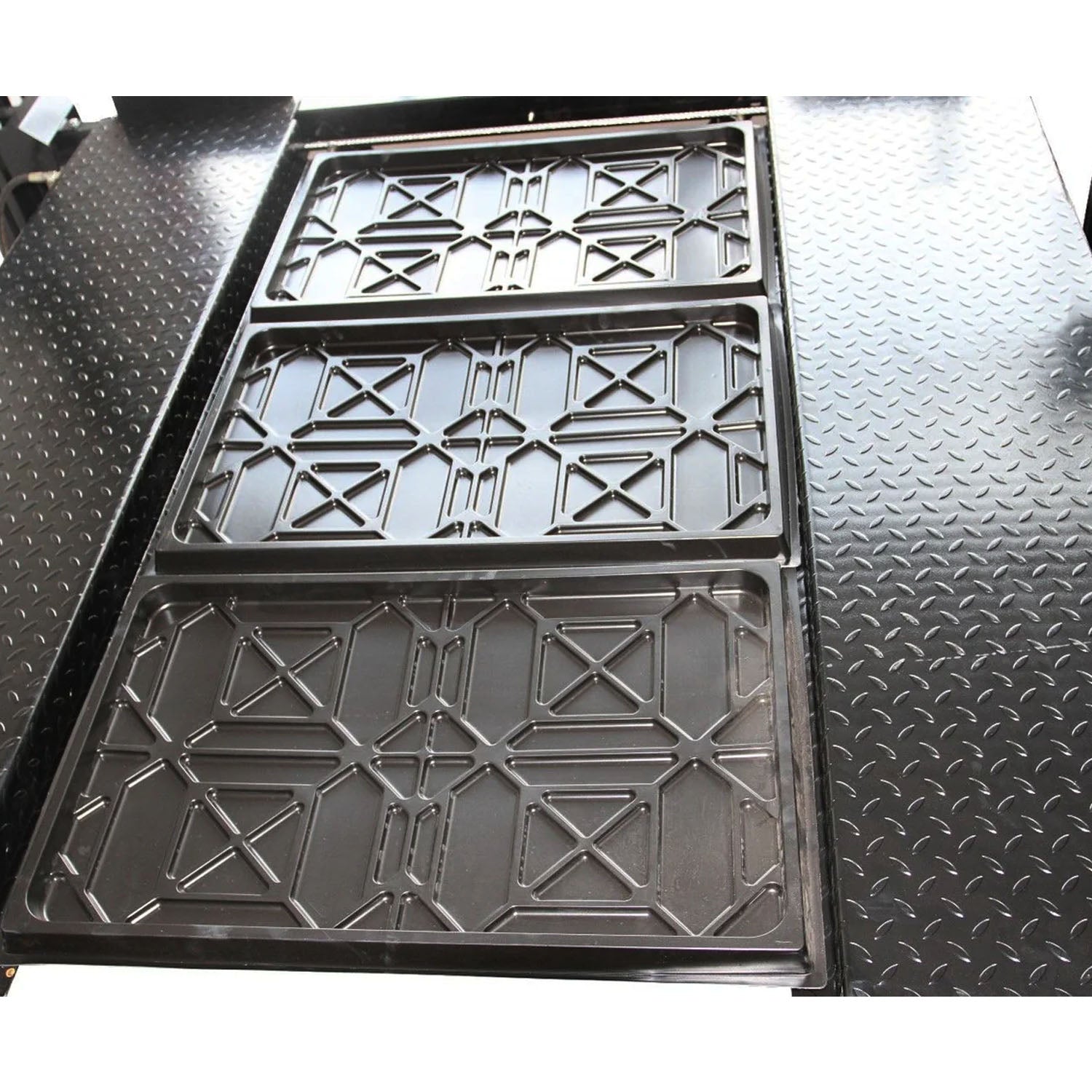

- 3 Drip Trays

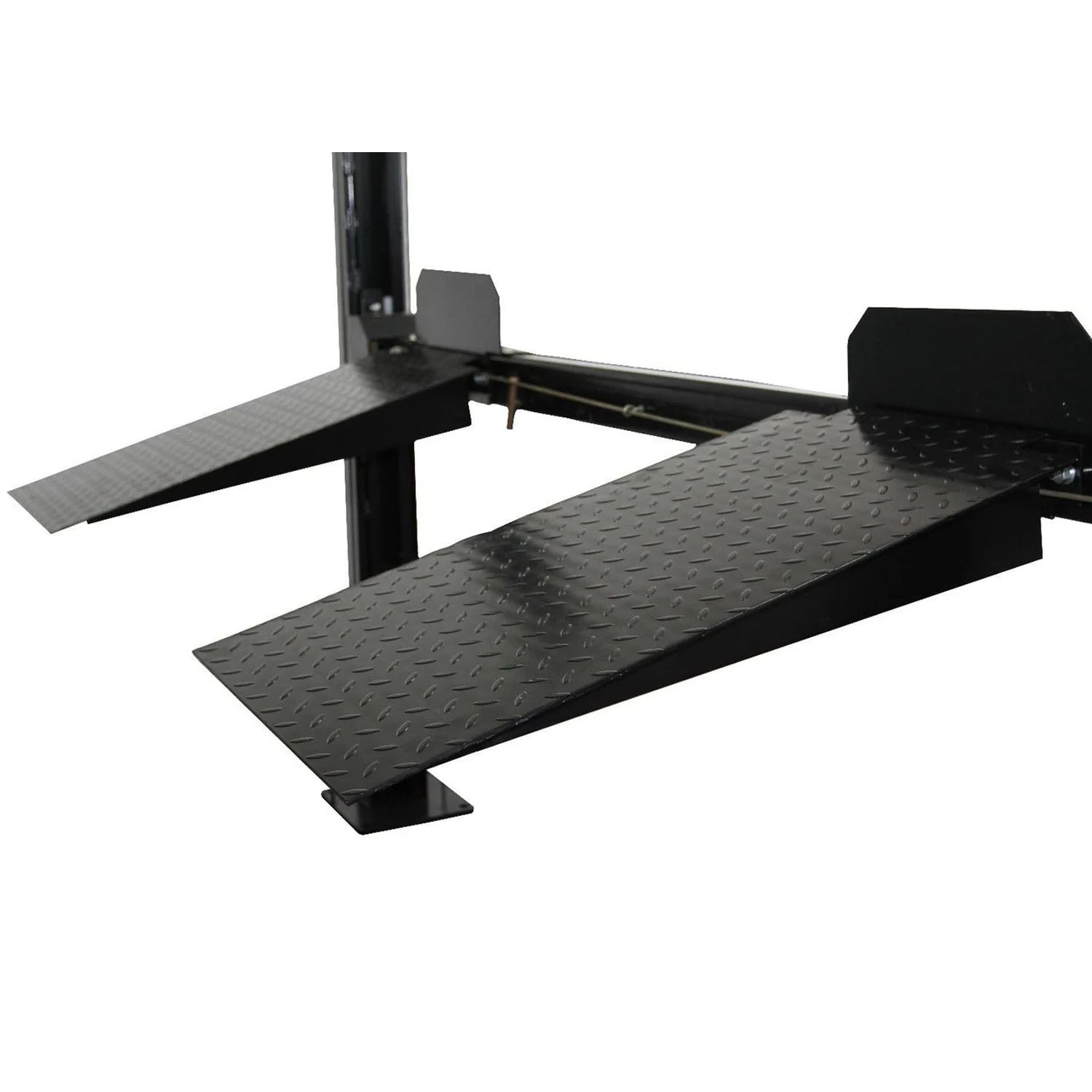

- 2 Removable Approach Ramps
-
FEATURES + BENEFITS
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage and Column Material Q235B Steel
- Lifting operation by pressing "UP" button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading
- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope

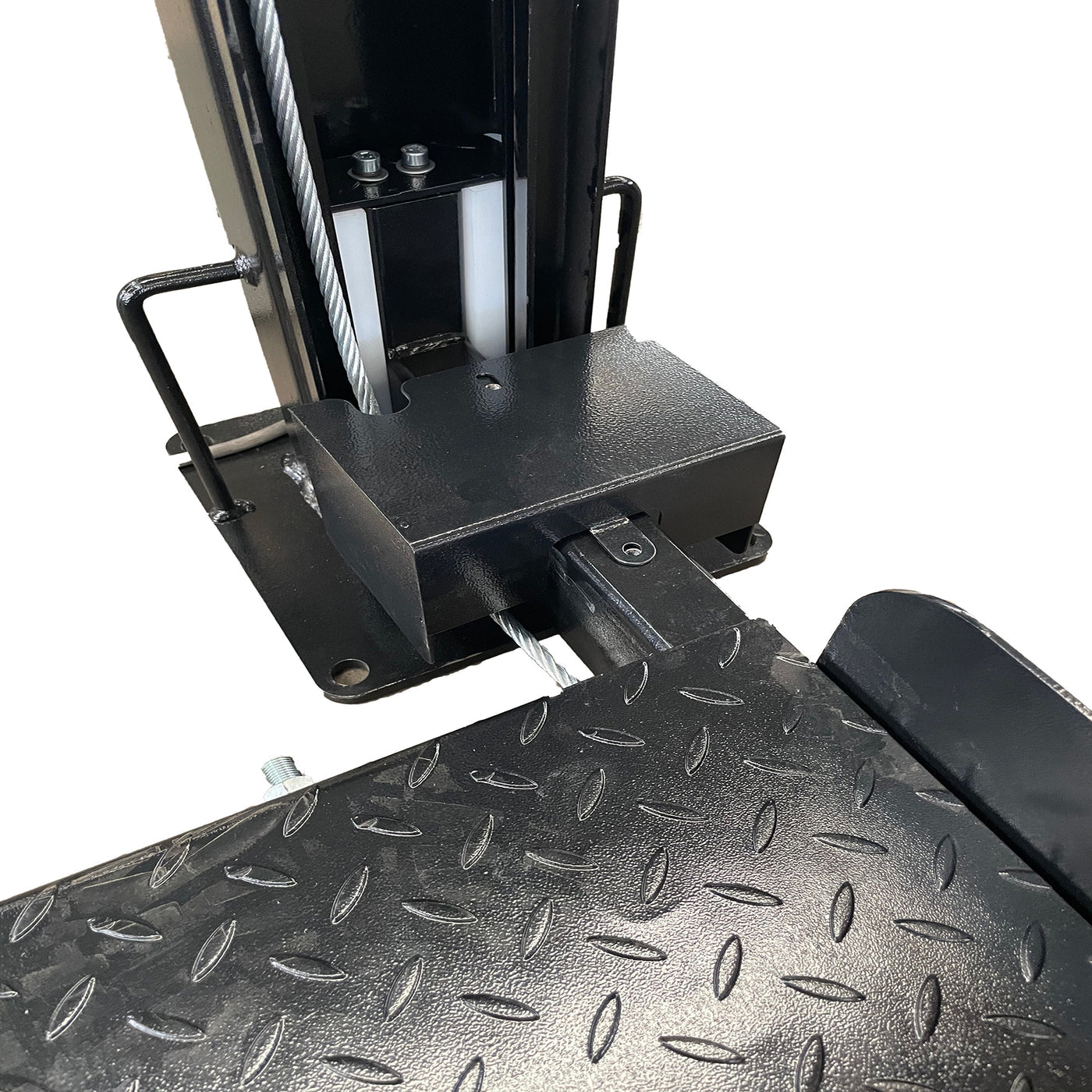

- Heavy duty 3/8" diameter cable and 3" pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
-
SPECIFICATIONS
Model HW-8SXLT
Style 4-post Lock Release
Single Point Release
Warranty
3 years (36 months) Lifting Capacity
8,000 lbs Overall Length
178"
Overall Width
106"
Drive Thru Width
93"
Overall Height
84" Lifting Height 72" Clearance Under Runway 66" Runway Size 1165"l x 18 1/2"w Runway Between Runways 38" inside-inside, 75" outside-outside
Runway Gauge Steel 6 15/64" Column Cross Section 6"l x 4"w Removable Approach Ramp size 32"l x 18 1/2"w Lock Position 9 Positions:
28 3/4"
42 1/2"
46 1/2"
50 3/8"
54 3/8"
58 1/4"
62 1/4"
66 1/8"
70 1/8"Lifting Time 40 seconds Motor 110V Single Phase 1.5HP

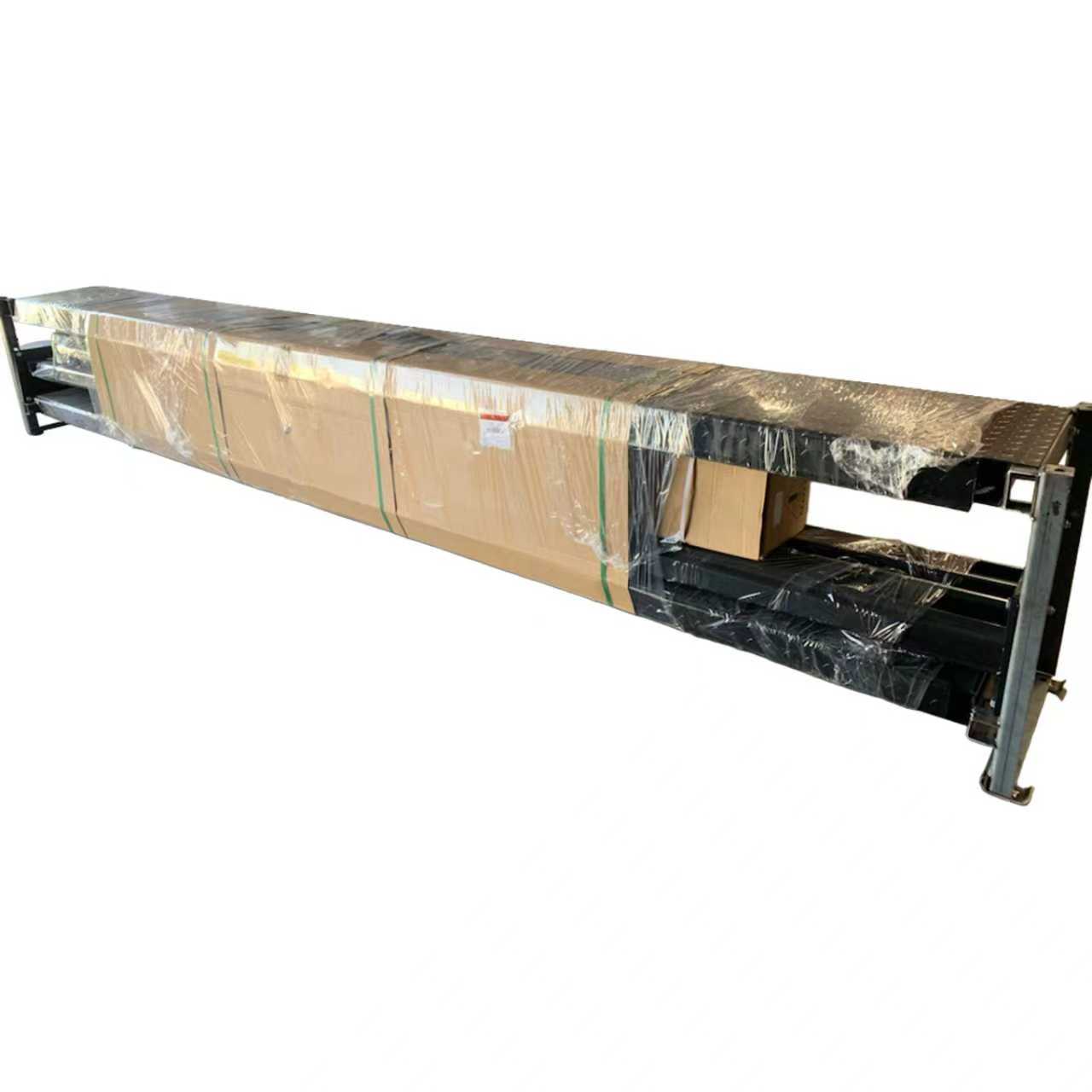

10A (recommended a 30A breaker)Power cord 10 ft with plug Hydraulic Oil 3-5 gallons AW32/AW46 (not included) Shipping Weight 1,750 lbs Shipping package size 166"l x 22"w x 30"h Usage Parking/Storage/Service Finish Powder coated finish with superior corrosion resistance Cable Heavy Duty 3/8" diameter cables that reduce high stress on synchronization process and increase cable life Operational Jack ABJ-40 Air Operated Bridge Jack -
WARRANTY
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
- 3-Year Structural Components Warranty
Free shipping in the US 48 contiguous states.
Do you ship to Alaska, Hawaii, Puerto Rico, and Canada?
Yes, we ship to Alaska, Hawaii, Puerto Rico, and Canada. However, there will be additional freight charges for these destinations. Canadian customers will also be responsible for paying taxes and duties. Please email us at info@alamoequipment.com, or call us at (817) 865-3707 to get started. Be sure to provide the model name and your zip code.
