Atlas® PV10PX Symmetric/Asymmetric Heavy-Duty 2 Post Lift 10k lbs ATEXH-PV10PX-FPD

• DESCRIPTION
• FEATURE + BENEFITS
• SPECIFICATIONS
• WARRANTY

• DESCRIPTION

  Atlas® Automotive Equipment PV10PX Symmetric/Asymmetric 2 Post Lift 10,000 lbs

  The Atlas® PV series represents the absolute best value for the customer who demands a heavy-duty, professional-grade two-post lift at the lowest possible price. Atlas® has manufactured the PV series two-post above-ground lifts for over a decade—thousands sold! Descriptions such as "bullet-proof," "built like a brick outhouse," "tougher than nails," and other euphemistic phrases are used daily to describe any of the Atlas® PV series models.

  The commercial grade Atlas® PV-10 two post lift includes some modifications and improvements that make it one of the most popular above ground lifts in the world.

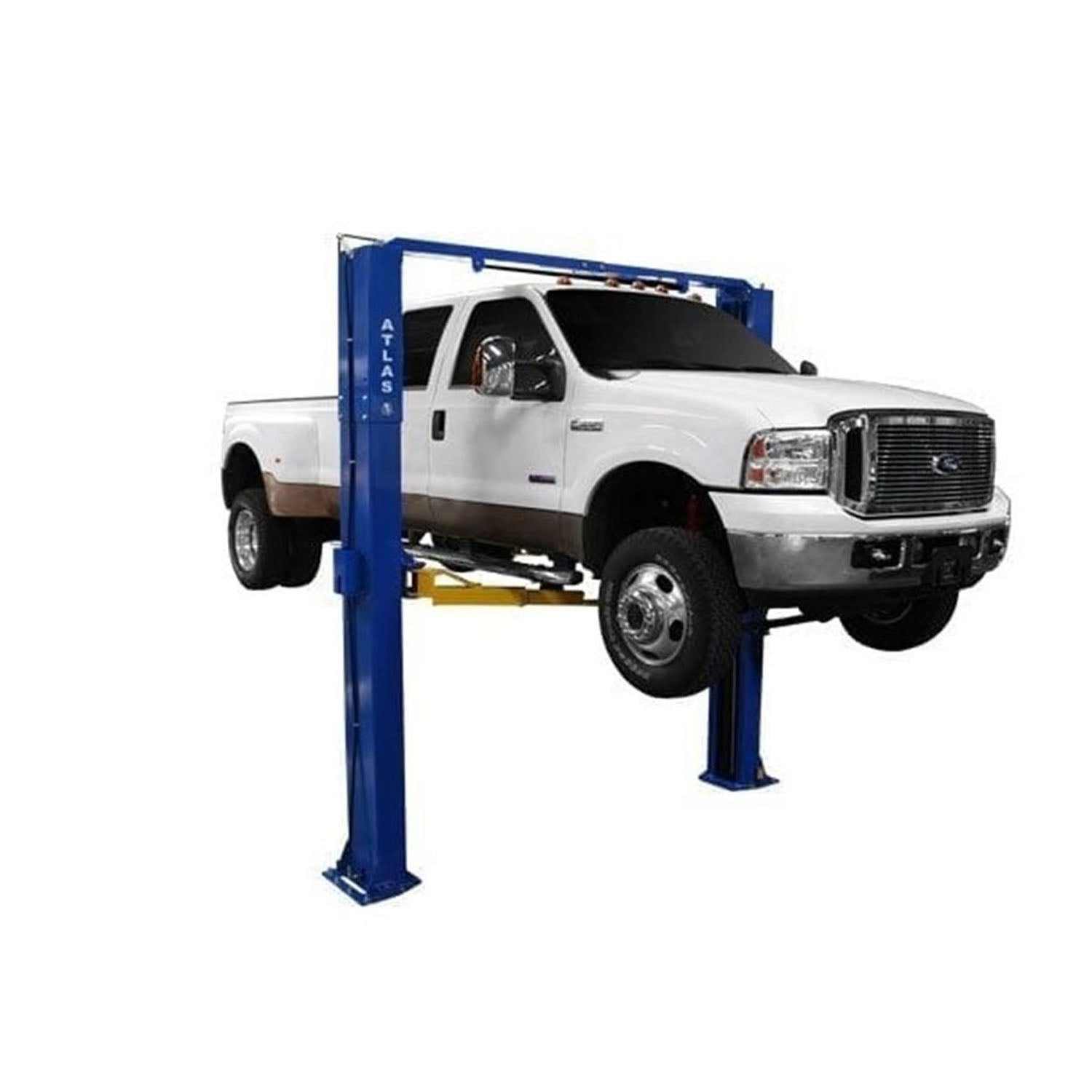

  This lift is the perfect choice for use in a large commercial service department or for the "pole barn" owner who wants the "biggest and baddest" lift in the country. The Atlas® PV-10PX is designed and engineered to safely lift (and work on) everything from a Smart Car® to a one-ton diesel dually.

• FEATURES + BENEFITS

  • 10,000 LB. Capacity
  • Commercial Grade

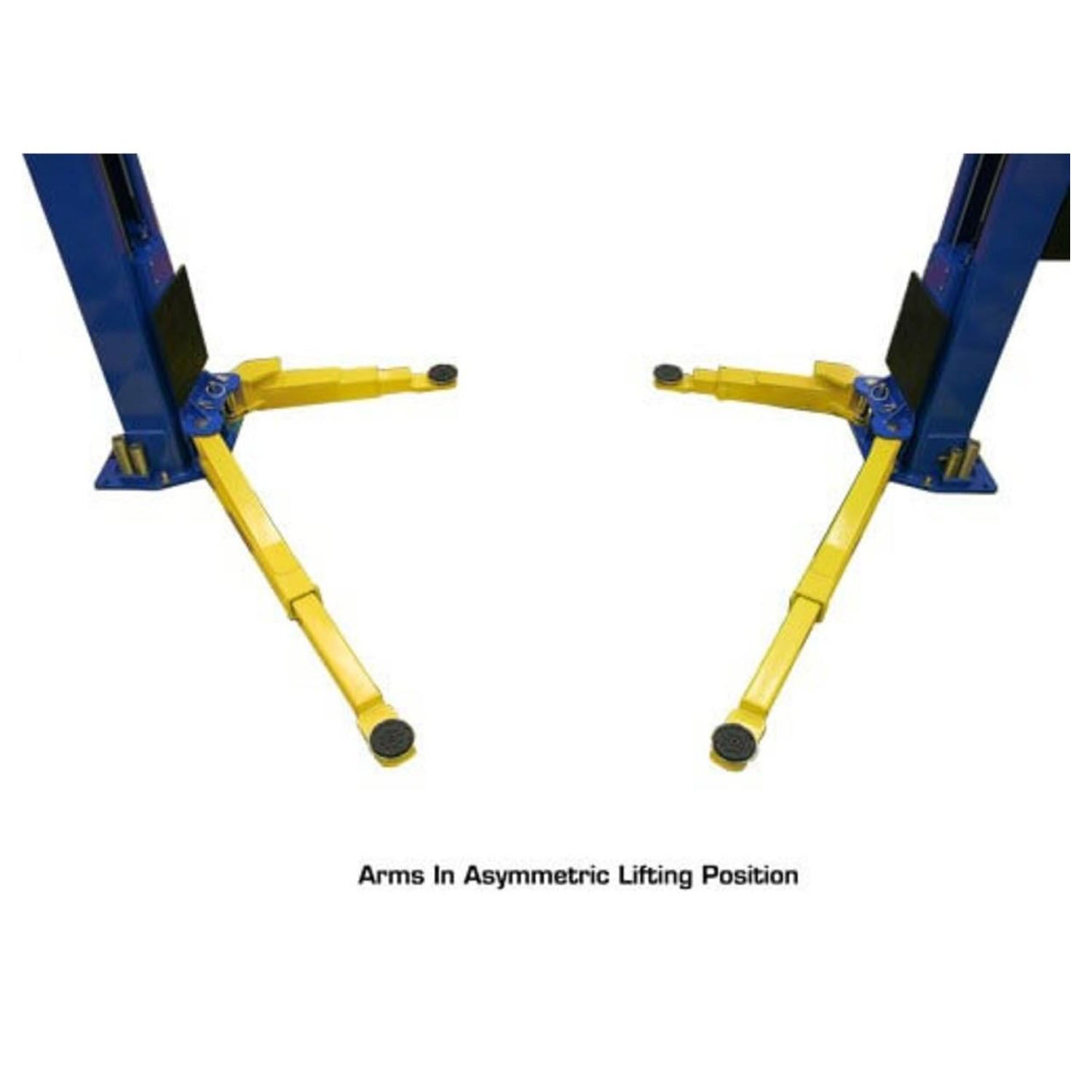

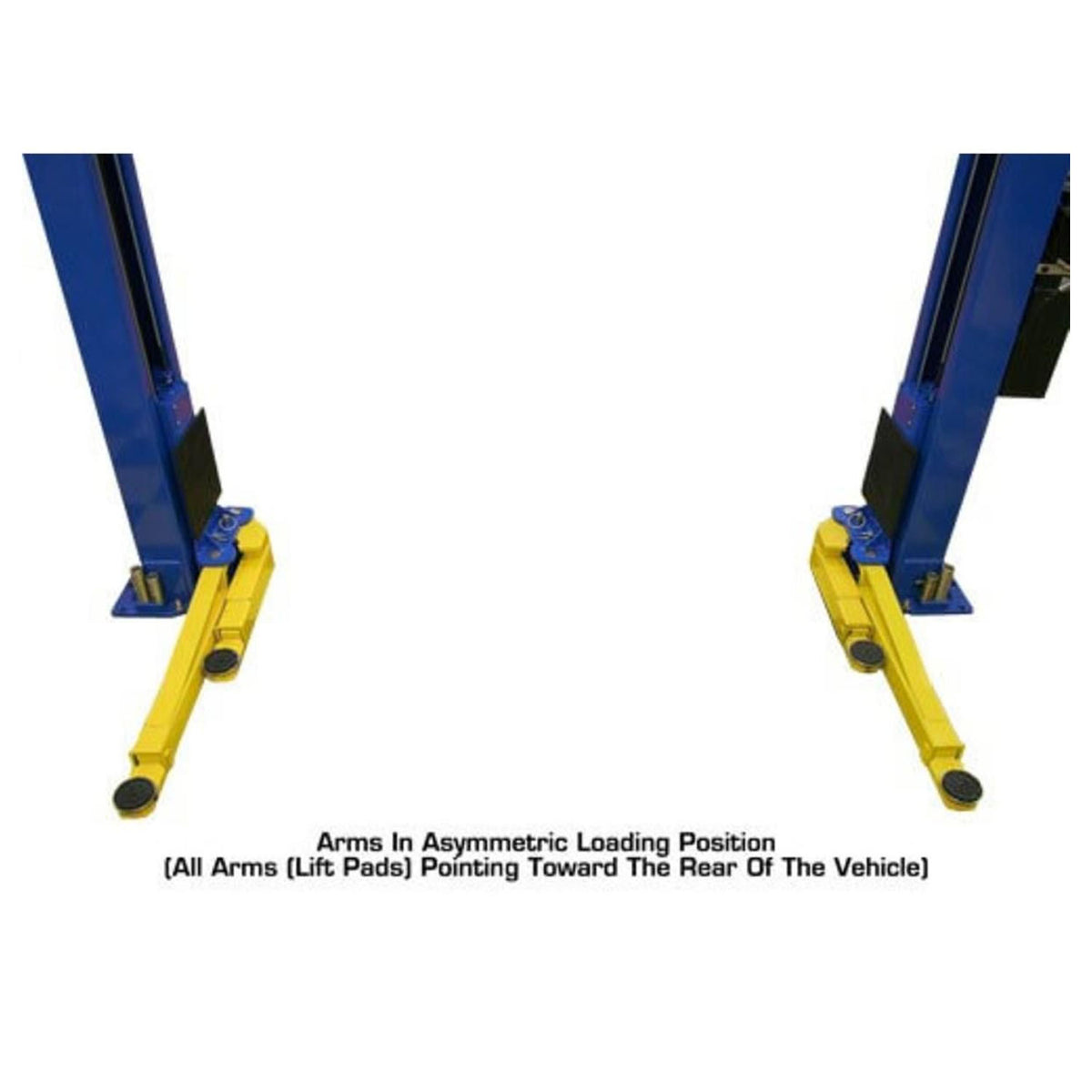

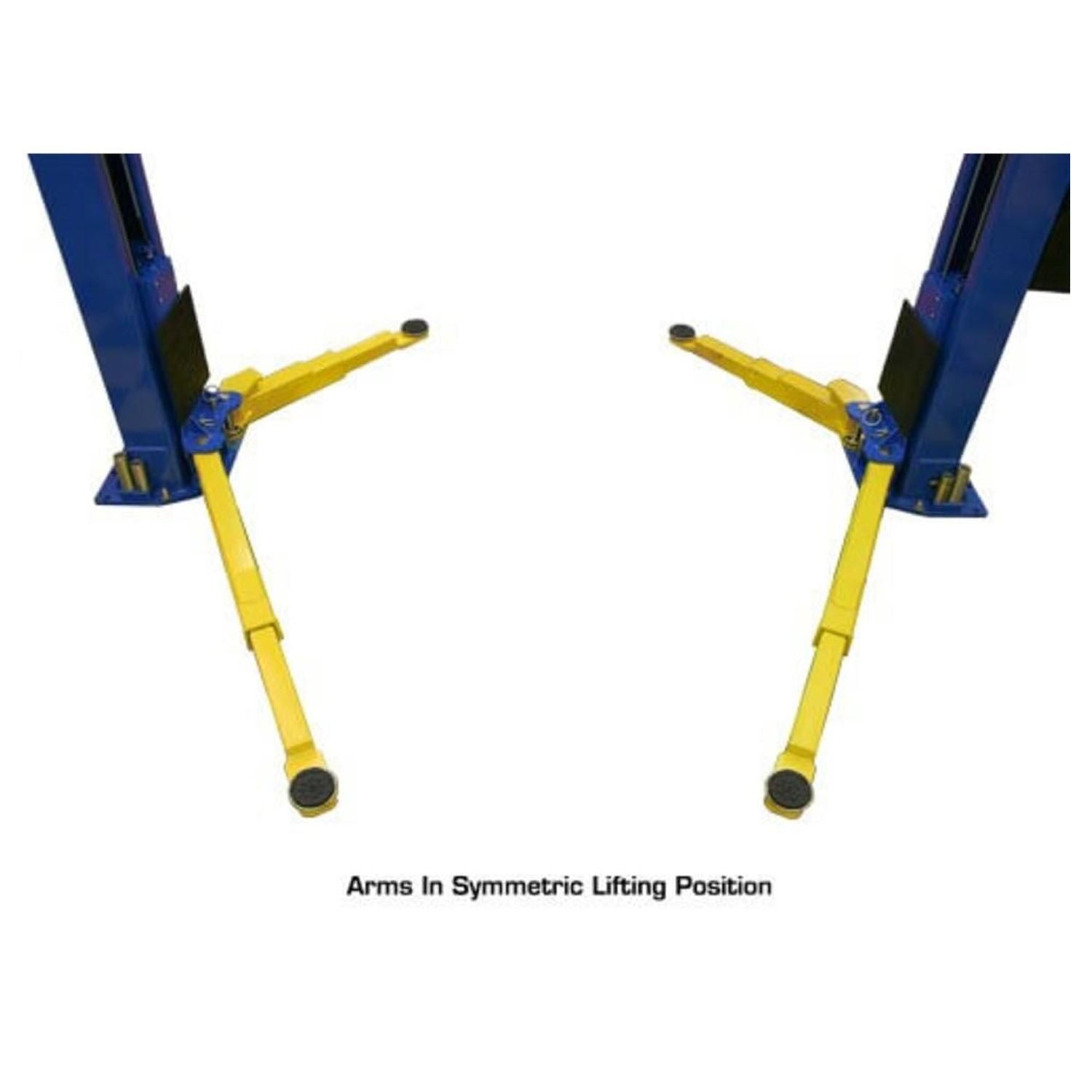

  • Asymmetric/Symmetric Arms

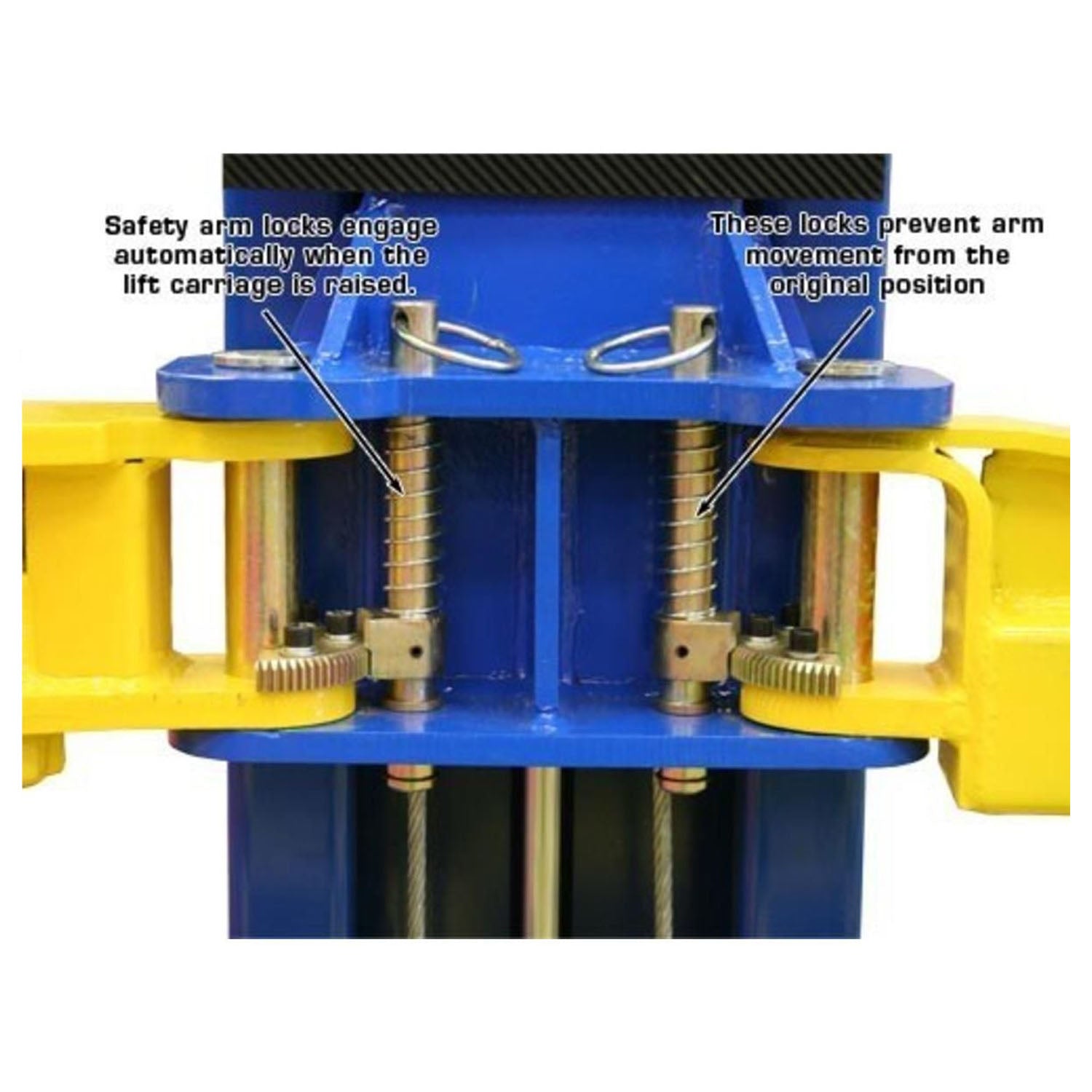

  • Automatic Arm Restraints

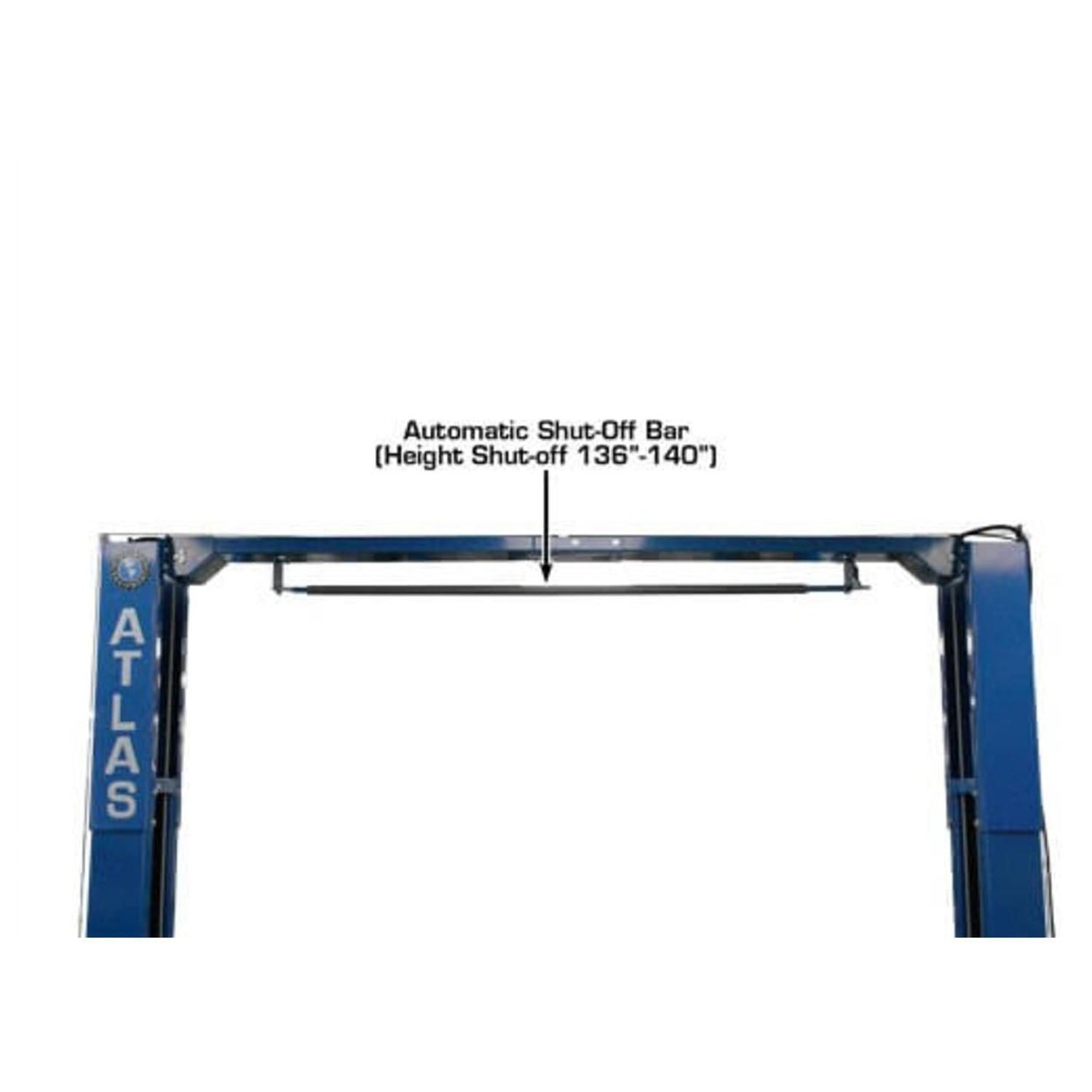

  • "Padded" Shut-Off Bar
  • Thick Rubber Covers On Carriages

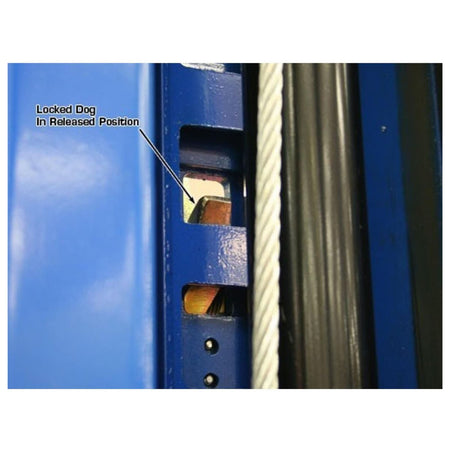

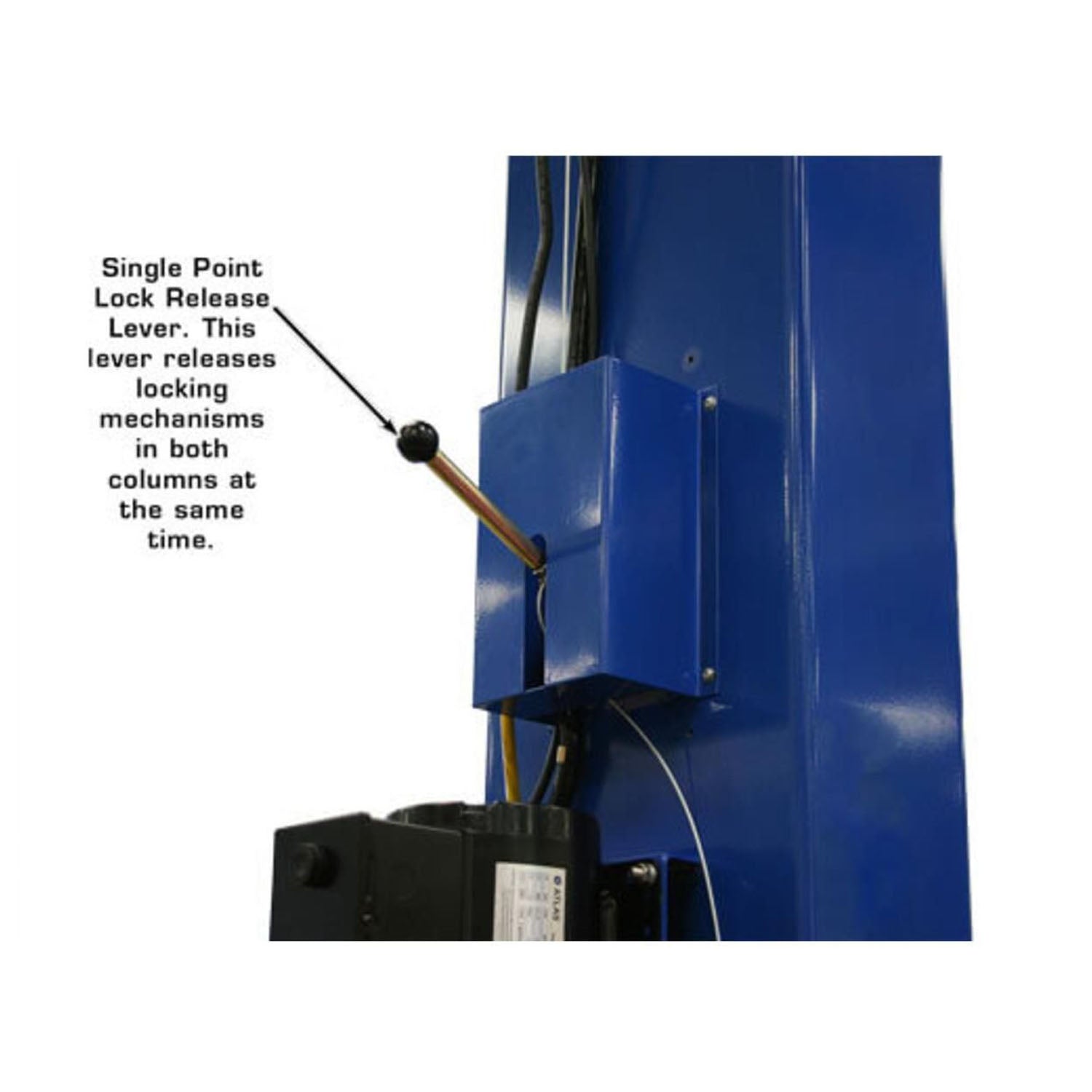

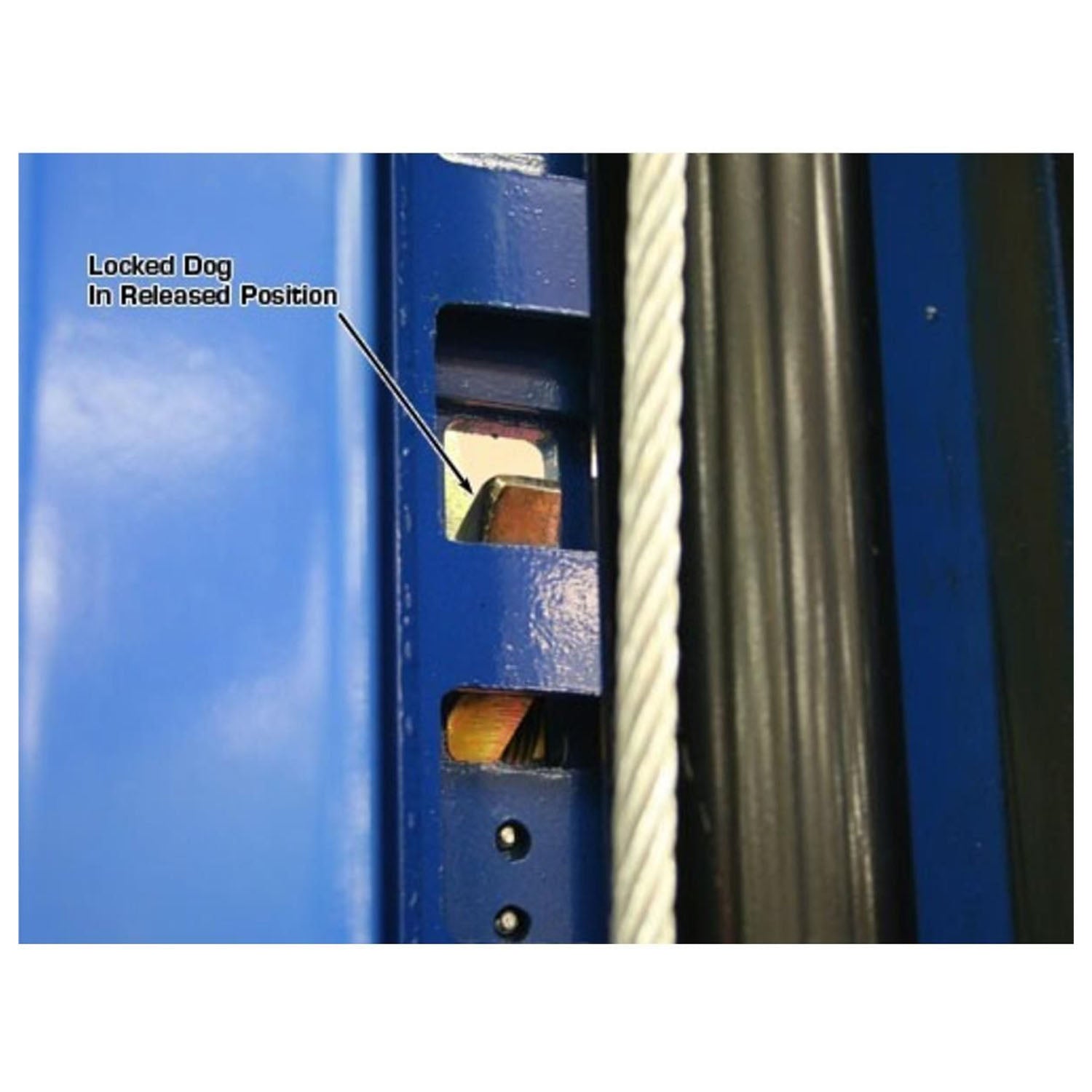

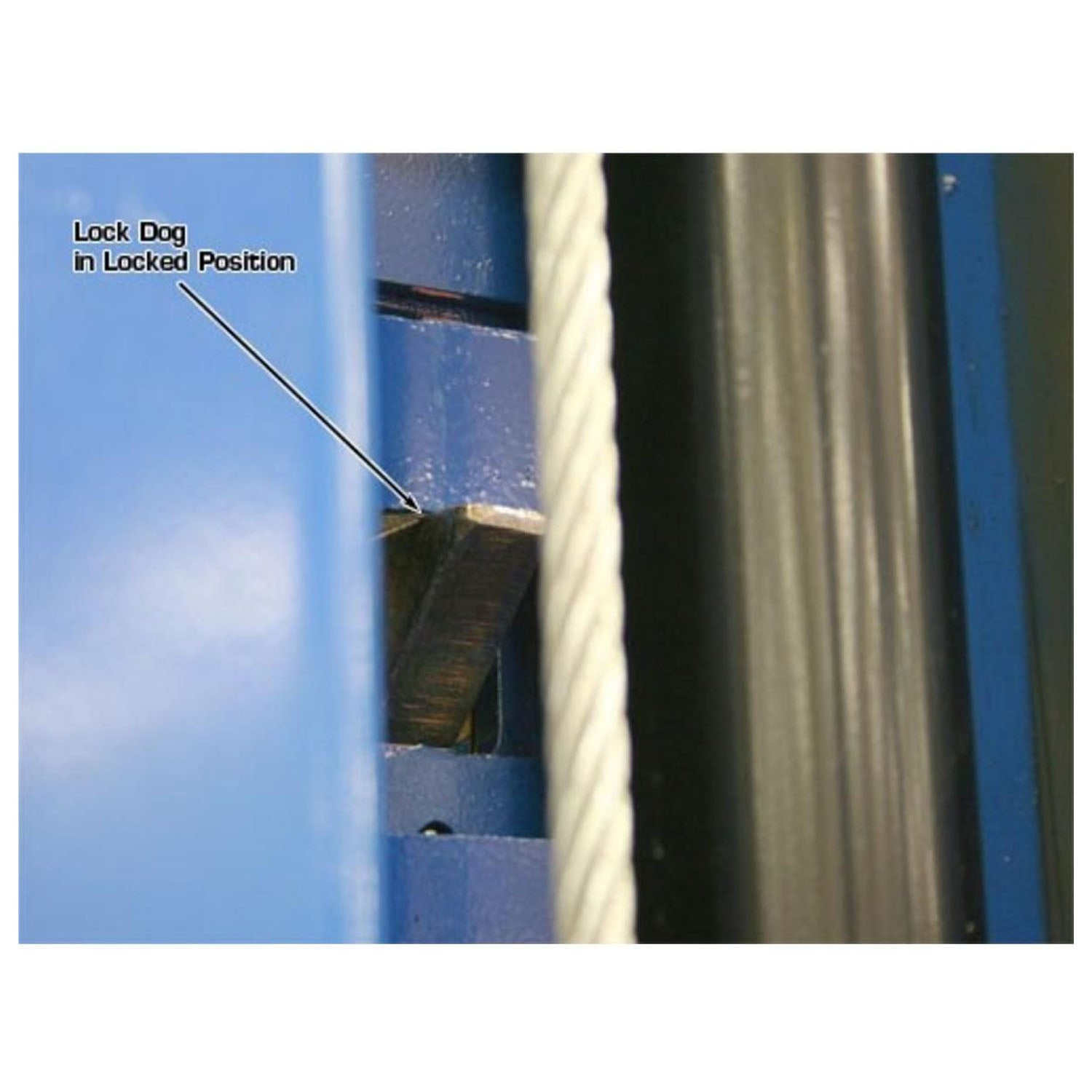

  • Single Point Lock Release

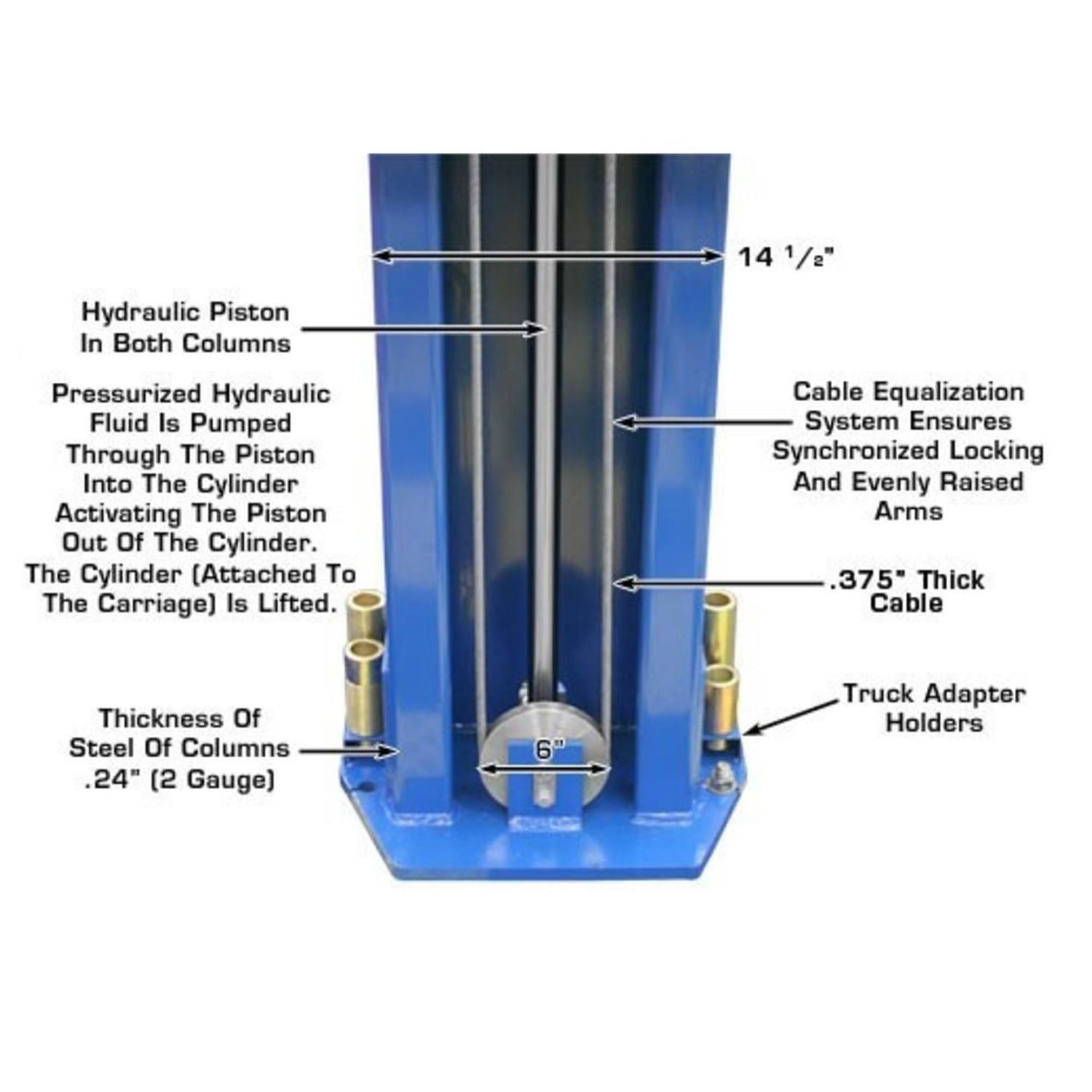

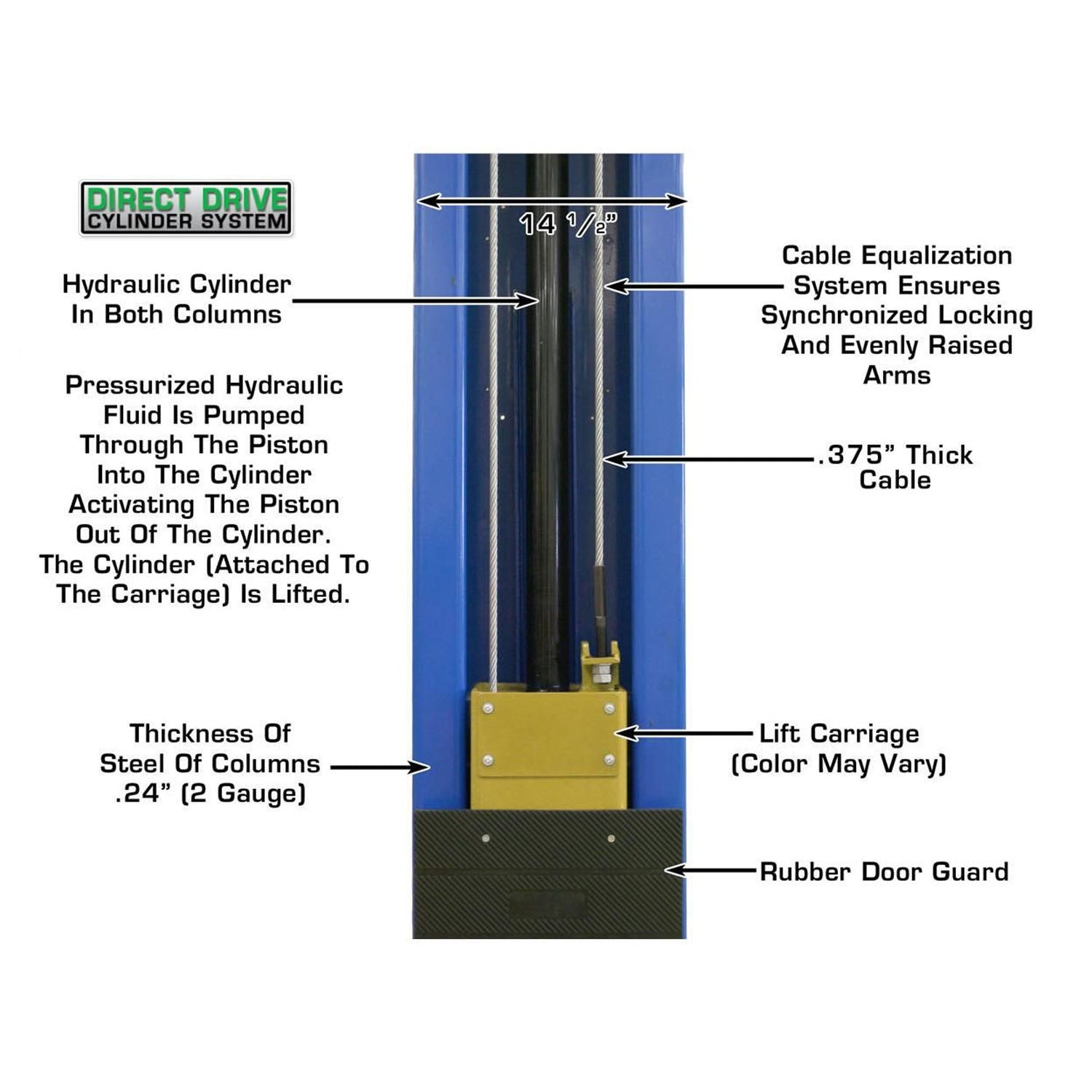

  • Direct-Drive Cylinders
  • Powder Coat Finish
  • Adjustable Height - 11'11 1/8" or 12'3"
  • Free 12 Piece Truck Adapter Set

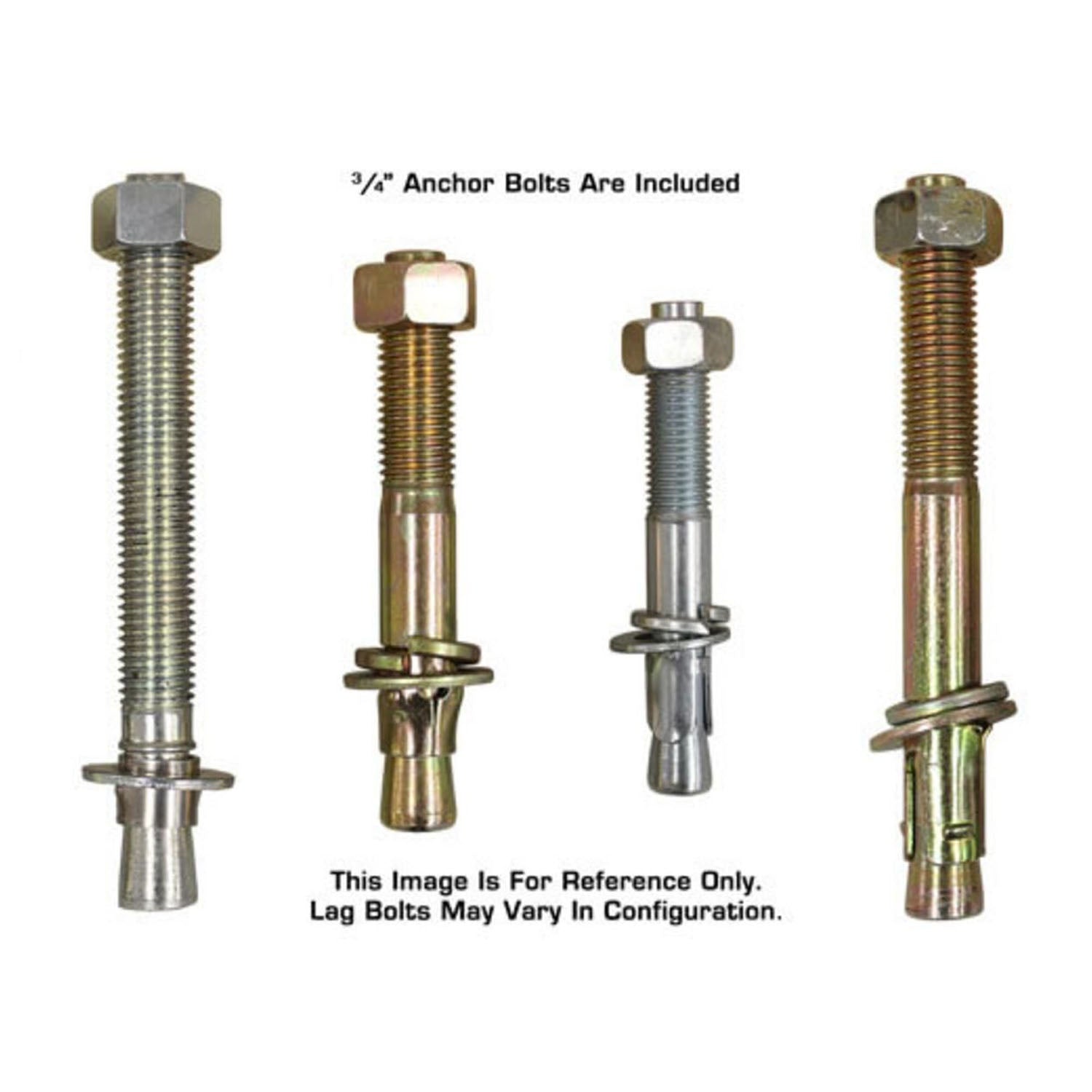

  • Mounting Hardware Included
  • Shipping Weight: 1,875 lbs.

  Includes

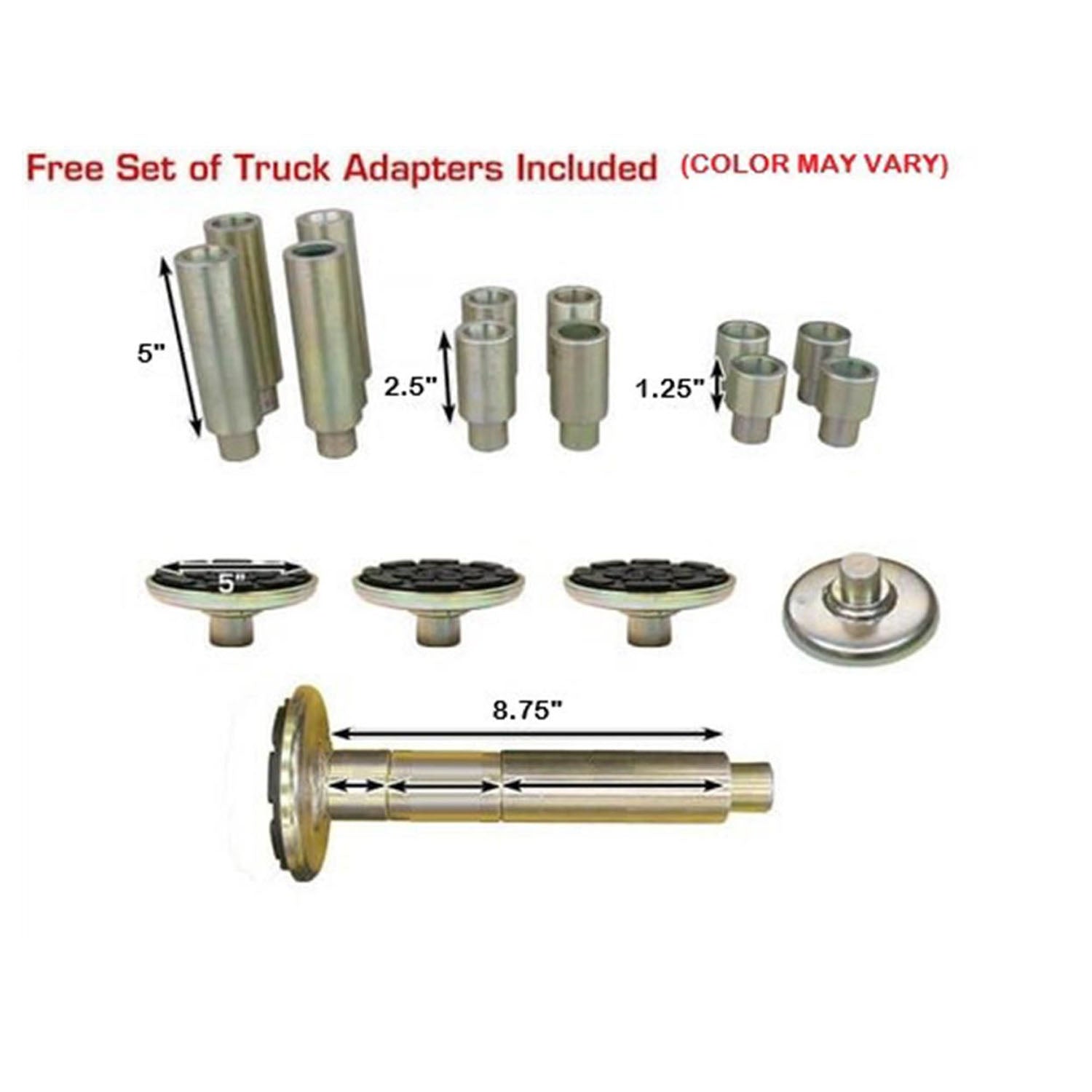

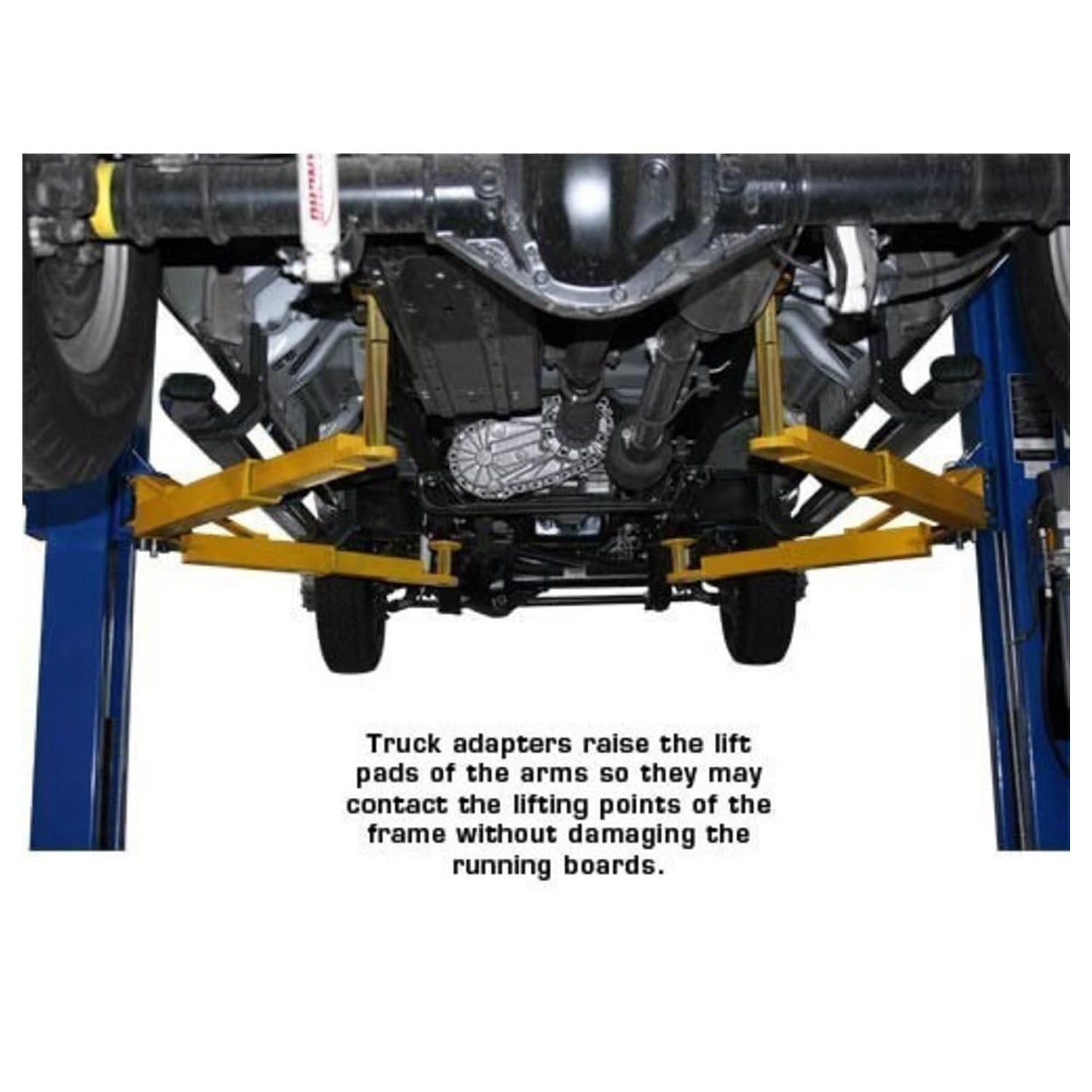

  • 12 Piece Truck Adapter Set

• SPECIFICATIONS

  Lifting Capacity	10,000 lbs
  Overall Height	Low - 143 1/8" (11' 11 1/8") High - 146 7/8" (12' 2 7/8")
  Overall Floor Width	137 1/2" (11' 5 1/2")
  Outside Column To Outside Column	125 1/2" (10' 5 1/2")
  Maximum Lift Height w/adapters	81 1/4"
  Maximum Lift Height w/o adapters	72 1/2"
  Minimum Arm Height	4 1/2"
  Inside Column	110 1/8" (9' 2 1/8")
  Drive Thru rm Configuratioon	90 1/4" Asymmetric / 96 1/4" Symmetric
  Column Size	7 1/2" x 14 1/2"
  Column Thickness of Steel	6mm

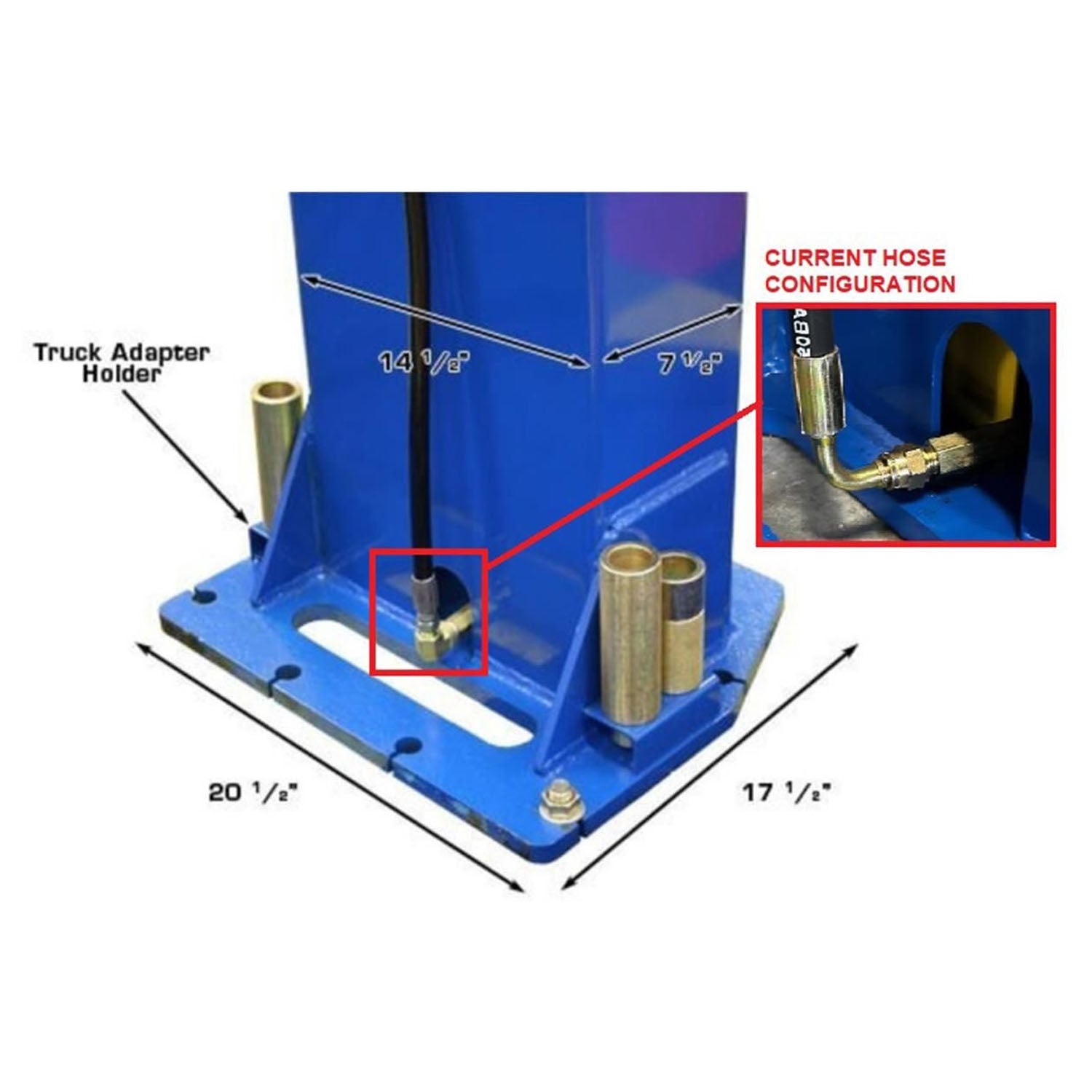

  Base of Column	17 1/2" x 20 1/2"
  Arms Thickness of Steel	6mm
  Adapter Heights	4 Each 1.25", 2.5", 5"
  Arm Hole/Adapter Peg Size	1.5”
  Motor/Electrical Requirement	220V single (1) phase / 30 amp breaker is required.
  Oil Requirements	3-5 Gallons  AW32/AW46 (Not Included)
  Shipping Weight	1,875 lbs.

• WARRANTY

  Warranty Information

  • 5-Year Structural Warranty

  • 2-year on Hydraulic Cylinder
  • 1-year Hydraulic-Power Unit Warranty
  PV10PX Warranty

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
