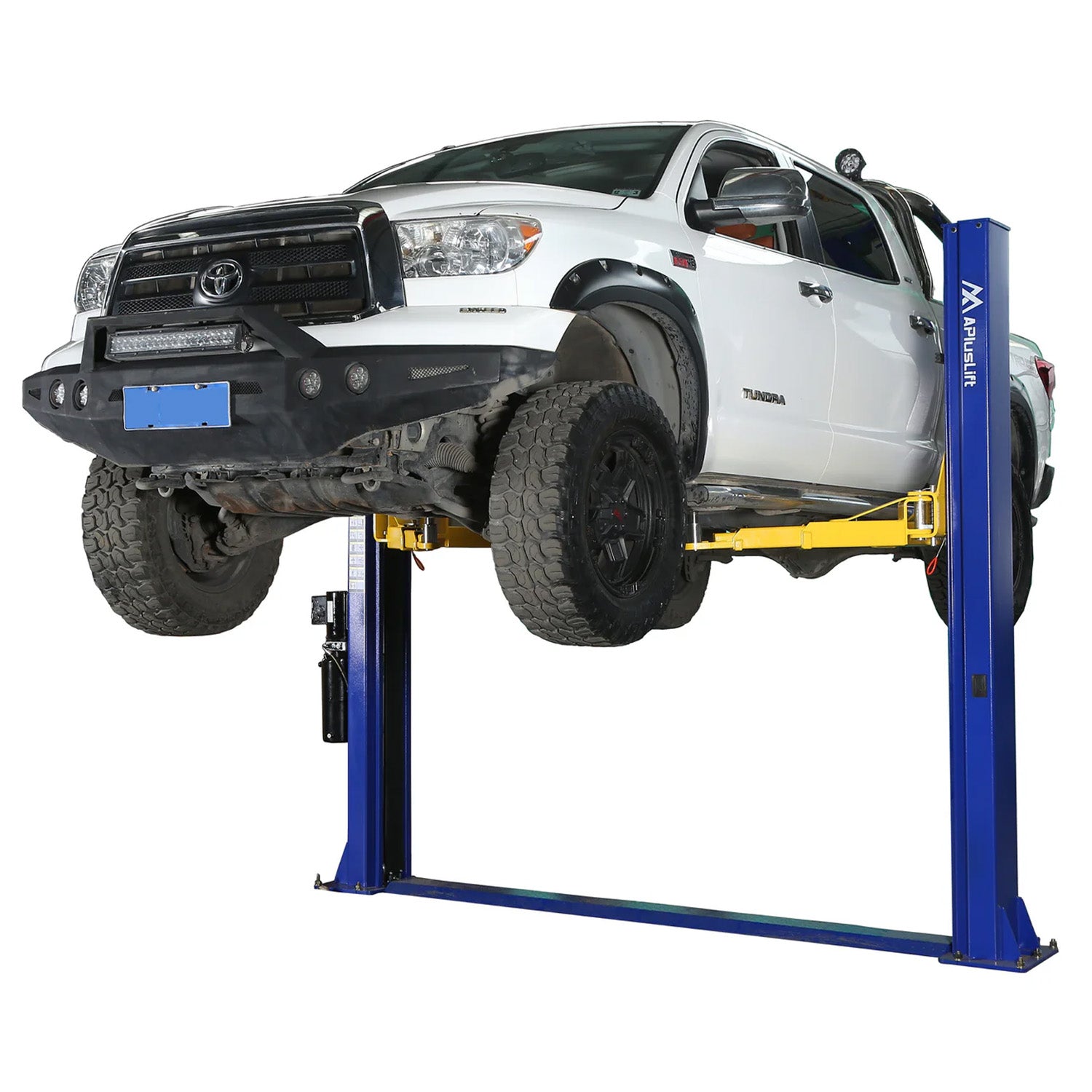

APlusLift 10,000LB 2-Post Floor Plate Heavy Duty Car Lift #HW-10KBP-A
Lead time:
-
DESCRIPTION
APlusLift 10,000LB 2-Post Floor Plate Heavy Duty Car Lift with 3 Year Warranty - HW-10KBP-A
APlusLift HW-10KBP-A car lift (auto hoist) is one of the most affordable floor plate car lifts built with quality materials and good workmanship. The lift has a strong double "S" column design to support 10,000 LB capacity.
We are proud to offer an industry-leading 3-year warranty for all parts (a $499 value)! We have all replacement parts available. We're committed to continuous improvement and always welcome your feedback on how we can enhance our products and services!
Free shipping to the lower 48 states with forklift (or similar) on-site, or free pickup at a nearby terminal. Car lifts require an on-site forklift (no liftgate). We strongly recommend against renting a forklift, as the expense is not reimbursable. Please see the shipping policy below for details regarding limited access, remote, and high-cost areas.
2 Post Lifts
- Industry leading 3 YEAR WARRANTY (a $499 value!)

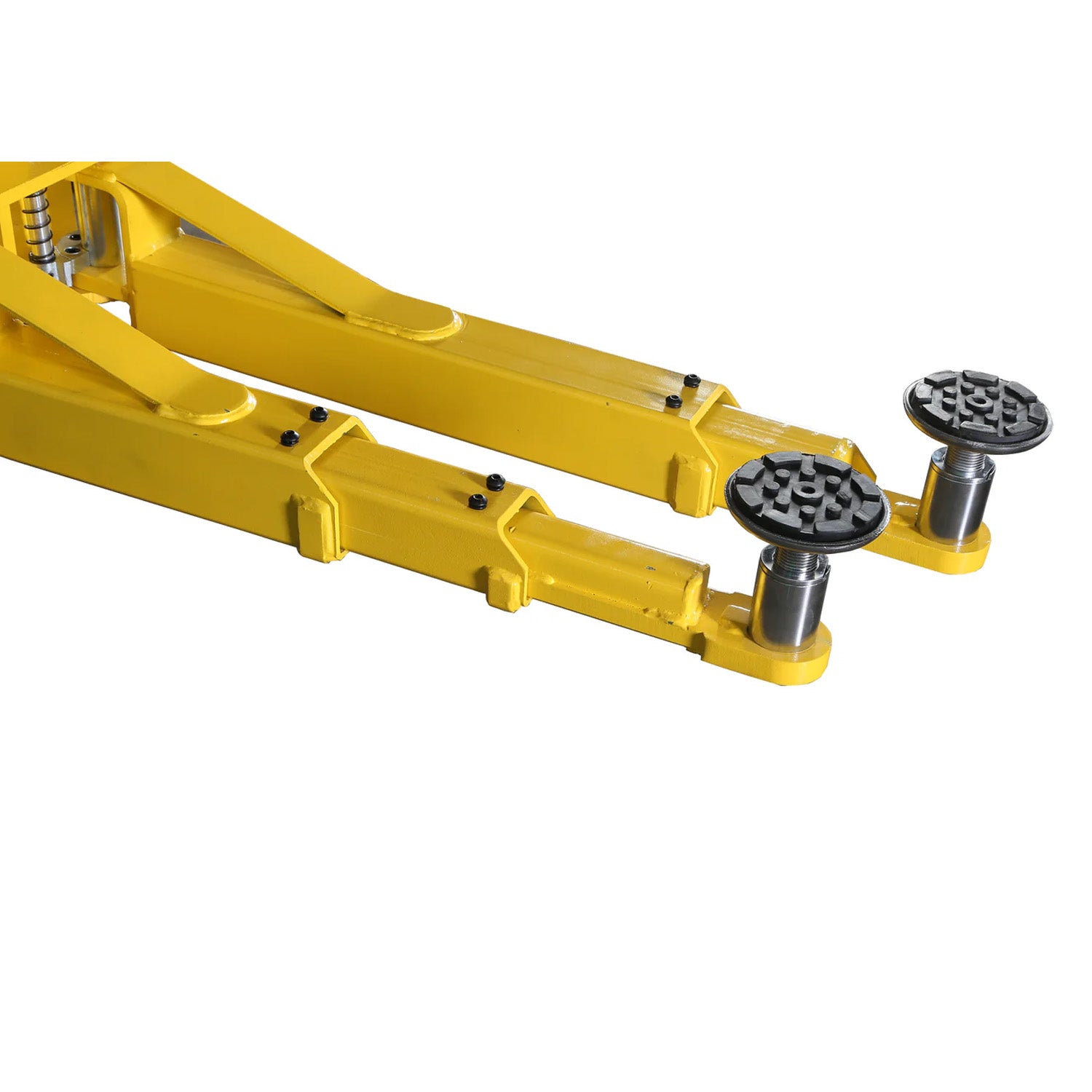

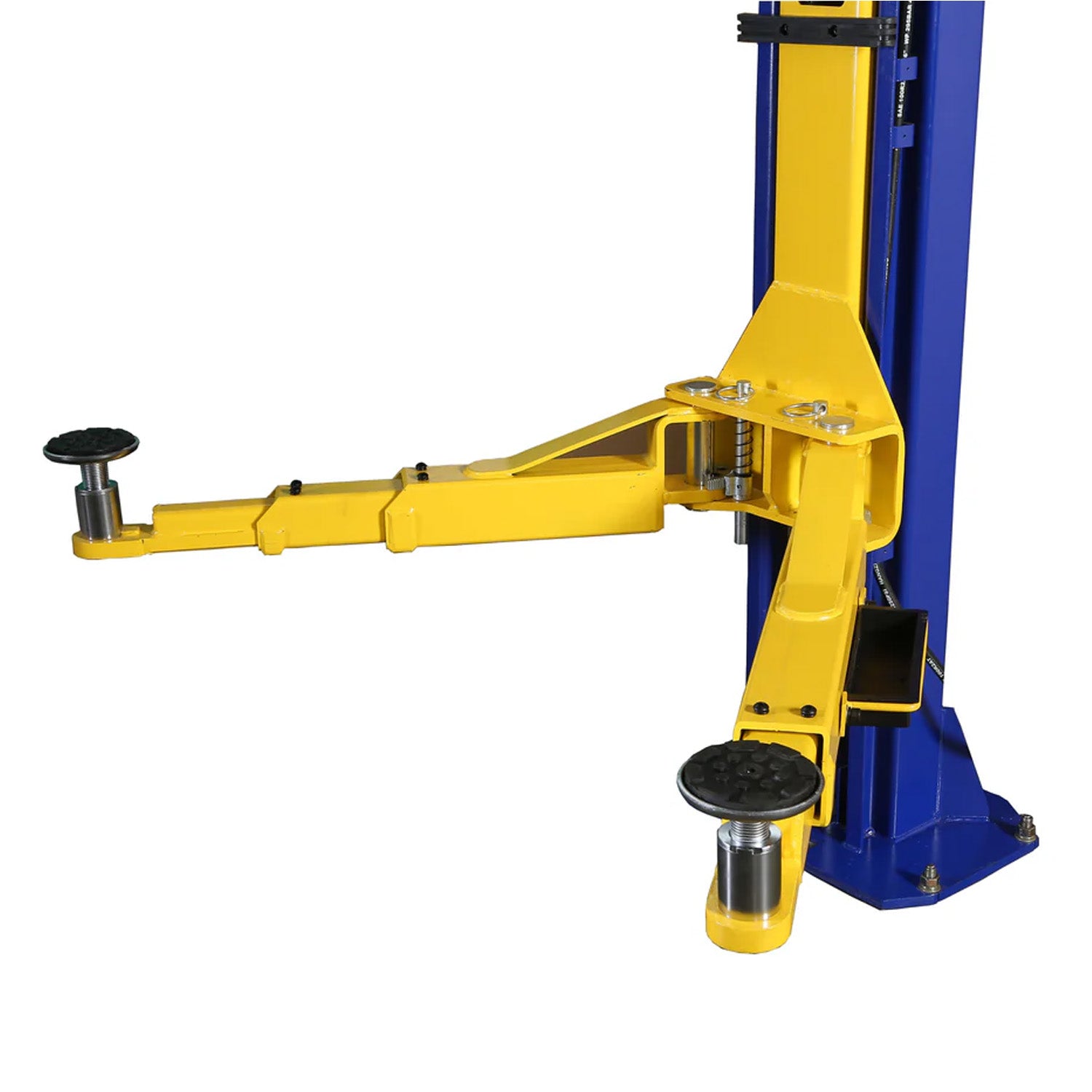

- Combo (symmetrical and asymmetrical) Arm Assembly with Adjustable Screw Pads!
- CE Certified Lift Structure and Hydraulic System - Tested for 115%
- Dynamic Load Capacity and 150% Static Load Capacity
- One Set of 4" Tall Truck Adapters Included; 6'9" Lift Height Maximum with Truck Adapters
- All Robot Welded Structure with Durable Powder Coated Finish
Parts Included:
- 4 pieces of adjustable screw pads
- 4 pieces of 4" tall truck adapters (height extensions)
- 10 anchor bolts
- 10 shims
- 2 tool trays
- 2 toe guards
-
FEATURES + BENEFITS
- CE Certified Lift Structure and Hydraulic System
- Third-party tested with a dynamic load capacity of 115%
- Third-party tested with a static load capacity of 150%
- Durable hydraulic system
- Easy to operate and maintain
- Double-point safety lock release
- Double seal rings protecting PU Material
- Carriage material Q355 (ASTM A572), stronger than normal Q235 Steel
- Lifting operation by pressing the "UP" button on the motor
- Manual lowering operation by pressing the lever
- A relief valve is built into the power pump to prevent overloading

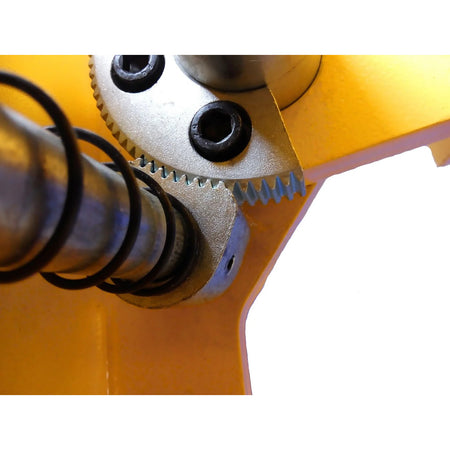

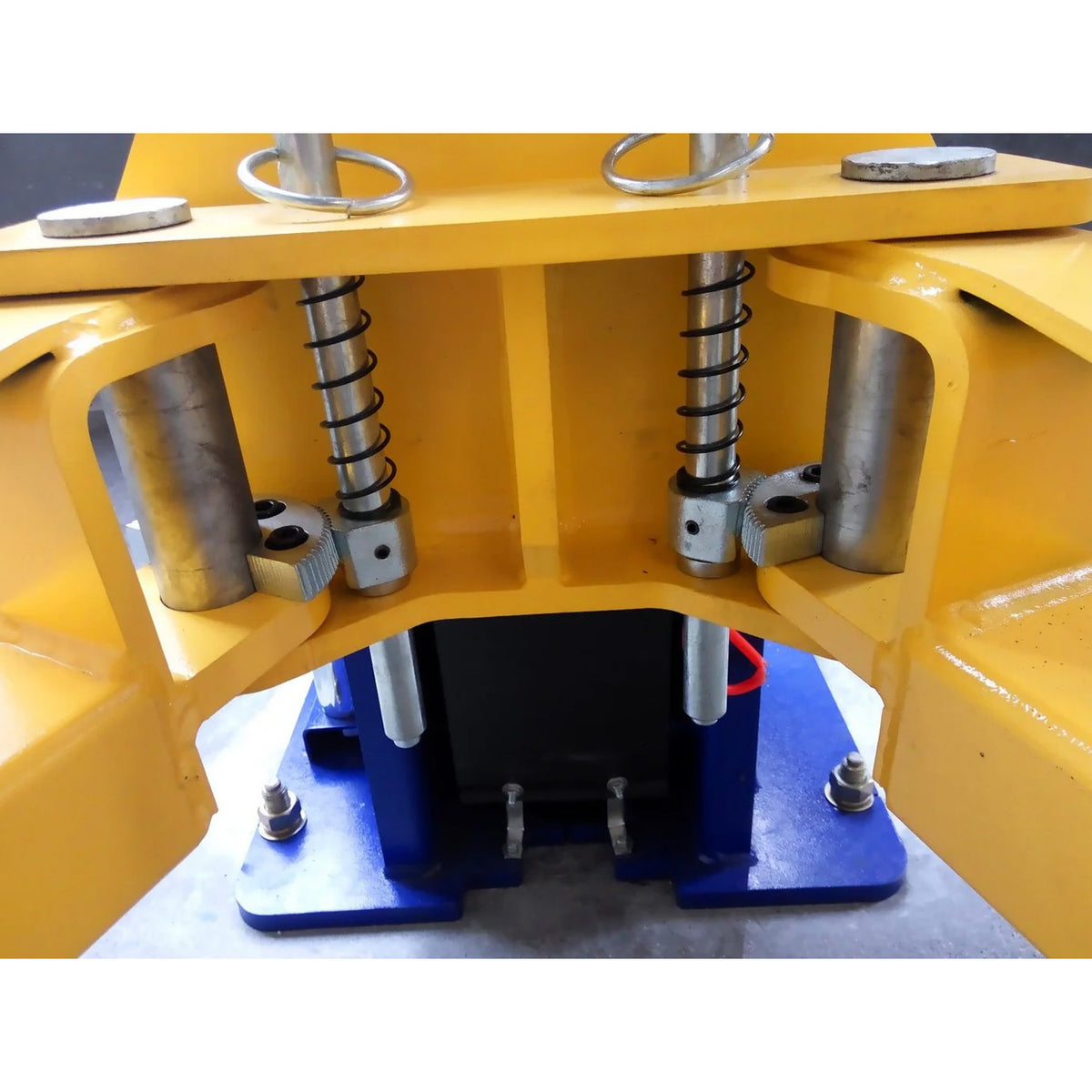

- Automatic arm lock restraints
- A relief valve is built into the power pump to prevent overloading
- Door guard protection rubber
- Upper limit switch to protect the cylinders' working stroke used in the safe length scope
- Heavy-duty 3/8" diameter cable and 5" pulley that reduces high stress on the synchronization process and increases cable life
- Upgraded floor plate, beveled diamond plate steel 5/32" with supporting bracket.
- Ultra-high molecular self-lubricating nylon slider that ensures the carriage moves smoothly up and down
-
SPECIFICATIONS
Model HW-10KBP-A
Style Floor Plate Lock Release
Double Point Release
Warranty
3 years (36 months) Lifting Capacity
10,000 lbs Overall Height
113 5/8"

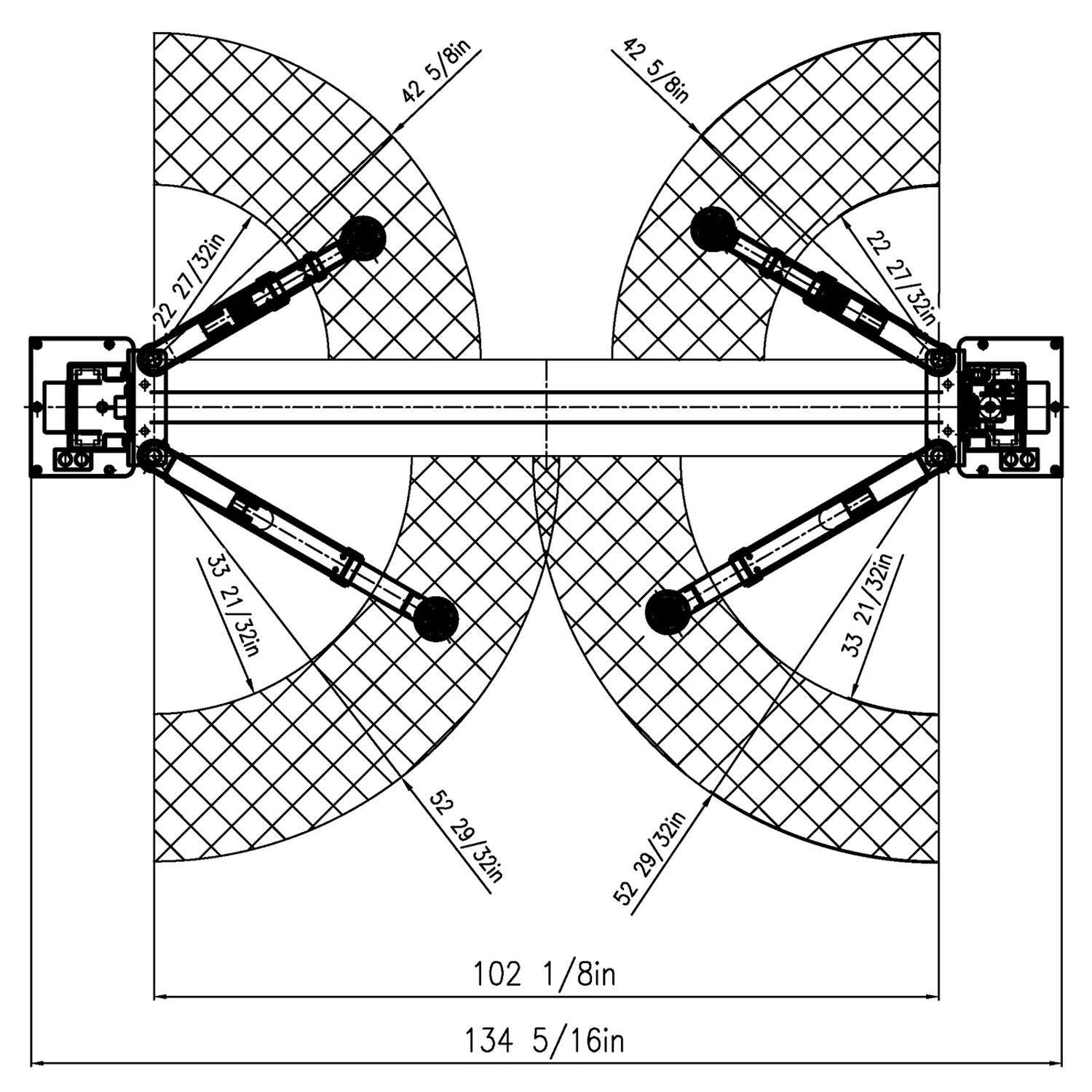

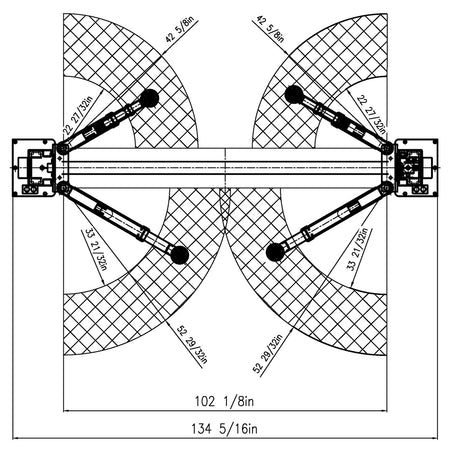

Overall Width
134 5/16"
Maximum Lift height with Truck Adapters
81"
Maximum Lift height without Truck Adapters
75" Maximum lift height from the bottom of the arm to the ground
71" Minimum Height for adjustable pads from the ground 4" Drive Through Width (Carriage to Carriage) 100" Column to Column Width 109" Column Cross Section 10 5/8"L x 7"W
Floor Plate Cross Section 10 5/8" W x 1 7/8"H Driving Mode Dual hydraulic cylinders, chain drive Motor 220V Single Phase 3HP 10A (recommend a 30A Breaker) Hydraulic Oil 3-5 gallons AW32/AW46 (not included) Time to full rise 50 seconds Shipping Weight 1370 lbs Shipping package size 113"L x 22"W x 40"H Concrete Requirement 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000 lbs and below) Arm Assembly Combo (symmetrical and asymmetrical Arm Assembly) Front Arms Straight Front 3 Stage reach from 22 7/8" to 42 5/8" Back Arms Straight Rear 2 Stage reach from 33 5/8" to 52 7/8" Column Steel Thickness 13/64" Carriage Steel Thickness 15/64" Carriage Yoke Thickness 9/16" Arm Steel Thickness 15/64" Base Plate Steel Thickness 5/8" -
WARRANTY
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
- 3-Year Structural Components Warranty
