APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift #HW-12D
Lead time:
-
DESCRIPTION
APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty - HW-12HD

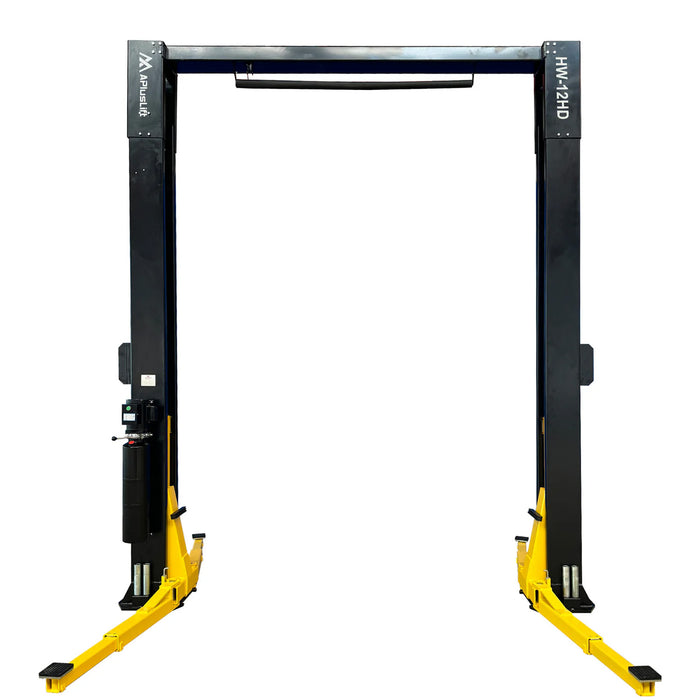

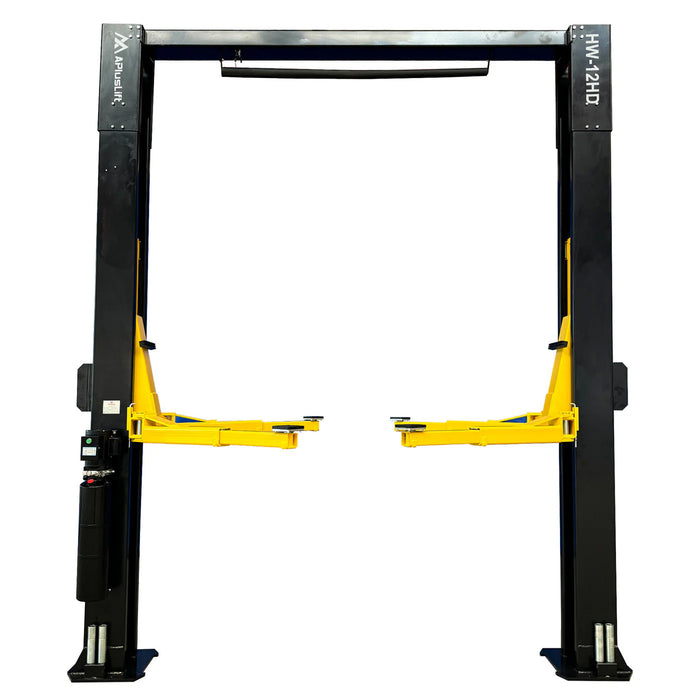

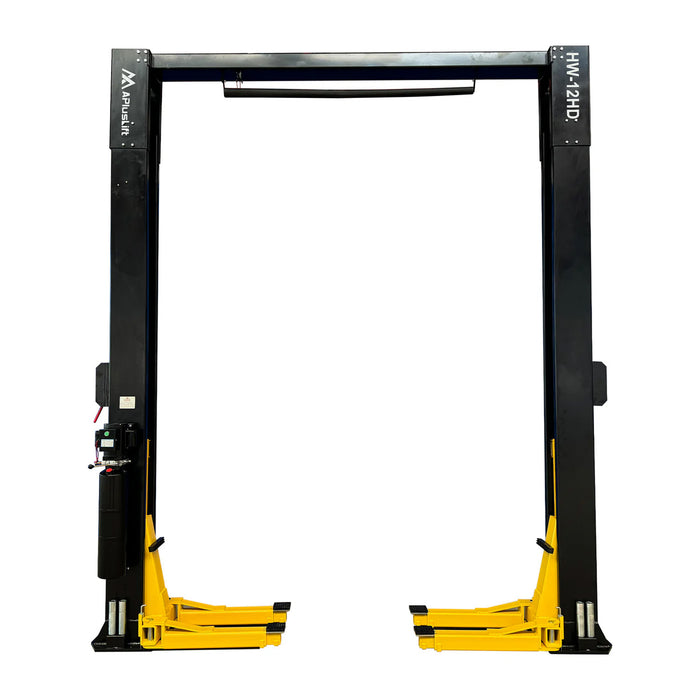

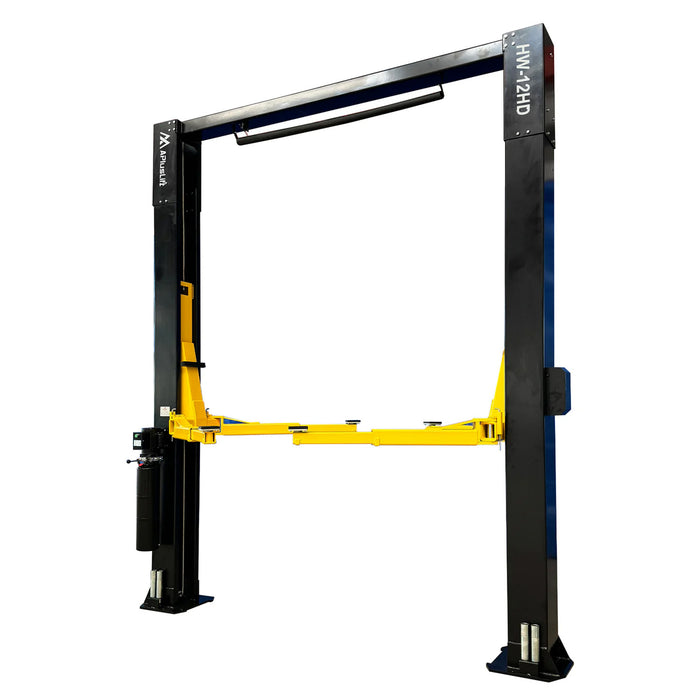

APlusLift HW-12HD is a 12000LB single-point release overhead car lift (auto hoist) built with quality materials and good workmanship.
We are proud to offer an industry-leading 3-year warranty for all parts (a $499 value)! We have all replacement parts available. We're committed to continuous improvement and always welcome your feedback on how we can enhance our products and services!
Free shipping to the lower 48 states with forklift (or similar) on-site, or free pickup at a nearby terminal. Car lifts require an on-site forklift (no liftgate). We strongly recommend against renting a forklift, as the expense is not reimbursable. Please see the shipping policy below for details regarding limited access, remote, and high-cost areas.
2 Post Lifts
- The product is expected to be delivered in about 90-120 days starting from the day the product is ordered. We require a 10% down (non-refundable) and the remaining balance paid before we ship it to your location. Please email us if you are interested.
- Industry-leading 3-YEAR WARRANTY (a $499 value!)
- Single Point Safety Lock Release System

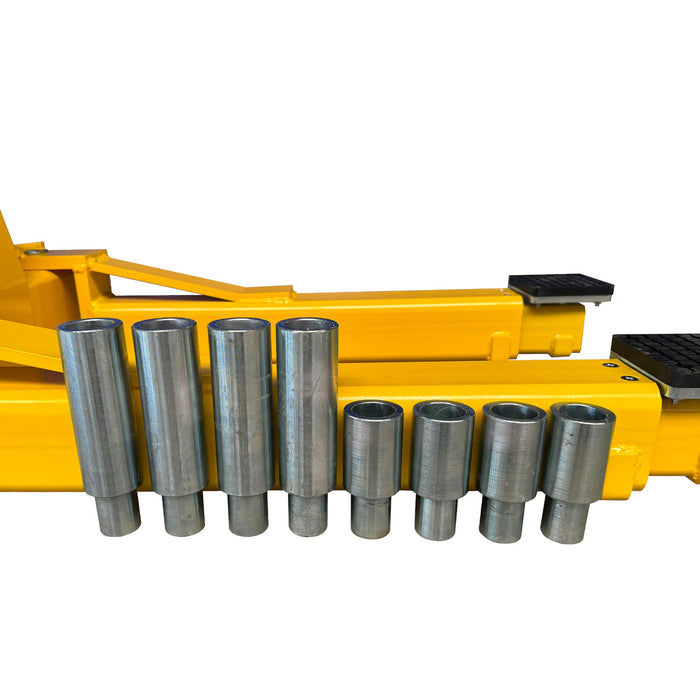

- Two Set of 2 3/4" and 5 1/2" Tall Truck Adapters Included; 77 15/16" Lift Height Maximum with Truck Adapters
- CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
- All Robot Welded Structure with Durable Powder Coated Finish
Parts Included:
- 10 anchor bolts
- 10 shims
-
FEATURES + BENEFITS
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single-point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage and Column Material Q235B Steel

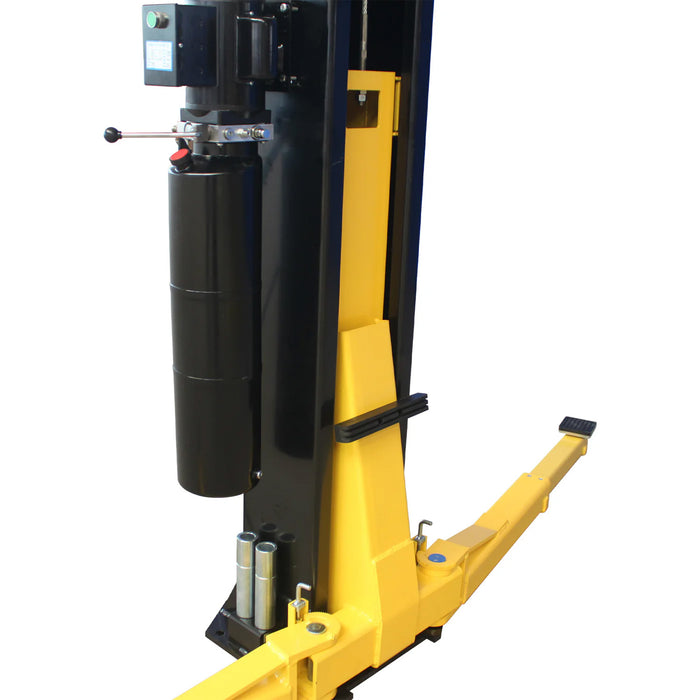

- Lifting operation by pressing the "UP" button on the motor
- Manual lowering operation by pressing the lever
- Relief valve built into the power pump to prevent overloading

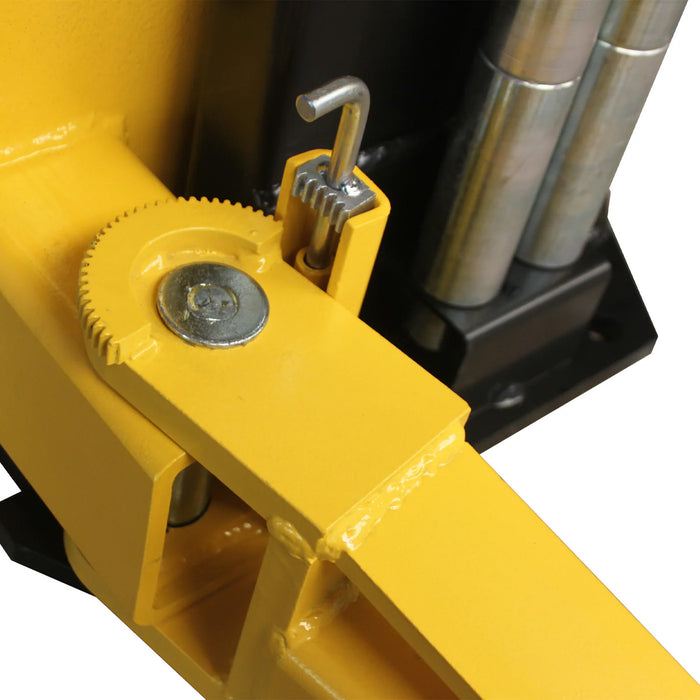

- Automatic arm lock restraints
- Relief valve built into the power pump to prevent overloading
- Door guard protection rubber
- Upper limit switch to protect cylinders' working stroke used in a safe length scope

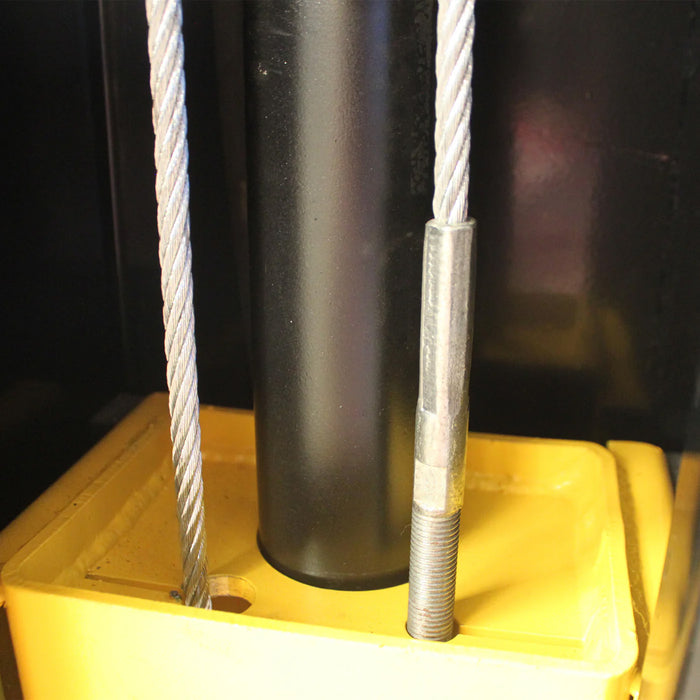

- Heavy-duty 3/8" diameter cable and 3" pulley that reduces high stress on the synchronization process and increases cable life
- Ultra high molecular self-lubricating nylon slider that ensures the carriage smooth moving up and down
-

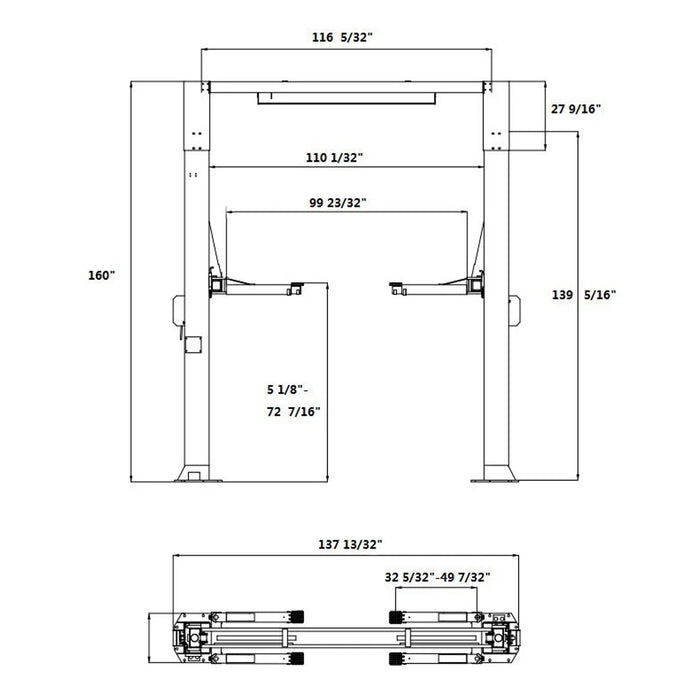

SPECIFICATIONS
Model HW-12D
Style Overhead Lock Release
Single Point Release
Warranty
3 years (36 months) Lifting Capacity
12,000 lbs Overall Height
160"
Overall Width
137 13/32"
Maximum Lift height with Truck Adapters
77 15/16"
Maximum Lift height without Truck Adapters
72 7/16" Minimum Height for adjustable pads from the ground 5 1/8" Drive Through Width (Carriage to Carriage) 99 23/32" Column to Column Width 110 1/32" Column Cross Section 12 7/32"L x 9 27/32"W
Driving Mode Dual hydraulic cylinders, chain drive Motor 220V Single Phase 3HP 10A (recommend a 30A Breaker) Hydraulic Oil 3.2-5 gallons AW32/AW46 (not included) Time to full rise 75 seconds Shipping Weight 2100 lbs Shipping package size 146"L x 33"W x 21"H Concrete Requirement 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000 lbs and below) Arm Assembly Symmetrical Arm Assembly Front Arms Straight Front 2 Stage reach from 32 5/32" to 49 7/32" Back Arms Straight Rear 2 Stage reach from 32 5/32" to 49 7/32" Column Steel Thickness 1/4" Carriage Steel Thickness 1/4" Carriage Yoke Thickness 13/32" Arm Steel Thickness 5/16" Base Plate Steel Thickness 5/8" Truck Adapters (Height Extensions) Two sets: 2 3/4" tall and 5 1/2" tall -
WARRANTY
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
- 3-Year Structural Components Warranty
Free shipping in the US 48 contiguous states.
Do you ship to Alaska, Hawaii, Puerto Rico, and Canada?
Yes, we ship to Alaska, Hawaii, Puerto Rico, and Canada. However, there will be additional freight charges for these destinations. Canadian customers will also be responsible for paying taxes and duties. Please email us at info@alamoequipment.com, or call us at (817) 865-3707 to get started. Be sure to provide the model name and your zip code.
