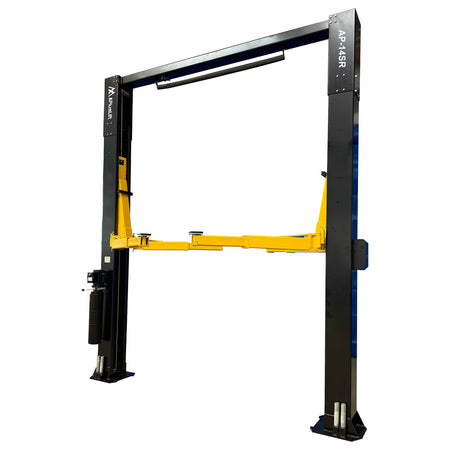

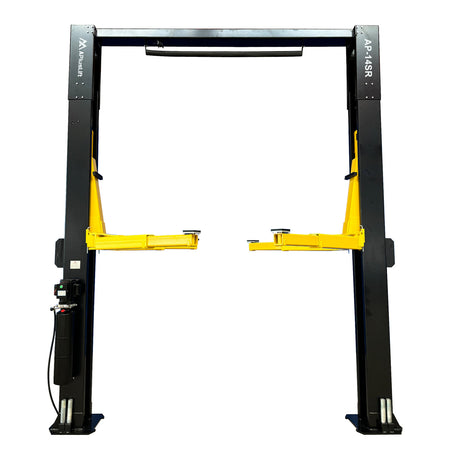

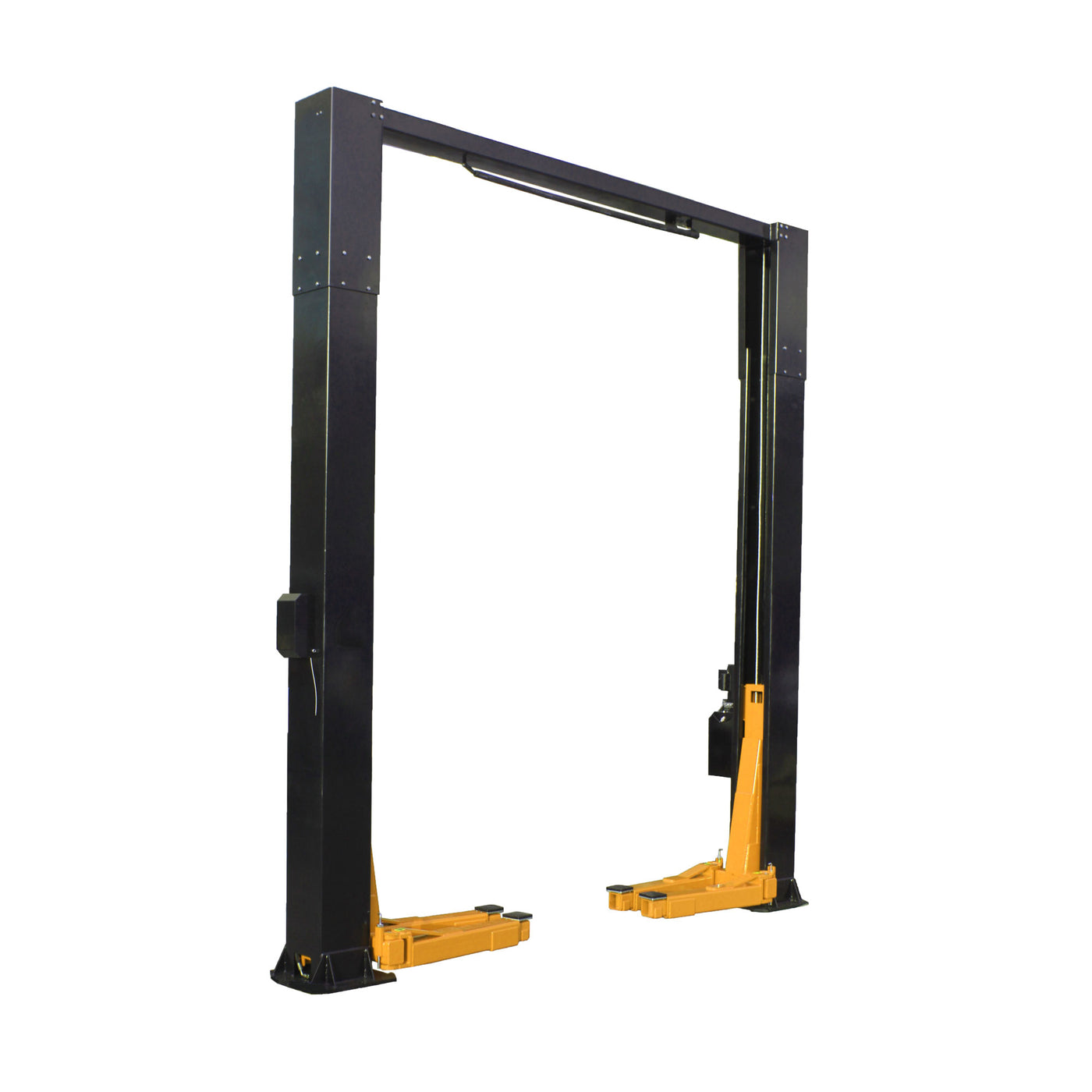

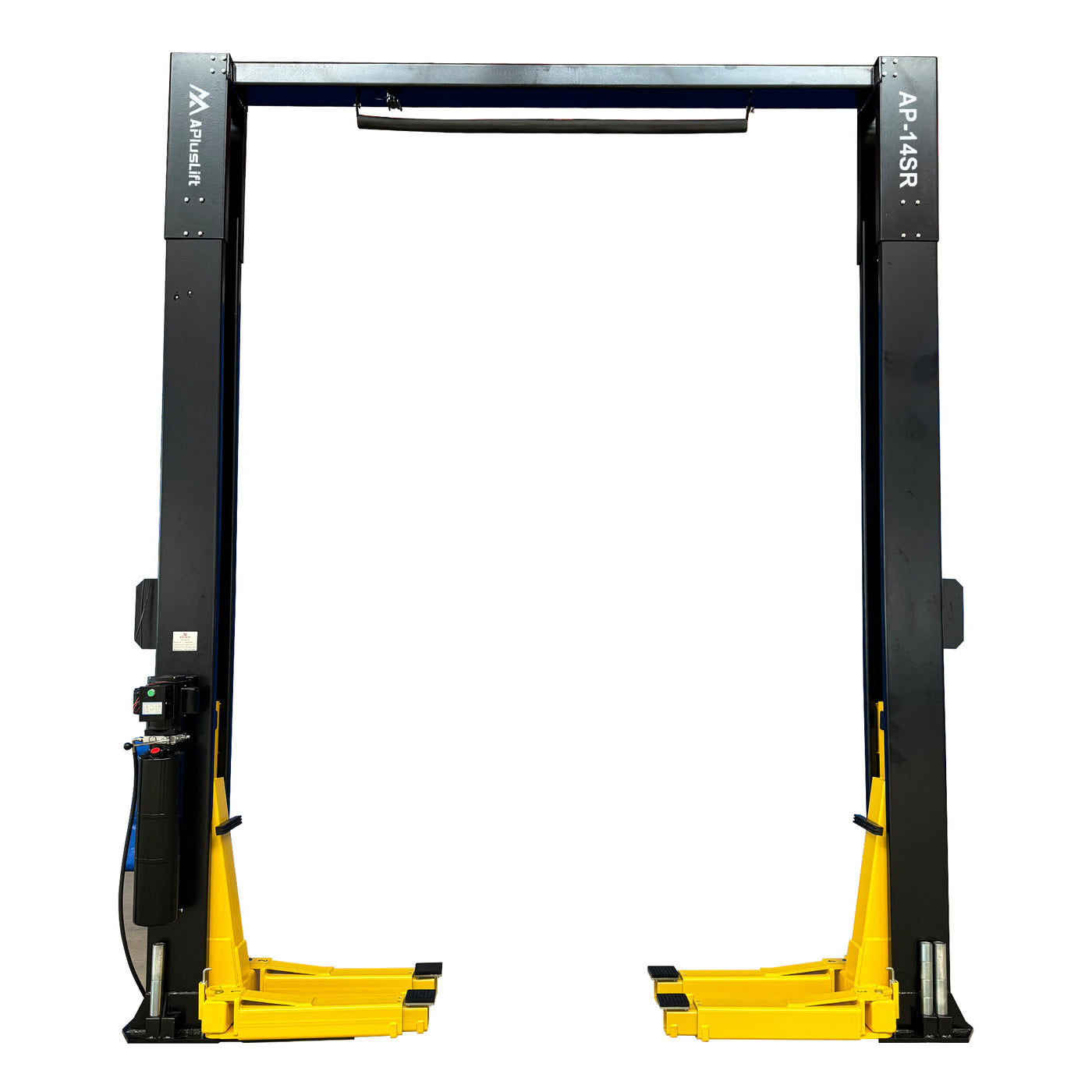

APlusLift 14,000LB 2-Post Overhead Single Release Direct Drive Car Lift #AP-14SR
Lead time:
-
DESCRIPTION
APlusLift 14000LB 2-Post Overhead Single Release Direct Drive Car Lift with A 3-Year Warranty - AP-14SR
APlusLift AP-14SR is a 14,000LB single-point release overhead car lift (auto hoist) built with quality materials and good workmanship.
We are proud to offer an industry-leading 3-year warranty for all parts (a $499 value)! We have all replacement parts available. We're committed to continuous improvement and always welcome your feedback on how we can enhance our products and services!
Free shipping to the lower 48 states with forklift (or similar) on-site, or free pickup at a nearby terminal. Car lifts require an on-site forklift (no liftgate). We strongly recommend against renting a forklift, as the expense is not reimbursable. Please see the shipping policy below for details regarding limited access, remote, and high-cost areas.
2 Post Lifts
- Industry leading 3 YEAR WARRANTY (a $499 value!)
- Single Point Safety Lock Release System
- Two Set of 2 3/4" Tall and 5 1/2" Tall Truck Adapters Included; 6'7" Lift Height Maximum with Truck Adapters
- CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
- All Robot Welded Structure with Durable Powder Coated Finish
Parts Included:
- 10 anchor bolts
- 10 shims
-
FEATURES + BENEFITS
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage and Column Material Q235B Steel

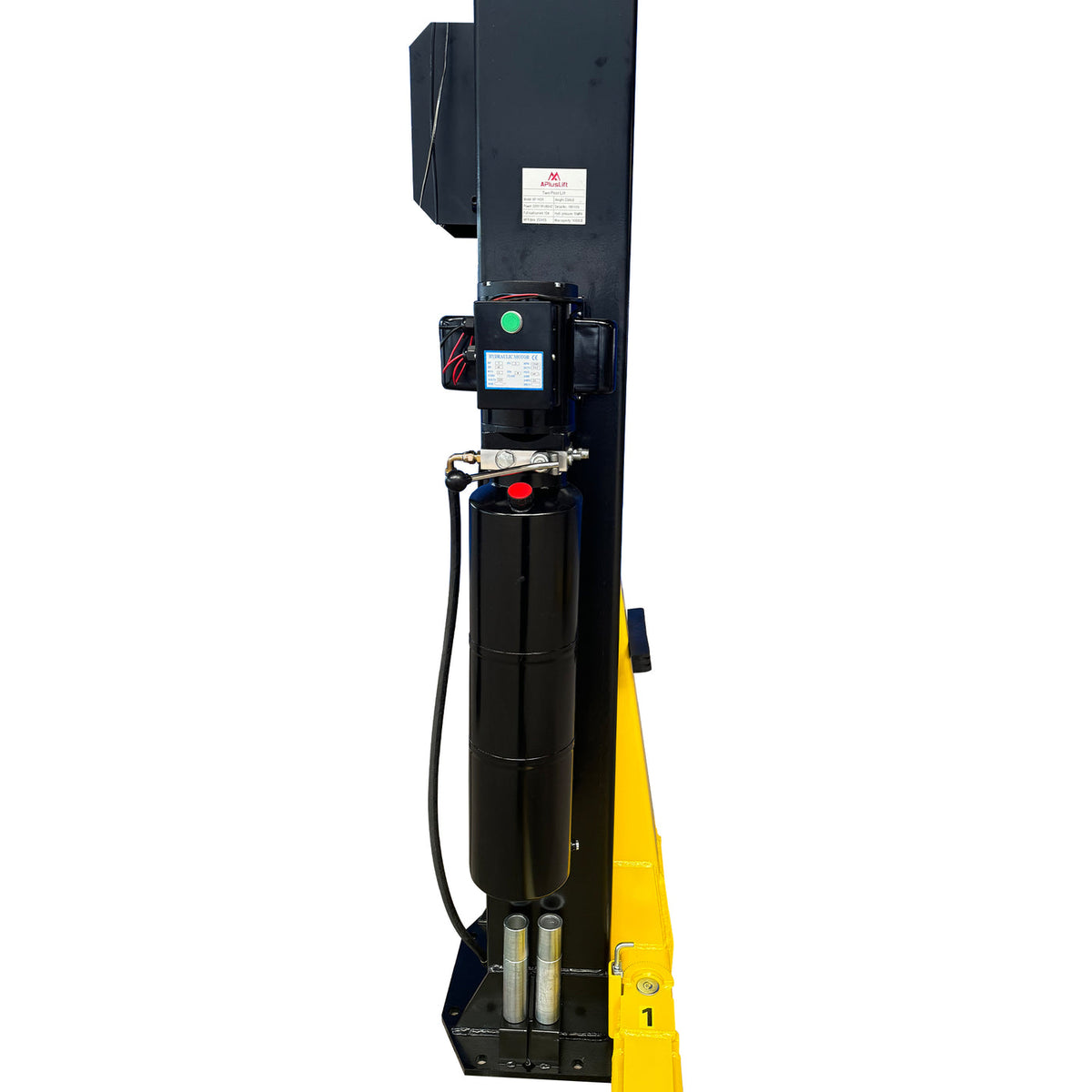

- Lifting operation by pressing "UP" button on motor
- Manual lowering operation by pressing lever

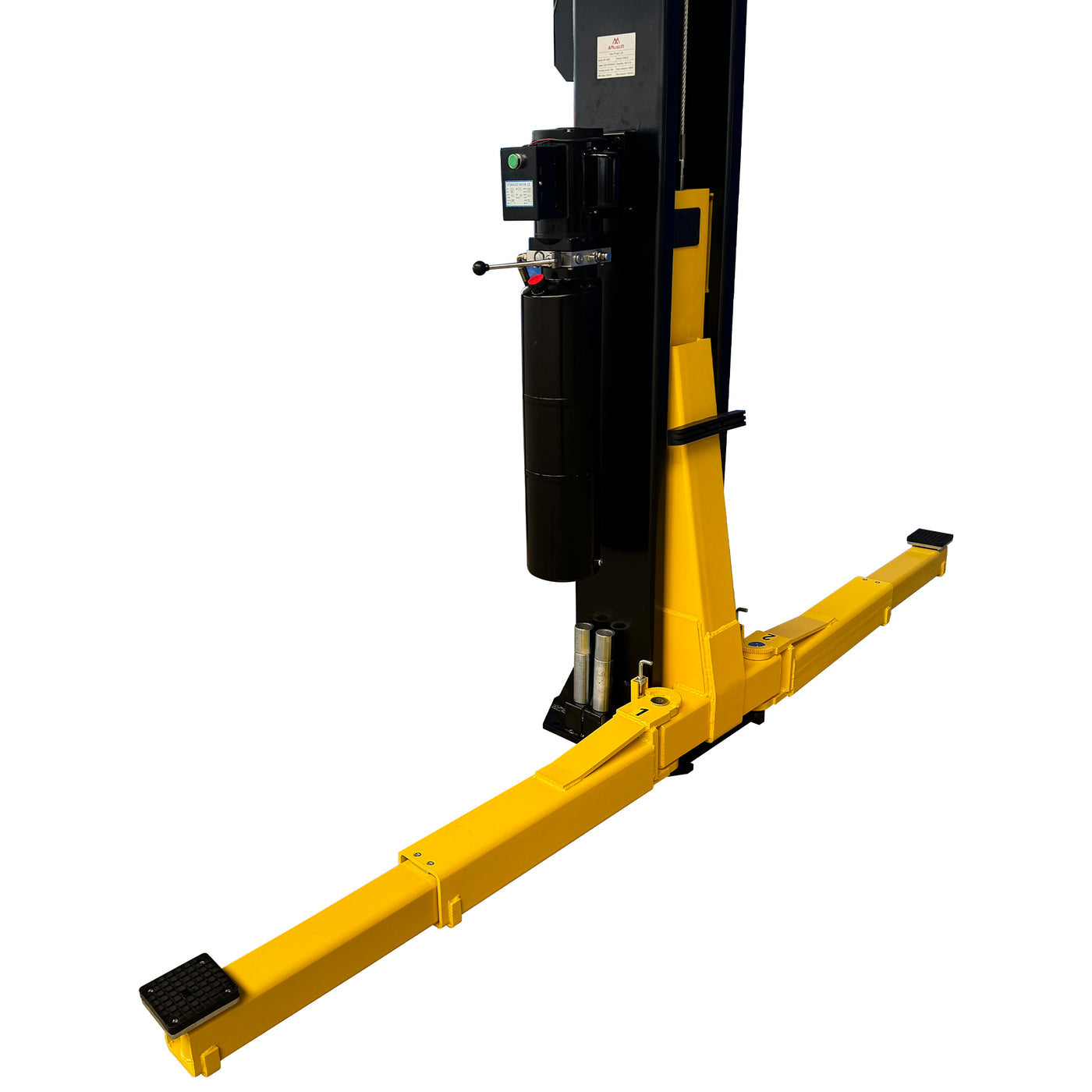

- Relief valve built in power pump to prevent overloading

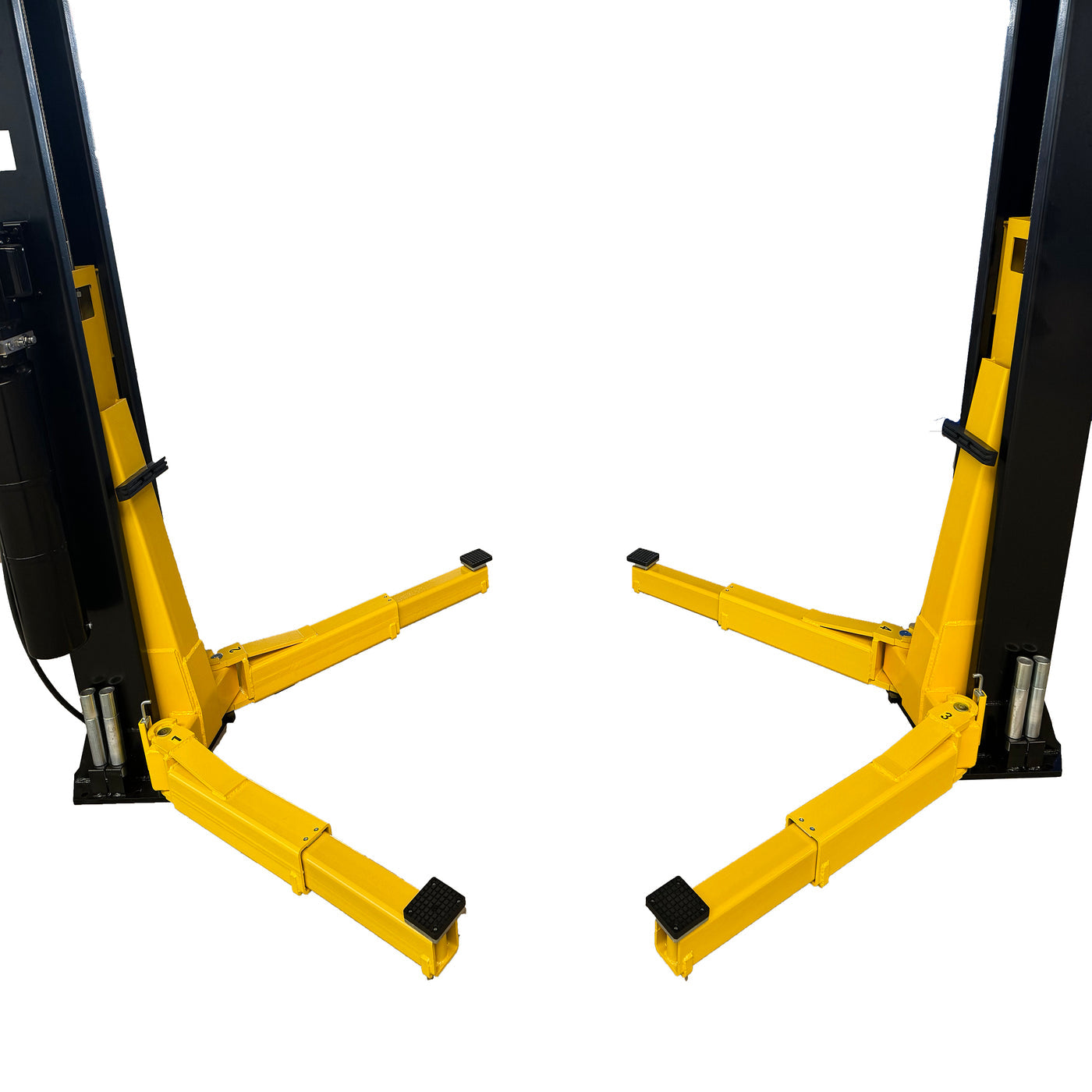

- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8" diameter cable and 3" pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
-

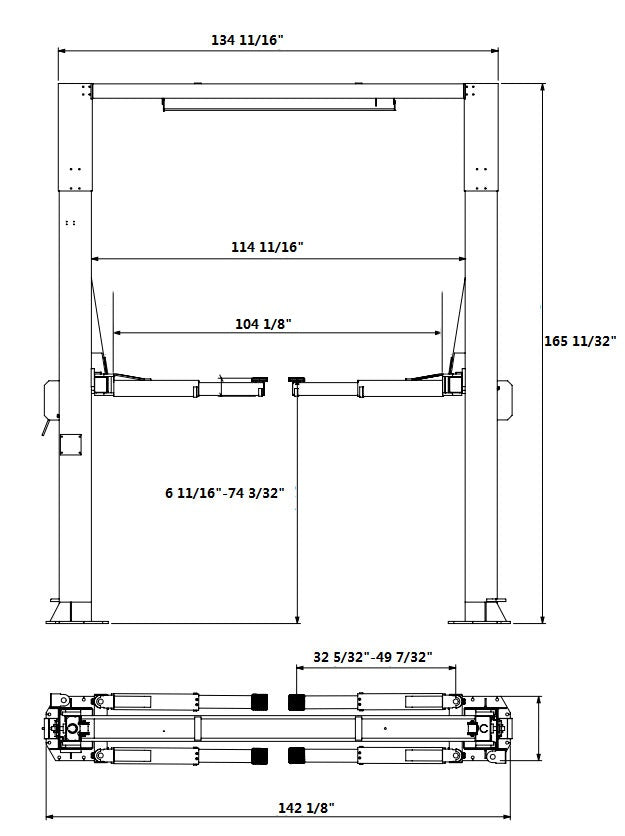

SPECIFICATIONS
Model AP-14SR
Style Overhead Lock Release
Single Point Release
Warranty
3 years (36 months) Lifting Capacity
14,000 lbs Overall Height
165 11/32"
Overall Width
142 1/8"
Maximum Lift height with Truck Adapters
79 19/32"
Maximum Lift height without Truck Adapters
74 3/32" Minimum Height for adjustable pads from the ground 6 11/16" Drive Through Width (Carriage to Carriage) 104 1/8" Column to Column Width 114 11/16" Column Cross Section 12 7/32"L x 9 27/32"W
Driving Mode Dual hydraulic cylinders, direct drive Motor 220V Single Phase 3HP (recommend a 30A Breaker) Hydraulic Oil 3.2-5 gallons AW32/AW46 (not included) Time to full rise 75 seconds Shipping Weight 2300 lbs Shipping package size 150"L x 33"W x 21"H Concrete Requirement 6" thick at 3500 psi reinforced with fiberglass or steel Arm Assembly Symmetrical Arm Assembly Front Arms Straight Front 2 Stage reach from 32 5/32" to 49 7/32" Back Arms Straight Rear 2 Stage reach from 32 5/32" to 49 7/32" Column Steel Thickness 1/4" Carriage Steel Thickness 1/4" Carriage Yoke Thickness 13/32" Arm Steel Thickness 5/16" Base Plate Steel Thickness 5/8" Truck Adapters (Height Extensions) Two sets: 2 3/4" tall and 5 1/2" tall Other Parts Included 4 Adjustable drop in pads
10 Anchor bolds
10 ShimsOriginal Parts 2 3/4" and 6" Tall Truck Adapters -
WARRANTY
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
- 3-Year Structural Components Warranty
Free shipping in the US 48 contiguous states.
Do you ship to Alaska, Hawaii, Puerto Rico, and Canada?
Yes, we ship to Alaska, Hawaii, Puerto Rico, and Canada. However, there will be additional freight charges for these destinations. Canadian customers will also be responsible for paying taxes and duties. Please email us at info@alamoequipment.com, or call us at (817) 865-3707 to get started. Be sure to provide the model name and your zip code.
