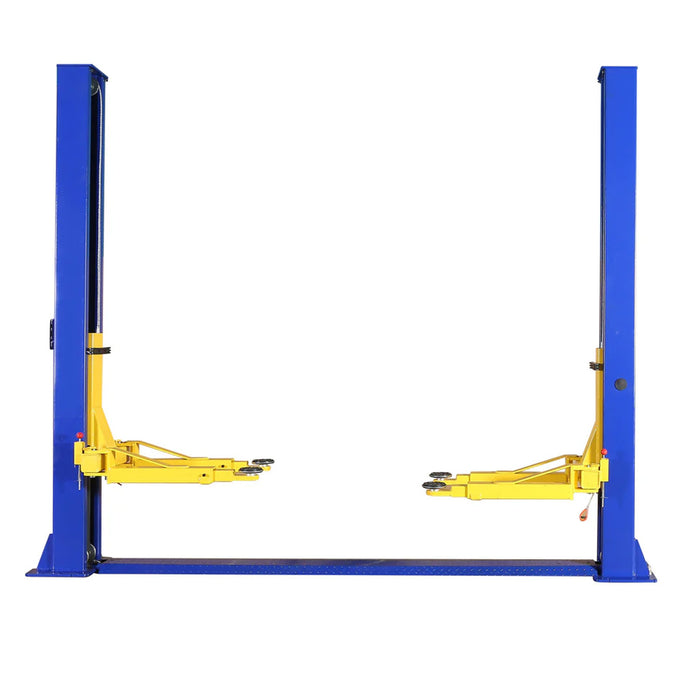

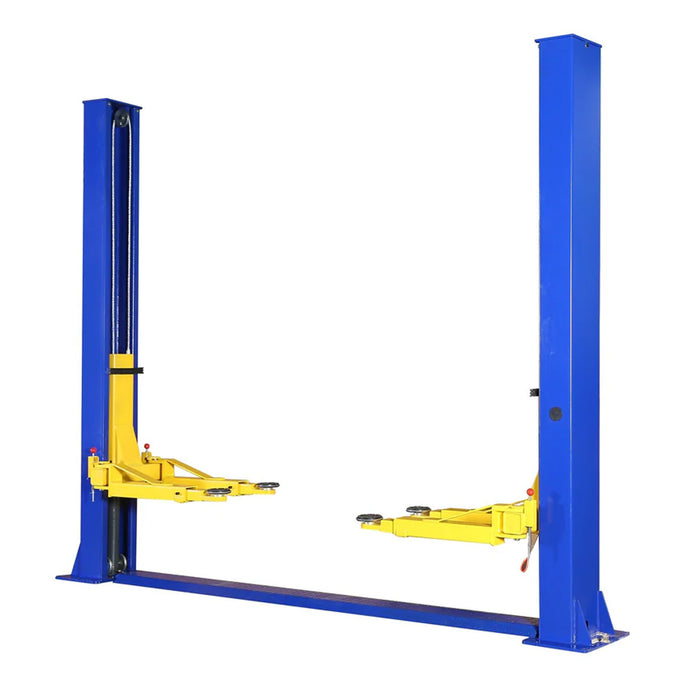

APlusLift 9,000LB 2-Post Floor Plate Car Lift #HW-9KFL
Lead time:
-
DESCRIPTION
APlusLift 9,000LB 2-Post Floor Plate Heavy Duty Car Lift with 3 Year Warranty - HW-9-KFL
APlusLift HW-9KFL-A car lift (auto hoist) is one of the most affordable floor plate car lifts built with quality materials and good workmanship.
APlusLift HW-9KFL car lifts are built with quality materials and good workmanship. We do not use recycled materials to save cost for parts such as cylinder seal rings. Suggestions to improve our products and service are always welcome!
We are proud to offer an industry-leading 3-year warranty for all parts (a $499 value)! We have all replacement parts available. We're committed to continuous improvement and always welcome your feedback on how we can enhance our products and services!
2 Post Lifts
- Industry leading 3 YEAR WARRANTY (a $499 value!)
- Combo (symmetrical and asymmetrical) Arm Assembly with Adjustable Screw Pads!
Parts Included:

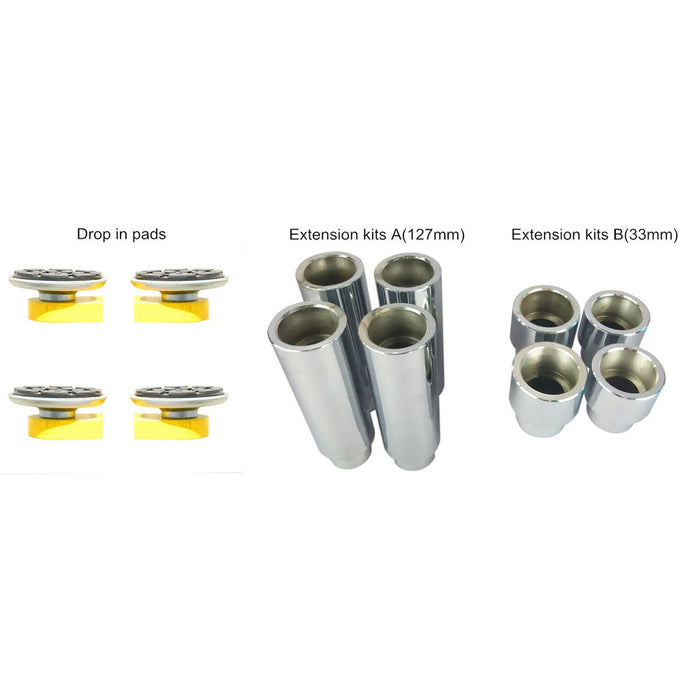

- 2 sets of truck adapters (hight extensions)
- Anchor Bolts/Mounting hardware
-
FEATURES + BENEFITS

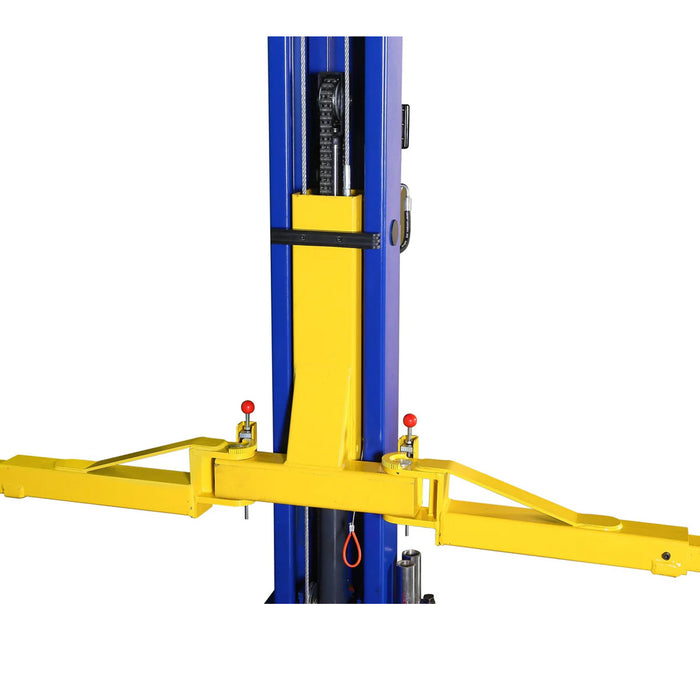

- Symmetrical Arm Assembly:
- Straight Front / Rear 2 Stage reach from 30 1/8" to 45 3/8"
- Equal length of front and rear arm design
- Drop-in type lifting pads and truck adapters included
- Double point safety lock release

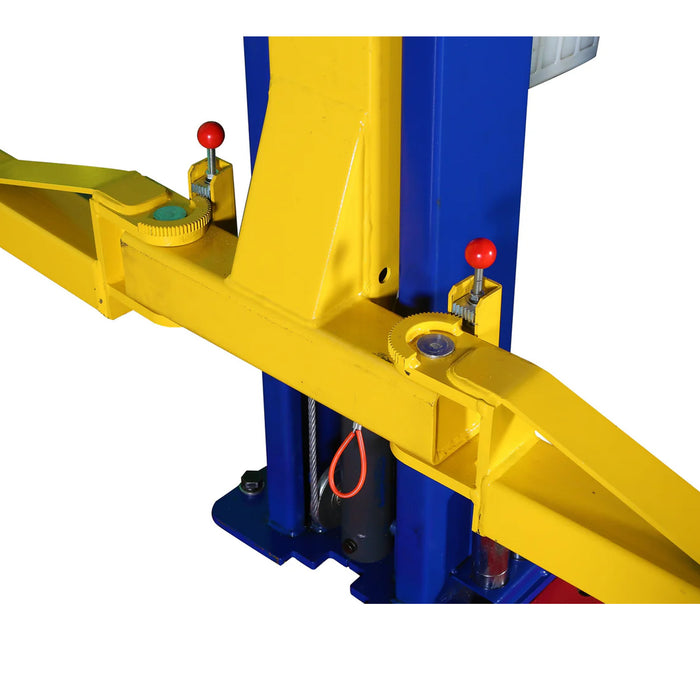

- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/10" diameter cable and 4 1/5" pulley that reduce high stress on synchronization process and increase cable life
- Upgraded Floor Plate, Beveled Diamond Plate Steel 5/32" with Supporting Bracket.

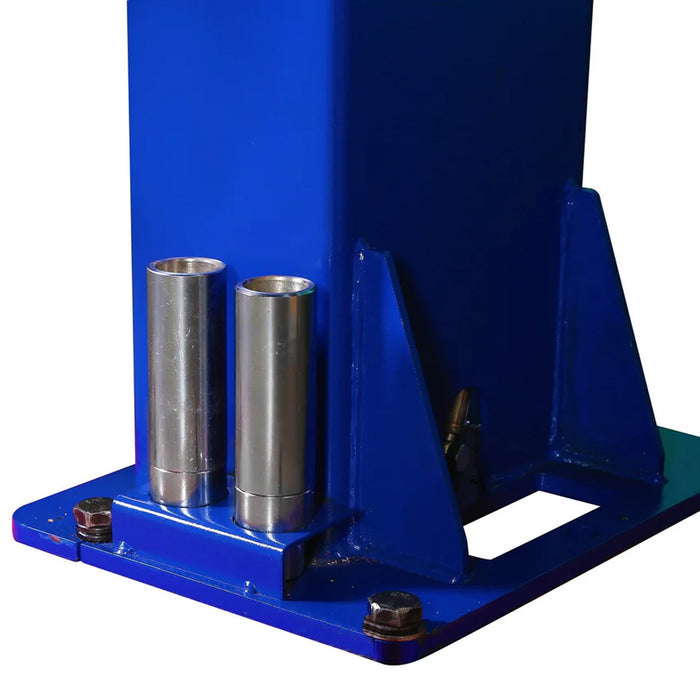

- Stiffened base plate 5/8" thickness
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down

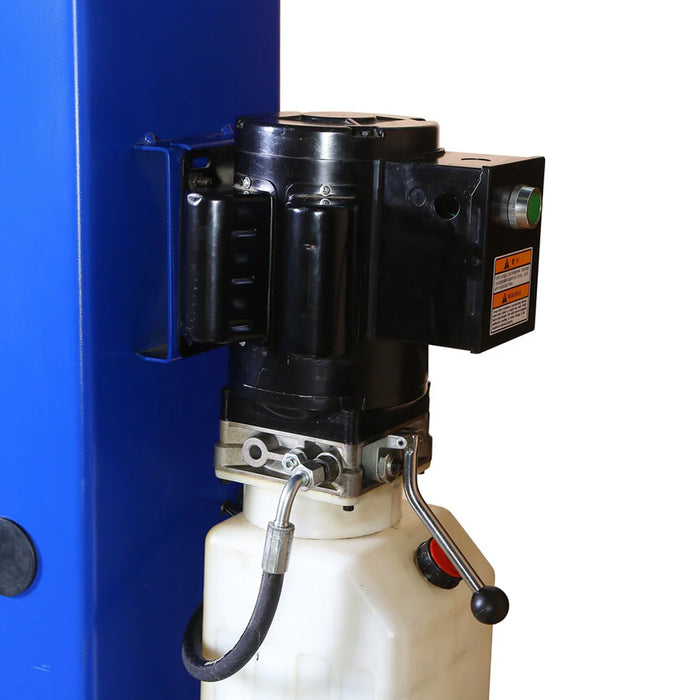

- Lifting operation by pressing "UP" button on motor
- Manual lowering operation by pressing lever
-
SPECIFICATIONS
Model HW-9KFL
Style Floor Plate Warranty
3 years (36 months) Lifting Capacity 9,000 lbs Overall Height
113 5/8"
Overall Width
134 3/16"
Lifting Height without Truck Adapters
81"
Lifting Height with Truck Adapters
75" Minimum height of arm top
4" Drive Through Width (Carriage to Carriage) 100" Column to Column Width 109" Column Cross Section 11"L x 7"W
Floor Plate Cross Section 10 5/8" W x 1 7/8"H Driving Mode Dual hydraulic cylinders, chain drive Motor 220V Single Phase 3HP 10A (recommend a 30A Breaker) Hydraulic Oil 3-5 gallons AW32/AW46 (not included) Time to full rise 50 seconds Shipping Weight 1370 lbs Shipping package size 113"L x 22"W x 40"H Concrete Requirement 4" thick at 3500 psi reinforced with fiberglass or steel Shipping weight 1,200 lbs Shipping Package size 113"l x 22"w x 40"h -
WARRANTY
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
- 3-Year Structural Components Warranty
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
