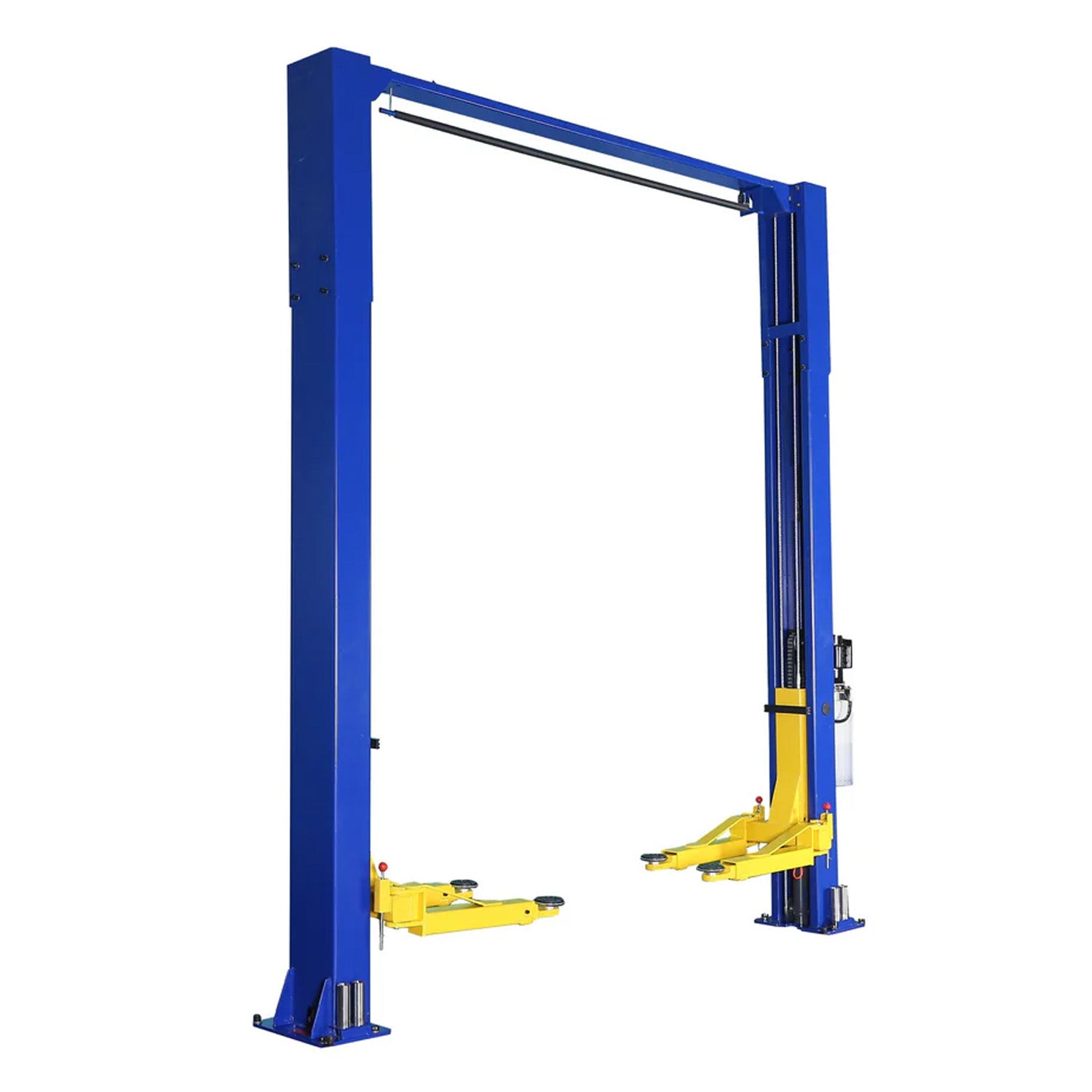

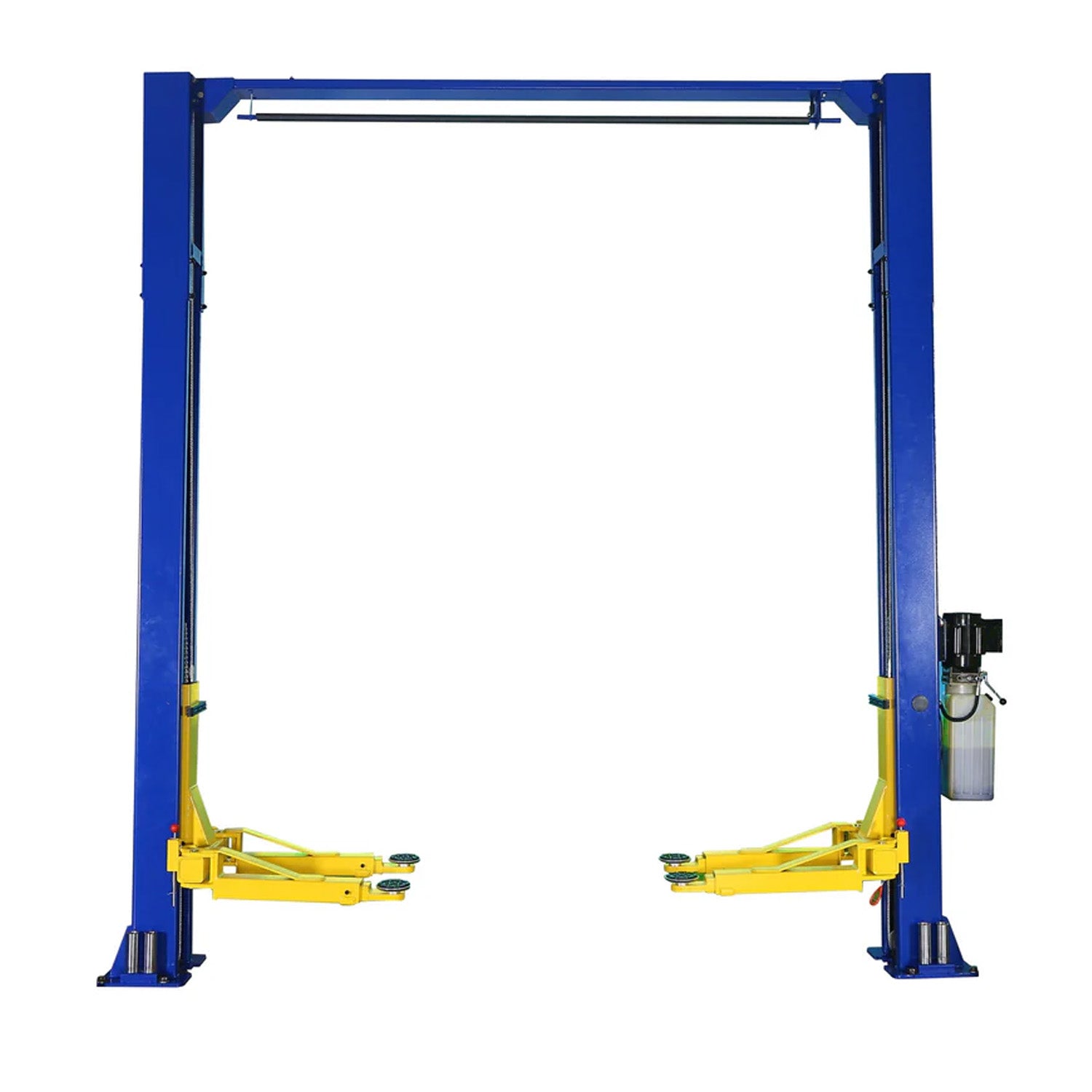

APlusLift 9,000LB 2-Post Over Head Car Lift #HW-9KOH
Lead time:
-
DESCRIPTION
APlusLift 9,000LB 2-Post Floor Plate Heavy Duty Car Lift with 3 Year Warranty - HW-9KOH
APlusLift HW-9KOH car lift (auto hoist) is one of the most affordable over head car lift with 9,000 LB Heavy Duty.
APlusLift HW-9KOH car lifts are built with quality materials and good workmanship. We do not use recycled materials to save cost for parts such as cylinder seal rings. Suggestions to improve our products and service are always welcome!
We are proud to offer an industry-leading 3-year warranty for all parts (a $499 value)! We have all replacement parts available. We're committed to continuous improvement and always welcome your feedback on how we can enhance our products and services!
Free shipping to the lower 48 states with forklift (or similar) on-site, or free pickup at a nearby terminal. Car lifts require an on-site forklift (no liftgate). We strongly recommend against renting a forklift, as the expense is not reimbursable. Please see the shipping policy below for details regarding limited access, remote, and high-cost areas.
2 Post Lifts - Parts Included
- 2 sets of truck adapters (hight extensions)
- Anchor Bolts/Mounting hardware
-
FEATURES + BENEFITS

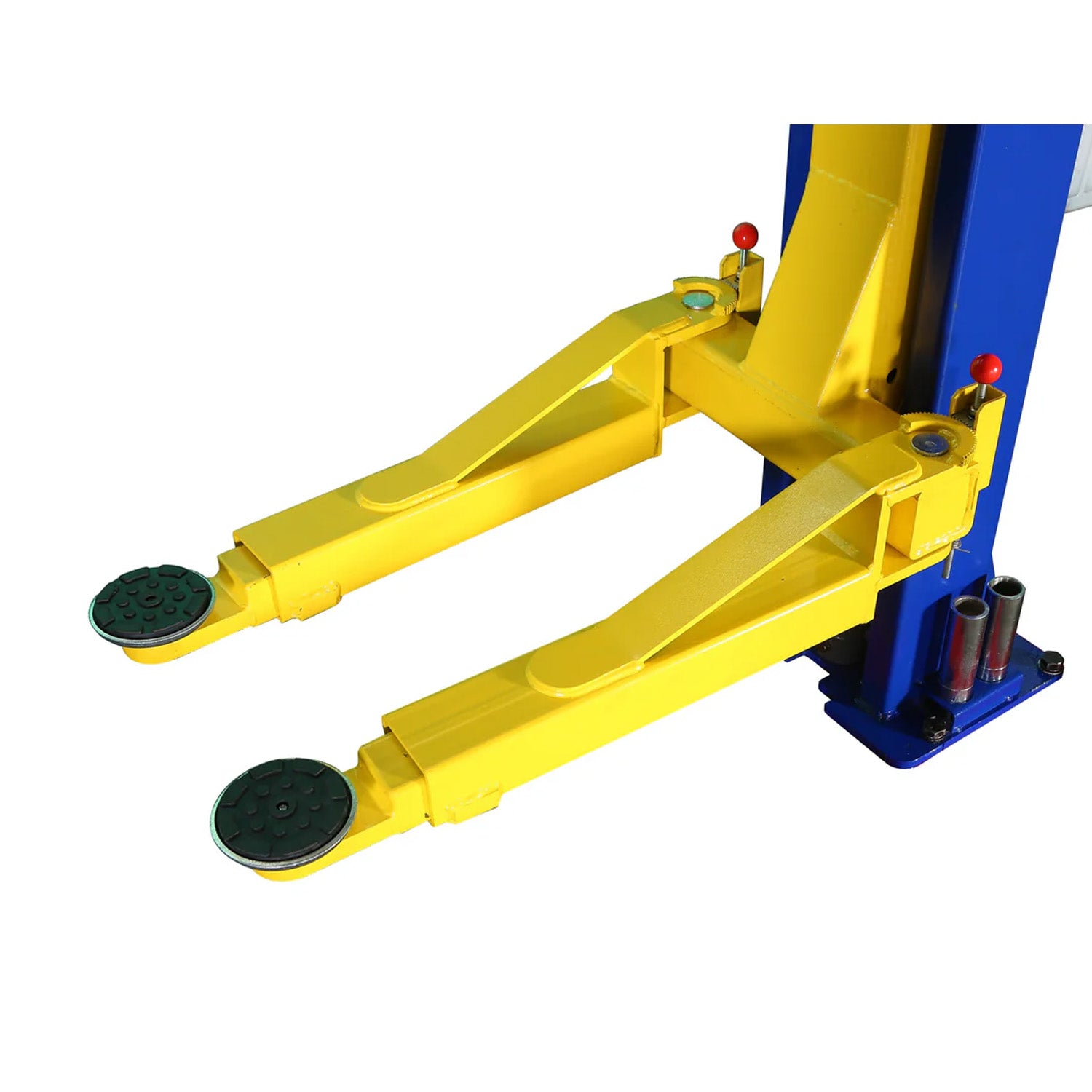

- Symmetrical Arm Assembly:
- Straight Front / Rear 2 Stage reach from 30 1/8" to 45 3/8"
- Equal length of front and rear arm design
- Drop-in type lifting pads and truck adapters included
- Double point safety lock release
- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/10" diameter cable and 4 1/5" pulley that reduce high stress on synchronization process and increase cable life
- Stiffened base plate 5/8" thickness
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
- Lifting operation by pressing "UP" button on motor
- Manual lowering operation by pressing lever
- 2 sets of truck adapters (height extensions) included
-
SPECIFICATIONS
Model HW-9KFL
Style Over Head Warranty
3 years (36 months) Lifting Capacity 9,000 lbs Overall Height
143 3/16"
Overall Width
134 3/16"
Lifting Height without Truck Adapters
75"
Lifting Height with Truck Adapters
81" Minimum height of arm top
4" Drive Through Width (Carriage to Carriage) 100" Column to Column Width 109" Column Cross Section 11"L x 7"W
Floor Plate Cross Section 10 5/8" W x 1 7/8"H Driving Mode Dual hydraulic cylinders, chain drive Motor 220V Single Phase 3HP 10A (recommend a 30A Breaker) Hydraulic Oil 3-5 gallons AW32/AW46 (not included) Time to full rise 50 seconds Shipping Weight 1370 lbs Shipping package size 113"L x 22"W x 40"H Concrete Requirement 4" thick at 3500 psi reinforced with fiberglass or steel Shipping weight 1,300 lbs Shipping Package size 113"l x 22"w x 40"h -
WARRANTY
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
- 3-Year Structural Components Warranty
Free shipping in the US 48 contiguous states.
Do you ship to Alaska, Hawaii, Puerto Rico, and Canada?
Yes, we ship to Alaska, Hawaii, Puerto Rico, and Canada. However, there will be additional freight charges for these destinations. Canadian customers will also be responsible for paying taxes and duties. Please email us at info@alamoequipment.com, or call us at (817) 865-3707 to get started. Be sure to provide the model name and your zip code.
