APlusLift 9,000LB 4-Post Double Deck Parking Storage Service Car Lift #HW-9KDP
Lead time:
-
DESCRIPTION

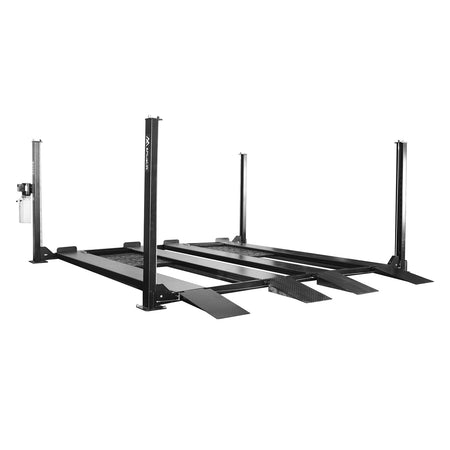

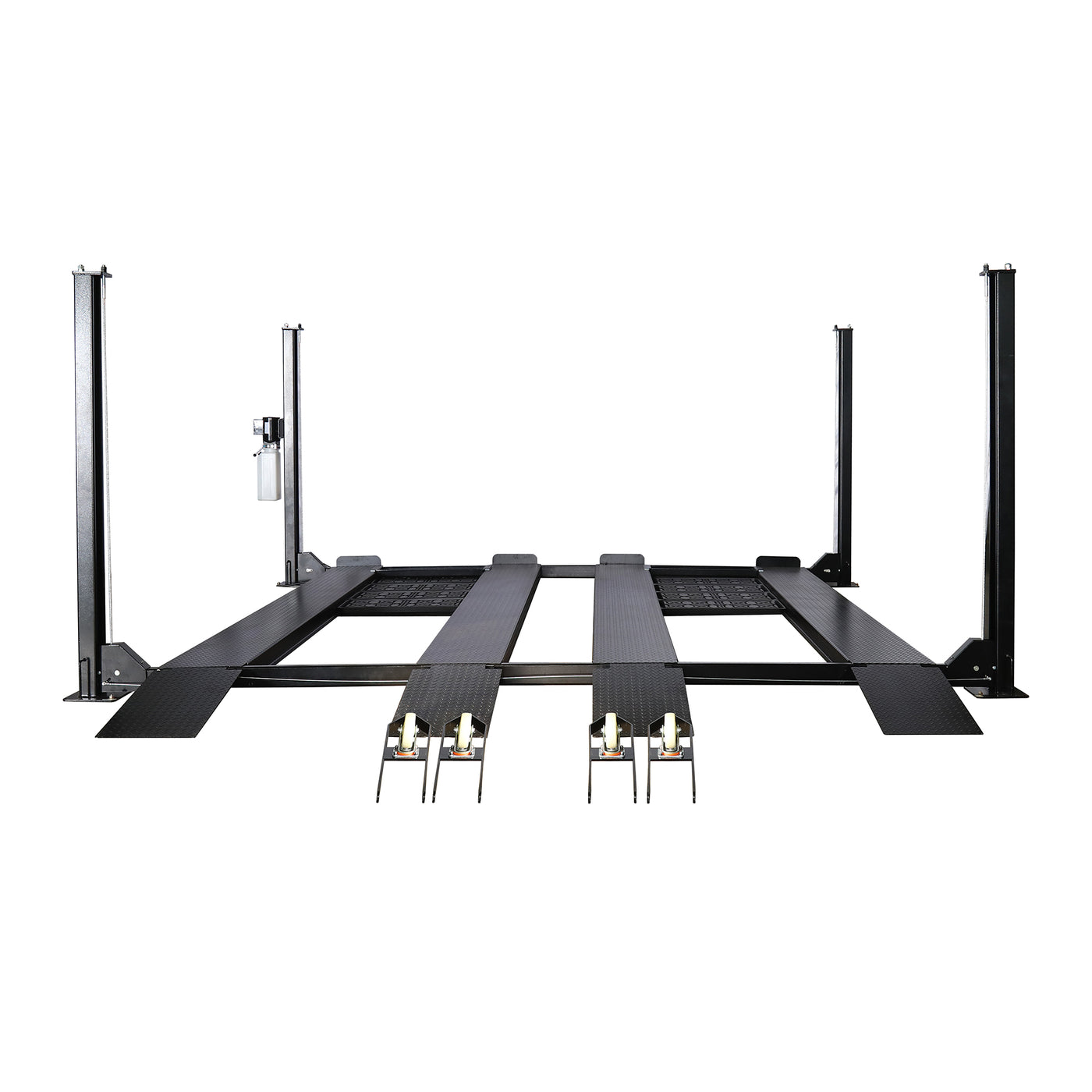

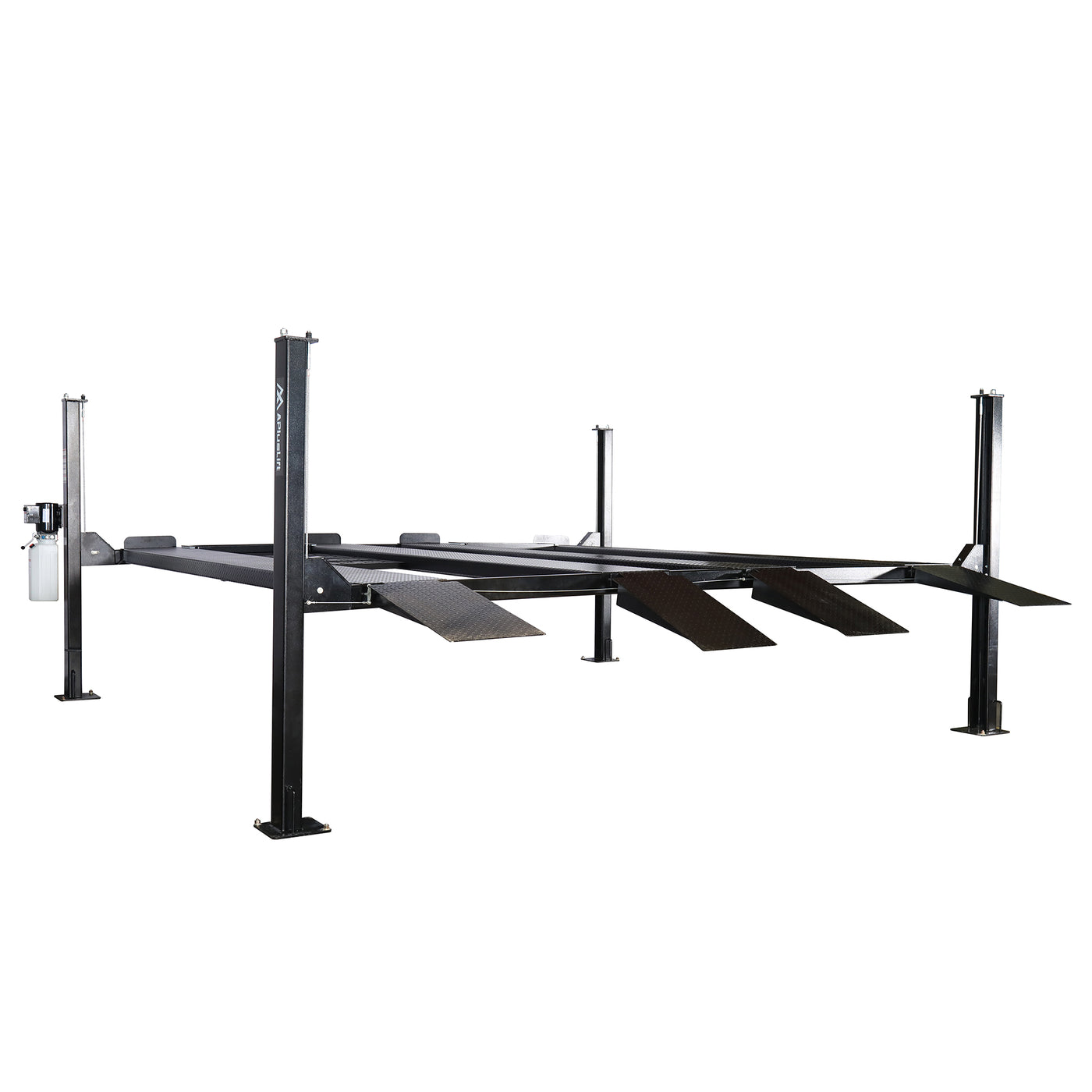

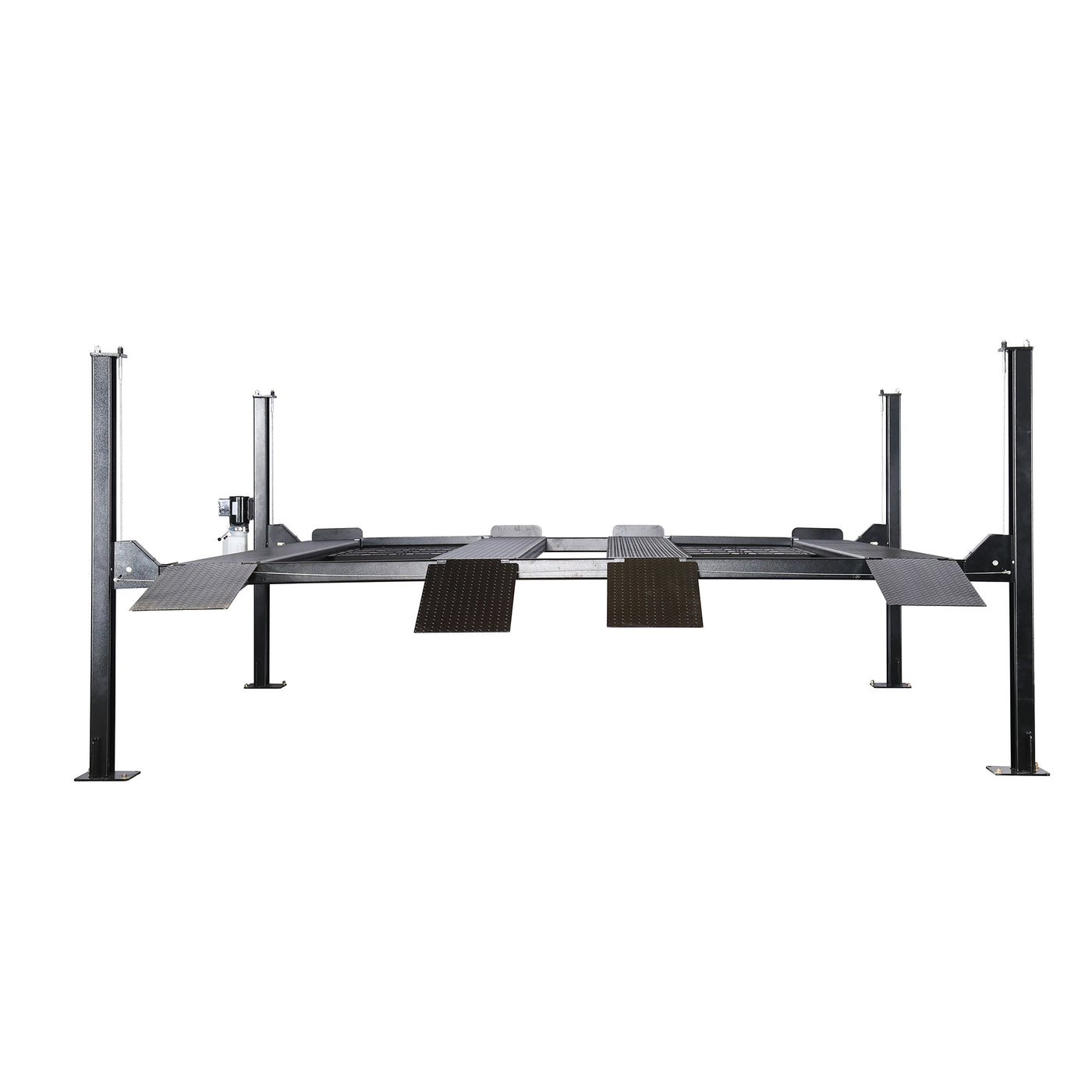

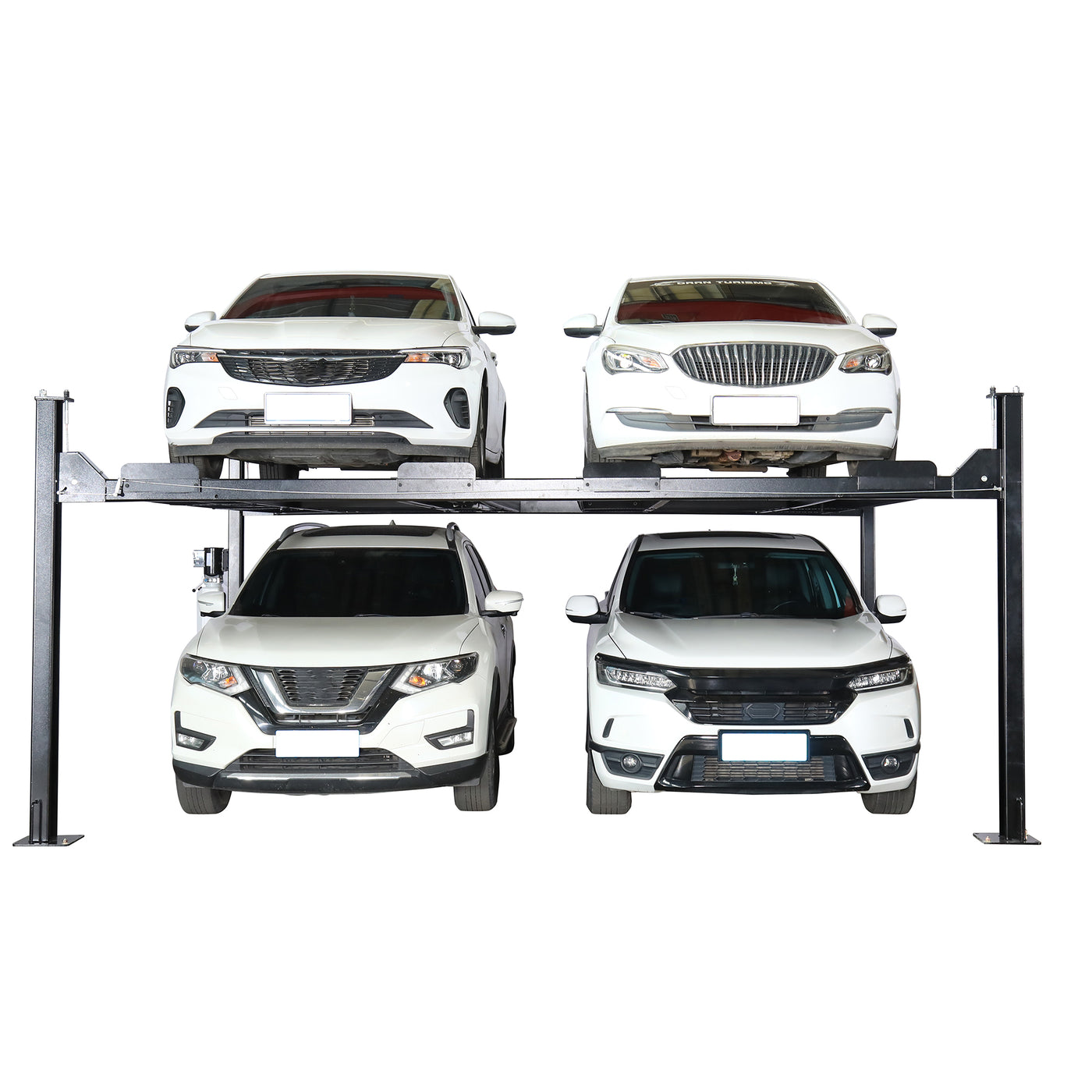

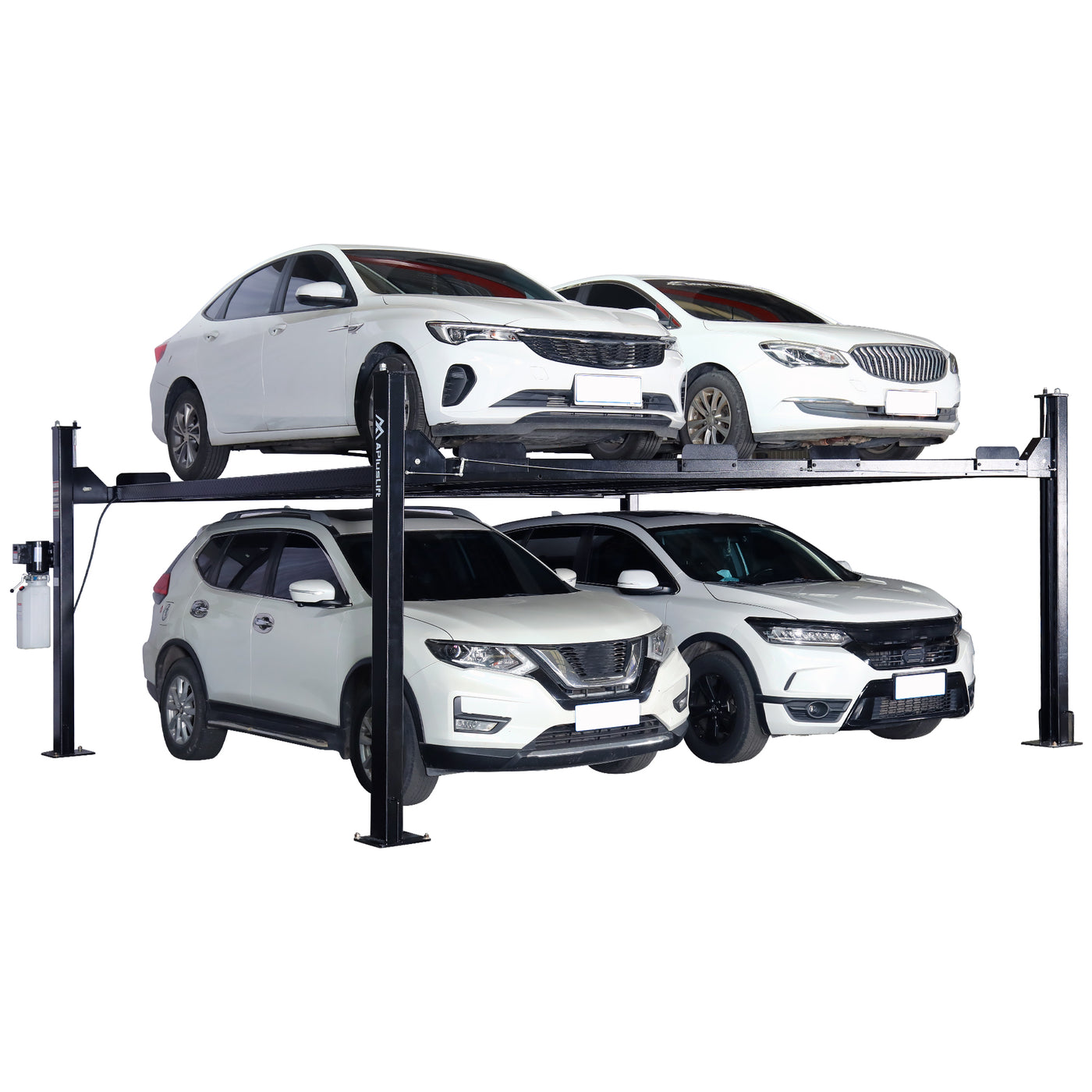

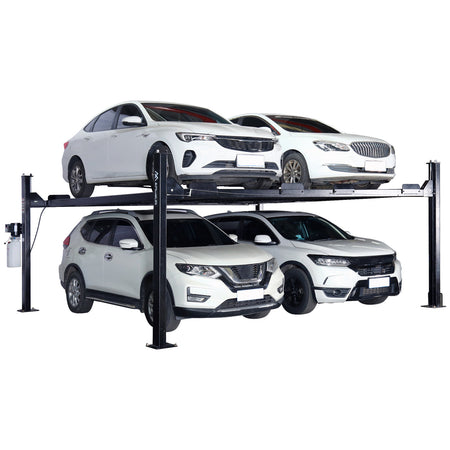

APlusLift 9,000LB 4-Post Portable Parking Storage Service Car Lift - HW-9KDP
APlusLift HW-9KDP 4-post 4-Post Double Decker Parking Lift is designed and built to commercial grade standards and will provide many years of service. It is built with quality materials and good workmanship and is powder coated for superior corrosion resistance.

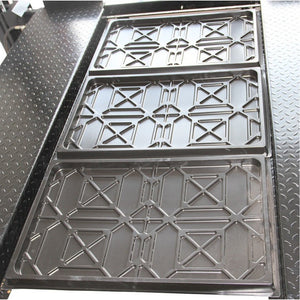

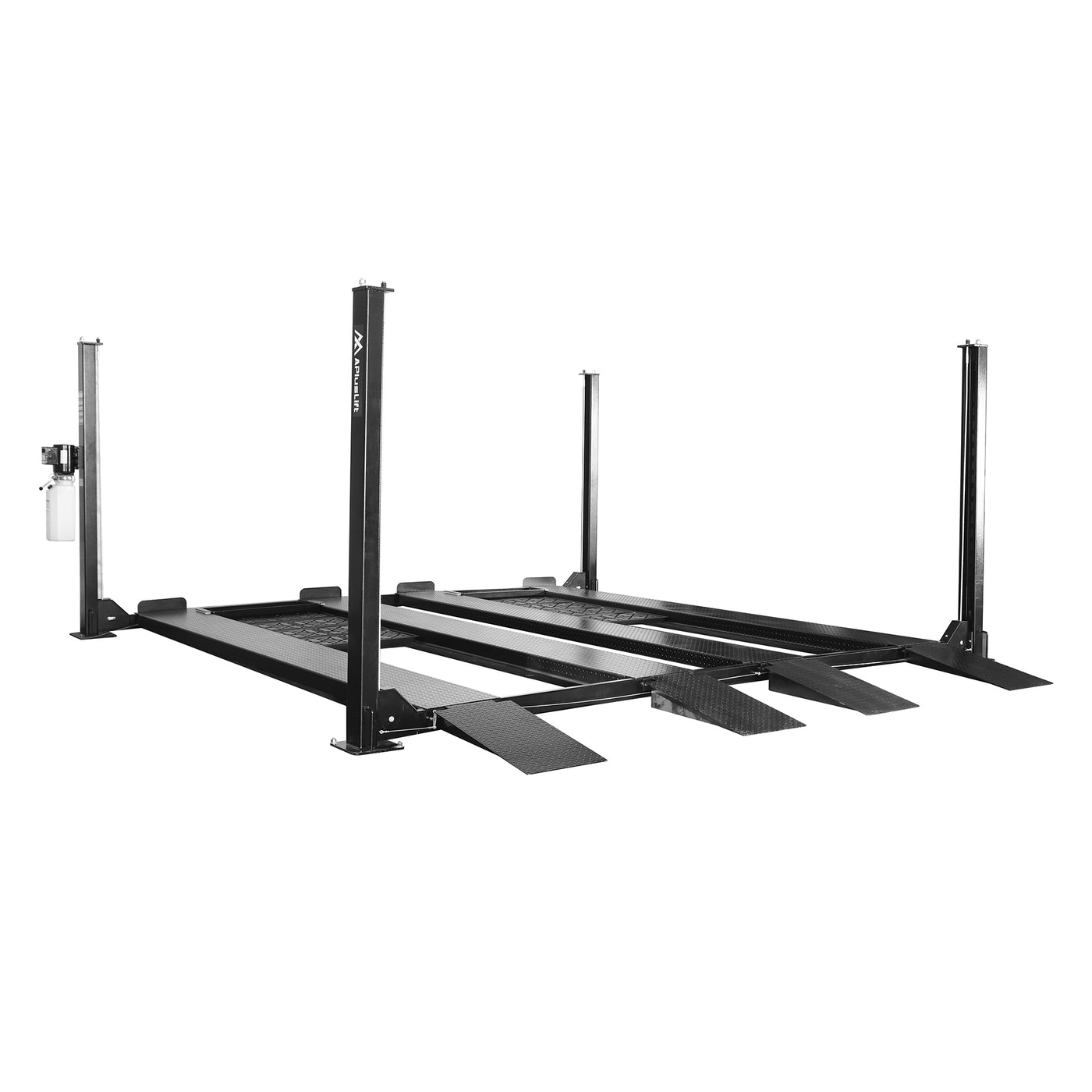

APlusLift HW-9KDP 4-Post Lift includes 2 decks, 4 runways, a caster kit, 2 jack trays, 6 drip trays, and 4 removable approach ramps.
Free shipping to the lower 48 states with forklift (or similar) on-site, or free pickup at a nearby terminal. Car lifts require an on-site forklift (no liftgate). We strongly recommend against renting a forklift, as the expense is not reimbursable. Please see the shipping policy below for details regarding limited access, remote, and high-cost areas.
2 Post Lifts
- Industry leading 3 YEAR WARRANTY (a $499 value!)
- Column to Column Width 190"; Lifting Height 82"; Overall Dimensions 230"L x 210"W x 96"H

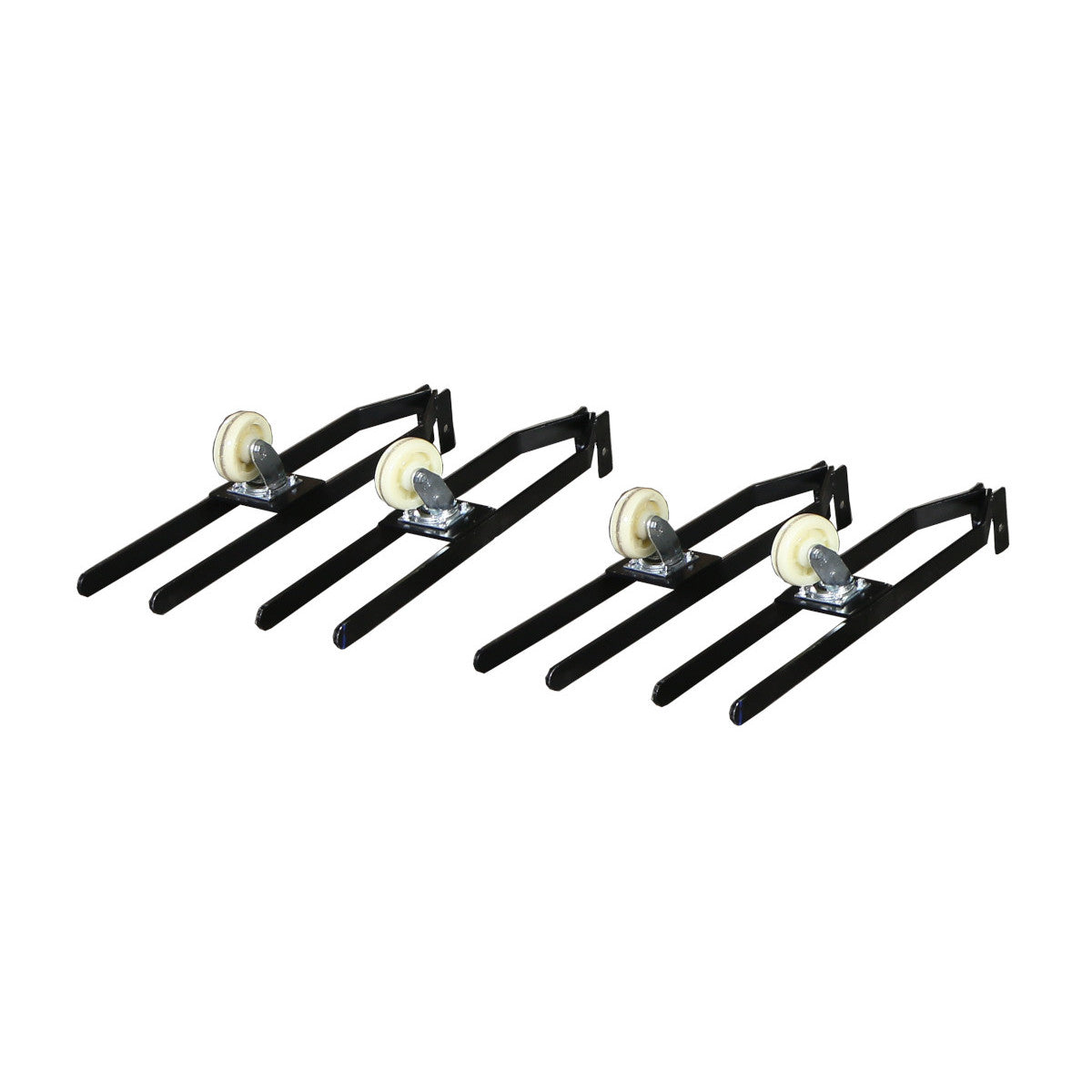

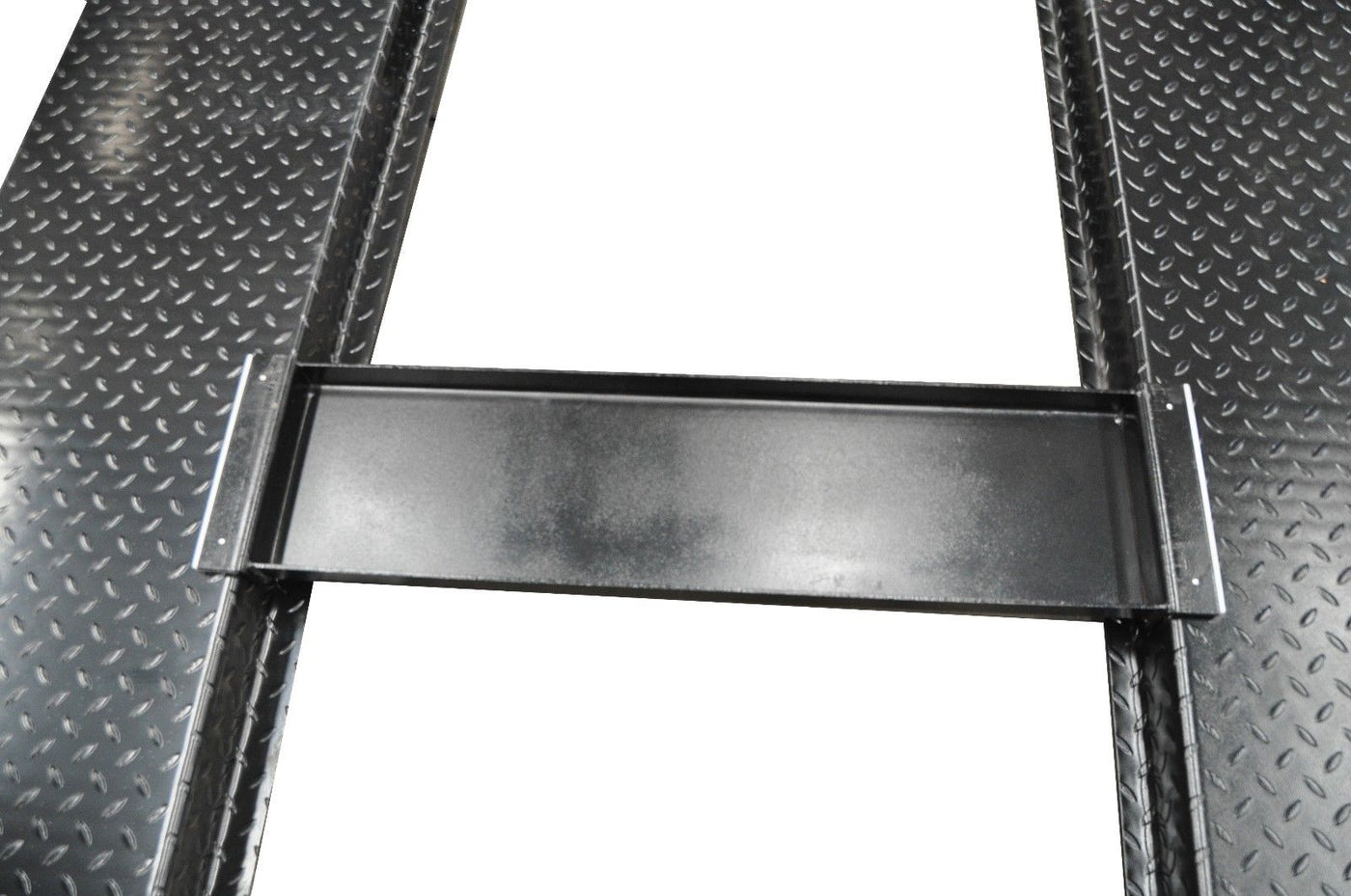

- Free Caster Kit, 2 Jack Trays, 6 Drip Trays, and 4 Removable Approach Ramps, and a Power Cord Included.
- Powder Coated Finish with Superior Corrosion Resistance
- CE Certified Lift Structure and Hydraulic System
- CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
- Safer Operation with A Revolutionary High Efficient 220V 3HP Hydraulic Power Unit
- Powder Coated Finish with Superior Corrosion Resistance
- Drip Trays Optional
Parts Included:
- 4 Approach Ramps
-
FEATURES + BENEFITS
- 3 Years (36 Months) Warranty
- Lifting Capacity: 9,000LB
- Usage: Parking/Storage/Service
- Powder Coated Finish with Superior Corrosion Resistance
-

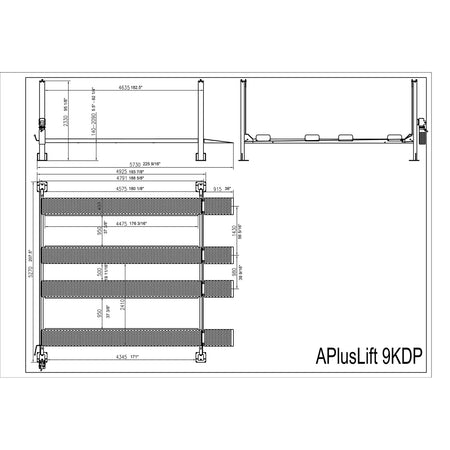

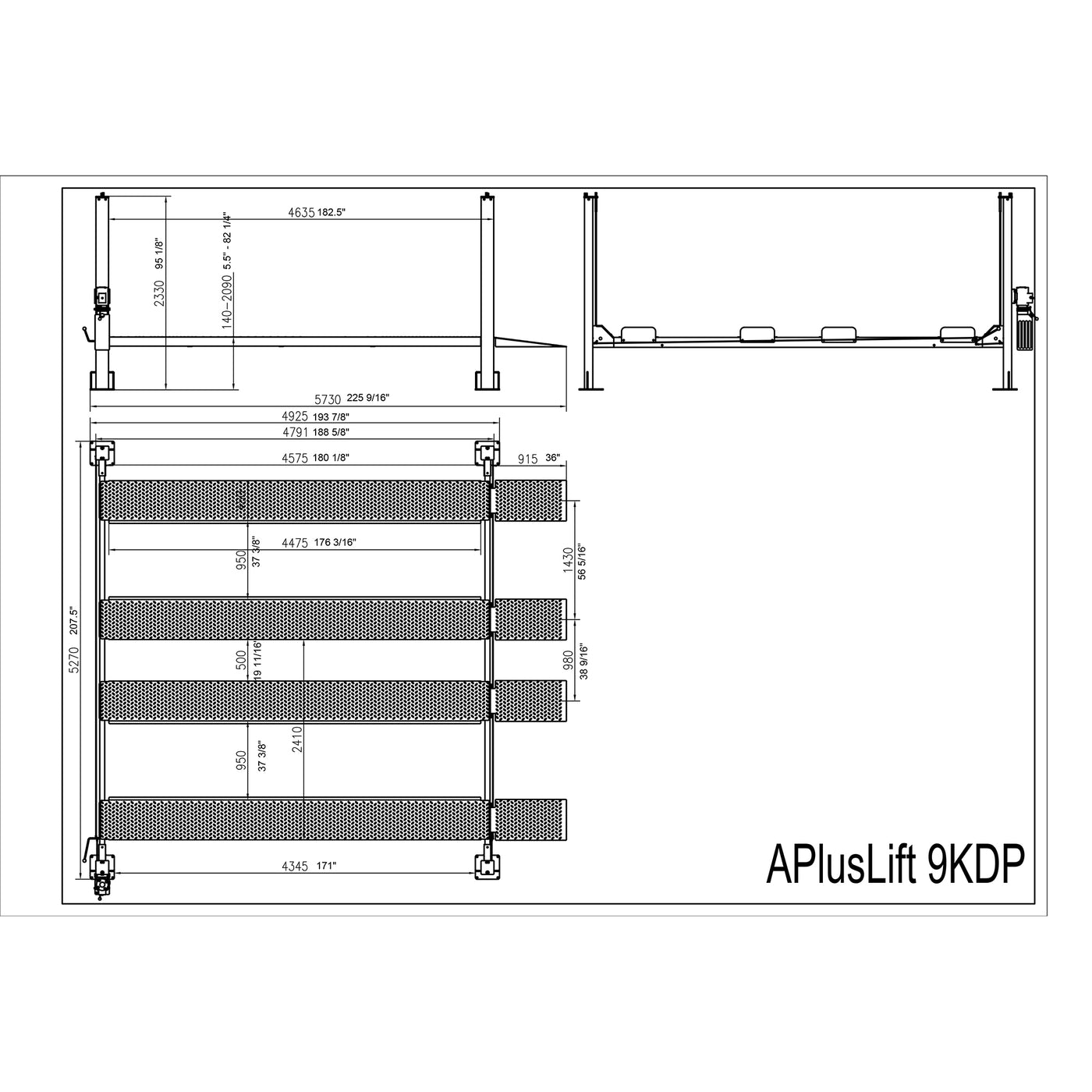

SPECIFICATIONS
Model HW-9KDP
Style 4-post Warranty
3 years (36 months) Lifting Capacity
9,000 lbs Overall Length
230" with ramp or 194" without ramp
Overall Width
210"
Drive Thru Width
93" x 2
Overall Height

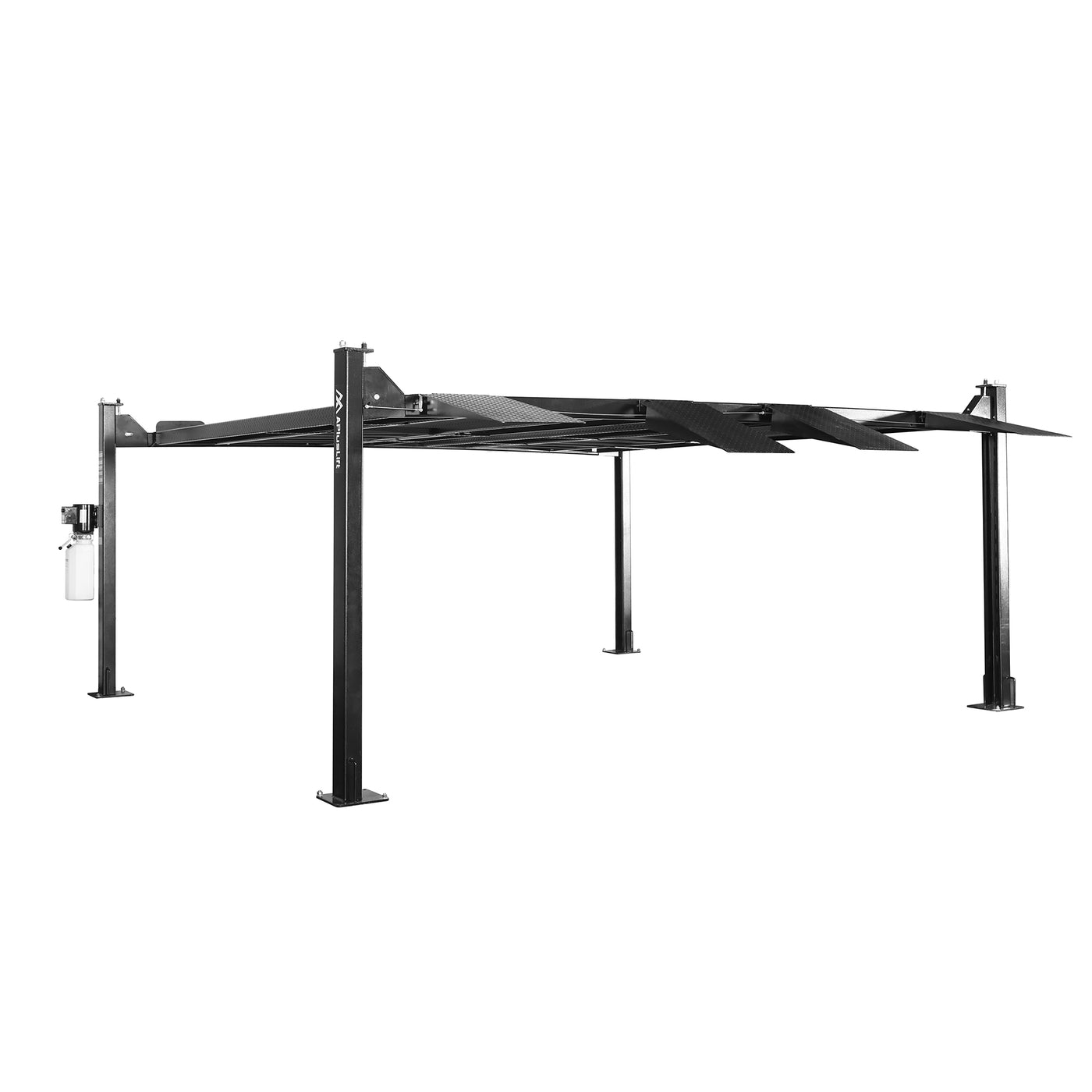

96"" Lifting Height 82" Clearance Under Runway 74" Runway Size 204 23/32"l x 20"w Width Between 4 Runways 37 3/8" - 19 11/16" - 37 3/8"
Approach Ramp size 35 36"L x 19"W Lifting Time 50 seconds Motor 110V Single Phase 1.5HP 10A (recommend a 30A breaker) Hydraulic Oil 3-5 gallons AW32/AW46 (not included) Concrete Thickness 4" 3000psi Shipping Weight 2,850 lbs Shipping package size 210"l x 22"w x 36"h -
WARRANTY
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
- 3-Year Structural Components Warranty
Free shipping in the US 48 contiguous states.
Do you ship to Alaska, Hawaii, Puerto Rico, and Canada?
Yes, we ship to Alaska, Hawaii, Puerto Rico, and Canada. However, there will be additional freight charges for these destinations. Canadian customers will also be responsible for paying taxes and duties. Please email us at info@alamoequipment.com, or call us at (817) 865-3707 to get started. Be sure to provide the model name and your zip code.
