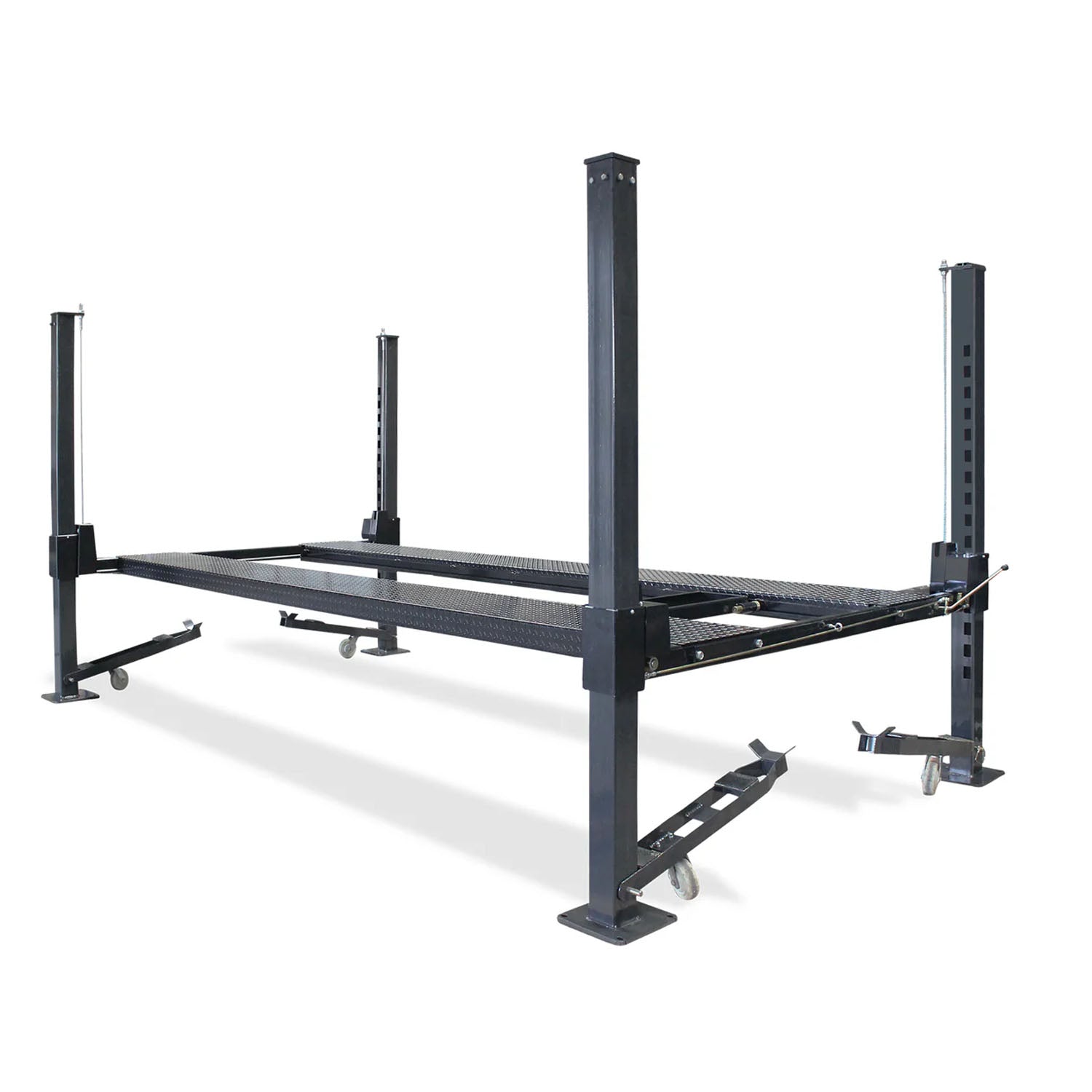

APlusLift 9000LB 4-Post Portable Parking Storage Service Car Lift #HW-D9XLT
Lead time:
-
DESCRIPTION
APlusLift 9000LB 4-Post Portable Parking Storage Service Car Lift - HW-D9XLT
APlusLift D9XLT 4-post car auto lift truck hoist is a portable parking storage lift with 9,000 LB Capacity. The design of the car lift model is time tested for 30 years. It is an extra long, extra wide, and extra tall car lift model. It is built with quality materials and good workmanship and is powder coated for superior corrosion resistance. The car lift uses a revolutionary high efficient 220V 3.5HP hydraulic power unit to make car lift operation much safer. The auto hoist is best for parking/storage/service use by homeowners or restoration shops.
APlusLift D9XLT 4-post car auto lift truck hoist package includes a caster kit with polyurethane wheels, a jack tray, and two removable approach ramps. The caster kit allows customers to move the lift around the garage easily and can be installed or removed in minutes. The jack tray allows customers to use a jack to lift one end of the vehicle. The drip trays prevent fluid from the top vehicle from dripping onto the bottom vehicle. Optional sliding jacks are available for purchase..
Free shipping to the lower 48 states with forklift (or similar) on-site, or free pickup at a nearby terminal. Car lifts require an on-site forklift (no liftgate). We strongly recommend against renting a forklift, as the expense is not reimbursable. Please see the shipping policy below for details regarding limited access, remote, and high-cost areas.
2 Post Lifts
- Industry leading 3 YEAR WARRANTY (a $499 value!)
- 9,000 LB Capacity
- Drive Through Width 98"; Lifting Height: 88 7/16"; Overall Dimensions 244 5/8"L x 112 13/16"W x 99 1/16"H

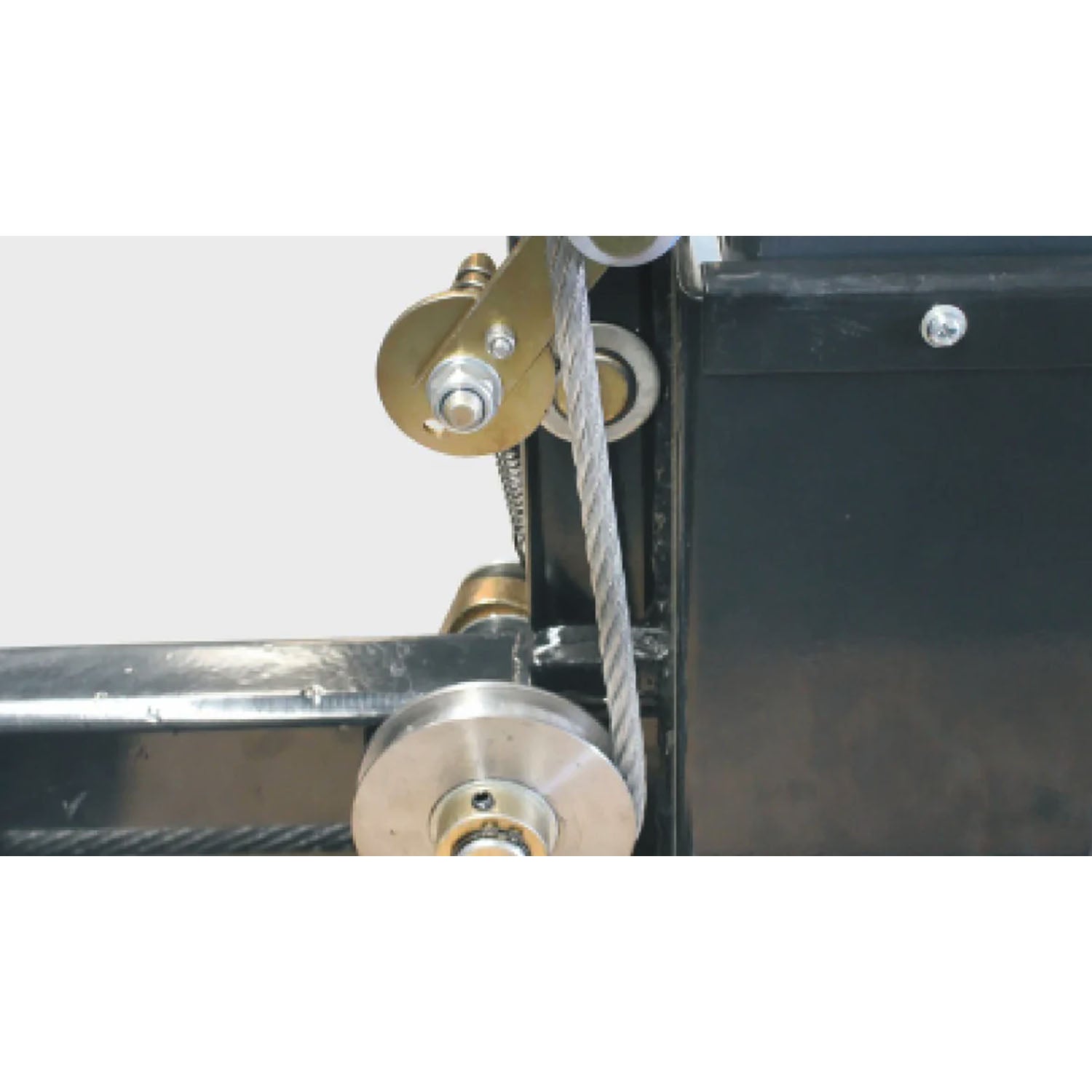

- Includes a Secondary Slack-cable Lock System to Prevent Falls in the Event of Cable Breakage.
- Free Caster Kit, Rolling Jack Tray, Drip Trays and Removable Approach Ramps.
- Designed against ALI Certified Lift Structure and Hydraulic System - Tested for 150% Dynamic Load Capacity and 150% Static Load Capacity
- Safer Operation with A Revolutionary High Efficient 220V 3HP Hydraulic Power Unit
- Powder Coated Finish with Superior Corrosion Resistance
Parts Included:
- Caster Kit
- Jack Tray
- 3 Drip Trays
- 2 Removable Approach Ramps
-
FEATURES + BENEFITS
- 3 Years (36 Months) Warranty
- Lifting Capacity: 9,000LB
- Usage: Parking/Storage/Service
- Powder Coated Finish with Superior Corrosion Resistance
- Boxed-steel columns
- The Beam Constructed from High-strength, Cold-drawn steel
- The Welded-steel Tread-plate Runways
- Secondary Slack-cable Lock System
-

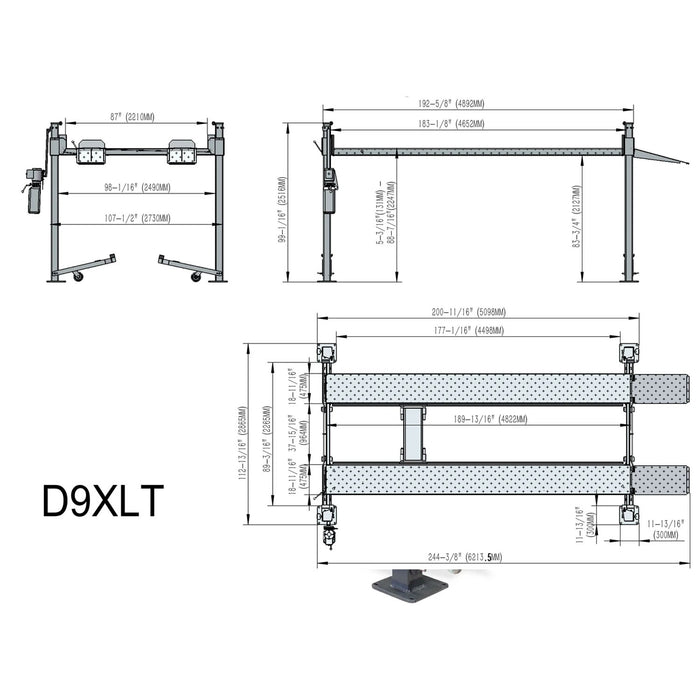

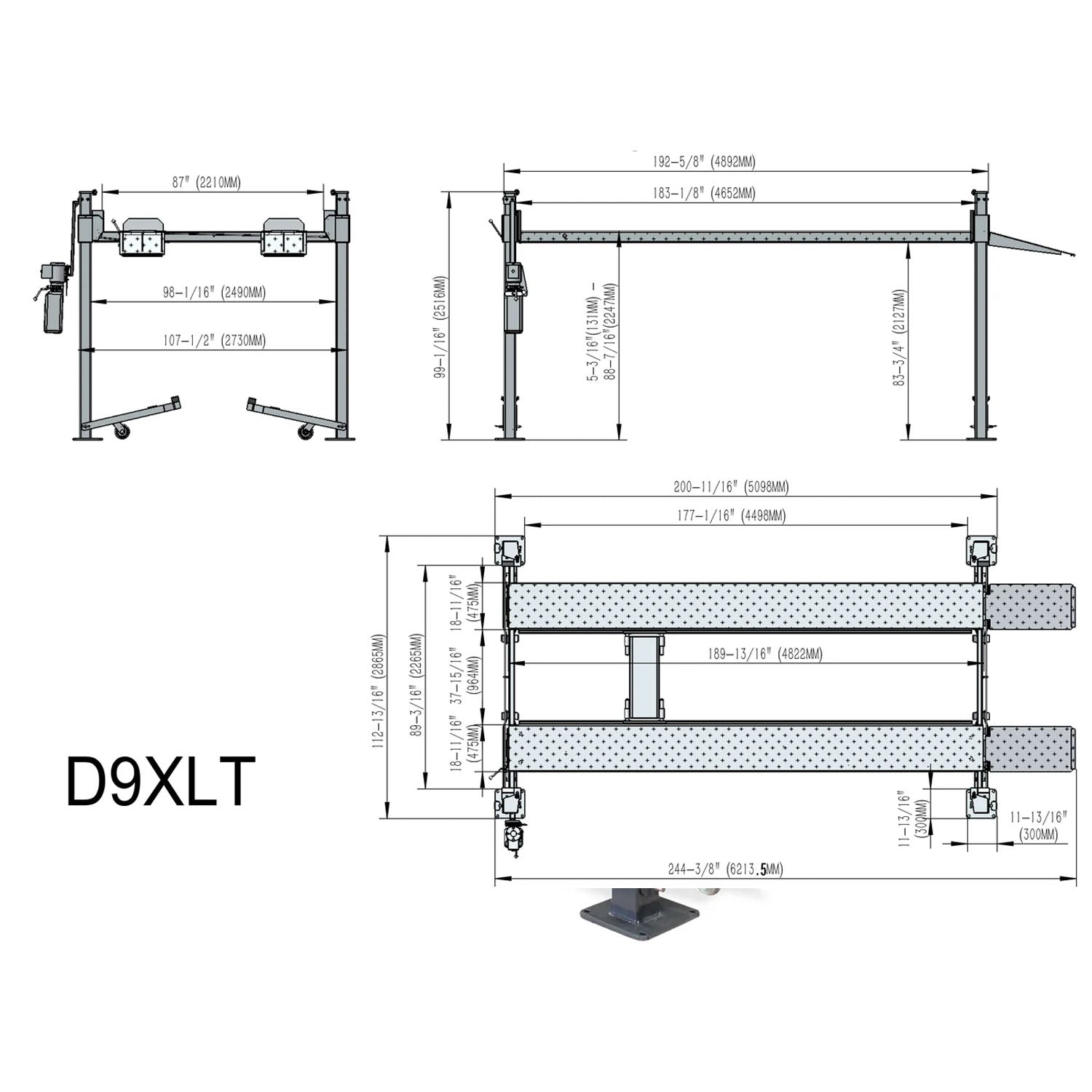

SPECIFICATIONS
Model HW-D9XLT
Style 4-post Warranty
3 years (36 months) Lifting Capacity
9,000 lbs Overall Length
244 5/8'"
Overall Width
112 13/16"
Drive Thru Width
98"
Overall Height
99 1/16" Lifting Height 88 7/16" Clearance Under Runway 83 3/4" Runway Size 189 13/16"l x 18 11/16"w Runway Between Runways 38 15/16"
Runway Gauge Steel 6 1/4" Column Cross Section 4 3/4"l x 4 3/4"w Removable Approach Ramp size 11 13/16"l x 18 11/16"w Lock Position 16 Positions Lifting Time 90 seconds Motor 220V Single Phase 2.5Kw or 3.5HP 10A
(recommended a 30A breaker)Power cord 10 ft with plug Hydraulic Oil 4.3-5 gallons AW32/AW46 (not included) Concrete Thickness 4" 3000psi Shipping Weight 2500 lbs Shipping package size 193"l x 23"w x 29"h -
WARRANTY
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
- 3-Year Structural Components Warranty
