APlusLift Falcon 2200lb Mobile Column Lift #MCL-220
Lead time:
-
DESCRIPTION
PRE-ORDER!
APluslift Falcon 22000 LB Mobile Column Lifting System
The product is expected to be delivered within 90-120 days from the date of order. We require a 10% down (non-refundable) and the remaining balance payment before we ship it to your location. Please email us if you are interested.
APlusLift Falcon MCL-220 Mobile Columns Lifting. It is constructed with quality materials and good workmanship. EVERY PART IS FULLY TESTED. The car lift is comparable to Known High-End Brands. Suggestions to improve our products and service are always welcome!
APlusLift Falcon MCL-180 Mobile Columns Lift includes:
- 3 Year (36 Months) Warranty!
- CE Certified Lift Structure and Hydraulic System - Tested for 115%
- Dynamic Load Capacity and 150% Static Load Capacity
- Each column has a maximum lifting capacity of 22,000 LB
- Multiple group combinations (up to 48 columns).
- Wired data communication.
- Double safety guaranteed by mechanical and hydraulic locking systems.
- Move Kit, Moving wheel, Rubber pad included for Easy Movement
-
FEATURES + BENEFITS
- CE Certified Lift Structure and Hydraulic System
- Third-party tested with a dynamic load capacity of 115%
- Third-party tested with a static load capacity of 150%
- Each column has a maximum lifting capacity of 22,000 LB
- Multiple group combinations (up to 48 columns).
- Wired data communication.
- Double safety guaranteed by mechanical and hydraulic locking systems.
- Synchronization is achieved using microchip technology in the control system.
- Touchscreen control, Real-time lifting height.
- Emergency stop button on each column.
- Any column in the group can become the control column using the access ID card
- Audible warning for the final travel distance of the lowering movement
- The lifting system is battery-powered. Each column has a charger rated AC110-240V-1Ph
- DC24V safe control voltage

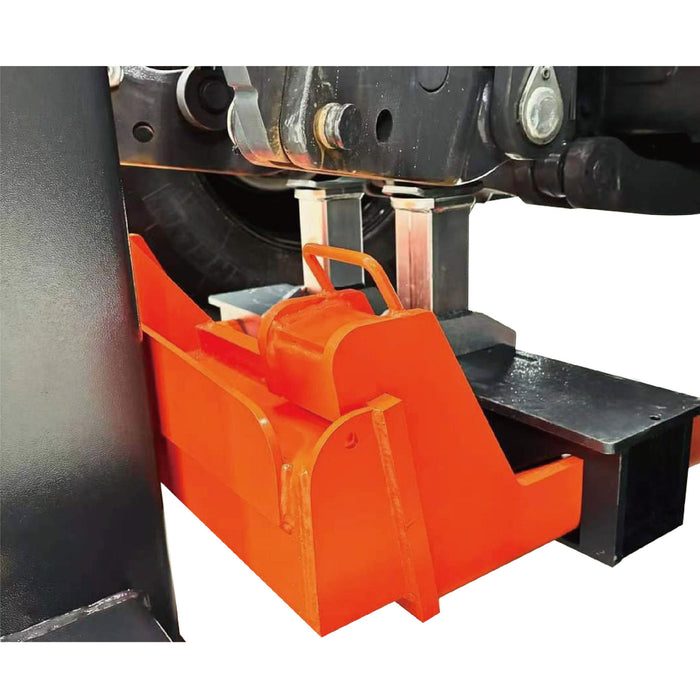

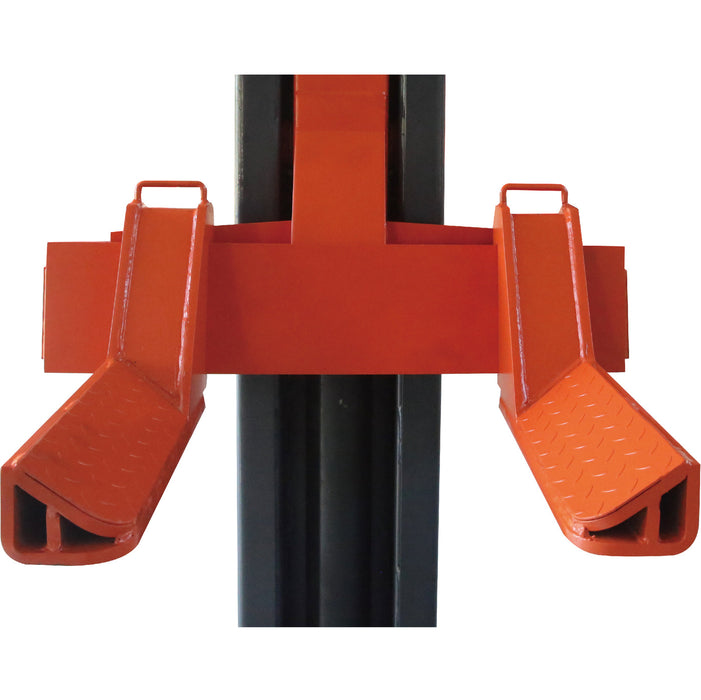

- Adjustable wheel pick-up fork accommodates tire diameters from 23 5/8" to 49 7/32"
-

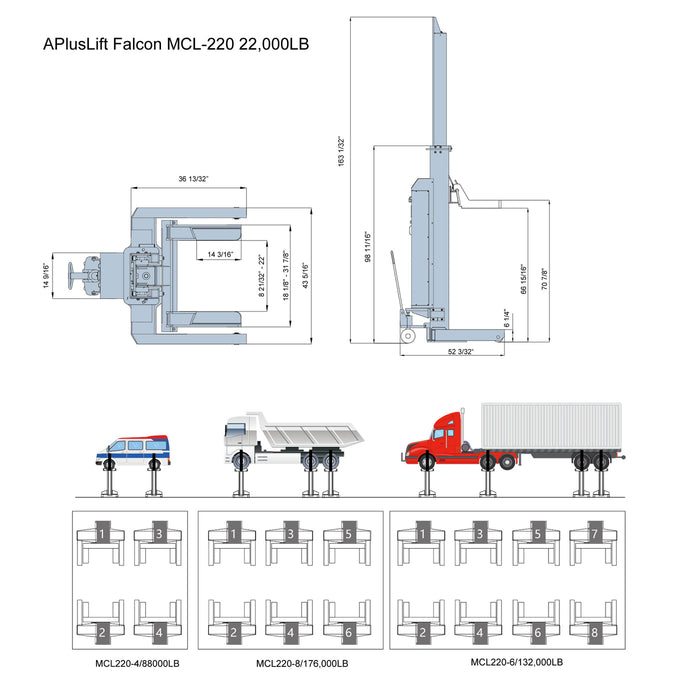

SPECIFICATIONS
Model MCL-220
Manual MCL-220 Manual Lifting Capacity 122,000 lbs per column Column steel thickness 5/16" Carriage steel thickness 5/16" Overall Height
163 1/32" Maximum Lift Height 70 7/8" Minimum Height of Adjustable Pads from Ground 6 1/4" Effective wireless communication distance 39 3/8" Maximum pressure at rated load 17MPa Unlocking system Electrical release Hydraulic fluid specifications and usage 3-5 gallons AW32/AW46 (Not Included) Motor voltage and power unit DC24V 3HP per column Battery 2x12V 100Ah Charger AC100-120V /200-240V Operating voltage DC24V Lifting time 85 seconds Descent time 75 seconds Operating temperature 0-60℃ Concrete Requirement 8" thick at 4000 psi reinforced with fiberglass or steel Shipping Weight 2,035 lbs per column Shipping Dimension 99"L x 46"W x 59"H per column -
WARRANTY
Warranty Information
- 3-Year (36 months) Warranty
- 3-Year (36 months) Warranty
Free shipping in the US 48 contiguous states.
Do you ship to Alaska, Hawaii, Puerto Rico, and Canada?
Yes, we ship to Alaska, Hawaii, Puerto Rico, and Canada. However, there will be additional freight charges for these destinations. Canadian customers will also be responsible for paying taxes and duties. Please email us at info@alamoequipment.com, or call us at (817) 865-3707 to get started. Be sure to provide the model name and your zip code.
