Stratus 4-Post 8k lbs 4 Post Mobile Compact Storage Parking Car Lift SAE-P48P

• DESCRIPTION
• FEATURE + BENEFITS
• SPECIFICATIONS
• WARRANTY

• DESCRIPTION

  Stratus SAE-P48P Boxed Steel Construction & Sleeve Containment 8,000 Lbs Capacity Manual Release 4 Post Mobile Compact Storage Parking Car Lift

  Upgrade your garage with the space-saving and versatile Stratus Boxed Steel Construction & Sleeve Containment 8,000-pound Capacity Manual Release 4-Post Mobile Compact Storage Parking Car Lift! Feast your eyes on this compact 4-post parking lift - a perfect home garage parking car lift. This mobile compact 4-post lift boasts an impressive 8,000-pound lifting capacity, accommodating a variety of vehicles, from compact cars to SUVs and trucks, making it perfect for your garage or workshop. But that's not all! What truly sets it apart are the innovative features. It is thoughtfully designed to be space-saving and compact. Features include a hassle-free lock mechanism, a relocatable power unit, cable failure protection, and built-in rails on the runway.



• FEATURES + BENEFITS

  • Boxed Steel Construction & Sleeve Containment
  • Hands-free lock release latch system
  • Relocatable Power Unit
  • Cable Failure Protection - the second safety device will be automatically locked while the primary safety locks are out of operation.

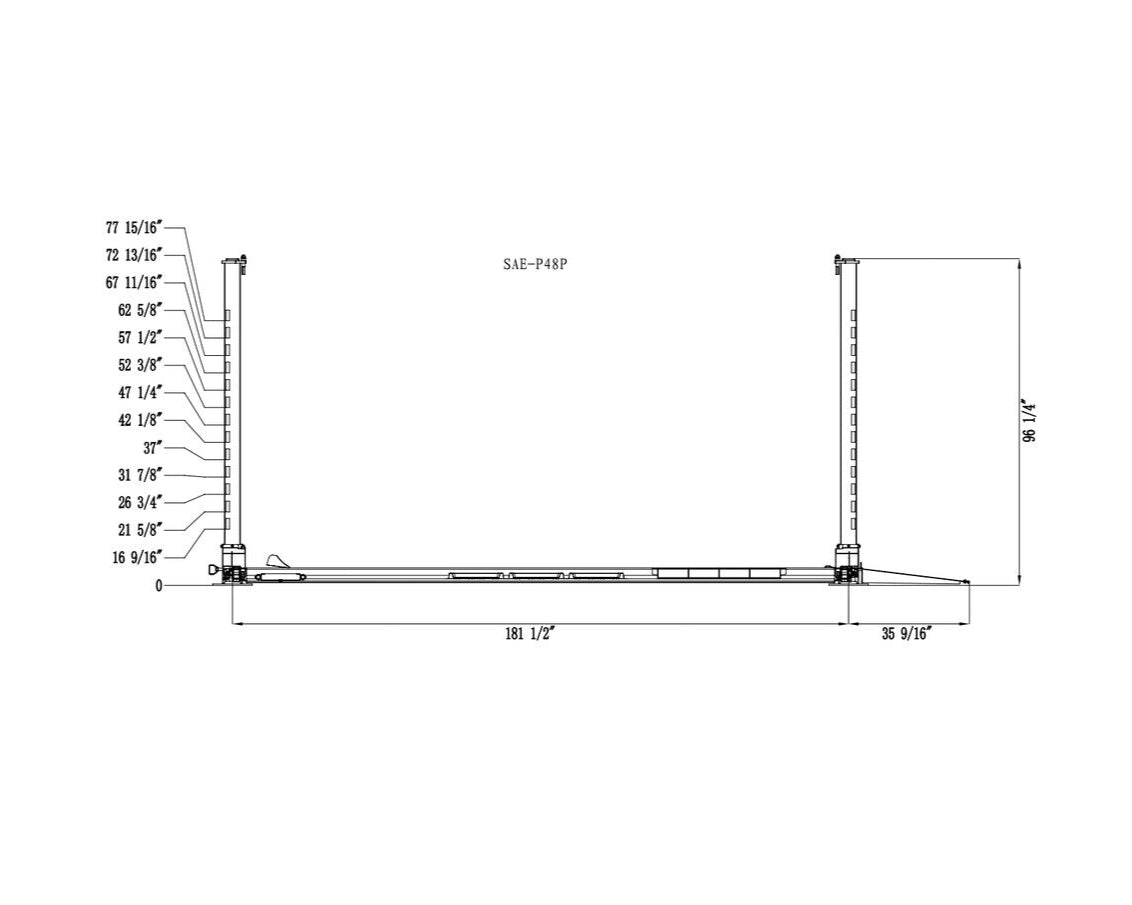

  • Multi-level locking positions (13 locking positions)
  • Heavy-Duty Aircraft Cable (Wire Rope)
  • Manual Safety Lock Release
  • Skid-proof diamond platform
  • Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
  • Powder coating finish: Granite Gray (RAL 7026) + Rein Orange (RAL 2004)

  Standard Accessories Include

  • Castor Kit (Set of 4)
  • Rolling Jack Tray
  • Drip Trays (3 pcs)
  • Wheel Chocks (2 pcs)
  • Ramps (2 pcs)
  • Wheel Stops (4 pcs)

  Optional Accessories

  • Aluminum Ramps
  • Rolling Bridge Jack
  • Aluminum Center Deck

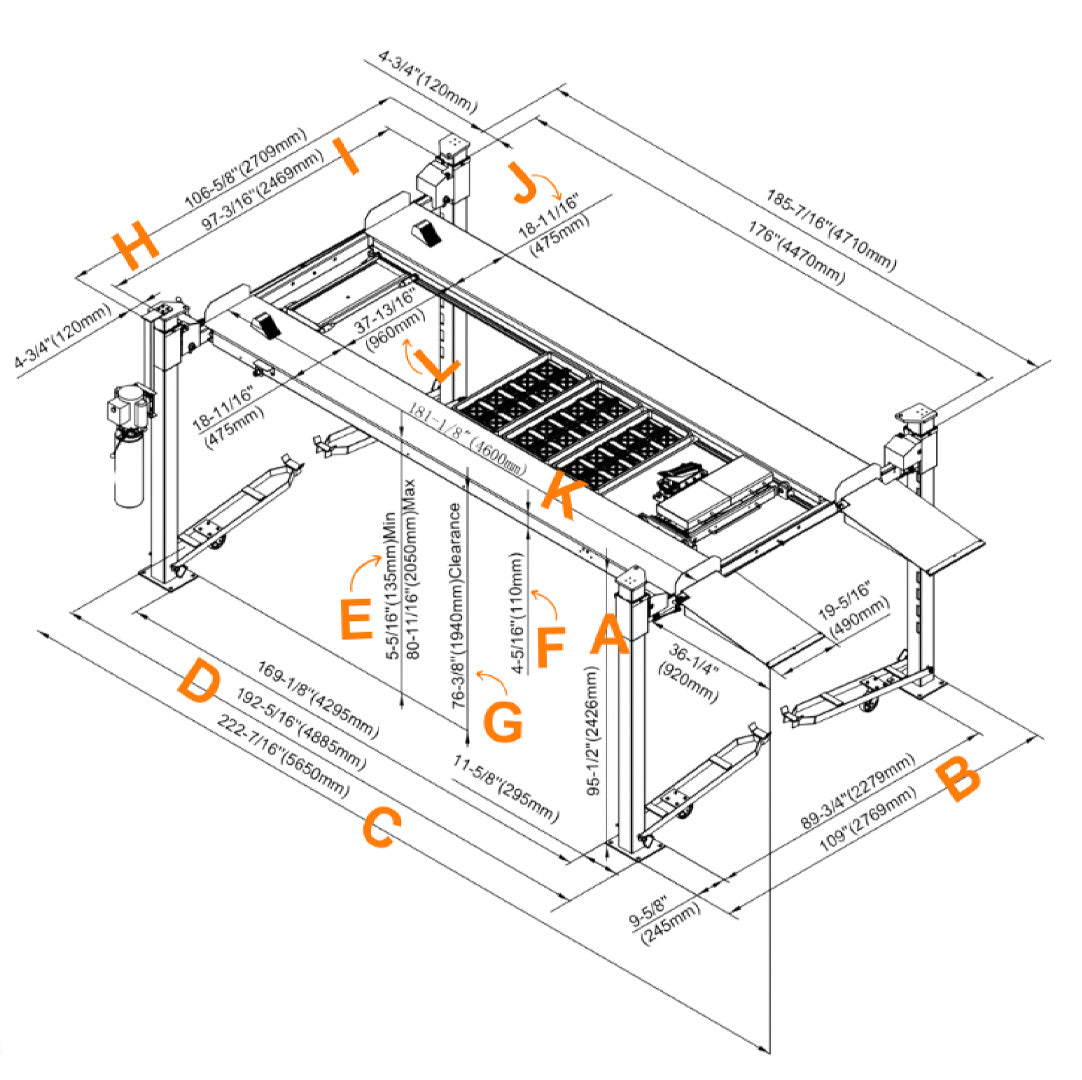

• SPECIFICATIONS

  Model	P48P
  Capacity	8,000 lbs
  Overall Height	95 1/2"(2426mm)
  Overall Width	109" (2769mm)
  Overall Length with Ramps	222 7/16" (5650mm)
  Overall Length without Ramps	192 5/16" (4885mm)
  Max Lifting Height	80 11/16" (2050mm)
  Min Lifting Height	5 5/16" (135mm)
  Clearance Height	76 3/8" (1940mm)
  Lifting Time	~ 50 sec
  Width Outside Columns	106 5/8" (2709mm)
  Width Inside Columns	97 3/16" (2469mm)
  Runway Width	18 11/16" (475mm)
  Runway Length	181 1/8" (4600mm)
  Width Between Runways	37 13/16" (960mm)
  Motor	3 HP, 1100V, 60 HZ, 1PH
  Oil	AW32 or AW46 / ~ 2.5 gal
  Breaker	30A
  Weight	1923 lbs
  Dimensions	182"L x 22"W x 29"H

• WARRANTY

  Warranty Information

  • 5-Year Structural Components Warranty

  • 3-year Hydraulic Components Warranty

  • 2-year Electrical Parts Warranty

  SAE-P48P Warranty SAE-P48P Brochure SAE-P48P Manual

Delivery Notice:

A $425 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME

Sales tax will be automatically waived for out of Texas Buyers

Lift will be shipped with free delivery to Residential Addresses, Commercial Address, Local Installer, and Truck Terminals

Buyer is responsible for unloading freight - freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer

Warranty Information

• 3-Year Structural Components Warranty

• 1-year Parts Warranty
