Stratus Floor Plate Open 9k lbs Single Point Manual Release 2-Post Car Lift SAE-C9P
SKU SAE-C9P
Lead time:
Original price
$4,822.00
-
Original price
$4,822.00
Original price
$4,822.00
$4,822.00
-
$4,822.00
Current price
$4,822.00
-
DESCRIPTION

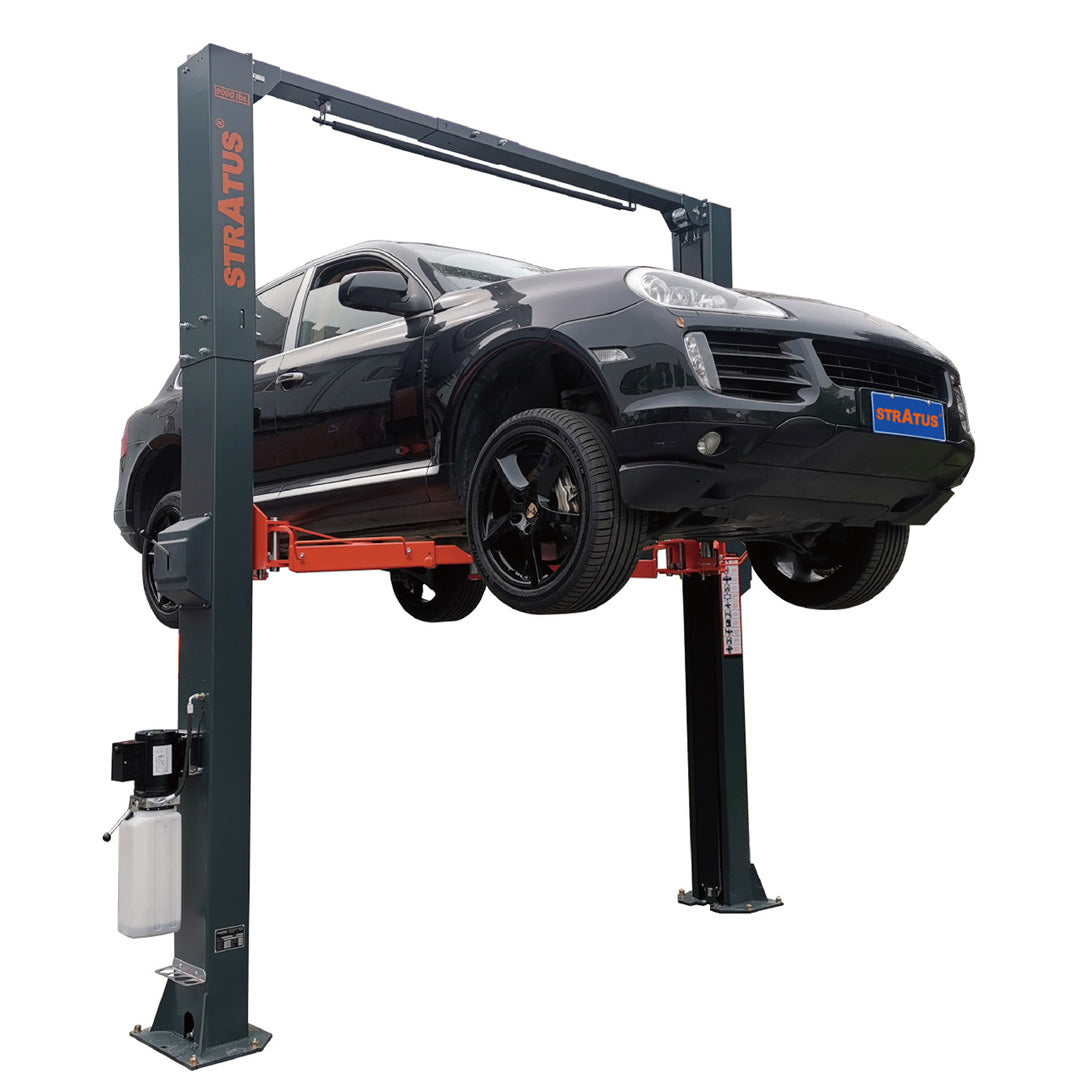

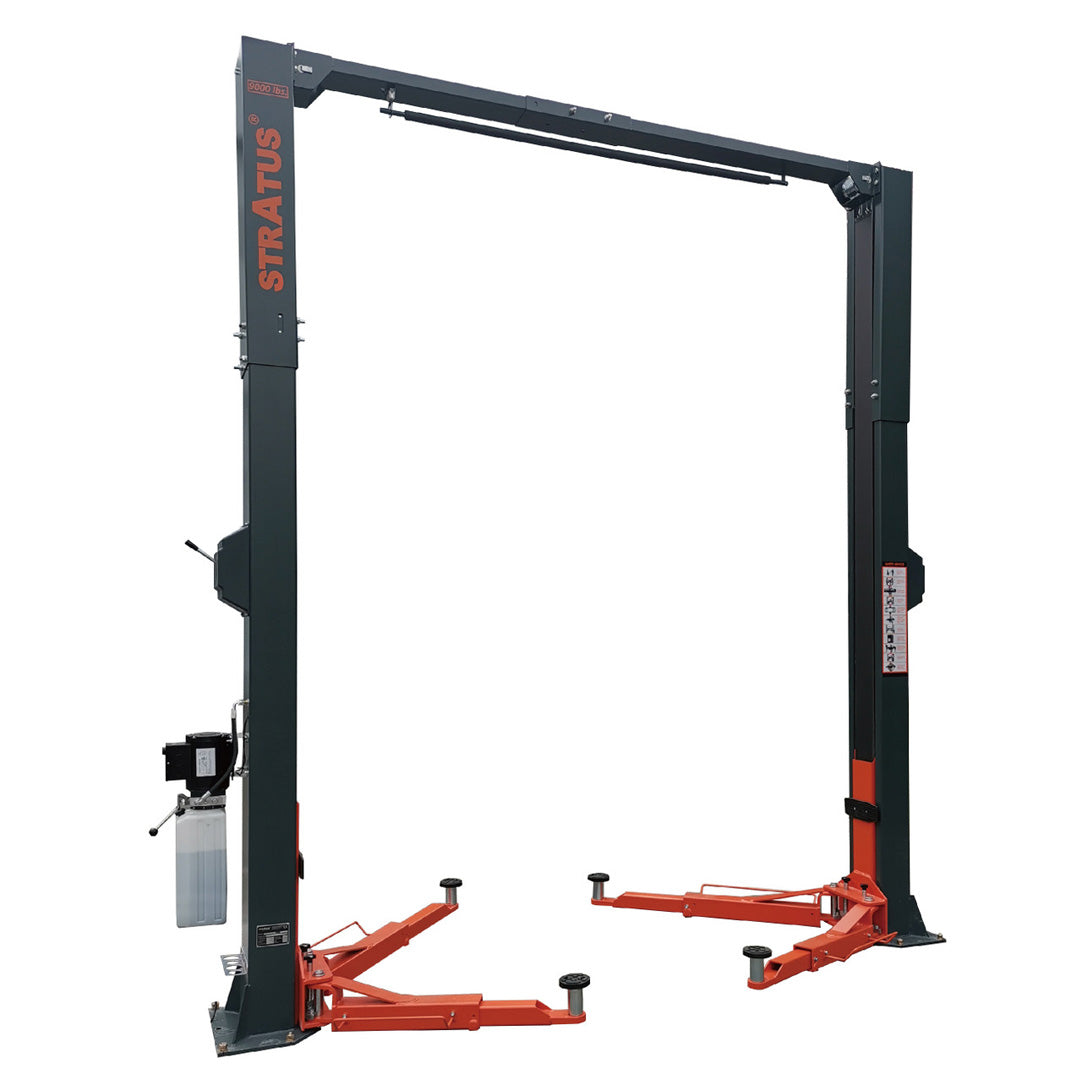

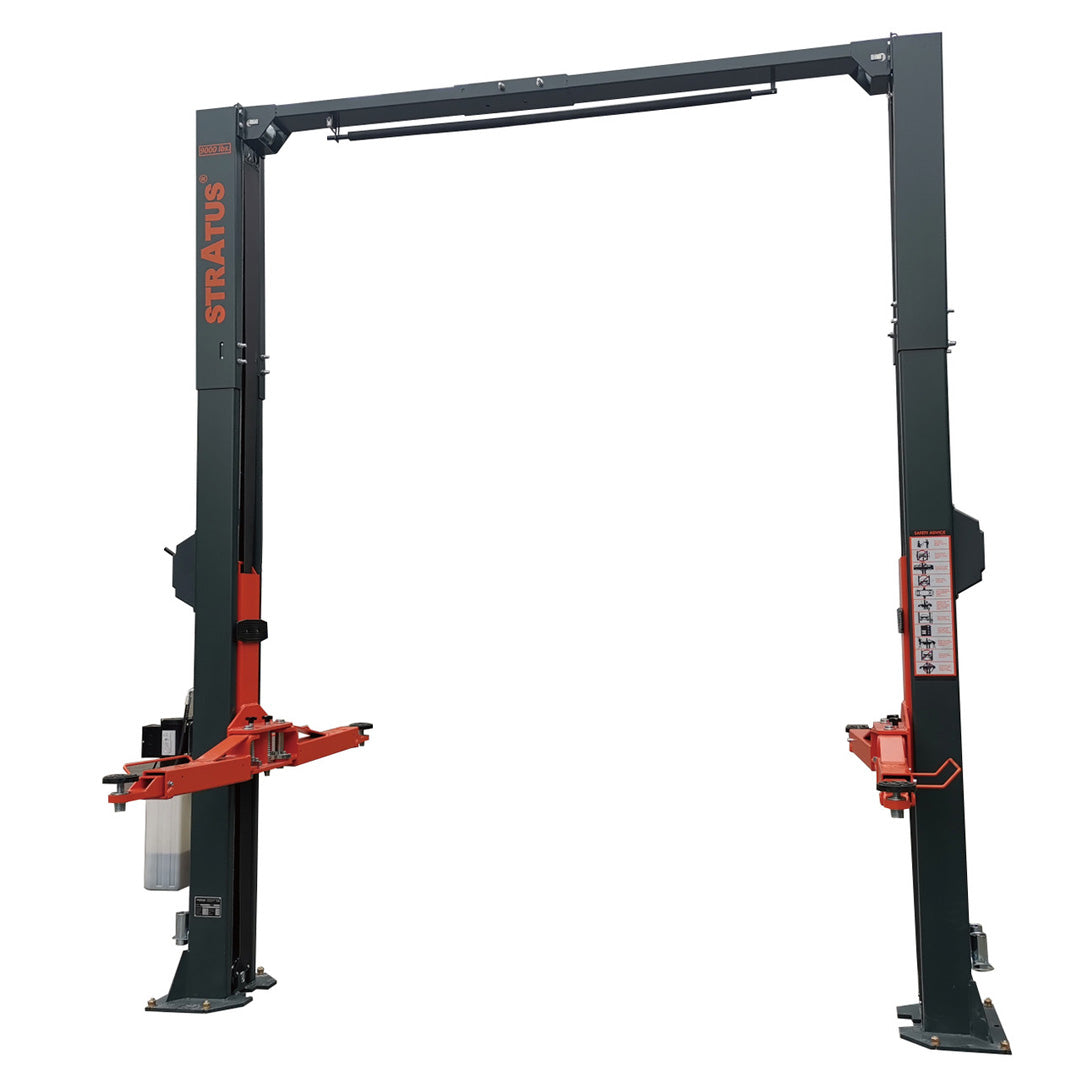

Stratus SAE-C9P Clear Floor Direct Drive 9,000 LBS Capacity Single Point Manual Release Vehicle Lift
Get under your vehicle easily using the Stratus Clear Floor Direct Drive Vehicle Lift. This neat gadget is a 2-post clear floor car lift and can comfortably handle an impressive 9,000 lbs capacity - ideal for large cars, trucks, and SUVs. Its clear floor design allows you to move freely underneath, and with its single-point manual release, you’re guaranteed efficient and convenient vehicle lifting like never before! Say hello to the perfect partner for your servicing needs – the SAE-C9P.
-
FEATURES + BENEFITS
- Overhead / Clear floor design

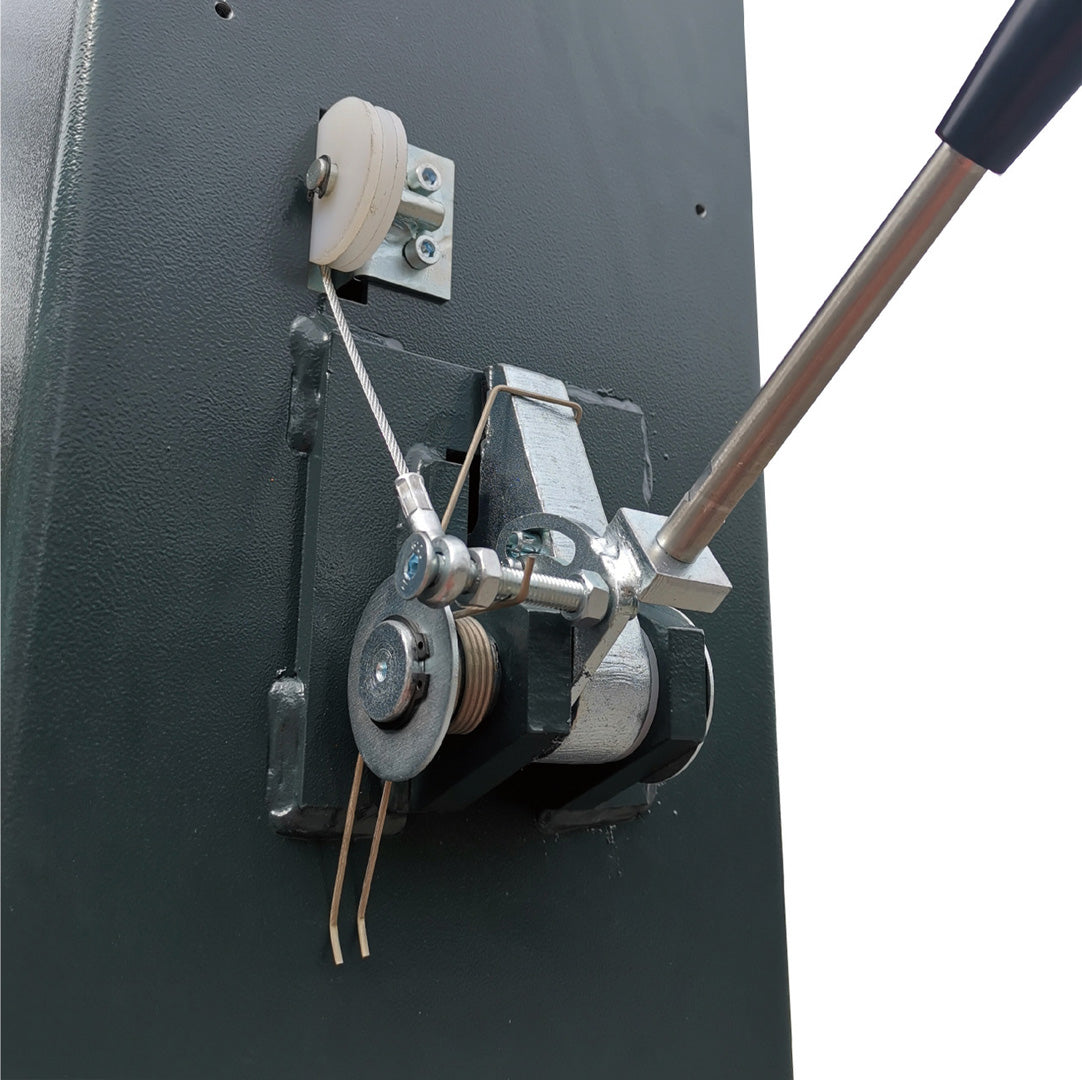

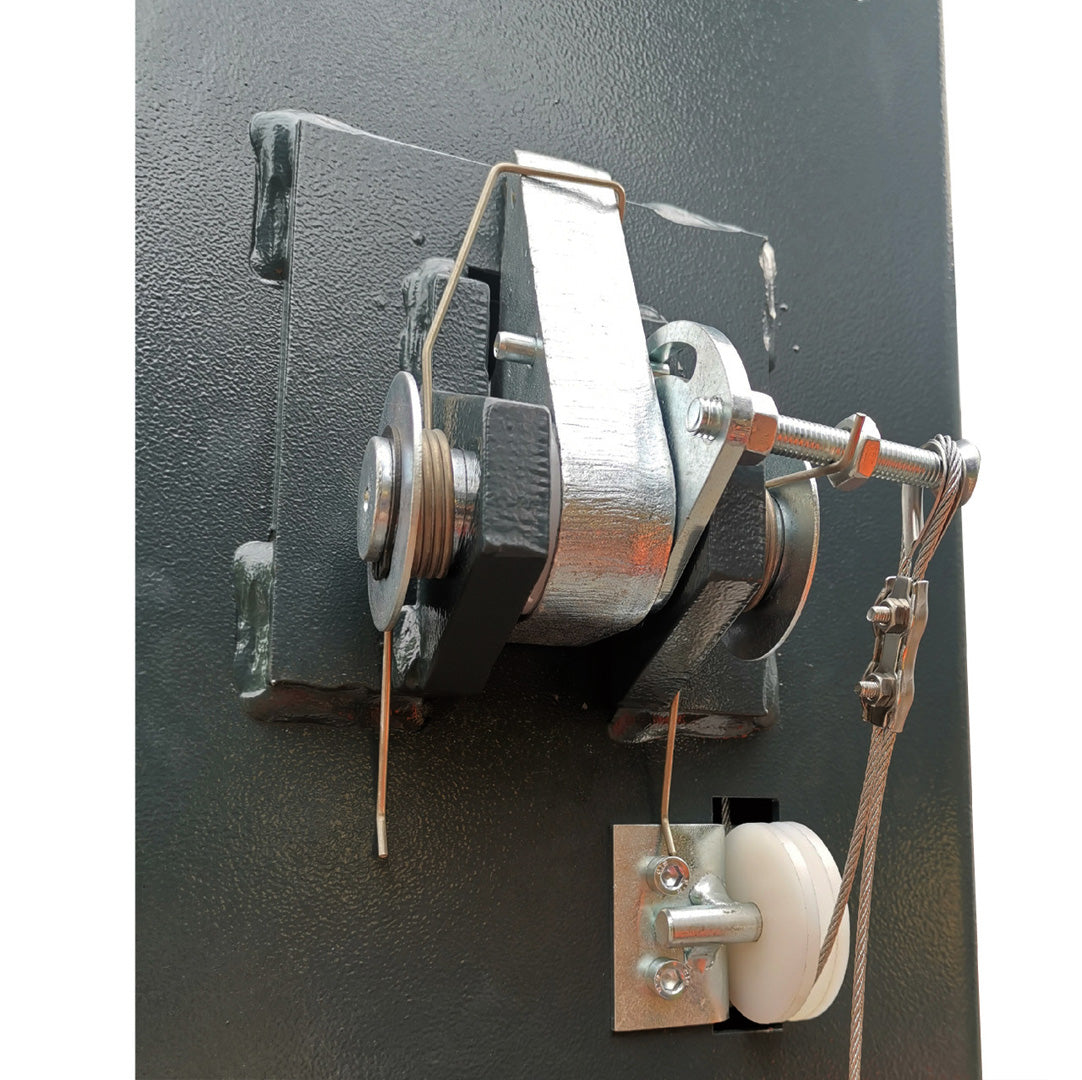

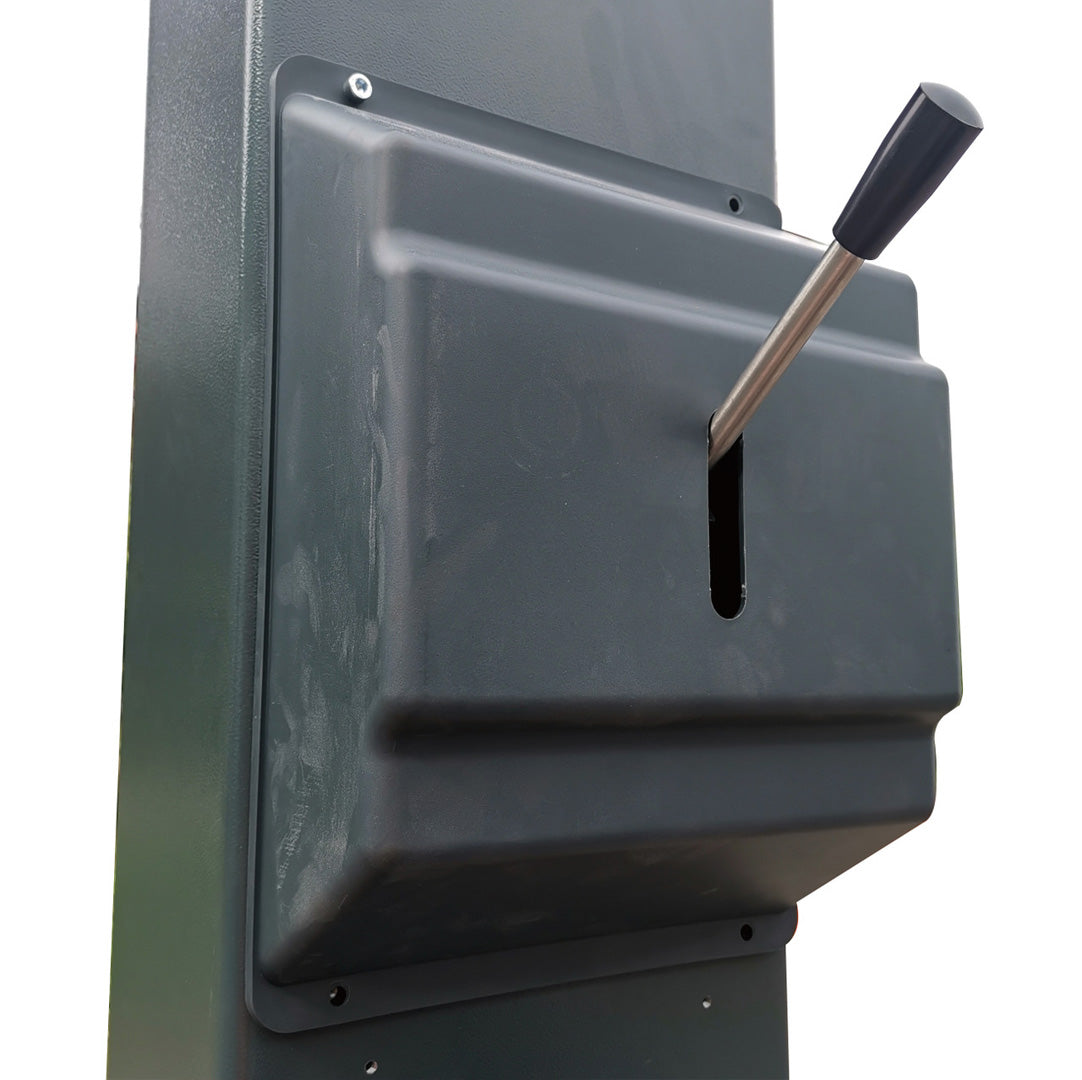

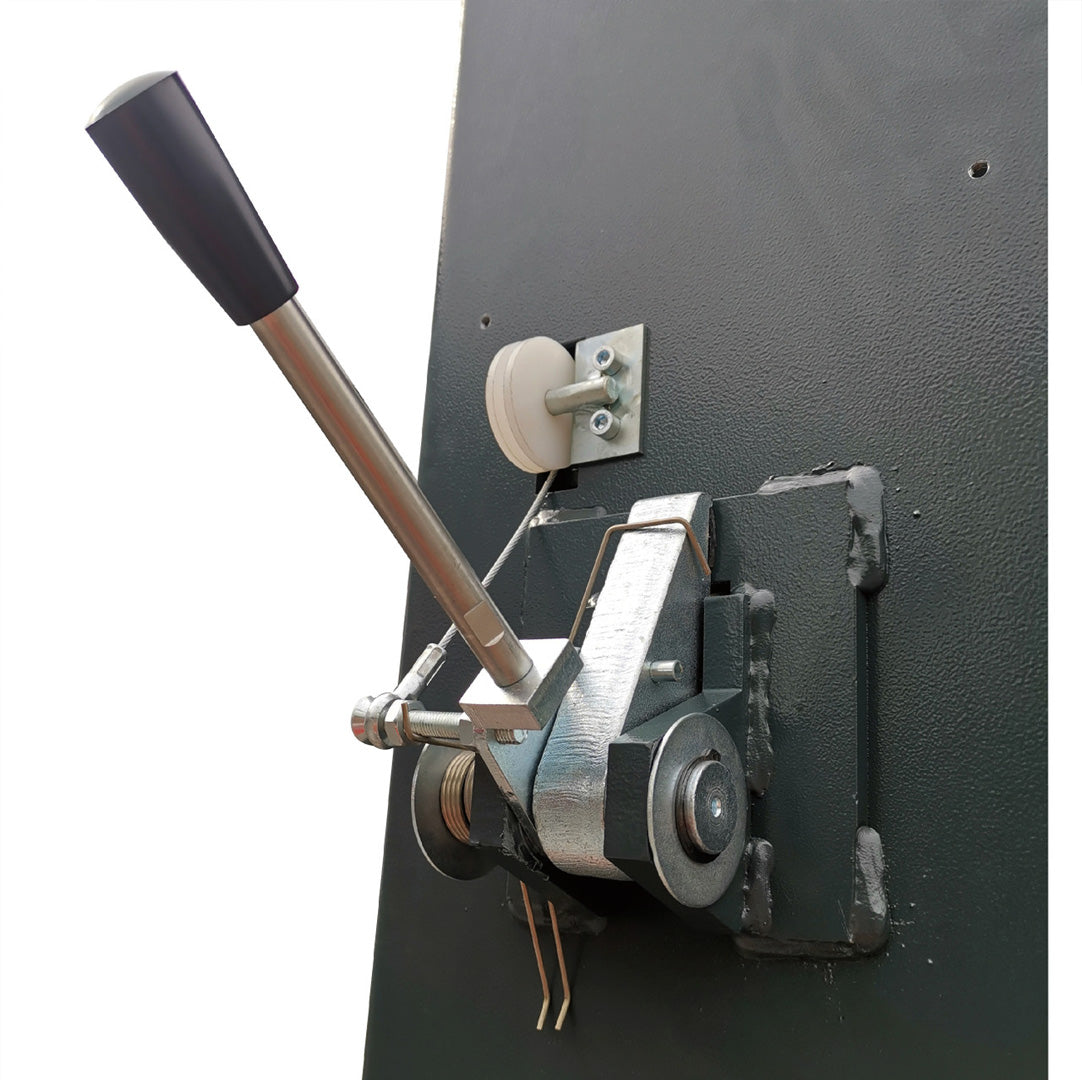

- Single-point manual release
- Direct Drive
- 2 top limiter switches
- Anti-surge valves
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Includes

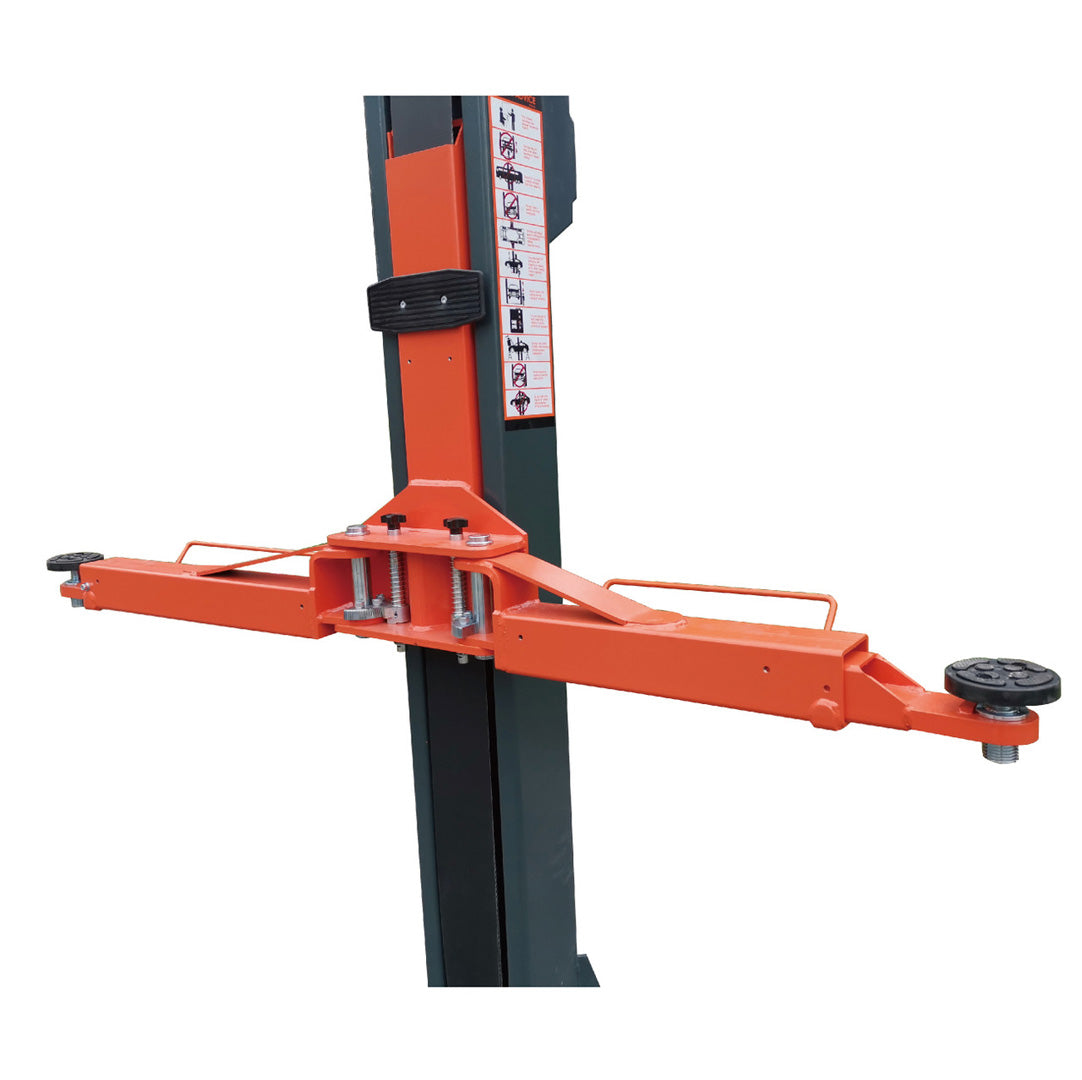

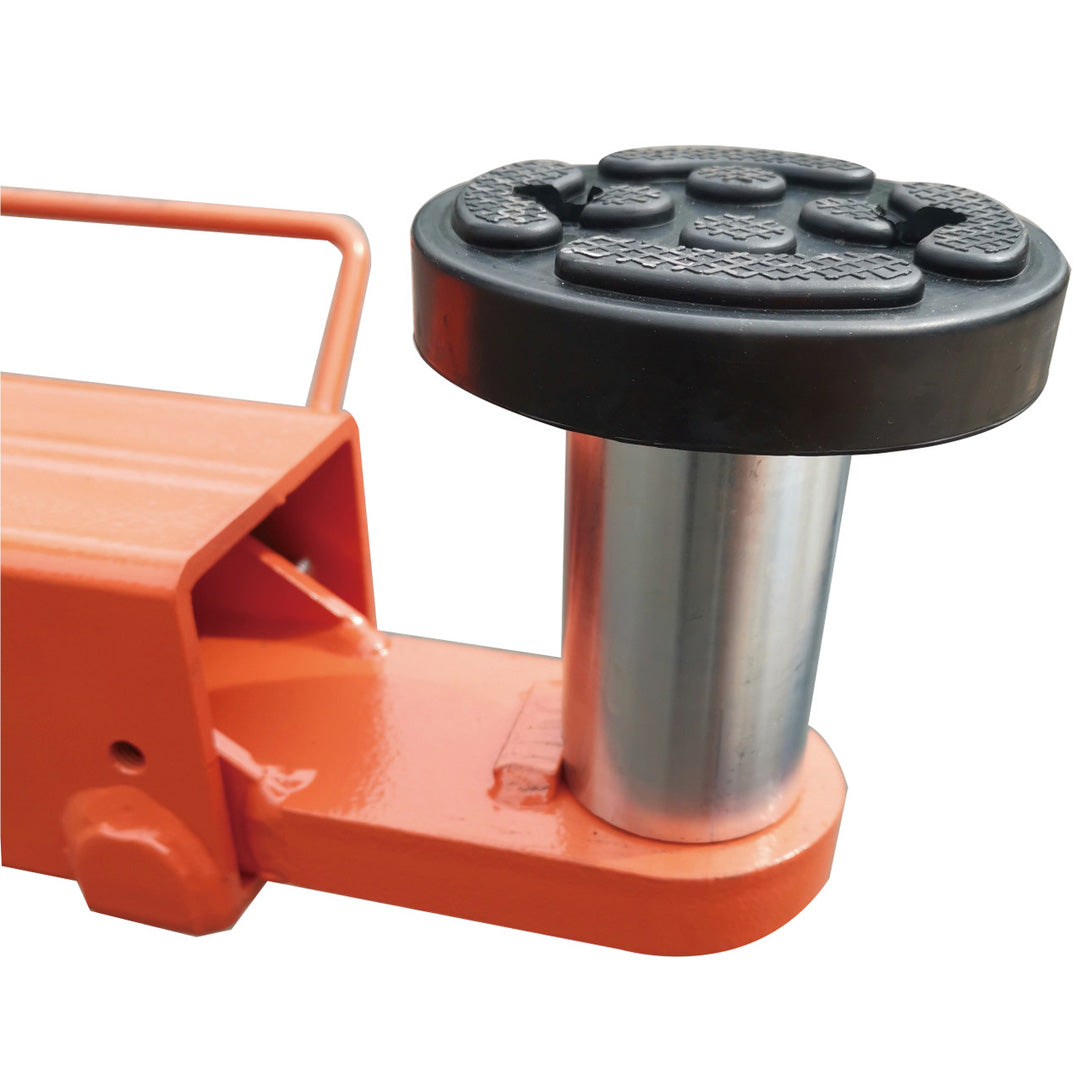

- 4pcs screw-up rubber pads - Peg 50mm (4")
- 4pcs 4" Truck Adapters - Peg 50mm (4")
-
SPECIFICATIONS

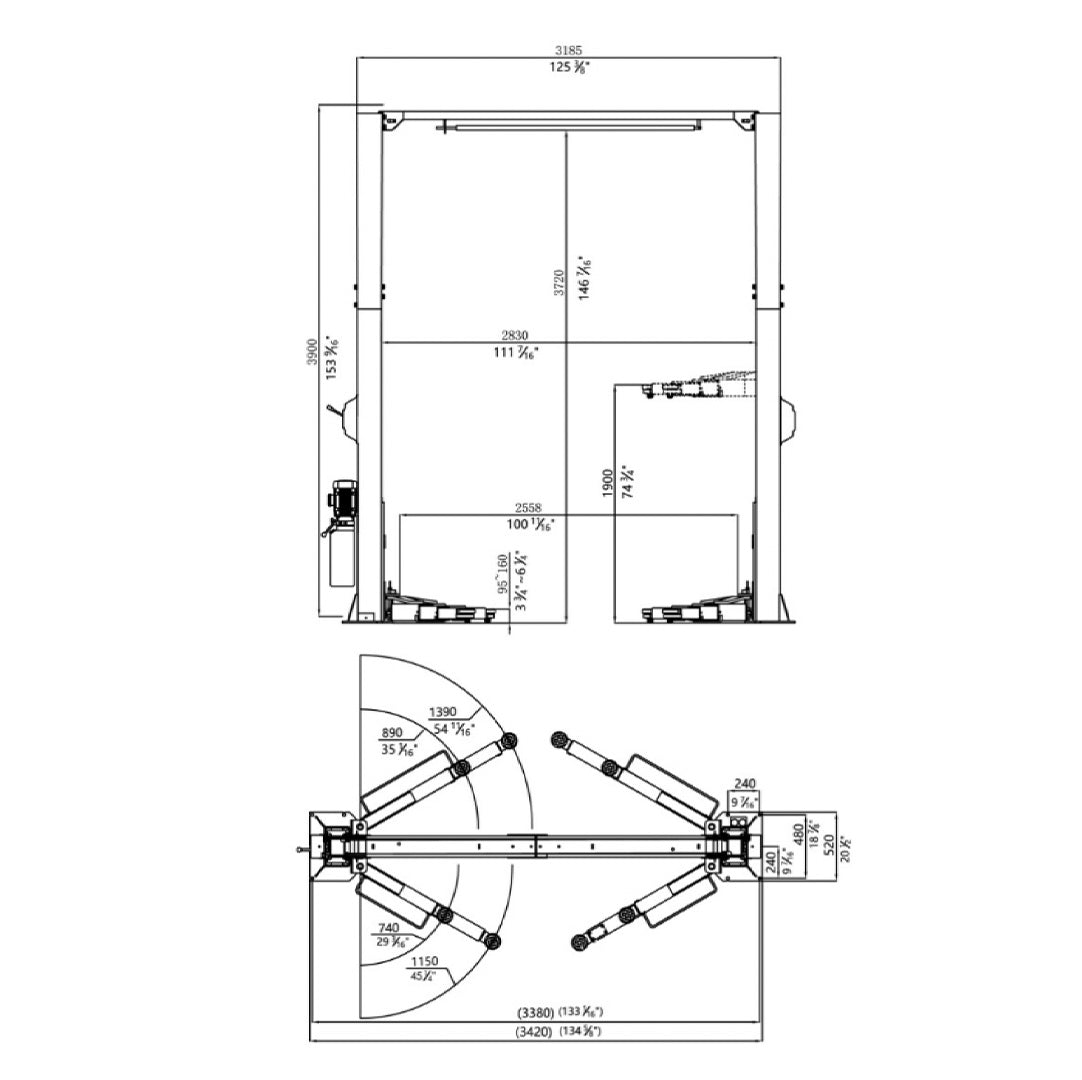

Model F9P Capacity 9,000 lbs Max Lifting Height with Adapters 78 7/8"(1900mm)
Min Lifting Height with Adapters
7 3/4" (197mm)
Max Lifting Height without Adapters
74 3/4" (1900mm)
Min Lifting Height without Adapters
3 3/4" (110mm)
Rise Time
~50 sec
Overall Height
153 9/16" (3900mm)
Overall Width
125 3/8" (3185mm)
Overall Length
134 5/8" (3420mm)
Inside Columns
111 5/8" (2830mm)
Drive Thru
100 11/16" (2558mm) Front Arm Reach Max 45 1/4" (1150mm) Front Arm Reach Min 29 3/16" (740mm)

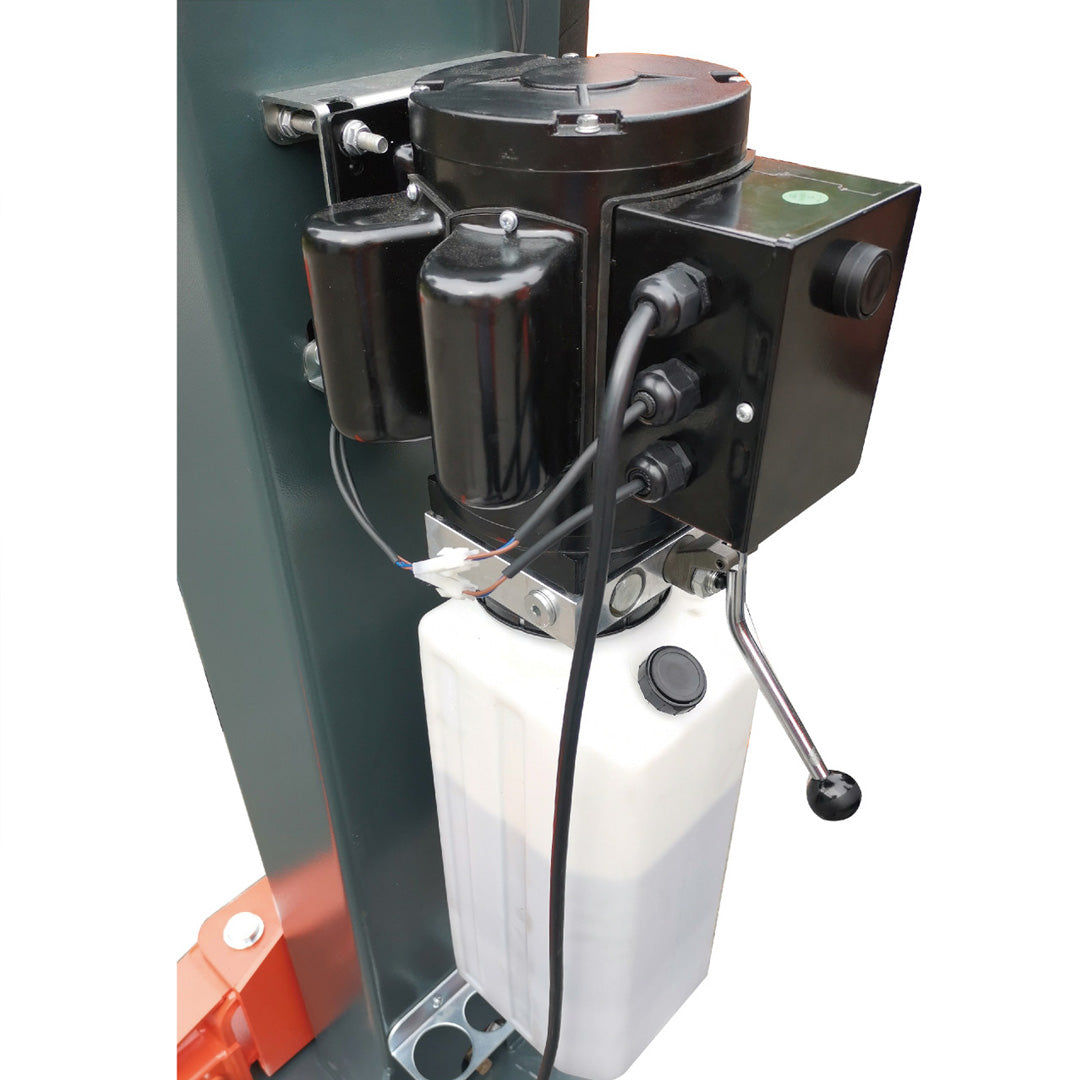

Rear Arm Reach Max 54 11/16" (1390mm) Rear Arm Reach Min 35 1/16" (890mm) Motor 3 HP, 220V, 60 HZ, 1PH Oil AW32 or AW46 Breaker 30A Weight 1433 lbs Dimensions 112"L x 23"W x 41"H Requirements 6" - 3000 psi -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
